Overview

Vibratory action and dynamic force provides excellent compaction in a compact size.

Units:
Drum Width 73.0 in 1854.0 mm Less
Weight 2138.0 lb 970.0 kg Less
Required Hydraulics Standard Flow Standard Flow Less
Overall Width 80.0 in 2032.0 mm Less
Height 25.0 in 634.0 mm Less
Length 40.0 in 1009.0 mm Less
Drum Diameter 25.0 in 634.0 mm Less
Required Hydraulic Flow 42-86 L/min (11-23 gpm) 42-86 L/min (11-23 gpm) Less
Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi) Less
Drum Frequency @ Max Flow 2,946 vibrations/minute 2,946 vibrations/minute Less
Drum Oscillation Tilt Range ± 15 degrees ± 15 degrees Less
Dynamic Force 11903.0 lb 5399.0 kg Less
Amplitude 0.043 in 1.09 mm Less
Motor Size 1.72 in3 28.0 cm3 Less
Drive Method Gear Motor - Direct Gear Motor - Direct Less

Application

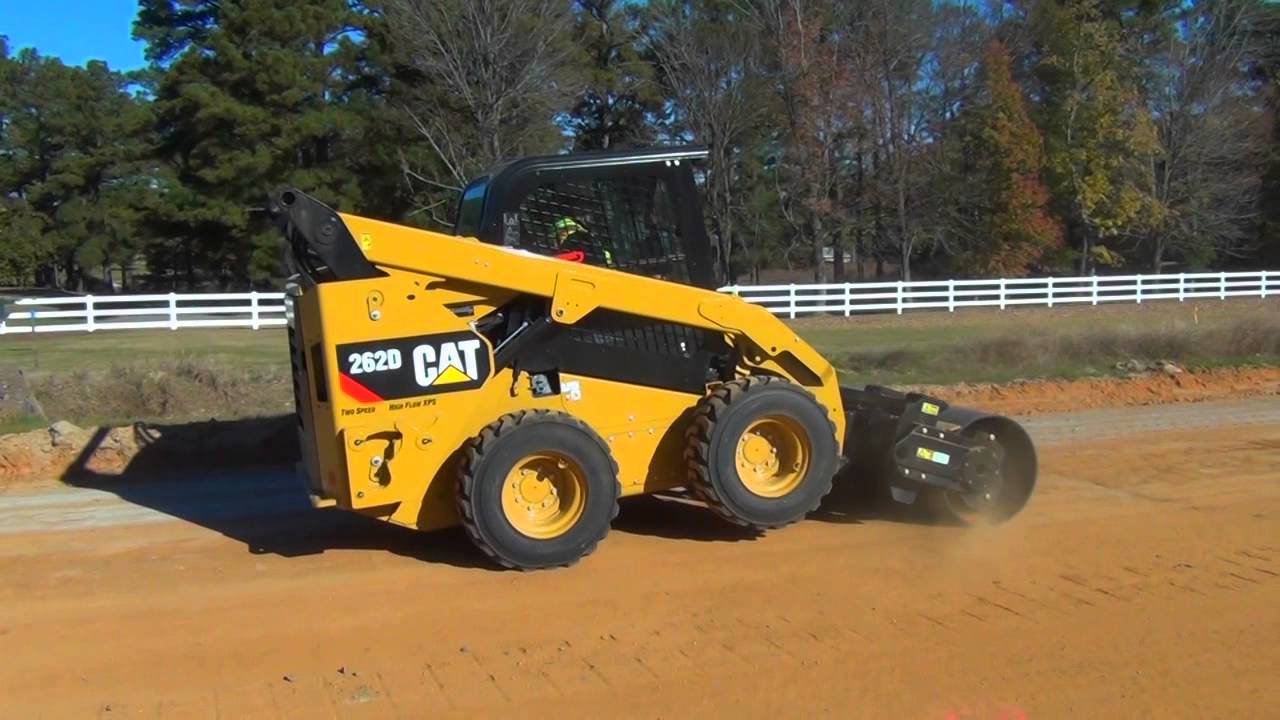

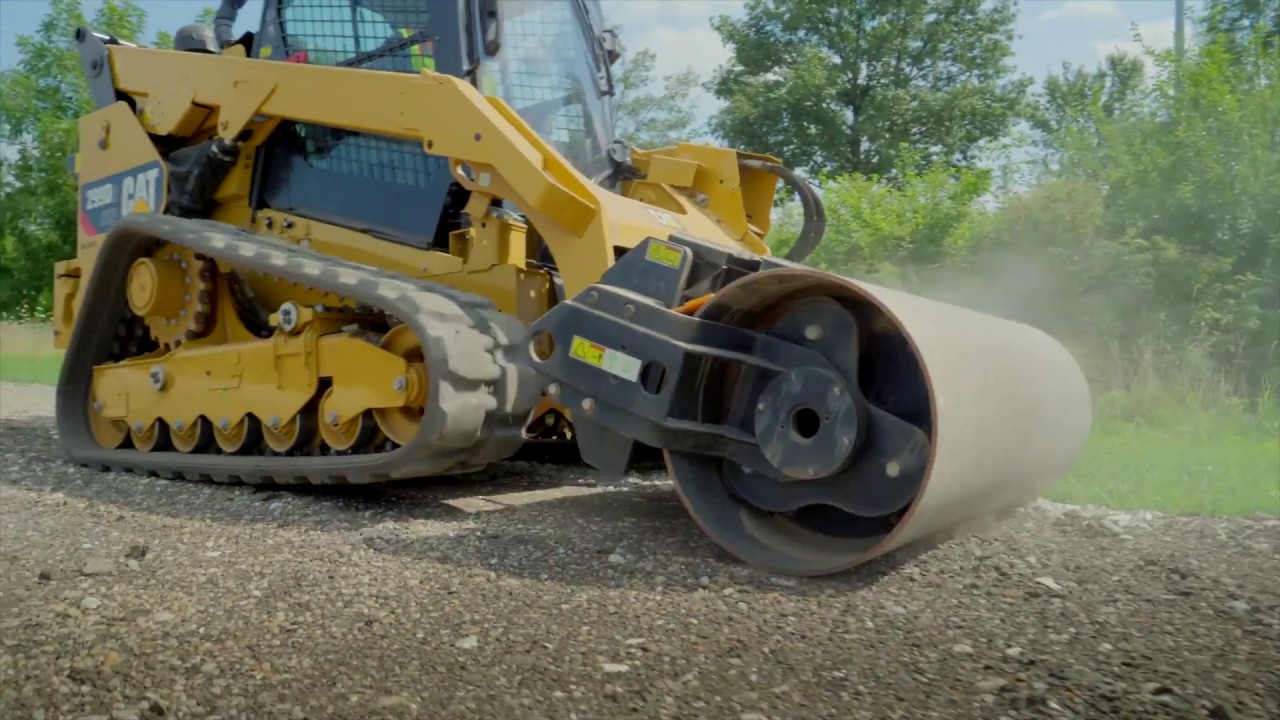

Used for compacting soil, sand or gravel prior to pouring concrete or laying asphalt surfaces. Also ideal for asphalt patch work.

Vibratory Pod Design

Caterpillar exclusive vibratory pod design delivers desired balance between frequency and amplitude to provide a superior matte finish.

Higher Compaction Forces

High compaction forces result in fewer passes for greater productivity.

Replaceable Rubber Mounts

Replaceable rubber mounts isolate vibration and enhance vibratory capabilities.

High Strength Steel Drums

Durable high-strength steel drums are roll formed and finish welded for a smoother surface and longer life.

Pivoting Interface

Pivoting interface allows the drum to oscillate +/-15 degrees and follow the contour of the ground.

Spring-Loaded Scraper Bar

Spring-loaded dual direction non-metallic scraper bar maintains constant pressure on drum to prevent material build up. Non-metallic design minimizes noise.
