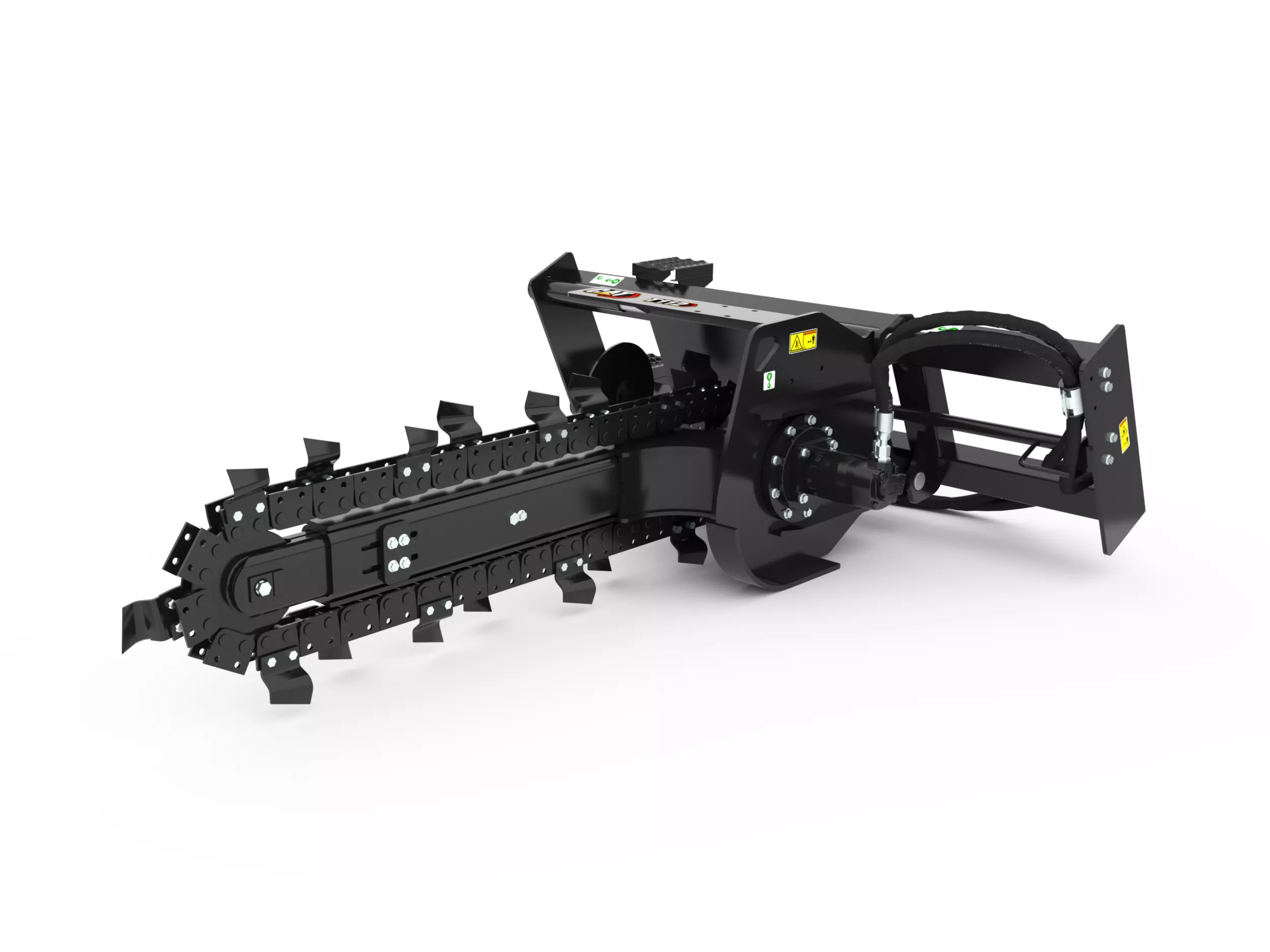

Designed for cutting narrow straight trenches in soil prior to laying electrical, telephone and cable lines, or water and gas pipe.
|Standard Boom Length||48.0 in 1219.0 mm||More Less|
|Cutting Width||6.0 in 152.0 mm||More Less|
|Chain Type||Standard Standard||More Less|
|Overall Width||75.0 in 1900.0 mm||More Less|
|Overall Length||106.5 in 2705.0 mm||More Less|
|Weight||1076.0 lb 488.1 kg||More Less|
|Overall Height||31.0 in 786.0 mm||More Less|
|Required Hydraulics||Standard Flow Standard Flow||More Less|
|Required Hydraulic Flow||42-86 L/min (11-23 gpm) 42-86 L/min (11-23 gpm)||More Less|
|Optimal Hydraulic Pressure||145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi)||More Less|
|Motor Displacement||24.0 in3 394.0 cm3||More Less|
|Drive Shaft Torque||1068.0 lb·ft 1447.0 N·m||More Less|
|Drive Shaft Speed @ max. flow||203 rpm 203 rpm||More Less|
|Side Shift Travel||22.0 in 559.0 mm||More Less|
|Maximum Auger Clearance||21.0 in 534.0 mm||More Less|
|Spoil Auger Diameter||18.0 in 457.0 mm||More Less|
|Chain Pull @ max. pressure||2661.0 lb 1207.0 kg||More Less|
|Chain Speed @ max. flow||508.5 ft/min 155.0 m/min||More Less|
|Optional Cutting Widths||203, 254, 305 mm (8, 10, 12 in) 203, 254, 305 mm (8, 10, 12 in)||More Less|
Designed for cutting narrow, straight trenches in the soil prior to laying electrical, telephone and cable lines, or water and gas pipe.
Direct drive system features a variable speed, bi-directional, gerotor style motor that delivers optimal chain speed, chain pull and torque for maximum trenching performance in a broad range of soil types.
Durable, double standard anti-back flex chain eliminates chain backlash and ensures teeth are positioned at the most efficient angle for smooth cutting and longer tooth life.
Hard-faced, tungsten carbide steel cupped teeth deliver long life in many soil conditions. Teeth are spaced for optimum digging perfomance in most soil types.
Hydraulic or manual side-shift provides close trenching flexibility near structures or obstructions. Hydraulic side-shift, standard on the T15B (optional on T6B and T9B) is controlled from operator’s compartment using the standard flow auxiliary hydraulic circuit selector control.
Large diameter bolt-on spoil auger improves loose soil removal from trenching area and allows for quick, easy removal and servicing.
Optional chain types and cutting widths are available for specific soil, digging requirements and trench widths. These chain types include Standard, Combo, Terminator, and Rockfrost.
Optional bolt-on crumber bar with shoe improves soil removal to provide cleaner trench. Shoes available in size range to accommodate trench width.
