Overview

Cat® Pickup Brooms collect dirt and debris from a variety of surfaces.

Units:
Overall Width 90.0 in 2295.0 mm Less
Sweeping Width 72.0 in 1829.0 mm Less
Brush Diameter 26.0 in 660.0 mm Less
Required Hydraulics Standard Flow Standard Flow Less
Height 34.0 in 872.0 mm Less
Length 72.0 in 1837.0 mm Less
Weight 1258.0 lb 570.0 kg Less
Required Hydraulic Flow 42-86 L/min (11-23 gpm) 42-86 L/min (11-23 gpm) Less
Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi) Less
Motor Displacement (per rev) 25.0 in3 405.0 cm3 Less
Brush Speed @ Max Flow 199 rpm 199 rpm Less
Hopper Capacity 17.4 ft3 0.49 m3 Less
Gutter Brush Weight 90.0 lb 41.0 kg Less
Drive Method Direct Drive Direct Drive Less

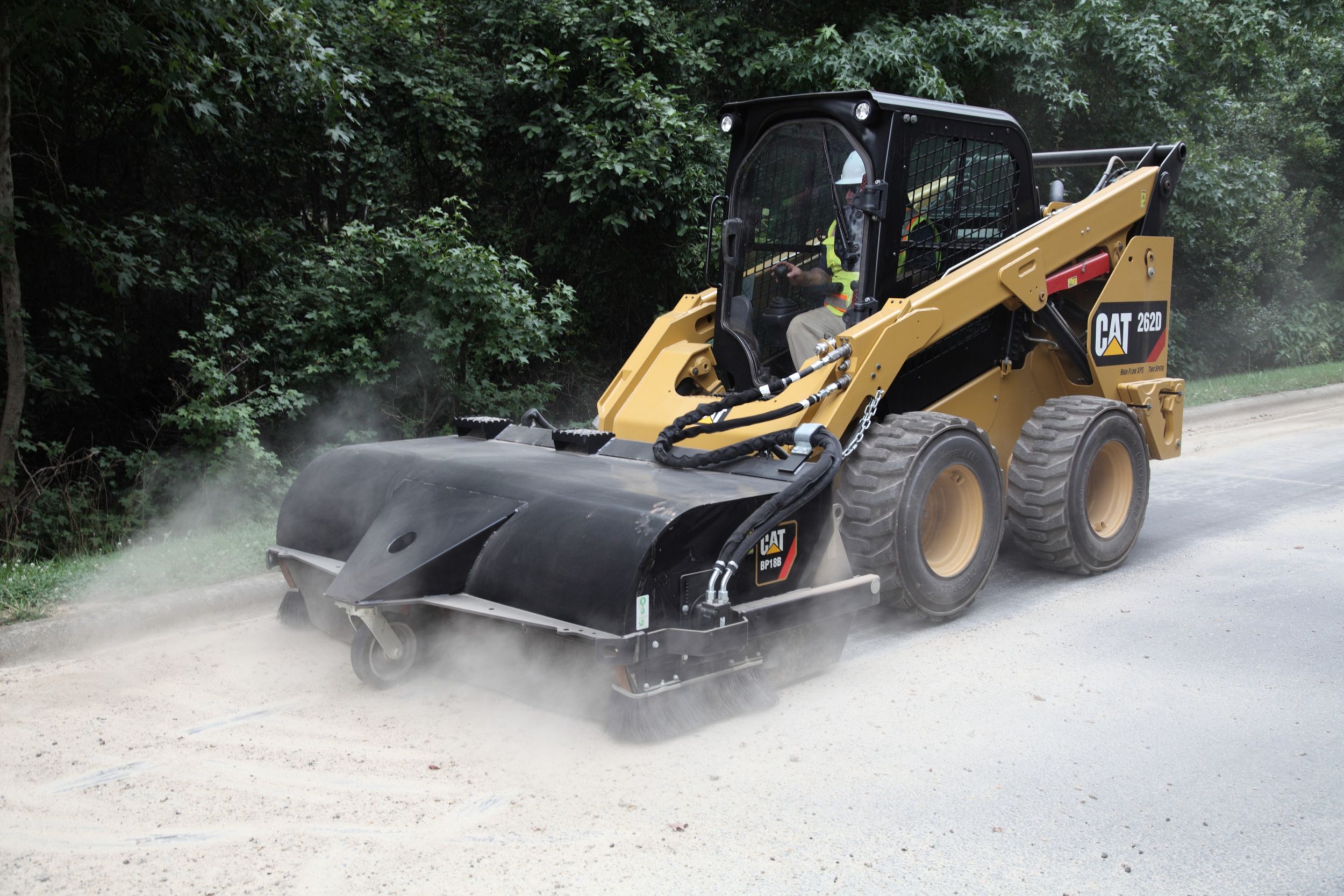

Application

Ideal for cleaning and removing dirt, rock, snow and other debris from streets, parking lots, driveways, sidewalks and factory floors.

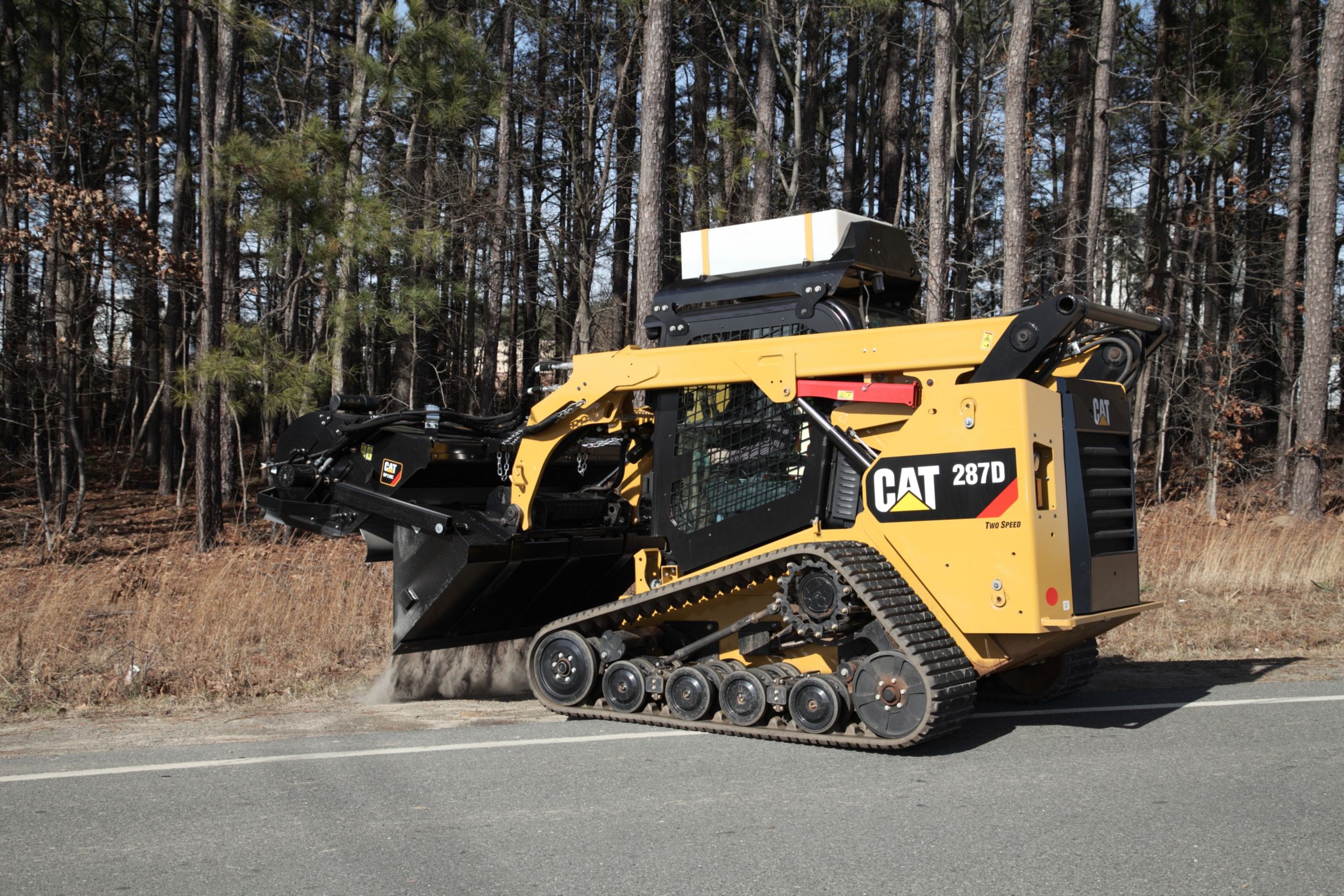

Large Hopper Capacity

Large hopper capacity allows greater productivity with longer sweeping cycles. Wide bucket opening permits fast, efficient dumping.

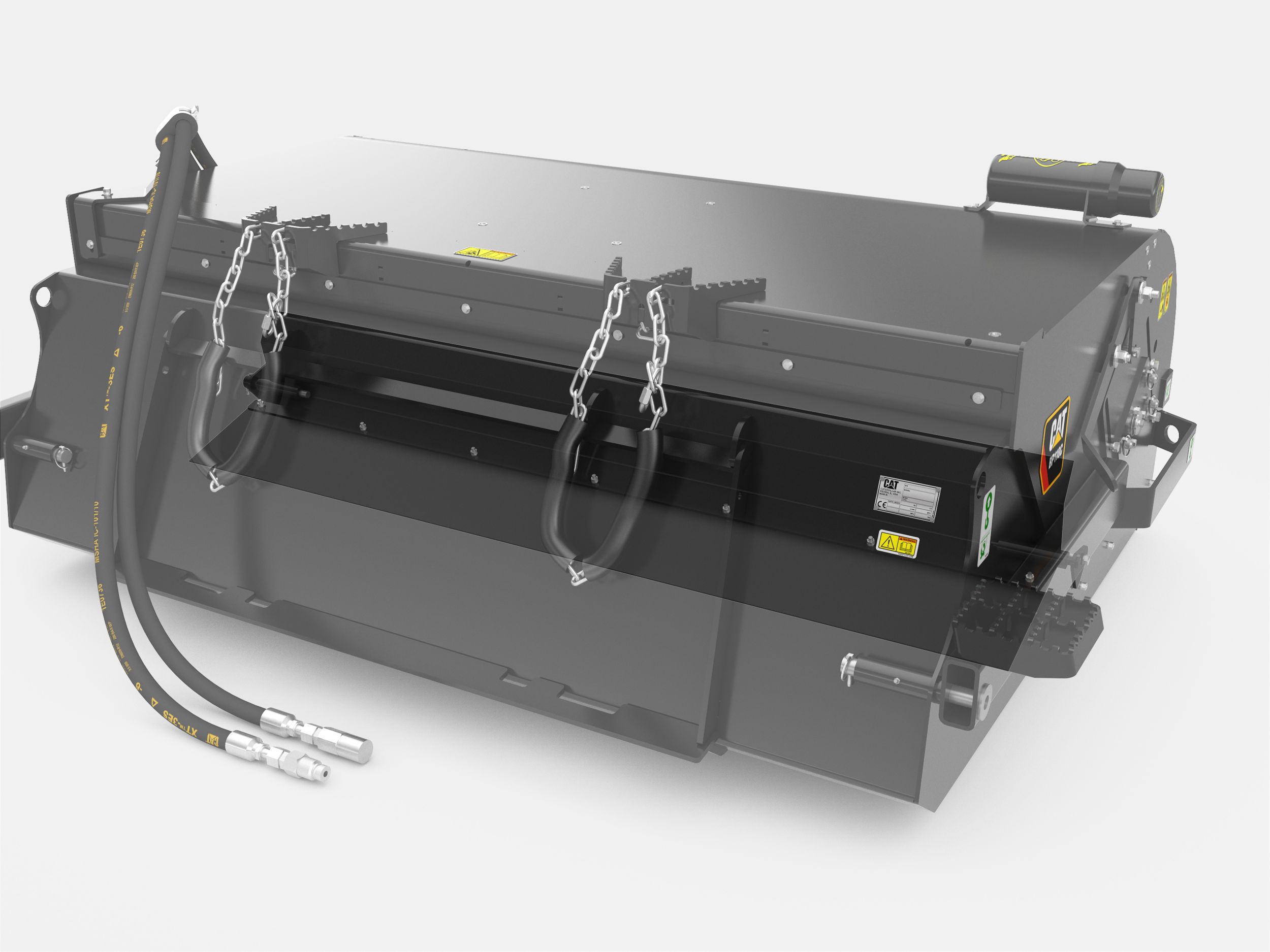

Adjustable Volumizer

Adjustable volumizer allows more material retention in hopper, giving operator more sweeps before stopping to empty material.

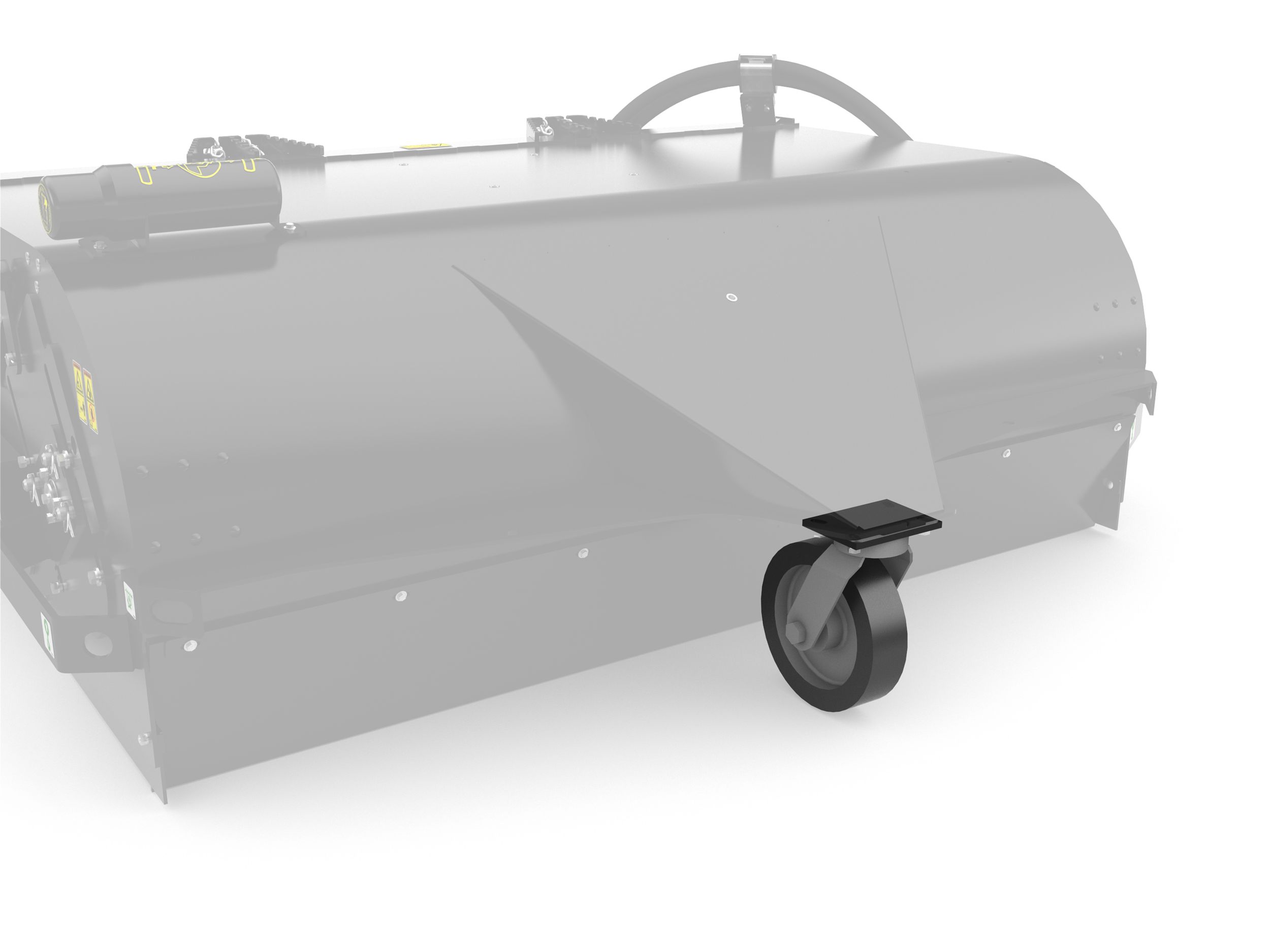

Guide Wheel

Heavy-duty low profile pneumatic guide wheel supports the hood during sweeping.

Optional Gutter Brush

Optional all-steel wire gutter brush mounted on the left or right side of the broom assists in removing material from gutters and pavement edges.

Optional Dust Control

An optional water sprinkler kit is available which helps reduce the amount of airborne dust during sweeping operations.

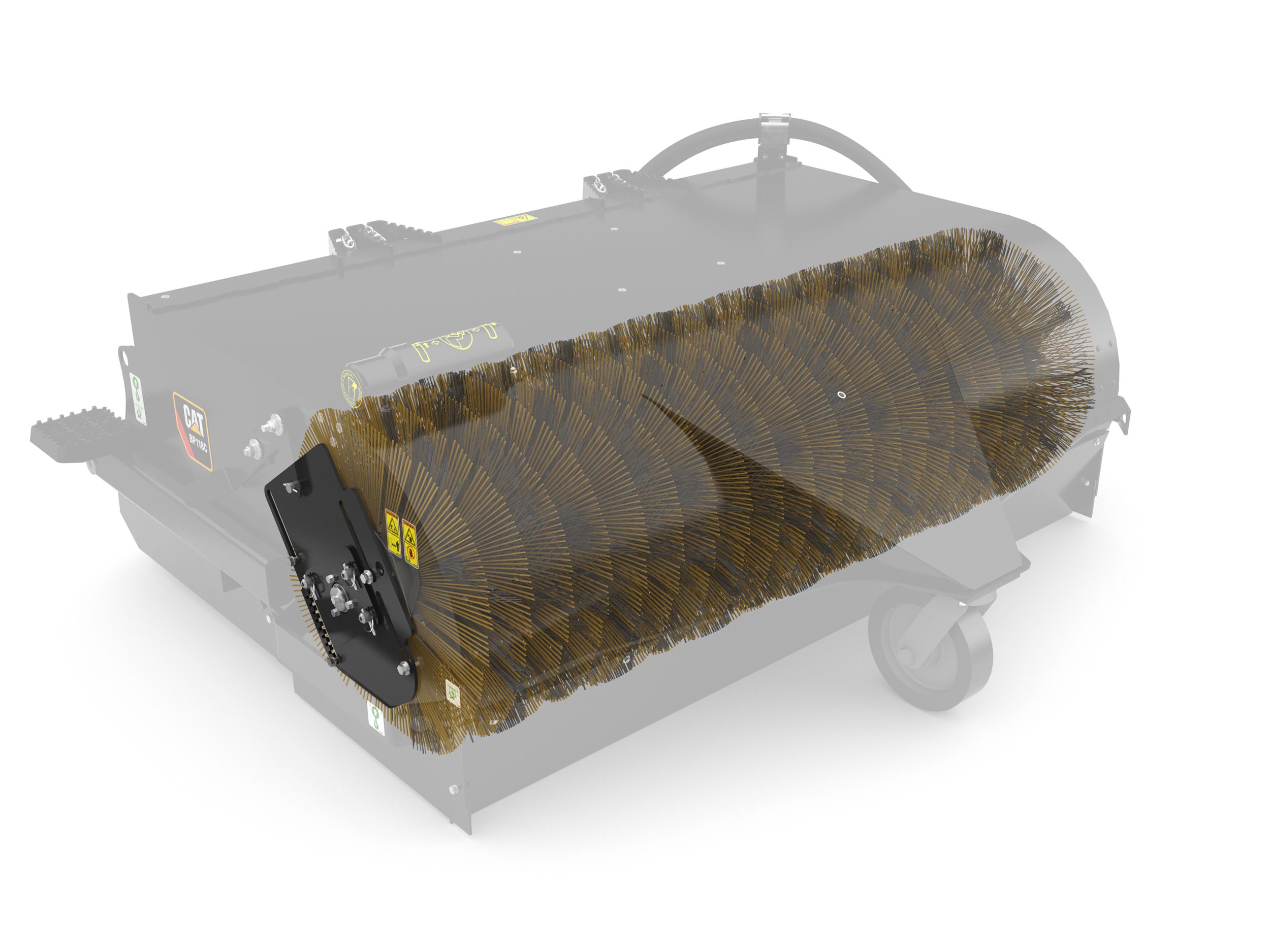

Broom Material Options

Standard broom material is made of replaceable polypropylene and steel wire sections. Optional replacement brushes include all polypropylene and all steel wire.

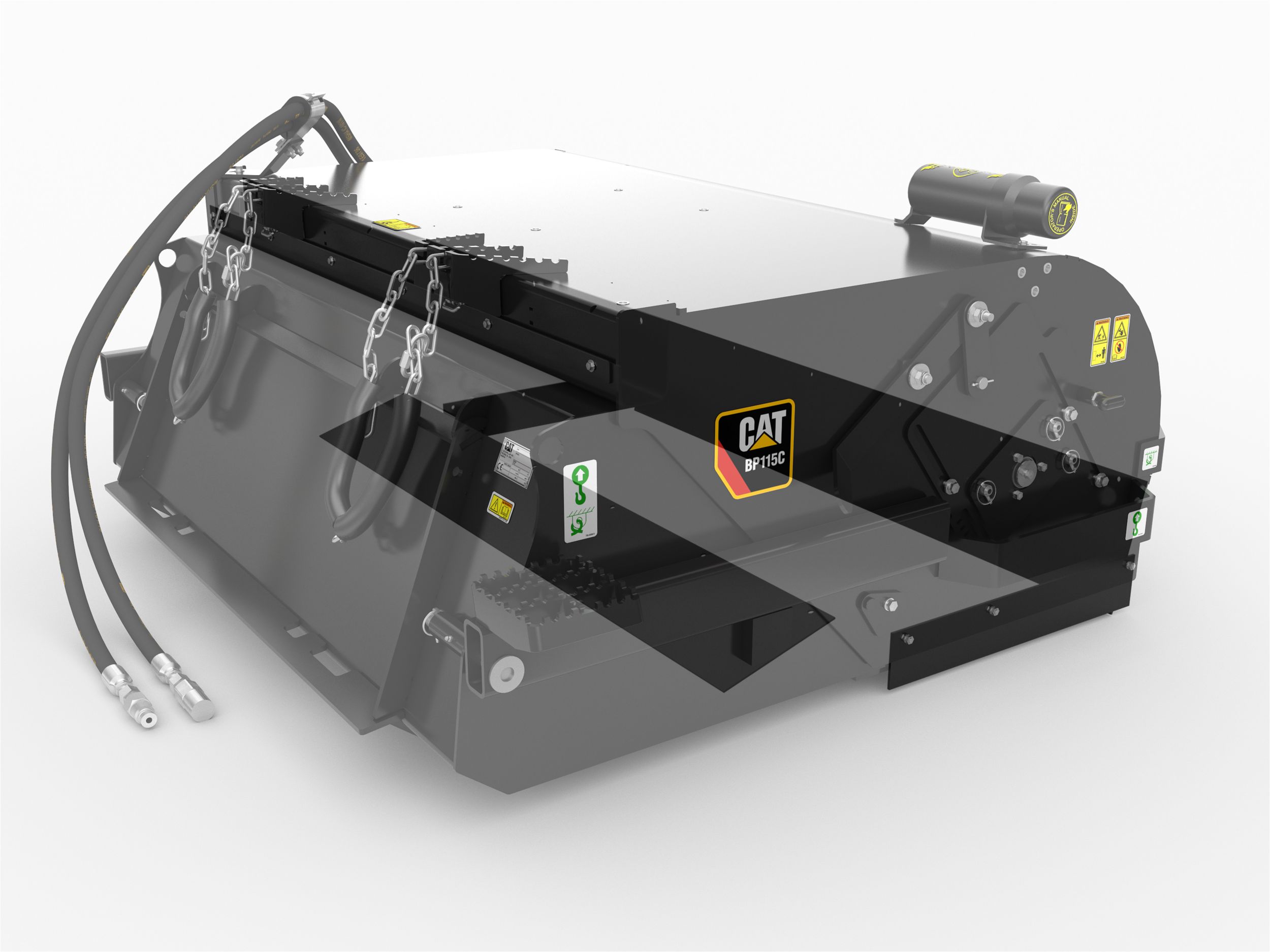

Interior Deflectors

Interior deflectors, rear bucket seal, and side brush stripping direct dirt and dust into the bucket, reducing spillage and air-borne contaminants.

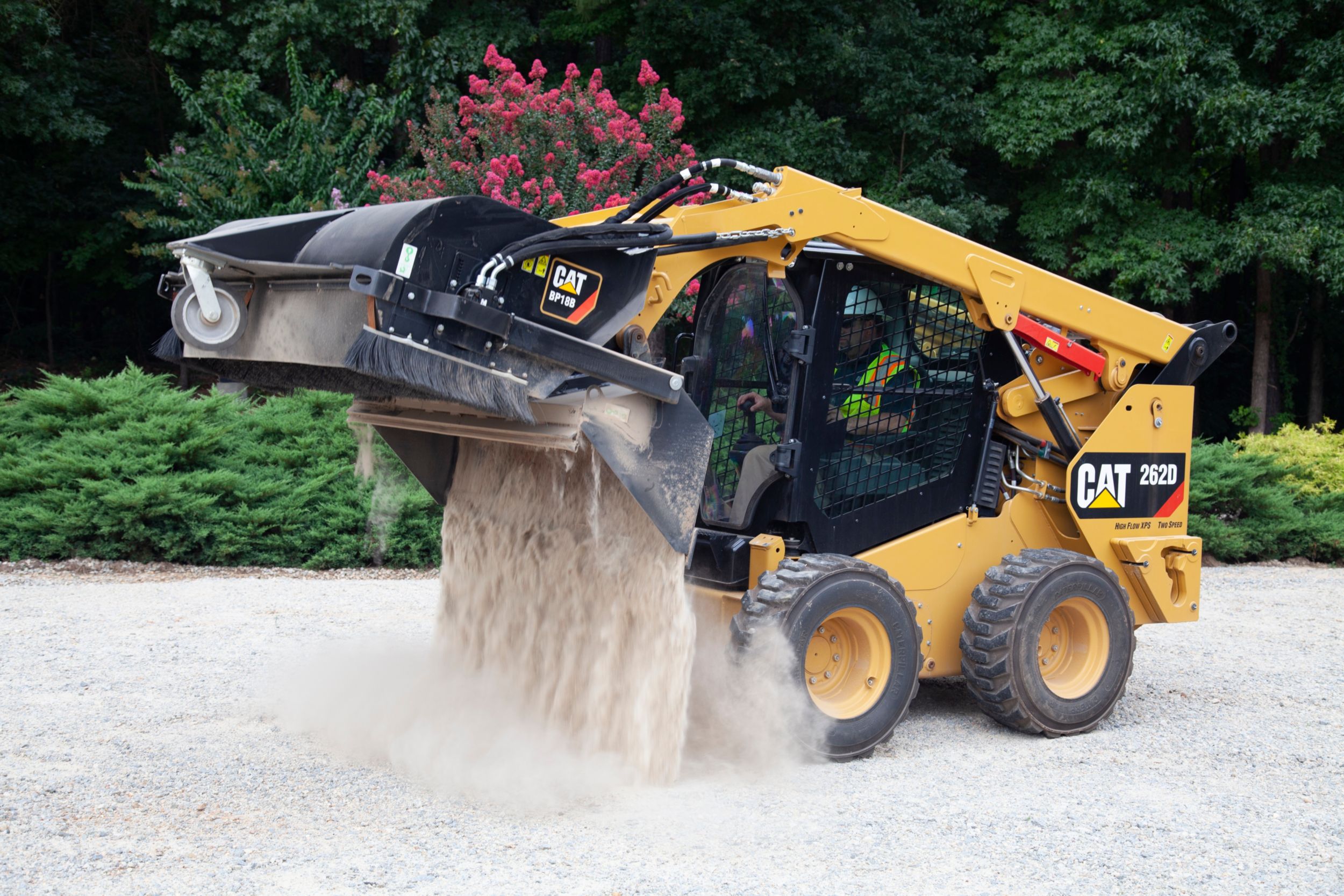

Dual Chain and Loader Arm Bracket System

Dual chain and loader arm bracket system holds broom housing horizontally when emptying the hopper.

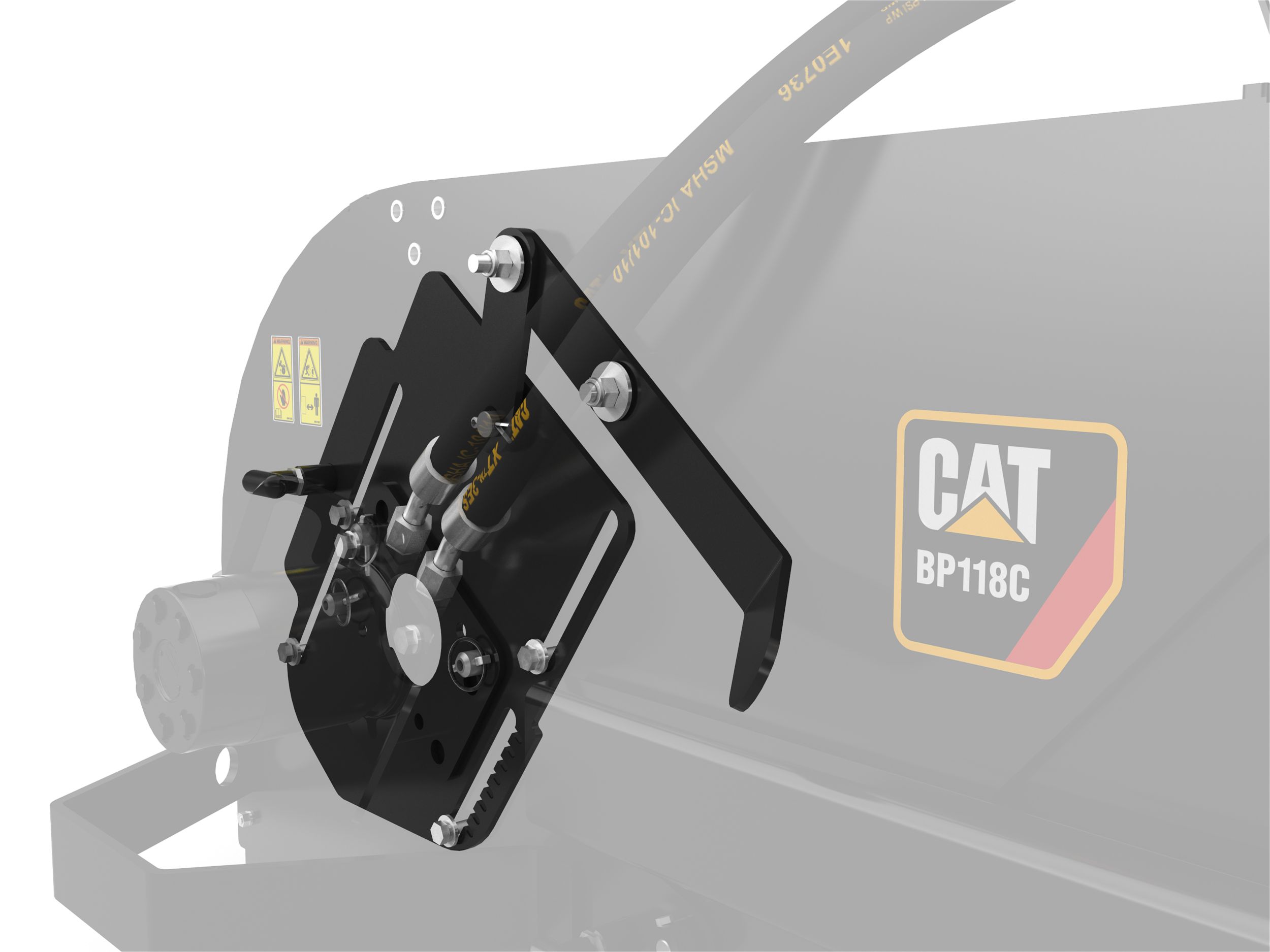

Bristle Height Adjustment

Bristle height adjustments have been simplified with the use of handle and a tool-less locking feature.

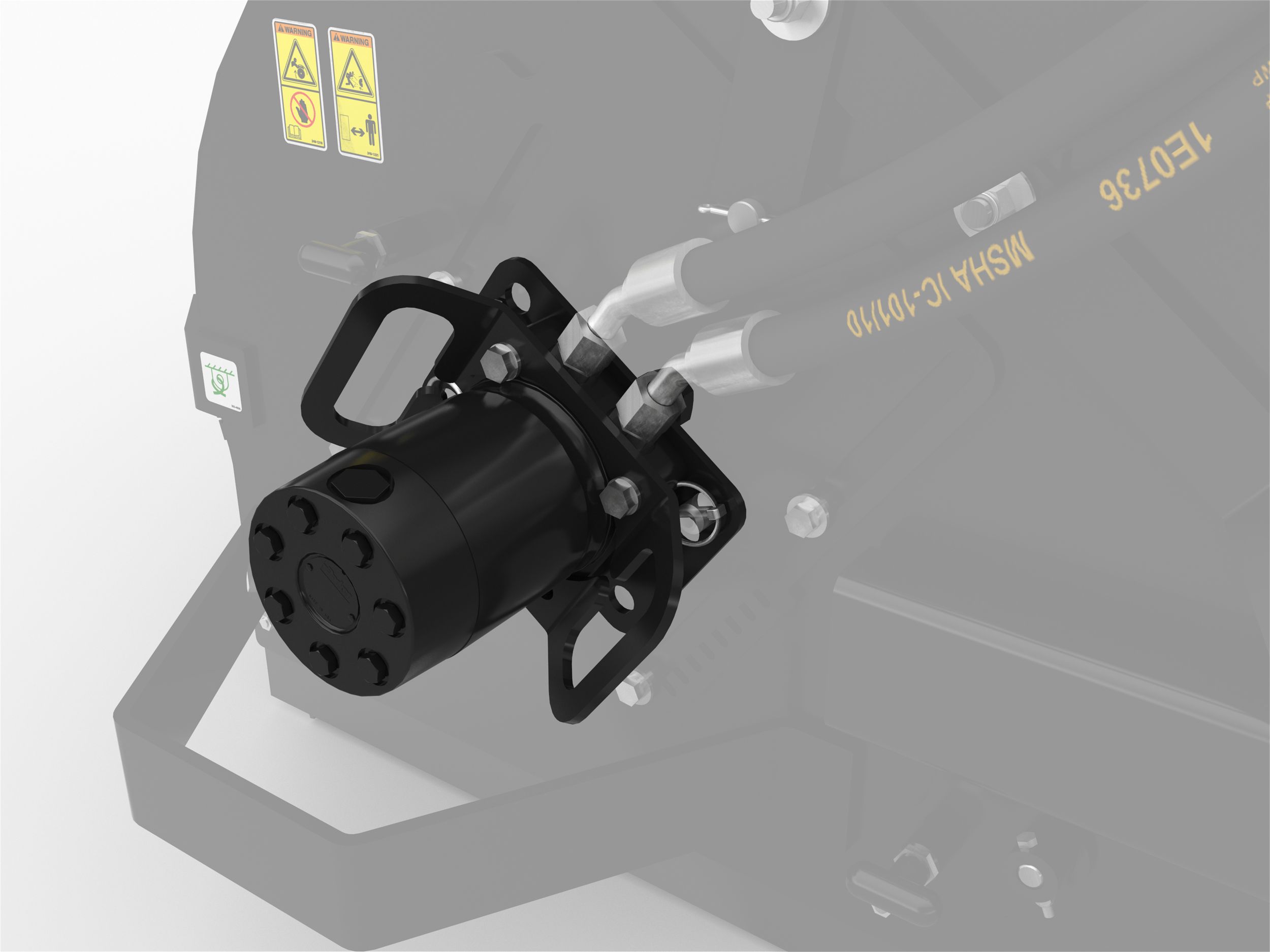

Motor Serviceability

Motor serviceability is enhanced with a handle shaped motor bracket, core connection is close to broom wall and single retention pins allow for quick brush change and less downtime.

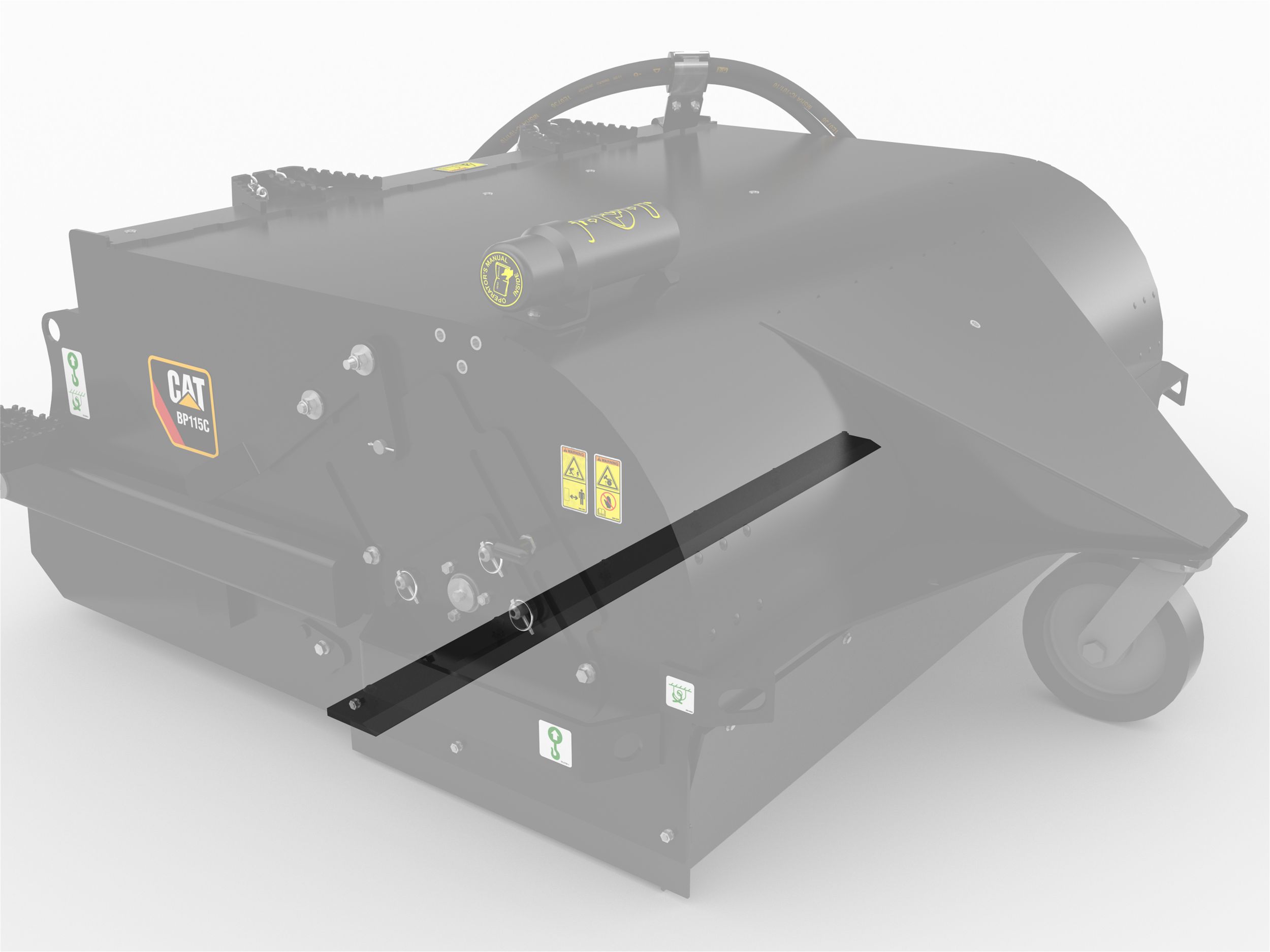

Replaceable Bolt-on Cutting Edges

Replaceable bolt-on cutting edges increase wear life of hopper bucket.

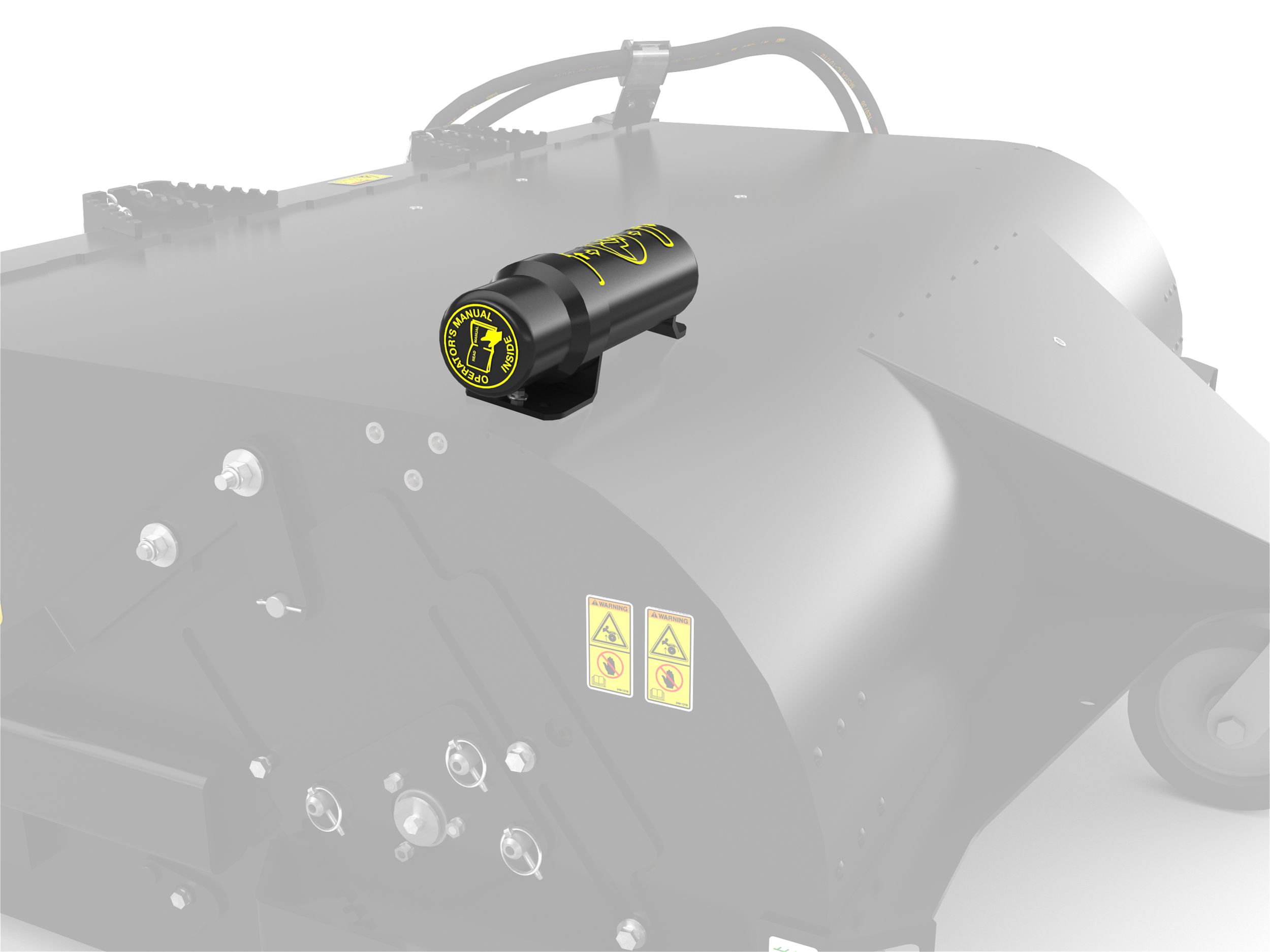

Tool Mounted Operation and Maintenance Manual Holder

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.
