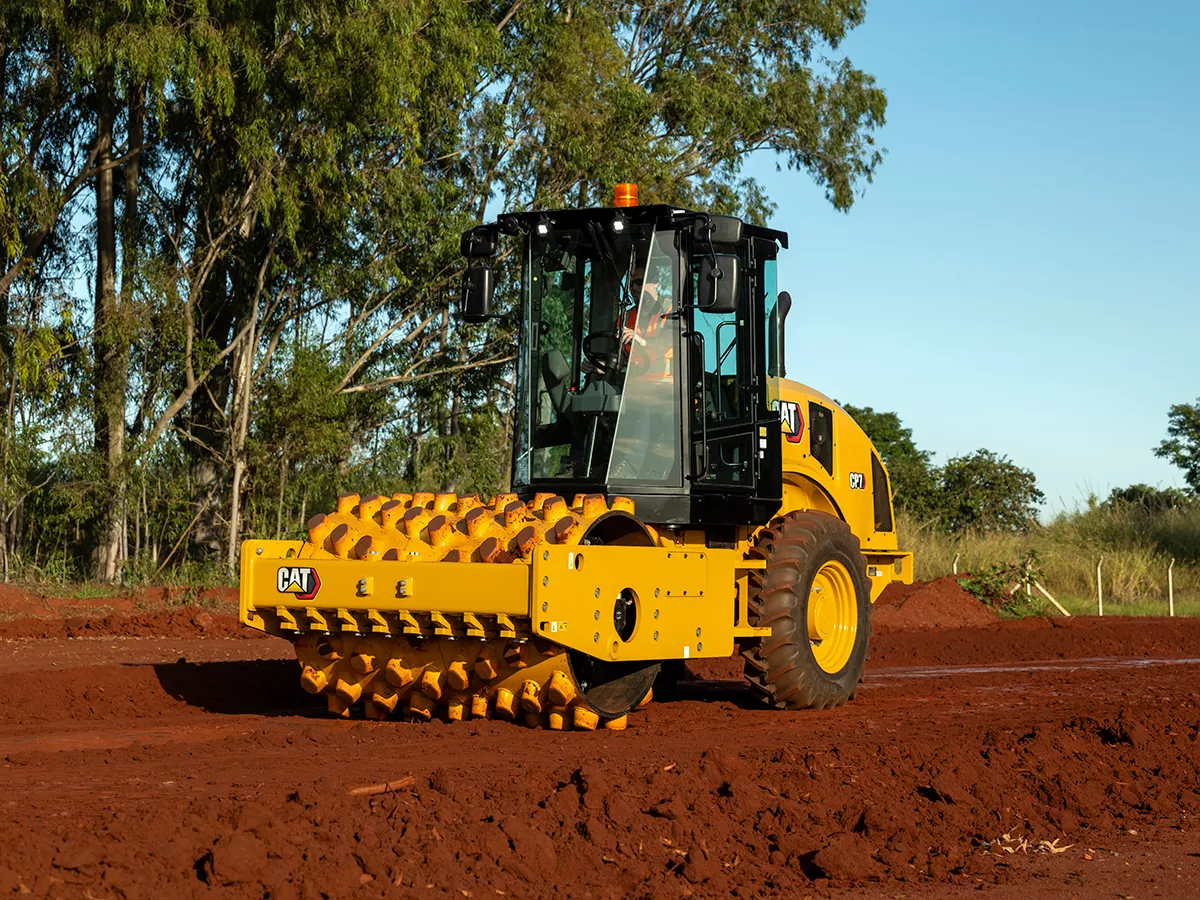

CP7 Vibratory Soil Compactors Tier 3


• The dual pump propel system with built-in traction control is designed to provide dedicated flow to the drum drive motor and to the rear axle motors for excellent traction and gradeability in forward and reverse.

• Powered by a Cat^® C4.4 engine that meets Brazil MAR-1 and UN ECE R96 Stage IIIA emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.

• Eco-mode limits engine RPM helping to reduce fuel consumption.

• Boost versatility with an optional leveling blade for backfilling, knockdown and light dozing


• High static linear loads and amplitudes.

• The exclusive eccentric weight vibratory system with its 3-year, 3000-hour maintenance interval is designed for high reliability, smooth performance and low noise levels.

• Auto-vibe helps operators easily maintain consistent, high-quality compaction.

• The Variable Frequency option provides a wide range of frequencies to help maximize compaction performance.

• A unique oval padfoot design delivers higher weight concentration and deeper penetration for increased compaction effort. Also available in a square pad design.


• The ISO-mounted operator station and rubber floormats help reduce noise and vibration for comfort during operation.

• Operators have a clear view to the working area in front and behind the machine.

• The ergonomic operator station includes an adjustable seat with the control console and multifunction LCD display integrated into the right-side arm rest.

• Easy-to-use controls are grouped by function and a large display informs operators of machine performance.

• Operators are protected from the elements by a standard equipped ROPS/FOPS canopy or an optional climate-controlled ROPS/FOPS cab with hinged glass windows.

• Low sound and vibration levels enhance comfort and productivity.


• Safety and visibility are enhanced with a standard rear vision camera viewed on a large color touchscreen display.

• An unobstructed view of the drum from the driver’s seat allows the operator to see the compaction area ahead of them, monitor overlap and observe scraper performance.

• The Cat^® Detect Seat Belt Reminder System helps improve operator safety by monitoring seat belt use and alerting when improper behavior is detected. This technology promotes consistent seat belt habits, helping protect operators and support a safer work environment. A VisionLink™ subscription and compatible Product Link™ hardware are required.


1. Seat Belt Alert – If an operator attempts to operate the machine without fastening their seat belt, such as disengaging the parking brake or initiating machine movement, audible and visual alerts activate to prompt proper seat belt use.

2. Seat Belt Inhibit – Seat Belt Inhibit can prevent the machine from traveling if the seat belt is not fastened correctly, helping to intervene before unsafe operation occurs.


• Large steps, handrails, and an antiskid surface help provide stability during entry and exit of the operator station.

• Internal and external mirrors provide the operator with a broad view of the jobsite.


• The articulated hitch with sealed-for-life bearings does not require routine maintenance.

• Safely access the engine compartment and cooling module from ground level for easy service and fluid sampling.

• Monitor fluid conditions with regular sampling to help extend change intervals up to 500 hours engine oil, 3000 hours eccentric housing and hydraulic oil, and 12000 hours coolant.

• Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.

• VisionLink takes the guesswork out of managing your entire fleet–regardless of size or equipment manufacturer*–by providing maintenance needs, machine hours, location, fuel usage, idle time, diagnostic codes, and more through interactive dashboards on your mobile device or desktop, helping you make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.

*Data field availability can vary by equipment manufacturer and is provided through an application programming interface (API).


• The Cat® C4.4 is available in configurations that meet Brazil MAR-1 and UN ECE R96 Stage IIIA, equivalent to U.S. EPA Tier 3 and EU Stage IIIA emission standards.

• Cat engines are compatible with diesel fuel blended with the following lower-carbon intensity fuels* up to: 20% biodiesel FAME (fatty acid methyl ester) or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.


• A well-trained operator is worth the investment. Skilled operators benefit your bottom line by maximizing productivity, avoiding costly downtime, and maintaining jobsite safety - which can help to improve fuel efficiency and reduce greenhouse gas emissions.

• Extended maintenance intervals not only reduce downtime but can decrease the amount of fluid and filters that are replaced over the life of the machine. Extend change intervals up to 500 hours engine oil, 3000 hours eccentric housing and hydraulic oil, and 12000 hours coolant.

• Performance and safety can be augmented with a standard camera that is viewed on an in-cab display.

• Cat Scheduled Oil Sampling (S•O•S^SM) Services helps reveal excessive wear, contaminated fluids or other “unseen” issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine’s operation and maintenance manual for more information.
