325 Medium Excavators Tier 3

Request A Price Find Dealer

Key Specs

Net Power - ISO 9249: 172 hp; 128.5 kW

Operating Weight: 58200 lb; 26400 kg

Maximum Digging Depth: 22 ft; 6700 mm

325
Change model

Overview

Premium Performance with Simple-To-Use Technologies

The Cat® 325 Excavator delivers powerful performance with easy-to-use technology such as Cat Grade with 2D, Grade Assist, Lift Assist, and Payload to help operators work quickly and accurately. Its compact radius design fits tight spaces, while the optional blade speeds up cleanup and leveling. With a fuel-efficient power system, extended service intervals, and an optional heavy counterweight for additional lift, the 325 is built to help reduce your cost per unit and excel in medium to heavy-duty jobs.

Benefits

Low Fuel Consumption

The machine’s electro-hydraulic pump and main control valve are designed to work together for optimal power and efficiency. Smart Mode automatically adjusts engine power to match hydraulic demands. And with the Auto Reversing E-fan system, your cooling system stays cleaner longer.

High Performance

Boost your productivity with built-in technology that comes standard. An optional heavy counterweight enhances lifting capability, while the optional blade helps make backfilling easy and helps keep the machine stable when working on slopes.

Low Maintenance Costs

Long-lasting fuel, hydraulic oil, and air filters, plus no pilot or case drain filters to replace, reduce the overall filter changes throughout the life of the machine. Daily checks are also safer and easier too thanks to a ground-level engine oil check that keeps operators firmly on the ground.

Features At A Glance

Displaying 1-6 of 8

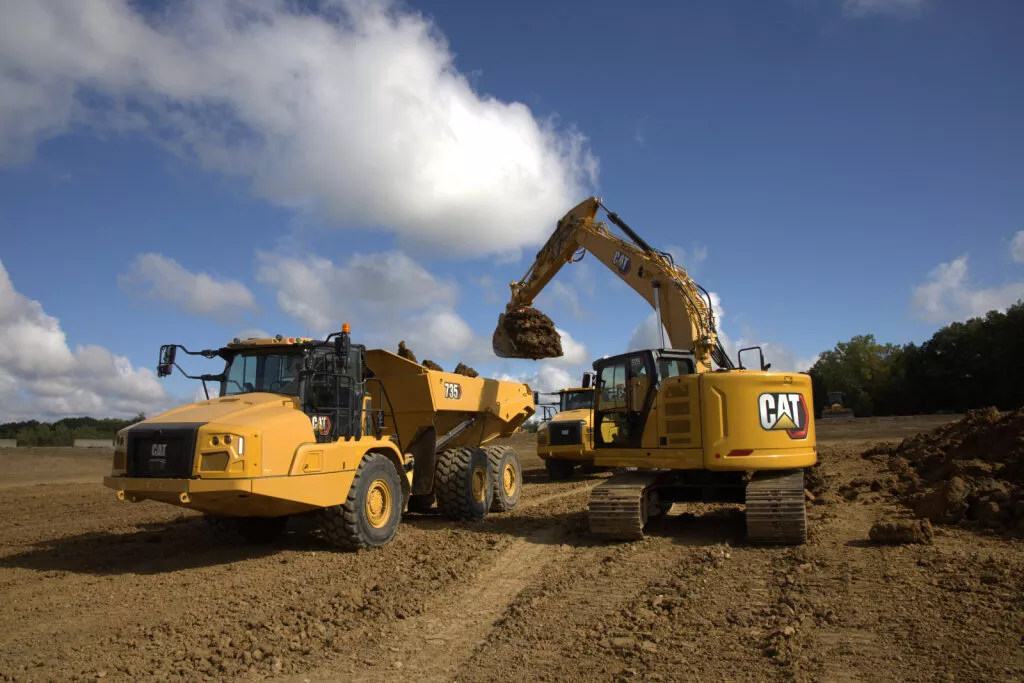

High Performance Digging and Lifting

Smart mode helps reduce fuel consumption by automatically matching engine and hydraulic power to digging conditions.
Compact radius helps you work in tight spaces.
High swing torque makes working on slopes easier.
Increase operating efficiency with standard Cat® technologies that help lower operator fatigue and your operating costs, including fuel consumption and daily maintenance.
C4.4 engine that meets emission standards. An aftertreatment system that requires no maintenance or downtime.
The advanced hydraulic system provides the optimum balance of power and efficiency while giving you the control you need for precise digging requirements.
Match the excavator to the job with power modes; let Smart mode automatically match engine and hydraulic power to digging conditions.
Advansys™ bucket tips increase penetration and improve cycle times. Tip changes can be done quickly with a simple lug wrench instead of a hammer or special tool, improving safety and uptime.
Auxiliary hydraulic options give you the versatility to use a wide range of Cat attachments.
Don’t let the temperature stop you from working. The excavator has a standard high-ambient temperature capability of 50° C (122° F) with de-rate and cold start capability of –18° C (0° F). An optional –32° C (–25° F) cold start package is available.

Boost Efficiency and Productivity with Integrated Cat Technologies

The latest operator oriented User Interface (UI) has been designed to maximize uptime by allowing operators to easily reorder work tool lists and quickly create new work tool combinations. It also eliminates the need to measure up again when changing Cat® work tool attachments and makes it manageable for a single person to check and adjust for bucket wear.
Leverage standard Cat Grade with 2D system with indicate-only and laser capability to help boost productivity.
The Cat Grade 3D Ready option includes all the hardware required for the Grade with 3D system, installed and tested from the factory. Activation requires the purchase of additional 3D software licenses.
Want a 3D system to improve your digging results? Caterpillar's single antenna global navigation satellite system (GNSS) makes it easy by giving you visual and auditory guidance to grade. Plus, you can create and edit designs on the touchscreen monitor while you’re on the job. If your application calls for a dual antenna system, it’s easy to upgrade.
Upgrade to our dual antenna GNSS for maximum grading efficiency. The system lets you create and edit designs on the touchscreen monitor while you’re on the job, or you can have the plan design sent to the excavator to make your work easier. Plus, you get added benefits of avoidance zones, cut and fill mapping, lane guidance, and augmented reality along with advanced positioning capability.
All Cat Grade systems are compatible with radios and base stations from Trimble, Topcon, and Leica. Already invested in a grade infrastructure? You can install grade systems from Trimble, Topcon, and Leica onto the machine.
Standard Grade Assist helps you stay on grade – simply and effortlessly – with single-lever digging.
Keep the tracks on ground in lifting and hard digging with Boom Assist.
Set your desired bucket angle and let Bucket Assist automatically maintain the angle in sloping, leveling, fine grading, and trenching applications.
Automatically stop excavator swing at operator-defined set points in truck loading and trenching applications with Swing Assist, which will help you use less effort and consume less fuel.
Cat Payload helps you achieve precise load targets to improve your operating efficiency. Pick up a load of material--with a bucket and thumb combination or grapple and clamshell attachments--and get a real-time weight estimate without swinging.
Advanced Payload is a system upgrade that offers expanded features and capabilities, including custom tags, daily totals, and electronic ticketing (E-Tickets).*
Combine Payload with VisionLink™ and remotely manage your production targets.
Optional Operator Coaching is an in-cab system that recognizes specific opportunities for operators to be more productive and prevent unnecessary machine wear and tear.

*Advanced Payload requires an additional software license (SEA). E-Ticket functionality requires a subscription to VisionLink™

Take the Guesswork out of Managing Your Equipment

VisionLink™ provides actionable data insights for all assets – regardless of fleet size or equipment manufacturer.* Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Equipment management features provide up-to-date asset tracking of your entire fleet. You can track asset location, operating hours, fuel level, health issues, and overall utilization. Monitor equipment health with fault codes, fluid analysis, and inspection due dates. It's all about making informed, data-based decisions to help reduce operating costs. Productivity management features enable you to analyze overall job site performance. You'll be able to track tonnage moved, production targets, and payload, as well as Grade 3D and compaction data. These vital metrics help you to reduce costs and improve jobsite operational efficiency.
Cat® Inspect is a mobile application that allows you to easily perform digital preventative maintenance (PM) checks, inspections, and daily walkarounds. Inspections can easily be integrated with other Cat data systems like VisionLink so you can keep a close eye on your fleet.
Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help ensure that issues are resolved quickly and with less downtime.
Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.
The Cat PL161 attachment locator allows you to track attachments across all worksites, reduce the number of lost attachments, and plan for attachment maintenance and replacement. The work tool recognition feature automatically adjusts machine settings based on the selected tool.

* Data field availability can vary by equipment manufacturer.

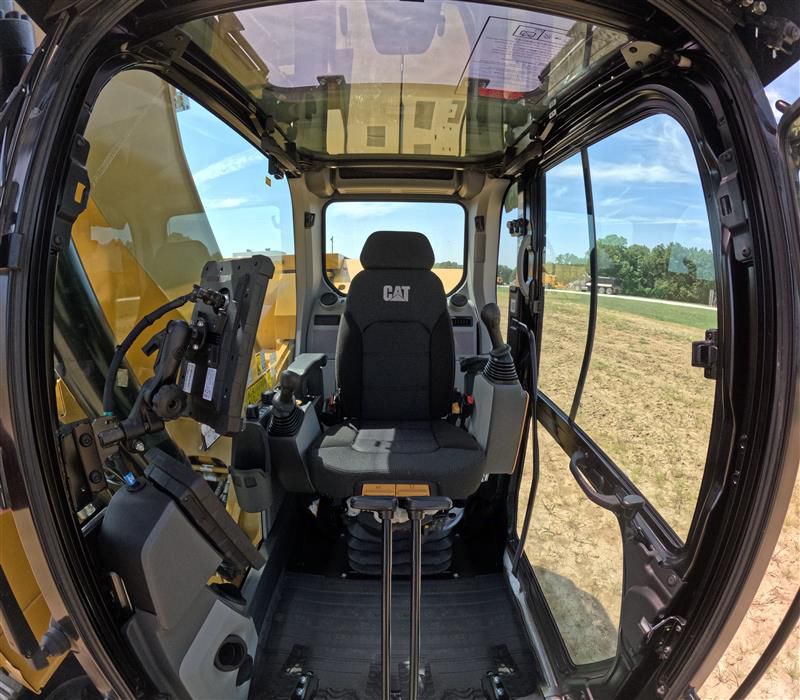

Work in Comfort

The Deluxe cab seat is heated and air adjustable.
Get in and out of the cab easier using the tip-up left console.
Improved viscous mounts help reduce cab vibration, increasing operator comfort and efficiency.
Control the excavator comfortably with easy-to-reach controls all located in front of you.
Stow your gear with plenty of in-cab storage beneath and behind the seat and in the consoles. A cup holder, document holder, bottle holder, and coat hook are also provided.
Use the standard radio’s USB ports and Bluetooth® technology to connect personal devices and make hands-free calls.

Simple to Operate

Start the engine with a push button; use a Bluetooth® key fob*, or the unique Operator ID function.
Program your power mode and joystick preferences using Operator ID; the excavator will remember what you set each time you go to work.
Navigate quickly on the 254 mm (10 in) touchscreen monitor.
Not sure how a function works or how to maintain the excavator? Always have the operator’s manual at your fingertips in the touchscreen monitor.
Make operating easier with the touch of a joystick button. Additional auxiliary relays allow you to power on or turn off a CB radio, beacon light, and even a dust suppression watering system without taking your hands off the joysticks.
Tiltrotator attachments-ours or other brands-work seamlessly with Cat 2D Grade, Assist, Payload, and E-Fence . With no additional hardware required, all you have to do is simply select "Third Party Tiltrotator System Installation" in the monitor, do the calibration, and get to work.
Find the tool you need – even if it’s hidden beneath overgrowth or debris. The excavator’s onboard Bluetooth reader can locate any work tool equipped with Cat asset tracking devices up to a range of 60 m (200 ft).
Auto Dig Boost increases power by up to 8% for better bucket penetration, shorter cycle times, and greater payloads.*
Make moving the excavator much easier with Cat Stick Steer. Simply push a button and use one hand to travel and turn instead of both hands or feet on levers or pedals.
Need more lift during your shift? Turn on Auto Heavy Lift and get up to 8% more power exactly when you need it for as long as you need it.*

*Auto Dig Boost and Auto Heavy Lift calculations are based on 300 bar (boost pressure) divided by 350 bar (standard pressure).

Maintenance

Expect lower maintenance cost with extended and more synchronized maintenance intervals. All maintenance checkpoints are accessible at ground level, resulting in faster and easier daily maintenance checks.
Do all daily maintenance at ground level.
Check engine oil level quickly and safely with the ground-level engine oil dipstick; fill and check engine oil on top of the machine with a conveniently located second dipstick.
Track your excavator’s filter life and maintenance intervals via the in-cab monitor.
No required maintenance on the Cat® Clean Emissions Module.
Using Cat genuine oil and filters and doing typical S·O·S^SM monitoring will extend the current service interval to 1,000 hours, giving you greater uptime to do more work.
S·O·S ports are on ground level, simplifying maintenance and allowing for quick, easy extraction of fluid samples for analysis.
Expect the latest air intake filter with pre-cleaner to last up to 1,000 hours.
The latest hydraulic oil filter offers high-quality filtration performance, features anti-drain valves to keep the oil clean when the filter is replaced, and provides an extended 3,000-hour replacement interval for efficiency and convenience.
High-efficiency cooling fans run only when needed; you can program intervals so they automatically reverse to keep cores clean without interrupting your work.
Boost productivity with proactive service reminders. The integrated vehicle health management system alerts the operator with step-by-step service guidance along with parts needed so you don't experience any unnecessary downtime.

Safety

Optional Cat® Detect - People Detection helps protect the most valuable asset on any jobsite – people. The system uses smart cameras with depth sensors to provide the operator with visual and auditory alerts so he or she can take immediate action when a person is too close to the excavator.*
Cat Lift Assist helps avoid machine tipping. With visual and auditory alerts, operators will know if their load is within the excavator’s safe working range limits.
2D E-Fence prevents the excavator from moving outside of operator-defined set points; the system works with thumb and bucket combinations along with hammer, grapple, and clamshell attachments.
Access all service points from ground level – no need for you to climb on top of the excavator.
The standard ROPS cab meets ISO 12117-2:2008 requirements.
Enjoy great visibility into the trench, in each swing direction, and behind you with the help of smaller cab pillars, larger windows, and a flat engine hood design.
The standard hydraulic lockout lever isolates all hydraulic and travel functions in the lowered position.
Ground-level shut-off switch stops all fuel to the engine when activated and shuts down the machine.
A rearview camera and a right-side-view camera are standard. Upgrade to 360° visibility and you’ll easily visualize objects and personnel around the excavator in a single view.
The latest service platform design in the front of the machine provides easy, safe, and quick access to upper service platform; the service platform steps use anti-skid punch plate to prevent slipping.
Optional boom and stick lowering check valves prevent reverse flow, keeping your front linkage securely in place should the hydraulic system unexpectedly lose power.
Brightly colored seatbelts allow easy recognition of properly utilized safety restraints.
Enhance jobsite safety. Add a swing alarm to alert people when you're rotating from trench to stockpile and back again.

*The system may not detect personnel in certain circumstances, such as fast swing speeds, people lying down or crouching, or when cameras are impaired by low light conditions (dusk, dawn, overcast), inclement weather (snow, rain, fog), or other similar conditions. For limitations of use, refer to the operation and maintenance manual.

Attachments

Tackle your jobs with a complete Cat® solution. Cat attachments are not just accessories – they are essential tools that define what your machine can do. When you pair a Cat excavator with Cat attachments, you unlock a fully integrated system built for performance, durability, and efficiency. Whether you are clearing land, breaking concrete, or compacting soil, the right attachment transforms your excavator into a powerful, multi-purpose tool ready for any challenge. Depending on your project or application, you could benefit from excavator attachments such as:Buckets: Handle everything from digging and grading to cleanup and debris removal with your excavator. Caterpillar® offers general duty, heavy duty, extreme duty, and severe duty buckets, as well as specialized designs for ditch cleaning, rock, and finishing work. Reinforced edges and wear-resistant materials ensure long-lasting performance in tough conditions.

Couplers (HEX): Cat® couplers for excavators enable fast, secure attachment changes, without the need to leave the cab. From Pin Grabbers to hydraulic quick connect options, couplers help reduce downtime, boost jobsite efficiency and promote versatility by allowing multiple machines to share a common attachment inventory.
Hammers: Break concrete, rock, and steel with up to 1,000 blows per minute. Built for high-production demolition, quarrying, and construction, they offer powerful impact energy and consistent performance. Their durability and low-maintenance design make them essential for demanding breaking applications.
Demolition and Sorting Grapples: Tackle larger debris or precisely sort materials into piles. These grapples are engineered for accuracy in demolition and material sorting, handling concrete, rebar, wood, and mixed debris. High clamping force and agile movement make them ideal for primary and secondary demolition and recycling operations.
Pulverizers: Built to crush concrete and separate rebar during demolition and recycling. With high crushing force and fast cycle times, pulverizers efficiently reduce material for easier handling. Primary models feature 360° bidirectional rotation and tackle structure teardown, while secondary models have a fixed jaw design and process debris after demolition.
Compactors (Vibratory Plate): Compact soil, sand, gravel and asphalt quickly and efficiently to create a stable foundation. Vibratory plate compactors deliver high-impact force and even coverage, reducing air pockets and improving surface integrity for trenching, roadwork, and patching.
Rotary Cutters: Get accurate, precise work with less noise and vibration. Cat® Rotary Cutters deliver high torque and precision for a range of applications: demolition, grinding, profiling, trenching, tunneling, and quarrying. Specifically designed for excavator-mounted use to handle heavy-duty materials like concrete, rock, and dense brush with ease.
Tiltrotators: Tiltrotators provide 360° rotation and 40° left/right tilt functionality, allowing attachments to move with unmatched precision and flexibility. This flexibility transforms your machine into a multi-functional tool capable of working from virtually any angle without repositioning. Ideal for grading, trenching, and complex excavation work, they deliver multi-angle control for tight and confined spaces.

Cat® attachments are engineered to maximize your excavator’s productivity, helping you get more work done with greater efficiency and confidence. Choosing the right attachment is not just about compatibility, it is about unlocking your machine’s full potential while avoiding equipment damage or safety risks. Connect with your Cat Dealer to find the optimal attachments for your specific machine and application needs.
