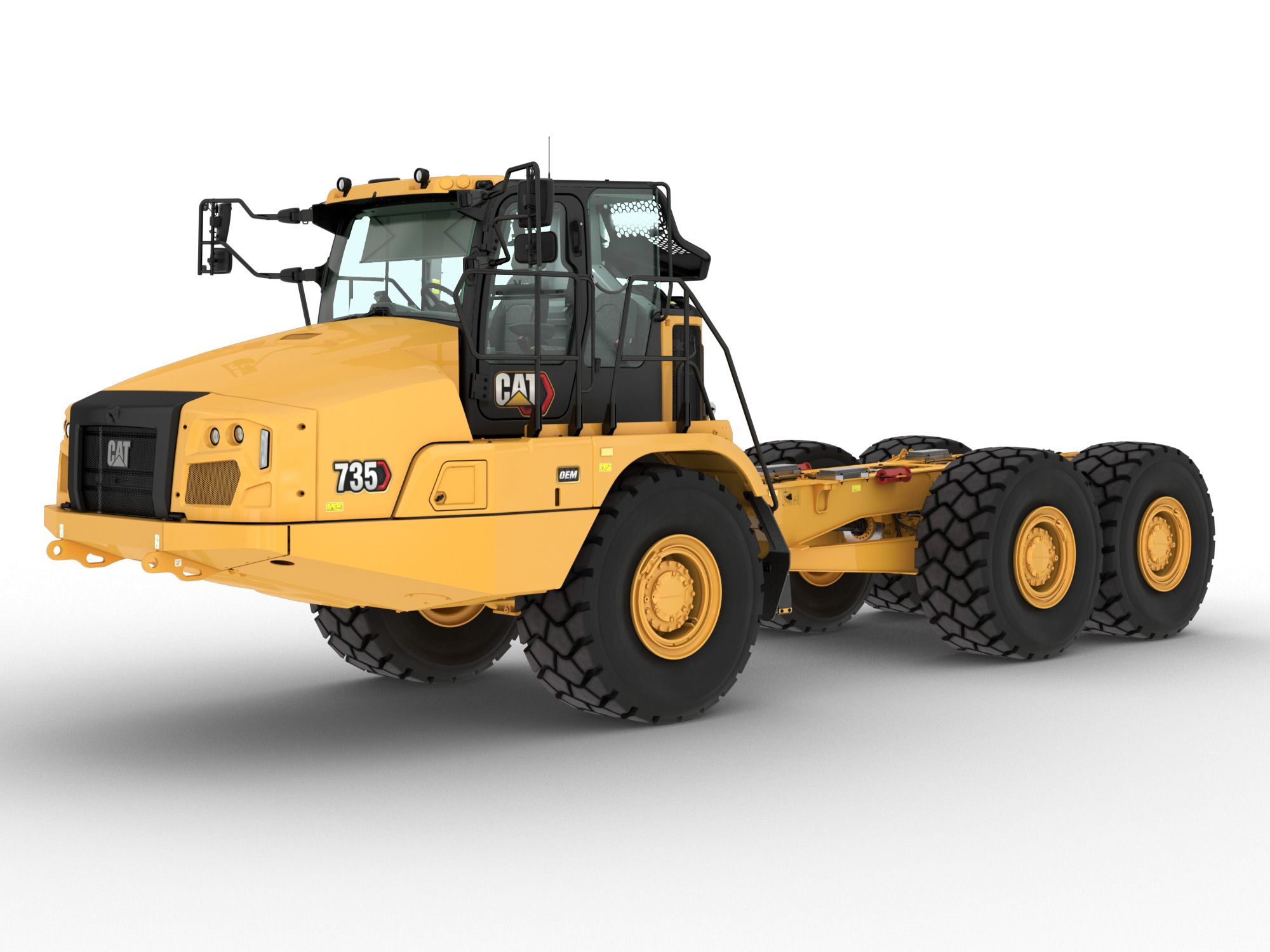

Articulated Truck Bare Chassis 735 Bare Chassis

Product Specifications for 735 Bare Chassis

735 Bare Chassis Standard Equipment

NOTE

• Standard and optional equipment may vary. Consult your Cat dealer for details.

For more information on 735 Bare Chassis options, please contact Caterpillar OEM Solutions at oem_solutions@cat.com.

OPERATOR ENVIRONMENT

• Windshield wiper and washer, two speed, intermittent (front)

• Mirrors: exterior

• Machine operation monitoring system includes:
  – Action lamp
  – Engine oil pressure
  – Primary steering system
  – Left and right turn signal
  – High beam
  – Coolant temperature
  – Tachometer
  – Parking brake
  – Fuel level
  – Transmission oil temperature
  – Brake system
  – Transmission hold
  – Hoist control
  – Hydraulic system
  – Charging system
  – Retarder
  – Transmission fault
  – Traction control system
  – Check engine lamp

• Storage:
  – Cup holder
  – Flask receptacle
  – Under seat storage
  – Door pocket
  – Behind operator seat storage
  – Coat hook

• 10-inch touchscreen with Cat rearview camera

• Seats:
  – Operator: fully adjustable, air suspension
  – Trainer: padded with lap belt

• Retractable belt: Operator seat and second seat

• Tilt and telescopic steering wheel

• Sun visor

• Liquid Crystal Display (LCD):
  – Alert indicator
  – Selected gear and direction
  – Speed or auto shift
  – Review Operation and Maintenance Manual (OMM)
  – Primary steering failure warning
  – Seat belt warning
  – Secondary steering failure warning
  – Diesel Particulate Filter (DPF) regeneration filter
  – Machine Security System (MSS) ready
  – Secondary steering energy source engaged
  – Hour meter
  – Retarder active

• Adjustable air vents

• Windshield wiper and washer, two speed (rear)

• Secondary steering – electro hydraulic

• Air conditioning with R134A refrigerant

• Combined gear selection and hoist control lever

• Glass windows:
  – Front, laminated and tinted
  – Sides and rear, toughened and tinted

• Windows opening both sides, tinted

• Heater and defroster with four-speed fan

CAT TECHNOLOGIES

• Cat Detect with Stability Assist

• Product Link

• VisionLink

• Push to Start with Operator ID

• Product Link Cellular PLE643

ELECTRICAL AND LIGHTING

• Horn

• Electrical system: 24-volt, 10A 24- to 12-volt converter

• Remote starting receptacle (cables not included)

• Batteries (two) maintenance free

• Main disconnect switch

• Lighting systems:
  – Cab interior
  – Two head lamps
  – Two width marker
  – Two reversing
  – Work light/cab access light
  – Two stop/tail lights
  – Front and rear direction indicators

• LED Rear Step Lights

• Daylight running lights

POWERTRAIN

• Cat C13A (LRC) or C13B (HRC) engine

• Auto shift six-speed forward and single speed reverse transmission

• Dual circuit oil immersed, enclosed brakes – all wheels

• Retarder: engine compression brake

• Differentials: standard with automatic clutched inter- and cross-axle differential locks

• Cat Clean Emission Module (CEM) and exhaust aftertreatment package

• Three axle, six-wheel drive

• CX31 transmission

SAFETY

• Rearview camera

• ROPS/FOPS cab

• Reverse alarm

• Dynamic Rollover Protection

• Machine Speed Limiting

GUARDS

• Rear window

• Crankcase

• Radiator

OTHER EQUIPMENT

• Vandalism protection: lockable caps

• S·O·S sampling valves

• Sound suppression (standard in some countries)

• Mud flaps: wheel arch and body mounted with transportation tiebacks

• Bare chassis (no body) standard wheel base

OTHER STANDARD EQUIPMENT

• Tires, six 750/65 R25

735 Bare Chassis Optional Equipment

NOTE

• Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

• Operator seat belt, four-point

• Infrared glass — high ambient cab

• Single-speed rear wiper

• Secondary touchscreen display

• Seat, heated/cooled

• Mirrors, heated motorized

CAT TECHNOLOGIES

• Cat Payload monitoring system

• Product Link Dual PLE683

• Operator Coaching

OPTIONAL EQUIPMENT

• Cold weather start attachment

• Heated/cooled seat

• Ether start

• Wheel chocks

• Flashing LED beacon

• Engine block heater

• Sound suppression (only standard in Europe)

• Fast fuel fill

• Fuel additive – anti-waxing

• Cold weather coolant –51° C (–60° F)

• Machine Security System (MSS)

• Product Link Elite: PLE641 (cellular). Product Link is optional.

• Roof mounted High Intensity Discharge (HID) work lights

• Cat Production Measurement payload monitoring system

• Infrared glass – high ambient cab

• Bare chassis (no body) standard wheel base

• Exhaust heated body

• Auto lube installation for automatic greasing of bearings

• Bluetooth radio stereo system

• Window blinds

• Four-point seat belt

• Heated rearview motorized mirrors

ELECTRICAL AND LIGHTING

• Engine block heater

• Ether start

• Flashing LED beacon

• Cold weather start attachment (2 additional batteries)

• LED Rear Work Lights

• Roof mounted LED work lights

SAFETY

• Multi-view camera with object detection

OTHER EQUIPMENT

• Fast fuel fill

• Wheel chocks

• Fuel additive, anti-waxing

• Bare chassis (no body) long wheel base

• Auto lube installation for automatic greasing of bearings

• Cold weather coolant -51°C (-60°F)
