Mulchers HM608 Mulcher

Request A Price Shop Now

Key Specs

Overall Width: 54.6 in; 1388 mm

Working Width: 31.3 in; 794 mm

Length: 21.9 in; 555 mm

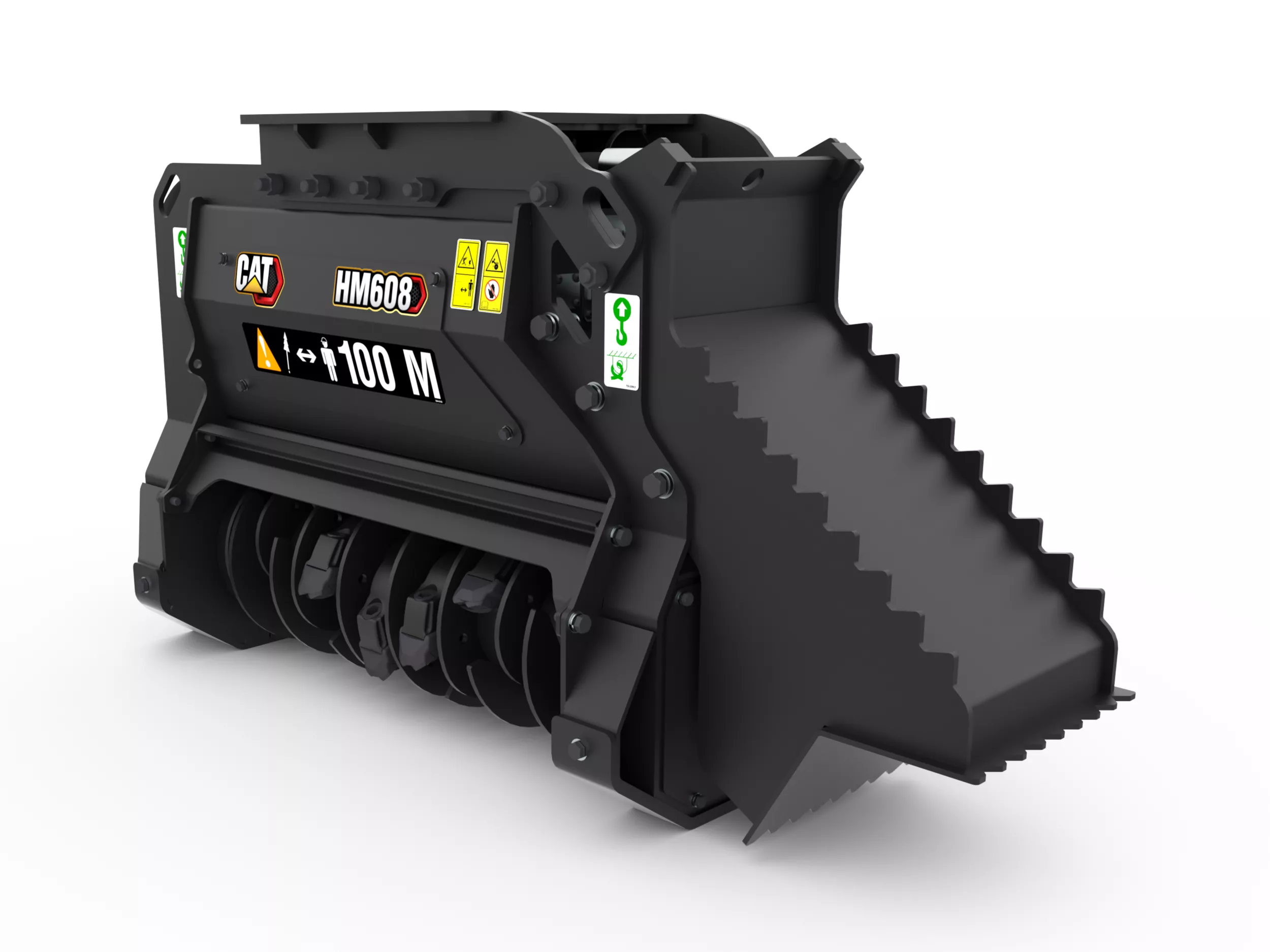

HM608 Mulcher
Change model

Overview

High-performance cutting and mulching of vegetation and overgrowth.

Features At A Glance

Ribs on the rotor limit the amount of material being processed at once to reduce stalls and recovery time.

Integrated thumb bracket allows operator to pull or push the material into position to mulch or move it away from the mulching area. On equipped Cat® excavators, the machine thumb can be utilized with the integrated thumb bracket to pick up material.

All bite-limiter mulchers will use the small-large bolt pattern that is common with hammers, vibratory plate compactors, cold planers, and grapples. Mounting brackets are available in these bolt patterns to fit the full range of compatible Cat® machines and coupler styles.

Variable displacement piston motor provides for excellent multi-function capability of machine platform. Motor displacement will change to provide high torque at low speed to power through material with reduced risk of stalling. The motor automatically switches the displacement back for high speed operation once the material is cleared.

Bolt-on skid shoes are reinforced and built to last, but easily replaceable as needed. Provides differentiation longevity over the competition, which generally has welded on skids.

Multi V-belt design enables the transmission of torques between the hydraulic motor and the cutting head.

Stores the OMM (Operation and Maintenance Manual) in a protective case on the attachment, where it can be conveniently accessed. The tooth sharpening gauge can also be stored in the OMM container.

Product Specifications for HM608 Mulcher

Overall Width	54.6 in 1388 mm
Working Width	31.3 in 794 mm
Length	21.9 in 555 mm
Overall Height	30.7 in 779 mm
Weight	1104.5 lb 501 kg
Drive Method	V-Belt V-Belt
Motor	Dual Speed Axial Piston Motor Dual Speed Axial Piston Motor
Required Hydraulics	1st Auxiliary 1st Auxiliary
Optimal Hydraulic Flow	70-90 l/min (18.5-23.8 gpm) 70-90 l/min (18.5-23.8 gpm)
Optimal Hydraulic Pressure	150-250 bar (2175-3626 psi) 150-250 bar (2175-3626 psi)
Drum Speed	2749 RPM 2749 RPM
Fixed Teeth per Drum	14 14
Maximum Cutting Diameter	5 in 127 mm

Product Specifications for HM608 Mulcher

Download Print

Overall Width	54.6 in 1388 mm
Working Width	31.3 in 794 mm
Length	21.9 in 555 mm
Overall Height	30.7 in 779 mm
Weight	1104.5 lb 501 kg
Drive Method	V-Belt V-Belt
Motor	Dual Speed Axial Piston Motor Dual Speed Axial Piston Motor
Required Hydraulics	1st Auxiliary 1st Auxiliary
Optimal Hydraulic Flow	70-90 l/min (18.5-23.8 gpm) 70-90 l/min (18.5-23.8 gpm)
Optimal Hydraulic Pressure	150-250 bar (2175-3626 psi) 150-250 bar (2175-3626 psi)
Drum Speed	2749 RPM 2749 RPM
Fixed Teeth per Drum	14 14
Maximum Cutting Diameter	5 in 127 mm
