Engine
| Net Power - ISO 9249/SAE J1349 | 219 hp 163 kW |
| Engine Model | Cat® C9.3B Cat® C9.3B |

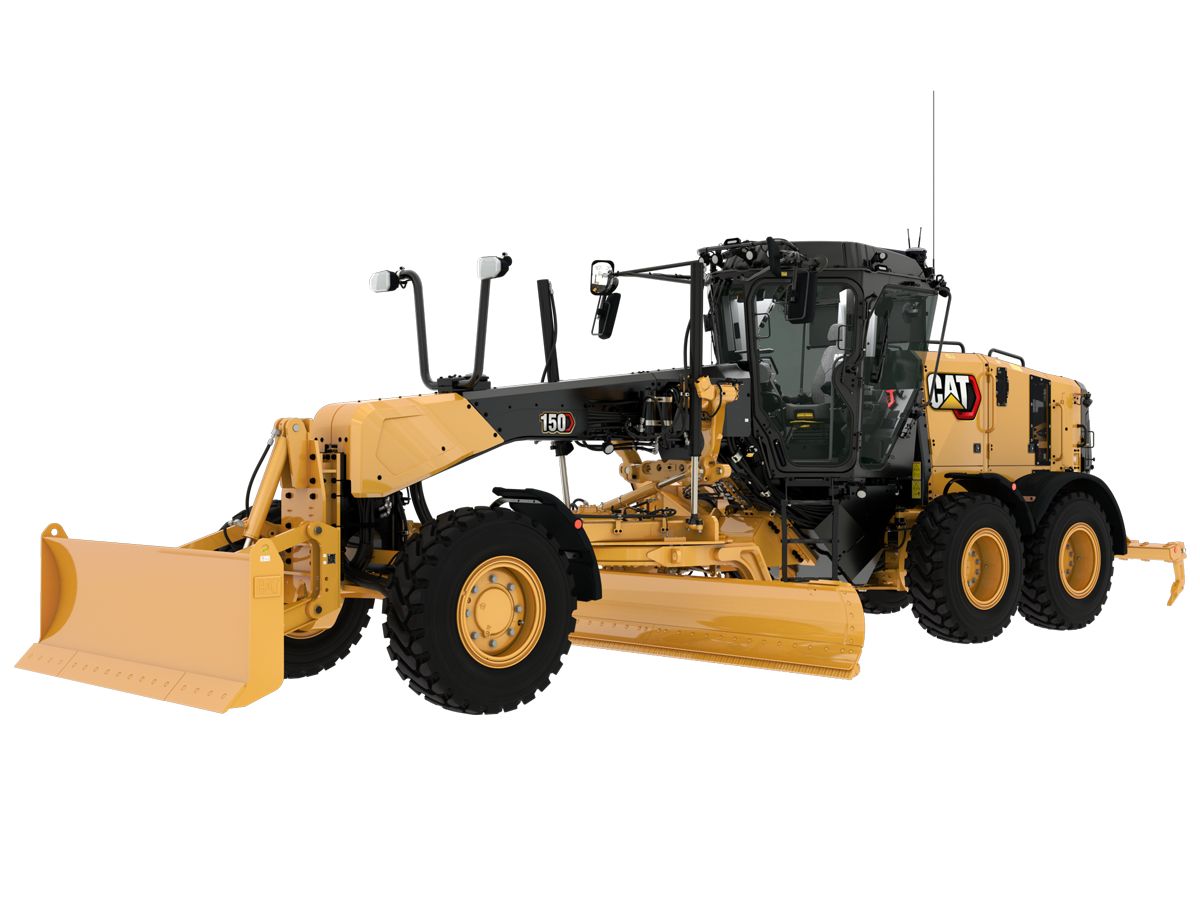

Motor Graders 150 Next Gen Tier 3
Request A Price Find DealerKey Specs
- Net Power - ISO 9249/SAE J1349
- 219 hp
- 163 kW
- Operating Weight - Typically Equipped
- 44776 lb
- 20310 kg
- Blade Width
- 12 ft
- 3657 mm
Overview
Pair the 150 with ground conditions and tailor steering preferences for powerful productivity
The Cat® 150 motor grader delivers serious power for road maintenance, fine grading, and site prep with strong traction and smoother finishes. Now with both joystick or lever steering options, the 150 gives operators precise, comfortable control.
Benefits
Built to Work Smarter
Delivers stronger power to the ground with a larger engine and steady net output. More power and finishing gear improve surface quality, while increased operating weight ensures consistent blade control on angled grading.* []
Engineered with You in Mind
Optimized for operators with a redesigned cab, improved HVAC and seating, optional rear, front, and 360° vision with People Detect, and enhanced all‑around visibility from the operator station.
Made for Maximum Output
Choose joystick or lever/steering controls for operator preference, use optional Cat® Grade tech to achieve grade faster, and take advantage of enhanced capability for easy attachment upgrades.
Features At A Glance

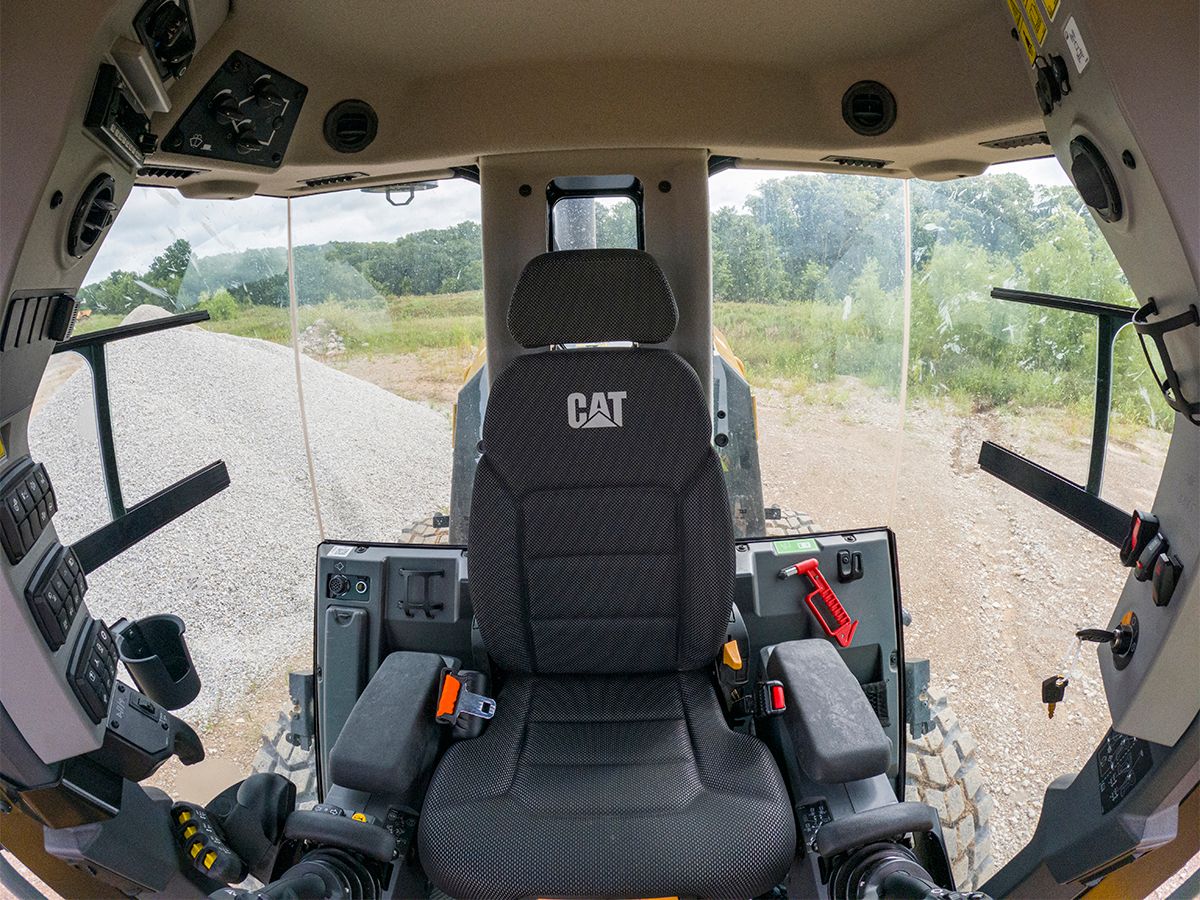

Redesigned Cab
The redesigned cab provides better visibility to the ground, grouped control buttons for ease of operations, optional seat upgrades, and comfort customizations for the operator. The Cat 150 motor grader offers steering wheel and lever (LVR) steering controls or joystick (JOY) steering controls.

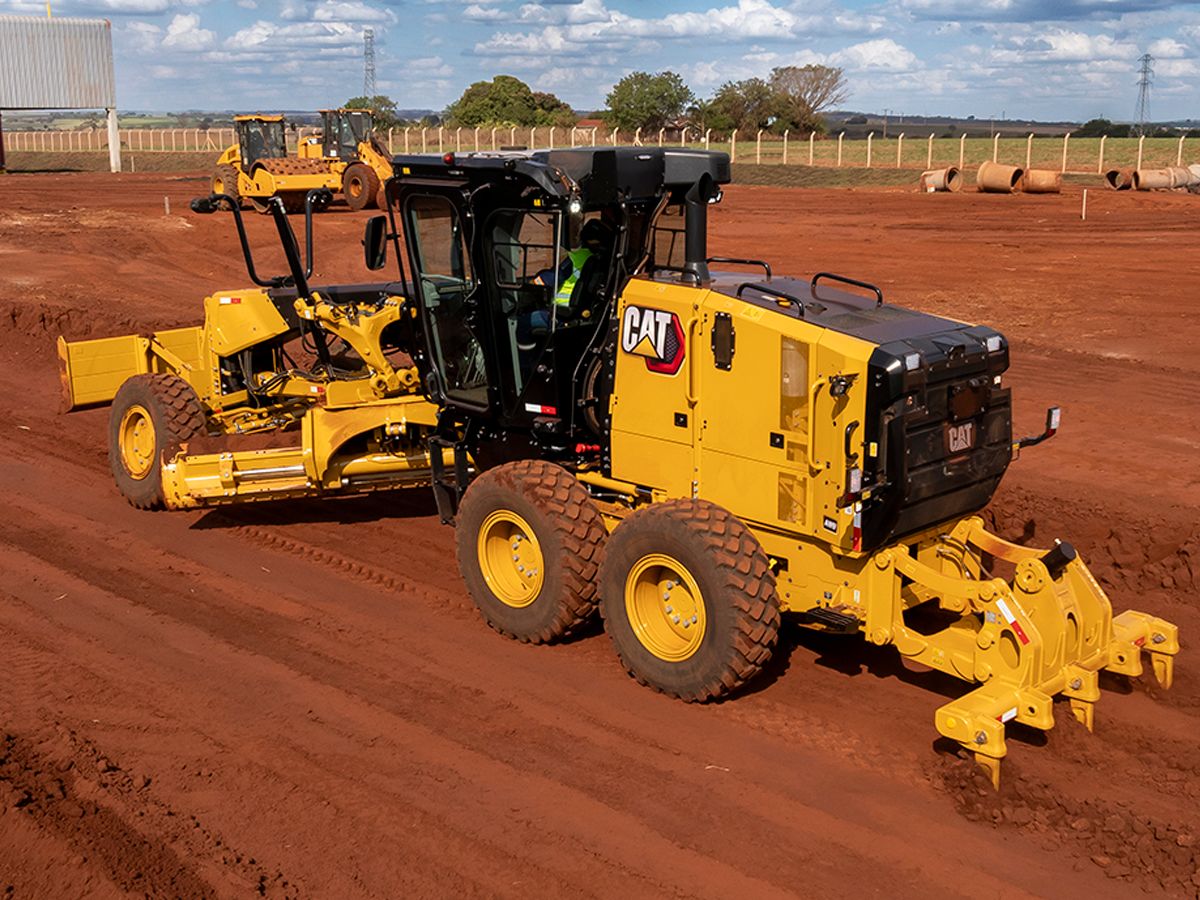

Safety
- Operator presence monitor keeps the parking brake engaged and hydraulic implements disabled until the operator is seated and the machine is ready for operation.
- Anti-glare paint eases night operation eye strain.
- Ground-level refueling requires no climbing on the machine to fill the fuel tank.
- Ensure three points of contact when entering and existing the machine with strategically placed walkways and grab rails.
- Work past sundown using the LED light package option for increased nighttime visibility.
- Speed sensitive steering lessens steering sensitivity as ground speed increases for greater operator confidence and control.
- The standard secondary steering system's electric hydraulic pump automatically engages in case of a drop in steering pressure to ensure operator can steer the machine to a stop.
- Hydraulic lockout disables all implement functions while still providing machine steering control. This is especially useful while roading.
- Brakes are located at each tandem wheel to eliminate braking loads on the power train. Redundant brake systems utilize accumulators to enable stopping in case of machine failure.
- Perforated steel tandem walkways and convenient grab rails provide a sturdy platform when moving on, off and around the machine.
- Standard circle drive slip clutch protects the standard drawbar, circle and moldboard from shock loads if the blade encounters an immovable object and also reduces the possibility of abrupt directional changes in poor traction conditions. The optional blade lift accumulators help absorb impact loads by allowing vertical blade travel. This optional feature reduces wear and impact loading for enhanced operator safety.
Technology
Using the data from technology-equipped machines, get more information and insight into equipment and operations.
Lower Maintenance Costs
- Grouped filters and access points help operators
- Engage Eco mode to reduce fuel burn.
- Filters, such as hydraulic oil and engine air filters, are grouped together for easy access and preventative maintenance. The next generation filters help reduce your fluid and filter costs.
- Spend less time cleaning the cooling system with the reversing fan option, which helps keep costs down when cleaned once per week giving you more uptime.
- Optional High Performance Circle helps eliminate hours of monthly planned maintenance for frequent inspection, wear strip replacement and circle shoe adjustments associated with conventional circles. Advantages include increased circle torque, performance, and improved durability. It provides a smooth, effortless rotation of blade and assists in meeting road design elevation tolerance.
- Maintain roads with the standard drawbar circle moldboard with hardened circle teeth for increased durability. For tight finish grading, consider the top adjust drawbar option for applications that require maximum accuracy, and offers up to 45 percent reduction in maintenance cost over the standard.

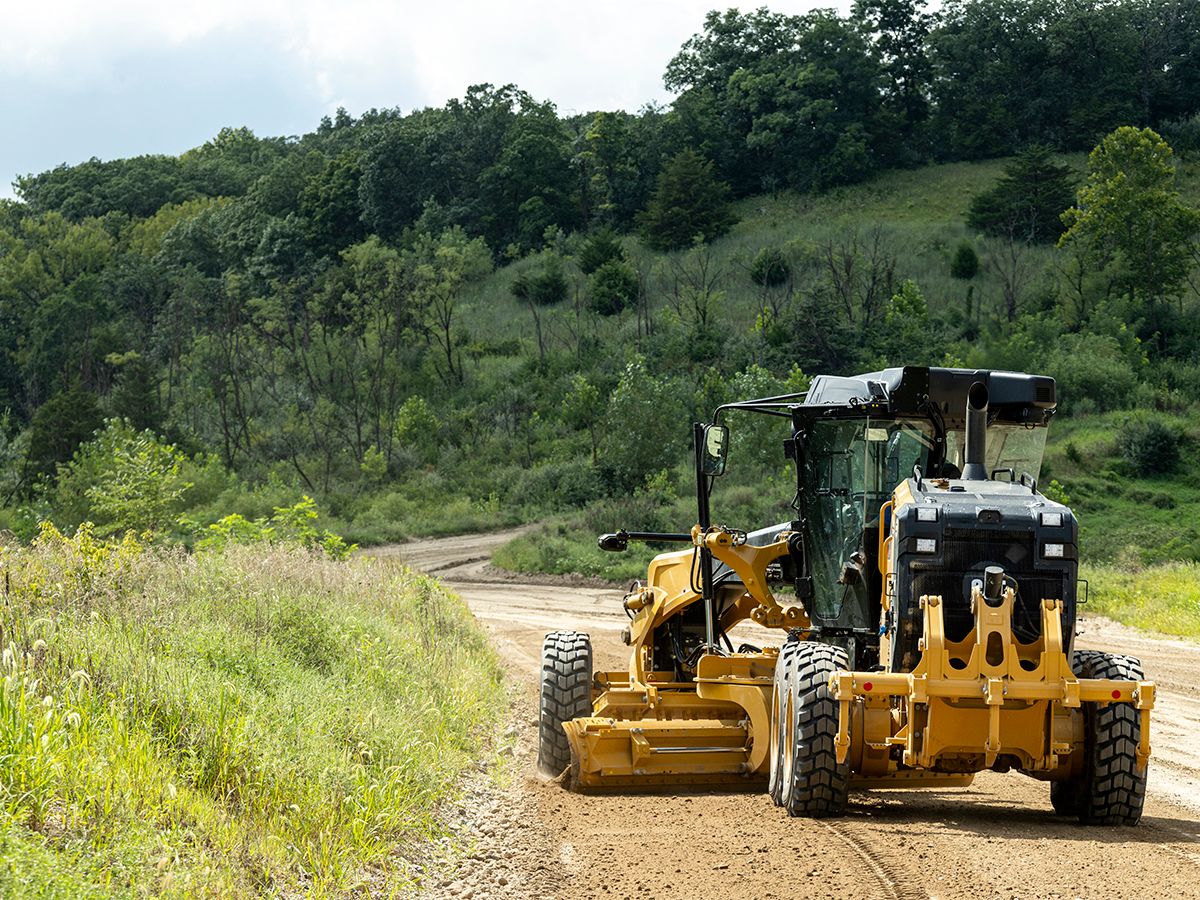

Sustainability
- The Cat engine meets Brazil MAR-1, equivalent to U.S. EPA Tier 3 and EU Stage V emission standards.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or Caterpillar Machine Fluids Recommendations (SEBU6250) for details.
- Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
- Cat Grade helps reduce fuel burn and greenhouse gas emissions by enabling you to achieve grade faster and more accurately by automating blade actions.
- Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
- VisionLink displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
- Don't waste fuel idling. Cat VisionLink online fleet monitoring helps you manage idle time and reduce fuel burn and greenhouse gas emissions.
- Cat Reman parts are a sustainable choice. New Cat parts are designed with the potential to have more than one life, so Cat Reman parts are truly remanufactured not just repaired, rebuilt or reconditioned. Because the process ensures the latest design changes are incorporated into Cat Reman parts, you get like new quality and outstanding performance at lower cost.
Product Specifications for 150 Next Gen
Weights
| Operating Weight - Typically Equipped | 44776 lb 20310 kg |
Moldboard
| Blade Width | 12 ft 3657 mm |
Power Train
| Forward/Reverse Gears | 9 Forward / 6 Reverse 9 Forward / 6 Reverse |
Service Refill Capacities
| Fuel Tank | 42.3 Gal 160 l |
Machine Weight
| Note (1) | * Typically equipped operating weight is calculated with full fuel tank, coolant, lubricants, operator, push block, transmission guard, rear ripper/scarifier, 14.0R24 tires on multi-piece rims, and other equipment. * Typically equipped operating weight is calculated with full fuel tank, coolant, lubricants, operator, push block, transmission guard, rear ripper/scarifier, 14.0R24 tires on multi-piece rims, and other equipment. |
150 Next Gen Standard Equipment
OPERATOR ENVIRONMENT
- Cellphone holder
- Seat, vinyl
- Seat belt
- Wipers, front
- Screen, rear sun shade
- Cab, base
- Differential lock, manual
- Information display screen
- Coat hook
- Cup holder
- Cab storage
- Mirrors, B-pillar
- Mirror, rear view
- Lights, dome interior
- Automatic climate control
- Rollover protective structure (ROPS) / falling objects protective structure (FOPS)
NOTE
- Standard equipment may vary. Consult your Cat dealer for details.
SAFETY
- Back-up alarm
- Grab rails
- Hydraulic brakes
- Hydraulic system - integrated dead engine implement lower
- Hydraulic system - integrated work port pressure relief
- Parking brake
- Tandem toolbox
- Tandem walkways
POWERTRAIN
- Cat C9.3B diesel engine
- Transmission, 9 forward / 6 reverse gears, including finish gear
- Eco mode
- 43° C (109° F) standard capacity
- Ecology drain
- Engine idle shutdown
- Shifter with upshift/downshift rocker
DRAWBAR CIRCLE MOLDBOARD
- Circle - Bottom Adjust
- Circle drive slip clutch
- 12 foot moldboard
ELECTRICAL
- Sealed alternator
- Alternator, basic 115A at 24 V
- Reversing lights
- Breaker panel
- 900 CCA standard duty batteries
- Rear lights with LED lighting
- LED lights
- Low light and high light bars
SERVICE AND MAINTENANCE
- Next generation fluid filters
- Fuel fill
- Fast fuel ready
- Grouped location for engine oil and fuel filters
- Extended life coolant
150 Next Gen Optional Equipment
NOTE
- Optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
- Seat, air suspension
- Seat, mechanical suspension
- Seat, premium heated and ventilated
- Wipers, lower front
- Wipers, rear
- Screen, rear window
- Cab, plus (sliding side windows)
- Cab, premium (sliding side windows and door wipers)
- Mirrors, side view
- Fans, defrost
- Radio ready
- AM/FM, Bluetooth®, Weatherband
- CB radio with converter
- Satellite radio
SAFETY
- License plate bracket
- Manual lock out
- Operator Presence System
- Camera, rear view
- Secondary steering system
- Signaling/warning horn
- Drawbar toolbox
- Warning beacon mounts
- Integrated hazard lights
- Sound suppression
POWERTRAIN
- Transmission with autoshift
- High-speed engine oil drain
- Cold weather package
- Cold weather package plus
- All-Wheel Drive (AWD)
DRAWBAR CIRCLE MOLDBOARD
- Circle - Top Adjust
- Circle - High Performance Circle
- Circle saver
- Blade lift accumulators
- 14 foot moldboard
- Grader Bits on 14 foot moldboard
ELECTRICAL
- 1,125 CCA heavy duty batteries
- Snow wing LED lights
- Drop down rear lights and turn signals
SERVICE AND MAINTENANCE
- Engine service light
ATTACHMENTS
- Lift groups
- High Performance Circle
- Counterweight
- Push block
- Mid-Machine Scarifier (MMS)
- Rear ripper/scarifier
- Front blade
- Snow wings
- V-Plow
- Straight plow
- Brooms
- Lift groups
- High Performance Circle
- Counterweight
- Straight plow
- Brooms
Compatible Technology and Services
Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.
-
Cat® Inspect
Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.
-
Cat® Remote Flash
Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.
-
Cat® Remote Troubleshooting
Remote Troubleshoot allows your Cat dealer to run testing while the machine is operating. Once the problem is identified, a technician can fix it with the correct parts and tools the first time, saving time and money. Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency.
-
VisionLink™
VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.
1
-
8
of
9 Items
items
Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.
Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.
Remote Troubleshoot allows your Cat dealer to run testing while the machine is operating. Once the problem is identified, a technician can fix it with the correct parts and tools the first time, saving time and money. Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency.
VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.
-
Cat Grade with 3D for Motor Graders
Cat Grade with 3D for motor graders is a machine integrated grade control system that helps you get to grade faster with more accuracy, efficiency, and productivity. Automatic blade control reduces operator inputs and the number of passes to get the job done to save you time and money.
-
Cat Grade with Cross Slope Assist for Motor Graders
Cat® Grade with Cross Slope Assist is an integrated system that enables motor grader operators to achieve grade faster and more accurately by automating the cross slope of the blade, allowing the operator to do more in the same amount of time. Other cost-saving benefits of the system include lower fuel consumption and up to 40% less material usage.
1
-
8
of
9 Items
items
Cat Grade with 3D for motor graders is a machine integrated grade control system that helps you get to grade faster with more accuracy, efficiency, and productivity. Automatic blade control reduces operator inputs and the number of passes to get the job done to save you time and money.
Cat® Grade with Cross Slope Assist is an integrated system that enables motor grader operators to achieve grade faster and more accurately by automating the cross slope of the blade, allowing the operator to do more in the same amount of time. Other cost-saving benefits of the system include lower fuel consumption and up to 40% less material usage.
See how 150 Next Gen compares against frequently compared products.
Motor Graders
150 Next Gen
Tier 3
Selected
- Net Power - ISO 9249/SAE J1349
- 219 hp
- 163 kW
- Operating Weight - Typically Equipped
- 44776 lb
- 20310 kg
- Blade Width
- 12 ft
- 3657 mm
Motor Graders
150 / 150 AWD
- Net Power Range (Tier 3)
- 183 hp
- 136 kW
- Operating Weight - Typically Equipped
- 41868 lb
- 18991 kg
- Blade Width
- 12 ft
- 3.7 m
Motor Graders
160 LVR
- Base Power (1st Gear) - Net
- 186 hp
- 139 kW
- Operating Weight - Typically Equipped
- 17706 lb
- 39035 kg
- Blade Width
- 14 ft
- 4.3 m
assignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
Media Gallery
Photos
Videos
360 View

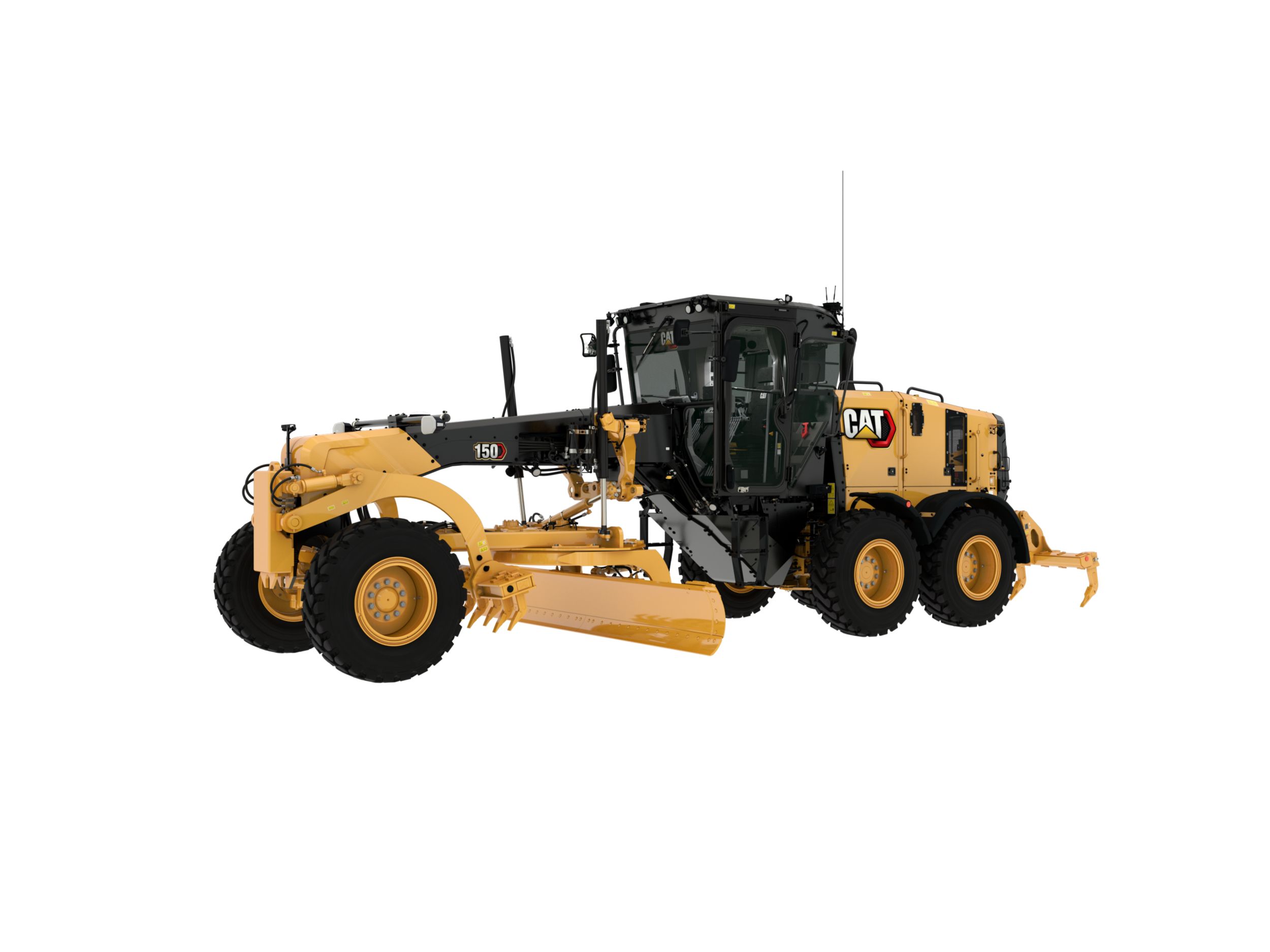

150 Motor Grader
