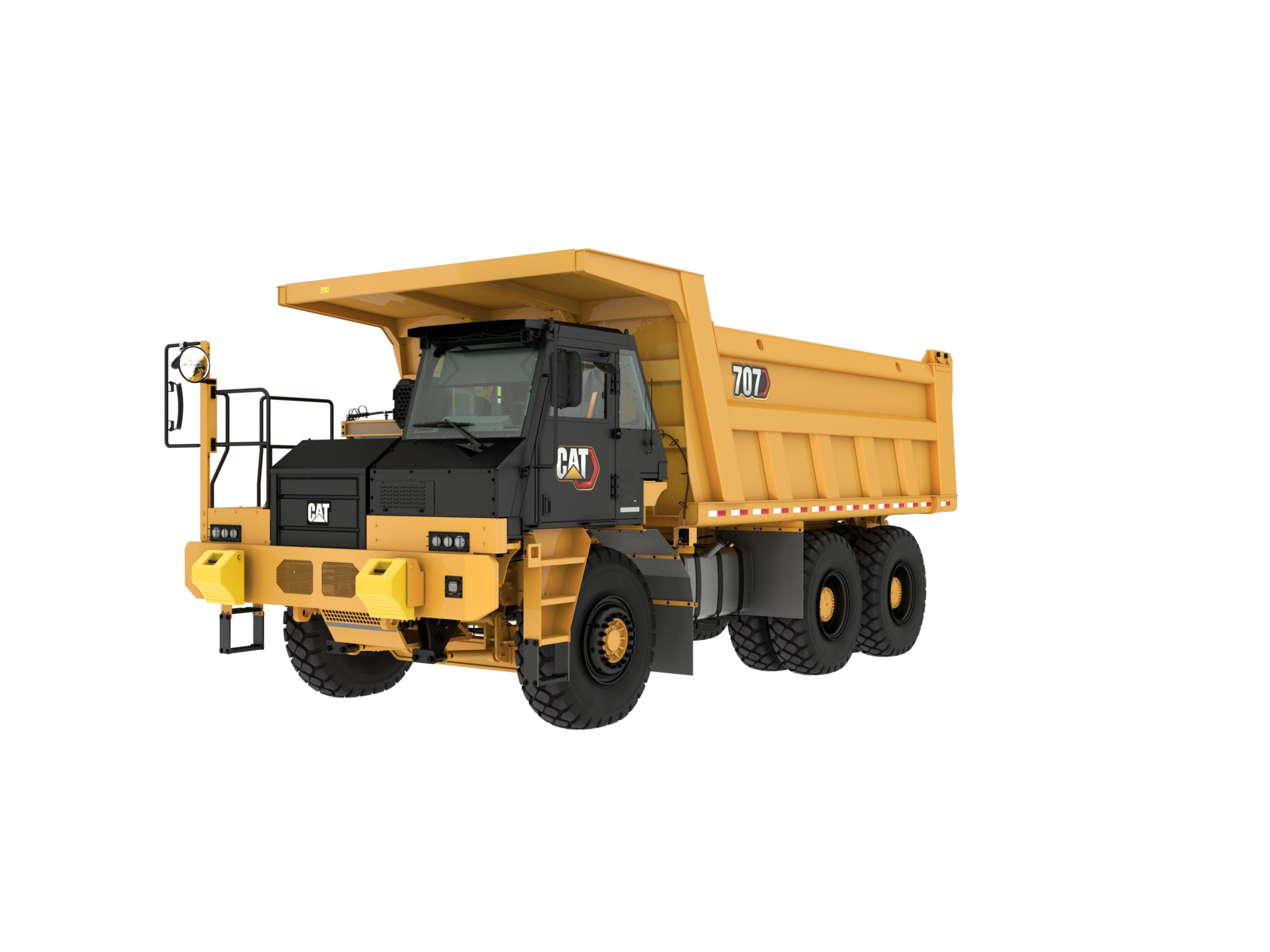

Wide Body Truck 707

Wide Body Trucks 707 Wide Body Truck

Request A Price Find Dealer

Key Specs

Maximum Payload
40,234.363 ton (US)
66 t
Capacity
Bodies with capacities of 40 m³ and 42 m³ are offered in standard-duty (Q355B) and heavy-duty (NM400) versions.
Bodies with capacities of 40 m³ and 42 m³ are offered in standard-duty (Q355B) and heavy-duty (NM400) versions.
Engine Model
Cat® C13B Meets China Nonroad Stage IV or Cat C13 Emits equivalent to U.S. EPA Tier 3 / Tier 3 Equivalent
Cat® C13B Meets China Nonroad Stage IV or Cat C13 Emits equivalent to U.S. EPA Tier 3 / Tier 3 Equivalent

Overview

Maximize Performance

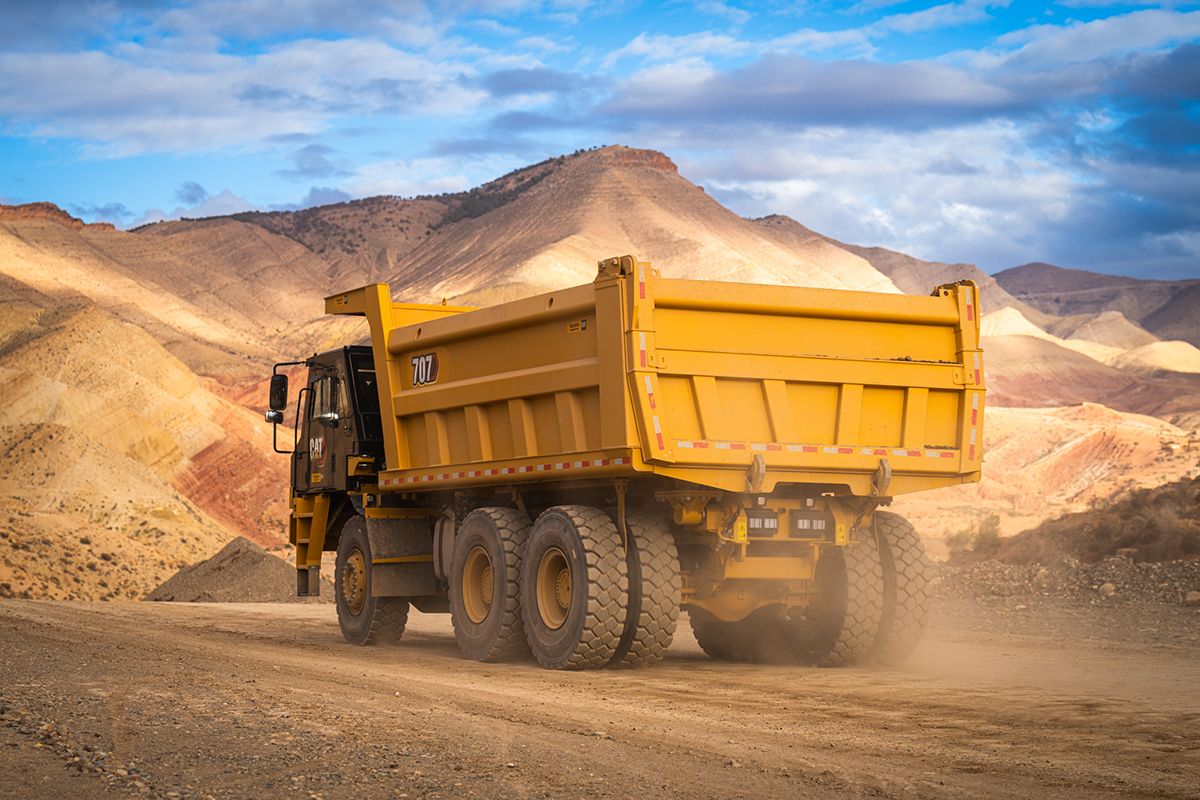

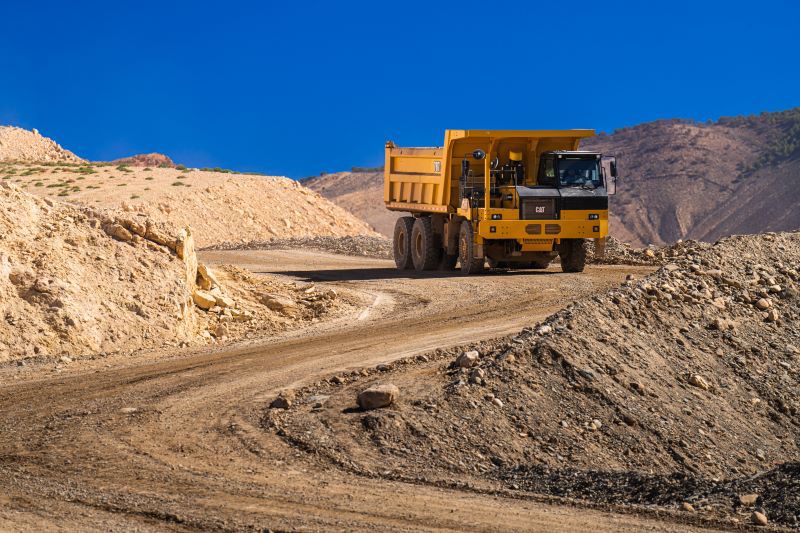

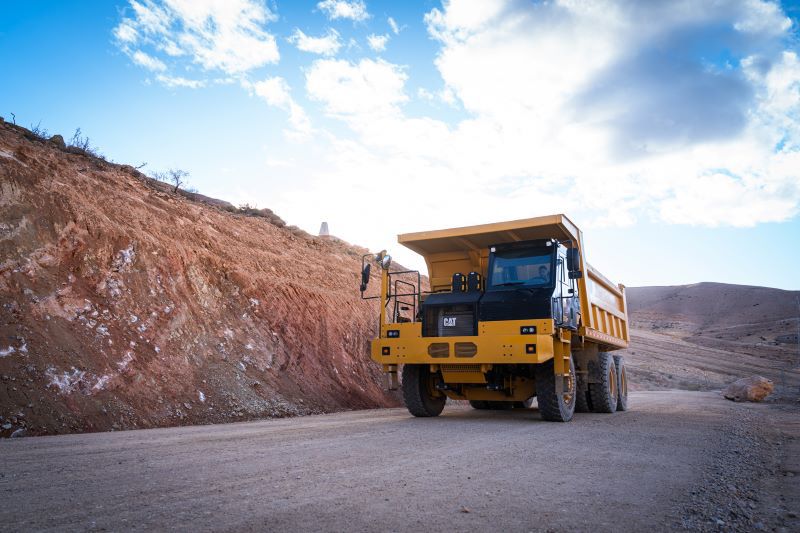

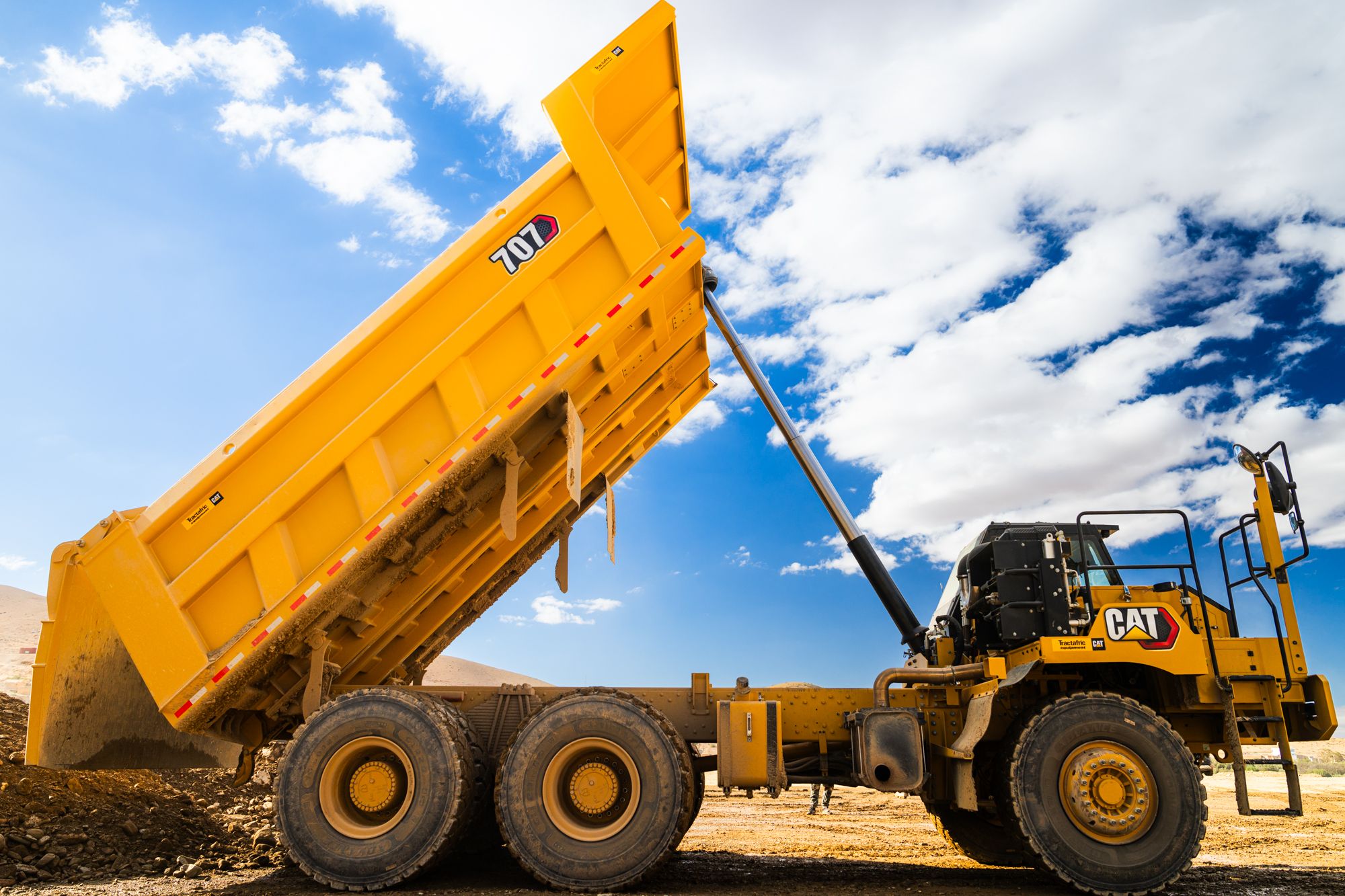

The dependable Cat® 707 Wide Body Truck features an integrated Cat powertrain, a durable chassis, and a target payload of 66 tons. It is designed with rebuild solutions, is compatible with Cat loading tools, and suits both mining and quarry off-highway fleet operations.

Benefits

DURABILITY REDEFINED

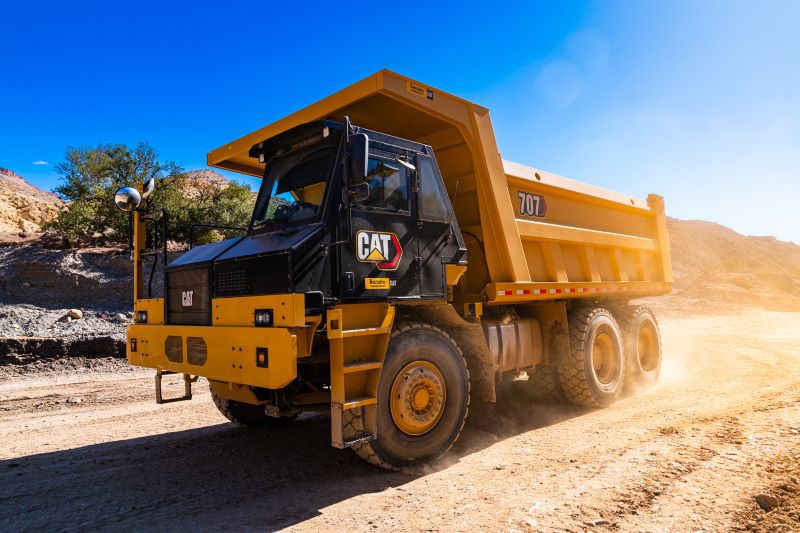

Utilizing the CAT C13 engine, CX31 Transmission, and CAT proprietary axle provides a standard for high uptimes and extended machine life.

Designed For Performance

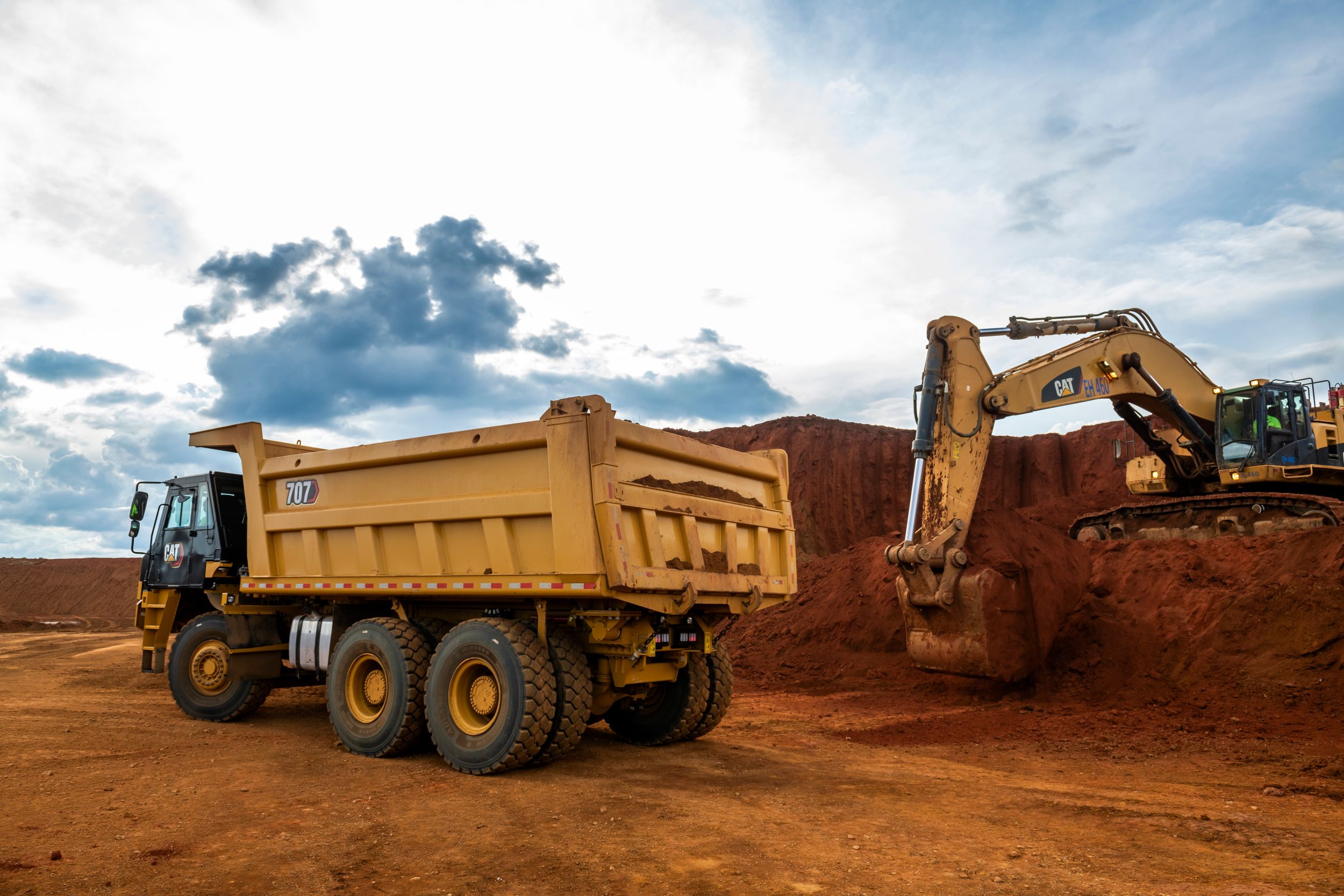

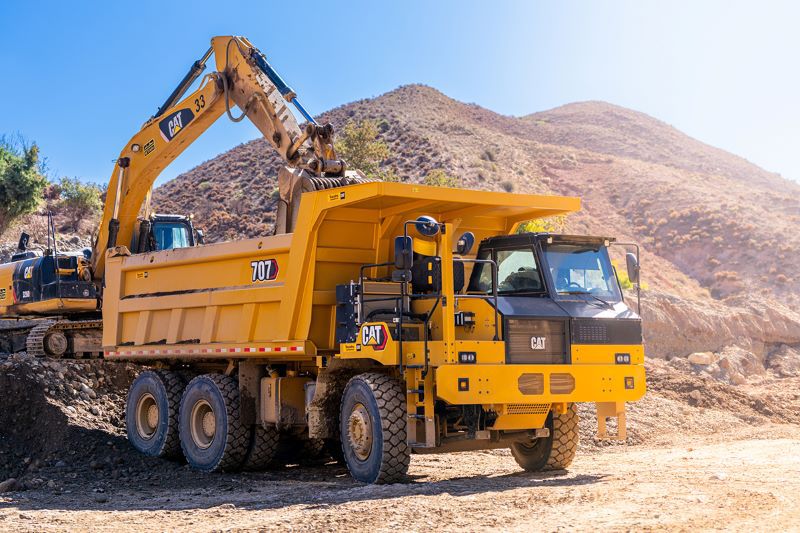

Ideal pass match with CAT 350/374/395 Excavator and CAT 982/986/982GC Wheel Loader.

Optimal Safety & Comfort

Reinforced ROPS cab for added protection

Features At A Glance

Specifications Standard Equipment Optional Equipment

Product Specifications for 707 Wide Body Truck

Download Print
Maximum Payload 40,234.363 ton (US) 66 t
Top Speed - Loaded 42 mile/h 38 km/h
Capacity Bodies with capacities of 40 m³ and 42 m³ are offered in standard-duty (Q355B) and heavy-duty (NM400) versions. Bodies with capacities of 40 m³ and 42 m³ are offered in standard-duty (Q355B) and heavy-duty (NM400) versions.
Tons 72.7 ton(US)/h 66 t
C13B - Struck (SAE) 33 mm³ 43 yd³
C13 - Struck (SAE) 35 m³ 45 yd³
Heaped 2:1(Sae) 10,566.88 gal (US) 40 m³
Floor .63 in 16 mm
Frontwalls .39 in 10 mm
Canopy Backwall .47 in 12 mm
Canopy Top .23 in 6 mm
Engine Model Cat® C13B Meets China Nonroad Stage IV or Cat C13 Emits equivalent to U.S. EPA Tier 3 / Tier 3 Equivalent Cat® C13B Meets China Nonroad Stage IV or Cat C13 Emits equivalent to U.S. EPA Tier 3 / Tier 3 Equivalent
Net Power 375 hp 359 kW
Rated Engine Speed Rated Power W/Fan C13B 400 kw @ 2,100 rpm or C13 358 kw @ 2,000 rpm Rated Power W/Fan C13B 400 kw @ 2,100 rpm or C13 358 kw @ 2,000 rpm
Bore 5.11 in 130 mm
Stroke 6.18 in 157 mm
Displacement .18 gal (US) 12.5 l
Net Torque 2408 N·m 2408 N·m
Net Torque Rise 37 C13B 37 C13B
Net Torque Rise 35 C13 35 C13
C13B - Net Torgue 2450 N·m 2450 N·m
C13 - Struck (SAE) 1896 N·m 1896 N·m
Air Cleaner - No. Used 2 2
Type Dry Dry
Emissions (1) Meets China Nonroad Stage IV Meets China Nonroad Stage IV
Emissions (2) Emits equivalent to U.S. EPA Tier 3/Tier 3 equivalent Emits equivalent to U.S. EPA Tier 3/Tier 3 equivalent
Note (2) Ratings based on SAE J1995 standard air conditions of 25° C (77° F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16° C (60° F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30° C (86° F). Ratings based on SAE J1995 standard air conditions of 25° C (77° F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16° C (60° F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30° C (86° F).
Rear Type Type: Drum Actuation: Air Type: Drum Actuation: Air
Parking Type Type: Drum Actuations: Spring Slope Holding Ability: 15% Type: Drum Actuations: Spring Slope Holding Ability: 15%
Secondary Type: Drum Actuation: Spring Type: Drum Actuation: Spring
Front Type Type: Drum Actuation: Air Brake System: Air actuated Ddrum brakes Brake Standard: ISO 3450:2011 Type: Drum Actuation: Air Brake System: Air actuated Ddrum brakes Brake Standard: ISO 3450:2011
Brake Surface - Front 25.7 in² 655 cm²
Brake Standards ISO 3450:2011 ISO 3450:2011
Brake Surface - Rear 9497 in² 61269 cm²

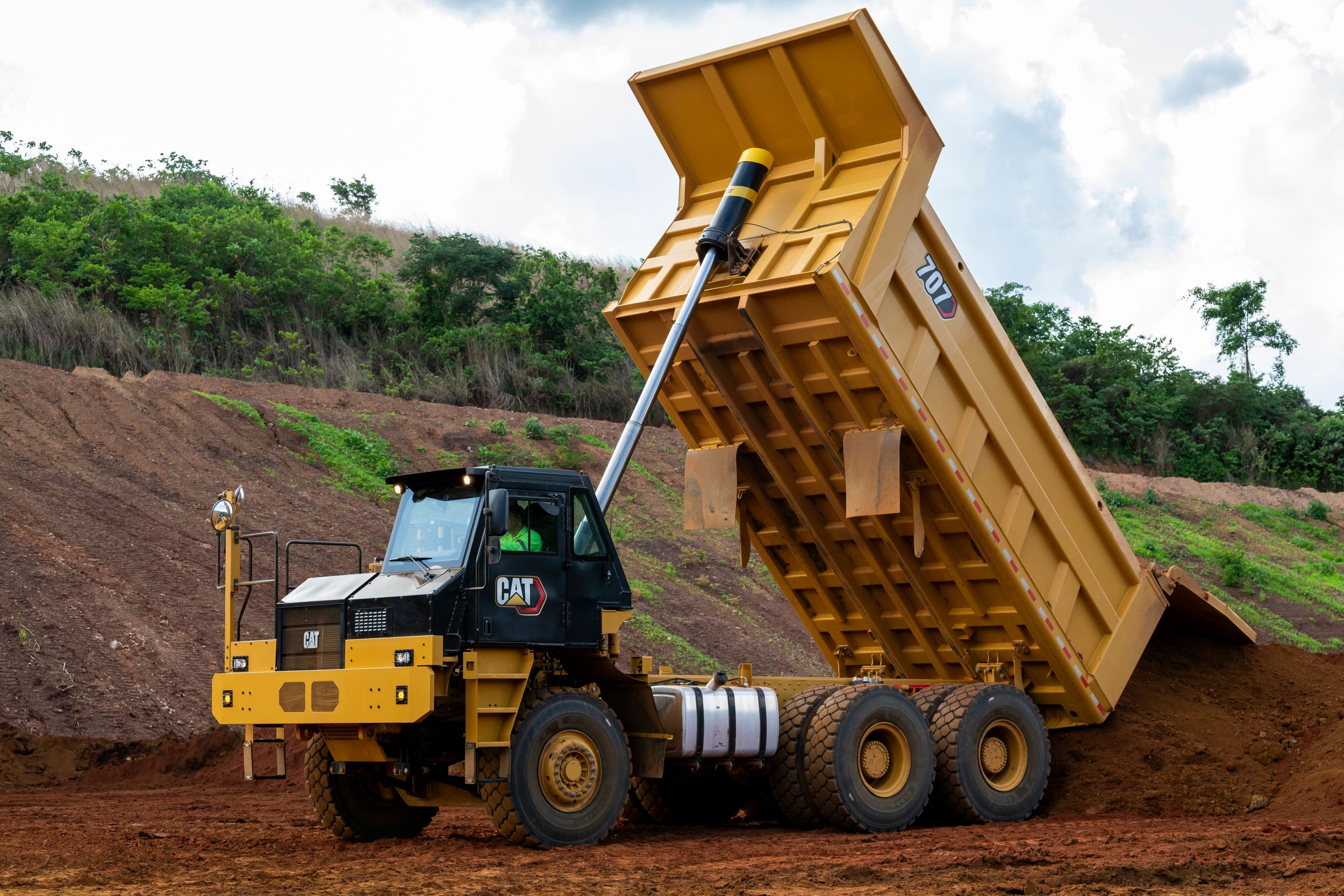

Body Raise Time - High Idle 20 s 20 s
Body Lower Time - Float 12.5 s 20 s
Pump Flow - High Idle 118 gpm 448 L/min
Body Power Down - High Idle 13 s 13 s
Relief Valve Setting - Raise 2502 psi 17250 kPa
Relief Valve Setting - Lower 500 psi 3450 kPa
Front Axle - Loaded 24 % 24 %
Front Axle - Empty 35 % 35 %
Rear Axle - Loaded 76 % 76 %
Rear Axle - Empty 65 % 65 %
Fuel Tank 143 gal (US) 540 l
Cooling System 14 gal (US) 53 l
Differential - Final Drives 29 gal (US) 111 l
FOPS Standards Falling Objects Protective Structure (FOPS) meets ISO 3449:2005 Level II FOPS criteria. Falling Objects Protective Structure (FOPS) meets ISO 3449:2005 Level II FOPS criteria.
ROPS Standards Rollover Protective Structure (ROPS) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria. Rollover Protective Structure (ROPS) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria.
Sound Standards (1) The operator Equivalent Sound Pressure Level (Leq) is 82 dB(A), measured according to ISO 6394:2008 and ISO 6396:2008.is used to measure the value for an enclosed cab. This is a work cycle sound exposure level. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed. The operator Equivalent Sound Pressure Level (Leq) is 82 dB(A), measured according to ISO 6394:2008 and ISO 6396:2008.is used to measure the value for an enclosed cab. This is a work cycle sound exposure level. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed.
Sound Standards (2) The exterior sound pressure level for the standard machine measured at a distance of 15 m (49 ft) according to the test procedures specified in SAE J88:2008, mid‑gear moving operation is 86 dB(A). The exterior sound pressure level for the standard machine measured at a distance of 15 m (49 ft) according to the test procedures specified in SAE J88:2008, mid‑gear moving operation is 86 dB(A).
Sound Standards (3) Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment. Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment.
Vehicle Clearance Turn Circle 26.3 yd 24.1 m
Turning Diameter - Front 25.9 yd 23.7 m
Note (1) Contact your local Cat dealer for body recommendation. Contact your local Cat dealer for body recommendation.
Total Reduction Ratio 17.49:1 17.49:1
Planetary Ratio 4.80:1 4.80:1
Differential Ratio 3.64:1 3.64:1

707 Wide Body Truck Standard Equipment

Print

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

POWER TRAIN

  • The Cat 707 with either the C13B engine (meets China Nonroad Stage IV emission standards) or the Cat 707 with the C13 engine (emits equivalent to U.S. EPA Tier 3)
  • Braking system: service dry air brakes, parking brake
  • Cat engine brake
  • Cat CX31RT transmission 6-speed automatic powershift

SUSPENSION SYSTEMS

  • Suspension, front and rear (EU compliant)

ELECTRICAL

  • LED lights
  • Radio ready

TECHNOLOGY PRODUCTS

  • Product Link™

OPERATOR ENVIRONMENT

  • Cat cab
  • Cat cab with operator and trainer falling objects protective structure (FOPS)
  • 24V power source
  • Cat operator seat with 2-point seatbelt

OTHER STANDARD EQUIPMENT

  • Tailgate body – general-duty 42 m3
  • Weather Package – x2 battery
  • Air conditioning and heat

707 Wide Body Truck Optional Equipment

Print

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

OPTIONAL EQUIPMENT

  • Cat hydraulic retarder fully integrated in CX31RT transmission
  • Cat cab with operator and trainer rollover protective structure (ROPS)
  • LED lights high lumens
  • Jump starter
  • Radio
  • Cat operator seat air suspended
  • Cat operator seat with 3-point seatbelt
  • Rearview camera
  • Cat cab with operator and trainer rollover protective structure (ROPS)
  • Trainer seat
  • DCDC converter
  • Network manager
  • 24v - 12v converter
  • Tailgate body – heavy-duty 40 m3
  • Tailgate body – general-duty 42 m3

OTHER OPTIONAL EQUIPMENT

  • Tailgate body – heavy-duty 40 m3
  • Tailgate body – general-duty 42 m3
  • Tailgate body – heavy-duty 42 m3
  • Weather Package – high ambient fluids
  • Cold Weather Package-lite (CNR4) – x2 battery
  • Cold Weather Package (CNR4) – x4 battery
  • Spare tire – bias
  • Spare tire – radial
  • Spare tire – Radial Advance (tubeless) (16.00R25 GLR29PRO normal distance)
  • Spare tire – Radial Advance (high TPKH)
  • Spare tire – Radial Advance (tubeless) (GLR32 long distance)
