Overview
Proven Performance and Reliability
The AP1055 is a high-production, rubber track paver that excels on airports runways, interstates, highways, and other large jobsites. Its high travel speed, flotation, and traction deliver superb mobility.
AP1055 Track Asphalt Pavers
Key Specs
- Paving Range with SE60 V
- 3 m - 7.65 m (9' 10" - 25')
- 3 m - 7.65 m (9' 10" - 25')
- Operating weight with SE60 V
- 45,087 lb
- 20451 kg
- Maximum Throughput Capacity
- 1766 ton(US)/h
- 1602 tonnes/hr
Benefits
Advanced Technology
Integrated generator is designed for the life of the paver.
Up To 15% More Fuel Efficient
More fuel efficient with integrated generator and advanced eco-mode.
Fast and Simple Operation
with screed heat-up in as little as 15 minutes.
Features At A Glance
Displaying 1-6 of 8
High Return on Investment
- Exclusive 70 kW integrated generator delivers fast, reliable screed heating and is designed for long life by the same team that developed the D7E electric drive dozer
- Fast heating screed leads to more daily production, heating time in as little as 15 minutes
- Mobil-trac™ undercarriage design delivers excellent traction, good flotation, and fast travel that helps lead to increased production
- Exclusive air flow design improves operating conditions for the crew and keeps components cooler for lasting durability
Technology That Works For You
- Pave Start Assistant saves set-up profiles for repeatable use on future job sites including: tow-point height, screed heat temperature, paving speed, paving width, paving depth, crown, extender slope and height, screed assist, and screed locking features
- A hopper level sensor (option) with temperature indication keeps the operator informed of material height and delivery temperatures, indicators are located in each tractor display
- Exclusive screed heating system monitors elements for failure conditions and helps eliminate unnecessary replacement
- Cat Grade Control option is integrated into the tractor and screed displays for optimized operator efficiency
- Thermal mapping option utilizes an infra-red camera mounted on a fixed-position mast that captures the entire width of the asphalt surface behind the screed. An LCD display mounted near the screed console provides real-time visibility to the surface being paved
Quality Results, Higher Earnings
- Versatile screed designs deliver excellent ride, density, and mat texture while providing superior adjustment; available with front-mount extenders, rear-mount extenders, or tamper-bar systems
- The optional Cat® SDX Screed Plate System is designed to increase density and smoothness. The system is available for the SE60 V and SE60 V XW Asphalt Screeds.
- Tow-point design utilizes exclusive linkage for optimal screed flotation
- Exclusive 2-speed proportional control on the screed extenders
- Cat Grade Control is a factory-integrated guidance system that helps remove irregularities from the surface and control mat thickness for increased production, lower operating costs, and higher profitability
Low Owning and Operating Costs
- Exclusive Eco-mode and Automatic Engine Speed Control, reduce fuel consumption and lower sound levels for better comfort and communication
- 4-pump feeder system is designed for high production in Eco-mode, leads to lower fuel consumption
- Million cycle switches provide reliability
- Conveyor bed plates and chain guards designed to minimize labor requirements and provide lower cost replacement
- Heating elements slide-out for easy replacement
- Machined screed frames simplify screed plate replacement
- Enhanced hopper flashing with increased memory and temperature resiliency offers better performance during truck exchanges
More Comfort
- Ventilation system draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment
- Dual operating station provide back-up capability and complete control from either side of the machine, each station can swing-out beyond the frame for good all-around visibility
- Heated seat option, pneumatic suspension, multiple adjustments, and tilting consoles provide day-long comfort
- Eco-mode provides low sound levels that supports clear communication with the crew
- High visibility 76 mm (3") seat belt helps with crew safety compliance
- USB port simplifies software updates
- Cup holders offer convenience
Easy Viewing Displays
- Touch-screen displays with adjustable brightness control enable operators to fine-tune performance in various lighting conditions
- Touch-screen access simplifies activation of the generator and auxiliary power, while also providing easy adjustments to screed plate heating temperatures, tamper and vibratory speeds, Cat Grade Control (option), and stored operator preferences
- Operating displays can be tailored to specific language requirements with multiple options available
Product Specifications for AP1055
Dimensions
| Paving Range with SE60 V | 3 m - 7.65 m (9' 10" - 25') 3 m - 7.65 m (9' 10" - 25') |
| Paving Range with SE60 FM | 3 m - 7.8 m (10' - 25' 6") 3 m - 7.8 m (10' - 25' 6") |
| Paving Range with SE60 V XW | 3 m - 10 m (10' - 33') 3 m - 10 m (10' - 33') |
| Paving Range with SE60 VT XW | 3 m - 10 m (10' - 33') 3 m - 10 m (10' - 33') |
| Operating Length | 22.3 ft 6.8 m |
| Operating Width | 10.8 ft 3.3 m |
| Overall Height | 12.25 ft 3.7 m |
| Transport Length | 21.9 ft 6.6 m |
| Transport Width | 9.8 ft 3 m |
| Transport Height | 9.7 ft 2.9 m |
Weights
| Operating weight with SE60 V | 45,087 lb 20451 kg |
| Operating weight with SE60 FM | 45,352 lb 20571 kg |
| Operating weight with SE60 V XW | 46,573 lb 21125 kg |
| Shipping Weight - Paver Only | 36,800 lb 16691 kg |
Engine
| Engine Power (1) | 225 hp 168 kW |
| Engine Model (1) | Cat C7.1 Cat C7.1 |
Operating Specifications
| Maximum Throughput Capacity | 1766 ton(US)/h 1602 tonnes/hr |
| Maximum Travel Speed | 9 mile/h 14.5 km/h |
| Maximum Paving Speed | 210 ft/min 64 m/min |
| Maximum Paving Speed - With Tamper Bar Screed | 82 ft/min 25 m/min |
| Inside Turn Radius | 1.5 ft 0.5 m |
Service Refill Capacities
| Fuel Tank Capacity | 92 gal (US) 348 l |
| DEF Tank | 5 gal (US) 19.1 l |
| Cooling System | 12 gal (US) 45 l |
| Hydraulic Oil Tank | 58 gal (US) 219 l |
| Washdown Tank | 7.9 gal (US) 30 l |
AP1055 Standard Equipment
Operating Environment
- Steering guide
- Dual operating stations
- Ventilation System
Powertrain
- Automatic engine speed control
- Cat C7.1 Engine
- Variable speed cooling fan
- Eco-mode
- Extended life hydraulic oil
Electrical system
- 70 kW generator
- Cat Electronic Technician
- Machine security system
- Remote jump start receptacle
- Automotive type fuse system
- 12-volt power receptacle
- 100 amp alternator
- 1400 CCA batteries
Material Delivery
- Contact-type material feed sensors
- Adjustable push-roller
Service and Maintenance
- Ground level engine air cleaner
- Extended-life coolant
- Remote access drains
- Scheduled Oil sampling ports
- Sight gauges
Safety
- Back-up alarm
- Horn
- Working lights
- Mirror package
- Vandal covers
AP1055 Optional Equipment
Technology
- Cat Grade Control
- Hopper level and material height sensor
- Pave start assistant
- Thermal mapping
- VisionLink™ Telematics
Operating Environment
- Air-ride seat
- Hard top canopy
- Deceleration pedal
- Friction steering
- Heated seats
- Side shields
- Towpoint indicator (2nd)
- Umbrella
- Screen visor
- Windshield
Powertrain
- Ballast_front weights
- Mobil-trac belt - smooth
Electrical System
- Auxiliary power panel_6.6 kW
Material Delivery
- Auger extension
- Leveling devices
- Mainframe extensions_manual
- Mainframe extensions_power
- Sonic feed sensors
- Power folding front apron
- Truck hitch
- Washdown pump and reel
- Washdown tank
- Wide width paving packages
Service and Maintenance
- Service repair kits
- Uptime kits
Grade References
- Sonic Averaging Beam
- Rigid Ski, 9.15 m (30') and 12.2 m (40')
Screed Choices
- SE60 V Screed
- Cat SDX Screed Plates
- SE60 FM Screed
- SE60 VT XW Screed
- SE60 V XW Screed
See how AP1055 compares against frequently compared products.
Asphalt Pavers
AP1055
Selected
- Paving Range with SE60 V
- 3 m - 7.65 m (9' 10" - 25')
- 3 m - 7.65 m (9' 10" - 25')
- Operating weight with SE60 V
- 45,087 lb
- 20451 kg
- Maximum Throughput Capacity
- 1766 ton(US)/h
- 1602 tonnes/hr
Asphalt Pavers
AP655
- Paving Range with SE47 FM
- 2.44 - 6.25 m (8' - 20' 6")
- 2.44 - 6.25 m (8' - 20' 6")
- Operating weight with SE47 FM
- 40,560 lb
- 18397 kg
- Maximum Throughput Capacity
- 1433 ton(US)/h
- 1300 tonnes/hr
Asphalt Pavers
AP555
- Paving Range with SE47 FM
- 2.4 m - 6.1 m (8' - 20')
- 2.4 m - 6.1 m (8' - 20')
- Operating weight with SE47 FM
- 33,689 lb
- 15281 kg
- Maximum Throughput Capacity
- 1100 ton(US)/h
- 1000 tonnes/hr
assignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
- AP1055 (08A) Asphalt Paver Key Features (N Am) Downloadable PDF Opens in a New Tab file_download
- AP1055 (08A) Product Brochure (N Am) Downloadable PDF Opens in a New Tab file_download
- Paving Product Line Brochure Downloadable PDF Opens in a New Tab file_download
- Paving Application Guides and eBooks Downloadable PDF Opens in a New Tab file_download
Media Gallery
Photos
Videos
360 View
AP1055 Asphalt Paver
AP1055 Asphalt Paver
AP1055 Asphalt Paver
AP1055 Asphalt Paver
AP1055 Asphalt Paver
AP1055 Asphalt Paver
AP1055 Asphalt Paver
AP1055 Asphalt Paver

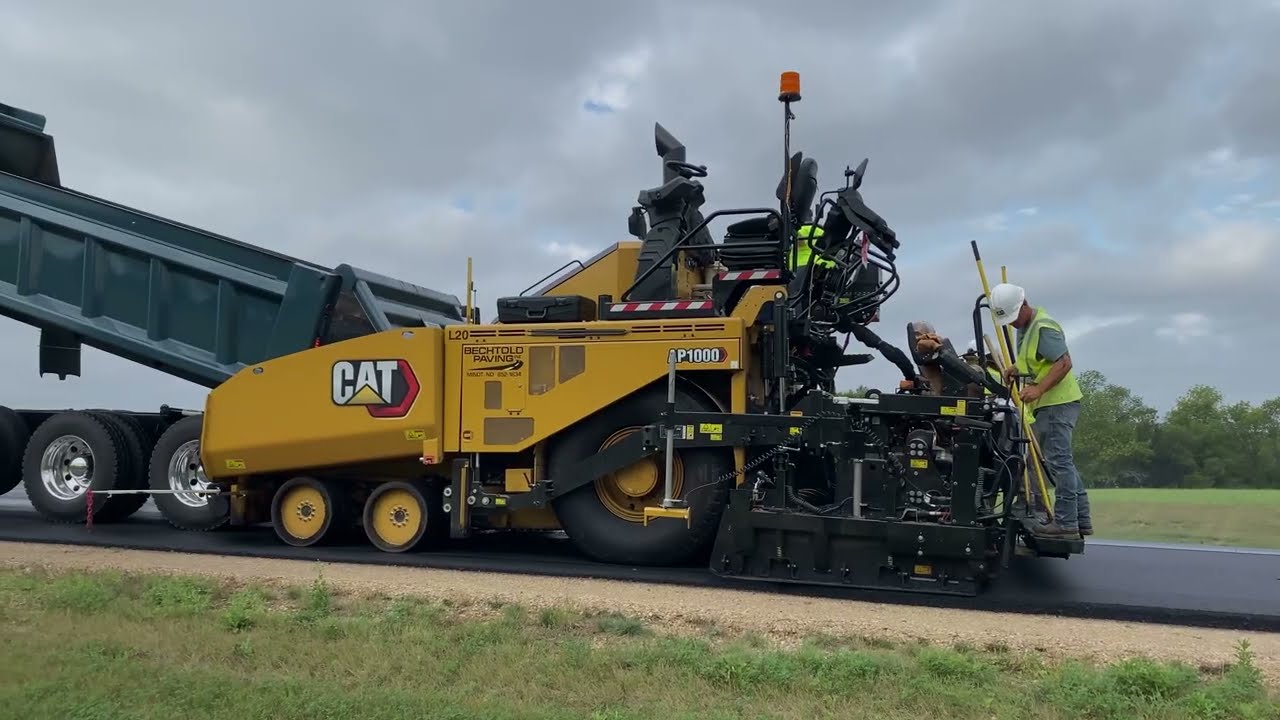

AP1000 (08A) and AP1055 (08A) Walkaround
