Key Specs

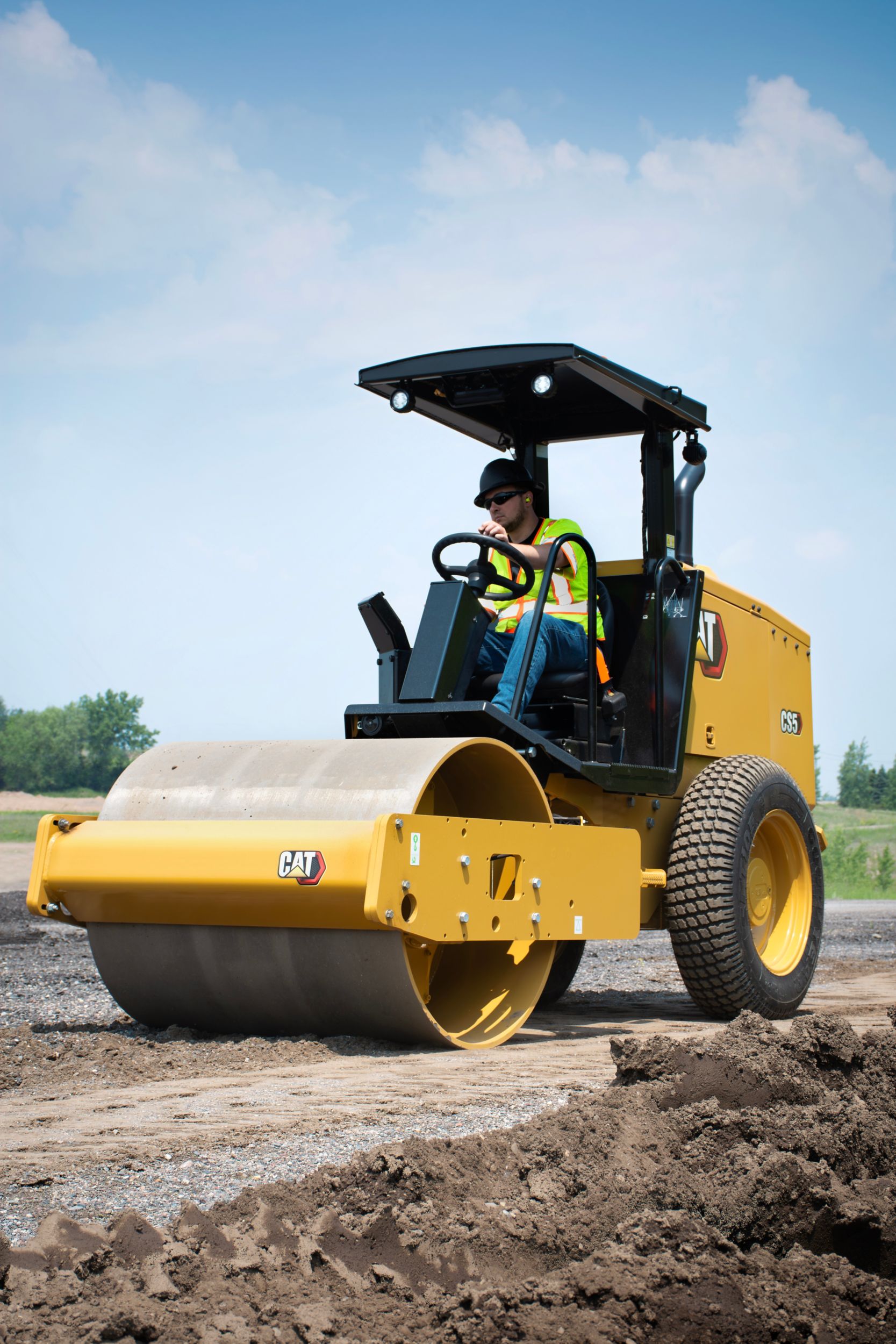

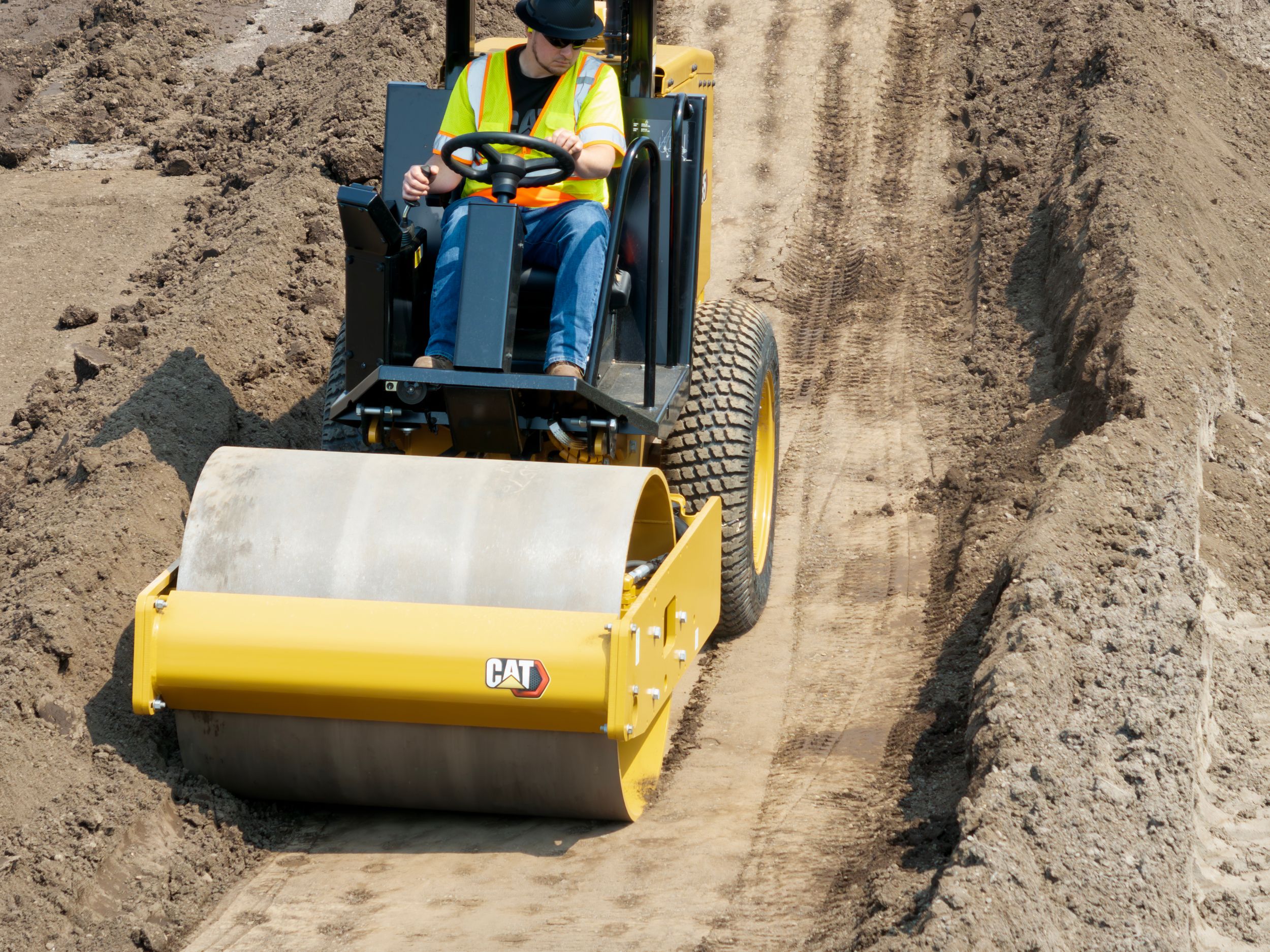

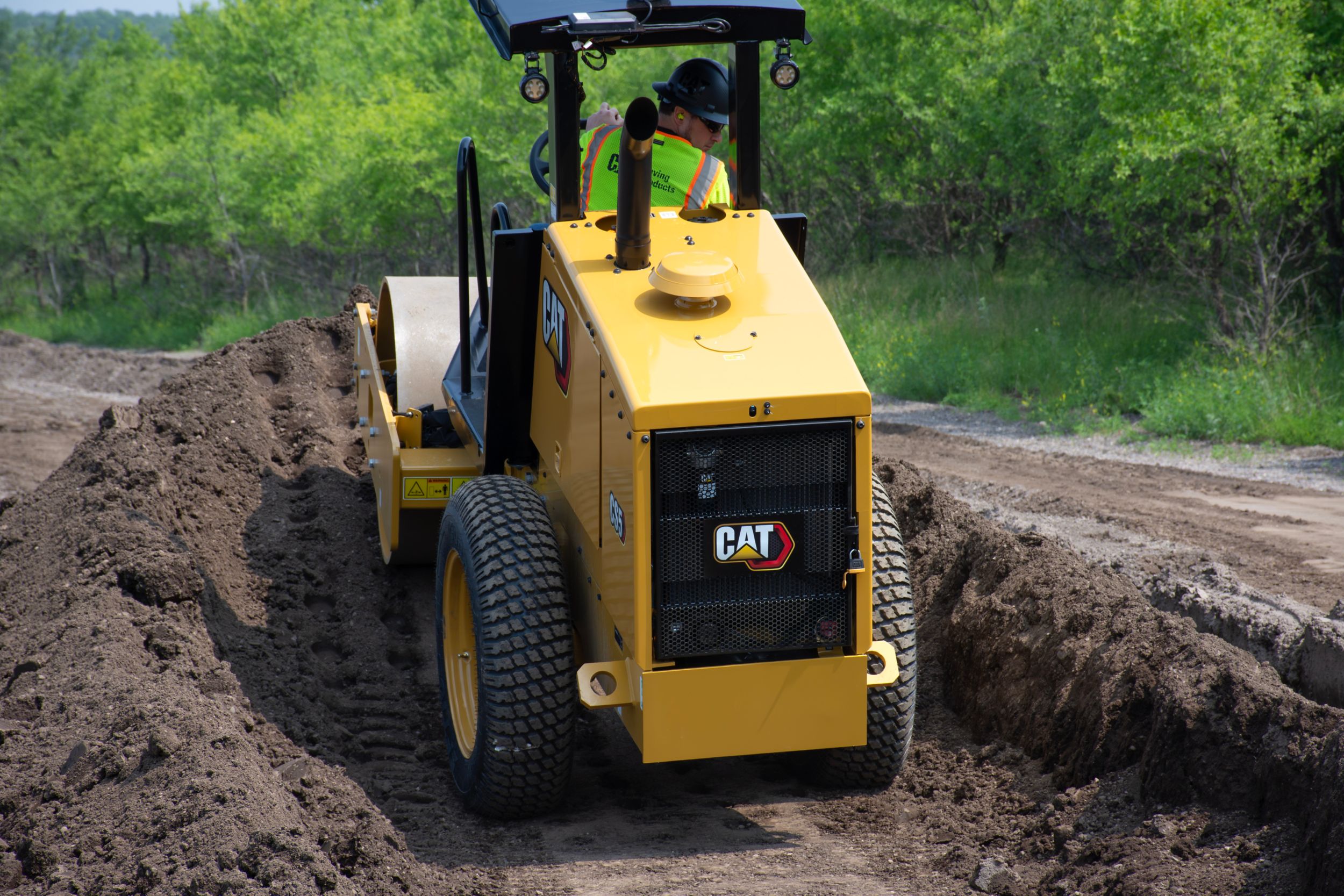

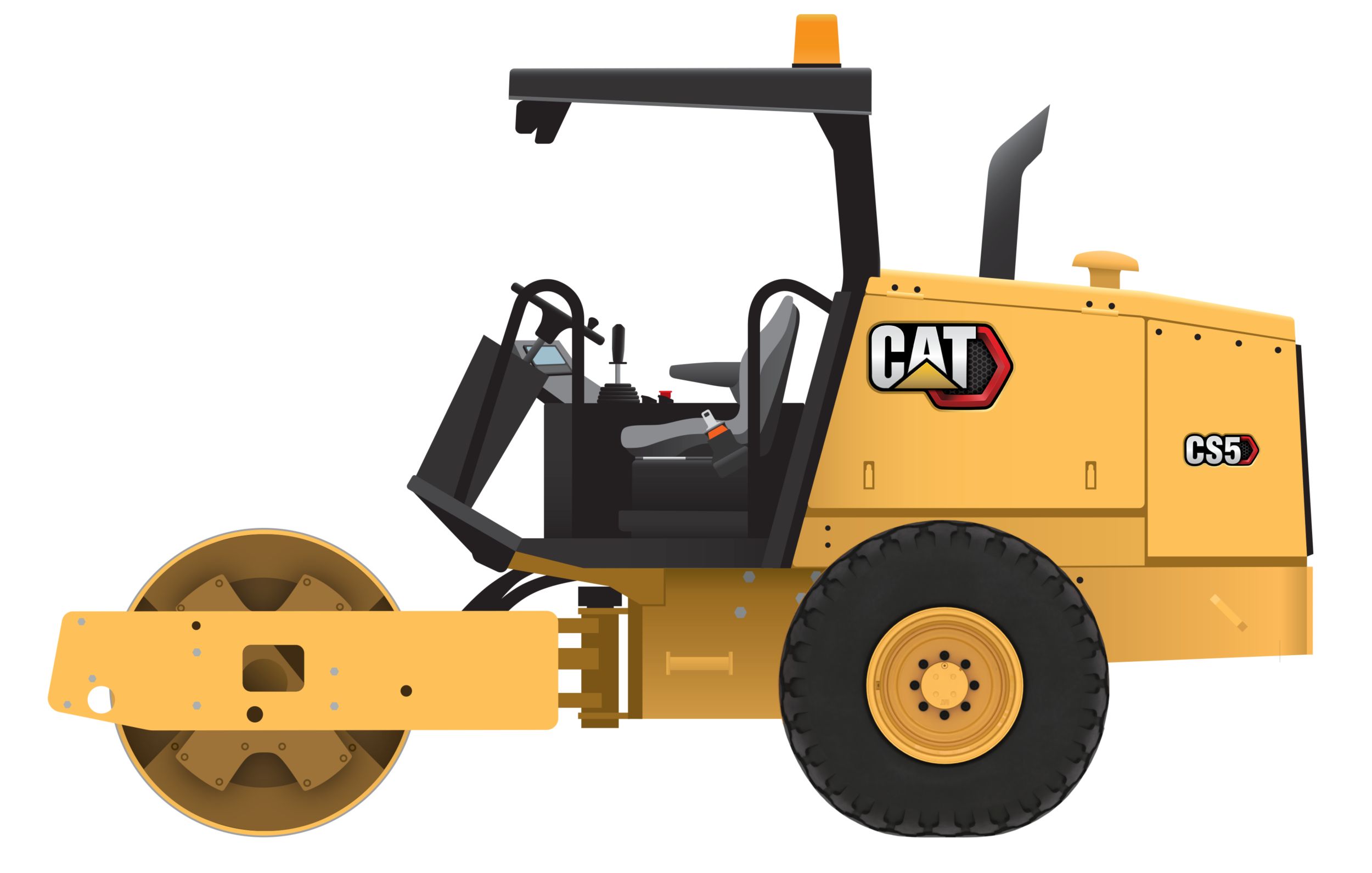

The Cat® CS5 smooth drum roller is designed for residential and utility applications with granular soils. Its compact size is ideal for small jobs or working in tight areas like trenches or job sites with limited space.

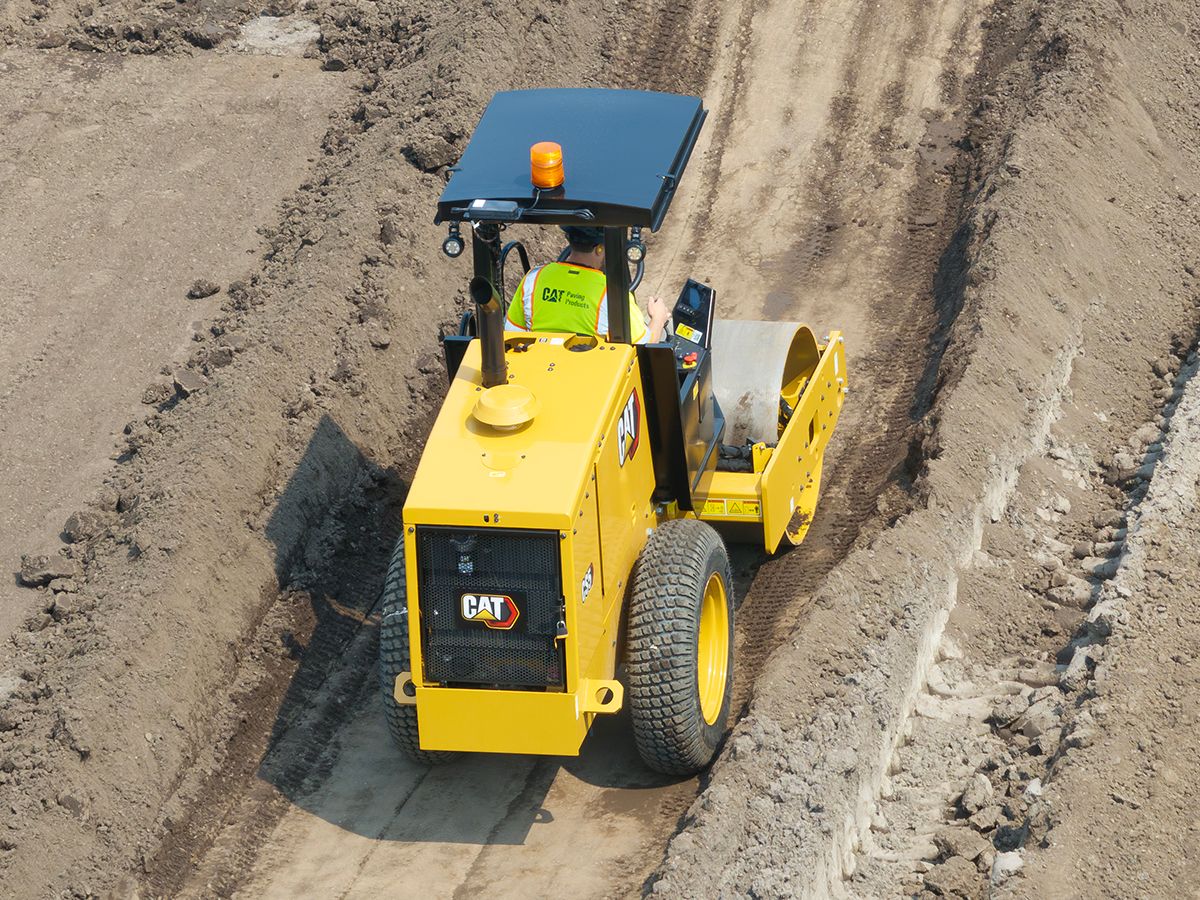

A maneuverable, transportable roller ideally sized for residential and utility applications.

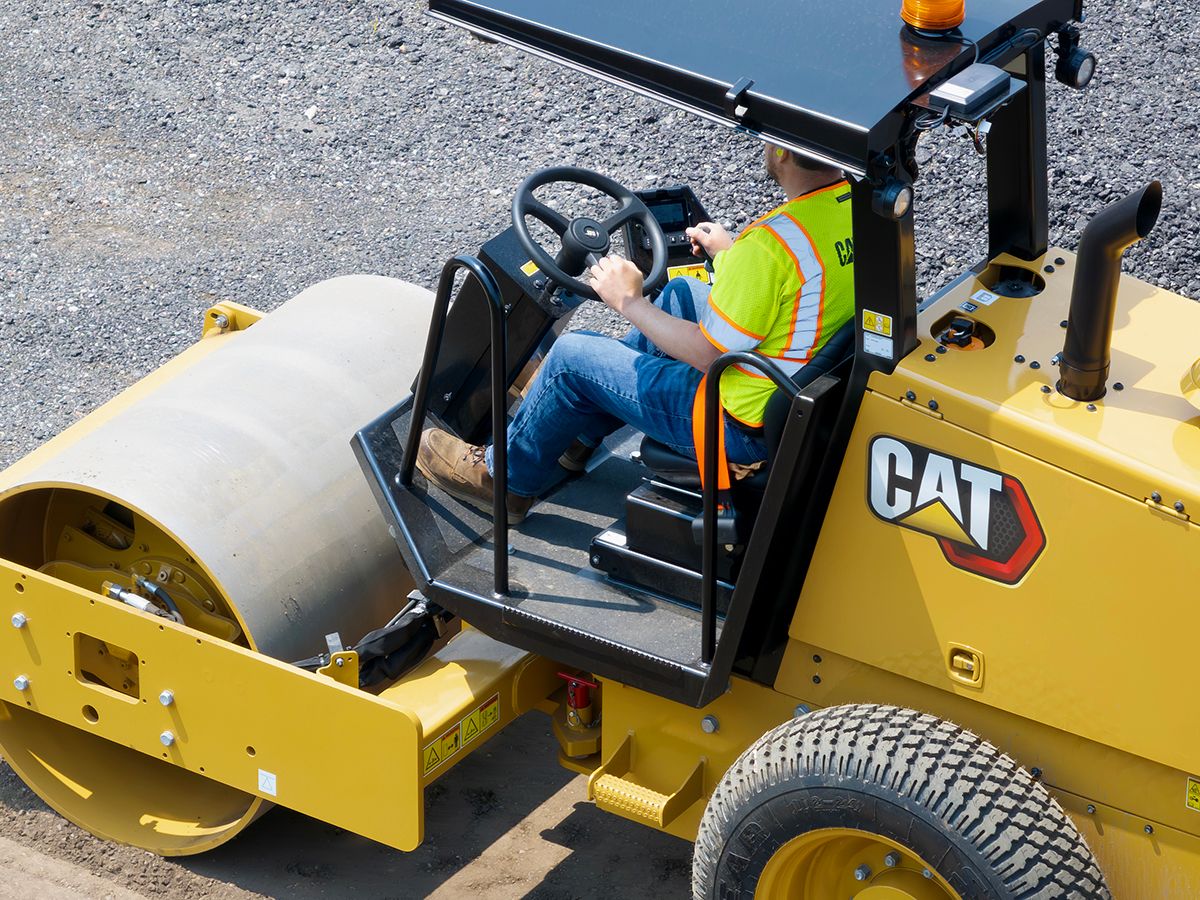

Designed for easy operation, comfort and visibility.

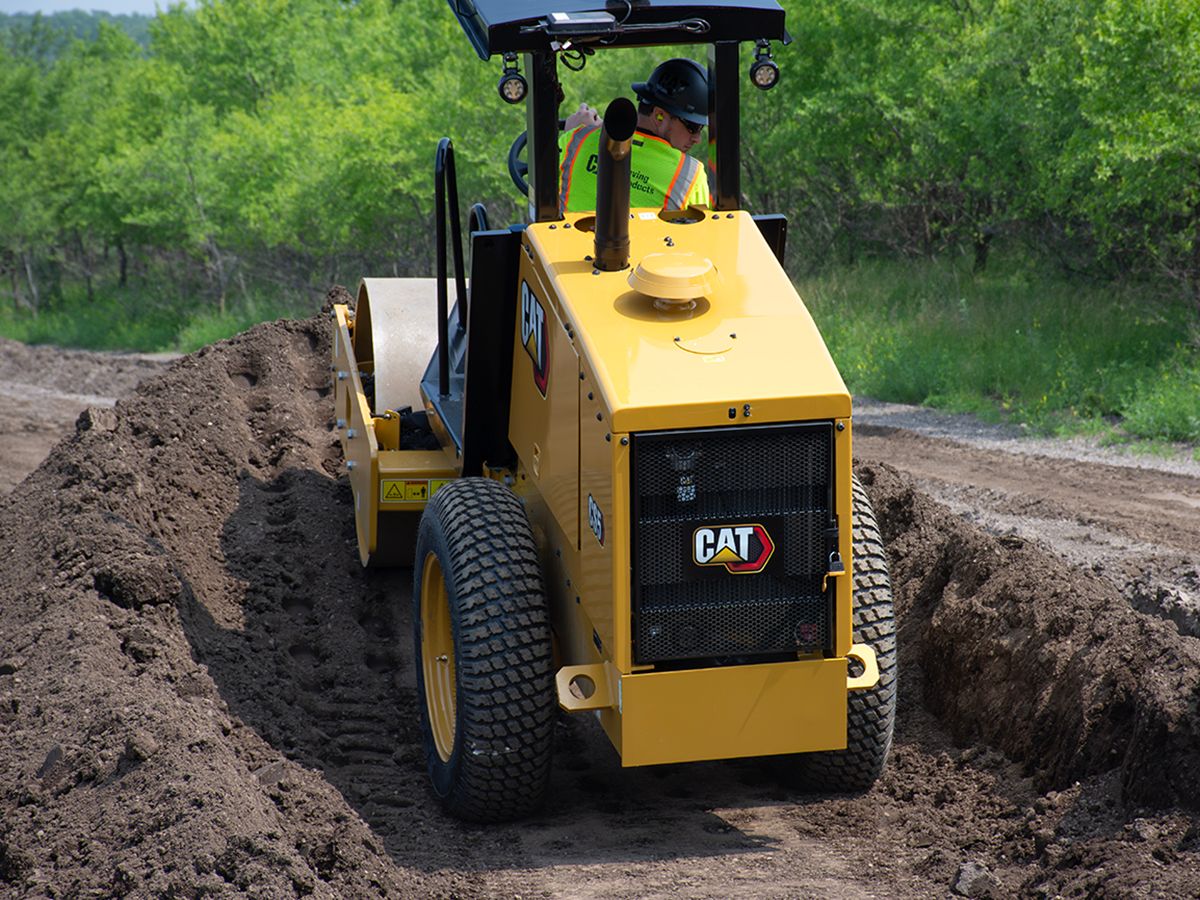

Durable, field-proven and engineered to provide performance and reliability that contractors can count on.
Displaying 1-6 of 5
| Operating Weight - With ROPS/FOPS Canopy | 10075 lb 4570 kg |
| Weight - Drum with ROPS/FOPS Canopy | 4625 lb 2100 kg |
| Note (1) | Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. |
| Operating Weight - With Cab | 25353 lb 11500 kg |
| Drum Width | 50 in 1270 mm |
| Overall Length | 164 in 4155 mm |
| Overall Width | 55 in 1393 mm |
| Drum Diameter | 40 in 1016 mm |
| Maximum Height | 99 in 2525 mm |
| Wheel Base | 88 in 2240 mm |
| Compaction Width | 84 in 2134 mm |
| Gross Power | 75.8 hp 56.5 kW |
| Engine Power - ISO 14396 | 74.3 hp 55.4 kW |
| Net Power - ISO 9249 | 72 hp 53.7 kW |
| Net Power - SAE J1349:2011 | 72 hp 53.7 kW |
| Note (1) | Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator. Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator. |
| Engine Model | Cat C2.8 Cat C2.8 |
| Emissions | U.S. EPA Tier 4 Final U.S. EPA Tier 4 Final |
| Stroke | 4.3 in 110 mm |
| Bore | 3.5 in 90 mm |
| Vibratory Frequency - Standard | 2150 VPM 35.8 Hz |
| Nominal Amplitude - High | 0.051 in 1.3 mm |
| Centrifugal Force - Maximum | 17535 lb 78 kN |
| Static Linear Load - With ROPS/FOPS Canopy | 90.2 lb/in 16.1 kg/cm |
| Fuel Tank Capacity | 29.9 gal (US) 113 l |
| Cooling System | 4.1 gal (US) 15.7 l |
| Engine Oil - With Filter | 2.2 gal (US) 8.2 l |
| Eccentric Weight Housings (combined) | 14 gal (US) 53 l |
| Axle and Final Drives | 1.9 gal (US) 7.1 l |
| Hydraulic Tank | 9.4 gal (US) 35.6 l |
| Travel Speed - Maximum | 5.5 mile/h 8.8 km/h |
| Ground Clearance | 13.7 in 348 mm |
| Curb Clearance | 13.5 in 344 mm |
| Turning Radius - Inside Drum Edge | 103 in 2625 mm |
