Key Specs

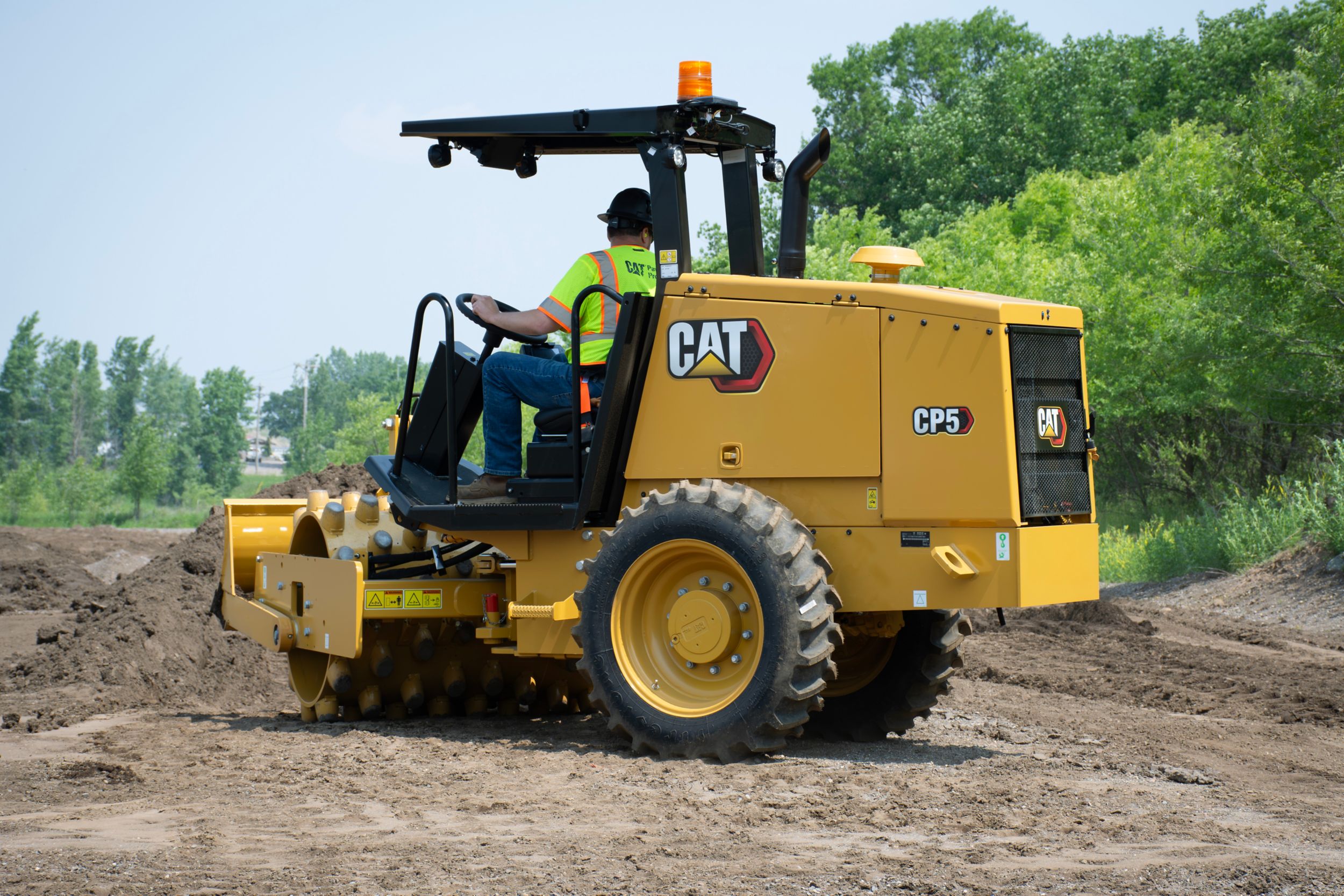

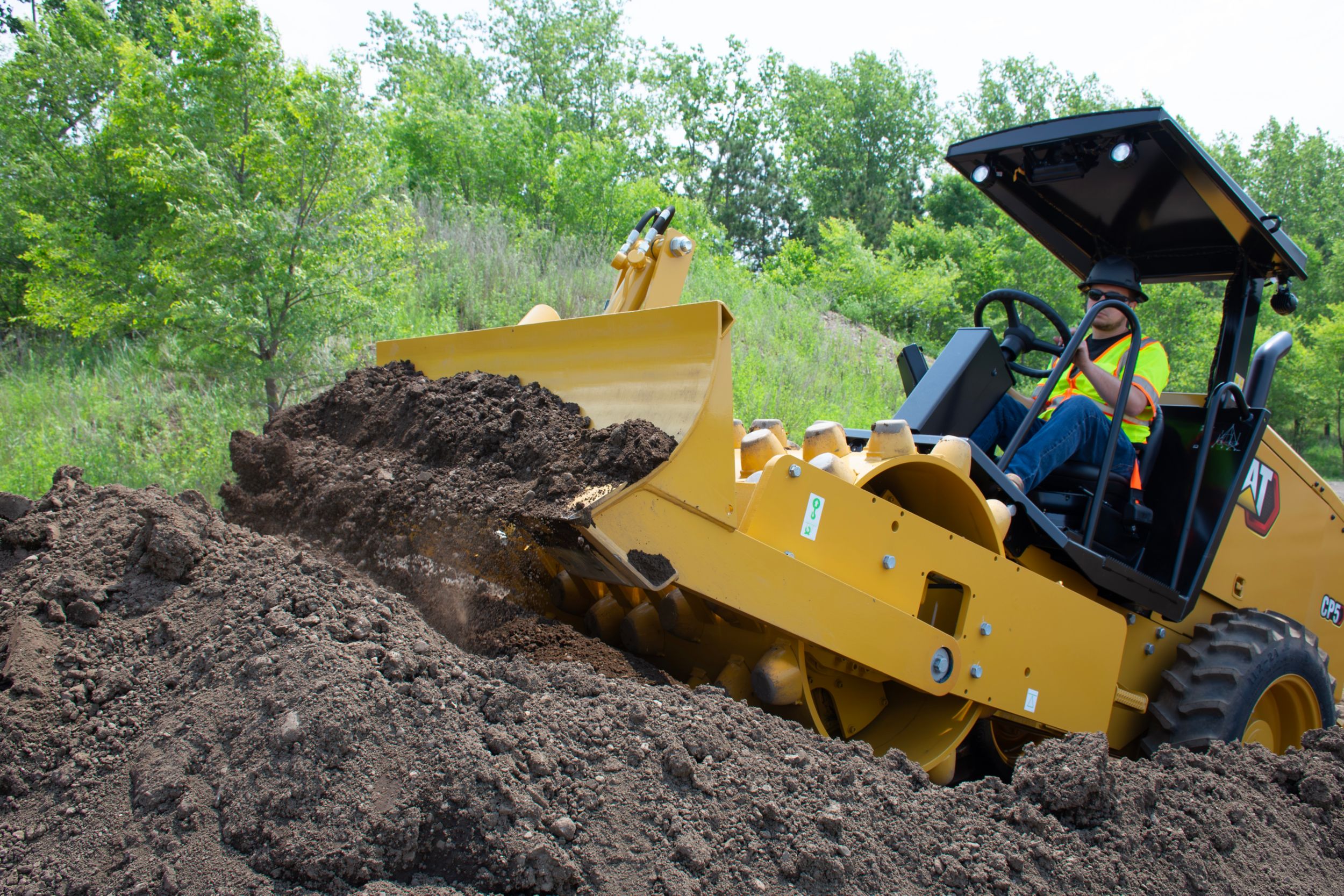

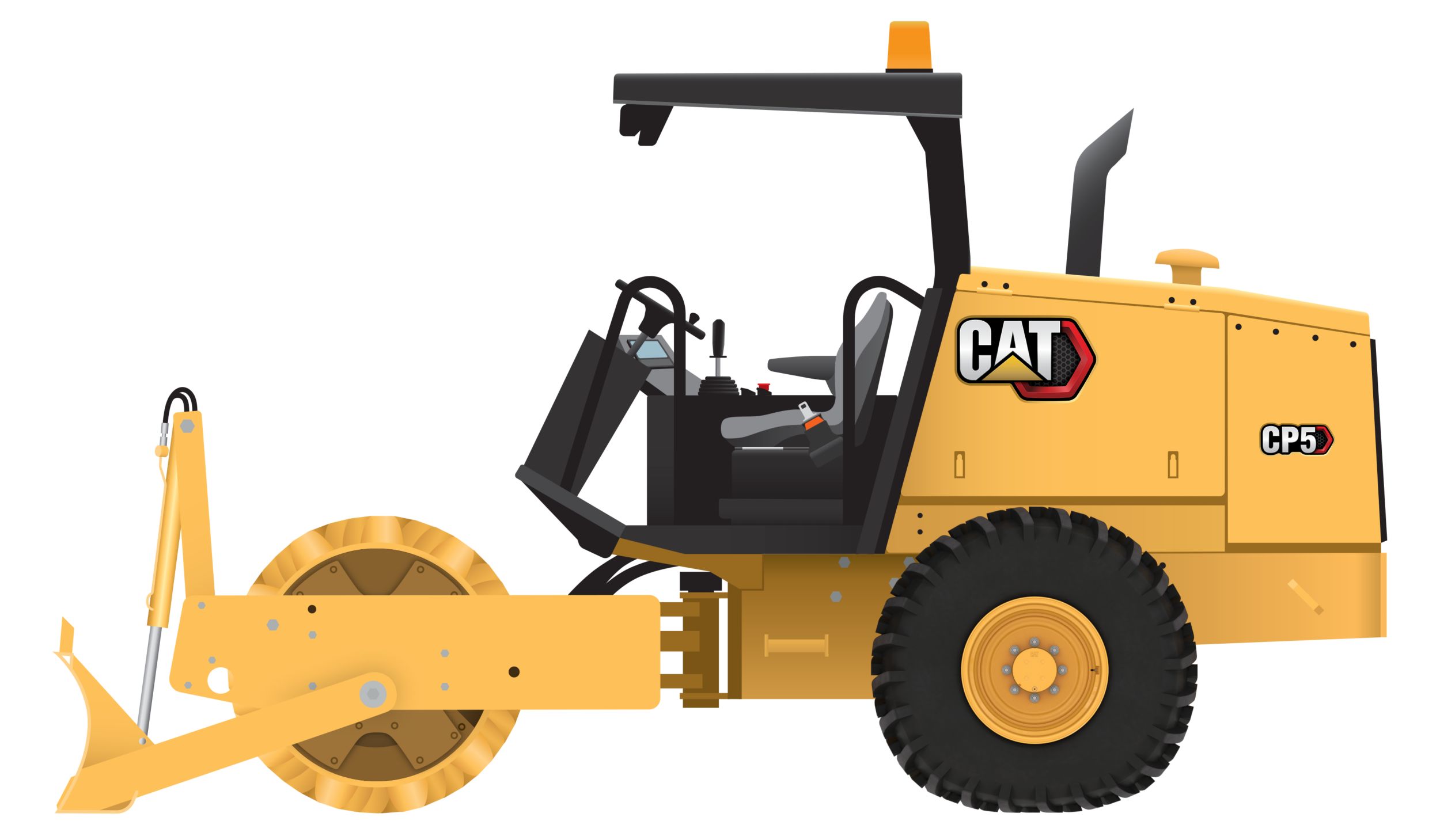

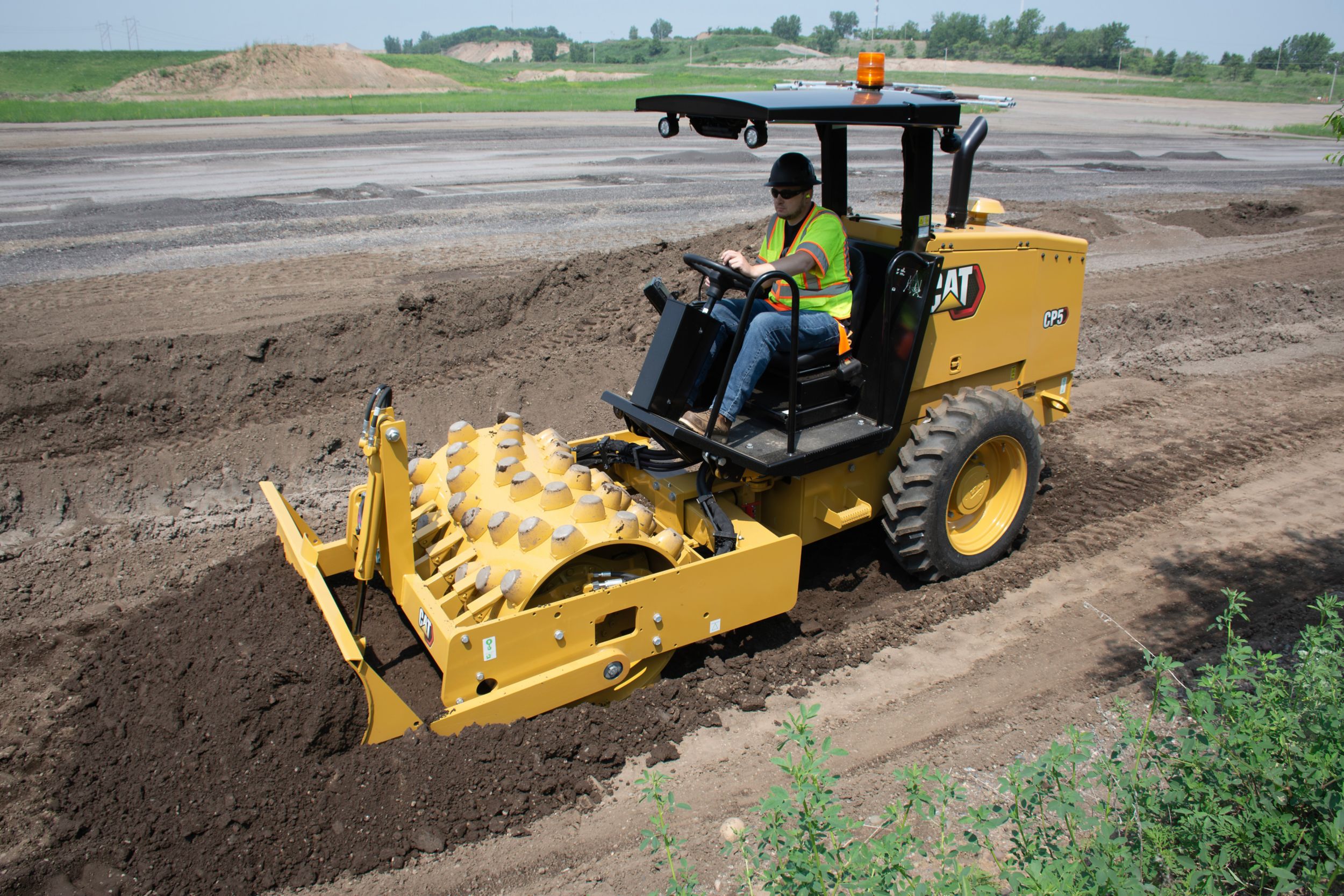

The Cat® CP5 sheepsfoot roller is designed for residential and utility applications with cohesive and semi-cohesive soils. Its compact size is ideal for small jobs or working in tight areas like trenches or job sites with limited space.

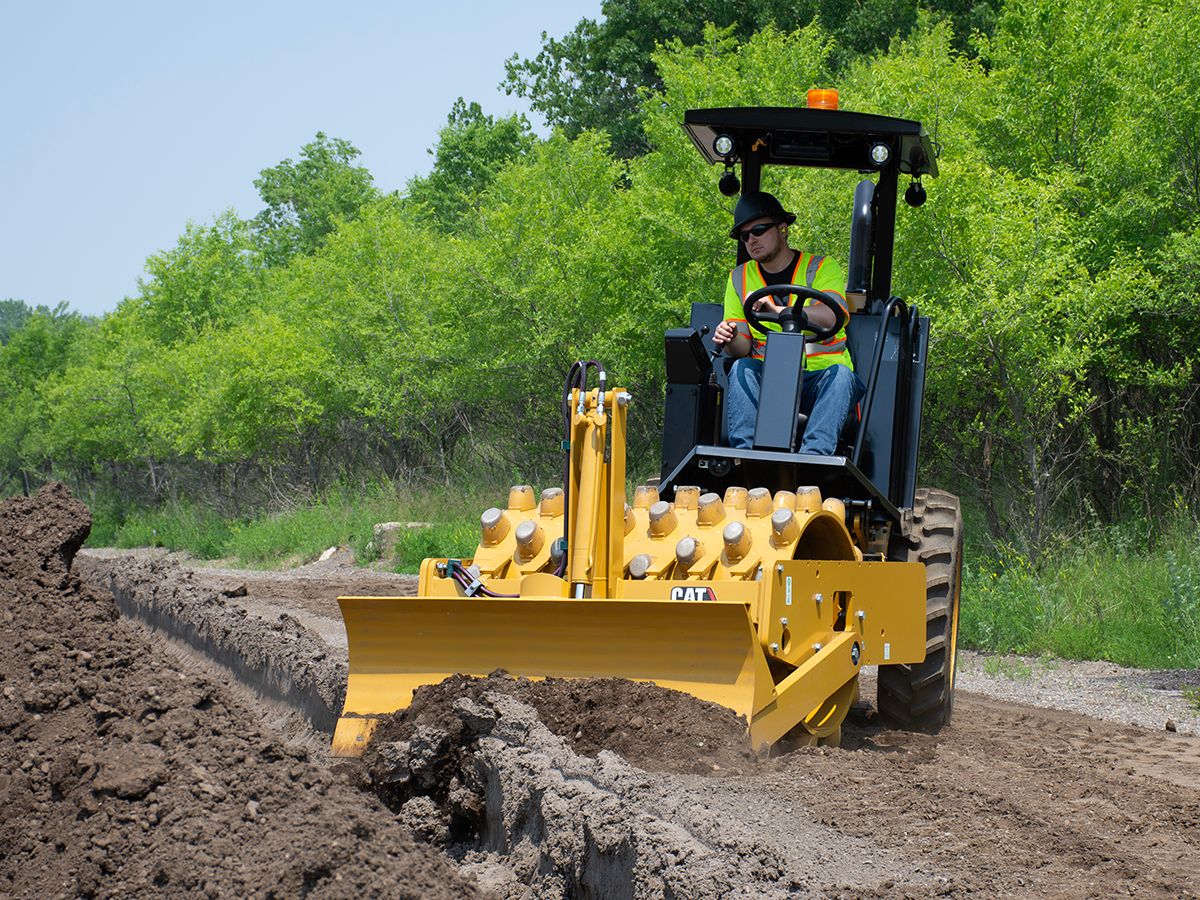

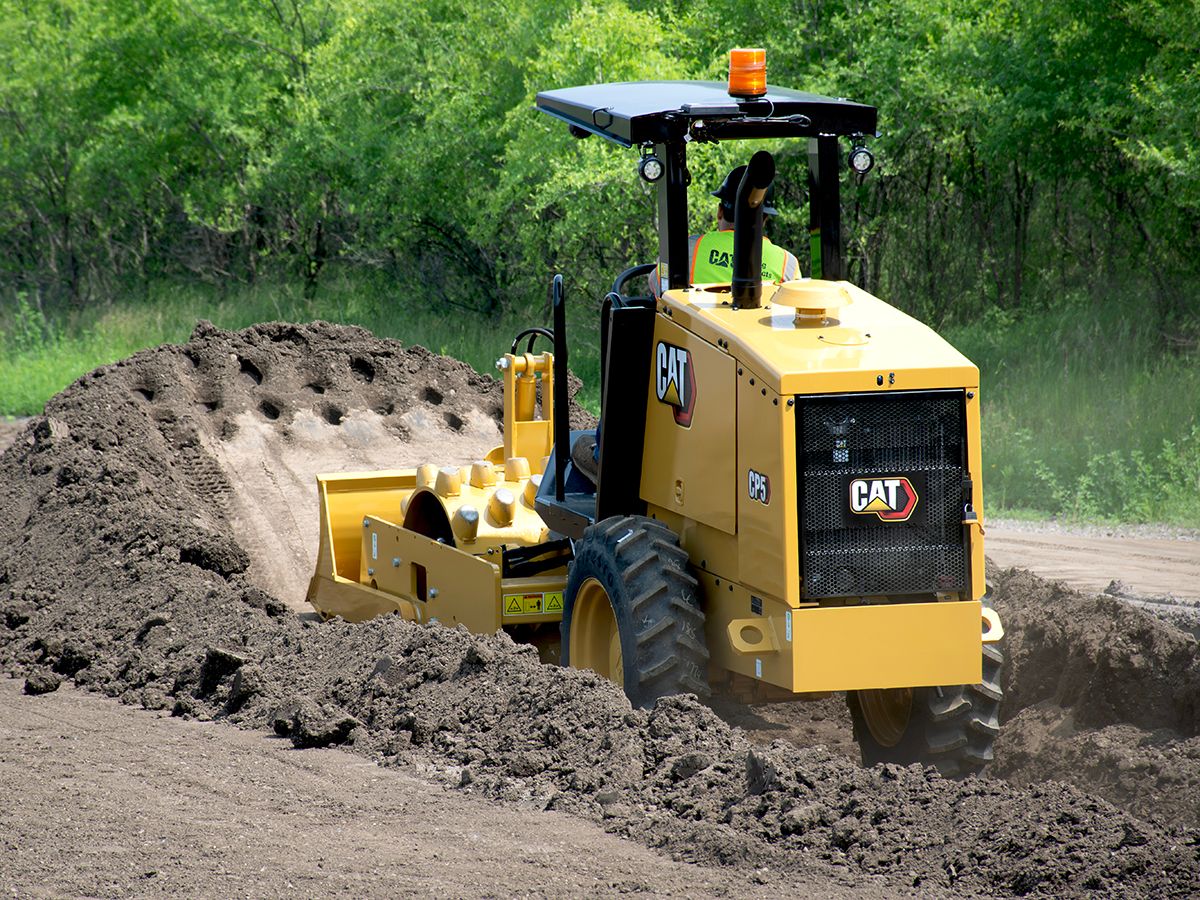

A maneuverable, transportable roller ideally sized for residential and utility applications.

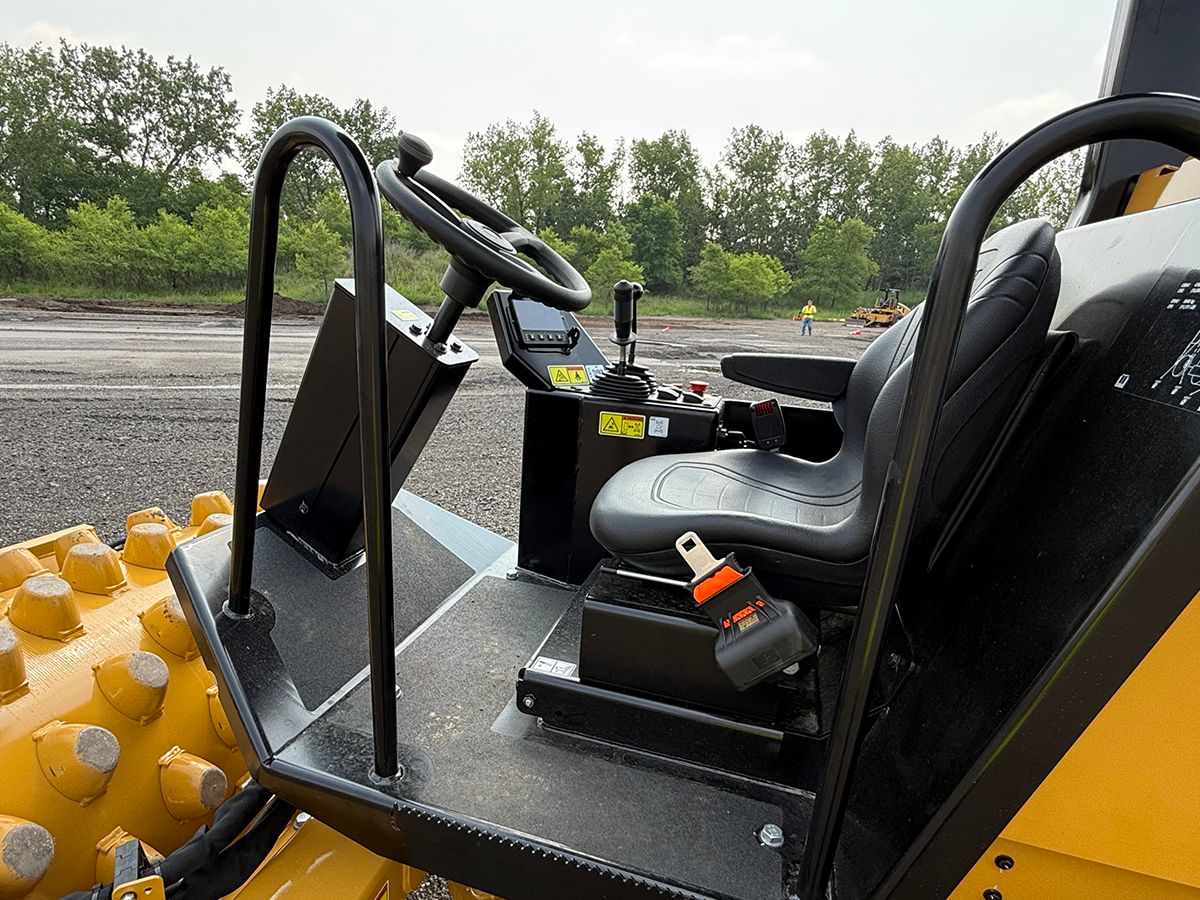

Designed for easy operation, comfort and visibility.

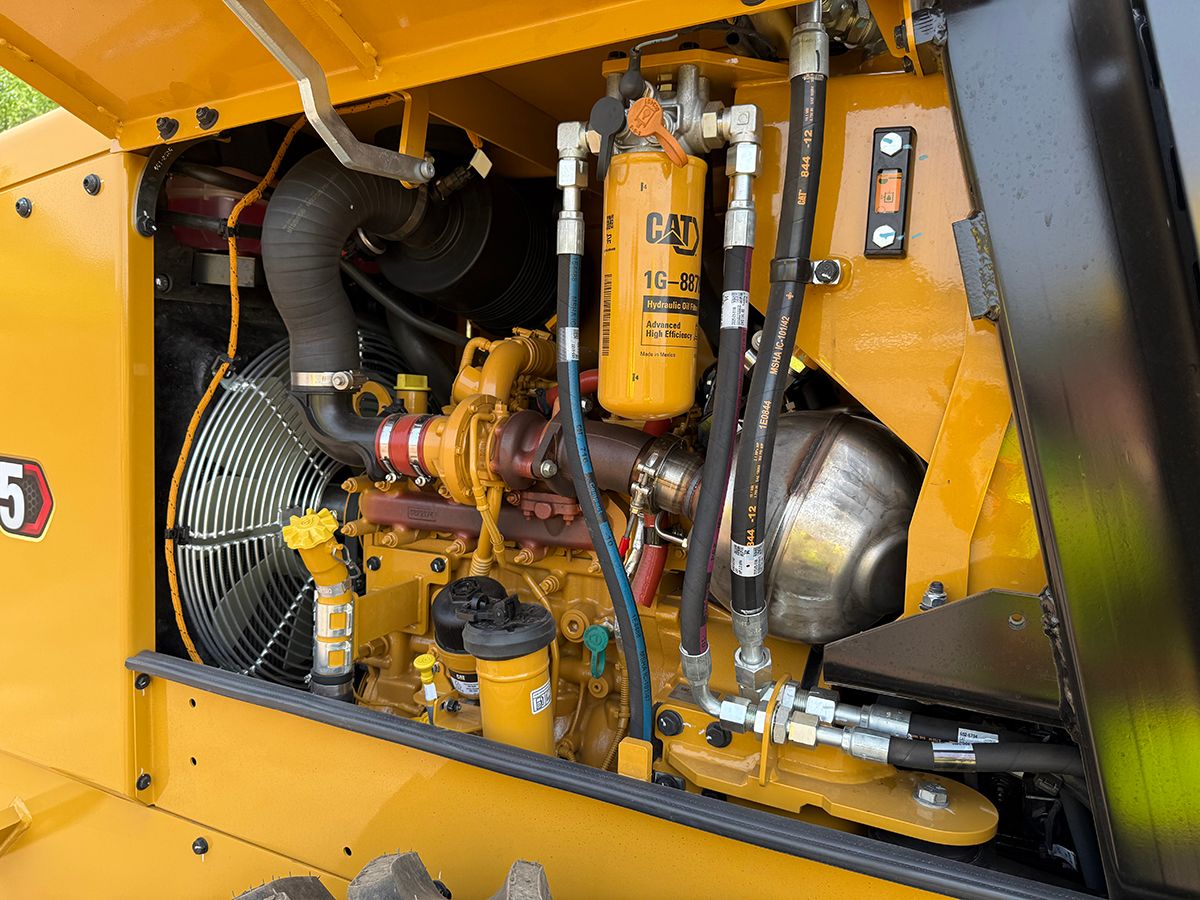

Durable, field-proven and engineered to provide performance and reliability that contractors can count on.
Displaying 1-6 of 5
| Operating Weight - With ROPS/FOPS Canopy | 10307 lb 4675 kg |
| Weight - Drum with ROPS/FOPS Canopy | 4872 lb 2210 kg |
| Note (1) | Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. |
| Compaction Width | 50 in 1270 mm |
| Overall Length | 164 in 4155 mm |

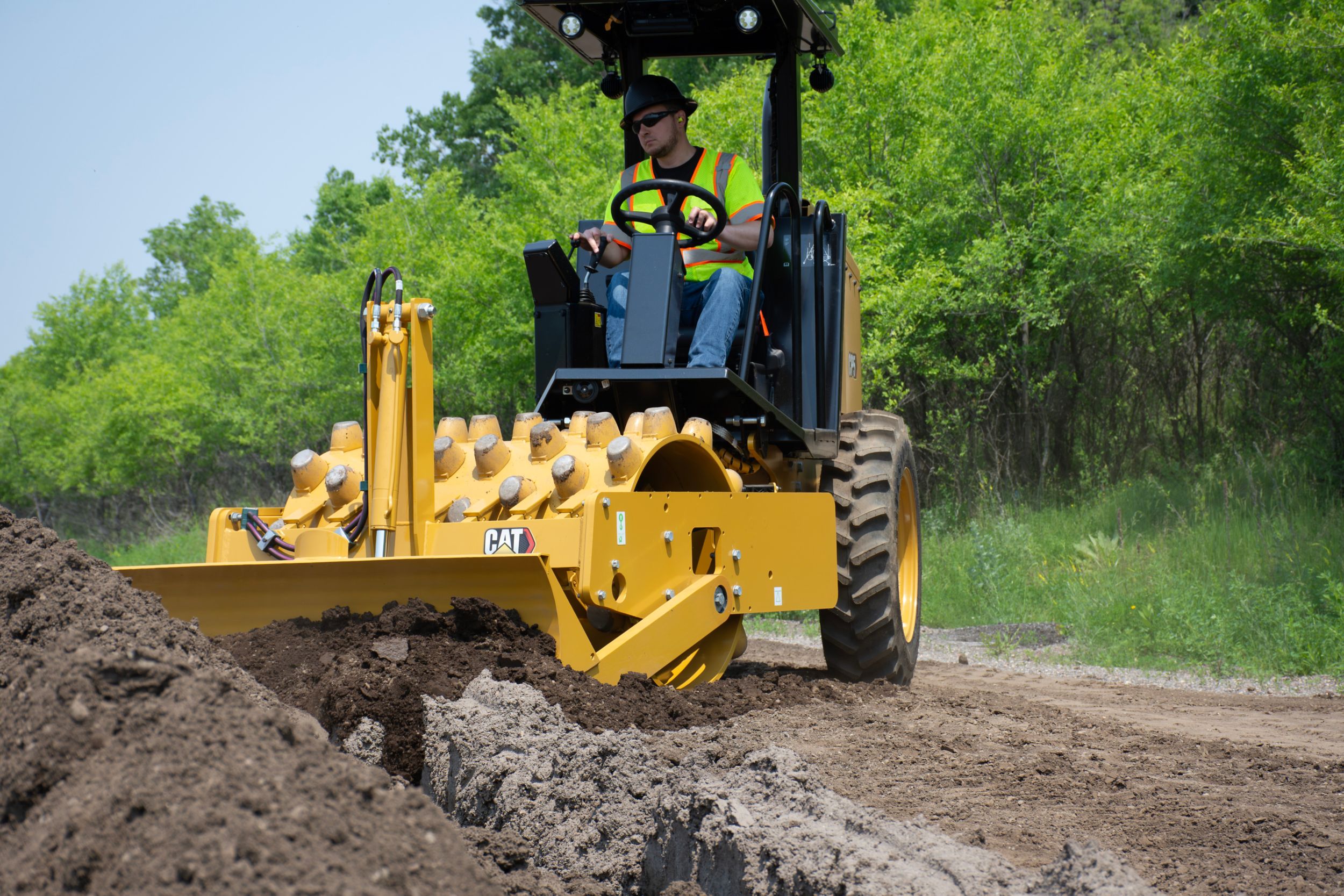

| Overall Length - With Blade Option | 179 in 4555 mm |
| Overall Width | 55 in 1393 mm |
| Overall Width - With Blade Option | 62 in 1575 mm |
| Maximum Height | 99 in 2525 mm |
| Drum Diameter - Over Pads | 40 in 1016 mm |
| Optional Blade Height | 22 in 559 mm |
| Wheel Base | 88 in 2240 mm |
| Gross Power | 75.8 hp 56.5 kW |
| Engine Power - ISO 14396 | 74.3 hp 55.4 kW |
| Net Power - ISO 9249 | 72 hp 53.7 kW |
| Net Power - SAE J1349:2011 | 72 hp 53.7 kW |
| Engine Model | Cat® C2.8 Cat® C2.8 |
| Emissions | U.S. EPA Tier 4 Final U.S. EPA Tier 4 Final |
| Build Number | 04A 04A |
| Stroke | 4.3 in 110 mm |
| Bore | 3.5 in 90 mm |
| Note (1) | Advertised power is tested per the specified standard in effect at the time of manufacture. Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (2) | Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator. Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator. |

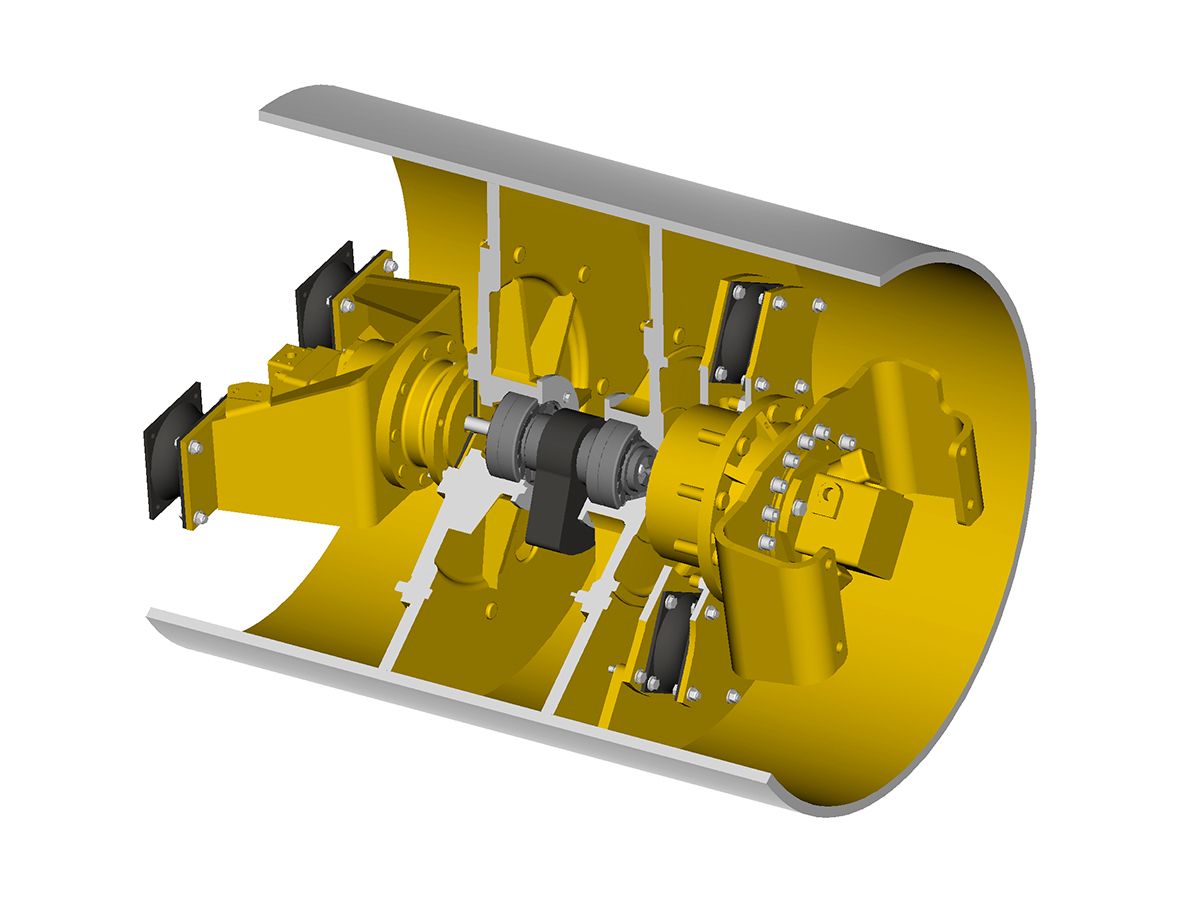

| Vibratory Frequency - Standard | 2150 VPM 35.8 Hz |
| Nominal Amplitude - High | 0.051 in 1.3 mm |
| Centrifugal Force - Maximum | 17535 lb 78 kN |
| Fuel Tank Capacity | 29.9 gal (US) 113 l |
| Cooling System | 4.1 gal (US) 15.7 l |
| Engine Oil - With Filter | 2.2 gal (US) 8.2 l |
| Eccentric Weight Housings (combined) | 14 gal (US) 53 l |
| Axle and Final Drives | 1.9 gal (US) 7.1 l |
| Hydraulic Tank | 9.4 gal (US) 35.6 l |
| Ground Clearance | 13.7 in 348 mm |
| Curb Clearance | 13.5 in 344 mm |
| Turning Radius - Inside Drum Edge | 103 in 2625 mm |
| Travel Speed - Maximum | 5.5 mile/h 8.8 km/h |
