Key Specs
The next generation Cat® 6015 Hydraulic Shovel lets you move more material at a low cost, so you can achieve production targets, deliver on your commitments, meet deadlines and maximize your profitability. With high tool carrying capacity, increased durability and the most powerful engine in its class, the Cat 6015 generates higher productivity and fuel efficiency than other shovels. And it’s offered with more and better options that let you match your machine to your operation — from access and cold weather packages to multiple stick and track pad options. In addition, a large range of buckets is available, giving you optimum payload and machine efficiency for your operation. And the 6015’s high tool carrying capacity gives you the ability to employ large buckets and move more in fewer cycles.
Proven Cat C27 engine with non-DEF aftertreatment and longer undercarriage life
Proven pass match with 100-ton trucks
With new Pilot Pump System
| Engine Output - SAE J1995 | 824 hp 615 kW |
| Bucket Payload | 16.1 ton (US) 14.6 t |
| Operating Weight | 154.3 ton (US) 140 t |
| Note | Specifications shown above apply to highly regulated, backhoe configuration. Lesser regulated and frontless configurations are also available. Specifications shown above apply to highly regulated, backhoe configuration. Lesser regulated and frontless configurations are also available. |
| Engine Model | Cat® C27 Cat® C27 |
| Gross Power - SAE J1995 | 824 hp 615 kW |
| Net Power - SAE J1349 | 812 hp 606 kW |
| Number of Cylinders | 12 12 |
| Bore | 5.4 in 137.2 mm |
| Stroke | 6 in 152.4 mm |
| Displacement | 1648 in³ 27 l |
| Engine Model | Cat® C27 Cat® C27 |
| Gross Power - SAE J1995 | 839 hp 626 kW |
| Net Power - SAE J1349 | 829 hp 618 kW |
| Number of Cylinders | 12 12 |
| Bore | 5.4 in 137.2 mm |
| Stroke | 6 in 152.4 mm |
| Displacement | 1648 in³ 27 l |
| Aspiration | Turbocharged and air-to-air aftercooled Turbocharged and air-to-air aftercooled |
| Operating Weight | 154 ton (US) 140 t |
| Ground Pressure | 23.6 psi 16.3 N/cm² |
| Note | Operating weight includes: 700 mm (28 in) track pads, 7.6 m (24 ft 11 in) boom, 3.4 m (11 ft 2 in) stick, standard rock bucket, 100% fuel and lubricants Operating weight includes: 700 mm (28 in) track pads, 7.6 m (24 ft 11 in) boom, 3.4 m (11 ft 2 in) stick, standard rock bucket, 100% fuel and lubricants |
| Operating Weight | 308,000 lb 140,000 kg |
| Standard | 28 in 700 mm |
| Wide | 35 in 900 mm |
| Extra Wide | 39 in 1000 mm |
| Number of Shoes - Each Side | 46 46 |
| Number of Track Rollers - Each Side | 9 9 |
| Number of Carrier Rollers - Each Side | 3 3 |
| Track Pads | Heavy Duty (HD) with double grouser Heavy Duty (HD) with double grouser |
| Travel Speed - Two Stages - 1st Stage - Maximum | 1.6 mile/h 2.6 km/h |
| Travel Speed - Two Stages - 2nd Stage - Maximum | 2.3 mile/h 3.7 km/h |
| Maximum Drawbar Pull - Forward | 192886 lbf 858 kN |
| Maximum Drawbar Pull - Reverse | 220987 lbf 983 kN |
| Gradeability - Travel Drives | Approximately 42% Approximately 42% |
| Hydraulic Track Tensioning | With accumulator With accumulator |
| Maximum Drawbar Pull | 179,847 lbf 800 kN |
| Fuel Tank | 449 gal (US) 1700 l |
| Cooling System | 44 gal (US) 165 l |
| Engine Oil | 23 gal (US) 87 l |
| Swing Drive | 2.4 gal (US) 9 l |
| Hydraulic System - Including Tank | 463 gal (US) 1752 l |
| Hydraulic Tank | 253 gal (US) 956 l |
| Grease Tank | 57 gal (US) 215 l |
| System Voltage | 24 V 24 V |
| Batteries | 4 × 200 Ah (12 V each) 4 × 200 Ah (12 V each) |
| Alternator Rating | 150 A (24 V) in total 150 A (24 V) in total |
| Components (1) | Emergency stop switches: one in cab, three in engine module, one pull rope accessible from ground level Emergency stop switches: one in cab, three in engine module, one pull rope accessible from ground level |
| Components (2) | Four maintenance free batteries Four maintenance free batteries |
| Components (3) | Lockable battery isolation switch Lockable battery isolation switch |

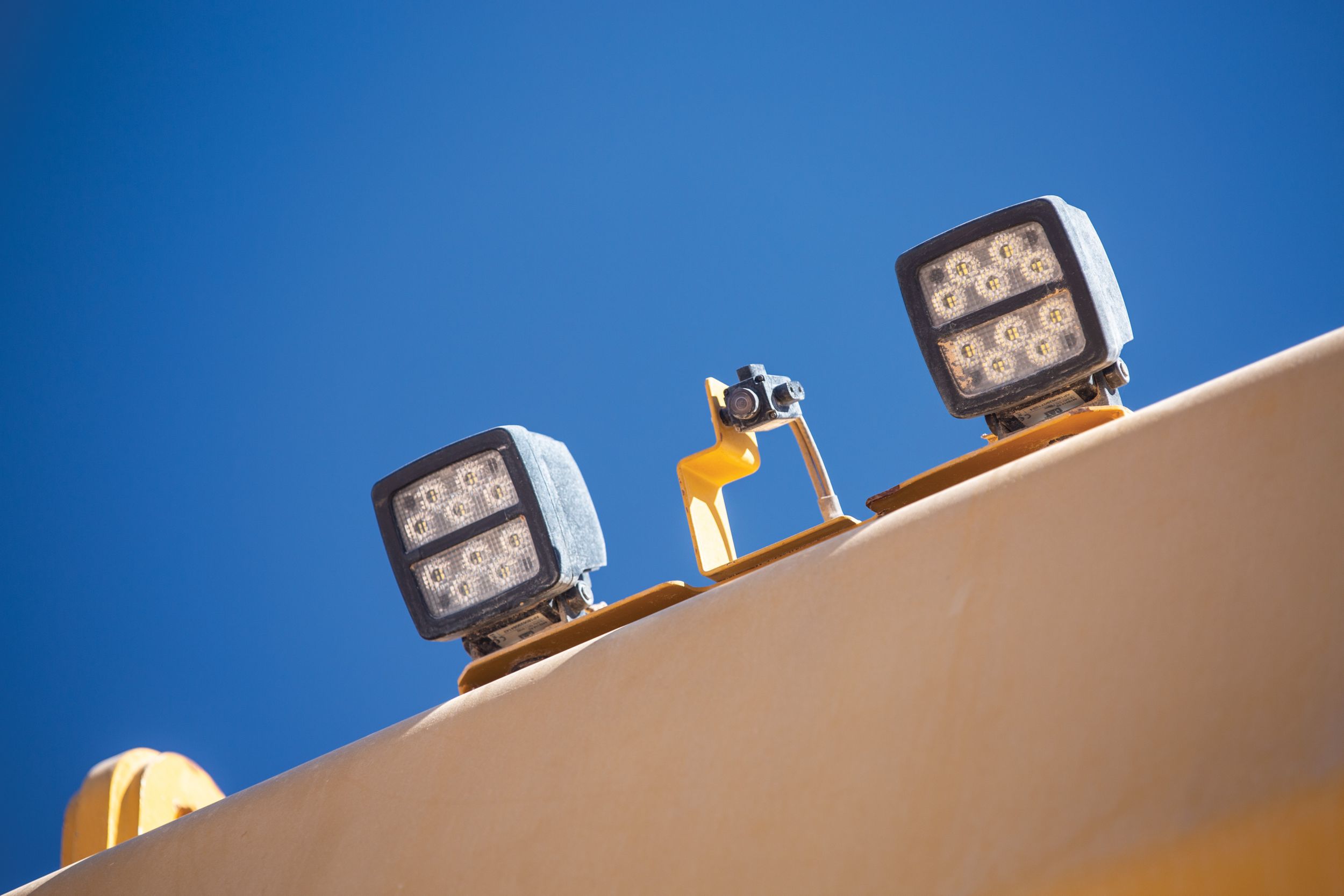

| Components (5) | 14 LED high-brightness working lights 14 LED high-brightness working lights |
| Components (4) | 5 LED service lights 5 LED service lights |
| Components (6) | 2 electric horns 2 electric horns |
| Components (7) | Two (2) lights for rear end Two (2) lights for rear end |
| Components (9) | One (1) beacon light on cabin roof One (1) beacon light on cabin roof |
| Components (8) | One (1) light for machine deck/service One (1) light for machine deck/service |
| Main Pumps | 3 × variable swash plate pumps 3 × variable swash plate pumps |
| Main Pumps - Maximum Total Oil Flow | 407 gpm 1544 L/min |
| Main Pumps - Maximum Pressure - Attachment | 4641 psi 320 bar |
| Pilot Pump - Maximum Flow, Pilot | 40.4 gpm 153 L/min |
| Pilot Pump | 1 × gear pump 1 × gear pump |
| Pilot Pump - Maximum Pressure, Pilot | 1378 psi 95 bar |
| Main Pumps - Maximum Pressure - Travel | 4641 psi 320 bar |
| Engine Fan Pump - Maximum Flow, Engine Fan | 53.1 gpm 201 L/min |
| Engine Fan Pump - Maximum Pressure, Engine Fan | 3191 psi 220 bar |
| Swing Pump | 1 × variable swash plate pump 1 × variable swash plate pump |
| Engine Fan Pump | 1 × variable swash plate pump 1 × variable swash plate pump |
| Swing Pump - Maximum Flow - Swing | 127 gpm 479 L/min |
| Hydraulic Fan Pump - Maximum Pressure, Hydraulic Fan | 1958 psi 135 bar |
| Hydraulic Fan Pump - Maximum Flow, Hydraulic Fan | 22.7 gpm 86 L/min |
| Hydraulic Fan Pump | 1 × variable swash plate pump 1 × variable swash plate pump |
| Swing Pump - Maximum Pressure - Swing | 5294 psi 365 bar |
| Hydraulic Oil Cooling - Maximum Flow | 284 gpm 1075 L/min |
| Hydraulic Oil Cooling - Diameter of Fan | 46 in 1168 mm |
| Filters (1) | Full-flow high-pressure filters (200 μm) for main pumps Full-flow high-pressure filters (200 μm) for main pumps |
| Filters (2) | Full-flow filters (20 μm), return circuit Full-flow filters (20 μm), return circuit |
| Filters (3) | Pressure filters (16 μm), servo circuit Pressure filters (16 μm), servo circuit |
| Filters (4) | Full-flow filters (6 μm), cooling return circuit Full-flow filters (6 μm), cooling return circuit |
| Filters (5) | Swing charge filter (15 μm) Swing charge filter (15 μm) |
| Filters (6) | Pump case return screens (125 μm) Pump case return screens (125 μm) |
| Swing Drive | Two (2) compact planetary transmissions with axial piston motors Two (2) compact planetary transmissions with axial piston motors |
| Parking Brake | Wet multiple disc brake, spring-loaded/hydraulically released Wet multiple disc brake, spring-loaded/hydraulically released |
| Maximum Swing Speed | 4.9 r/min 4.9 r/min |
| Swing Ring | Triple-race roller bearing with sealed internal greasing Triple-race roller bearing with sealed internal greasing |
| Features (1) | Closed-loop with torque control Closed-loop with torque control |
| Features (2) | Hydraulic braking of swing motion when control is returned to neutral position or by counteracting control for stronger braking Hydraulic braking of swing motion when control is returned to neutral position or by counteracting control for stronger braking |
| Features (3) | All raceways and the internal gearing of swing ring supplied by automatic central lubrication system All raceways and the internal gearing of swing ring supplied by automatic central lubrication system |
| Emissions | U.S. EPA Tier 4 Final and EU Stage V; China Nonroad Stage III, equivalent to U.S. EPA Tier 2; Equivalent to U.S. EPA Tier 1 U.S. EPA Tier 4 Final and EU Stage V; China Nonroad Stage III, equivalent to U.S. EPA Tier 2; Equivalent to U.S. EPA Tier 1 |
| Feature | Accessible from ground level for diesel fuel and grease Accessible from ground level for diesel fuel and grease |
| Equipped With (1) | One pull rope emergency stop One pull rope emergency stop |
| Equipped With (2) | Quick couplings for: diesel fuel and grease Quick couplings for: diesel fuel and grease |
| Travel Speed - Two Stages - 1st Stage - Maximum | 1.6 mile/h 2.6 km/h |
| Travel Speed - Two Stages - 2nd Stage - Maximum | 2.3 mile/h 3.7 km/h |
| Maximum Tractive Force | 197,157 lbf 877 kN |
| Maximum Drawbar Pull - Reverse | 220987 lbf 983 kN |
| Gradeability - Travel Drives | 38°/78% (SAE J1309) 38°/78% (SAE J1309) |
| Number of Shoes - Each Side | 46 46 |
| Hydraulic Track Tensioning | With accumulator With accumulator |
| Number of Track Rollers - Each Side | 9 9 |
| Number of Carrier Rollers - Each Side | 3 3 |
| Components (1) | Heavy Duty (HD) with double-grouser track pads Heavy Duty (HD) with double-grouser track pads |
| Components (2) | Chain links connected by hardened pins and bushings Chain links connected by hardened pins and bushings |
| Components (3) | Postive Pin Retention (PPR2) sealed and greased track design Postive Pin Retention (PPR2) sealed and greased track design |
| Components (4) | Hardened running surfaces of sprockets, idlers, rollers and track chain links Hardened running surfaces of sprockets, idlers, rollers and track chain links |
| Components (5) | Fully hydraulic self-adjusting track tensioning system with accumulator Fully hydraulic self-adjusting track tensioning system with accumulator |
| Components (6) | Automatic hydraulic retarder valve Automatic hydraulic retarder valve |
| Components (7) | Acoustic travel alarm (forward and reverse) Acoustic travel alarm (forward and reverse) |
| Components (1) | Pressurized cab with positive filtration Pressurized cab with positive filtration |
| Components (2) | Heated cab mirror Heated cab mirror |
| Components (3) | Sliding upper door window Sliding upper door window |
| Components (4) | Glass-breaking safety hammer Glass-breaking safety hammer |
| Components (5) | Removeable lower windshield within cab storage Removeable lower windshield within cab storage |
| Components (6) | Joystick Controls Alternate Patterns including ISO/JIS, BHL, MHI, KOBE, or SCM Joystick Controls Alternate Patterns including ISO/JIS, BHL, MHI, KOBE, or SCM |
| Components (7) | Beverage holder Beverage holder |
| Components (8) | Literature holder Literature holder |
| Components (9) | AM/FM radio AM/FM radio |
| Components (10) | FM/AM radio with MP3 auxiliary port FM/AM radio with MP3 auxiliary port |
| Components (11) | Two stereo speakers Two stereo speakers |
| Components (12) | Storage shelf suitable for lunch or toolbox Storage shelf suitable for lunch or toolbox |
| Components (13) | Color LCD display with service parameters, event and diagnostic annunciation, preventative maintenance, trip total, lifetime totals. Gauges for engine speed, engine oil pressue, and hydraulic oil temperature Color LCD display with service parameters, event and diagnostic annunciation, preventative maintenance, trip total, lifetime totals. Gauges for engine speed, engine oil pressue, and hydraulic oil temperature |
| Components (14) | Head and arm rests Head and arm rests |
| Components (15) | Independently adjustable seat consoles with integrated joysticks Independently adjustable seat consoles with integrated joysticks |
| Components (16) | Neutral lever (lock out) for all controls Neutral lever (lock out) for all controls |
| Components (17) | Travel control pedals with removable hand levers Travel control pedals with removable hand levers |
| Components (18) | Two power outlets, 10 amp (total) Two power outlets, 10 amp (total) |
| Components (19) | Laminated front upper window and tempered glass other windows Laminated front upper window and tempered glass other windows |
| Capacity - Grease Barrel | 18 gal (US) 68 l |
| Type (1) | Central bank lubrication system Central bank lubrication system |
| Type (2) | Grease is automatically applied to all attachment pivot points, slew bearing, and bucket linkage Grease is automatically applied to all attachment pivot points, slew bearing, and bucket linkage |
| Type (3) | Standard grease reel on machine for bucket linkage Standard grease reel on machine for bucket linkage |
| Type (4) | Grease refill service point accessible from ground Grease refill service point accessible from ground |
| Type (1) | Boom and stick torsion-resistant with welded box design Boom and stick torsion-resistant with welded box design |
| Type (2) | High-tensile steel with solid steel castings at pivot areas High-tensile steel with solid steel castings at pivot areas |
| Type (3) | Boom and stick stress-relieved after welding Boom and stick stress-relieved after welding |
| Type (4) | Float valve for boom down function Float valve for boom down function |
| Buckets Equipped With | – Special liner material covering main wear areas inside and outside – Lip shrouds – Wing shrouds – Heel shrouds – Special liner material covering main wear areas inside and outside – Lip shrouds – Wing shrouds – Heel shrouds |
| Maximum Digging Depth | 26.3 ft 8 m |
| Maximum Digging Reach | 45.6 ft 13.9 m |
| Maximum Digging Height | 41.9 ft 12.8 m |
| Maximum Dump Height | 27.9 ft 8.5 m |
| Bucket Digging Force - SAE | 112600 lbf 501 kN |
| Bucket Digging Force - ISO | 120,947 lbf 538 kN |
| Stick Digging Force - ISO | 104,761 lbf 466 kN |
| Stick Digging Force - SAE | 98800 lbf 439 kN |
| Capacity 1:1 | 10.6 yd³ 8.1 m³ |
| Total Width | 8.8 ft 2682 mm |
| Number of Teeth | 5 5 |
| Tooth System | Cat C70 or M75 Cat C70 or M75 |
| Weight - Including Standard Wear Package | 18521 lb 8401 kg |
| Maximum Material Density - Loose | 3030 lb/yd³ 1.8 t/m³ |

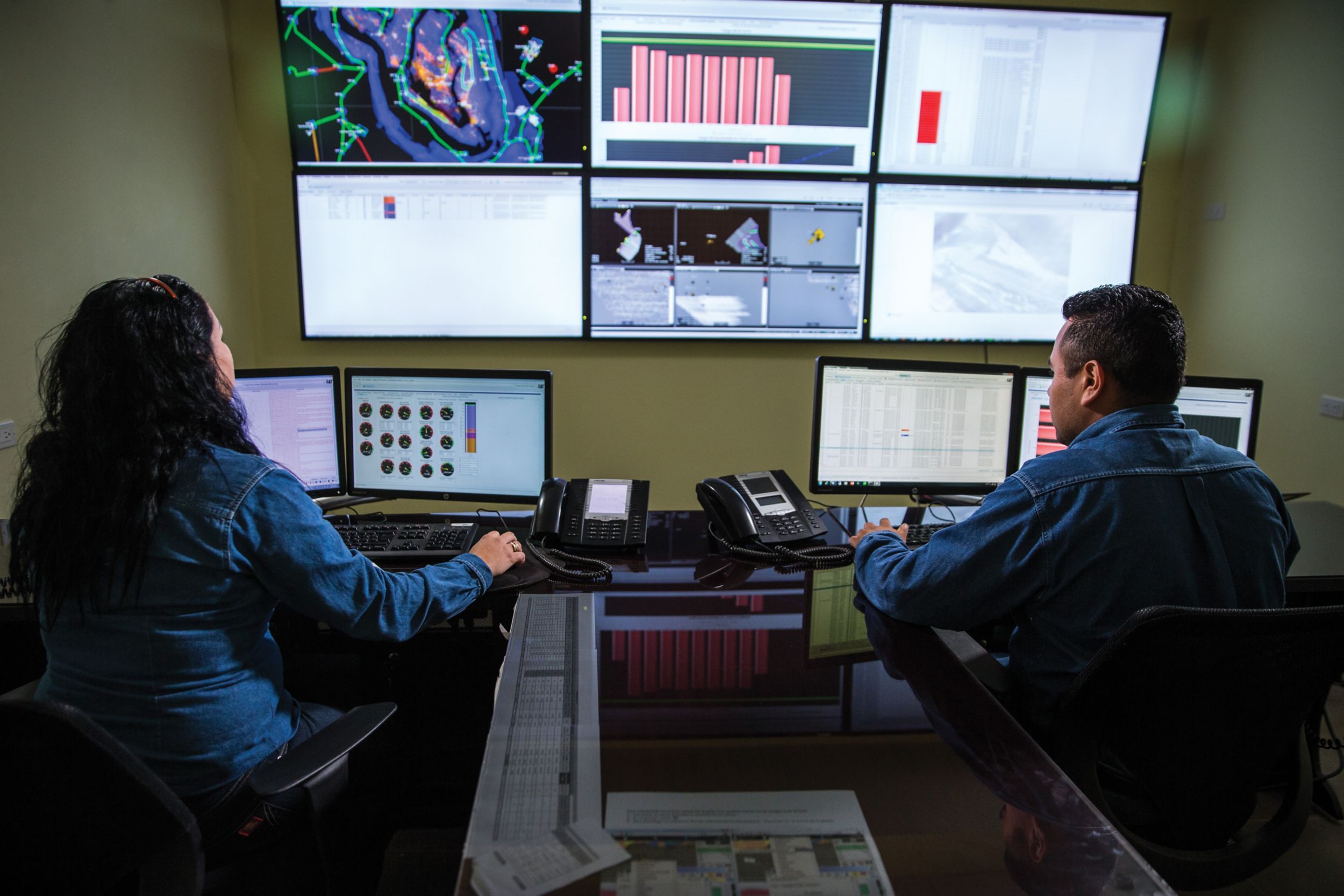

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.
