Key Specs

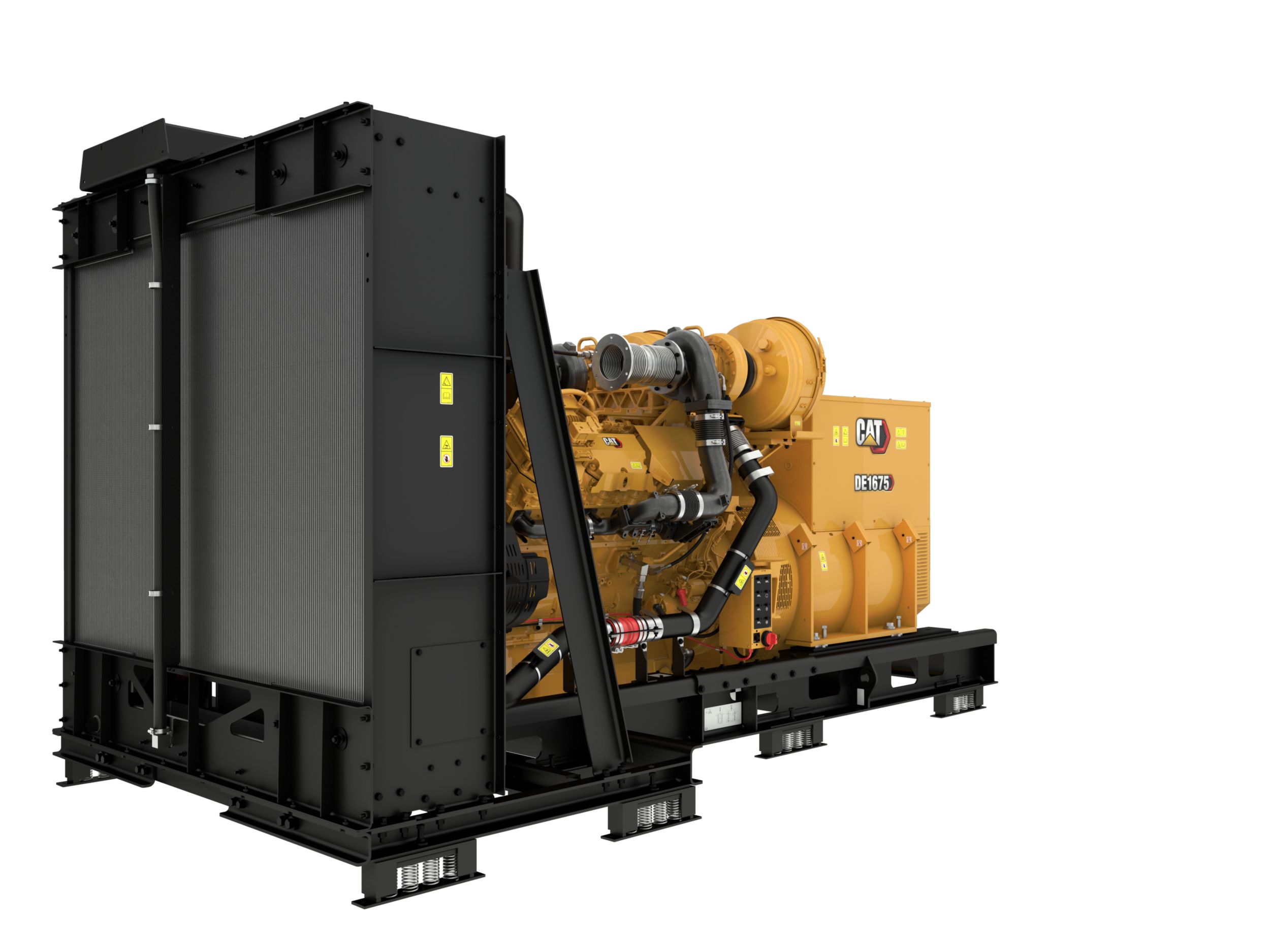

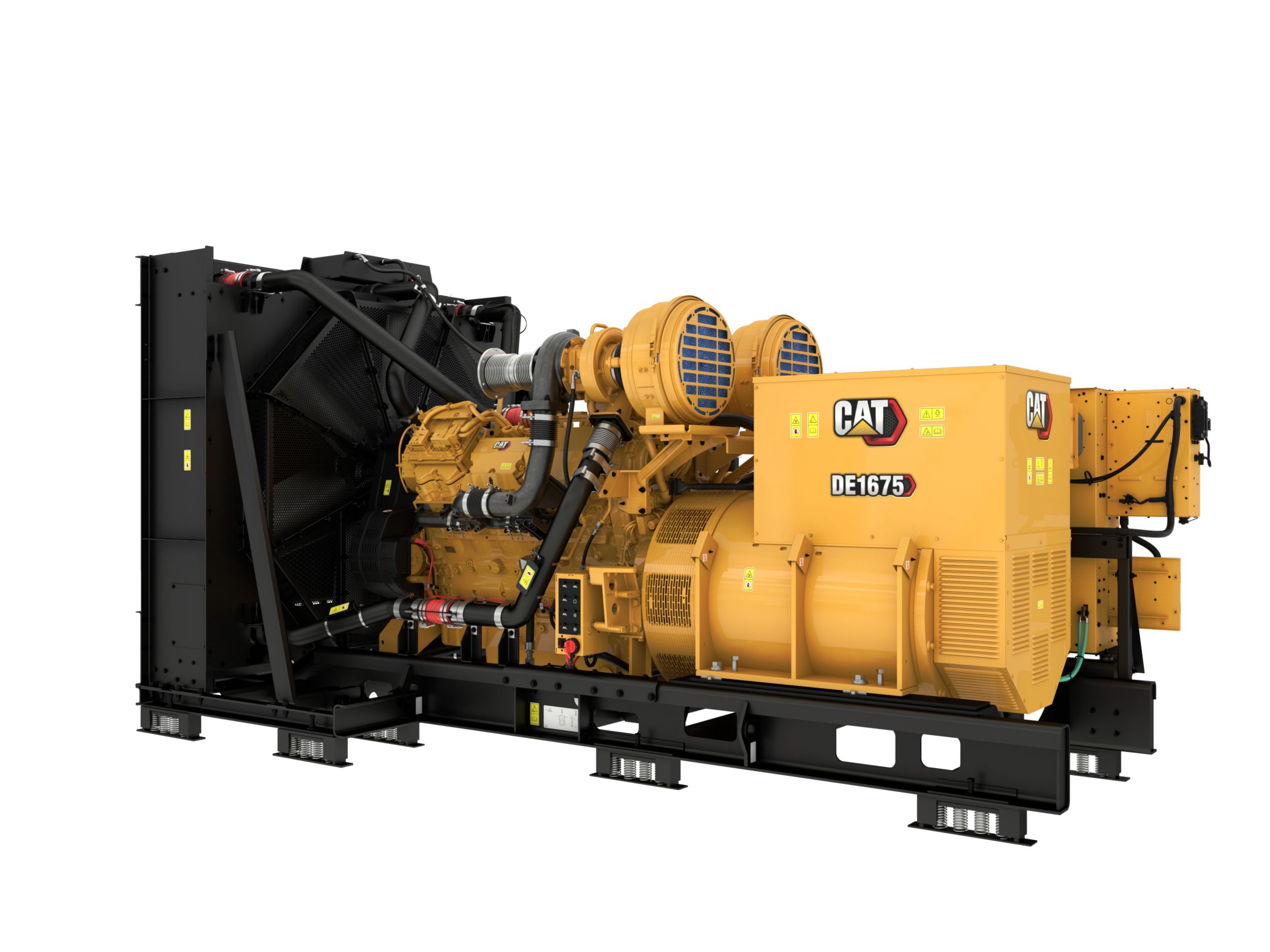

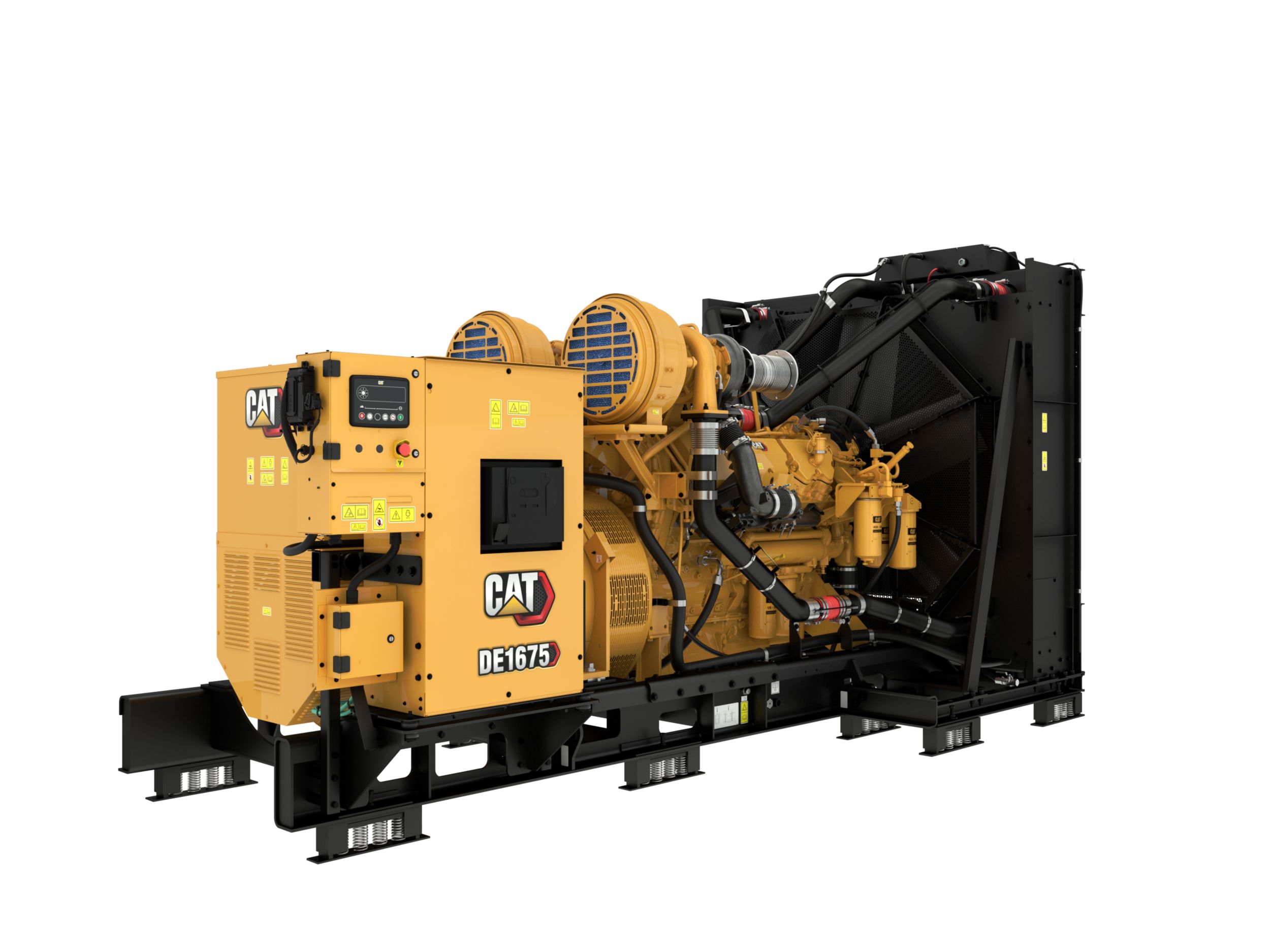

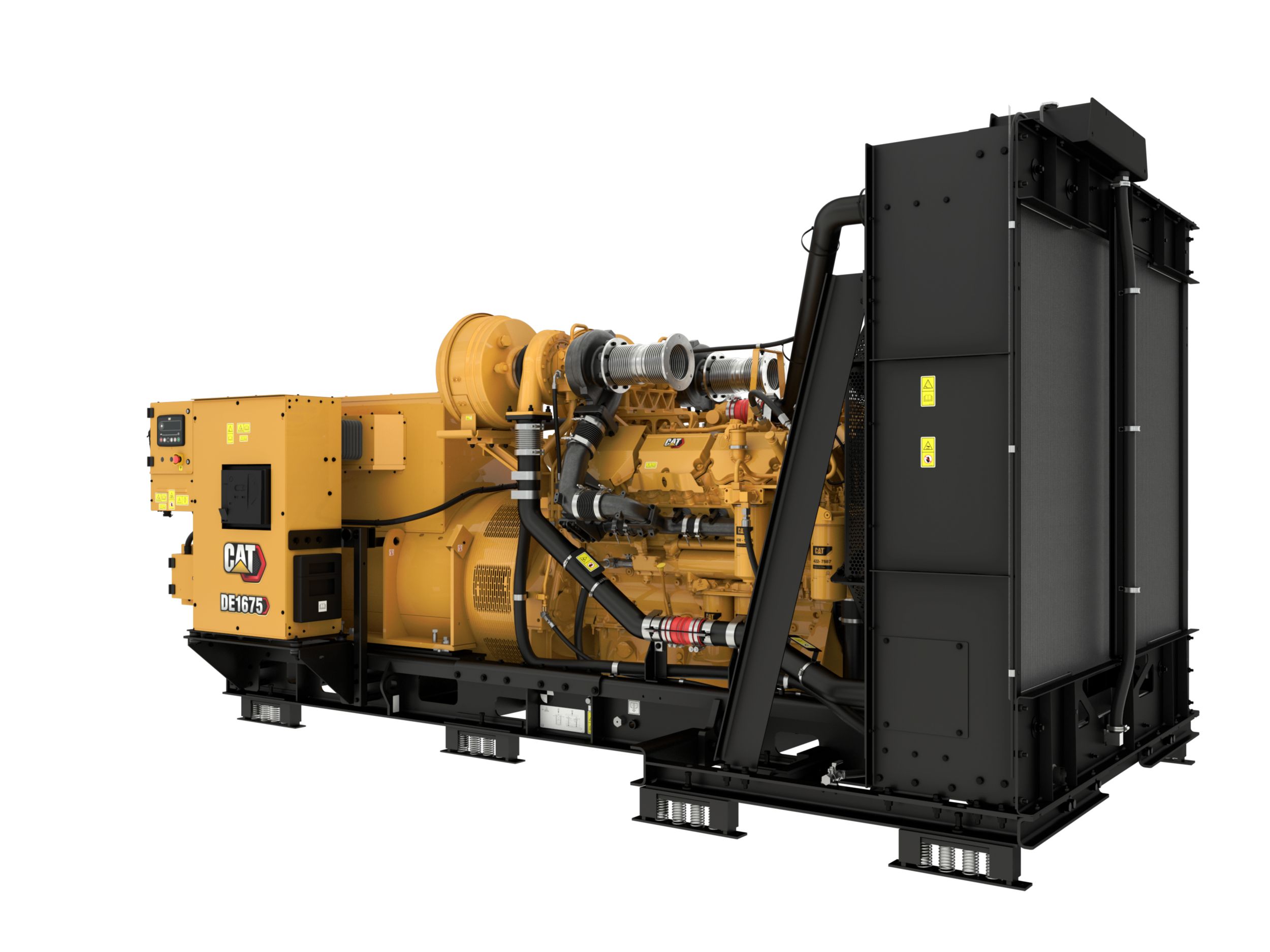

Producing reliable power at 1675 kVA at 50 Hz, the Caterpillar DE1675 diesel generator set is made to meet the needs of your standby and mission critical applications with the new C32B engine with best-in-class power density combining a compact and lighter design.
Producing 1675 kVA with a 32.1 L engine
Proven durability on C32 platform now with improved core
Peace of mind with single touchpoint for end-to-end service and support
Displaying 1-6 of 8
| Standby Rating | 1675 kVA 1675 kVA |
| Emissions/Fuel Strategy | Low BSFC Low BSFC |
| Voltage | 400 to 415 Volts 400 to 415 Volts |
| Frequency | 50 Hz 50 Hz |
| Speed | 1500 rpm 1500 rpm |
| Duty Cycle | Standby, Mission Critical Standby, Mission Critical |
| Maximum Rating | 1675 kVA 1675 kVA |
| Minimum Rating | 1675 kVA 1675 kVA |
| Engine Model | C32B TA, V12, 4-Stroke Diesel C32B TA, V12, 4-Stroke Diesel |
| Bore | 5.7 in 145 mm |
| Stroke | 6.4 in 163 mm |
| Displacement | 1959 in³ 32 l |
| Compression Ratio | 14:1 14:1 |
| Aspiration | TA TA |
| Fuel System | EUI EUI |
| Governor Type | ADEM™ A5 ADEM™ A5 |
| Length - Minimum | 185.43 in 4709 mm |
| Length - Maximum | 185.43 in 4709 mm |
| Width - Minimum | 89.72 in 2279 mm |
| Width - Maximum | 89.72 in 2279 mm |
| Height - Minimum | 100.43 in 2551 mm |
| Height - Maximum | 105.71 in 2685 mm |
| Dry Weight - Genset (minimum) | 18832 lb 8542 kg |
| Dry Weight - Genset (maximum) | 20155 lb 9142 kg |
