Pipelayers PL83

Request A Price Find Dealer

Key Specs

Engine Model: Cat C15; Cat C15

Flywheel Power: 319 hp; 238 kW

Lift Capacity: 170000 lb; 77111 kg

PL83
Change model

Overview

Purpose-Built for Top Performance and Reliability

The PL83 is part of a full line of purpose-built Cat pipelayers designed for performance, safety and serviceability. Easy transport width, combined with the experienced support of the Cat dealer network, means this key pipe line equipment is available when and where you need it.

Benefits

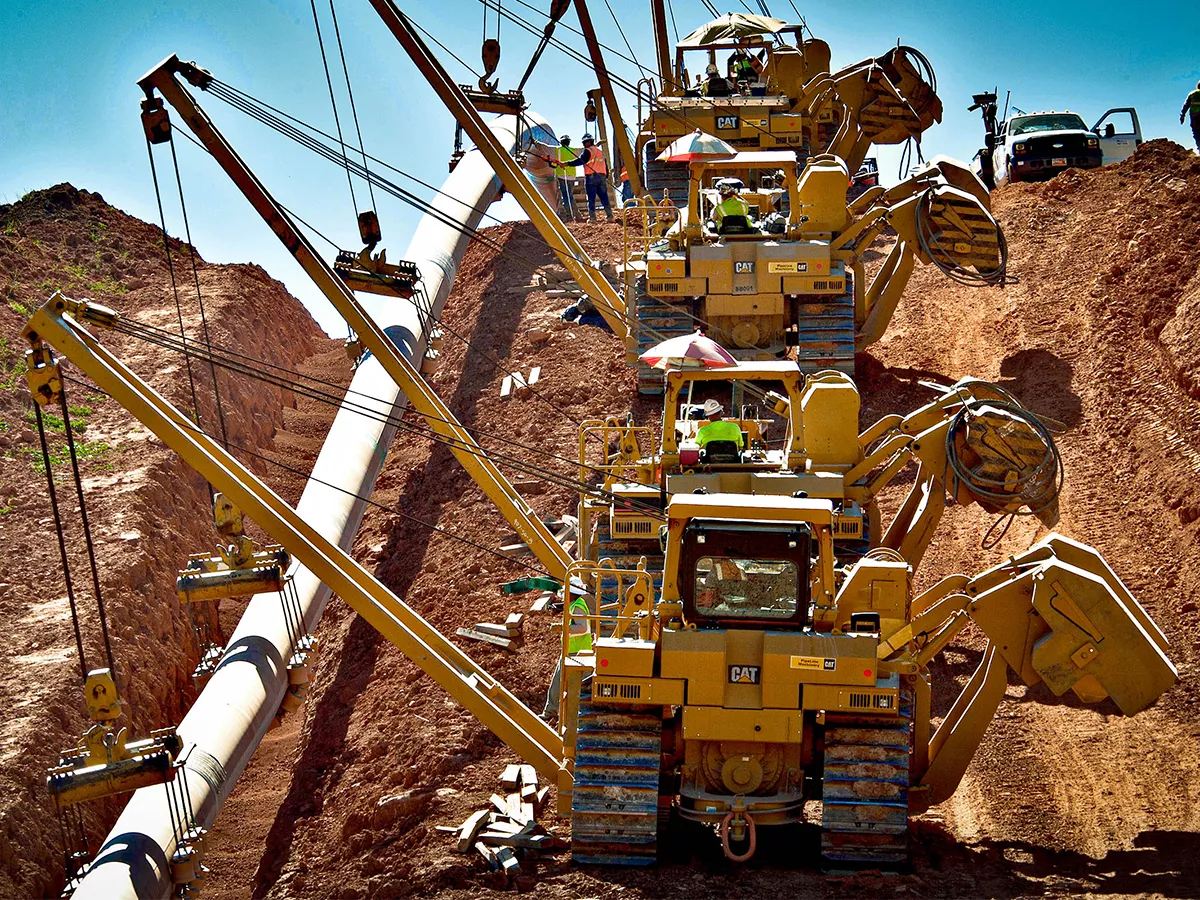

Pipe Line Performance

Purpose-built from the factory to stand up to tough pipe line work, all supported by experienced Cat pipeline dealers.

Slope Capable

Low center of gravity, excellent machine balance and differential steering all help with maneuverability in tight areas and slope capability.

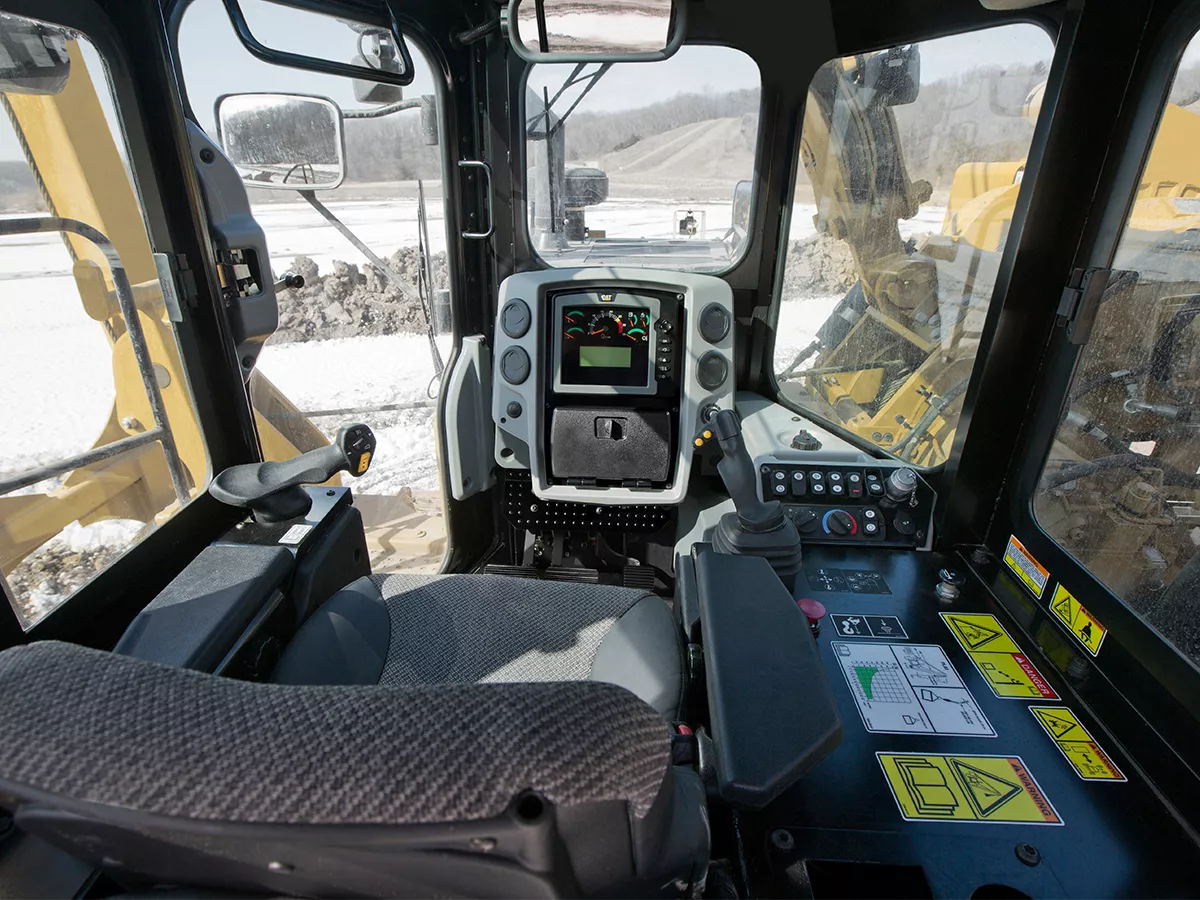

Easy to Operate

Low effort, ergonomic controls put all pipelayer implement controls and functionality in one hand. Common cab features across pipelayer models contribute to ease of use.

Features At A Glance

Integrated power train with differential steering and updated hydraulic system work together to provide power and improved machine maneuverability for any pipelayer application.
Electro-hydraulics offer greater response and precise control to variable speed motors of the heavy duty winch for greater machine productivity.
Counterweight profile improves lift capacity.
Differential steering maintains full power to both tracks for best-in class turning even with a loaded boom, increasing maneuverability in tight locations.
Improved machine center of gravity and lengthened track-roller frame with repositioned rear idler places more track on the ground, enhancing slope capability.

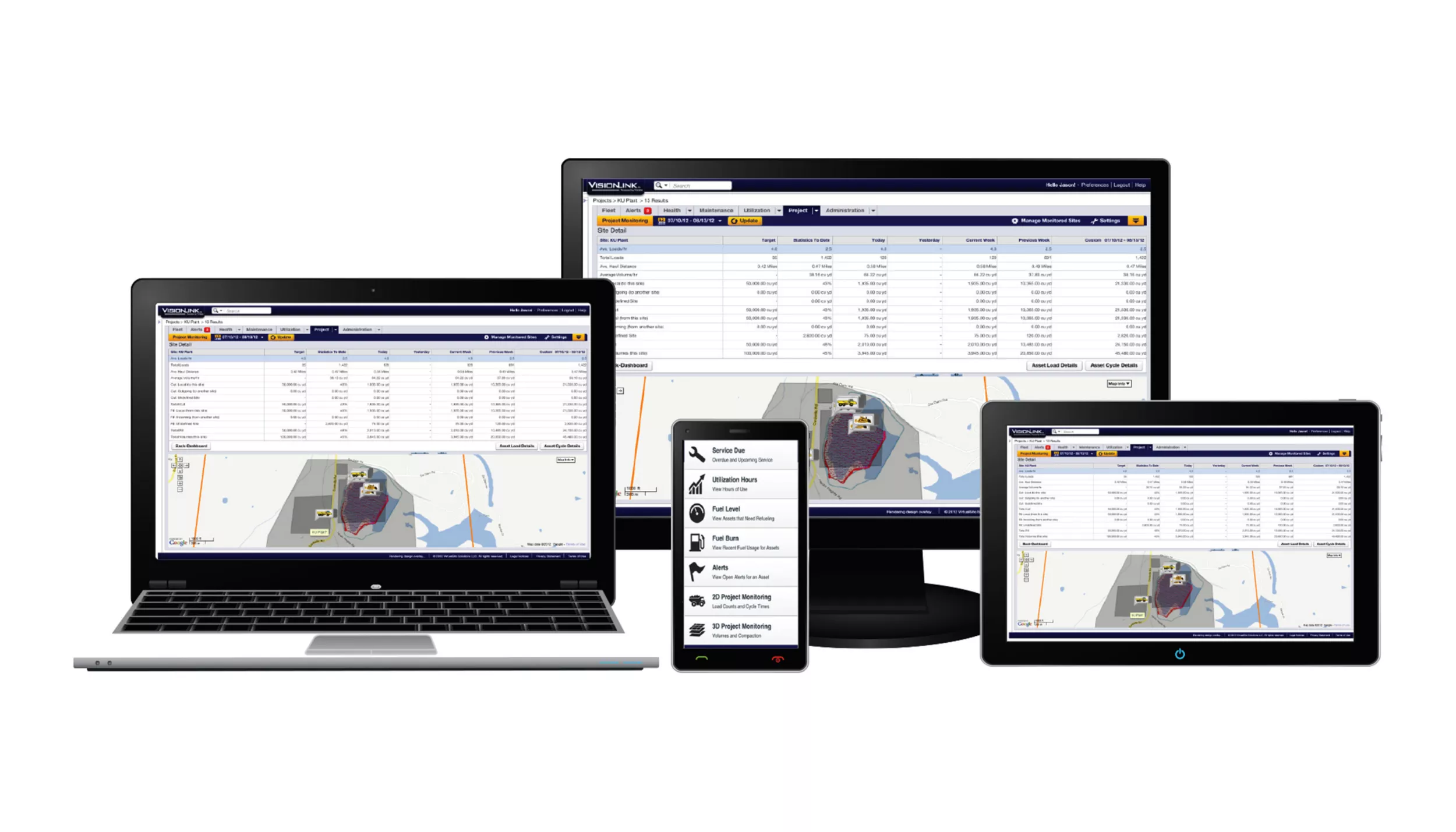

Equipped with Product Link™ which enables remote monitoring, improving overall fleet management effectiveness.
Full left-side engine serviceability, including fill tube, dipstick, air cleaner, fuel filters, oil filter and coolant level check allows for quick and efficient routine service.
High speed oil change is standard and makes servicing even faster.
Hydraulic and powertrain filters and fuel tank drain are located at rear of machine and are conveniently serviceable from ground level.
Pressure taps are placed within hydraulic system to allow for quick monitoring.
Major components like the engine, transmission, and final drives are modular for quicker removal during service, saving cost and downtime.

Implement joystick places all Pipelayer implement controls and functionality in one hand.
Low-effort, ergonomically designed and positioned control handle allows simultaneous, precise positioning of load line, boom, and extendible counterweight.
Dual brake pedal controls provide enhanced maneuverability and steering control.
Planetary differential steering contributes to superior maneuverability in tight areas of operation as well as enhanced slope capability.

Quieter, pressurized cab with heated/ventilated seat option improves operator comfort and productivity.
Ergonomically designed seat is positioned for greater visibility to work area and convenient access to machine control lever, switches and pedals.

Load Moment Indicator (LMI) is standard.
Convenient steps, handles and guardrail provide safe access/egress.
Enlarged roof top window with retractable shade, additional mirrors, and angled door improves visibility to the trench, boom and blocks.
Standard operator presence detection system allows machine to idle when operator is not seated, but locks out power train to avoid unintentional movement.
Rear vision camera is standard, and two additional cameras can be added as an option to further enhance visibility around the machine.

Specifications Standard Equipment Optional Equipment

Product Specifications for PL83

Engine

Engine Model	Cat C15 Cat C15
Flywheel Power	319 hp 238 kW
Tier 4 Final/Stage V: Net Power (Rated Speed) - ISO 9249/SAE J1349**	319 hp 238 kW
Tier 4 Final/Stage V: Net Power (Rated Speed) - ISO 9249/SAE J1349 (DIN)**	323 mhp 323 mhp
Tier 3/Stage IIIA Equivalent: Net Power (Rated Speed) - ISO 9249/SAE J1349	333 mhp 245 kW
Tier 3/Stage IIIA Equivalent: Net Power (Rated Speed) - ISO 9249/SAE J1349 (DIN)	329 hp 333 mhp
Emissions	U.S. EPA Tier 4 Final/EU Stage V/Korea Tier 4 Final or UN ECE R96 Stage IIIA equivalent to U.S. EPA Tier 3/EU Stage IIIA U.S. EPA Tier 4 Final/EU Stage V/Korea Tier 4 Final or UN ECE R96 Stage IIIA equivalent to U.S. EPA Tier 3/EU Stage IIIA
Fuel Tank	109.6 gal (US) 415 l
DEF Tank(1)	4.5 gal (US) 17 l
Note (2)	Rated speed 1,900 rpm. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator. Net power is tested per ISO 9249:2007 and SAE J1349:2011. Rated speed 1,900 rpm. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator. Net power is tested per ISO 9249:2007 and SAE J1349:2011.
Note (4)	**Rated speed 1,850 rpm. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator. Net power is tested per ISO 9249:2007 and SAE J1349:2011. **Rated speed 1,850 rpm. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator. Net power is tested per ISO 9249:2007 and SAE J1349:2011.

Pipelaying Equipment

Lift Capacity

170000 lb 77111 kg

Weights

Operating Weight	109000 lb 49442 kg
Shipping Weight	85880 lb 38955 kg

Components

Removable Counterweight (10 plates) Single Plate	1707.7 lb 774.6 kg
Total Removable Counterweight*	17077 lb 7746 kg

Undercarriage

Track Gauge	7.7 ft 2.34 m
Length - Track on Ground	12.2 ft 3.72 m
Ground Contact Area	8215 in² 5.3 m²
Width - Standard Shoes	30 in 710 mm

Dimensions

Width - Tractor - Standard Shoes

10.7 ft 3.25 m

Dimensions (Approximate)

Width - Tractor - Counterweight Extended	19.9 ft 6.07 m
Width - Tractor - Counterweight Retracted	13.5 ft 4.11 m
Width - Tractor - Counterweight/Boom Removed	12.7 ft 3.86 m
Machine Height - Top of Counterweight	11.2 ft 3.4 m
Height - Machine - Cab and ROPS	11.6 ft 3.53 m
Boom Height (at SAE 1.22 m [4 ft] Overhang) 6.1 m (20 ft) Boom	22.3 ft 6.78 m
Boom Height (at SAE 1.22 m [4 ft] Overhang) 7.3 m (24 ft) Boom	26.3 ft 8.02 m
Boom Height (at SAE 1.22 m [4 ft] Overhang) 8.5 m (28 ft) Boom	30.3 ft 9.25 m

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.5 kg of refrigerant which has a CO2 equivalent of 3.575 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.5 kg of refrigerant which has a CO2 equivalent of 3.575 metric tonnes.

PL83 Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

POWER TRAIN

Cat C15 diesel engine: Electronic Unit Injection (EUI) Aftertreatment Meets Tier 4 Final/Stage V or Tier 3/Stage IIIA equivalent emission standards, depending on region of sale

24V electric start

Aftercooler, air-to-air (ATAAC)

Coolant, extended life with protection to -37 C (-34 F)

Filter, air with electronic service indicator

Final drives: Four double reduction planetary

Fuel priming pump, electric

High performance single plane cooling system

Parking brake, electronic

Precleaner, strata-tube dust ejector

Prescreener

Starting aid, ether

Torque divider

Transmission, electronically controlled 3-speed Powershift

Turbocharger, wastegate

Water separator

Zero speed hydraulic fan, reversing and hydraulically driven, electronically controlled

OPERATOR ENVIRONMENT

Rear Vision Camera

Load Moment Indicator (LMI)

Advisor operator interface: Electronic monitoring system, Diagnostic service information, Operator preferences

Armrest, adjustable

Deactivation switch, hydraulic controls

Decelerator pedal

Differential steering control, with touch shift

Dual brake pedal

Heater and ventilation

ROPS

Seat belt, retractable

Storage compartment

PIPELAYING EQUIPMENT

Block and hook with latch

Counterweights, extendible segmented

Winches, hydraulic actuated and electronically controlled

UNDERCARRIAGE

Carrier roller

Hydraulic track adjusters

Master links, two piece

Medium service grouser 760 mm (30 in): Sealed and lubricated track (48 section)

Non-suspended undercarriage

Rollers and idlers, lifetime lubricated

Sprocket rim segments, replaceable

Track guiding guards

Track roller frames

ELECTRICAL

Alarm, backup

Batteries, four maintenance free heavy duty

Boom and counterweight limit switch

Converter, 12V, 10 amp with one outlet

Horn, forward warning

Lights, two front, two rear

Machine diagnostic connector

Machine disconnect switch

Starting receptacle

OTHER STANDARD EQUIPMENT

Bottom guards, hinged

Bumper, front with towing device

Ecology drains: Engine oil, Coolant, Hydraulic oil, Torque converter, Fuel tank, Power train case and transmission

Enclosures, perforated engine

Guard, hinged radiator

Hood, perforated

Hydraulic system, electronically activated for hook, boom and counterweight control

Hydraulics, independent steering and work tool pumps

Oil cooler, hydraulic

Product Link ready

S-O-S sampling ports

Steering, electronically controlled power differential

Vandalism protection for fluid compartments

ROPS

PL83 Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Cab with air conditioning, heat and 150 amp alternator

OROPS with heat and 150 amp alternator

Cloth air seat

Deluxe seat

Vinyl seat

Heated seat

UNDERCARRIAGE

Arctic rollers

Standard rollers

TECHNOLOGY PRODUCTS

Product Link

PIPELAYING EQUIPMENT

Boom and cables 6.1 m (20 ft)

Boom and cables 7.3 m (24 ft)

Boom and cables 8.5 m (28 ft)

OTHER OPTIONAL EQUIPMENT

CE Certification

ROPS

Product Specifications for PL83

Download Print

Engine

Engine Model	Cat C15 Cat C15
Flywheel Power	319 hp 238 kW
Tier 4 Final/Stage V: Net Power (Rated Speed) - ISO 9249/SAE J1349**	319 hp 238 kW
Tier 4 Final/Stage V: Net Power (Rated Speed) - ISO 9249/SAE J1349 (DIN)**	323 mhp 323 mhp
Tier 3/Stage IIIA Equivalent: Net Power (Rated Speed) - ISO 9249/SAE J1349	333 mhp 245 kW
Tier 3/Stage IIIA Equivalent: Net Power (Rated Speed) - ISO 9249/SAE J1349 (DIN)	329 hp 333 mhp
Emissions	U.S. EPA Tier 4 Final/EU Stage V/Korea Tier 4 Final or UN ECE R96 Stage IIIA equivalent to U.S. EPA Tier 3/EU Stage IIIA U.S. EPA Tier 4 Final/EU Stage V/Korea Tier 4 Final or UN ECE R96 Stage IIIA equivalent to U.S. EPA Tier 3/EU Stage IIIA
Fuel Tank	109.6 gal (US) 415 l
DEF Tank(1)	4.5 gal (US) 17 l
Note (2)	Rated speed 1,900 rpm. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator. Net power is tested per ISO 9249:2007 and SAE J1349:2011. Rated speed 1,900 rpm. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator. Net power is tested per ISO 9249:2007 and SAE J1349:2011.
Note (4)	**Rated speed 1,850 rpm. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator. Net power is tested per ISO 9249:2007 and SAE J1349:2011. **Rated speed 1,850 rpm. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator. Net power is tested per ISO 9249:2007 and SAE J1349:2011.

Pipelaying Equipment

Lift Capacity

170000 lb 77111 kg

Weights

Operating Weight	109000 lb 49442 kg
Shipping Weight	85880 lb 38955 kg

Components

Removable Counterweight (10 plates) Single Plate	1707.7 lb 774.6 kg
Total Removable Counterweight*	17077 lb 7746 kg

Undercarriage

Track Gauge	7.7 ft 2.34 m
Length - Track on Ground	12.2 ft 3.72 m
Ground Contact Area	8215 in² 5.3 m²
Width - Standard Shoes	30 in 710 mm

Dimensions

Width - Tractor - Standard Shoes

10.7 ft 3.25 m

Dimensions (Approximate)

Width - Tractor - Counterweight Extended	19.9 ft 6.07 m
Width - Tractor - Counterweight Retracted	13.5 ft 4.11 m
Width - Tractor - Counterweight/Boom Removed	12.7 ft 3.86 m
Machine Height - Top of Counterweight	11.2 ft 3.4 m
Height - Machine - Cab and ROPS	11.6 ft 3.53 m
Boom Height (at SAE 1.22 m [4 ft] Overhang) 6.1 m (20 ft) Boom	22.3 ft 6.78 m
Boom Height (at SAE 1.22 m [4 ft] Overhang) 7.3 m (24 ft) Boom	26.3 ft 8.02 m
Boom Height (at SAE 1.22 m [4 ft] Overhang) 8.5 m (28 ft) Boom	30.3 ft 9.25 m

Air Conditioning System

Air Conditioning

PL83 Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

POWER TRAIN

Cat C15 diesel engine: Electronic Unit Injection (EUI) Aftertreatment Meets Tier 4 Final/Stage V or Tier 3/Stage IIIA equivalent emission standards, depending on region of sale

24V electric start

Aftercooler, air-to-air (ATAAC)

Coolant, extended life with protection to -37 C (-34 F)

Filter, air with electronic service indicator

Final drives: Four double reduction planetary

Fuel priming pump, electric

High performance single plane cooling system

Parking brake, electronic

Precleaner, strata-tube dust ejector

Prescreener

Starting aid, ether

Torque divider

Transmission, electronically controlled 3-speed Powershift

Turbocharger, wastegate

Water separator

Zero speed hydraulic fan, reversing and hydraulically driven, electronically controlled

OPERATOR ENVIRONMENT

Rear Vision Camera

Load Moment Indicator (LMI)

Advisor operator interface: Electronic monitoring system, Diagnostic service information, Operator preferences

Armrest, adjustable

Deactivation switch, hydraulic controls

Decelerator pedal

Differential steering control, with touch shift

Dual brake pedal

Heater and ventilation

ROPS

Seat belt, retractable

Storage compartment

PIPELAYING EQUIPMENT

Block and hook with latch

Counterweights, extendible segmented

Winches, hydraulic actuated and electronically controlled

UNDERCARRIAGE

Carrier roller

Hydraulic track adjusters

Master links, two piece

Medium service grouser 760 mm (30 in): Sealed and lubricated track (48 section)

Non-suspended undercarriage

Rollers and idlers, lifetime lubricated

Sprocket rim segments, replaceable

Track guiding guards

Track roller frames

ELECTRICAL

Alarm, backup

Batteries, four maintenance free heavy duty

Boom and counterweight limit switch

Converter, 12V, 10 amp with one outlet

Horn, forward warning

Lights, two front, two rear

Machine diagnostic connector

Machine disconnect switch

Starting receptacle

OTHER STANDARD EQUIPMENT

Bottom guards, hinged

Bumper, front with towing device

Ecology drains: Engine oil, Coolant, Hydraulic oil, Torque converter, Fuel tank, Power train case and transmission

Enclosures, perforated engine

Guard, hinged radiator

Hood, perforated

Hydraulic system, electronically activated for hook, boom and counterweight control

Hydraulics, independent steering and work tool pumps

Oil cooler, hydraulic

Product Link ready

S-O-S sampling ports

Steering, electronically controlled power differential

Vandalism protection for fluid compartments

ROPS

PL83 Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Cab with air conditioning, heat and 150 amp alternator

OROPS with heat and 150 amp alternator

Cloth air seat

Deluxe seat

Vinyl seat

Heated seat

UNDERCARRIAGE

Arctic rollers

Standard rollers

TECHNOLOGY PRODUCTS

Product Link

PIPELAYING EQUIPMENT

Boom and cables 6.1 m (20 ft)

Boom and cables 7.3 m (24 ft)

Boom and cables 8.5 m (28 ft)

OTHER OPTIONAL EQUIPMENT

CE Certification

ROPS

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

Equipment Management

Cat Inspect

Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.

Explore Technology
Cat Product Link

Cat® Product Link™ wirelessly connects you to your equipment giving you valuable insight into how your machine or fleet is performing. Information such as location, hours, fuel usage, productivity, idle time, and diagnostic codes are made available through online web applications so that you can make timely, fact-based decisions to maximize efficiency, improve productivity, and lower the cost of owning and operating your fleet. Available with satellite or cellular connectivity.

Explore Technology
VisionLink®

VisionLink® is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.

Explore Technology

Cat® Product Link™ wirelessly connects you to your equipment giving you valuable insight into how your machine or fleet is performing. Information such as location, hours, fuel usage, productivity, idle time, and diagnostic codes are made available through online web applications so that you can make timely, fact-based decisions to maximize efficiency, improve productivity, and lower the cost of owning and operating your fleet. Available with satellite or cellular connectivity.

Explore Technology

VisionLink® is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

See how PL83 compares against frequently compared products.

Pipelayers

Selected

PL83

Engine Model: Cat C15; Cat C15
Flywheel Power: 319 hp; 238 kW
Lift Capacity: 170000 lb; 77111 kg

Pipelayers

PL87

Engine Model: Cat C15; Cat C15
Flywheel Power: 319 hp; 238 kW
Lift Capacity: 216000 lb; 97976 kg

View Details

Use the comparison tool to compare detailed specs of Cat and competitor models.

Compare All Models

Tools And Expert Help At Every Turn

Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

Media Gallery

Photos

Videos

360 View

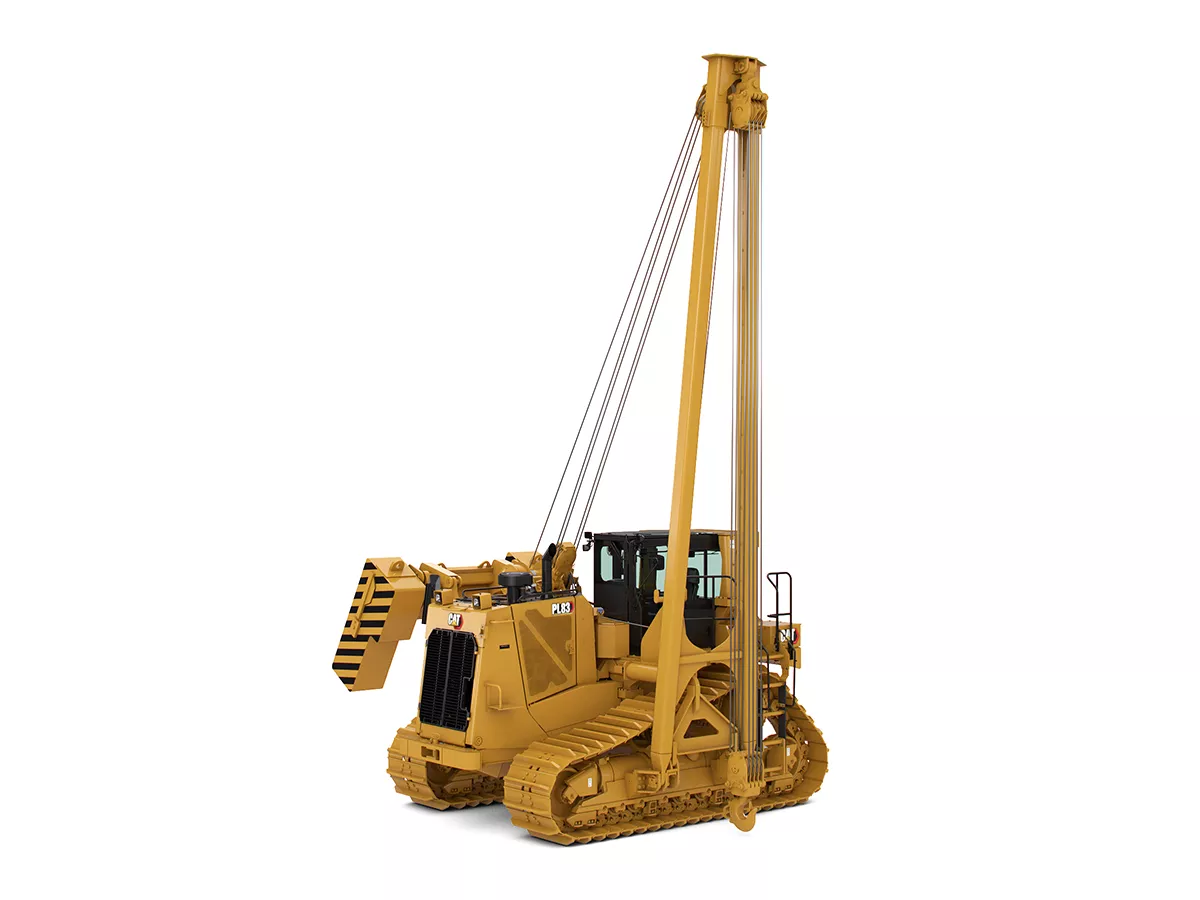

PL83 Pipelayer

PL83 Pipelayers

PL83 Slope Capability and Lifting Capability

PL83 Joystick Controls

Pipelayers PL83

Overview

Purpose-Built for Top Performance and Reliability

Benefits

Pipe Line Performance

Slope Capable

Easy to Operate

Features At A Glance

Product Specifications for PL83

Engine

Pipelaying Equipment

Weights

Components

Undercarriage

Dimensions

Dimensions (Approximate)

Air Conditioning System

PL83 Standard Equipment

NOTE

POWER TRAIN

OPERATOR ENVIRONMENT

PIPELAYING EQUIPMENT

UNDERCARRIAGE

ELECTRICAL

OTHER STANDARD EQUIPMENT

PL83 Optional Equipment

NOTE

OPERATOR ENVIRONMENT

UNDERCARRIAGE

TECHNOLOGY PRODUCTS

PIPELAYING EQUIPMENT

OTHER OPTIONAL EQUIPMENT

Product Specifications for PL83

Engine

Pipelaying Equipment

Weights

Components

Undercarriage

Dimensions

Dimensions (Approximate)

Air Conditioning System

PL83 Standard Equipment

NOTE

POWER TRAIN

OPERATOR ENVIRONMENT

PIPELAYING EQUIPMENT

UNDERCARRIAGE

ELECTRICAL

OTHER STANDARD EQUIPMENT

PL83 Optional Equipment

NOTE

OPERATOR ENVIRONMENT

UNDERCARRIAGE

TECHNOLOGY PRODUCTS

PIPELAYING EQUIPMENT

OTHER OPTIONAL EQUIPMENT

Compatible Technology and Services

Cat Inspect

Cat Product Link

VisionLink®

See how PL83 compares against frequently compared products.

Tools And Expert Help At Every Turn

Find Dealer

Payment Calculator

Current Offers

Rental Options

Used Options

assignment Product Brochures and More Are Ready to Download!

Media Gallery

Photos

Videos

360 View

Related Products

Technology Kits

Technology Kits

Products

Services & Support

How Can We Help?

Company Info

Industry Solutions

Product Brochures and More Are Ready to Download!
