Compactors

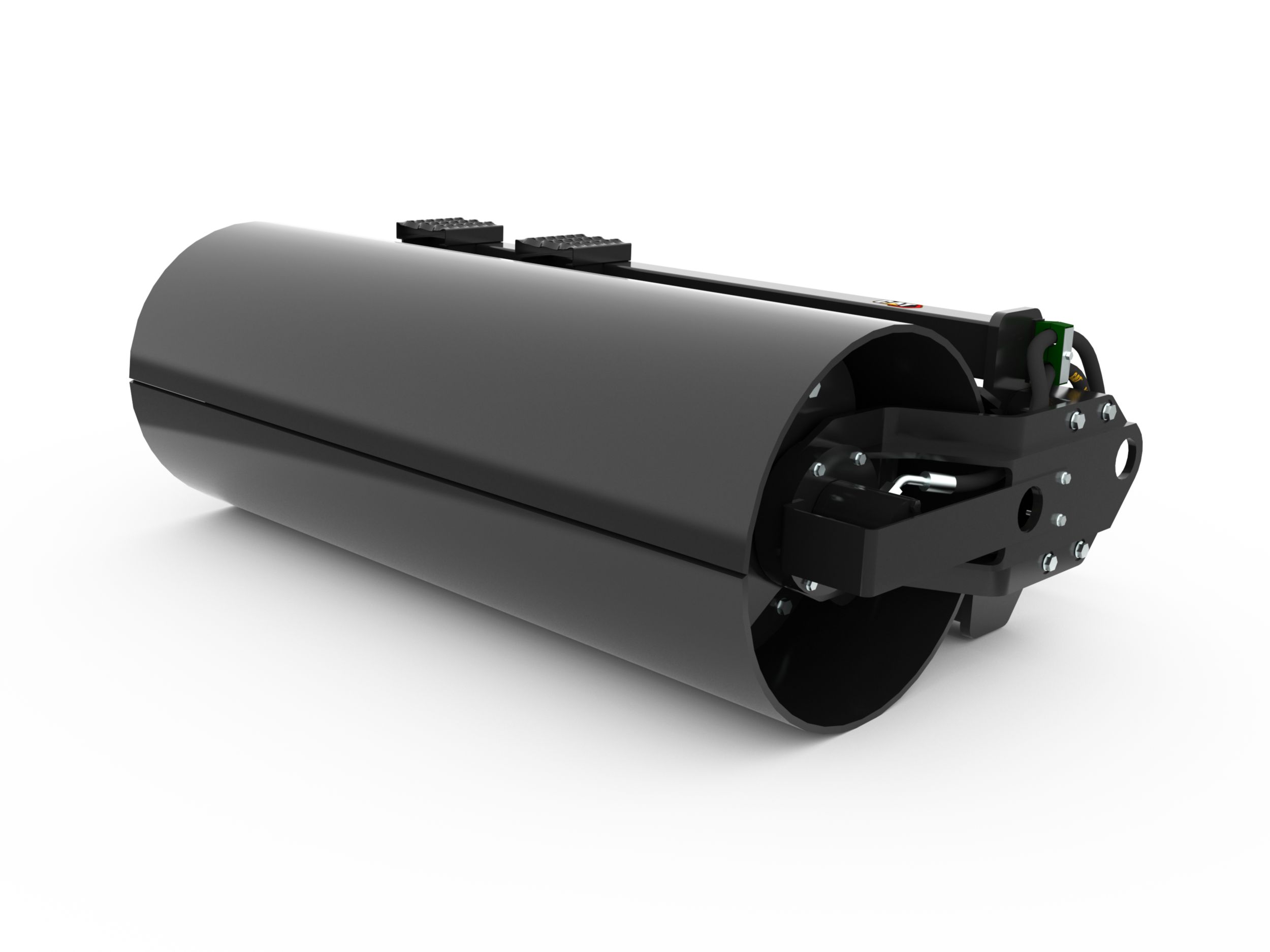

CV16B

< Back

Click for Your Price
Financing & Insurance
See our Offers
  • Find a Dealer
View Product Downloads
Yes, I would like to receive future marketing communications (such as email) from Caterpillar Inc., its affiliates and subsidiaries worldwide and the Caterpillar dealer network. Regardless of whether you decide to receive these marketing communications, Caterpillar will continue to send service/transactional messages, including those that have to do with any accounts that you may have with us.

Overview

Vibratory action and dynamic force provides excellent compaction in a compact size.

Units:
Drum Width 66.0 in 1676.0 mm Less
Weight 2063.0 lb 936.0 kg Less
Required Hydraulics Standard Flow Standard Flow Less
Overall Width 73.0 in 1854.0 mm Less
Height 25.0 in 634.0 mm Less
Length 40.0 in 1009.0 mm Less
Drum Diameter 25.0 in 634.0 mm Less
Required Hydraulic Flow 42-86 L/min (11-23 gpm) 42-86 L/min (11-23 gpm) Less
Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi) Less
Drum Frequency at Maximum Flow 2,946 vibrations/minute 2,946 vibrations/minute Less
Drum Oscillation Tilt Range ± 15 degrees ± 15 degrees Less
Dynamic Force 11903.0 lb 5399.0 kg Less
Amplitude 0.046 in 1.16 mm Less
Motor Size 1.72 in³ 28.0 cm³ Less
Drive Method Gear Motor - Direct Gear Motor - Direct Less

Compatible Equipment

Compact Track Loaders
239D 249D 259D 279D 289D
Multi Terrain Loaders
257D
Skid Steer Loaders
216B Series 3 226B Series 3 232D 236D 242D 246D 262D

Application

Used for compacting soil, sand or gravel prior to pouring concrete or laying asphalt surfaces. Also ideal for asphalt patch work.

Vibratory Pod Design

Caterpillar exclusive vibratory pod design delivers desired balance between frequency and amplitude to provide a superior matte finish.

Higher Compaction Forces

High compaction forces result in fewer passes for greater productivity.

Replaceable Rubber Mounts

Replaceable rubber mounts isolate vibration and enhance vibratory capabilities.

High Strength Steel Drums

Durable high-strength steel drums are roll formed and finish welded for a smoother surface and longer life.

Pivoting Interface

Pivoting interface allows the drum to oscillate +/-15 degrees and follow the contour of the ground.

Spring-Loaded Scraper Bar

Spring-loaded dual direction non-metallic scraper bar maintains constant pressure on drum to prevent material build up. Non-metallic design minimizes noise.
