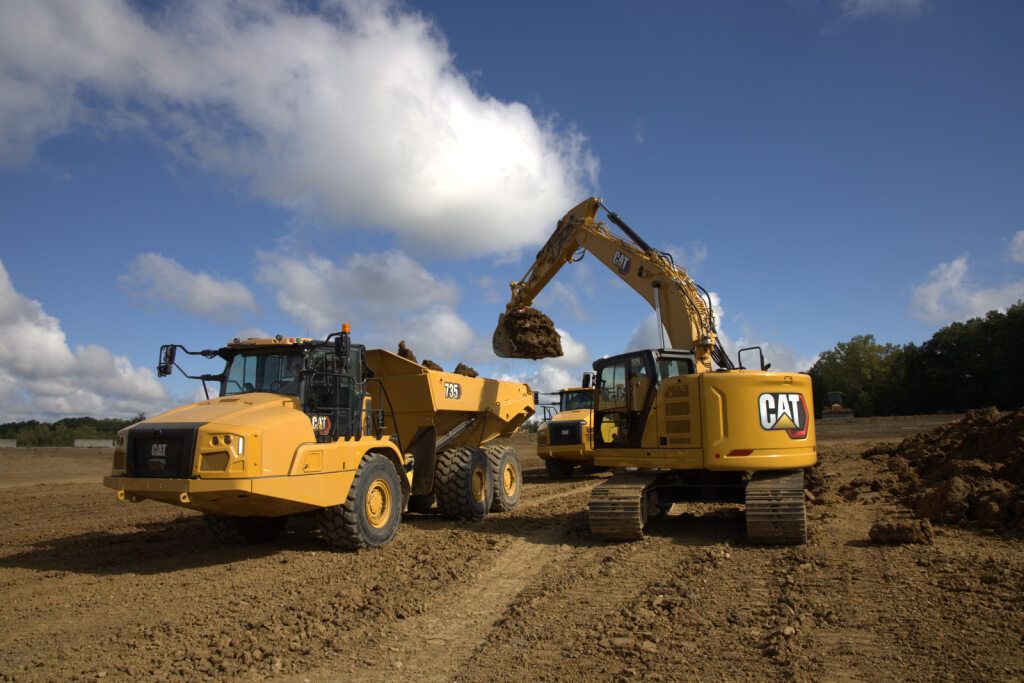

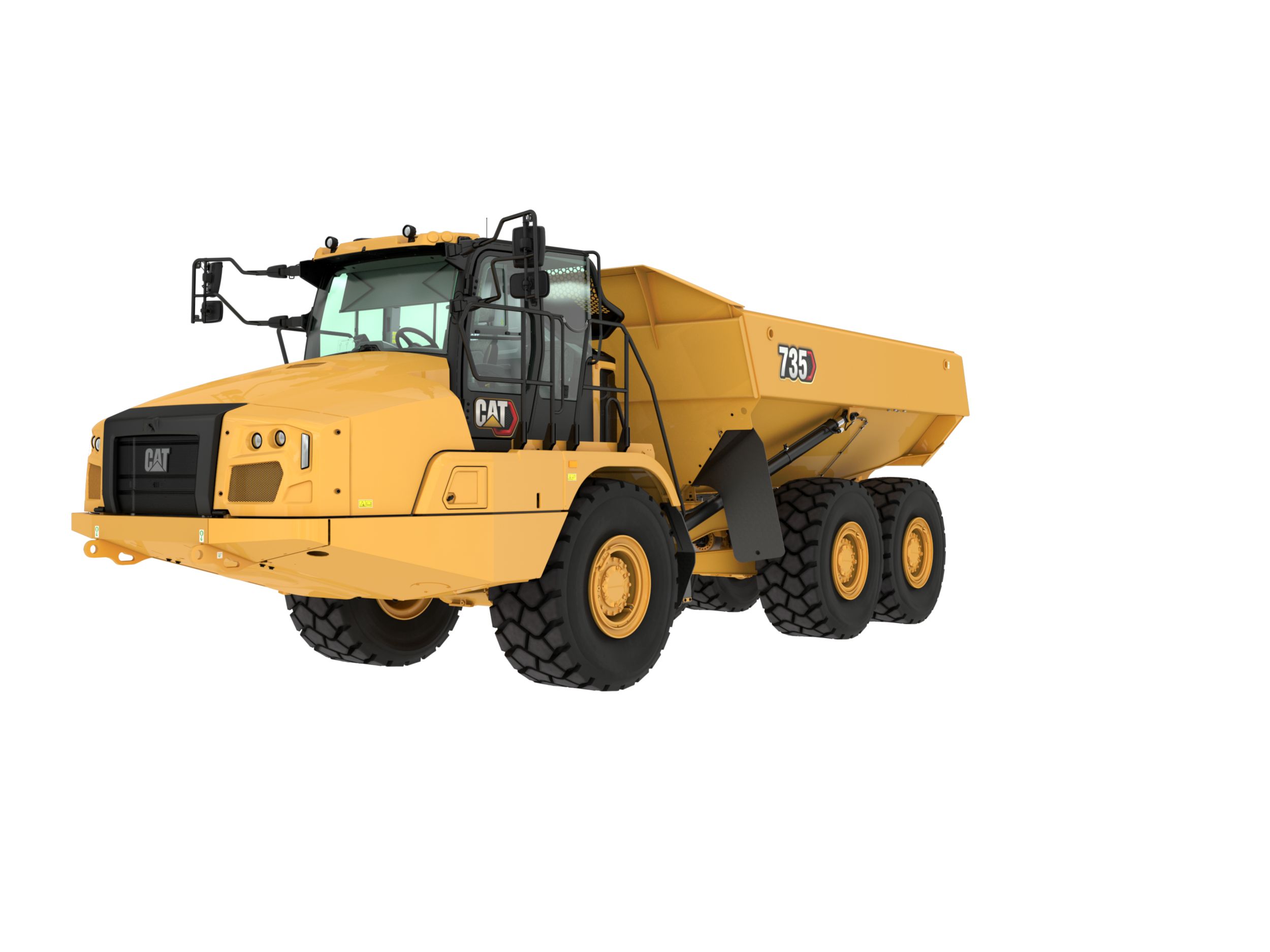

Three Axle Articulated Trucks 735

Request A Price Find Dealer

Key Specs

Engine Model: Cat® C13A; Cat® C13A

Rated Payload: 35.3 ton (US); 32 t

Heaped (SAE 2:1): 26.2 yd³; 20 m³

735
Change model

Overview

Efficient Productivity

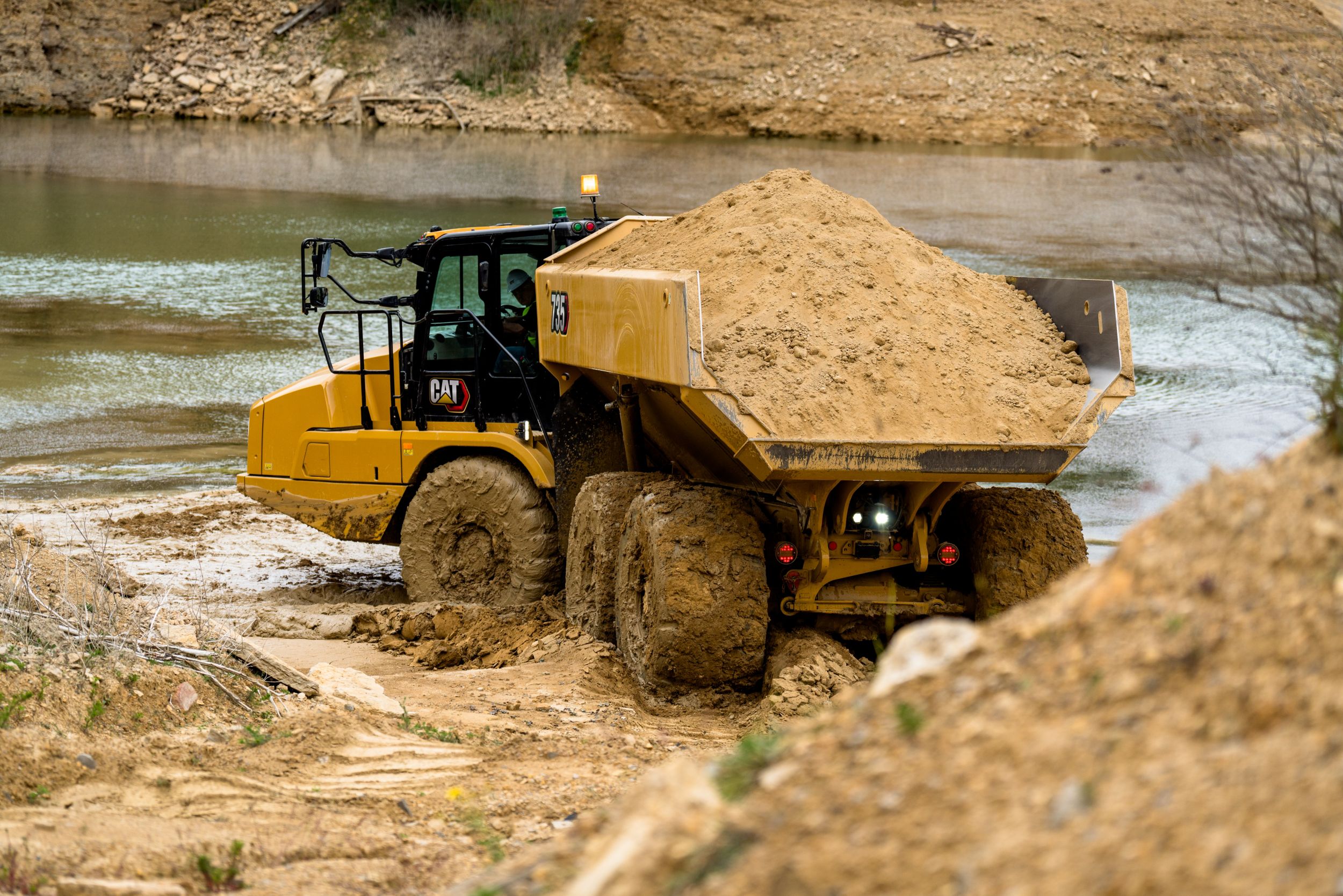

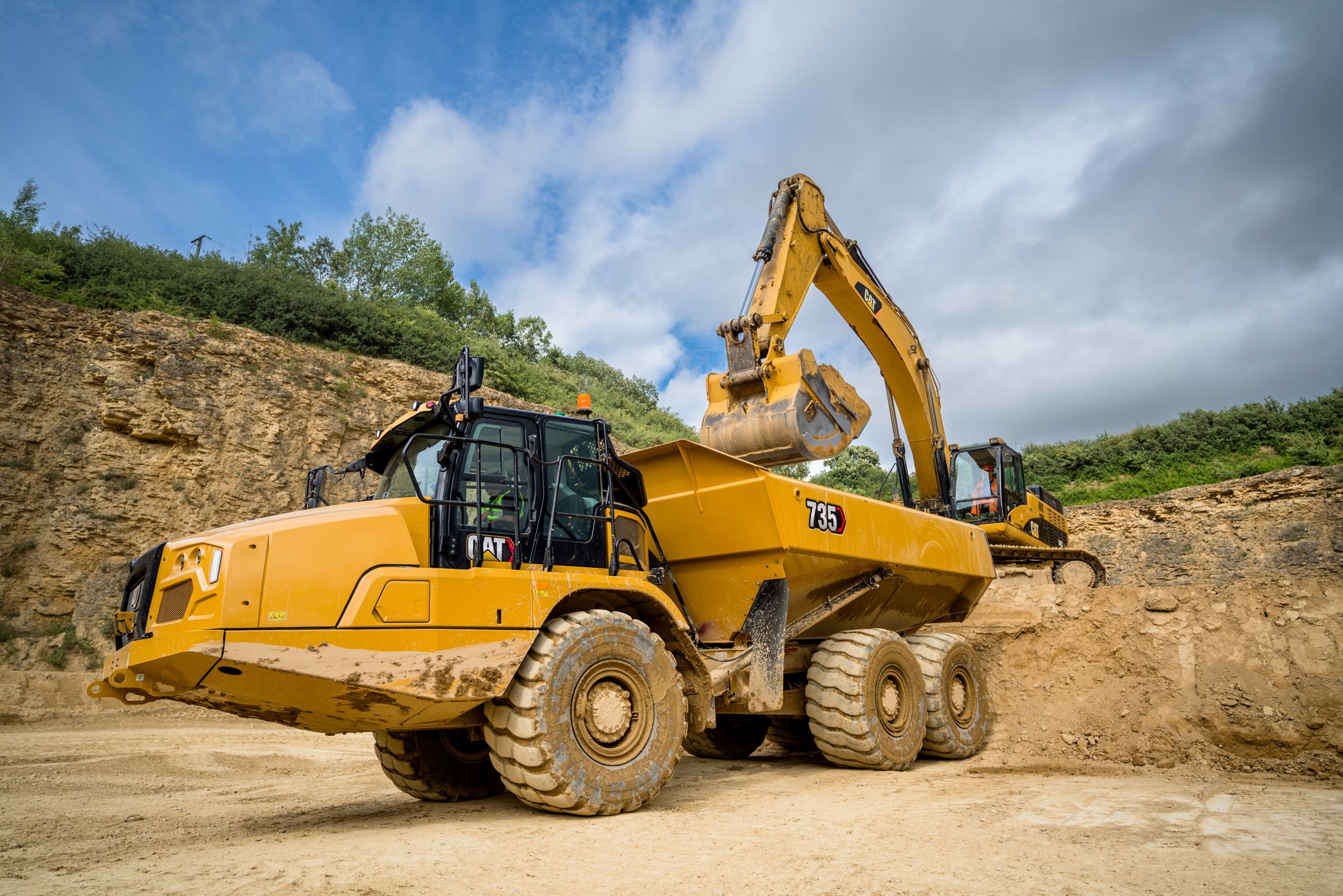

For tough quarry and mining jobs, rely on the Cat® 735 articulated truck. Its 35.3-ton (32-tonne) payload capacity is pass-matched with excavators and loaders to help you move more material and boost productivity across any jobsite.

Benefits

RELIABLE PERFORMANCE

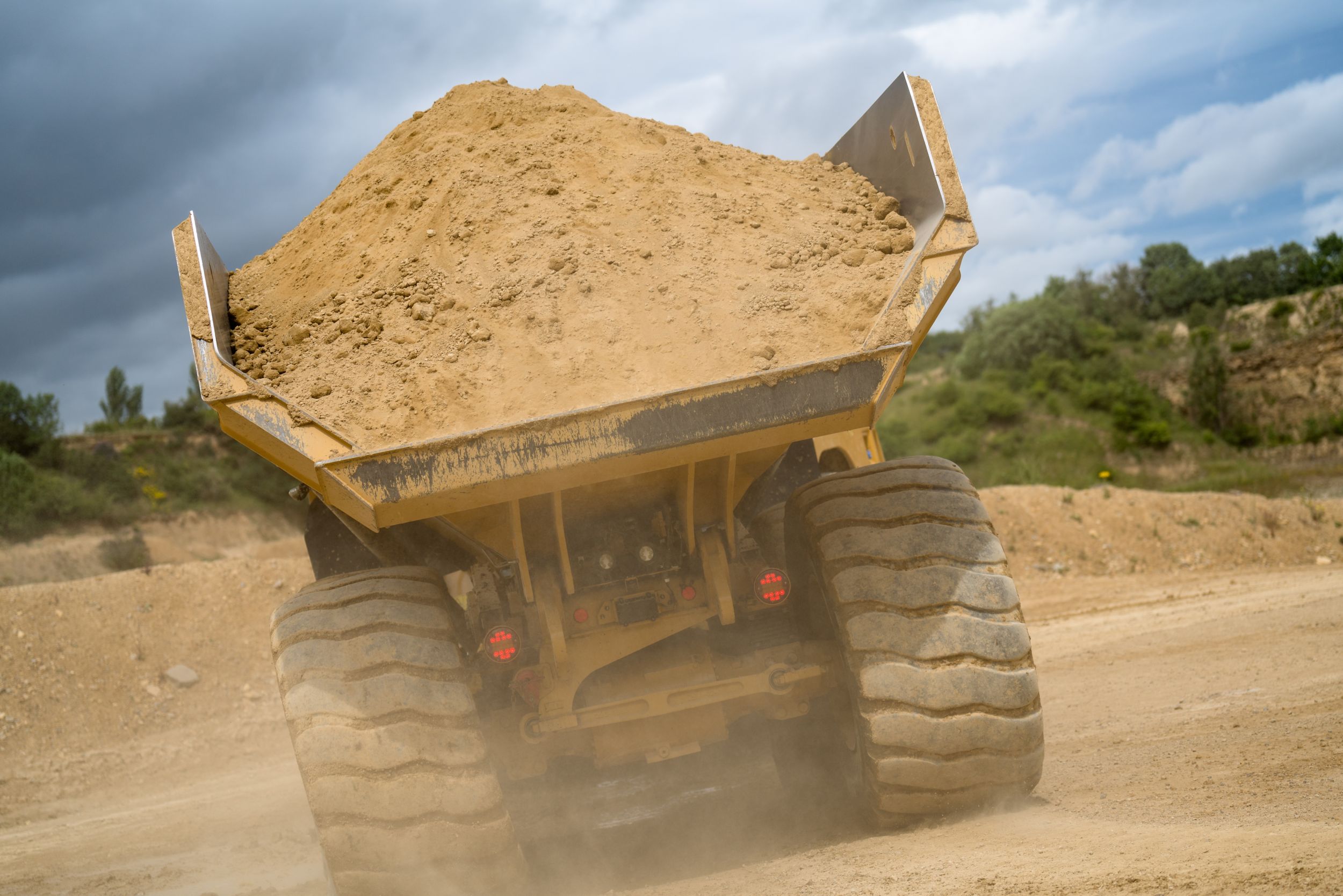

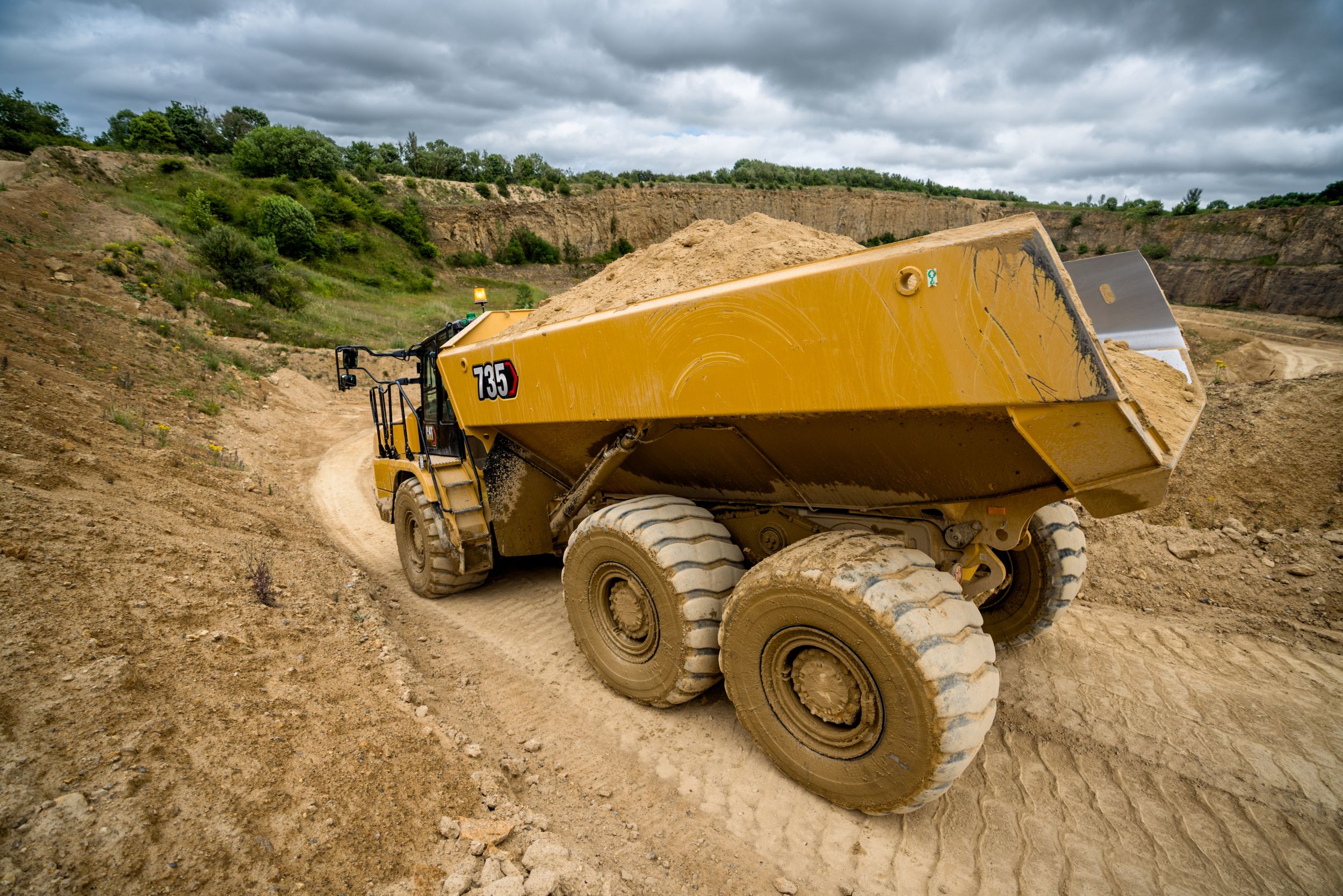

The redesigned dump body provides easier loading and maximum payload, while the C13A engine delivers the power you require, combined with relentless reliability.

BUILT-IN SAFETY

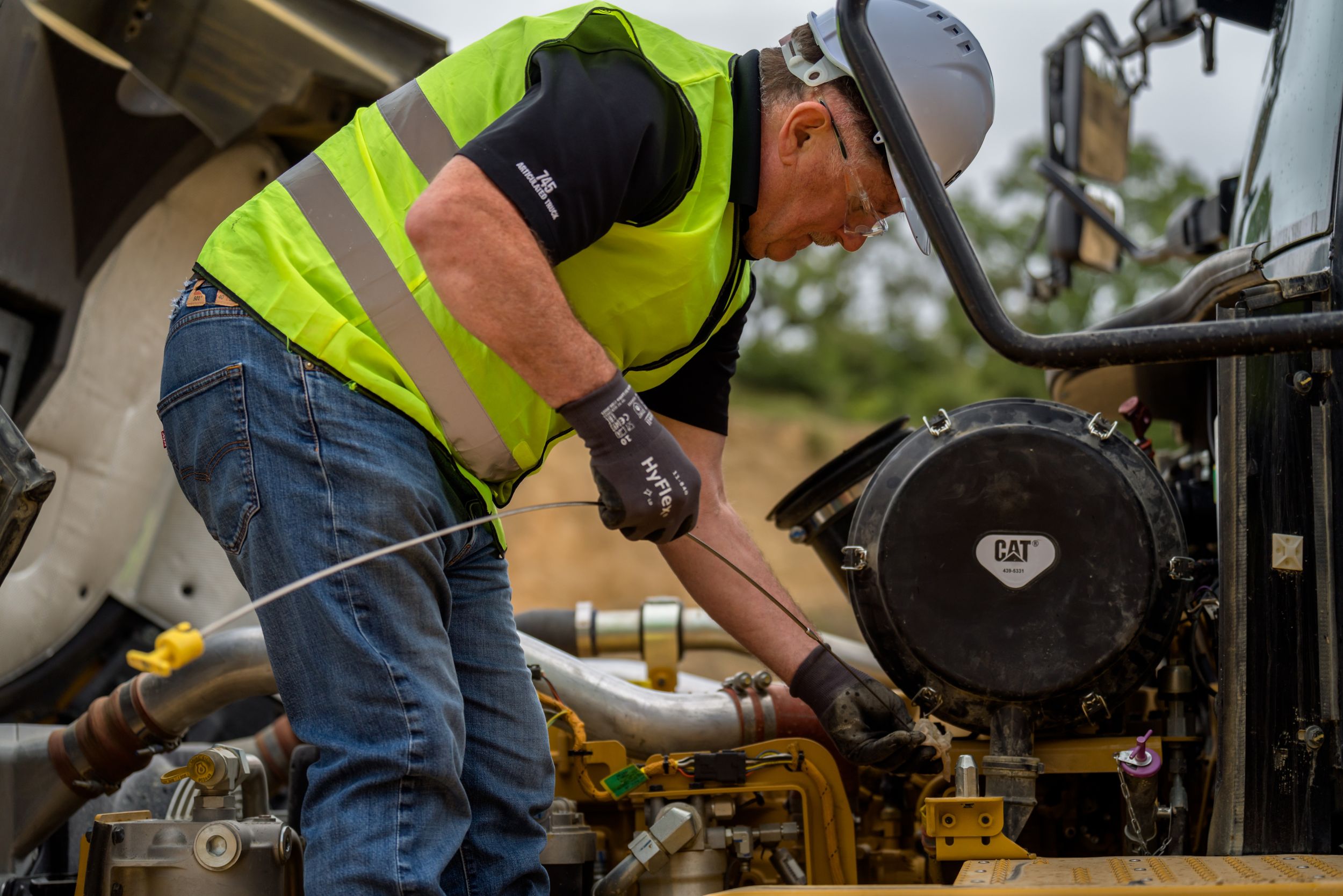

Designed for safe and convenient access with ground level service, and Dynamic Rollover Protection applies brakes when needed to help reduce the risk of rollovers.

IMPROVED OPERATOR EFFICIENCY

Easily set job parameters with Body Height and Machine Speed Limiting, while improving operating behavior with optional Operator Coaching.

Features At A Glance

Specifications Standard Equipment Optional Equipment

Product Specifications for 735

Engine

Engine Model	Cat® C13A Cat® C13A
Gross Power (SAE J1995)	410 hp 306 kW
Net Power (SAE J1349)	400 hp 298 kW
Engine Power (ISO 14396)	404 hp 301 kW
Bore	5.1 in 130 mm
Stroke	6.2 in 157 mm
Displacement	736 in³ 12.5 l
Note (1)	Advertised power is tested at 1,800 rpm. Advertised power is tested at 1,800 rpm.
Note (2)	Advertised power is tested per the specified standard in effect at the time of manufacture. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (3)	Net power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed. Net power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed.
Note (4)	Net power when the fan is at maximum speed is 298 kW (400 hp) per the SAE reference conditions. Net power when the fan is at maximum speed is 298 kW (400 hp) per the SAE reference conditions.
Note (5)	Two engine emission options are available: 1. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. 2. Noncertified configuration that is equivalent to U.S. EPA Tier 2 and EU Stage II. Two engine emission options are available: 1. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. 2. Noncertified configuration that is equivalent to U.S. EPA Tier 2 and EU Stage II.
No Engine De-rating Below	12500 ft 3810 m
Peak Engine Torque Gross (SAE J1995)	1627 lbf·ft 2192 N·m
Peak Engine Torque Net (SAE J1349)	1612 lbf·ft 2155 N·m
Peak Engine Torque Speed	1200 r/min 1200 r/min

Weights

Rated Payload

35.3 ton (US) 32 t

Body Capacities

Heaped (SAE 2:1)	26.2 yd³ 20 m³
Struck	20.9 yd³ 16 m³
Tailgate Heaped SAE 2:1	28.4 yd³ 21.7 m³
Tailgate Struck	22.2 yd³ 17 m³

Transmission

Forward - 1	5 mile/h 8 km/h
Forward - 2	9 mile/h 15 km/h
Forward - 3	14 mile/h 23 km/h
Forward - 4	22 mile/h 35 km/h
Forward - 5	30 mile/h 48 km/h
Forward - 6	35 mile/h 57 km/h
Reverse - 1	6 mile/h 9 km/h

Sound Levels

Interior Cab	72 dB(A) 72 dB(A)
Note (1)	The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained. The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.
Note (2)	Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments. Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.

Operating Weights

Front Axle - Empty	32143 lb 14580 kg
Center Axle - Empty	11266 lb 5110 kg
Rear Axle - Empty	10781 lb 4890 kg
Total - Empty	54190 lb 24580 kg
Front Axle - Rated Load	8938 lb 4054 kg
Center Axle - Rated Load	30805 lb 13973 kg
Rear Axle - Rated Load	30805 lb 13973 kg
Total - Rated Load	70548 lb 32000 kg
Front Axle - Loaded	41081 lb 18634 kg
Center Axle - Loaded	42071 lb 19083 kg
Rear Axle - Loaded	41586 lb 18863 kg
Total - Loaded	124737 lb 56580 kg

Body Plate

Type

High strength Brinell HB450 wear resistant steel High strength Brinell HB450 wear resistant steel

Body Plate Thickness

Front Plate	0.28 in 7 mm
Base Plate	0.51 in 13 mm
Side Plates	0.43 in 11 mm

Service Refill Capacities

Fuel Tank	105.7 gal (US) 400 l
Cooling System	21.9 gal (US) 83 l
Hydraulic System	29.1 gal (US) 110 l
Engine Crankcase	10 gal (US) 38 l
Transmission	12.3 gal (US) 56 l
Final Drives/Differential	33 gal (US) 125 l
Output Transfer Gear Box	5.5 gal (US) 25 l

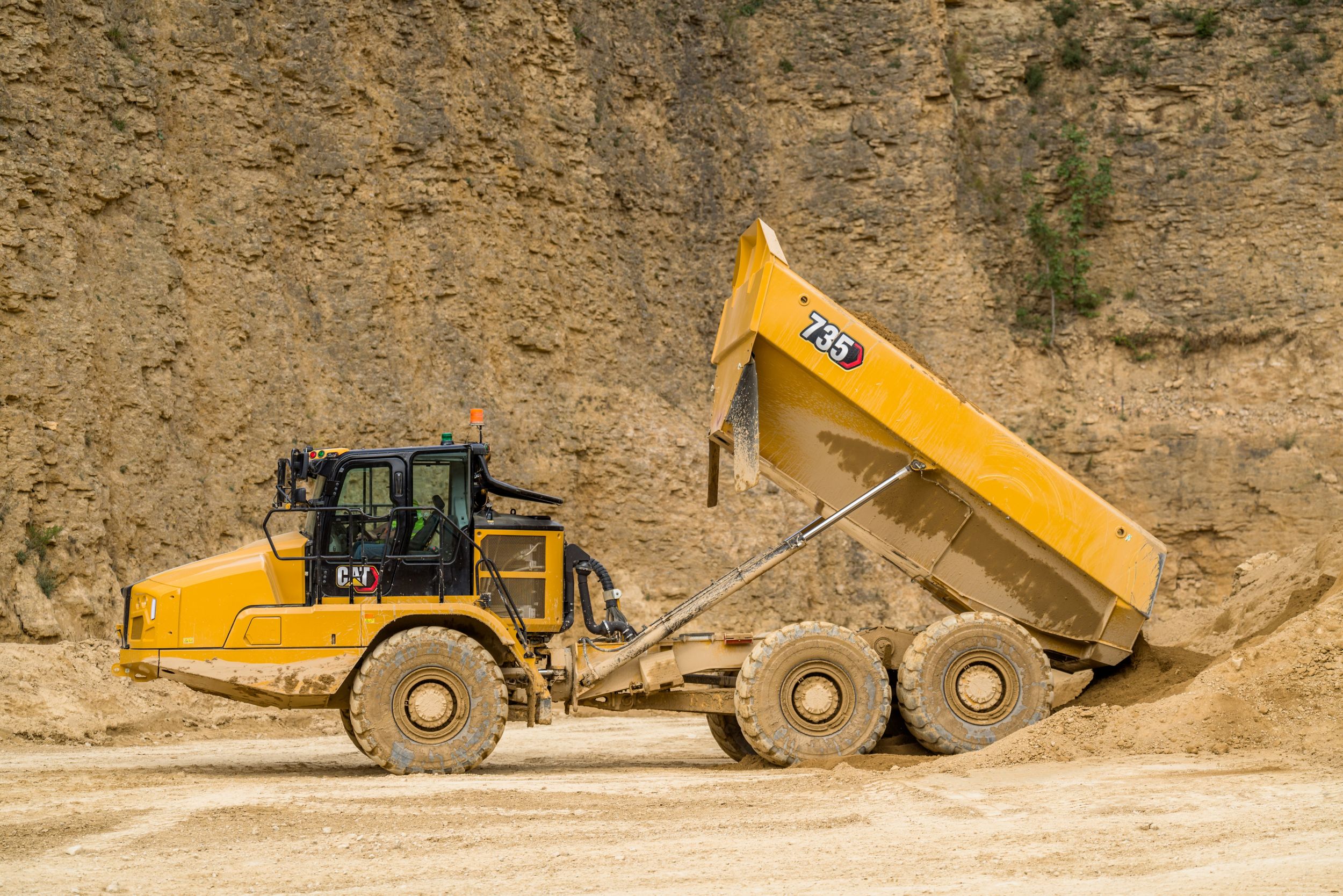

Body Hoist

Raise Time	12 s 12 s
Lower Time	11 s 11 s

Standards

Brakes	ISO 3450 – 2011 ISO 3450 – 2011
Cab - FOPS	ISO 3449 Level II – 2005 ISO 3449 Level II – 2005
Cab - ROPS	ISO 3471 – 2008 ISO 3471 – 2008
Steering	ISO 5010 – 2019 ISO 5010 – 2019

Turning Circle

Turning Dimensions - Steer Angle - Left/Right	45° 45°
Turning Dimensions - SAE Turning Radius	294 in 7470 mm
Turning Dimensions - Clearance Radius	318 in 8075 mm
Turning Dimensions - Inside Radius	149 in 3793 mm
Turning Dimensions - Aisle Width	212 in 5393 mm
Note	Dimensions are for machines equipped with 750/65 R25 tires. Dimensions are for machines equipped with 750/65 R25 tires.

Steering

Lock to Lock

4.75 seconds @ 60 rpm 4.75 seconds @ 60 rpm

Optimal Loader/Truck Pass Matching

Hydraulic Excavators: 350/352 - Passes	4-5 4-5
Hydraulic Excavators: 336 - Passes	5-6 5-6
Wheel Loaders: 972/972 XE - Passes	3-4 3-4
Wheel Loaders: 966/966 XE - Passes	4 4
Wheel Loader: 962 - Passes	4-5 4-5
Wheel Loader: 950 - Passes	5 5
Note	An optimum system match gives you a major productivity advantage. The 735 is an excellent match for the Cat 350/352 and 336 Hydraulic Excavators; and Cat 972, 966, 962 and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. An optimum system match gives you a major productivity advantage. The 735 is an excellent match for the Cat 350/352 and 336 Hydraulic Excavators; and Cat 972, 966, 962 and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.

735 Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Retractable belt: Operator seat and second seat

Glass windows:
– Front, laminated and tinted
– Sides and rear, toughened and tinted

Windshield wiper and washer, two speed, intermittent (front)

Air conditioning

Tilt and telescopic steering wheel

Machine operation monitoring system includes:
– Action lamp
– Engine oil pressure
– Primary steering system
– Left and right turn signal
– High beam
– Coolant temperature
– Tachometer
– Parking brake
– Fuel level
– Transmission oil temperature
– Brake system
– Transmission hold
– Hoist control
– Hydraulic system
– Charging system
– Retarder
– Transmission fault
– Traction control system
– Check engine lamp

Mirrors: exterior

Sun visor

Touchscreen display incorporating the rearview camera video feed

Storage:
– Cup holder
– Flask receptacle
– Under seat storage
– Door pocket
– Behind operator seat storage
– Coat hook

Heater and defroster with four-speed fan

Seats:
– Operator: fully adjustable, air suspension
– Trainer: padded with lap belt

Secondary steering – electro hydraulic

Combined gear selection and hoist control lever

Liquid Crystal Display (LCD):
– Alert indicator
– Selected gear and direction
– Speed or auto shift
– Review Operation and Maintenance Manual (OMM)
– Primary steering failure warning
– Seat belt warning
– Secondary steering failure warning
– Diesel Particulate Filter (DPF) regeneration filter
– Secondary steering energy source engaged
– Hour meter
– Retarder active

Adjustable air vents

Windows opening side, tinted

TECHNOLOGY

Product Link™ Cellular PLE643

Cat® Detect with Stability Assist

ELECTRICAL AND LIGHTING

Remote starting receptacle (cables not included)

Main disconnect switch

Horn

Batteries (x2) maintenance free

Electrical system: 24-volt, 10A 24- to 12-volt converter

Lighting systems:
– Cab interior
– Two head lamps
– Two width marker
– Two reversing
– Work light/cab access light
– Two stop/tail lights
– Front and rear direction indicators

POWERTRAIN

Auto shift six-speed forward and single-speed reverse transmission

Retarder: engine compression brake and hydraulic

Three axle, six-wheel drive

Cat C13A engine

Dual circuit oil immersed, enclosed brakes – all wheels

Differentials: standard with automatic clutched inter- and cross-axle differential locks

SAFETY

Rearview camera

Reverse alarm

Rollover protective structure/Falling objects protective structure (ROPS/FOPS) cab

GUARDS

Rear window

Radiator

Crankcase

Front dump body spill guard, integral part of fabricated body

OTHER STANDARD EQUIPMENT

Tires, six 750/65 R25

Vandalism protection: lockable caps

Mud flaps: wheel arch and body mounted with transportation tiebacks

Scheduled Oil Sampling (S·O·S) sampling valves

Sound suppression (standard in some countries*)
*Countries are EU countries plus Iceland, Norway, Lichtenstein, Switzerland, Türkiye and UK.

735 Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Window blinds

Mirrors, heated motorized

Operator seat belt, four-point

Seat, heated/cooled

Windshield wiper and washer, two speed (rear)

Infrared glass – high ambient cab

Radio, Bluetooth® stereo system

TECHNOLOGY

Operator Coaching

Product Link Dual PLE683

Cat® Payload monitoring system

ELECTRICAL AND LIGHTING

Cold weather start attachment (2 additional batteries)

Engine block heater

Roof mounted LED work lights

Ether start

Flashing LED beacon

OPTIONAL EQUIPMENT

Cold weather coolant –51° C (–60° F)

Fast fuel fill

Scissor tailgate

Body liners

Exhaust heated body

Bare chassis (no body) long wheel base

Bare chassis (no body) standard wheel base

Fuel additive – anti-waxing

Auto lube installation for automatic greasing of bearings

Wheel chocks
