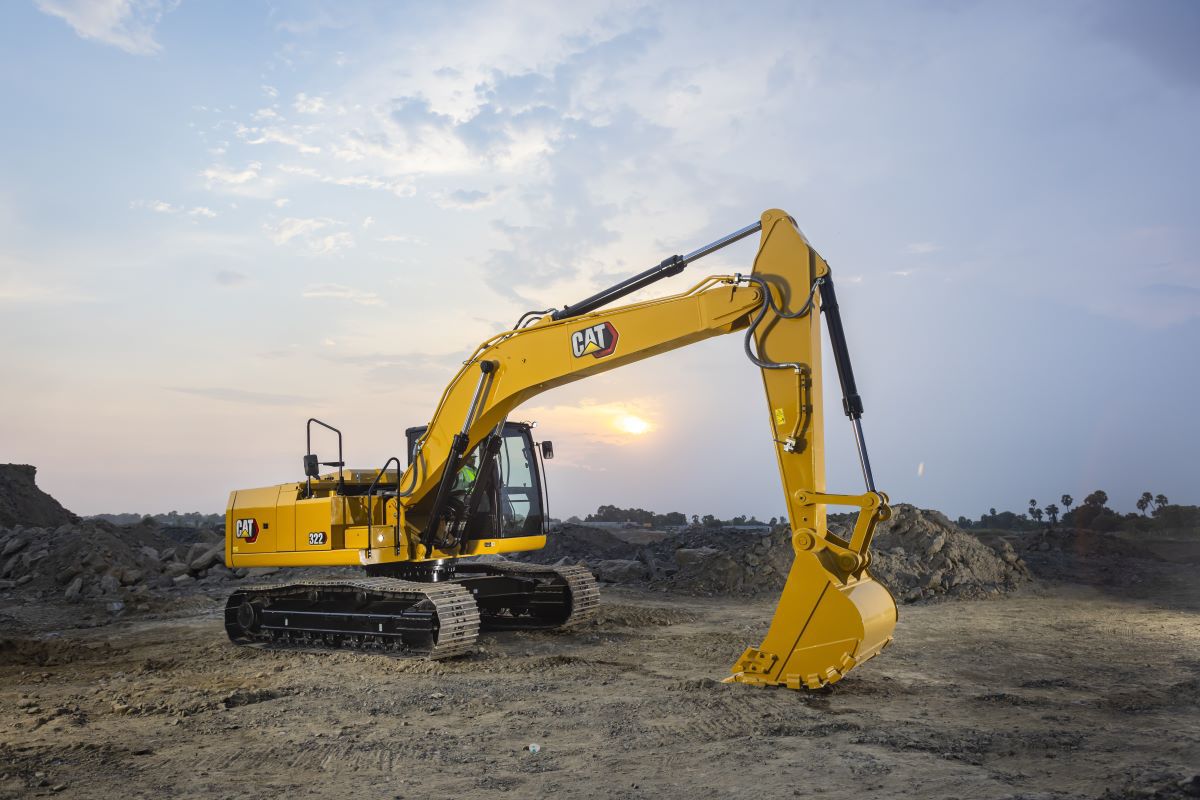

322 Medium Excavators

Request A Price Find Dealer

Key Specs

Net Power - ISO 9249: 129 hp; 96 kW

Operating Weight: 45,700 lb; 20700 kg

Maximum Digging Depth: 20.7 ft; 6310 mm

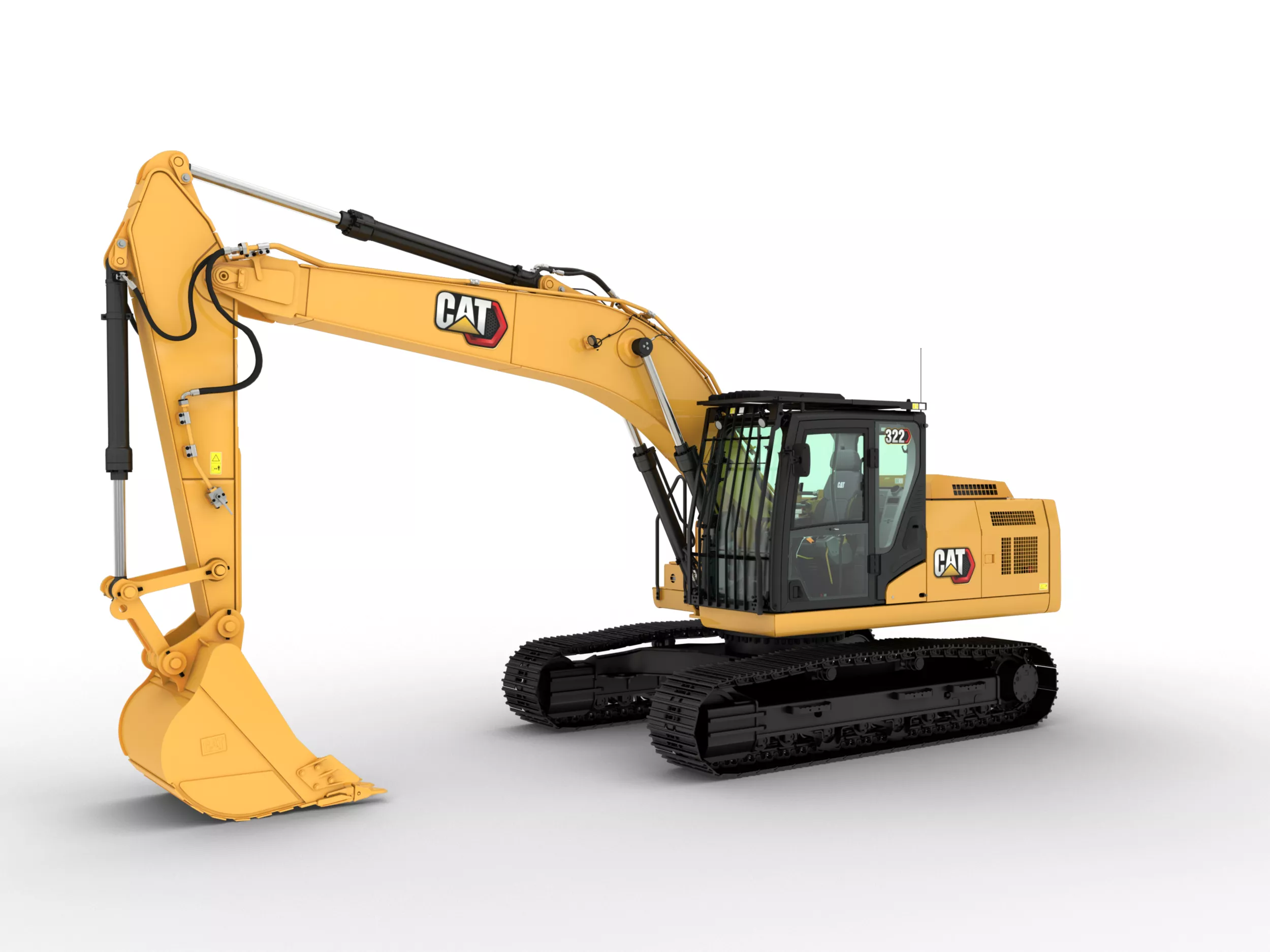

322
Change model

Overview

Profit-Driven Powerhouse for Heavy Loads

When you need muscle, precision, and cost control in one machine, the Cat® 322 excavator delivers. Purpose-built for high production, the 322 pairs fast cycle times with large bucket options to move more material in fewer passes. Its responsive electrohydraulic controls and rugged design keep you productive on the tough jobs, while smart fuel efficiency and streamlined maintenance help you stay profitable every step of the way. Whether you’re loading, trenching, or lifting, the 322 is a heavy-duty workhorse that pays you back.

Benefits

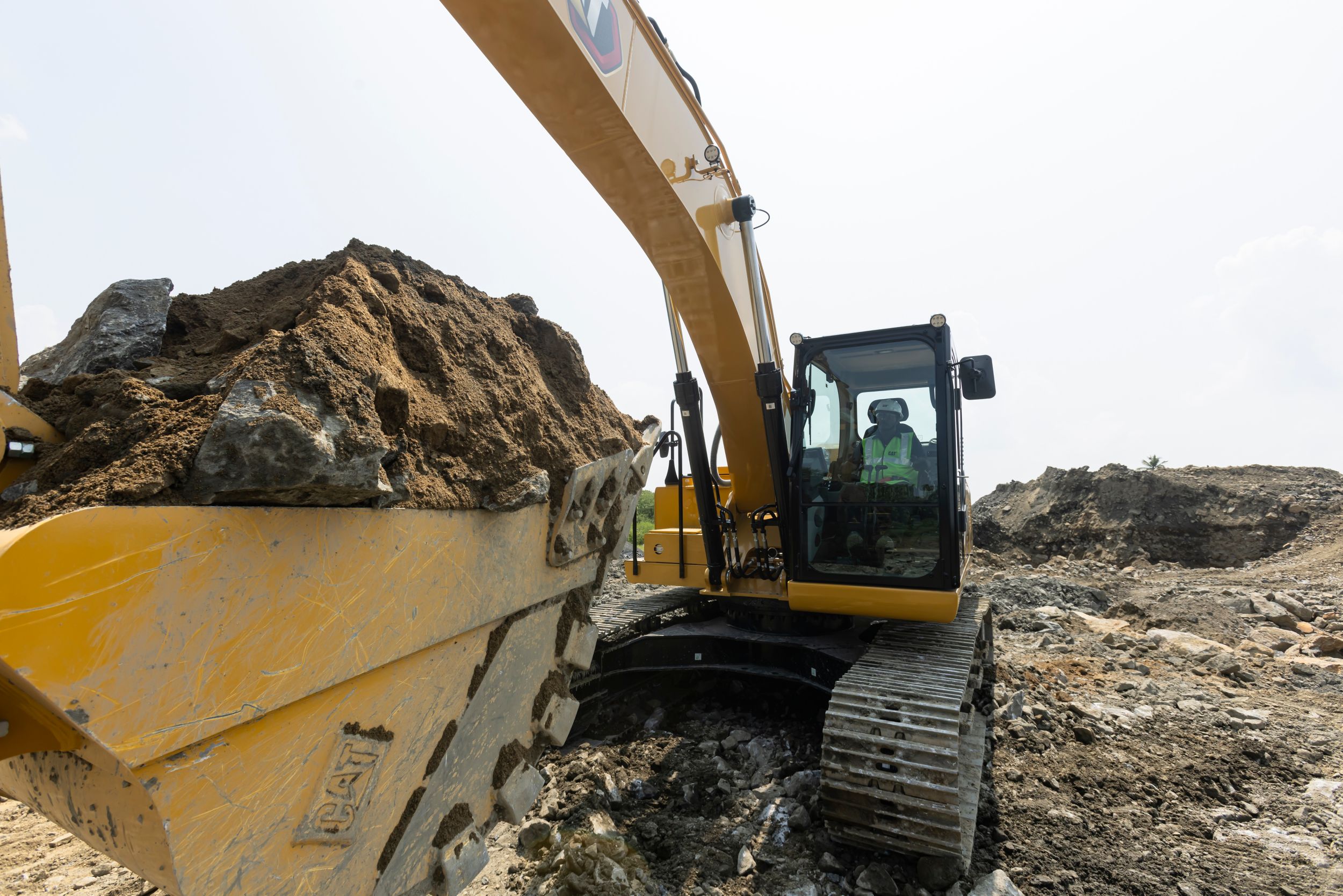

Built to Move More

The turbocharged Cat C3.6 engine delivers powerful swing torque, rapid cycle times, and deep digging capabilities for high-volume production. Smart ECM and precision hydraulics work together to optimize fuel use and accelerate cycle times, boosting productivity while lowering operating costs.

Rugged | Reliable | Durable

The 1.14 m³ (1.49 yd³) and 1.2 m³ (1.57 yd³) General Duty buckets, along with the 1.1 m³ (1.44 yd³) Severe Duty bucket are designed to handle tough materials, such as rock and gravel, with ease. With two robust undercarriage options, proven powertrain, and high swing torque, the 322 delivers fast cycles and reliable performance in demanding conditions. []

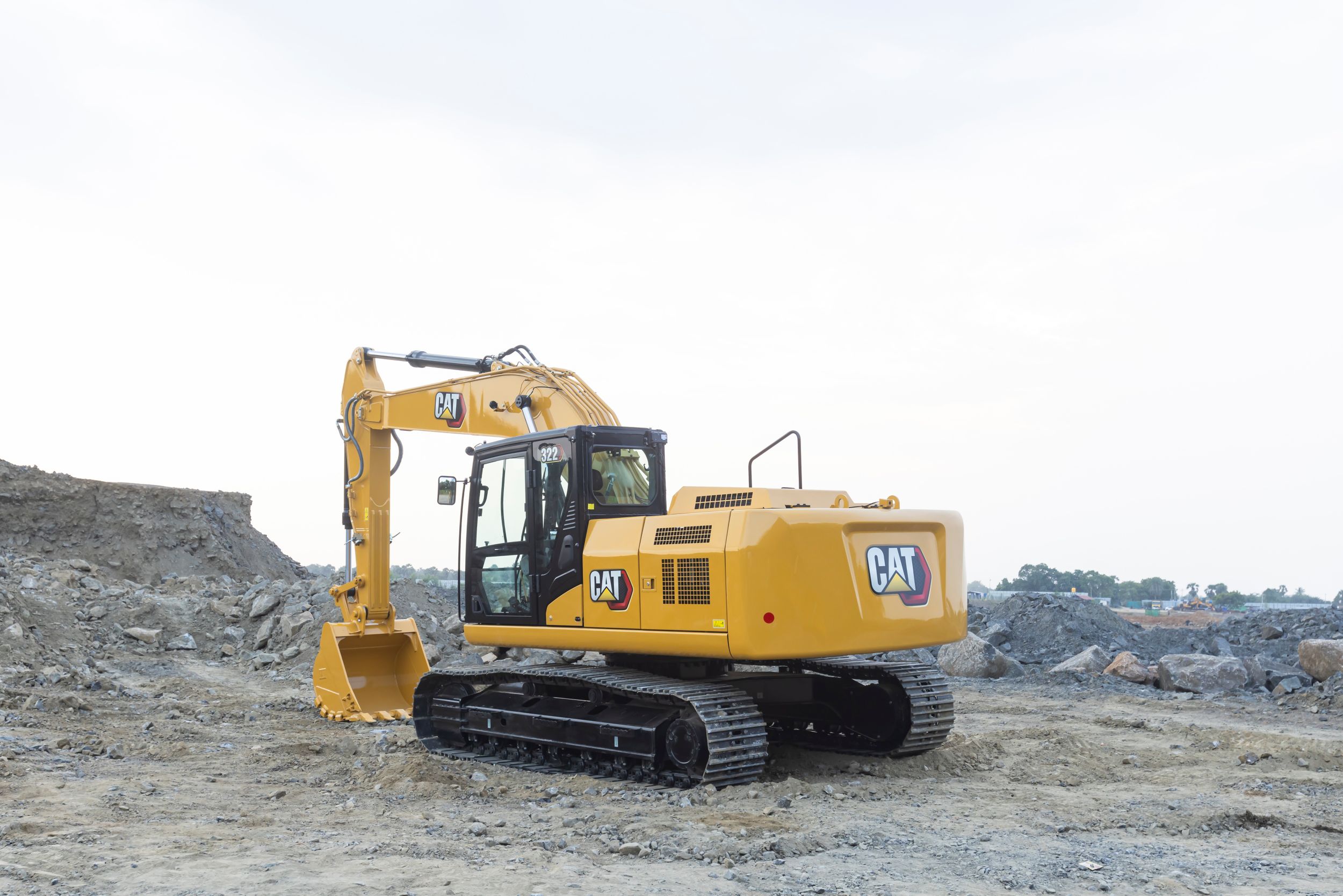

Designed for Uptime

Shared Cat components and extended service intervals simplify maintenance, reduce downtime, and lower operating costs. Heavy-duty structures, a reliable Cat engine, and an efficient electrohydraulic system deliver enhanced fuel efficiency, increased uptime, and improved durability.

Features At A Glance

Displaying 1-6 of 8

Designed For Uptime

Caterpillar design and manufacturing techniques assure outstanding service life.
Thorough component design and machine validation processes result in unmatched reliability and uptime.
Reinforced front structures help extend machine life in demanding terrain.
Robotically welded booms and sticks ensure structural integrity.
Dig and lift from a stable platform created by the 4000 kg (8,820 lb) heavy-duty counterweight and eight-roller undercarriage.
Hydraulic lines protected inside the frame reduce damage risk.
Auto warm up speeds up hydraulic oil warming in cold temperatures and helps prolong the life of components.
The latest single-plane cooling package has better air flow, helping to reduce fan speed and save fuel in cooler conditions and lighter applications.
Sloped track frame helps prevent mud and debris from accumulating in the track area.
Grease lubricated links minimize internal bushing wear, reducing noise and increasing life.
Optimized Heavy-Duty Reach 2.5 (8'2") stick for longer life in quarry application.
The center track guiding guard helps keep the excavator track aligned when traveling and working on slopes.
Robust bottom guards protect machine components that might be damaged while swinging. A thicker bottom guard plate is used under the pump compartment to protect the suction hose.
Cooling system capability of up to 48º C (118º F) for good performance in harsh environments.
The excavator has a high-ambient temperature capability of 52º C (126º F) and cold start capability of –10° C (14° F).

Low Fuel Consumption

The Turbocharged Cat C3.6 engine and electrohydraulic system work in sync to help you move loads of material without burning excessive fuel.
Eco mode reduces fuel consumption with no loss in lifting or digging forces.
Equipped with electrohydraulic control valve, pump and Engine Control Module (ECM) for better controllability and high fuel efficiency.
The ECM ensures smooth, precise operation in every pass.
Balance power and fuel efficiency using the Positive Flow Control (PVC) electrohydraulic system.
Use automatic engine speed control (AEC) during no-load or light-load conditions to automatically reduce engine speed to minimize fuel consumption.
Electronic tandem hydraulic pumps deliver more efficiency with less internal friction losses and superior design.
Boom and stick regeneration circuits reduce fuel consumption while improving cycle times.

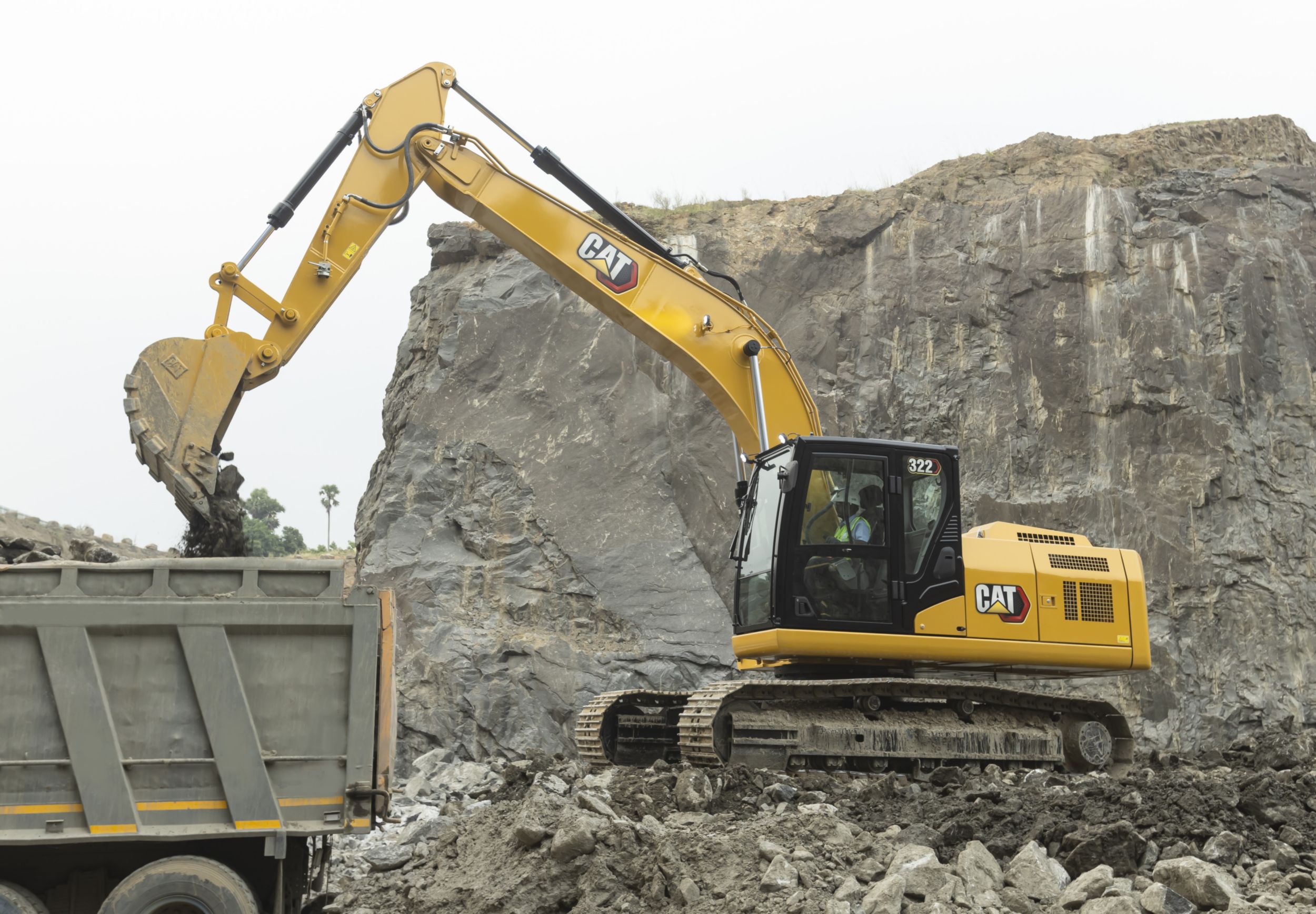

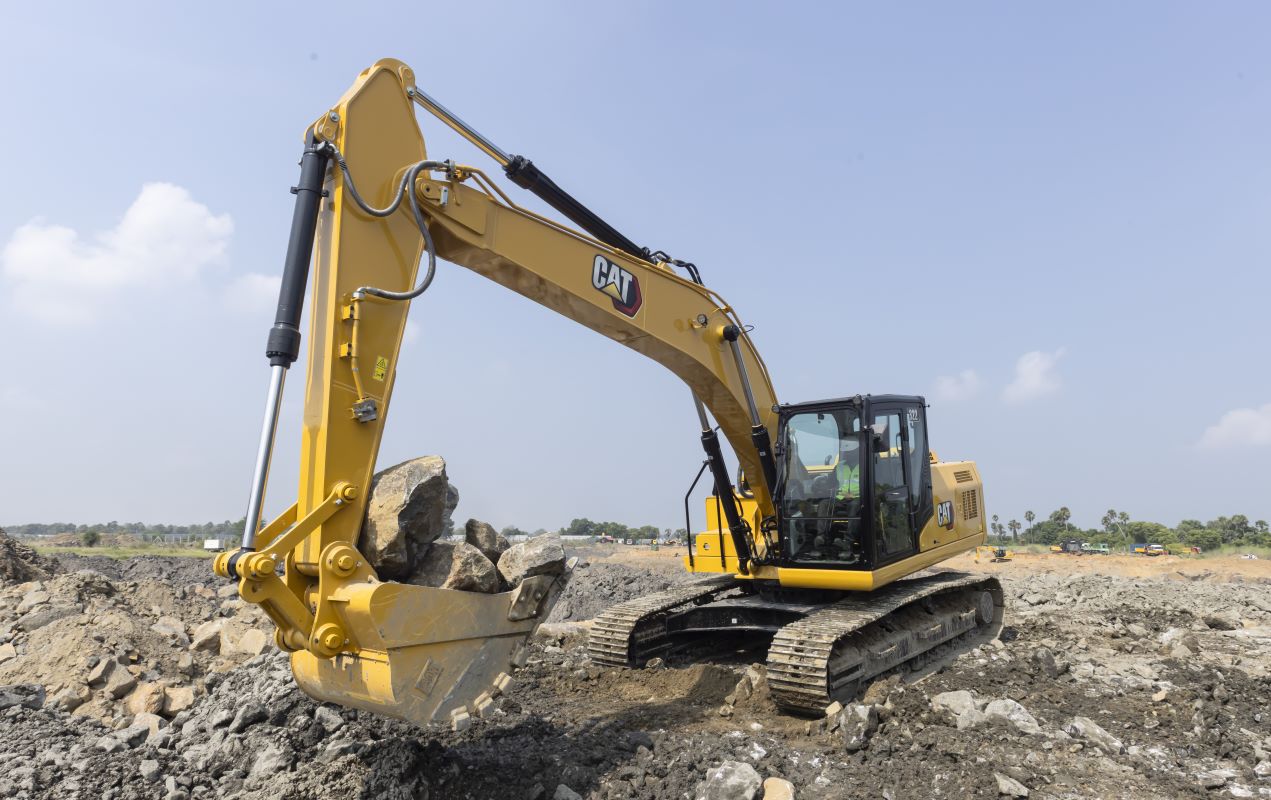

High Productivity

Choose from a 1.2 m³ (1.57 yd³) General Duty bucket or a 1.14 m³ (1.49 yd³) General Duty bucket for earthmoving tasks. For quarry applications, select the 1.1 m³ (1.44 yd³) Severe Duty bucket, engineered to handle rock, gravel, and abrasive materials with ease.
Choose between two robust undercarriage options: Medium 4.25 m (13'11") or Long 4.45 m (14'7"), both built to withstand demanding conditions.
Increased swing torque compared to the 320D3 delivers seamless operations while grading, truck loading and trenching.
Faster swing acceleration is achievable due to the higher swing torque, providing optimal site performance.
The single plane cooling package design reduces air resistance compared to the traditional two-plane design for better cooling performance and enhanced machine productivity.
Traverse the job site on the Grease Lubricated Track (GLT) undercarriage. Undercarriage rollers are rebuildable and sealed to prevent dirt and debris from causing internal wear.
Work up to 3000 m (9,840 ft) above sea level without de-rating.
Reinforced structures and upgraded undercarriages improve stability and durability.
The single plate X-shaped, box-section car body provides excellent resistance to torsional bending, dissipating stress throughout the base of the machine.
The standard and heavy-duty base frames provide longer life and greater resilience in demanding work environments.
Match your machine to the job with power modes. Let Smart mode automatically match engine and hydraulic power to working conditions. Power mode constantly provides maximum productivity, and Eco mode helps to minimizes fuel consumption in less-demanding applications.
The boom and stick structures are designed using high-tensile steel fabricated into a large box section using internal baffles to absorb torsional stress.

Save On Service And Maintenance

The 322 has a work platform for all routine service and maintenance needs. Anti-skid plating with countersunk bolts reduces the potential for slippage and trip hazards. Grips on the track frame, service platform, cab and battery compartment for an easy climb up and down from the service platform and operator station.
Shared components simplify maintenance and improve parts availability.
Scheduled Oil Sampling (S·O·S^SM) ports are on ground level, simplifying maintenance and allowing for quick, easy extraction of samples for fluid analysis.
Extended and synchronized service intervals save on maintenance costs.
Extended first engine oil change interval (500 hours), and maintenance-free batteries.
Filters, such as fuel, engine air, and oil filters, are grouped together for easy access and preventative maintenance.
There is no need to manually prime the fuel system after fuel filter changes. The standard electric priming pump reduces the risk of contamination by preventing unfiltered fuel from entering the fuel system.
Maximize uptime and extended service intervals, thanks to advanced hydraulic oil filter design and no pilot and case drain filters.
A two-stage fuel filter and anti-rust fuel tank help protect the engine against low-quality fuel.
Routine cleaning is made easier with the single plane cooling package design.
Proven, high-efficiency radial seal engine air filter behind the cab. The machine constantly monitors the engine air filter and will notify you, via the monitor, when service is required.
The latest air intake filter with pre-cleaner has double the dust holding capacity of the previous air intake filter.

Safely Home Every Day

The latest cab provides excellent visibility from the operator’s seat. In addition, two standard mirrors help keep you aware of your surroundings.
Optional front windshield guard helps protect the windshield from potential damage caused by flying debris, and other road materials.
Optional rearview camera enhances visibility behind the machine.
Heavy-duty base frame and reinforced “X” car body conform to ISO 15818:2017 lifting and tie-down requirements.
The optional Rollover Protective Structure (ROPS) cab conforms to ISO 12117-2:2008 requirements.
Handrails and hand hold with a step on the undercarriage for easy access to the engine bay area. The handrails conform to ISO 2867:2011 requirements for added safety.
Anti-skid plating with countersunk bolts reduces the potential for slippage and trip hazards.
Ground-level access for daily checks improves safety and saves time.
Serrated steps, anti-skid plating, and handrails help you avoid slips and trips – a major contributor to workplace injuries.
A lockable disconnect switch isolates the battery and enhances safety by disconnecting the electrical energy when servicing the machine.
The optional travel alarm provides a clear warning signal, alerting nearby individuals to the machine's movement and promoting a safe working environment.
Bright seatbelts and a wide cab entry improve safety and usability.
LED 1200 lumen lights, a quiet muffler, and emergency cab exits support 24/7 operation.

Simple To Operate

Start the engine with a push button.
The in-cab high-resolution 203 mm (8 in) touchscreen monitor is easy to use, intuitive, and user-friendly.
Continuously improved user interface allows for intuitive navigation, minimizing performance interruption with the easy-to-use touchscreen menu.
The machine’s electrohydraulic system allows accurate bucket control for maximum precision.
Optimized low-effort joystick controls reduce operator fatigue.
Customize joystick patterns and preferences; the machine remembers them.
Auto hammer stop protects tools from overheating and wear.

All Day Comfort

Ergonomically designed seat to improve operator’s comfort.
Sound suppression, seals, and viscous cab mounts decrease noise and vibration for a quieter work environment.
Standard automatic climate control helps keep you comfortable all shift long.
Excellent work site visibility from the cab enhances productivity and safety.
Adjustable seat with three suspension levels and ergonomic design.
Climate control, Bluetooth® connectivity, USB ports, and an intuitive interface enhance comfort.
Control the excavator comfortably with easy-to-reach controls all located in front of you.
Easy to access radio controls, engine throttle, wiper controls and Bluetooth phone pairing for operator convenience.
Automatic climate control helps maintain consistent cab temperature. Five outlets ensure proper air circulation to keep you comfortable regardless of outside temperatures.
There is plenty of room for you to store your gear. The cup holder and storage space in front of the controls can hold large cups and wide cell phones; storage behind the seat can hold a large lunchbox and other items.
Bright seatbelts and a wide cab entry improve safety and usability.
