Rotors

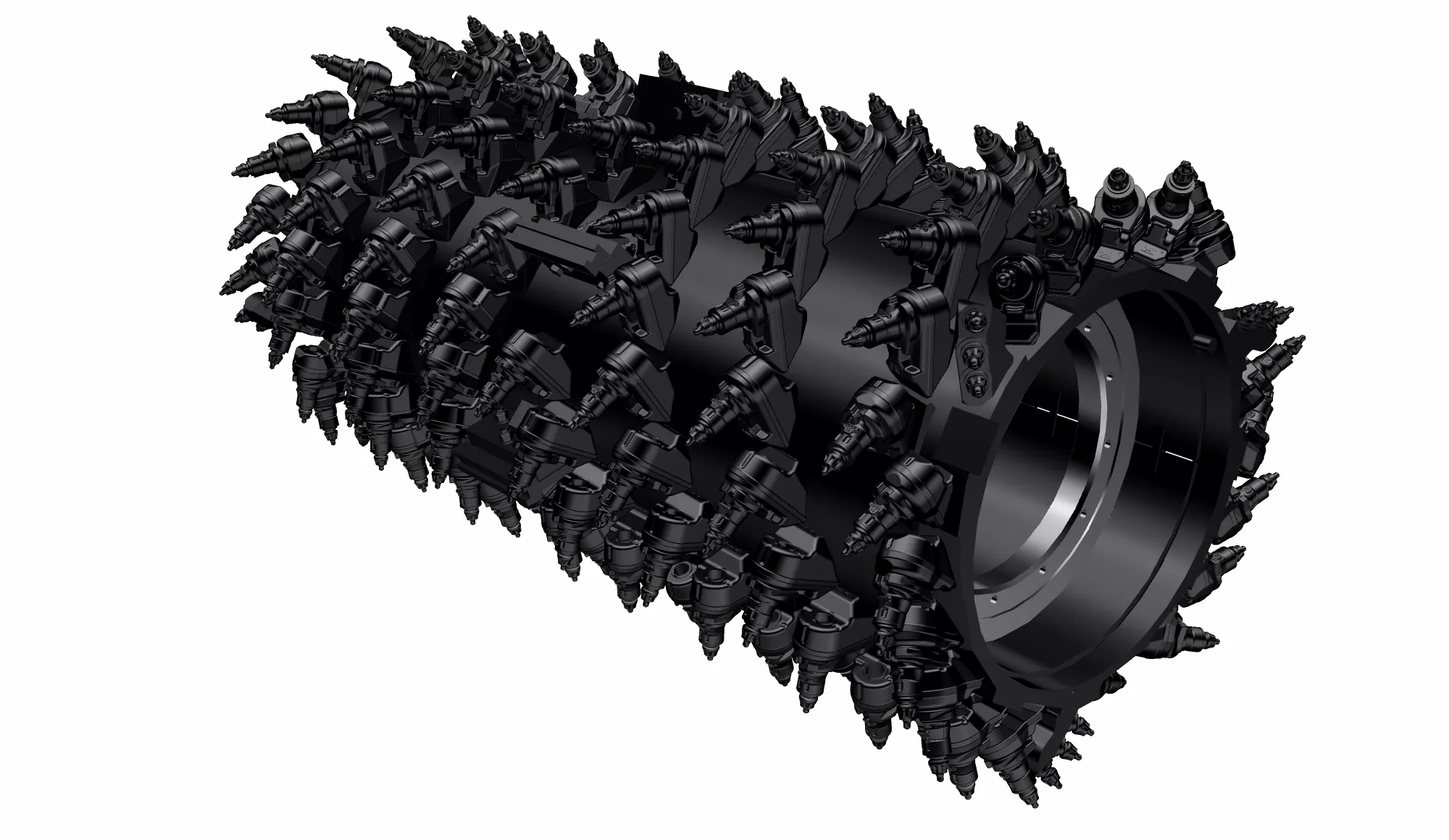

Rotors System K 2.0 m Milling Drum (15 mm spacing)

Request A Price Find Dealer

Key Specs

Milling Width
79 in
2010 mm
Tool Spacing
0.6 in
15 mm
Drum Diameter at Tips
42.2 in
1073 mm

Overview

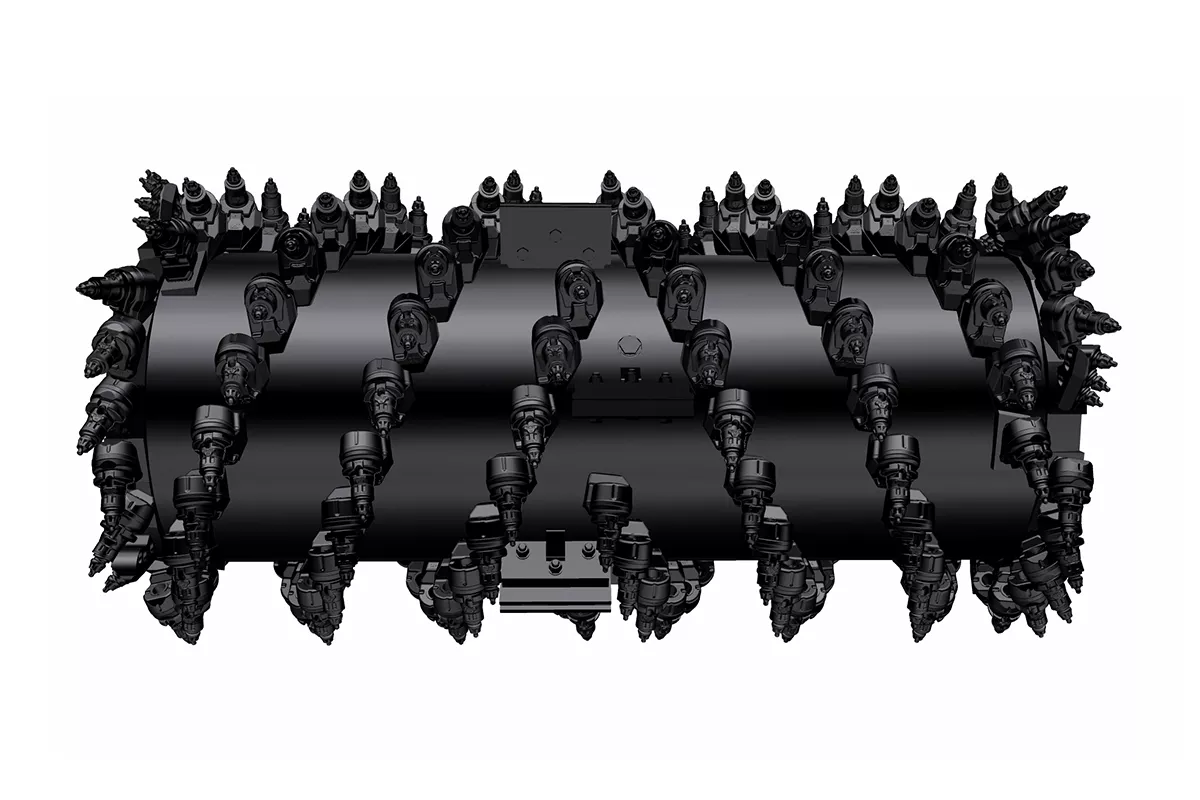

The System K standard milling rotor with 15 mm bit spacing is ideal for surface removal or complete removal of road surfaces at depths up to 330 mm (13 in). A durable, high-performance design with efficient material flow and an excellent cutting pattern maximizes milling production.

Product Specifications for System K 2.0 m Milling Drum (15 mm spacing)

Milling Width 79 in 2010 mm
Tool Spacing 0.6 in 15 mm
Drum Diameter at Tips 42.2 in 1073 mm
Milling Depth (max) 13 in 330 mm
Number of Bits 170 170
PN# of Rotor Gp with Coolant and Tools (Factory Installed) 517-0847 517-0847
PN# of Rotor Gp with Bits (Field installed) 497-9842 (PM600,PM800); 529-7637 (PM200) 497-9842 (PM600,PM800); 529-7637 (PM200)

See how System K 2.0 m Milling Drum (15 mm spacing) compares against frequently compared products.
