988 XE

Large Wheel Loaders 988 XE

Request A Price Find Dealer

Key Specs

Net Power - SAE J1349
538 hp
401 kW
Operating Weight
116362 lb
52781 kg
Engine Model
Cat® C18 ™
Cat® C18 ™

Overview

MOVE MORE MATERIAL EFFICIENTLY AND AT A LOWER COST

Move more material in less time at a low cost per ton with the Cat® 988 XE wheel loader. The electric-drive 988 XE is faster and more efficient than the powershift 988 in applications that demand high performance and production. Get a fast return on your investment with great overall fuel efficiency and designed-in durability for multiple life cycles.

Benefits

LESS FUEL CONSUMPTION

Cycle time improvements in load & carry applications, along with improved stability and faster maneuvering with an optional counterweight result in increased productivity

LESS POWERTRAIN MAINTENANCE

Reduce your powertrain maintenance by 50% with 2,000-hour service intervals and no component rebuild until 17,500 hours

MORE EFFICIENT DIG CYCLES

Designed for easier operation with single pedal with dynamic braking and operator assist features, for faster training of new operators







Product Specifications for 988 XE

Net Power - SAE J1349 538 hp 401 kW
Engine Model Cat® C18 ™ Cat® C18 ™
Engine Power - ISO 14396:2002 580 hp 432 kW
Gross Power - SAE J1995:2014 588 hp 436 kW
Rated Speed 1,700 rpm 1,700 rpm
Peak Power Speed 1,500 rpm 1,500 rpm
Emissions U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014
Bore 5.7 in 145 mm
Stroke 7.2 in 183 mm
Displacement 1105 in³ 18.1 l
Peak Torque - 1,200 rpm - SAE J1995 2230 ft·lbf 3023 N·m
Torque Rise 58% 58%
Operating Weight 116362 lb 52781 kg
Operating Weight - Standard 116362 lb 52781 kg
Operating Weight - High Lift 119618 lb 54258 kg
Rated Payload - Standard (Quarry Face) 12.5 ton (US) 11.3 t
Rated Payload - Loose Material (Standard) 16 ton (US) 14.5 t
Bucket Capacity Range 4.7-13 m3 (6.2-17 yd3) 4.7-13 m3 (6.2-17 yd3)
Transmission Type Cat switched reluctance electric drive Cat switched reluctance electric drive
Forward 1 (virtual) 4.3 mile/h 7 km/h
Forward 2 (virtual) 7 mile/h 11.3 km/h
Forward 3 (virtual) 13.8 mile/h 22.2 km/h
Forward 4 (virtual) 20 mile/h 32.1 km/h
Reverse 1 (virtual) 4.3 mile/h 7 km/h
Reverse 2 (virtual) 7 mile/h 11.3 km/h
Reverse 3 (virtual) 17.5 mile/h 28.2 km/h
Lift/Tilt System - Circuit EH-Positive Flow Control, Flow Sharing EH-Positive Flow Control, Flow Sharing
Lift/Tilt System - Pump Variable displacement piston Variable displacement piston
Maximum Flow at 1,400-1,600 rpm 153 gal/min 580 l/min
Relief Valve Setting - Lift/Tilt 4757 psi 32800 kPa
Lift Cylinder - Bore 8.7 in 210 mm
Lift Cylinder - Stroke 41.3 in 1050 mm
Tilt Cylinder - Bore 8.7 in 269 mm
Tilt Cylinder - Stroke 27 in 685 mm
Rack Back 4.5 s 4.5 s
Raise 8 s 8 s
Dump 2.2 s 2.2 s
Lower Float Down 3.5 s 3.5 s
Total Hydraulic Cycle Time 18.2 s 18.2 s
Steering System - Circuit Pilot, load sensing Pilot, load sensing
Steering System - Pump Piston, variable displacement Piston, variable displacement
Maximum Flow at 1,400-1,600 rpm 71.3 gal/min 270 l/min
Steering Cut Off Pressure 4351 psi 30000 kPa
Total Steering Angle 86° 86°
Steering Cycle Times - High Idle 3.4 s 3.4 s
Steering Cycle Times - Low Idle 5.6 s 5.6 s
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes.
Front Fixed Fixed
Rear Trunnion Trunnion
Oscillation Angle 13° 13°
Brakes ISO 3450:2011 ISO 3450:2011
ROPS/FOPS ROPS/FOPS meet ISO 3471:2008 and ISO 3449:2005 Level II standards ROPS/FOPS meet ISO 3471:2008 and ISO 3449:2005 Level II standards
Fuel Tank 147 gal (US) 555 l
Cooling System - Jacket Water 30 gal (US) 112 l
Cooling Systems - Power Train 8 gal (US) 30 l
Engine Crankcase 16 gal (US) 60 l
Diesel Exhaust Fluid Tank 8.7 gal (US) 33 l
Transmission 16 gal (US) 60 l
Differential - Final Drives - Front 49 gal (US) 186 l
Differential - Final Drives - Rear 49 gal (US) 186 l
Hydraulic System - Implement/Steering 126 gal (US) 475 l
Note All nonroad Tier 4 Final/Stage V diesel engines are required to use: – The machine has the flexibility to run on either ultra-low-sulfur diesel fuel (ULSD with 15 ppm of sulfur or less). – Cat engines are compatible with the following renewable, alternative, and biodiesel* fuels that reduce greenhouse gases: Up to B20 biodiesel (FAME) ** Up to 100% HVO and GTL renewable fuels * Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. – Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specifications are required. – Only use DEF that meets ISO 22241-1 standards. All nonroad Tier 4 Final/Stage V diesel engines are required to use: – The machine has the flexibility to run on either ultra-low-sulfur diesel fuel (ULSD with 15 ppm of sulfur or less). – Cat engines are compatible with the following renewable, alternative, and biodiesel* fuels that reduce greenhouse gases: Up to B20 biodiesel (FAME) ** Up to 100% HVO and GTL renewable fuels * Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. – Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specifications are required. – Only use DEF that meets ISO 22241-1 standards.
Operator Sound Pressure Level (ISO 6396:2008) 72 dB(A) 72 dB(A)
Machine Sound Power Level (ISO 6395:2008) 109 dB(A) 109 dB(A)
Operator Sound Pressure Level (ISO 6396:2008) 72 dB(A) 72 dB(A)
Machine Sound Power Level (ISO 6395:2008) 110 dB(A) 110 dB(A)
Ground to Top of ROPS 13.8 ft 4202 mm
Ground to Top of Exhaust Stacks 14.8 ft 4498 mm
Ground to Top of Hood 10.9 ft 3334 mm
Ground to Bumper Clearance 3.1 ft 933 mm
Rear Axle - Centerline to Bumper 10.5 ft 3187 mm
Front Axle Centerline to Bucket Tip 14 ft 14 mm
Wheel Base 14.9 ft 4550 mm
Maximum Overall Length 39.3 ft 11991 mm
Ground to Lower Hitch Clearance 1.9 ft 568 mm
Ground to Center of Axles 3.2 ft 978 mm
Clearance at Maximum Lift 11.9 ft 3641 mm
B-Pin Height - Maximum Lift 18 ft 5479 mm
Maximum Overall Height - Bucket Raised 24.5 ft 7455 mm
Reach - Maximum Lift 6.5 ft 1981 mm
Note Specs are calculated with 6.9 m3 (9 yd3) rock bucket and Michelin XLDD2 with 978 mm (3.2 ft) centerline of rear axle height. Specs are calculated with 6.9 m3 (9 yd3) rock bucket and Michelin XLDD2 with 978 mm (3.2 ft) centerline of rear axle height.
Ground to Top of ROPS 13.8 ft 4202 mm
Ground to Top of Exhaust Stacks 14.8 ft 4498 mm
Ground to Top of Hood 10.9 ft 3334 mm
Ground to Bumper Clearance 3.1 ft 933 mm
Rear Axle - Centerline to Bumper 10.5 ft 3187 mm
Front Axle Centerline to Bucket Tip 15.3 ft 4661 mm
Wheel Base 14.9 ft 4550 mm
Maximum Overall Length 40.7 ft 12398 mm
Ground to Lower Hitch Clearance 1.9 ft 568 mm
Ground to Center of Axles 3.2 ft 978 mm
Clearance at Maximum Lift 13.3 ft 4043 mm
B-Pin Height - Maximum Lift 19.3 ft 5881 mm
Maximum Overall Height - Bucket Raised 25.8 ft 7849 mm
Reach - Maximum Lift 6.8 ft 2062 mm
Note Specs are calculated with 6.9 m3 (9 yd3) rock bucket and Michelin XLDD2 with 978 mm (3.2 ft) centerline of rear axle height. Specs are calculated with 6.9 m3 (9 yd3) rock bucket and Michelin XLDD2 with 978 mm (3.2 ft) centerline of rear axle height.
Ground to Top of ROPS 13.8 ft 4221 mm
Ground to Top of Exhaust Stacks 13.8 ft 4214 mm
Ground to Top of Hood 10.9 ft 3334 mm
Ground to Bumper Clearance 3.1 ft 933 mm
Rear Axle - Centerline to Bumper 10.5 ft 3187 mm
Front Axle Centerline to Fork Tip 16.5 ft 5023 mm
Wheel Base 14.9 ft 4550 mm
Maximum Overall Length 41.9 ft 12761 mm
Ground to Lower Hitch Clearance 1.9 ft 568 mm
Ground to Center of Front Axle 3.2 ft 978 mm
Fork Height with Level Arms 8.1 ft 2474 mm
Fork Top Clamp Opening 13.1 ft 4006 mm
Fork Height at Maximum Lift 17.2 ft 5242 mm
Hinge Pin Height at Maximum Lift 16.1 ft 4918 mm
Dump Angle at Maximum Lift -39.4 ° -39.4 °
Bucket Capacities 4.7-13 m3 (6.2-17 yd3) 4.7-13 m3 (6.2-17 yd3)
Recyclability 96% 96%

988 XE Standard Equipment

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

ELECTRICAL

  • Alarm, back-up
  • Alternator, single 150 amp
  • Batteries, dry
  • Converter, 10/15 amp, 24V to 12V
  • Lighting system (LED, work lights, access and service platform lighting)
  • Starting and charging system, 24V
  • Jump start receptacle
  • Starter lockout in bumper
  • Transmission lockout in bumper
  • Hazardous voltage lamp

OPERATOR ENVIRONMENT

  • Graphical Information Display, displays real time operating information, performs calibrations and customizes operator settings
  • Air conditioner
  • Cat Vision, rear vision camera system
  • Cab, sound suppressed and pressurized, integrated rollover protective structure (ROPS/FOPS) radio ready for entertainment, includes antenna, speakers and converter (12‑volt 5-amp) and power port
  • Controls, lift and tilt function
  • Heater, defroster
  • Horn, electric
  • Instrumentation, gauges
    – Coolant temperature
    – Engine hour meter
    – Hydraulic oil temperature
    – Power train oil temperature
  • Light, cab, dome
  • Lunchbox, beverage holders
  • CB radio-ready
  • Mirrors, rearview (externally mounted)
  • Rimpull Control System
  • Seat, Deluxe
  • Seat belt minder
  • Seat belt, retractable, 76 mm (3 in) wide
  • STIC Control System
  • UV glass
  • Virtual gear indicator
  • Vital Information Management System (VIMS) with Graphical Information Display: External Data Port, Customizable Operator Profiles, Cycle Timer, Integrated Payload Control System
  • Wet-Arm wipers/washers (front and rear)
    – Intermittent front and rear wipers
  • Lights, directional

POWER TRAIN

  • Brakes, oil-cooled, multi-disc, service/secondary
  • Case drain screens
  • Electro hydraulic parking brake
  • Engine, C18 MEUI diesel, turbocharged/aftercooled
  • Ground level engine shutoff
  • Turbine precleaner, engine air intake
  • Radiator, Aluminum Modular Radiator (AMR)
  • Starting aid, ether, automatic
  • Throttle lock, electronic
  • Manual switch and automatic fuel priming
  • Cat Production Measurement ready
  • Cat switched reluctance (SR) generator/pump drive
  • Cat switched reluctance (SR) drive motor
  • Cat Integrated Powered Electronics
  • Automatic retarding controls

ADDITIONAL EQUIPMENT

  • Automatic bucket lift kickout/positioner
  • Base machine price includes a rim allowance
  • Hydraulically driven demand fan
  • Couplings, Cat O-ring face seals
  • Doors, service access (locking)
  • Ecology drains for engine, radiator, hydraulic tank
  • Fuel tank, 555 L (147 gal)
  • Hitch, drawbar with pin
  • Hoses, Cat XT™
  • Hydraulic, steering and brake filtration/screening system
  • Cat Clean Emission Module
  • Oil sampling valves
  • Premixed 50 percent concentration of extended life coolant with freeze protection to –34° C (–29° F)
  • Rear access to cab and service platform
  • Steering, load sensing
  • Toe kicks
  • Vandalism protection caplocks

988 XE Optional Equipment

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

POWER TRAIN

  • –50° C (–58° F) antifreeze
  • Engine oil change system, high speed, Wiggins
  • Engine block heater 120V or 240V
  • High ambient cooling – software
  • Cat Production Measurement
  • Crankcase guard
  • Engine brake, software enabled attachment (SEA)

Other Optional Configurations

  • Load and Carry
  • Millyard
  • Aggregate Handler

OPERATOR ENVIRONMENT

  • Cab precleaner
  • Cat Detect, object detection system
  • Cat Production Measurement
  • Radio, AM/FM/CD/MP3 Bluetooth® with Satellite SiriusXM
  • LED warning strobe
  • Window pull down visor
  • Handrail mounted mirrors

ADDITIONAL EQUIPMENT

  • Front and rear roading fenders
  • Fast fill fuel system (Shaw-Aero)
  • Cold Weather Package: Additional Starter and 2 Batteries, Engine Block Heater 120V or 240V, Heated Fuel Lines
  • Engine Compartment Lights
  • Autolube with Auto shutoff
  • High Performance LED Lighting
  • Wheel Chocks
  • Operator Coaching
  • Tire Pressure Monitoring System
  • Autodig, Tire Slip Prevention, Auto Set Tires, and Lift Stall Prevention
  • Additional Counterweight

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

  • Rear Object Detection for Wheel Loaders

    Rear Object Detection for wheel loaders is a two-part system providing enhanced blind spot awareness. Radar provides visual and audible alerts when objects enter a safety proximity zone, while a camera allows the operator to see what's behind the machine when reversing.

1 - 8 of 9 Items items
Previous Next

Rear Object Detection for wheel loaders is a two-part system providing enhanced blind spot awareness. Radar provides visual and audible alerts when objects enter a safety proximity zone, while a camera allows the operator to see what's behind the machine when reversing.

Explore Technology
  • Cat Inspect

    Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.

  • Cat Product Link

    Cat® Product Link™ wirelessly connects you to your equipment giving you valuable insight into how your machine or fleet is performing. Information such as location, hours, fuel usage, productivity, idle time, and diagnostic codes are made available through online web applications so that you can make timely, fact-based decisions to maximize efficiency, improve productivity, and lower the cost of owning and operating your fleet. Available with satellite or cellular connectivity.

  • VisionLink®

    VisionLink® is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

1 - 8 of 9 Items items
Previous Next

Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.

Explore Technology

Cat® Product Link™ wirelessly connects you to your equipment giving you valuable insight into how your machine or fleet is performing. Information such as location, hours, fuel usage, productivity, idle time, and diagnostic codes are made available through online web applications so that you can make timely, fact-based decisions to maximize efficiency, improve productivity, and lower the cost of owning and operating your fleet. Available with satellite or cellular connectivity.

Explore Technology

VisionLink® is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology
  • VisionLink® Productivity

    VisionLink® Productivity is an easy-to-use cloud-based platform that gathers and summarizes machine telematics and jobsite data from all your equipment. Actionable performance data is transmitted to the web platform for users to access anywhere, anytime via a mobile, tablet, or desktop device - on or off the jobsite.

1 - 8 of 9 Items items
Previous Next

VisionLink® Productivity is an easy-to-use cloud-based platform that gathers and summarizes machine telematics and jobsite data from all your equipment. Actionable performance data is transmitted to the web platform for users to access anywhere, anytime via a mobile, tablet, or desktop device - on or off the jobsite.

Explore Technology

Media Gallery

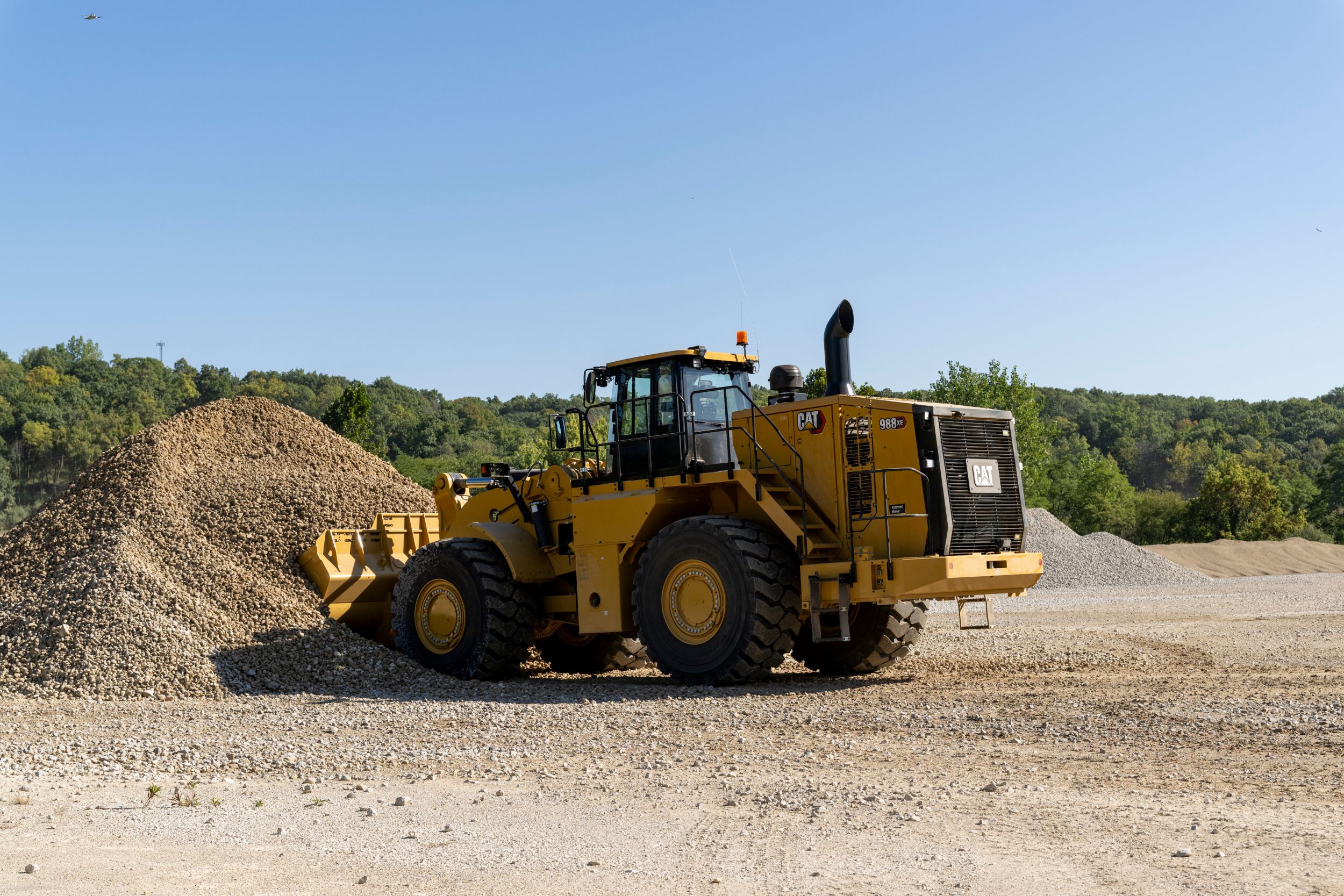

988 XE Large Wheel Loader

988 XE Large Wheel Loader

988 XE Large Wheel Loader

988 XE Large Wheel Loader

988 XE Large Wheel Loader

988 XE Millyard Large Wheel Loader

988 XE Large Wheel Loader
988 XE Large Wheel Loader
988 XE Large Wheel Loader
988 XE Large Wheel Loader
988 XE Large Wheel Loader
988 XE Millyard Large Wheel Loader

Introduction Video – 988 XE Large Wheel Loader (YouTube)

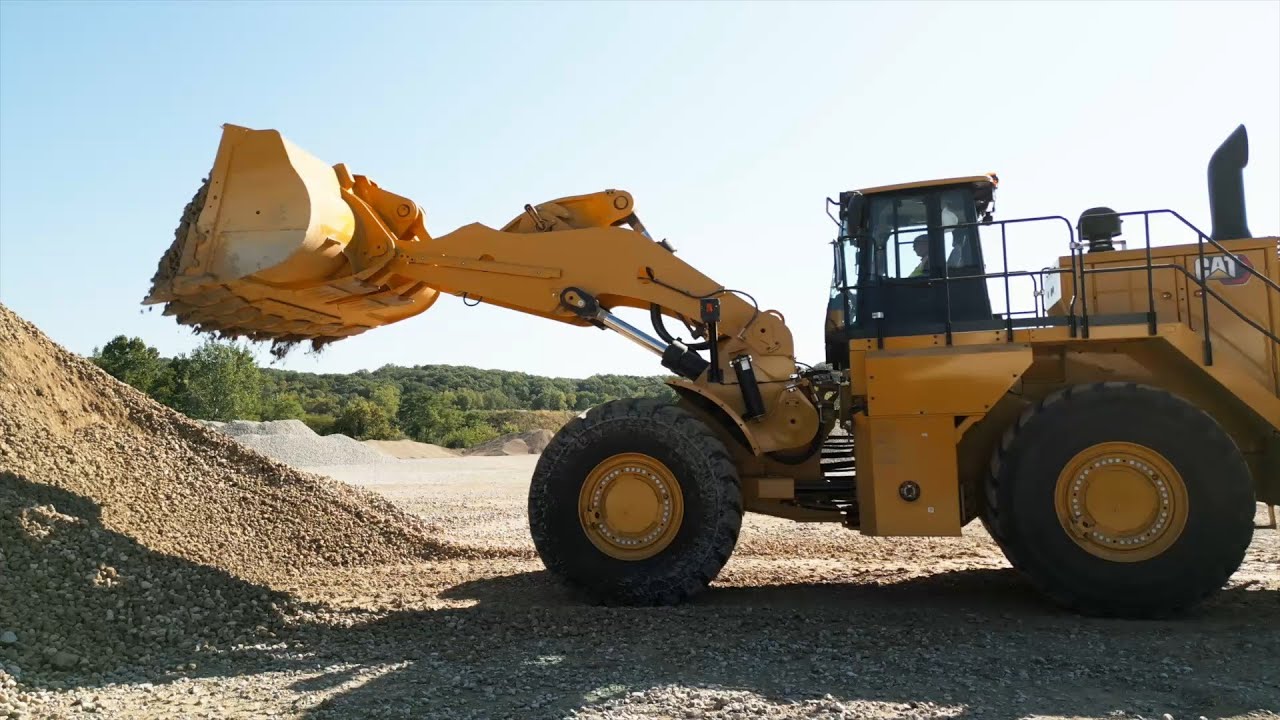

Walkaround Video – 988 XE Large Wheel Loader (YouTube)

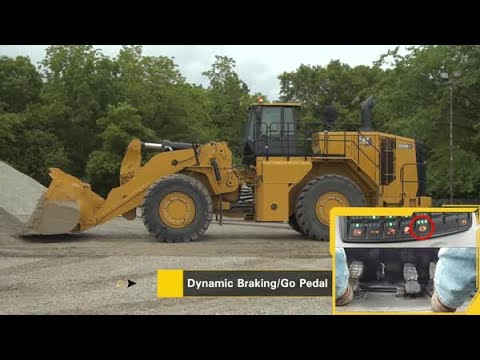

Cat 988 XE Large Wheel Loader | Dynamic Braking Go Pedal

Cat® 988K & 988 XE Large Wheel Loader | Tire Slip Prevention - YouTube

Cat® 988K & 988 XE Large Wheel Loader | Lift Stall Prevention - YouTube

Cat® 988K & 988 XE Large Wheel Loader | Operator Coaching - YouTube

Cat® 988K & 988 XE Large Wheel Loader | Auto Set Tires - YouTube

Introduction Video – 988 XE Large Wheel Loader (YouTube)
Walkaround Video – 988 XE Large Wheel Loader (YouTube)
Cat 988 XE Large Wheel Loader | Dynamic Braking Go Pedal
Cat® 988K & 988 XE Large Wheel Loader | Tire Slip Prevention - YouTube
Cat® 988K & 988 XE Large Wheel Loader | Lift Stall Prevention - YouTube
Cat® 988K & 988 XE Large Wheel Loader | Operator Coaching - YouTube
Cat® 988K & 988 XE Large Wheel Loader | Auto Set Tires - YouTube

360 View
360 View
360 View
360 View

See how 988 XE compares against frequently compared products.

Use the comparison tool to compare detailed specs of Cat and competitor models.

Compare All Models
