Heavy Rock Bucket 31 m³ (40.5 yd³) - 561-0105

Request A Price Find Dealer

Key Specs

Material Density: 3203 lb/yd³; 1.9 t/m³

Wear Package: Extreme Duty - Abrasion; Extreme Duty - Abrasion

Ground Engaging Tool (GET) System: Cat W950R; Cat W950R

31 m³ (40.5 yd³) - 561-0105
Change model

Overview

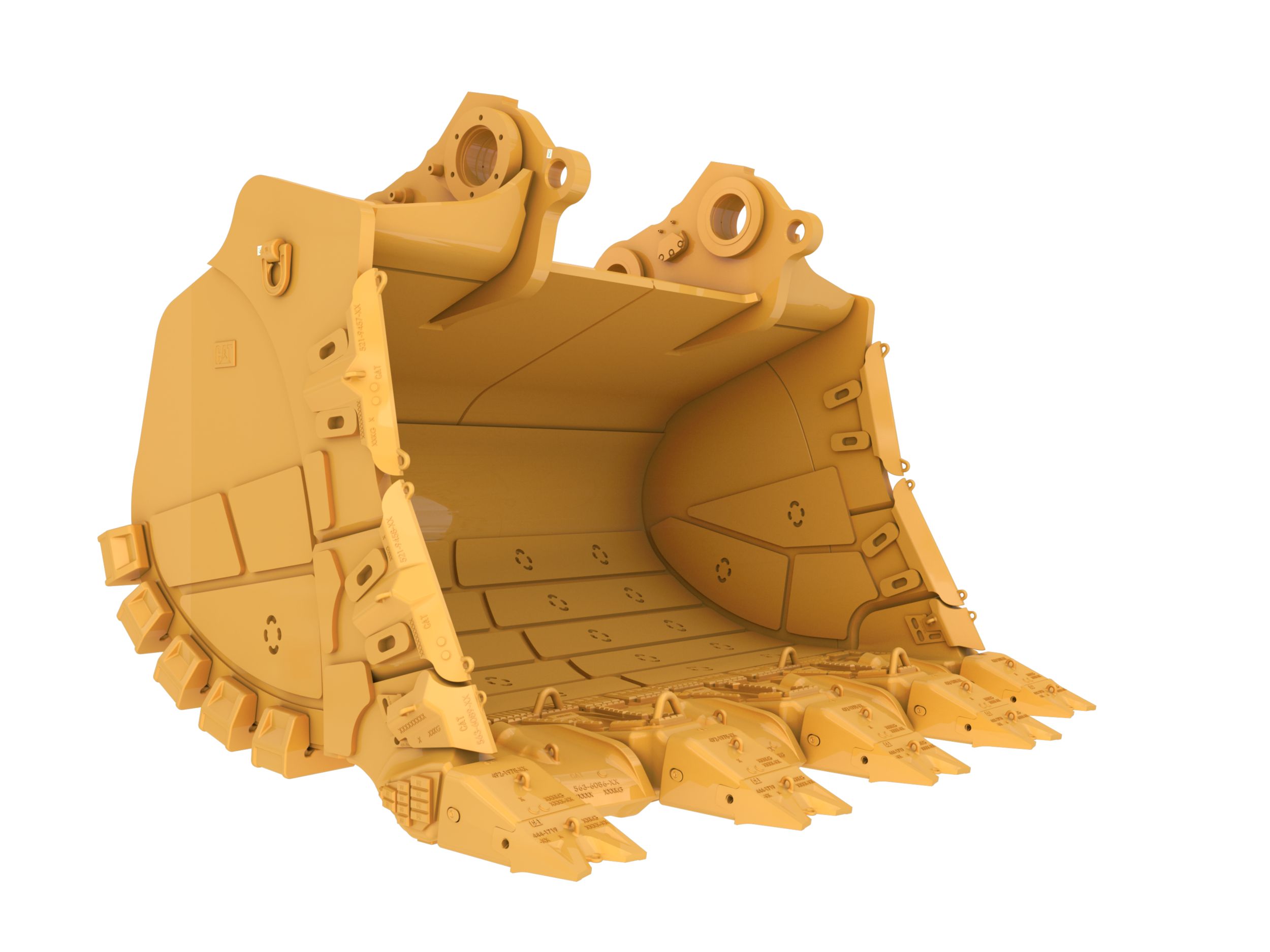

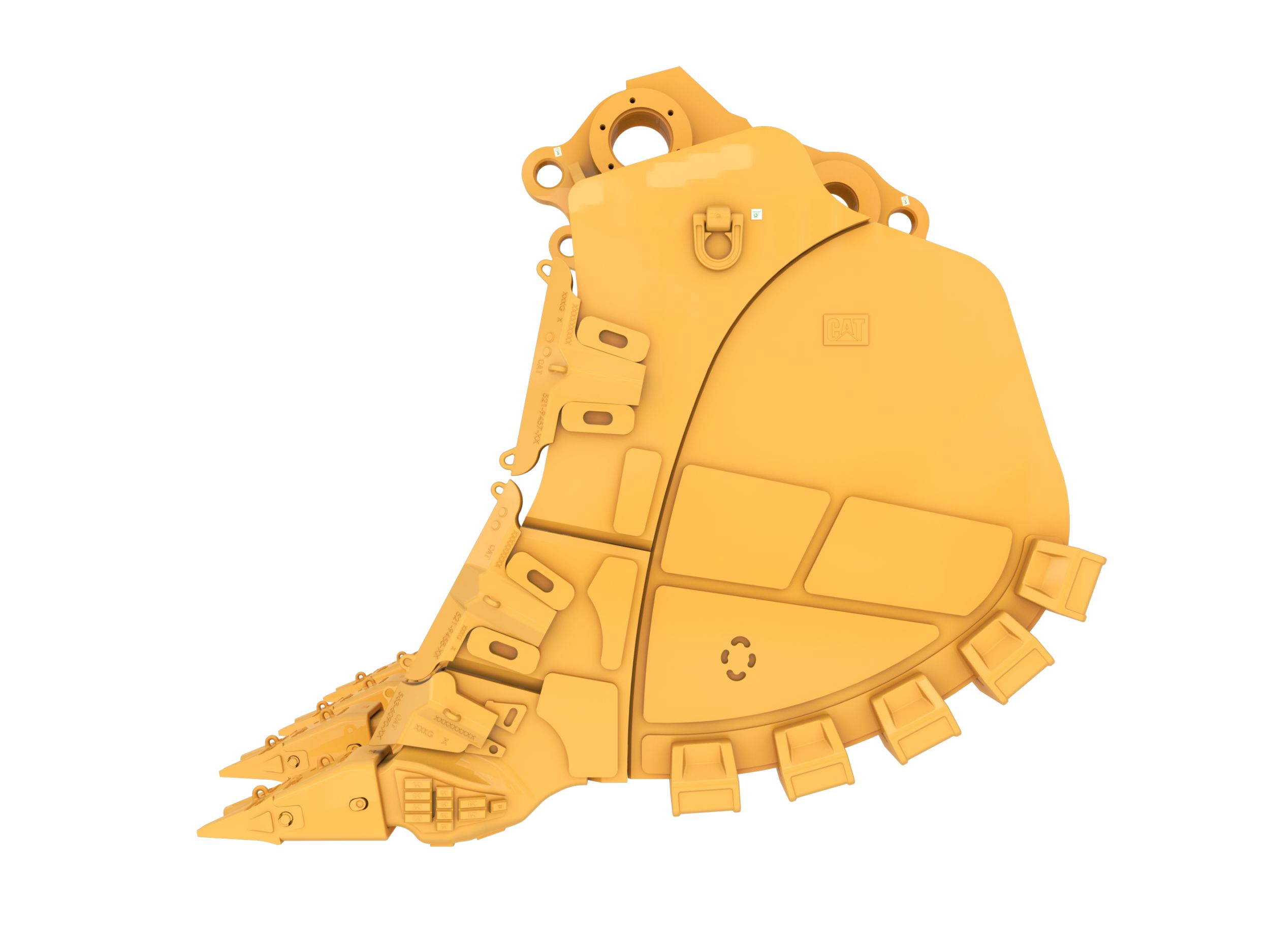

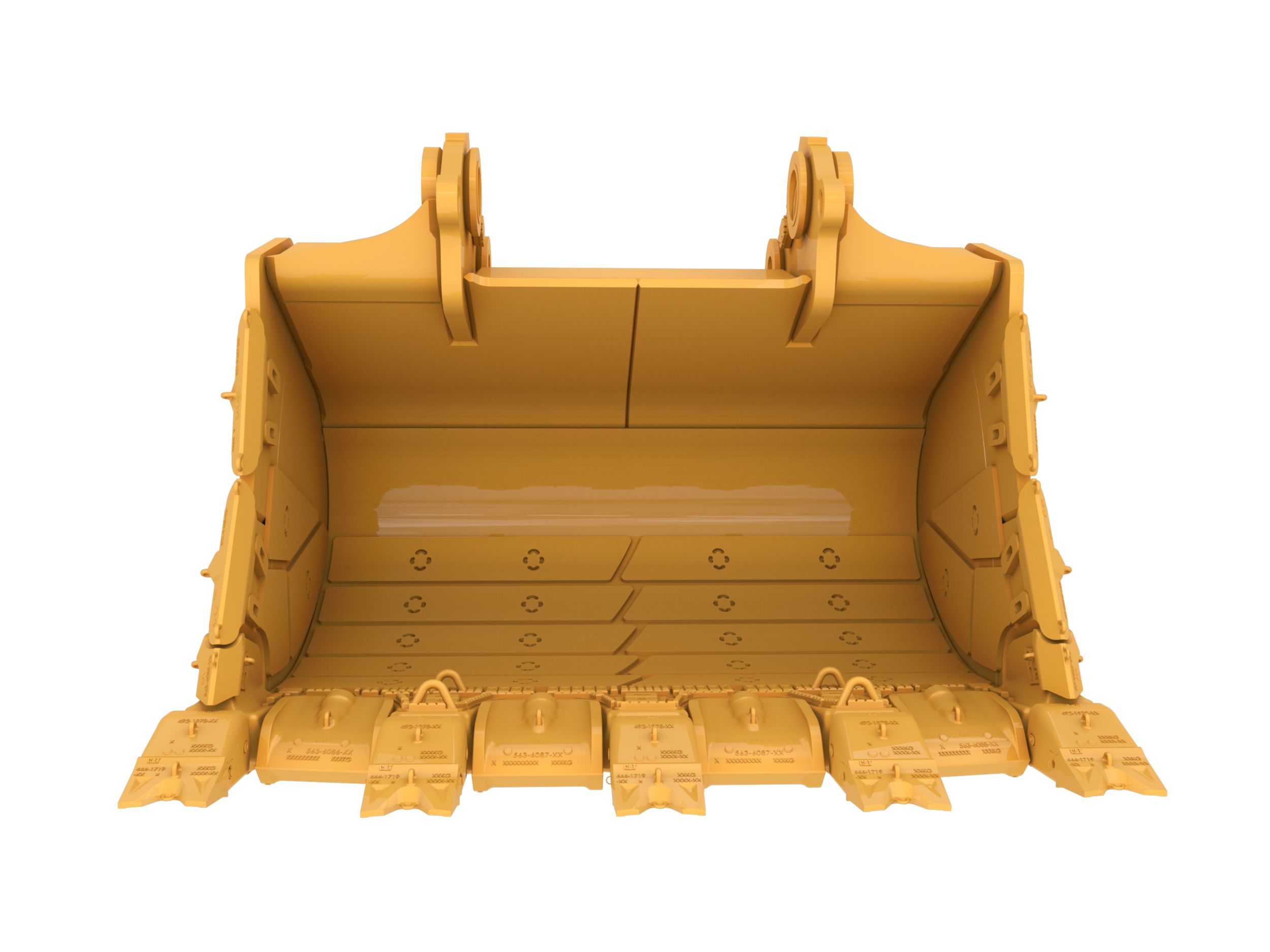

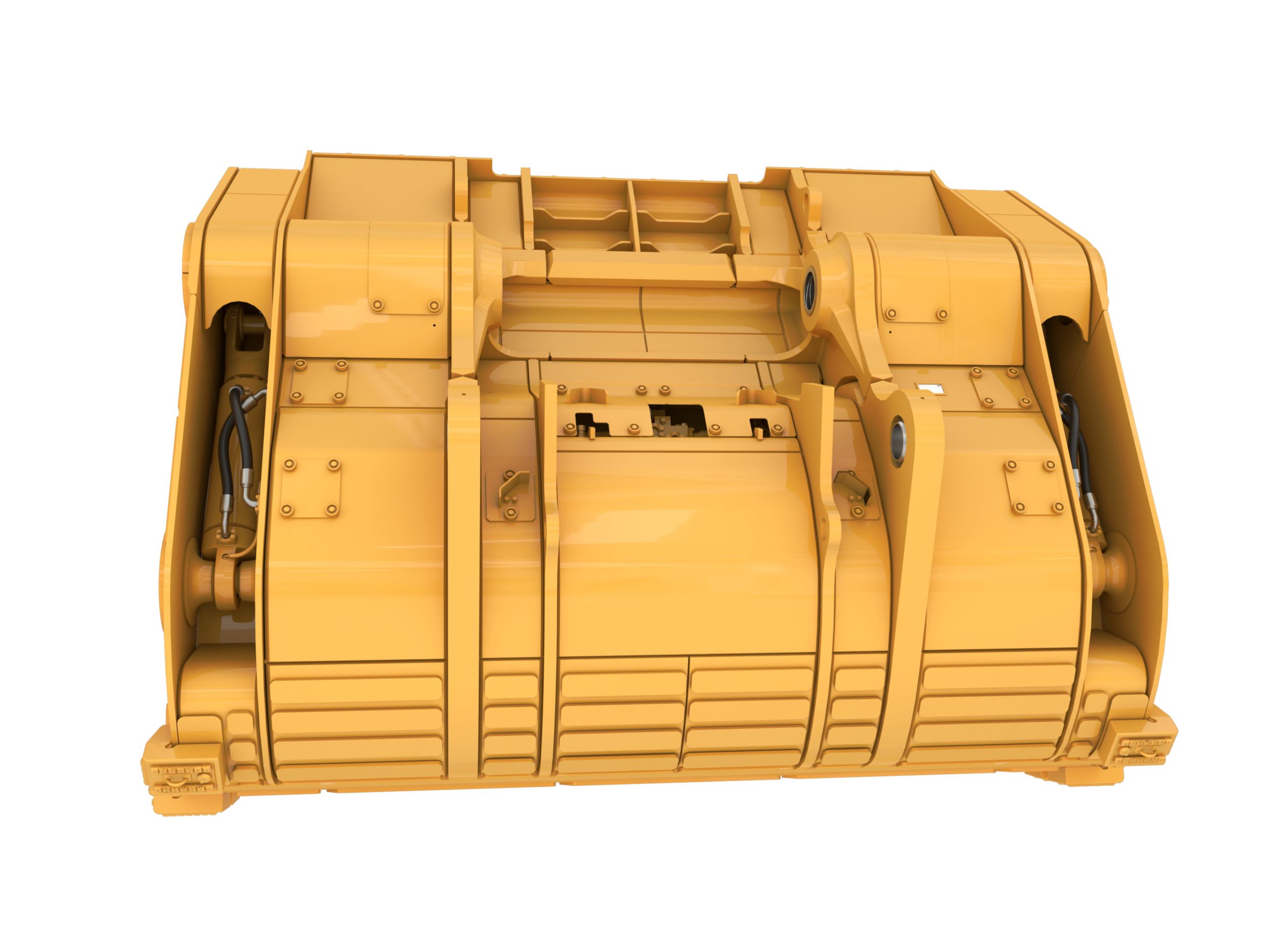

31 m³ (40.5 yd³) Heavy Rock face shovel for the 6060 Hydraulic Mining Shovel

Features At A Glance

Displaying 1-6 of 4

Optimum Productivity

A perfect match to the Cat Hydraulic Mining Shovels. Designed to give excellent payload and matched to the power of Cat machines for a long service life.

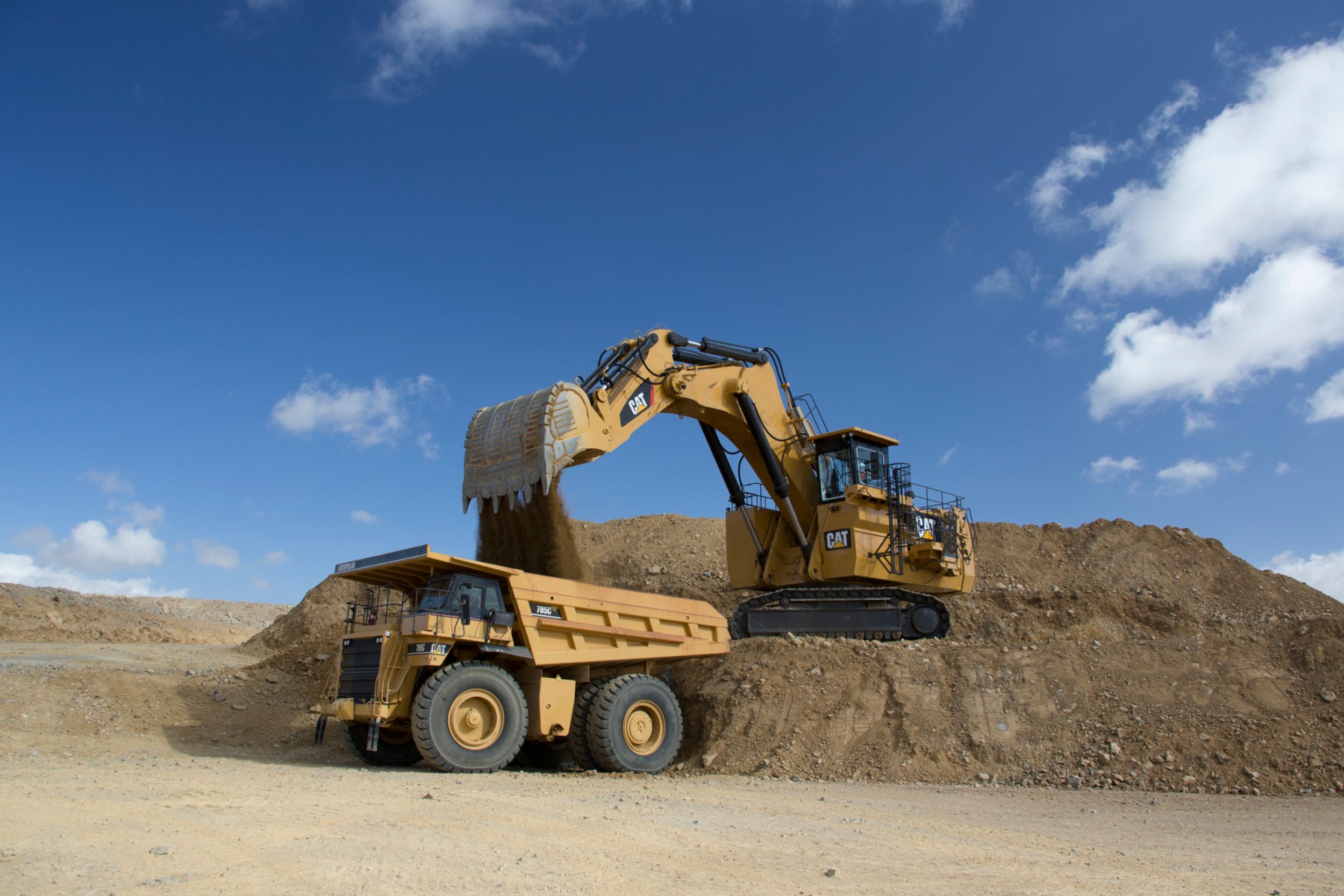

Efficient

Pass matched to Cat and Unit Rig trucks for an efficient system at your mine site.

Max Payload

Rated with ISO 7451 payload standards with a 1:1 heap ratio

The Support You Need

Cat buckets are fully covered by the Cat dealer network for round the clock support.

A perfect match to the Cat Hydraulic Mining Shovels. Designed to give excellent payload and matched to the power of Cat machines for a long service life.

Pass matched to Cat and Unit Rig trucks for an efficient system at your mine site.

Rated with ISO 7451 payload standards with a 1:1 heap ratio

Cat buckets are fully covered by the Cat dealer network for round the clock support.

Product Specifications for 31 m³ (40.5 yd³) - 561-0105

Material Density	3203 lb/yd³ 1.9 t/m³
Wear Package	Extreme Duty - Abrasion Extreme Duty - Abrasion
Ground Engaging Tool (GET) System	Cat W950R Cat W950R
Machine Model	6060 6060
Capacity	40.5 yd³ 31 m³
Weight	114,856 lb 52 098 kg
Outer Width	218.3 in 5545 mm
Inner Width	200.8 in 5100 mm

Product Specifications for 31 m³ (40.5 yd³) - 561-0105

Download Print

Material Density	3203 lb/yd³ 1.9 t/m³
Wear Package	Extreme Duty - Abrasion Extreme Duty - Abrasion
Ground Engaging Tool (GET) System	Cat W950R Cat W950R
Machine Model	6060 6060
Capacity	40.5 yd³ 31 m³
Weight	114,856 lb 52 098 kg
Outer Width	218.3 in 5545 mm
Inner Width	200.8 in 5100 mm
