CAT® CUTTING EDGE SYSTEMS

With genuine Cat® cutting edges, you can improve wear life, performance and reliability, while keeping operating costs and downtime to a minimum. Your Cat dealer can help you choose the right cutting edge to suit your application and get the results you want.

CUTTING EDGE SYSTEMS FOR CAT MOTOR GRADERS

Cat cutting edge systems for motor graders are built to deliver superior performance and long wear life. Edge selection is critical for enhancing production and keeping cost to a minimum.

  • Choose from a flat or curved edge, with serrated edges available for both configurations
  • Unique offerings like the Cat GraderBit™ System for the toughest applications
  • Designed for easy removal and installation
  • Customise your cutting edge through our Made as Order (MAO) program

Your local Cat dealer can help you choose the right option for total machine productivity.

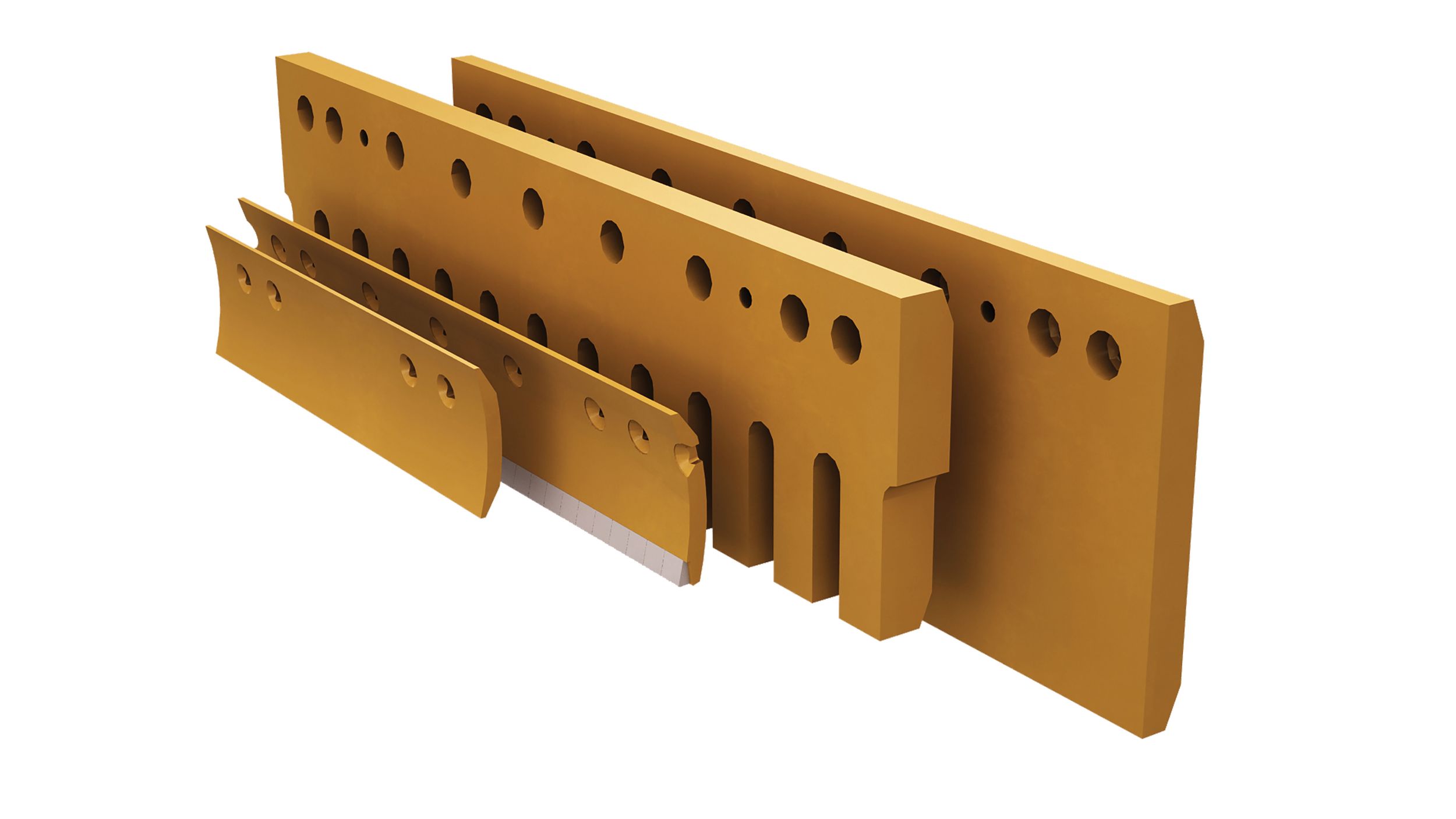

Shot of cutting edge blade stack
of
Shot of cutting edge blade stack
of
Does your blade make the grade? Watch the video

Compare motor grader cutting edge options

GENERAL DUTY

• High Carbon Steel
• Available for 12’, 13’, 14’ and 16’ blades
• Offered in a curved profile shape in a variety of thicknesses
• Best suited for low to moderate impact. Moderate to high abrasion

Close up of Cat 3D Grade for Motor Graders in action on machine
Close up of Cat 3D Grade for Motor Graders in action on machine

HEAVY DUTY

• Thorough hardened DH-2 Steel
• Available for 12’, 13’, 14’, 16’ and 18’ blades
• Offered in curved, flat and serrated profile shapes in a variety of thicknesses
• Well suited for high impact and highly abrasive applications

Cat 160 Motor Grader
Cat 160 Motor Grader

SPECIALITY

• Tungsten Carbide
• Available for 12’, 13’, 14’ 16’ blades
• GraderBit 2 System™, Rotating Bit System, edges with Tungsten Carbide
• Best suited for low to moderate impact. Moderate to high abrasion

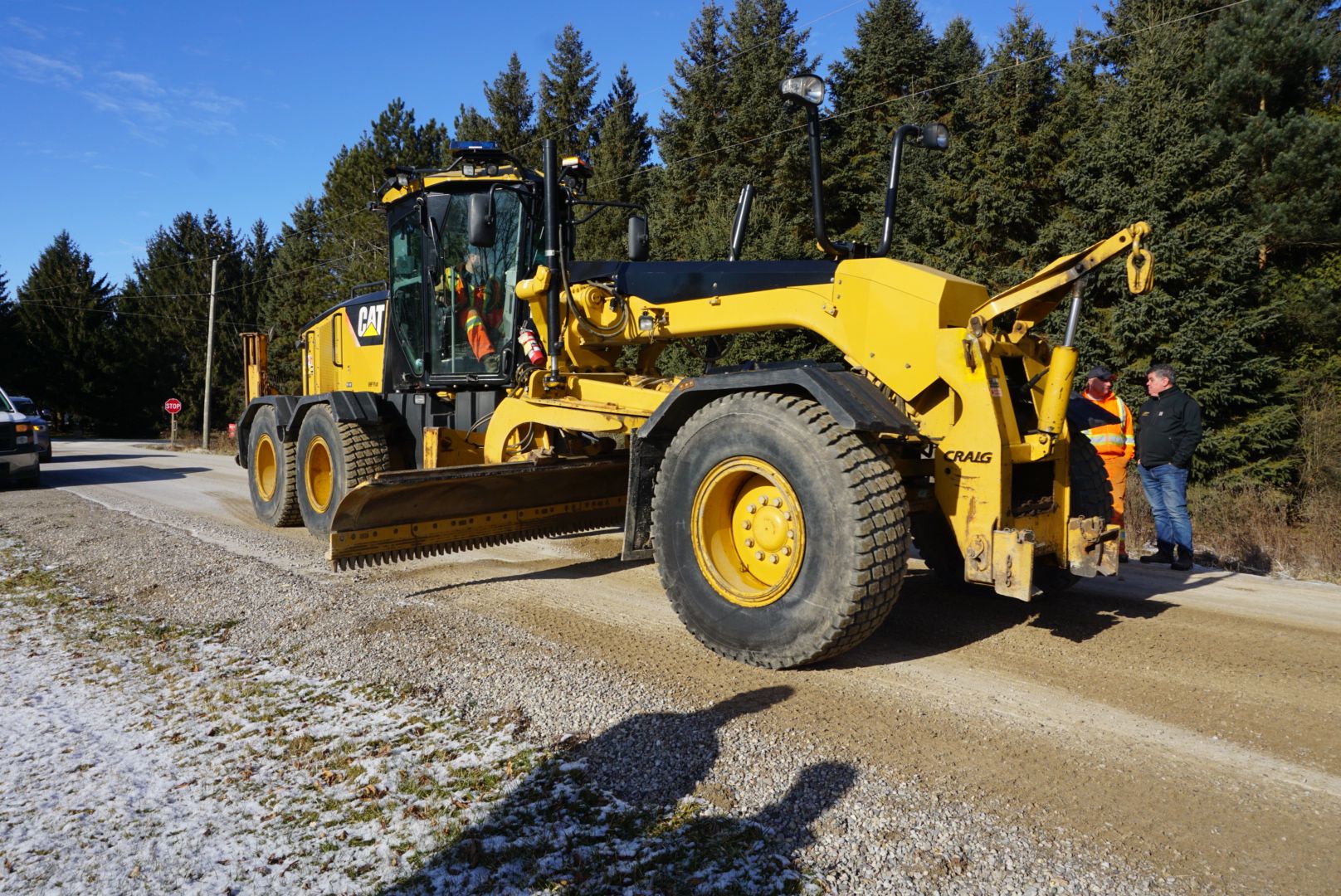

Grader Bit 2 System
Grader Bit 2 System

to find out more and request a quote, contact your local cat dealer

REQUEST a Quote

CUTTING EDGE SYSTEM FOR CAT DOZERS

Every Cat dozer cutting edge system ensures your machines are as effective and efficient as your application demands. Choose the features you need to match your needs and get the results you want.

  • Precision cutting edges: For optimising your blade investment
  • Performance cutting edge: For your most demanding applications
  • High abrasion cast cutting-edge cystem: For your most abrasive applications

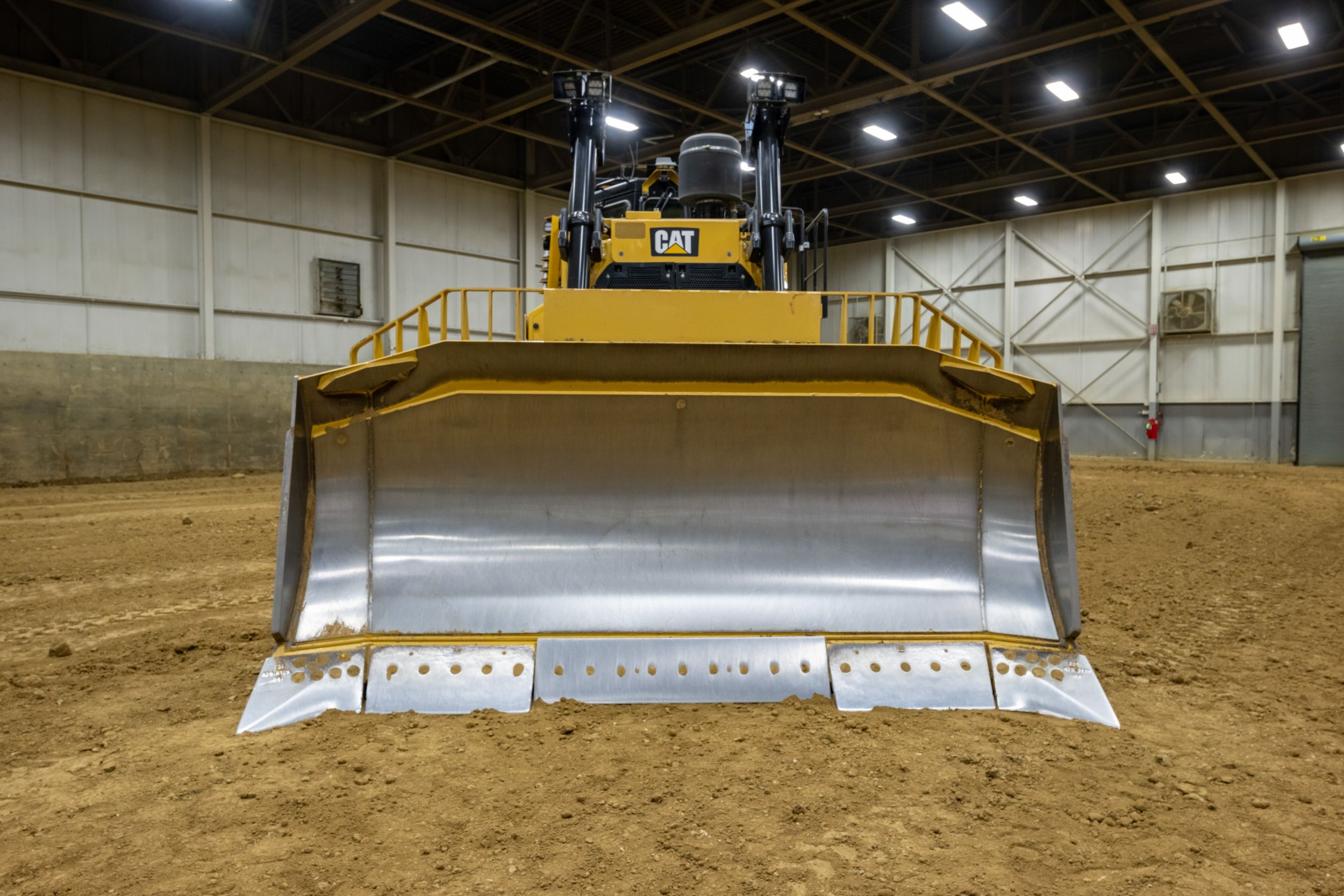

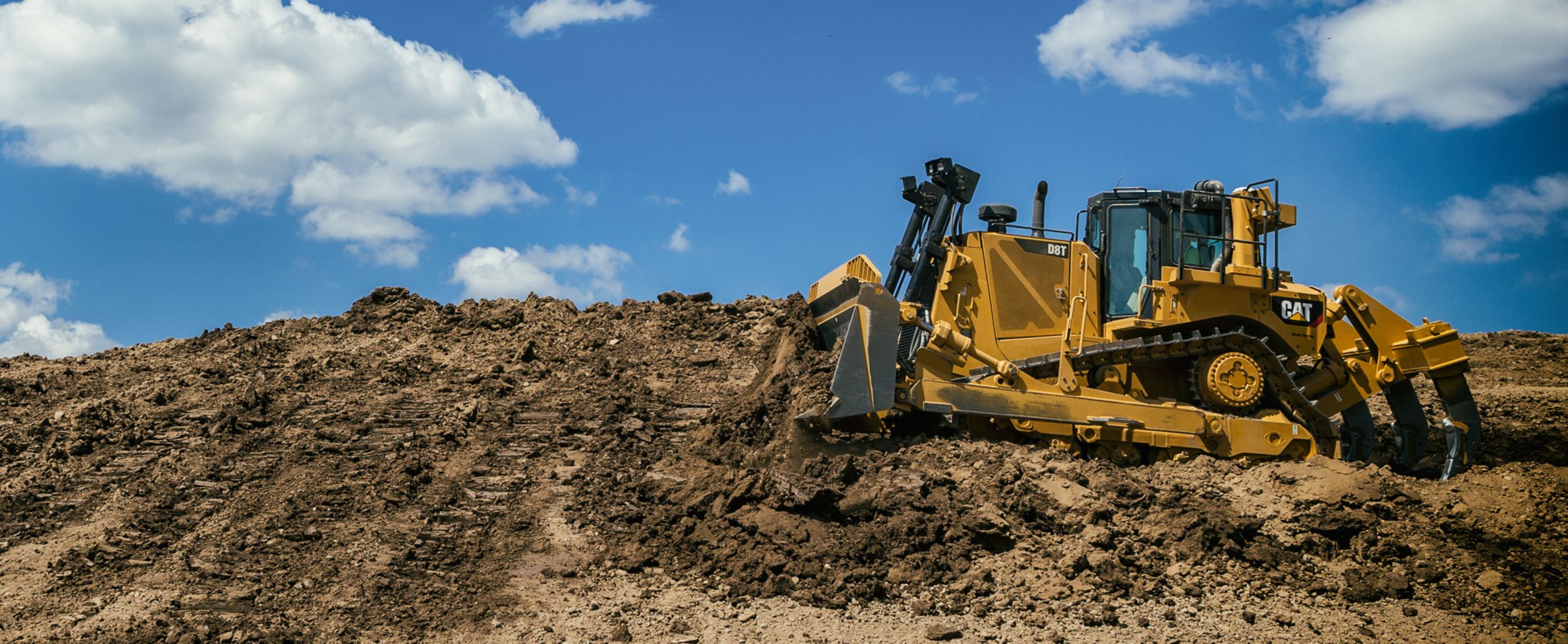

Cat D8T Dozer - Cutting edge systems
of
Cat D8T Dozer - Cutting edge systems
of

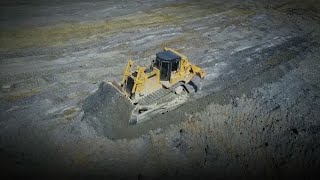

Cat® Performance Cutting Edges on D8T Dozer Help Overall Productivity
of

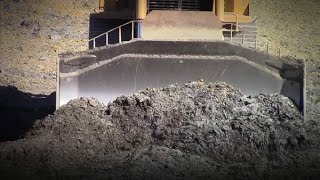

Cat® Performance Cutting Edges Help D8T Bulldozer Get the Job Done
of
Cat® Performance Cutting Edges on D8T Dozer Help Reduce Ripping for ACME Brick
of
Performance Cutting Edges on Cat® D8T Dozer Make the Job Faster, Easier, and Cleaner
of
Performance Cutting Edges on Cat® D8T Bulldozer Help Save Fuel

Precision Cutting Edges

Wear indicators avoid costly blade repairs. 20% more wear material and lower cost per hour, plus 40% more wear material on extended wear life edges helps you get the most out of your equipment.

View Brochure

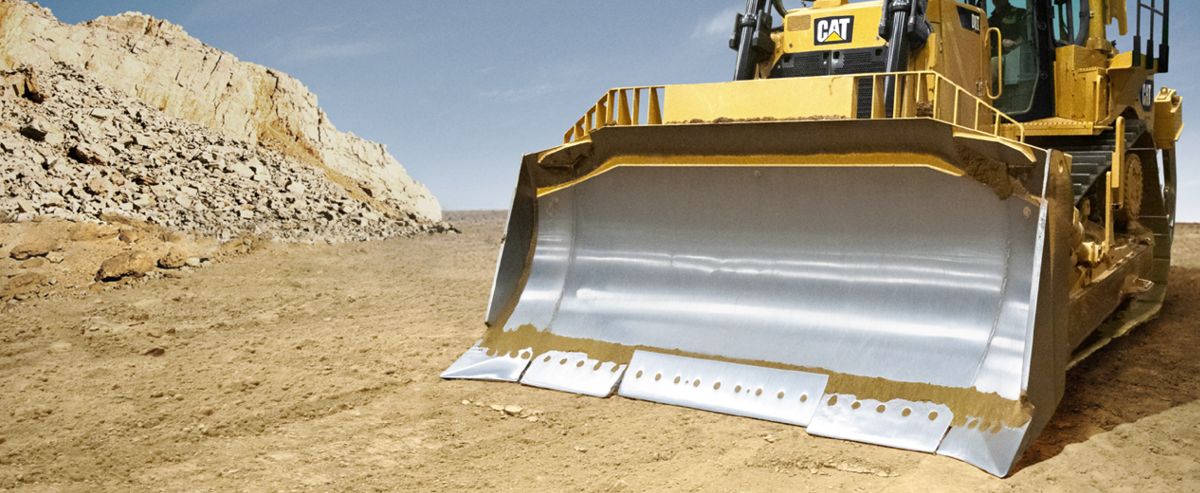

Cutting Edge
Cutting Edge

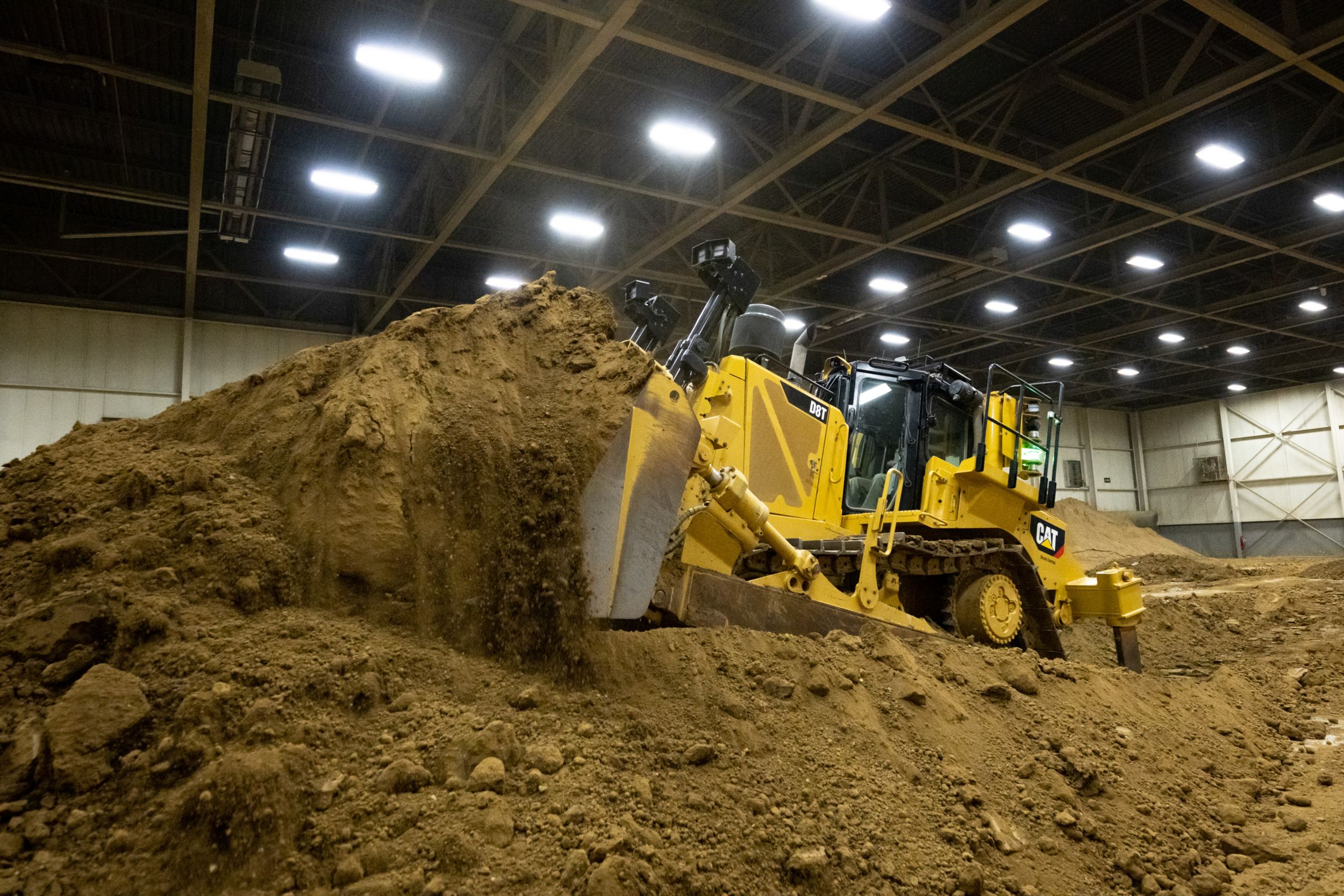

GET Performance Cutting Edge System

Penetrate easier, load faster, and increase productivity. Precision blade control delivers up to 35% payload mass increase and 17% greater productivity over standard production cutting edges.

View Brochure

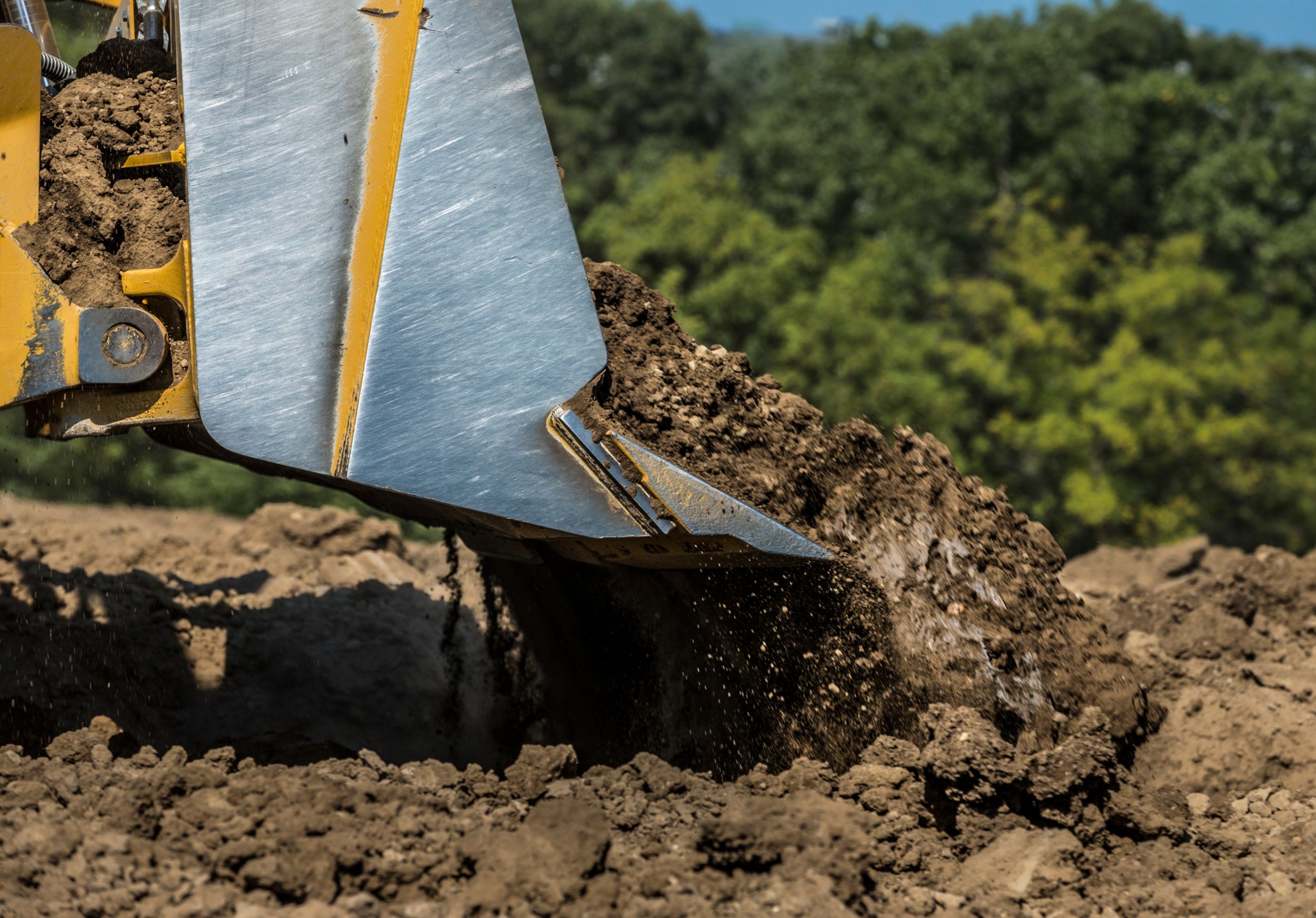

Precision Cutting Edge
Precision Cutting Edge

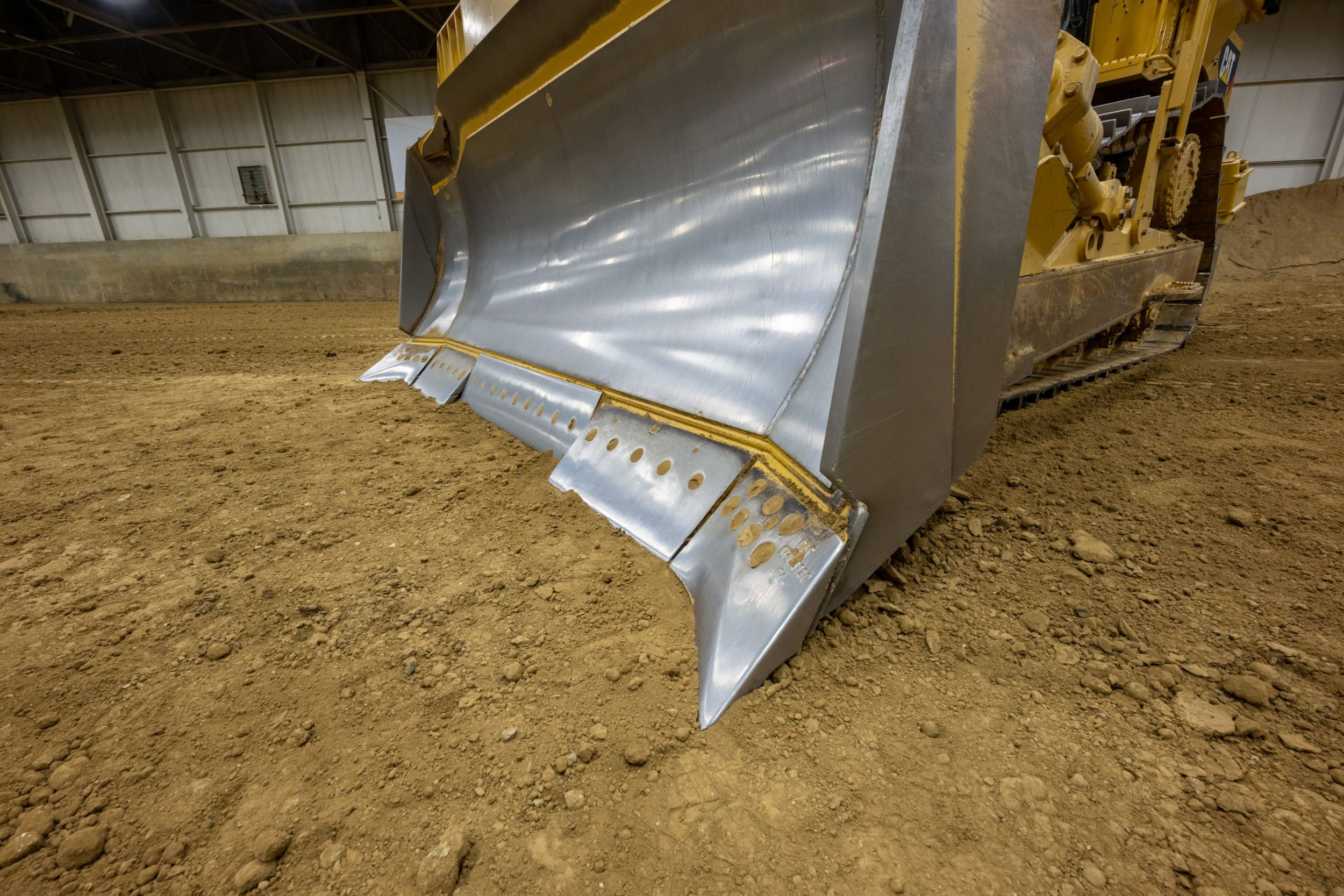

High Abrasion Cast Cutting-Edge System

High abrasion end bits maximize uptime for higher productivity. Designed for extreme high-abrasion pushing applications for up to 40% longer wear life than Extended Wear Life.

View Brochure
High Abrasion
High Abrasion

Maximum Performance
with Lower Costs

All Cat dozer edge systems equip your machines for optimum performance and service life. Your Cat dealer is always available with parts and service:

  • Identify signs of premature wear and suggest corrective action
  • Suggest operating techniques to reduce wear
  • Offer other blade protection products like weld-on half arrows, pin-on side-bar protectors, and wear plates
  • Explain how other manufacturers’ components could damage moldboards
  • Determine the best combination of components for your application to give you the lowest cost per hour

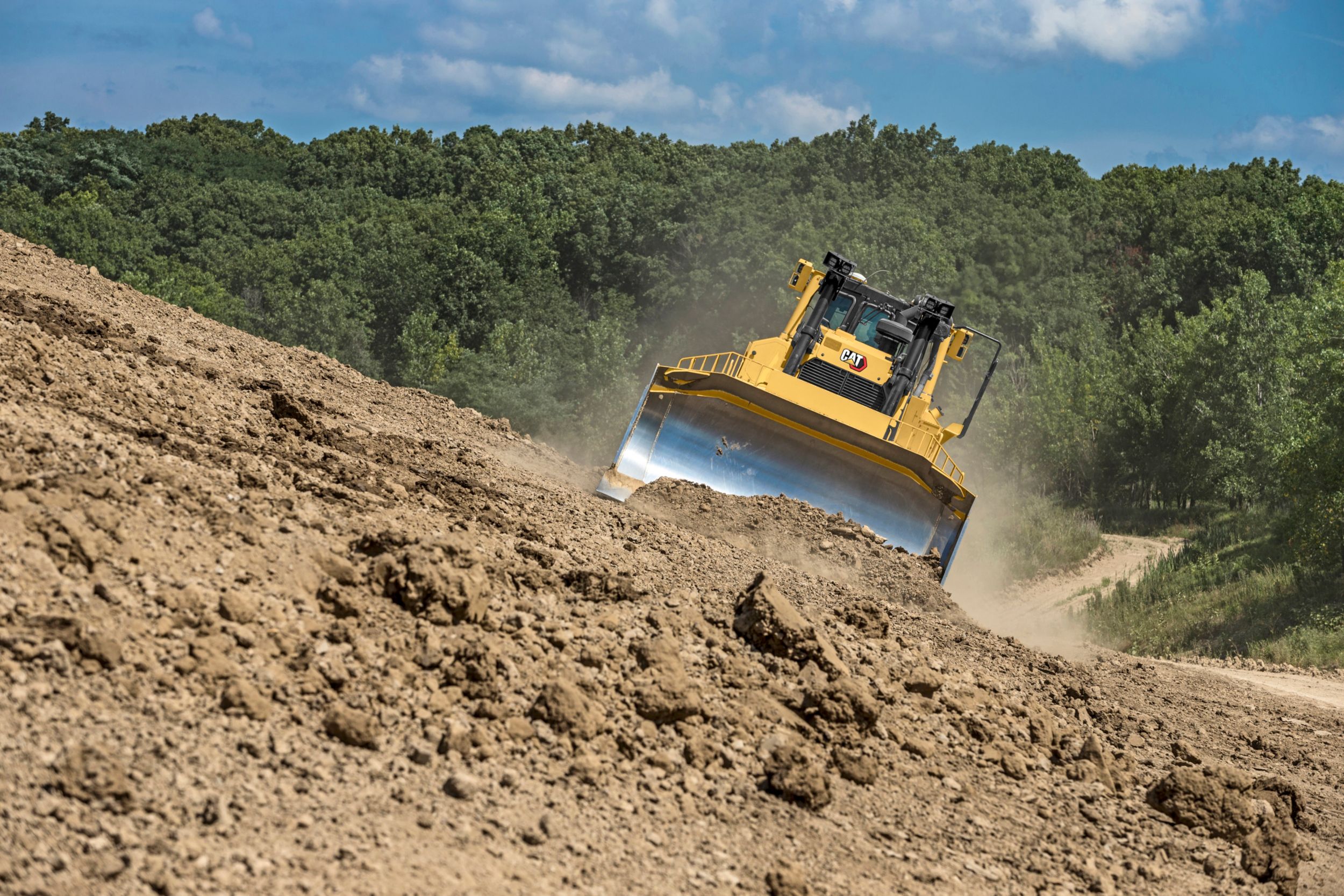

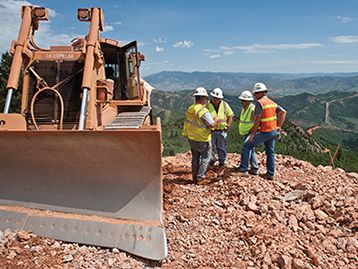

Dozer
of
Dozer
Dozer
of
Dozer

Tips from the Experts

It is extremely important to keep all hardware tight:

  • Use new bolts and nuts when installing new end bits and cutting edges to ensure against metal fatigue
  • Surfaces must be clean of dirt, paint, scale, rust, and weld splatter
  • Mating surfaces must be clean and flat to assure maximum clamping force
  • Bolt and nut threads must be clean; do not apply lubricant to the hardware, as this may over-stretch the bolt
  • Cutting-edge bolts are installed from the center outward or from one end to the other
  • End-bit bolts are installed first from the center outward, then from the center inward
  • Tighten all bolts to the required torque
  • Seat bolt heads in the countersinks with a heavy hammer
  • Tighten the bolts again to required torque
