C18 ACERT Tier 3

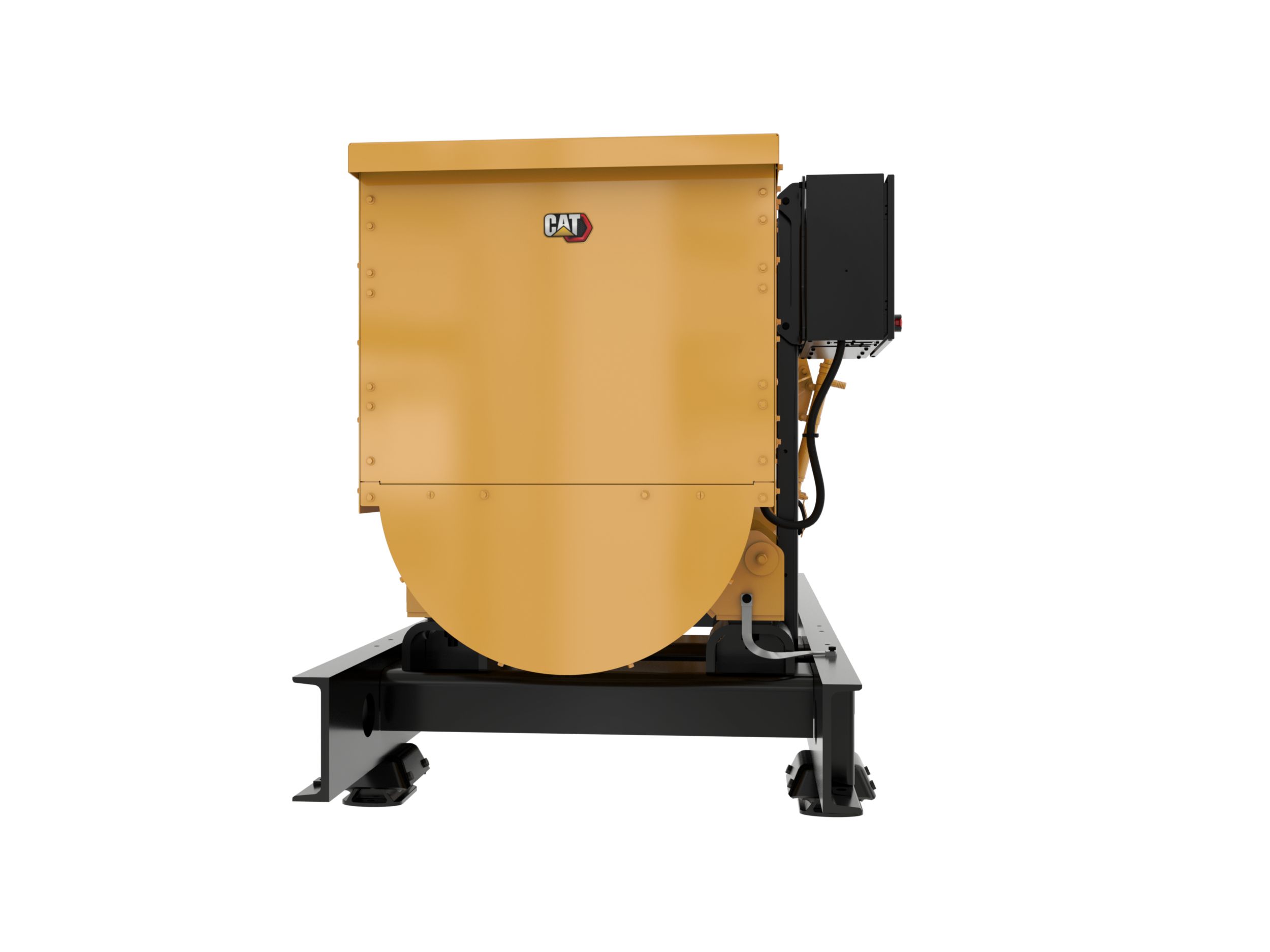

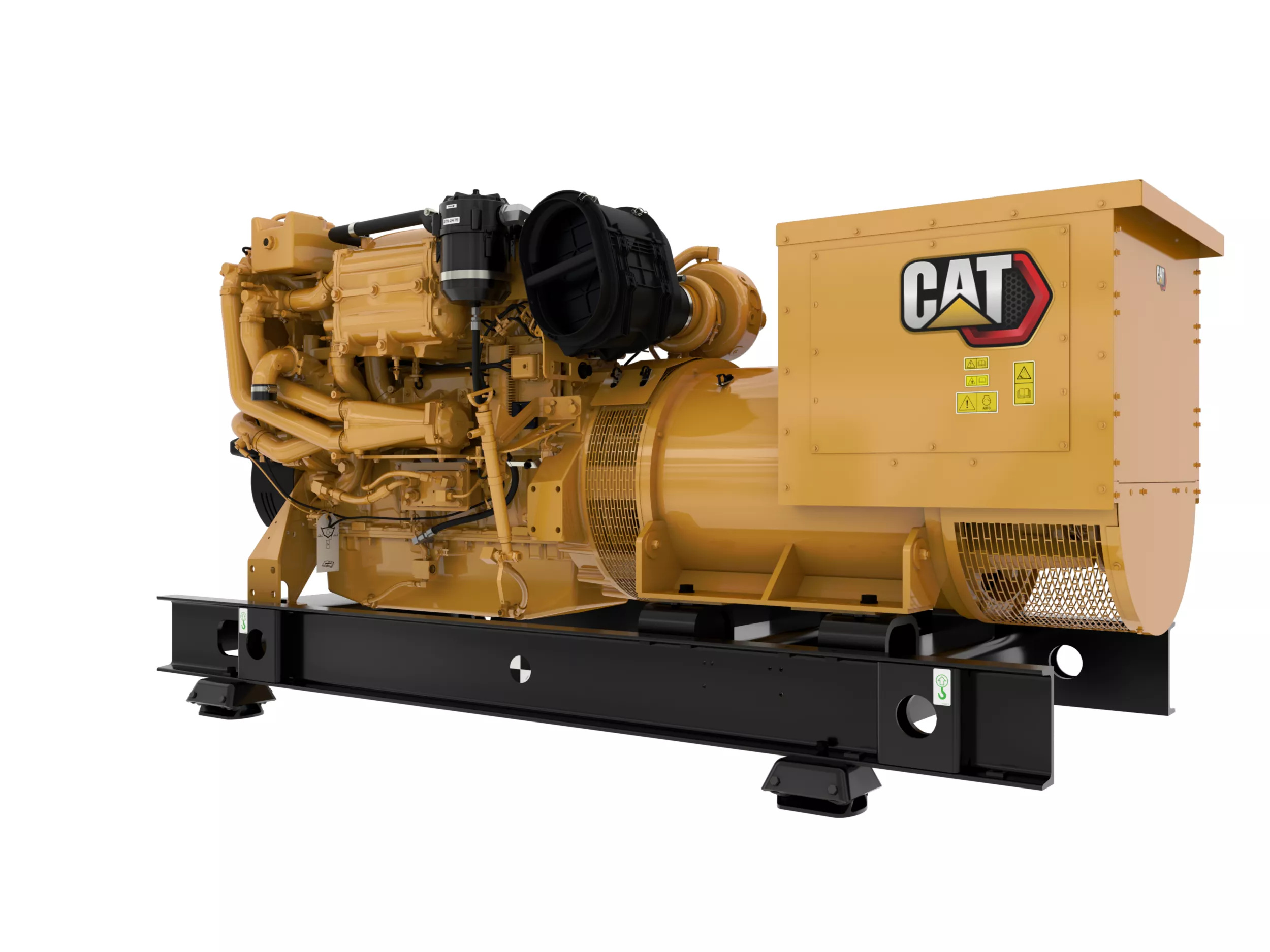

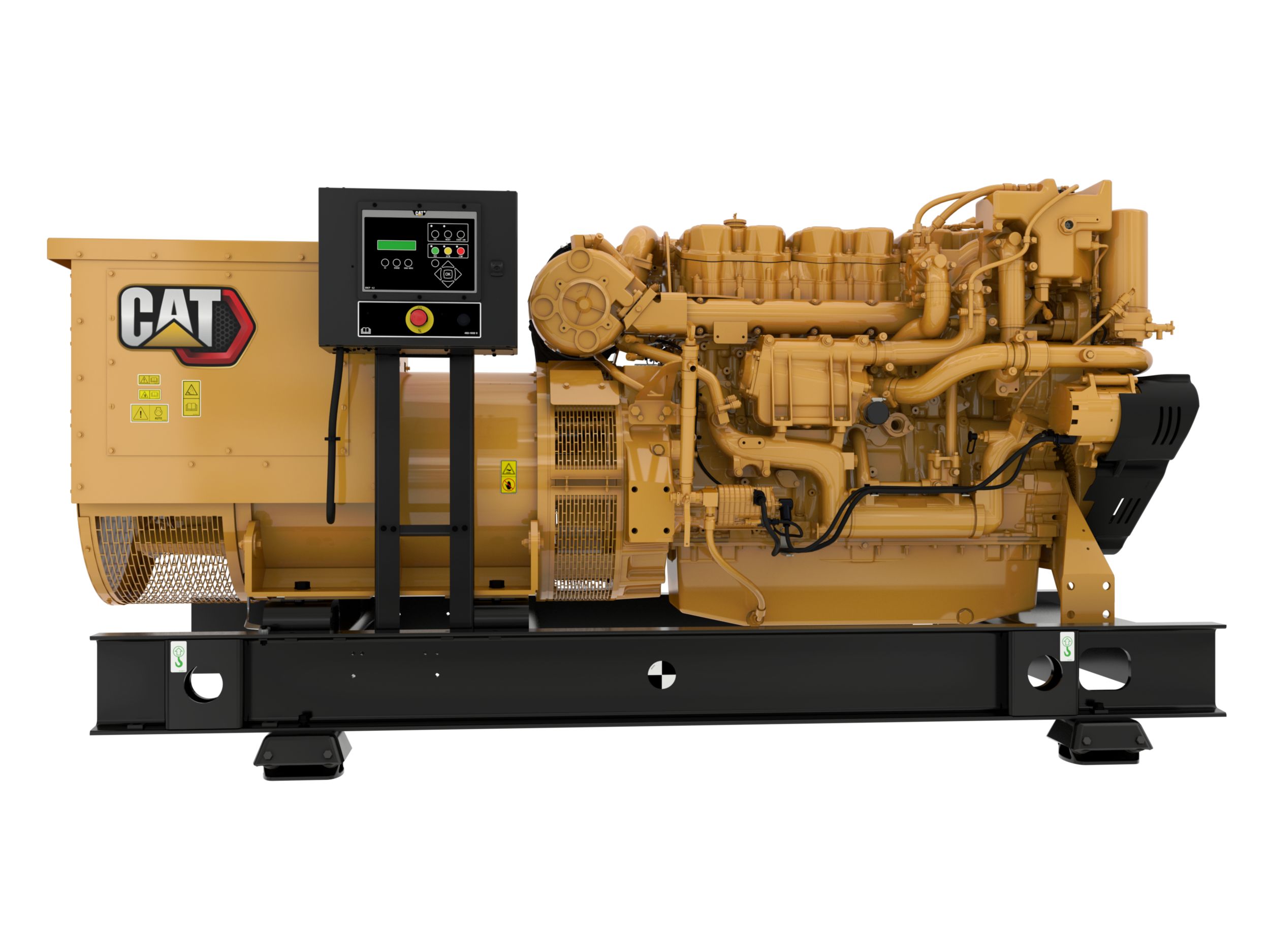

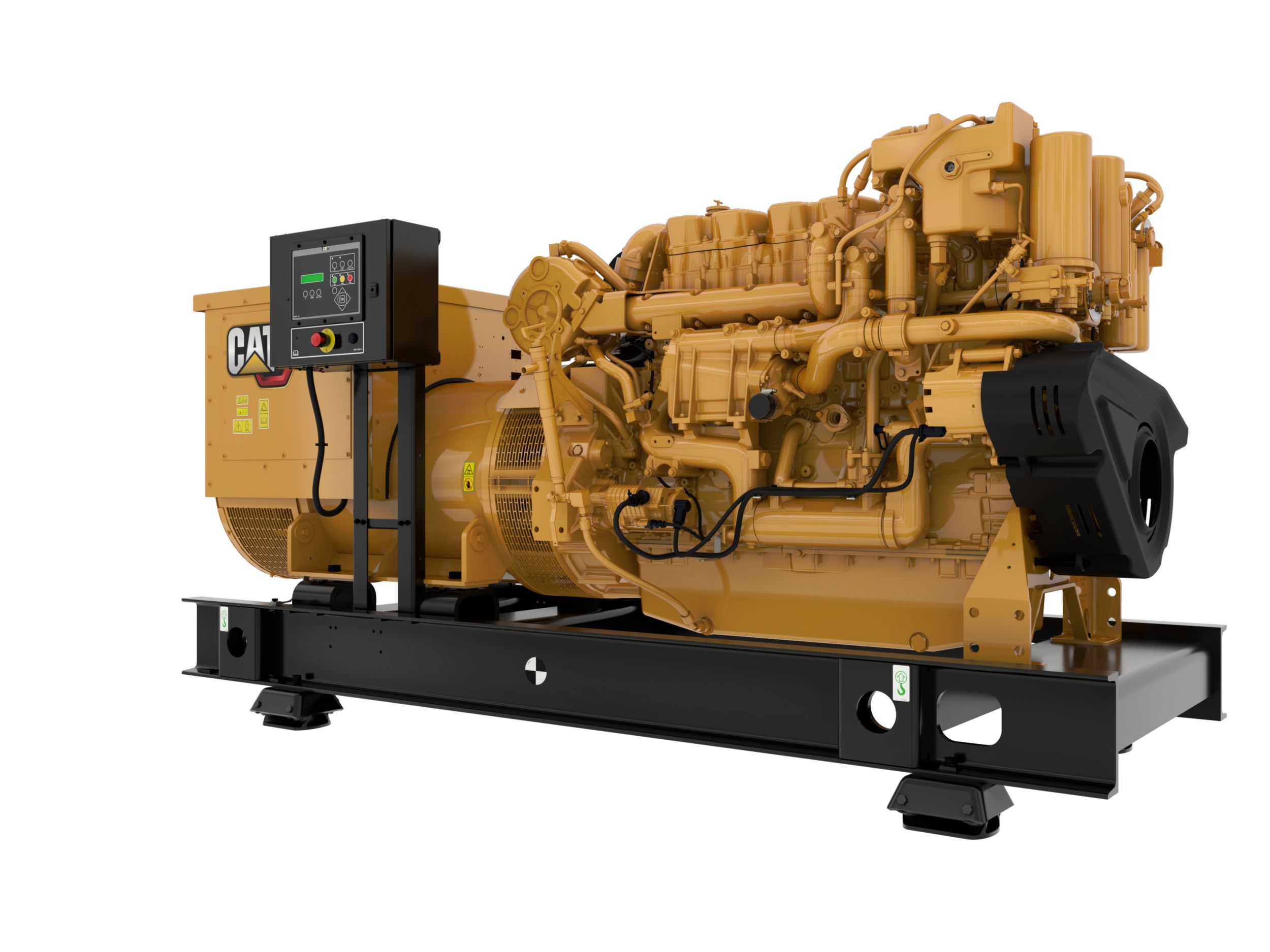

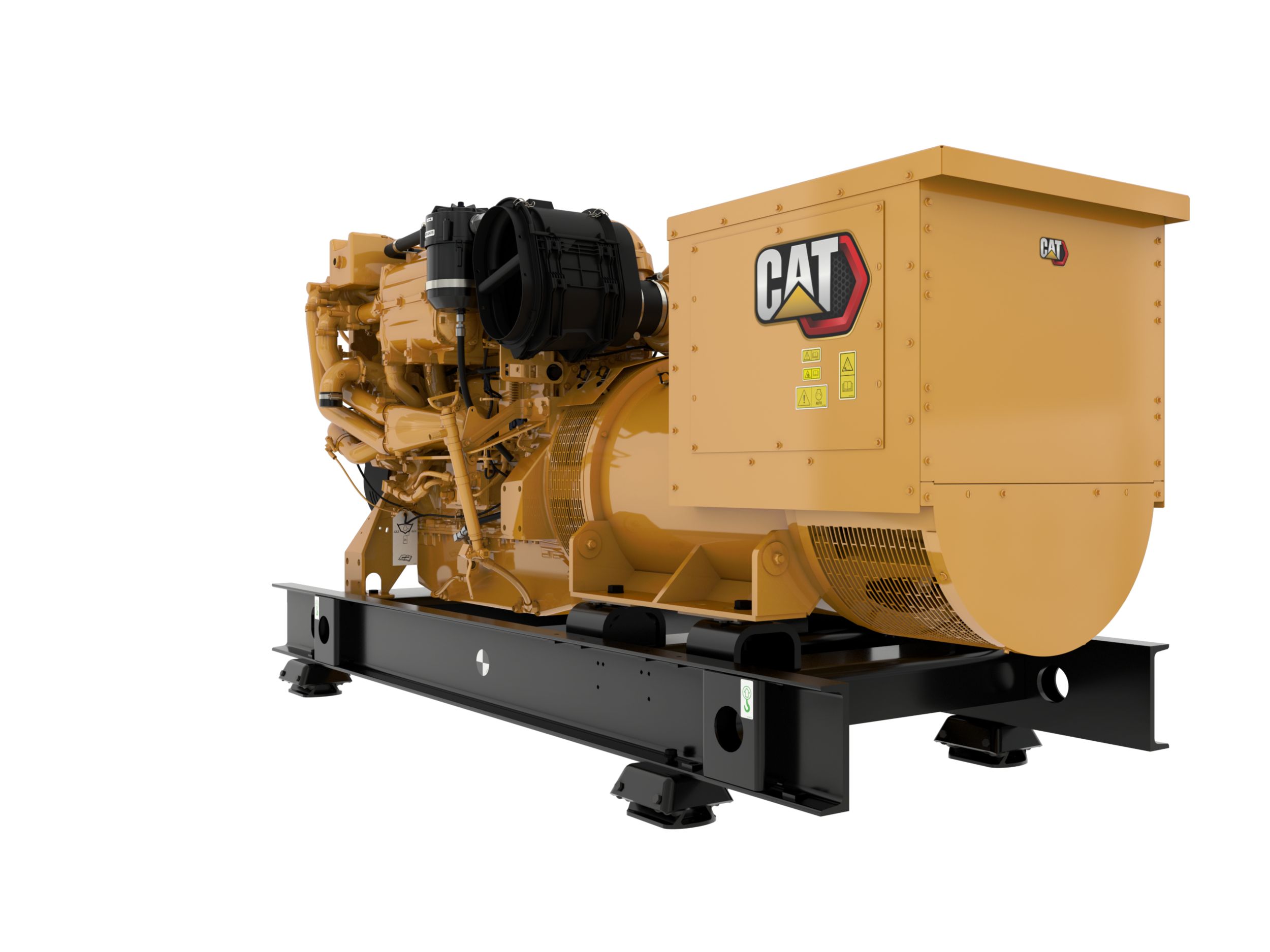

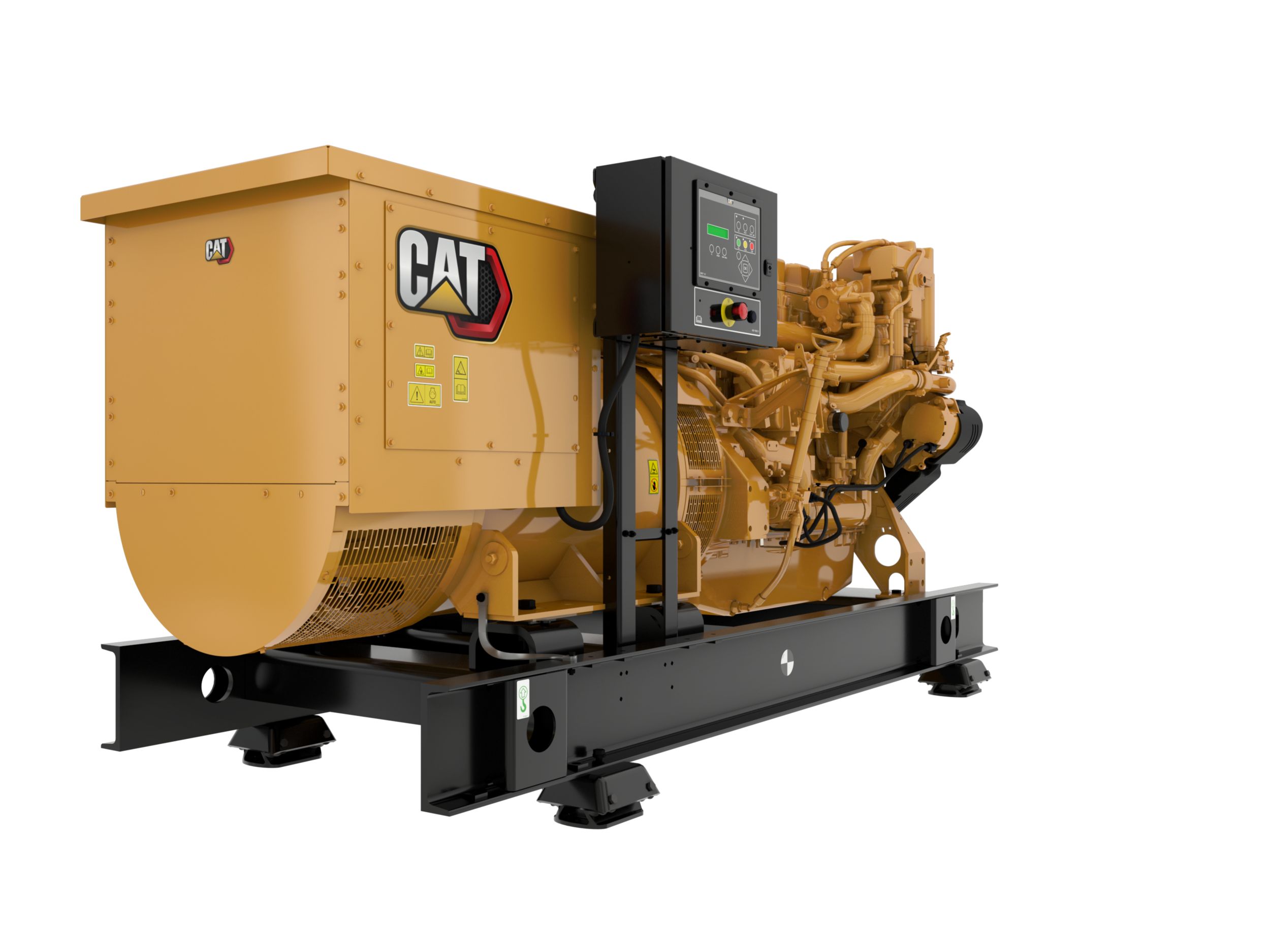

C18 (SRMP) Marine Generator Set

Product Specifications for C18 (SRMP) Marine Generator Set

Generator Set Specifications

Engine Specifications

Generator Set Configurations

Generator Set Dimensions - Radiator Cooled

Generator Set Dimensions - Keel and Hex Cooled

Generator Specifications

C18 (SRMP) Marine Generator Set Standard Equipment

Air inlet system

  • Separate circuit after-cooled (SCAC)
  • Heavy-duty inlet air filter

Cooling system

  • SCAC pump, gear driven, for HEX cooled engines only
  • Jacket water pump, gear driven
  • SCAC and JW shunt tanks for maintaining proper pump inlet pressures

Exhaust system

  • Water-cooled exhaust manifold & turbocharger
  • Round flanged exhaust outlet

Fuel system

  • Hybrid fuel lines
  • MEUI™ fuel system
  • Fuel filter, front service
  • Fuel transfer and priming pumps

Lube system

  • Center sump oil pan, deep
  • Front and top service oil filler locations
  • Front service dipstick

Mounting system

  • Vibration Isolators
  • Formed C-channel rails

Control system

  • Electronic fuel/air ratio control
  • SRMP permanent magnet 12-lead generator
  • Digital voltage regulator
  • Class H insulation, Class F temperature rise, IP23 protection

C18 (SRMP) Marine Generator Set Optional Equipment

Exhaust system

  • Dry Elbows
  • Water-Cooled Elbows
  • Flexible Fitting
  • Flange
  • Muffler
  • Muffler, Spark Arresting
  • Fumes disposal (closed system)

Air inlet system

  • Air Inlet Adapter

Charging system

  • Battery Chargers 10 amp
  • Battery sets: 24V 950-1300 CCA
  • Charging alternator 24V 105 amp

Control system

  • Caterpillar alarm and protection
  • EMCP 4.2 control panel
  • MGCP III B control panel

Fuel system

  • Duplex fuel filter – front service
  • Fuel cooler
  • Primary fuel/water separator

Instrumentation

  • Generator service side - LH, RH
  • Generator terminal box extension
  • Load sharing module (option for type approved module)

Lube system

  • Spare pump kits
  • Duplex oil filter – front service
  • Manual sump pump

Mounting system

  • Vibration Isolators

Protection system

  • Generator protection - IP44

Starting system

  • Starting motors - electric and/or air
  • Jacket water heaters
