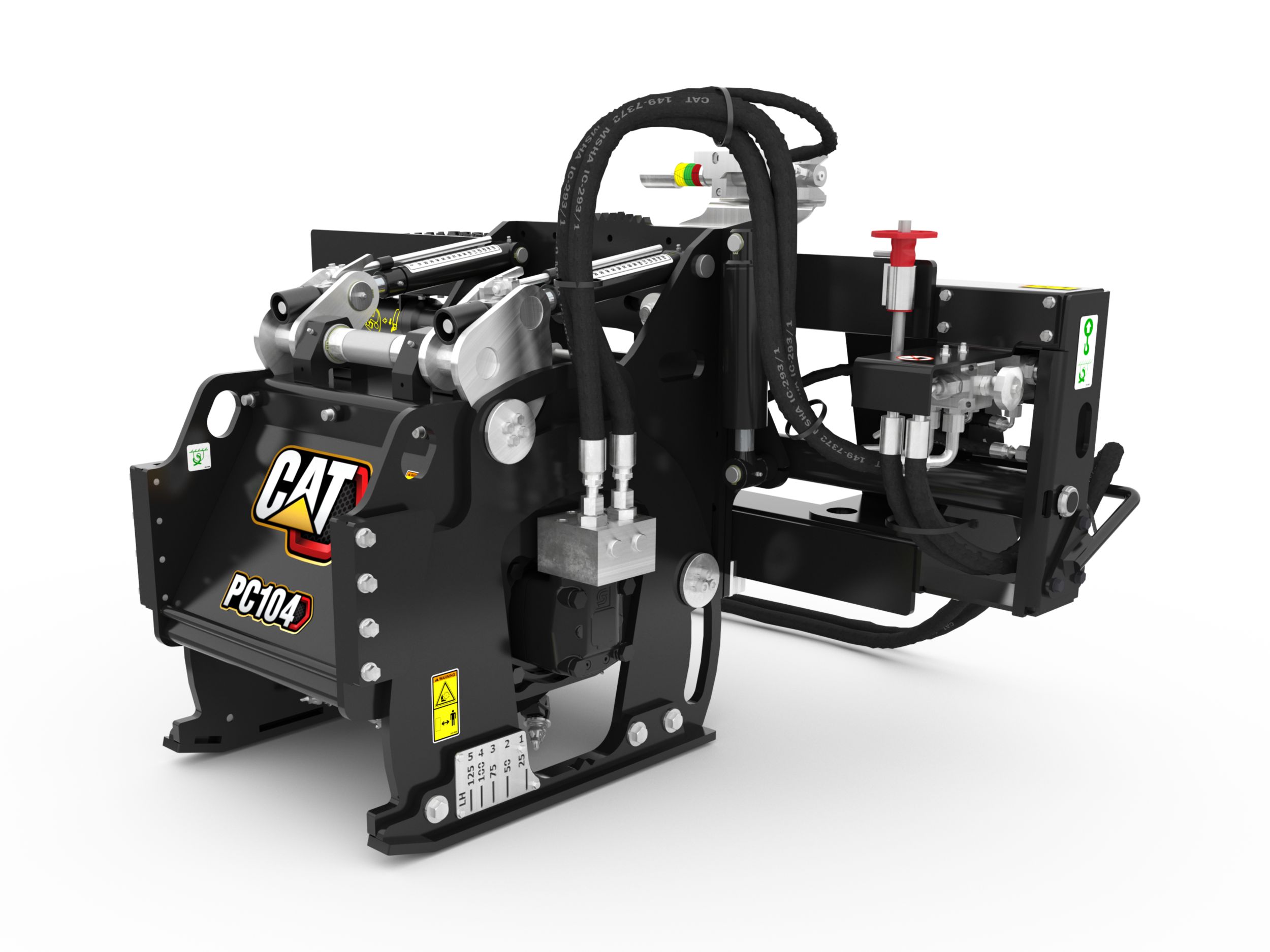

Cold Planers PC104

Request A Price Click for Price

Key Specs

Working Width
13.8 in
350 mm
Maximum Cutting Depth
5.9 in
150 mm
Required Hydraulics
Standard Flow
Standard Flow

Overview

High speed drum and conical bits quickly remove asphalt and concrete prior to resurfacing.

Product Specifications for PC104

Working Width 13.8 in 350 mm
Maximum Cutting Depth 5.9 in 150 mm
Required Hydraulics Standard Flow Standard Flow
Overall Width 68 in 1728 mm
Overall Length 44 in 1117 mm
Overall Height 37 in 941 mm
Weight 1503.6 lb 682 kg
Optimal Hydraulic Flow 60-80 L/min (16-22 gpm) 60-80 L/min (16-22 gpm)
Optimal Hydraulic Pressure 210-230 bar (3050-3300 psi) 210-230 bar (3050-3300 psi)
Drum Speed 181 rpm 181 rpm
Optional Drum Widths/Depths 400/150 mm (16/6 in) 400/150 mm (16/6 in)
Tilt Angle Range +/- 8.5 degrees 8.5 degrees
Side Shift Travel 25.6 in 650 mm
Conical Bits 36 36
Standard Bit Type All Purpose All Purpose

See how PC104 compares against frequently compared products.
