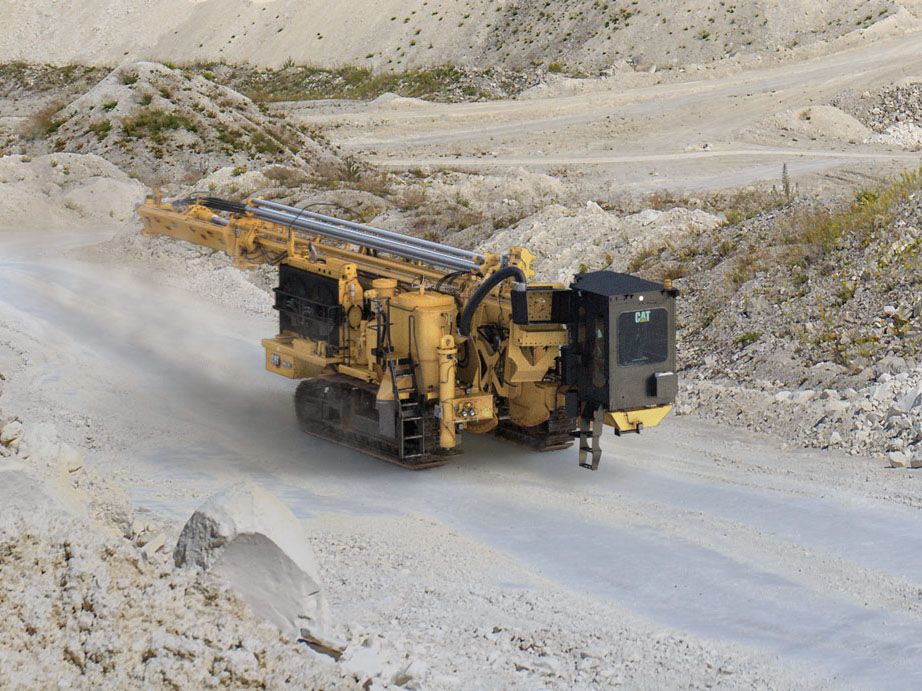

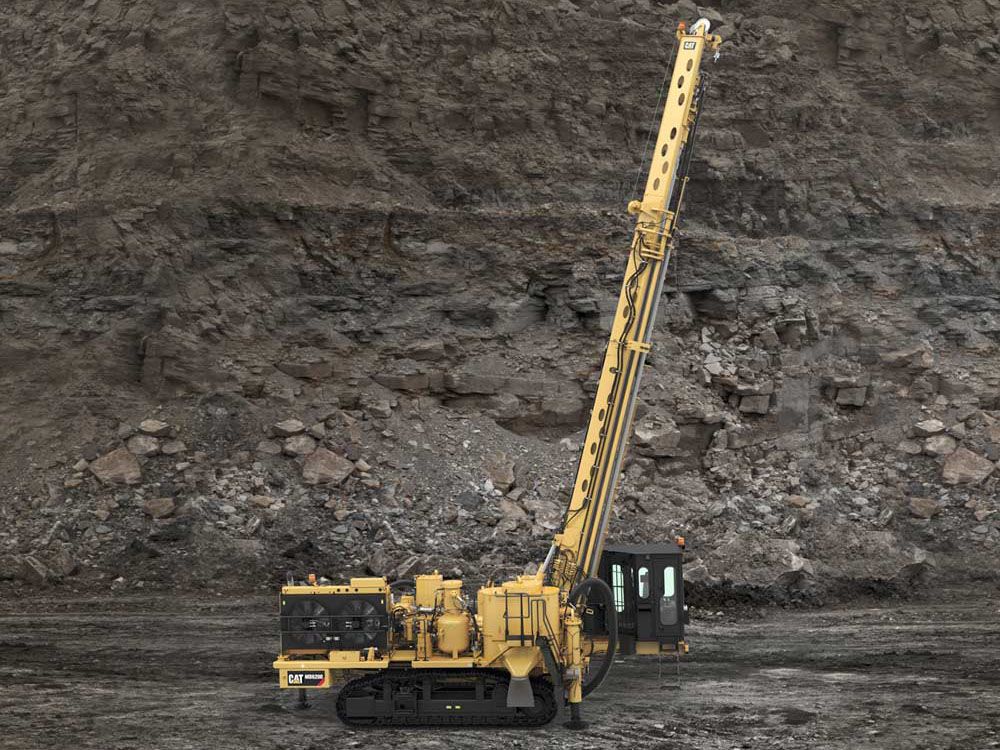

MD6200

< Back

View Product Downloads
Yes, I would like to receive future marketing communications (such as email) from Caterpillar Inc., its affiliates and subsidiaries worldwide and the Caterpillar dealer network. Regardless of whether you decide to receive these marketing communications, Caterpillar will continue to send service/transactional messages, including those that have to do with any accounts that you may have with us.

Overview

MD6200 Rotary Blasthole Drill Specifications – 11 m (36 ft)

Specifications

Units:
Bit Load Up to 16 964 kg (37,400 lb) Up to 16 964 kg (37,400 lb) Less
Hole Diameter Up to 127-200 mm (5.0-7.87 in) Up to 127-200 mm (5.0-7.87 in) Less

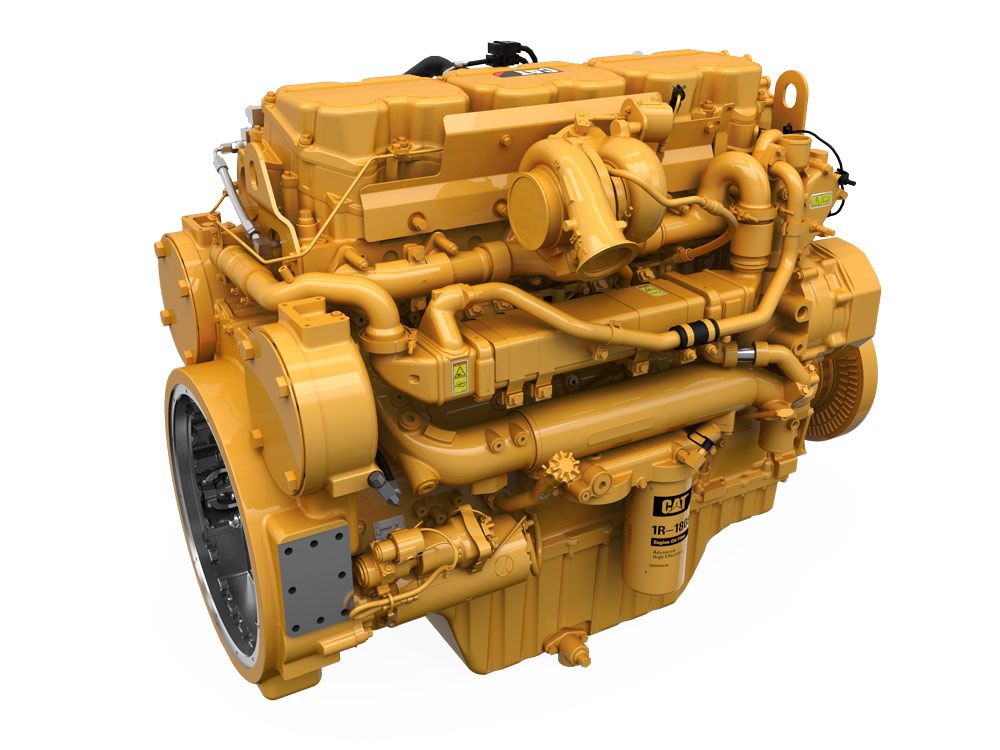

Engine C18® ACERT™ @ 1,800 rpm C18® ACERT™ @ 1,800 rpm Less

Basic Specs

U.S. EPA Tier 2 Equivalent - Engine C18 ACERT @ 1,800 rpm C18 ACERT @ 1,800 rpm Less
U.S. EPA Tier 2 Equivalent - Emissions U.S. EPA Tier 2 equivalent U.S. EPA Tier 2 equivalent Less
U.S. EPA Tier 2 Equivalent - Rated Horsepower 484.0 HP 361.0 kW Less
U.S. EPA Tier 2 Equivalent - Elevation Capability 15000.0 ft 4572.0 m Less
U.S. EPA Tier 4 Final - Engine C18 ACERT @ 1,800 rpm C18 ACERT @ 1,800 rpm Less
U.S. EPA Tier 4 Final - Emissions U.S. EPA Tier 4 Final U.S. EPA Tier 4 Final Less
U.S. EPA Tier 4 Final - Rated Horse Power 475.0 HP 354.0 kW Less
U.S. EPA Tier 4 Final - Elevation Capability 12000.0 ft 3658.0 m Less
Compressor - Rotary Drilling 32.6 m³/min (1,150 ft³/min) @ 8.6 bar (125 psi) 32.6 m³/min (1,150 ft³/min) @ 8.6 bar (125 psi) Less

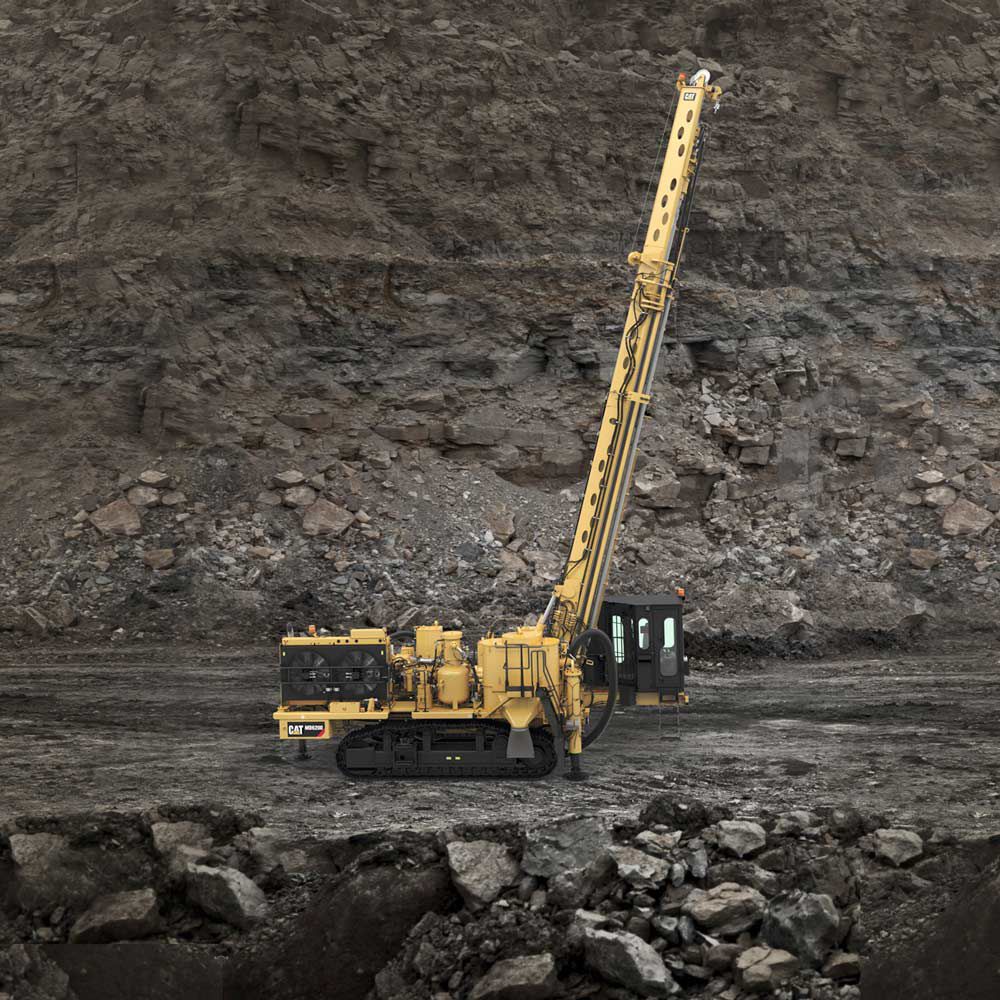

Angle Drilling Available 30° to –15° in 5° increments 30° to –15° in 5° increments Less
11 m (36 ft) Mast Standard Drilling - Bit load (single-pass) 37400.0 lb 16964.0 kg Less
11 m (36 ft) Mast Standard Drilling - Hoist capacity Up to 11 907 kg (Up to 26,250 lb) Up to 11 907 kg (Up to 26,250 lb) Less
11 m (36 ft) Mast Standard Drilling - Hoist speed 4.3 ft/s 1.32 m/s Less
11 m (36 ft) Mast Standard Drilling - Hole depth range - Multi-pass depth Down to 47.5 m (Down to 156 ft) Down to 47.5 m (Down to 156 ft) Less
11 m (36 ft) Mast Standard Drilling - Hole depth range - Single-pass depth 36.0 ft 11.0 m Less
11 m (36 ft) Mast Standard Drilling - Hole diameter range 127-200 mm (5.0-7.87 in) 127-200 mm (5.0-7.87 in) Less
11 m (36 ft) Mast Standard Drilling - Pull-down capacity Up to 15 876 kg (Up to 35,000 lb) Up to 15 876 kg (Up to 35,000 lb) Less
Compressor - DTH Drilling 29.7 m³/min (1,050 ft³/min) @ 24.1 bar (350 psi) 29.7 m³/min (1,050 ft³/min) @ 24.1 bar (350 psi) Less

Compressor Choices

DTH Drilling Includes tool lubrication system Includes tool lubrication system Less
Rotary Drilling Optional tool lubrication system Optional tool lubrication system Less
Note With the compressor’s electronic compressor controls plus variable volume control, the operator can adjust air output to reach optimal match of tool, flushing air and ground conditions. Both compressor packages are configured with this feature. With the compressor’s electronic compressor controls plus variable volume control, the operator can adjust air output to reach optimal match of tool, flushing air and ground conditions. Both compressor packages are configured with this feature. Less
DTH Drilling - 1050 cfm/350 psi 29.7 m³/min (1,050 ft³/min) @ 24.1 bar (350 psi) includes 113 L (30 gal) tool oiler 29.7 m³/min (1,050 ft³/min) @ 24.1 bar (350 psi) includes 113 L (30 gal) tool oiler Less
Rotary or DTH drilling, connection point for foam injection - 1150 cfm/125 psi 32.6 m³/min (1,150 ft³/min) @ 8.6 bar (125 psi) 32.6 m³/min (1,150 ft³/min) @ 8.6 bar (125 psi) Less

Receiver Tank Choices

Choice (1) Low pressure 8.6 bar (125 psi) Low pressure 8.6 bar (125 psi) Less
Choice (2) High pressure 24.1 bar (350 psi) High pressure 24.1 bar (350 psi) Less

Cooling

Components (1) Coolers with easy cleaning access Coolers with easy cleaning access Less
Components (2) Replaceable cooler core sections Replaceable cooler core sections Less
Components (3) Functional in ambient temperature of up to 52° C (125° F) Functional in ambient temperature of up to 52° C (125° F) Less
Components (4) Automatic variable speed fan control Automatic variable speed fan control Less

Climate Choices

Climate Level 1 Standard Fluids and Lubricants (1) Rated down to –1° C (30° F) Rated down to –1° C (30° F) Less
Climate Level 1 Standard Fluids and Lubricants (2) Withstands high heat up to 52° C (125° F) Withstands high heat up to 52° C (125° F) Less
Climate Level 2 Arctic Fluids and Lubricants Rated down to –18°C (0°F) Rated down to –18°C (0°F) Less

Frame and Work Deck

Features (1) Jacks, mast pivot and deck are welded integrally to mainframe for maximum durability and long life Jacks, mast pivot and deck are welded integrally to mainframe for maximum durability and long life Less
Features (2) Slip resistant walkways Slip resistant walkways Less
Features (3) Fuel tank capacity 833 L (220 gal) Fuel tank capacity 833 L (220 gal) Less
Components (1) Three leveling jacks provide leveling on a 7° bench (any orientation) Three leveling jacks provide leveling on a 7° bench (any orientation) Less
Components (2) Heavy duty tow hooks (front end) Heavy duty tow hooks (front end) Less
Components (3) Four (4) lift lugs, for use with cables or chains Four (4) lift lugs, for use with cables or chains Less

Frame Access Choices

Choice (1) Fixed access ladders to the cab area Fixed access ladders to the cab area Less
Choice (2) Small platform to the cab with access ladders Small platform to the cab with access ladders Less
Choice (3) Platform access to the cab with full length service access walkway also with access ladders and self-closing gates Platform access to the cab with full length service access walkway also with access ladders and self-closing gates Less

Drill Deck Misc.

Components (1) Drill pipe thread greaser with remote fill tank or disposable grease bucket Drill pipe thread greaser with remote fill tank or disposable grease bucket Less

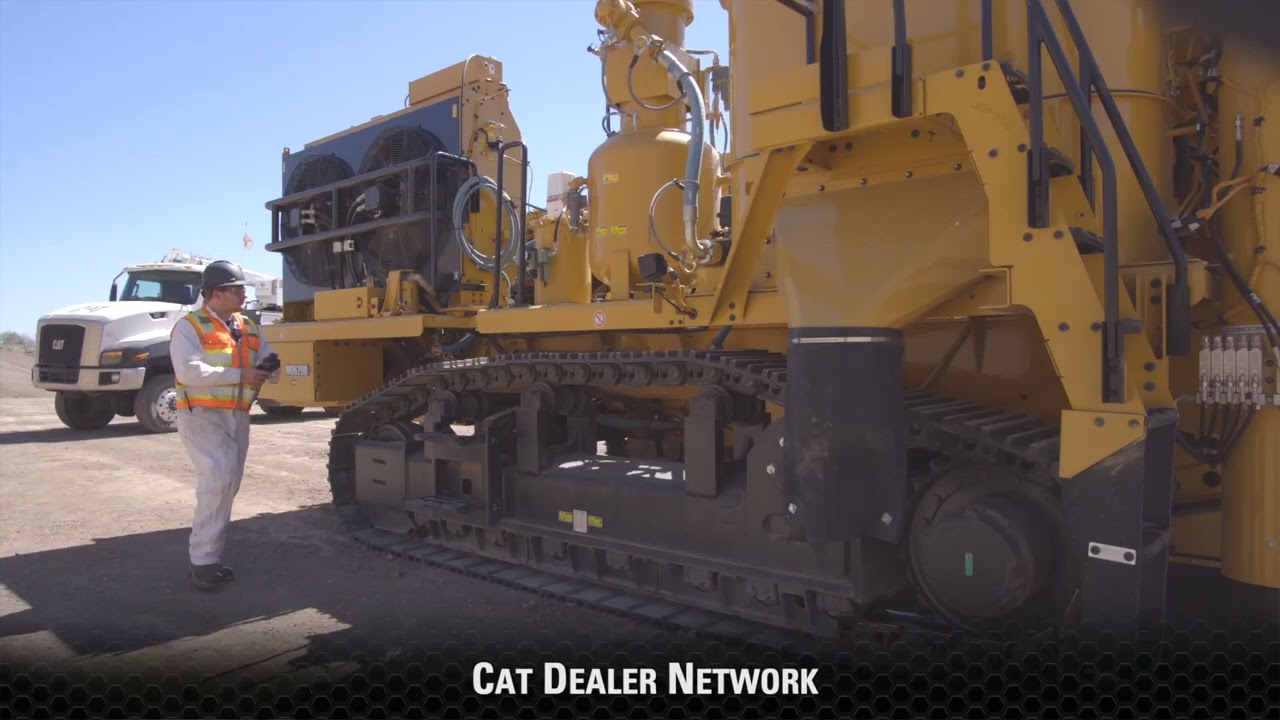

Undercarriage

Model Cat 336 Excavator type Cat 336 Excavator type Less
Ground Clearance 21.0 in 533.0 mm Less
Carrier Rollers Three (double post) Three (double post) Less
Triple Grousers (1) 600 mm (23.6 in); 1.44 bar (20.8 psi) ground pressure 600 mm (23.6 in); 1.44 bar (20.8 psi) ground pressure Less
Components (1) Track chain guards and guides Track chain guards and guides Less

Hydraulics

Components (1) Auxiliary circuit pump Auxiliary circuit pump Less
Components (2) Fan pump Fan pump Less
Components (3) Two primary pumps Two primary pumps Less
Components (4) Charge pump Charge pump Less
Components (5) Oil sampling ports Oil sampling ports Less

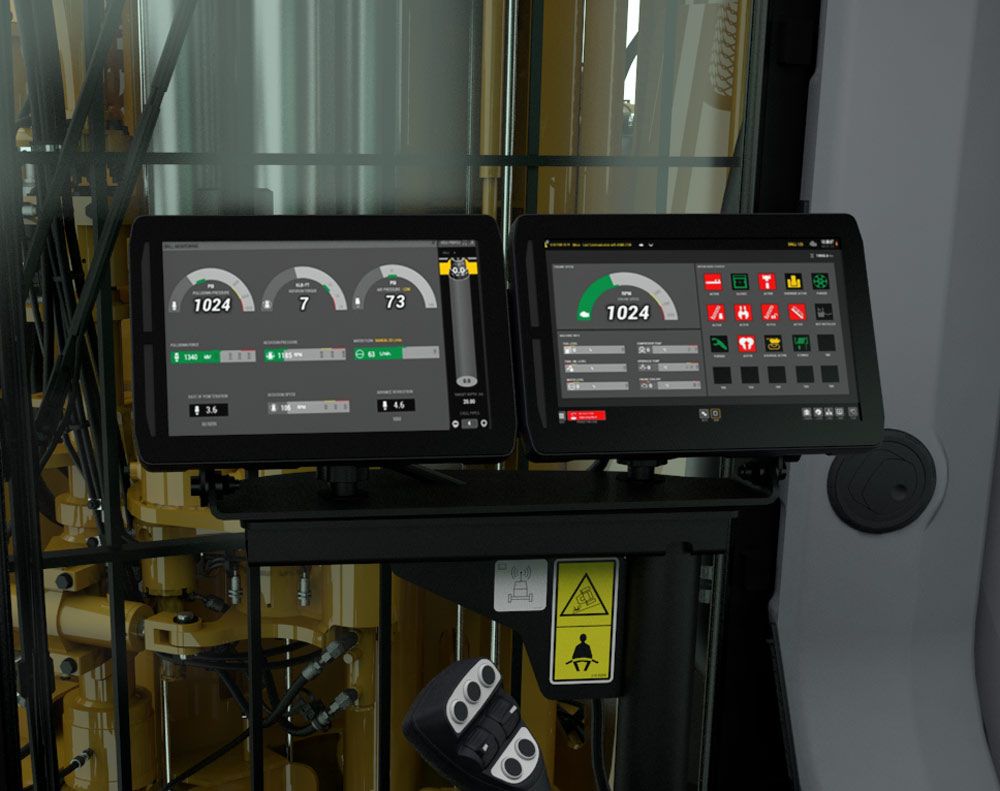

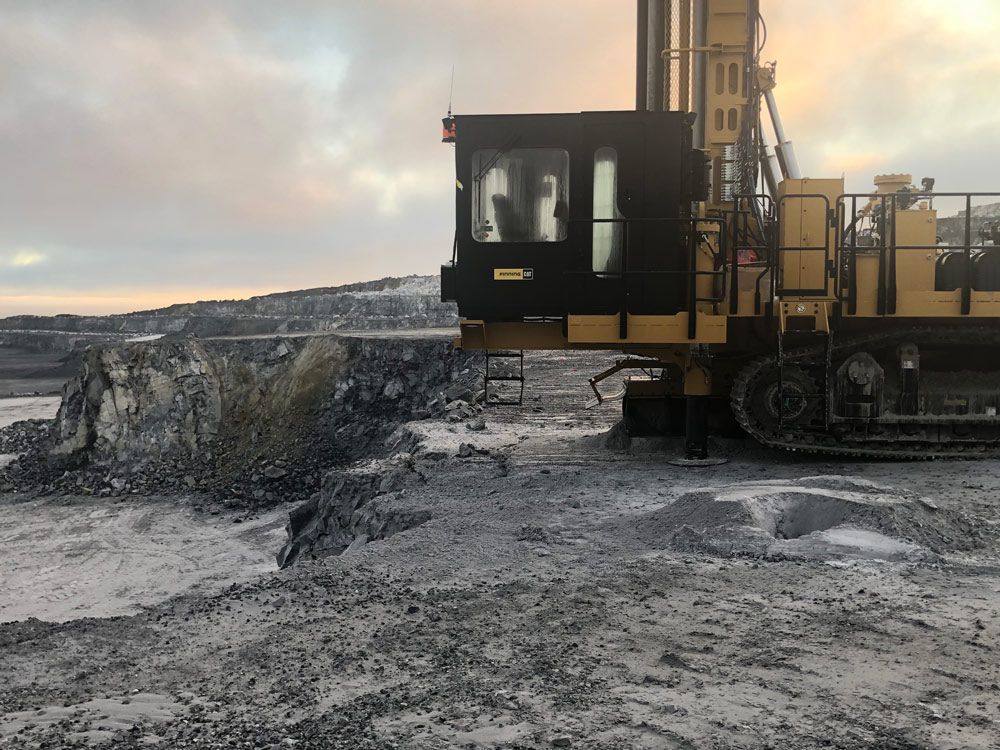

Automation and Technology

Components (5) Wiring for third party interface Wiring for third party interface Less
Type (1) Autonomous ready Autonomous ready Less
Components (1) Drill depth meter Drill depth meter Less

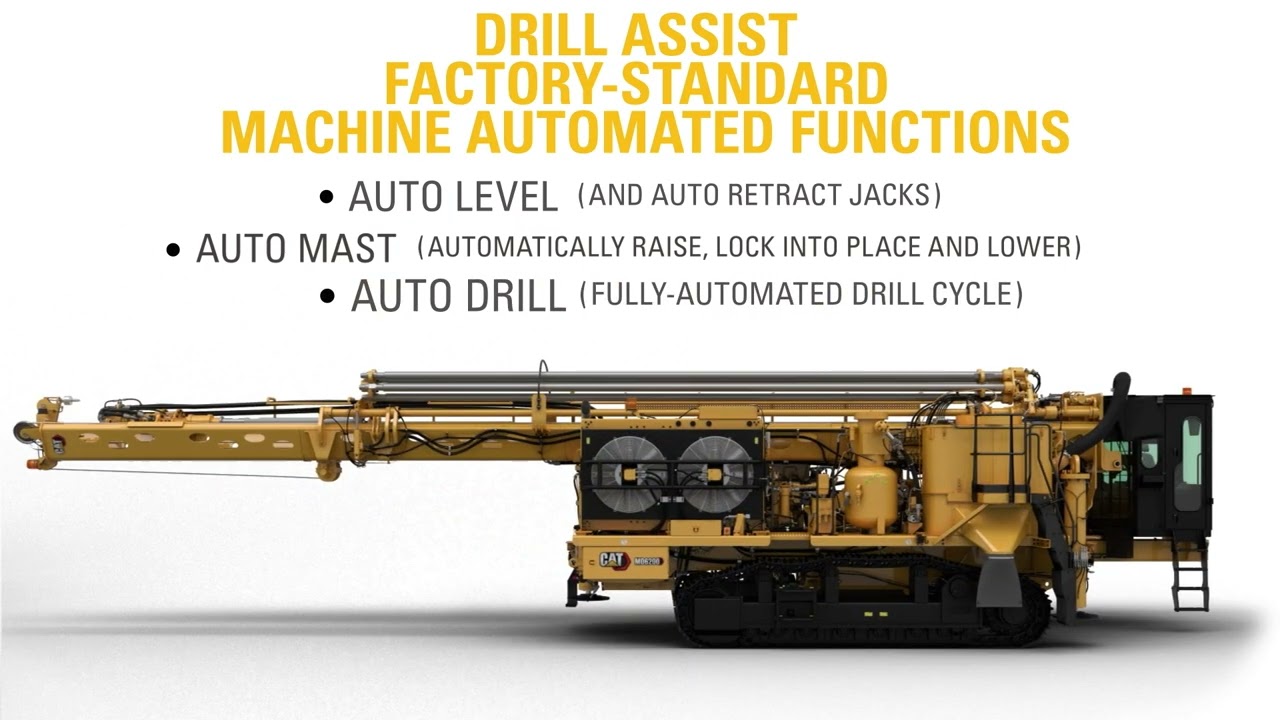

Components (2) Drill Assist (auto level, auto retract jacks, auto raise and lower mast, single-pass rotary auto drill) Drill Assist (auto level, auto retract jacks, auto raise and lower mast, single-pass rotary auto drill) Less
Components (3) Cat Terrain ready Cat Terrain ready Less
Components (4) Product Link Elite™ – Satellite, Cellular, Dual (options) Product Link Elite™ – Satellite, Cellular, Dual (options) Less

Dimensions (Approximate) - 11 m (36 ft) Mast

Body length 31.66 ft 9.65 m Less
Height mast down 11.5 ft 3.5 m Less
Height mast up 54.25 ft 16.535 m Less
Length mast down 57.66 ft 17.6 m Less
Mast only length 51.58 ft 15.721 m Less
Note *For width with platform access to cab or service platform walkway contact the factory. *For width with platform access to cab or service platform walkway contact the factory. Less
Width cab end* 11.75 ft 3.6 m Less
Width non-cab end 11.75 ft 3.6 m Less

Drill Pipe

9.1 m (30 ft) pipes for 11 m (36 ft) Mast - Accepts quantity of four (4) - Option 1 4.0 in 101.0 mm Less
9.1 m (30 ft) pipes for 11 m (36 ft) Mast - Accepts quantity of four (4) - Option 2 4.5 in 114.0 mm Less
9.1 m (30 ft) pipes for 11 m (36 ft) Mast - Accepts quantity of four (4) - Option 3 5.0 in 127.0 mm Less
9.1 m (30 ft) pipes for 11 m (36 ft) Mast - Accepts quantity of four (4) - Option 4 5.5 in 140.0 mm Less
9.1 m (30 ft) pipes for 11 m (36 ft) Mast - Accepts quantity of four (4) - Option 5 6.0 in 152.0 mm Less

Dust Control Choices

High Volume Water Injection - Maximum - Tank Above Deck - Capacity 200.0 gal (US) 757.0 l Less
High Volume Water Injection - Maximum - Tank Below Deck - Capacity (Insulated for Extreme Cold Weather) 200.0 gal (US) 757.0 l Less
Water Injection - Tank Mounted Below Front Deck - Components Water flow meter, volume control, tank fill level indicator Water flow meter, volume control, tank fill level indicator Less
Water Injection - Tank Mounted Below Front Deck - Feature Self-purging for winterization Self-purging for winterization Less
Water Injection - Tank Mounted Below Front Deck 200.0 gal (US) 757.0 l Less
High Volume Water Injection - Maximum - Tanks Total Capacity 400.0 gal (US) 1514.0 l Less
Water Injection plus Dust Collector (1) 76.5 m³/min (2,700 ft³/min) dust collector; includes standard water injection 76.5 m³/min (2,700 ft³/min) dust collector; includes standard water injection Less
Water Injection plus Dust Collector (2) Self-cleaning filters, dust chute clean-out door Self-cleaning filters, dust chute clean-out door Less
Choices (1) Static dust curtains, four sides boxed enclosed Static dust curtains, four sides boxed enclosed Less
Choices (2) Dust curtain hydraulic lifters raise front and rear dust curtains (option) (recommended with dry dust collector) Dust curtain hydraulic lifters raise front and rear dust curtains (option) (recommended with dry dust collector) Less
Choices (3) Tram off spray system (option) Tram off spray system (option) Less

Engine Features

Feature (1) Dual starter motors Dual starter motors Less
Feature (2) Ether starting aid Ether starting aid Less
Feature (3) Common air intake filters provide +500 hour service interval in normal operating conditions Common air intake filters provide +500 hour service interval in normal operating conditions Less
Feature (4) Tier 4 Final package complete with DEF/Engine Shutdown Control Package Tier 4 Final package complete with DEF/Engine Shutdown Control Package Less

Mast Packages - Standard or Premium Choices

11 m (36 ft) Mast - Hoist Up to 11 907 kg (Up to 26,250 lb) Up to 11 907 kg (Up to 26,250 lb) Less
11 m (36 ft) Mast - Multi-pass depth Down to 47.5 m (Down to 156 ft) Down to 47.5 m (Down to 156 ft) Less
11 m (36 ft) Mast - Pulldown - rated single cylinder pull-down/hoist system Up to 15 876 kg (Up to 35,000 lb) Up to 15 876 kg (Up to 35,000 lb) Less
11 m (36 ft) Mast - Single-pass depth 36.0 ft 11.0 m Less

Regulatory Compliance

Features (1) CE compliant CE compliant Less
Features (2) CSA certifiable CSA certifiable Less
Features (3) EAEU certifiable EAEU certifiable Less
Features (4) CSA certified CSA certified Less
Features (5) MDG15 and MDG41 aligned MDG15 and MDG41 aligned Less

Tool Package DTH

Components (7) Drill tool lubricator is included with selection of DTH Compressor Drill tool lubricator is included with selection of DTH Compressor Less
Components (1) Two-piece bushing Two-piece bushing Less
Components (2) Pipe positioner clamps Pipe positioner clamps Less
Components (3) Deck wrench Deck wrench Less
Components (4) Shock sub Shock sub Less
Components (5) Cross over subs Cross over subs Less
Components (6) Pipe wiper seal Pipe wiper seal Less

Tool Package Rotary

Components (7) Drill tool lubricator (optional) Drill tool lubricator (optional) Less
Components (1) One-piece roller deck bushing One-piece roller deck bushing Less
Components (2) Pipe positioner clamps Pipe positioner clamps Less
Components (3) Deck wrench Deck wrench Less
Components (4) Bit sub Bit sub Less
Components (5) Top sub Top sub Less
Components (6) Pipe wiper seal Pipe wiper seal Less

Mast and Pipe Carousel Features

Features (1) Pipe carousel:
– 11 m (36 ft) Mast: Accepts quantity of four (4) 9.1 m (30 ft) pipes
Pipe carousel:
– 11 m (36 ft) Mast: Accepts quantity of four (4) 9.1 m (30 ft) pipes
Less
Features (2) Pre-split angle drilling package for negative angle (–15 to 30°) in 5° increments Pre-split angle drilling package for negative angle (–15 to 30°) in 5° increments Less
Features (3) Standard angle drilling package for (0 to 30°) in 5° increments Standard angle drilling package for (0 to 30°) in 5° increments Less
Features (4) Hydraulically actuated, self-indexing pipe carousel accepts various pipe diameters Hydraulically actuated, self-indexing pipe carousel accepts various pipe diameters Less
Features (5) Bit changes are above deck level Bit changes are above deck level Less
Features (6) Single cylinder pulldown/hoist system Single cylinder pulldown/hoist system Less
Features (7) Deck wrench fits flats of corresponding drill pipe diameters and DTH hammer Deck wrench fits flats of corresponding drill pipe diameters and DTH hammer Less
Features (8) Configured with roller deck bushing (for low pressure/tricone drilling) Configured with roller deck bushing (for low pressure/tricone drilling) Less
Features (9) Two-piece deck bushing (for high pressure DTH drilling) Two-piece deck bushing (for high pressure DTH drilling) Less
Features (10) Overhead winch with cable and hook plus remote control; variable speed drive with a 1361 kg (3,000 lb) rating Overhead winch with cable and hook plus remote control; variable speed drive with a 1361 kg (3,000 lb) rating Less
Features (11) Variable hydraulic break out wrench grip range 101-152 mm (4.0-6.0 in) Variable hydraulic break out wrench grip range 101-152 mm (4.0-6.0 in) Less
Features (12) Closed circuit camera mounted in mast to view pipe carousel/top drive operation Closed circuit camera mounted in mast to view pipe carousel/top drive operation Less
Features (13) Pipe positioner for angle drilling, multi-pass pipe handling Pipe positioner for angle drilling, multi-pass pipe handling Less
Features (14) Manual pipe catcher – One (1) wire rope, pipe catcher, pipe positioner, optional manual bit basket Manual pipe catcher – One (1) wire rope, pipe catcher, pipe positioner, optional manual bit basket Less

Rotary Head Top Drive System

Torque - Single Motor 8629.0 lb/ft 11700.0 N·m Less
Rotation Speed 0-150 rpm 0-150 rpm Less
Components (1) Output shaft with box-end API-IF (NC46) 101 mm (4 in) thread Output shaft with box-end API-IF (NC46) 101 mm (4 in) thread Less
Components (2) Rotary torque control Rotary torque control Less
Components (3) Virtual rotary head travel interlocks Virtual rotary head travel interlocks Less

Operator Environment

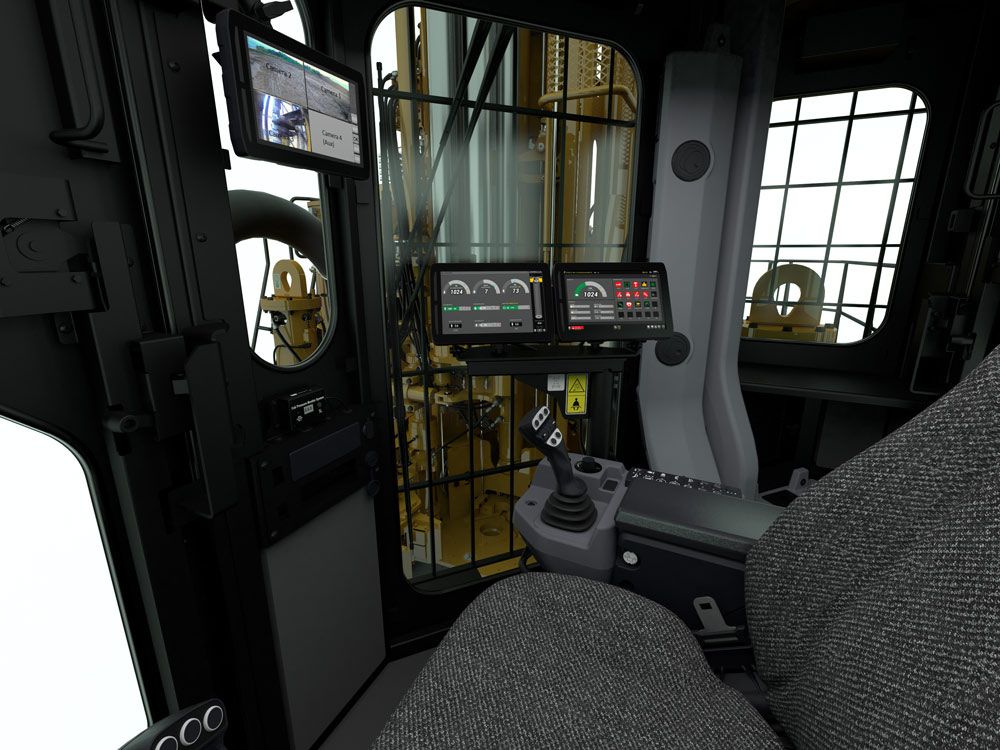

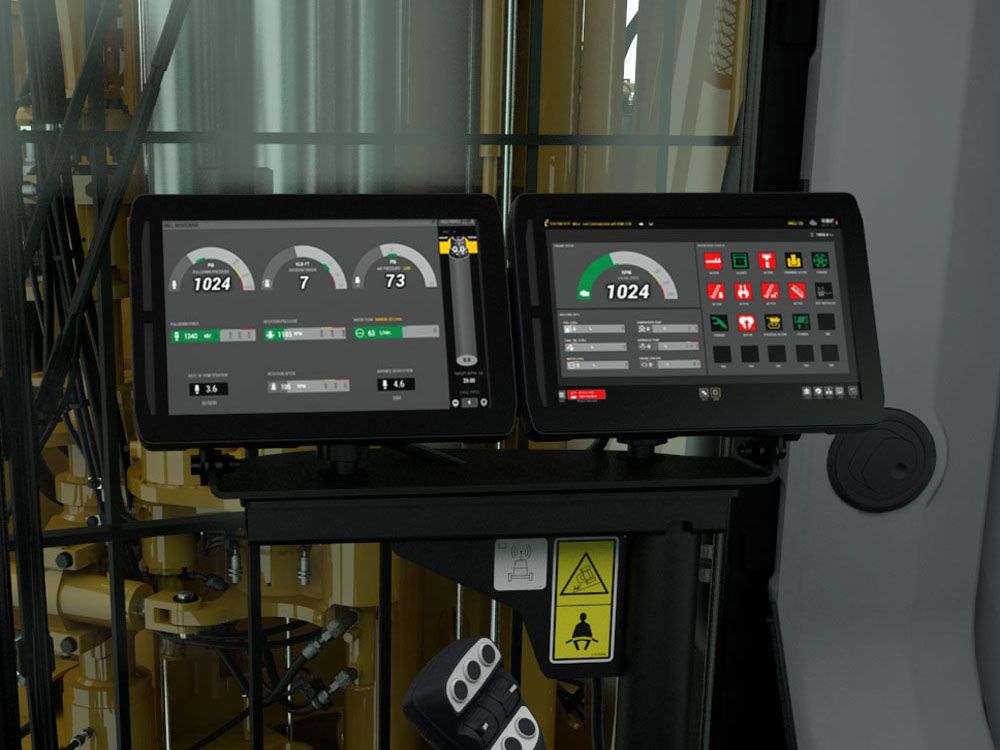

Cab Design – Compact FOPS cab has 1.9 m² (20.5 ft²) floor space with an integrated operator station
– Cab rubber shock-mounts absorb mechanical vibration
– Operator station design integrates an ergonomic seat, joystick controls with full instrumentation, and dual 254 mm (10 in) screens; color, high-definition and 12 volt power port
– Additional display screen for cc cameras; color, high-definition 254 mm (10 in)
– Power convertor 24V to 12V
– Radio-ready for communication and entertainment stereo
– Two swing out doors and Cat keyed locks
– Literature holder
– Storage area suitable for lunchbox
– Compact FOPS cab has 1.9 m² (20.5 ft²) floor space with an integrated operator station
– Cab rubber shock-mounts absorb mechanical vibration
– Operator station design integrates an ergonomic seat, joystick controls with full instrumentation, and dual 254 mm (10 in) screens; color, high-definition and 12 volt power port
– Additional display screen for cc cameras; color, high-definition 254 mm (10 in)
– Power convertor 24V to 12V
– Radio-ready for communication and entertainment stereo
– Two swing out doors and Cat keyed locks
– Literature holder
– Storage area suitable for lunchbox
Less
Cab Packages – Standard configuration includes a fabric seat, removable floor mat, single pane window glass and driller window guard
– Premium configuration includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass and driller window guard
– Standard configuration includes a fabric seat, removable floor mat, single pane window glass and driller window guard
– Premium configuration includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass and driller window guard
Less
Seating – Seat swivels, locks and has two point retractable/76 mm (3 in) seat belt, tilts (5° adjustment), lumbar support, fore/aft seat adjustment 80 mm (3.1 in) – Seat swivels, locks and has two point retractable/76 mm (3 in) seat belt, tilts (5° adjustment), lumbar support, fore/aft seat adjustment 80 mm (3.1 in) Less
Windows – Large windows front, rear and right cab side; full length drill window with guard
– Window shades (option)
– Windshield wiper with a common washer tank
– Manometer Pressure Gauge (option)
– Large windows front, rear and right cab side; full length drill window with guard
– Window shades (option)
– Windshield wiper with a common washer tank
– Manometer Pressure Gauge (option)
Less
Lighting – LED interior lights, backlit joysticks and keypads
– Flood lights for the drill perimeter; area spotlights
– Lighting is 4,200 lumens
– Mast beacon and tram clearance light
– LED interior lights, backlit joysticks and keypads
– Flood lights for the drill perimeter; area spotlights
– Lighting is 4,200 lumens
– Mast beacon and tram clearance light
Less
HVAC – Floor heating vent
– Filter access from deck, 500 hour service interval
– Defogging HVAC vents on main window
– Floor heating vent
– Filter access from deck, 500 hour service interval
– Defogging HVAC vents on main window
Less
Cameras – Three (3) CC cameras (front and left side) providing 360° vision coverage from operators seat; camera on the mast to view pipe carousel/top drive operation – Three (3) CC cameras (front and left side) providing 360° vision coverage from operators seat; camera on the mast to view pipe carousel/top drive operation Less

Operating System Controls - Standard

Components (1) All electric controls for drilling, tramming, leveling plus auxiliary functions All electric controls for drilling, tramming, leveling plus auxiliary functions Less
Components (2) Rotary torque control Rotary torque control Less
Components (3) Virtual rotary head travel stops Virtual rotary head travel stops Less
Components (4) Pipe positioner engaged/disengaged indicator Pipe positioner engaged/disengaged indicator Less
Components (5) Drill depth meter Drill depth meter Less
Components (6) Drill performance and display system Drill performance and display system Less
Components (7) Delayed engine shut down Delayed engine shut down Less
Components (8) Filter indicators for hydraulic, fuel, compressor and engine Filter indicators for hydraulic, fuel, compressor and engine Less
Components (9) Jack pressure sensors shown Jack pressure sensors shown Less
Components (10) Data logging of machine health with warnings and fault code records with export capability Data logging of machine health with warnings and fault code records with export capability Less
Components (11) Dust suppression control Dust suppression control Less
Components (12) Mast lock indicator Mast lock indicator Less
Components (13) ECM proportional fan speed control system ECM proportional fan speed control system Less
Components (14) Tram interlock, machine stability limits Tram interlock, machine stability limits Less
Components (15) Tram interlock, pipe in hole Tram interlock, pipe in hole Less
Components (16) Tram interlock, mast up and locked or down and parked Tram interlock, mast up and locked or down and parked Less
Components (17) Tram interlock, jacks retracted Tram interlock, jacks retracted Less
Components (18) Tram interlock, winch parked Tram interlock, winch parked Less
Components (19) Cab environment controls (AC, heat, fan speeds) Cab environment controls (AC, heat, fan speeds) Less
Components (20) Pre wired for Terrain and Autonomous Operation Pre wired for Terrain and Autonomous Operation Less

Safety and Security

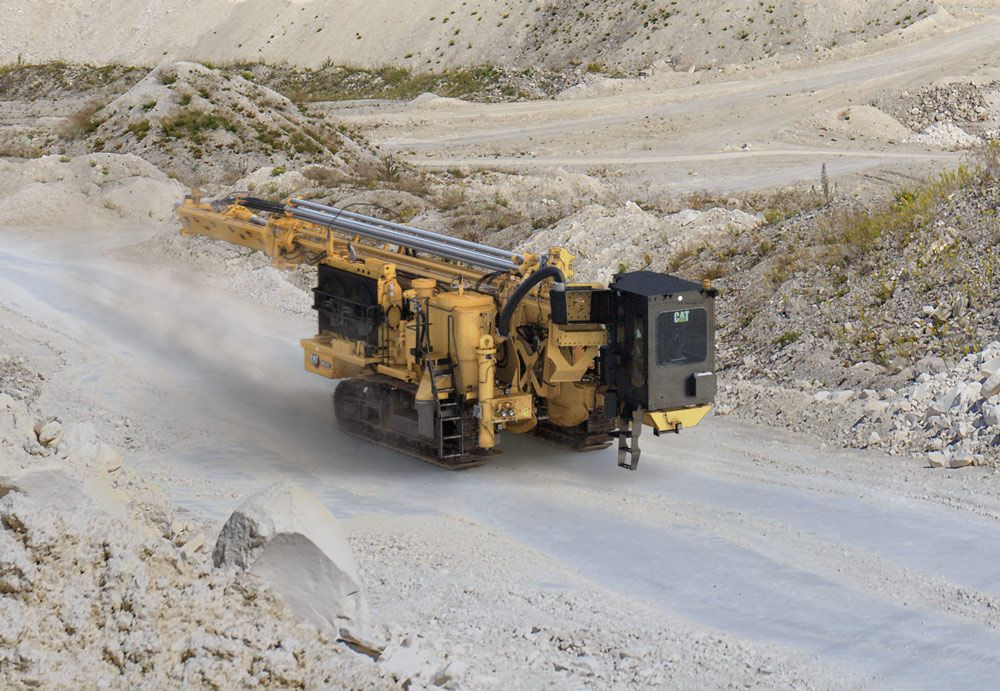

Feature (1) Approach angle of 15 degrees facilitates loading and unloading on a lowboy Approach angle of 15 degrees facilitates loading and unloading on a lowboy Less
Components (1) Seven (7) emergency stop buttons Seven (7) emergency stop buttons Less
Components (2) Hinged window guard over the full length of the front drill window Hinged window guard over the full length of the front drill window Less
Components (3) Conditional safety interlocks Conditional safety interlocks Less
Components (4) Self-closing gates Self-closing gates Less
Components (5) Electric horn activated by push button in the cab Electric horn activated by push button in the cab Less
Components (6) Automatic tram alarm with yellow strobe light Automatic tram alarm with yellow strobe light Less
Components (7) Battery disconnect and starter switches can be locked out Battery disconnect and starter switches can be locked out Less
Components (8) Air hose retention devices Air hose retention devices Less
Components (9) Slip resistant platform surfaces Slip resistant platform surfaces Less
Components (10) Machine lifting provisions Machine lifting provisions Less
Components (11) FOPS Certified Operator Cab FOPS Certified Operator Cab Less

Service Packages

Package (1) Basic – Centralized manual lubrication for all pivot points, gravity fill for fuel and water Basic – Centralized manual lubrication for all pivot points, gravity fill for fuel and water Less
Package (2) Standard – Automated lubrication system, fast fill for fuel and water Standard – Automated lubrication system, fast fill for fuel and water Less
Package (3) Premium – Automated lubrication system, fast fill fuel and water, service center for lubricant drain, plus fill blowdown hose Premium – Automated lubrication system, fast fill fuel and water, service center for lubricant drain, plus fill blowdown hose Less

Weights

Working Weight Range 37 500-41 700 kg (82,700-92,000 lb) 37 500-41 700 kg (82,700-92,000 lb) Less

Description

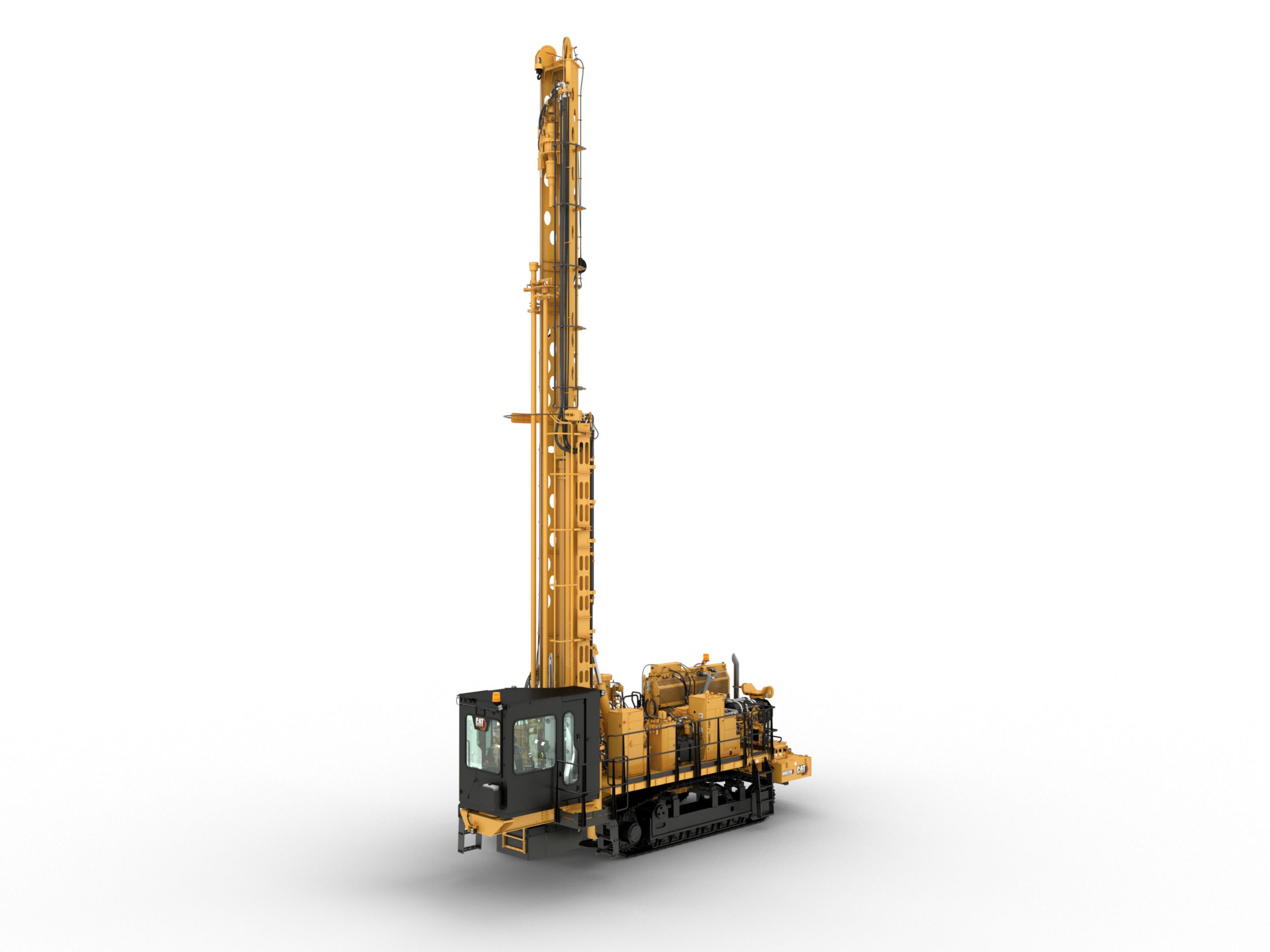

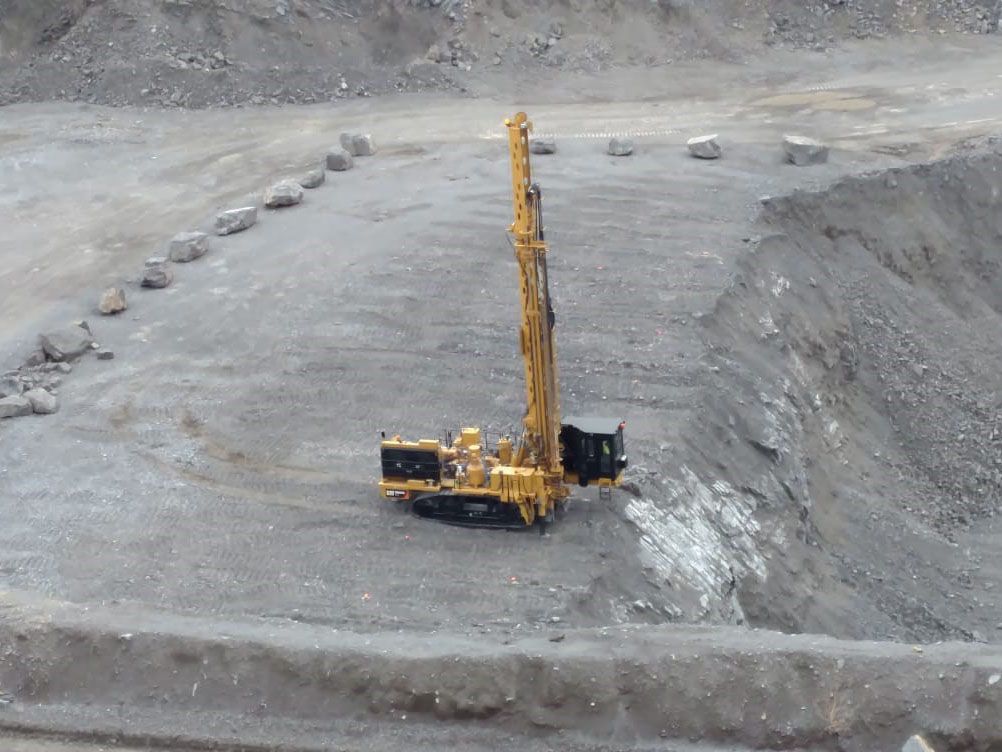

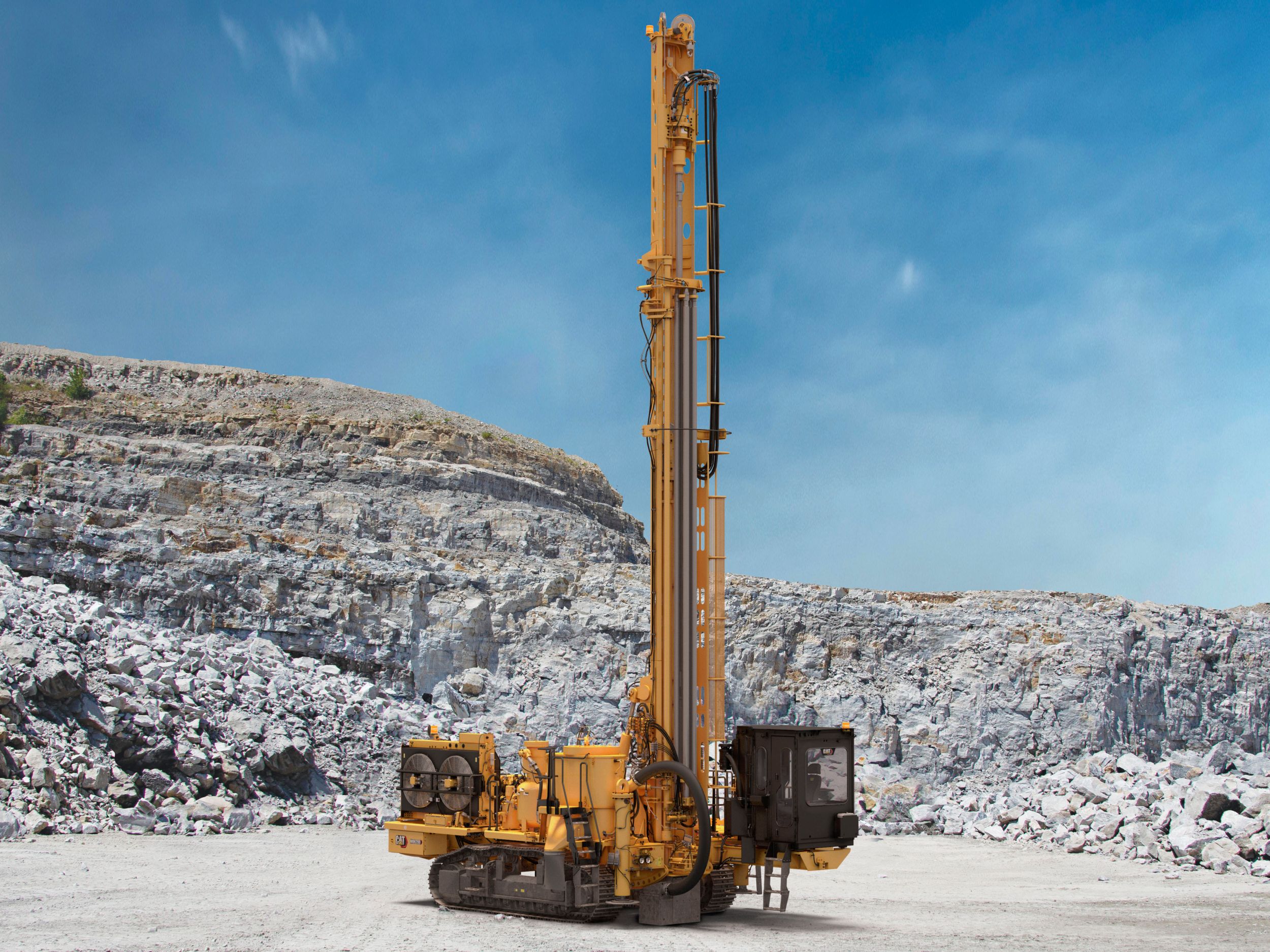

The MD6200 crawler-mounted blasthole drill is designed to drill 127-200 mm (5.0-7.87 in) diameter holes. MD6200 is optimized for single-pass or multi-pass drilling, in both Rotary and DTH drilling modes. Available with a standard Angle Drilling Package (0 to 30°) with an optional package to allow for Pre-Split Drilling (a negative angle to 15°, in 5° increments).

MD6200 Optional Equipment

MAST
  • Overhead winch assembly with cable and hook, plus remote control; variable speed drive with a 1361 kg (3,000 lb) rating
  • Tool lubrication system for Rotary Drilling with 113 L (30 gal) capacity
  • Pipe thread greaser with reloadable tank for disposable grease bucket
  • Manual bit basket

SERVICE TOOLS
  • Bushing retention tool – 89 to 152 mm (3.5 to 6.0 in) wrench flats
  • Lifting bails (available on request; required for commissioning)
  • API thread 88.9 mm (3.5 in)
  • API thread 114.3 mm (4.5 in)
  • API thread 140 mm (5.5 in)
  • BECO thread 76.2 mm (3.0 in)
  • BECO thread 88.9 mm (3.5 in)
  • BECO thread 101 mm (4.0 in)
  • BECO thread 114.3 mm (4.5 in)

OPERATOR ENVIRONMENT
  • Stereo
  • Cab pressure gauge
  • Window shades
  • Drill assist; single pass auto drill

TECHNOLOGY PRODUCTS
  • Product Link Elite™; satellite, cellular or dual
  • Terrain guidance system hardware

DUST SUPPRESSION
  • Dust curtains, four sides boxed in, with hydraulic lifters to raise front and rear dust curtains (recommended with dry dust collector)
  • Tram off spray system

DRILL BITS, ROTARY TRICONE
  • Recommended for Rotary or DTH
  • All bits have standard nozzles
  • Obtain S/M/H codes from the Rock Formation to Bit Conversion table https://catpublications.com search for PEXQ1027
  • Ship out plans for each drill configuration allow for one pallet of bits. Additional pallets may require an additional truck.
    – 171 mm (6.75 in), Option 1, (S2)
    – 171 mm (6.75 in), Option 2, (M1)
    – 171 mm (6.75 in), Option 3, (M3)
    – 200 mm (7.875 in), Option 1, (S2)
    – 200 mm (7.875 in), Option 2, (M1)
    – 200 mm (7.875 in), Option 3, (M3)

DRILL PIPE
  • 9.1 m (30 ft) pipes for 11 m (36 ft) Mast – Accepts quantity of four (4)
    – 101 mm (4.0 in)
    – 114 mm (4.5 in)
    – 127 mm (5 in)
    – 140 mm (5.5 in)
    – 152 mm (6.0 in)
