Cat® Box Blades are designed for grading and leveling. Each model is designed to operate both manually and automatically with the use of Laser or GPS grading systems.
|Overall Width||87.0 in 2221.0 mm||More Less|
|Working Width||84.0 in 2121.0 mm||More Less|
|Optimum Hydraulic Flow||30-85 L/min (8-22 gpm) 30-85 L/min (8-22 gpm)||More Less|
|Requires Full Work Tool Control with Both Joysticks||Yes Yes||More Less|
|Optimum Hydraulic Pressure||140-170 bar (2031-2466 psi) 140-170 bar (2031-2466 psi)||More Less|
|Overall Length||81.0 in 2062.0 mm||More Less|
|Overall Height||106.0 in 2694.0 mm||More Less|
|Overall Weight||2000.0 lb 907.0 kg||More Less|
|Tilt||15 degrees 15 degrees||More Less|
|Raise||5.0 in 127.0 mm||More Less|
|Lower||4.0 in 102.0 mm||More Less|

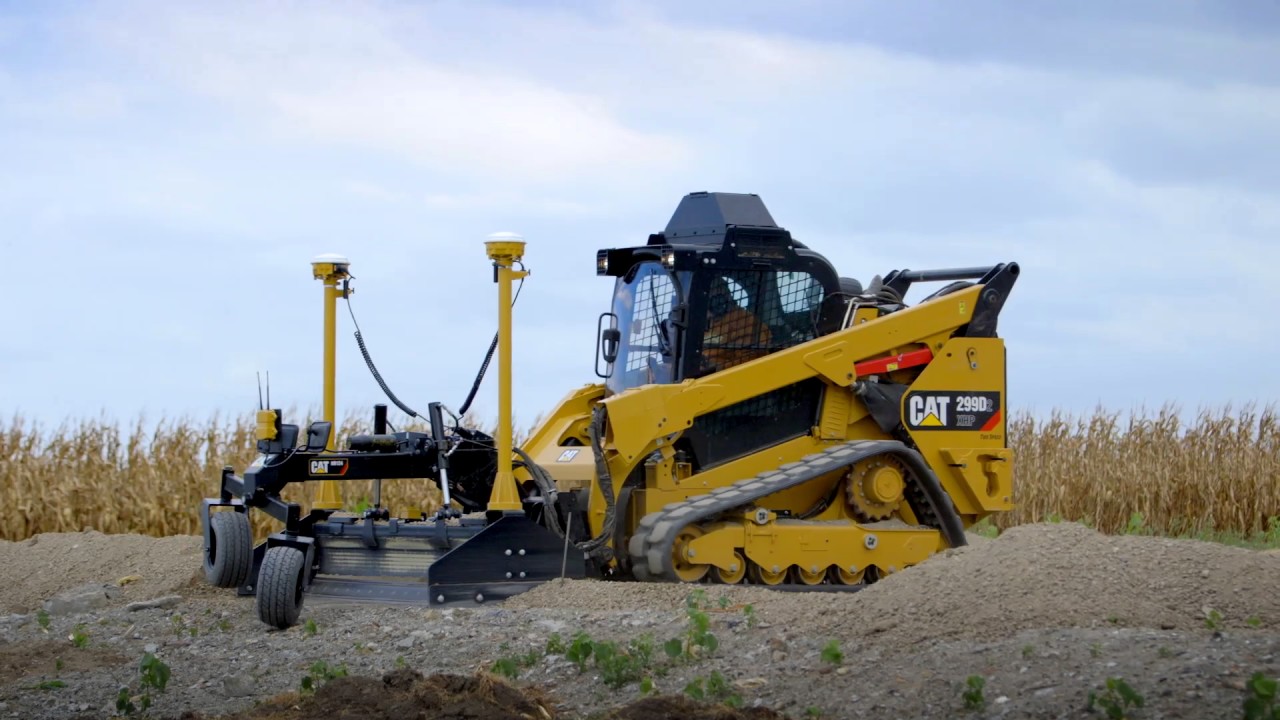

AccuGrade™ ready, the Box Blade is designed for grading and leveling of large commercial properties, housing pads, roadways, and parking lots.
Front and rear curved moldboards allow for material to roll and fold, improving capacity and performance. Flowing material will easily find low spots and improve grading and leveling performance.
Wear indicating cutting edges feature 20% more wear material on the ground engaging section of the edge and also indicate when it is time to flip or replace the edge.
Dual parabolic mirrors provide full visibility to the front cutting edge allowing the operator to identify how much the blade is loading and see out to the corners of the Box Blade.
Technology components are centrally located and simply route to their respective harnesses back to this location on the tool. Then, a single harness routes to the control module in the cab or on the tool.
The hydraulic valve and ECM are enclosed and mounted within the frame of the tool, protected from damage.
Dual front wheels are mounted on an independent axle and on casters to provide stability in both directions of travel. These wheels are air filled and will provide balance for the blade in both automatic and manual operation.
These improve the life of the tool with reversible side cutters and replaceable box wings. Both are bolt-on for simple replacement.
Standard fixed masts provide great performance for single or dual laser technology configurations as well as supporting 3D technology.
Serrated bolt-on step provides safe ingress and egress from machine cab. Additional weld-on serrated steps on the blade ensure safe receiver adjustment, install, or removal.
Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.
