Heavy Rock Bucket 18 m³ (23.5 yd³) - 601-1886

Request A Price Find Dealer

Key Specs

Material Density: 3708 lb/yd³; 2.2 t/m³

Wear Package: Extreme Duty - Impact; Extreme Duty - Impact

Ground Engaging Tool (GET) System: Cat W900R; Cat W900R

18 m³ (23.5 yd³) - 601-1886
Change model

Overview

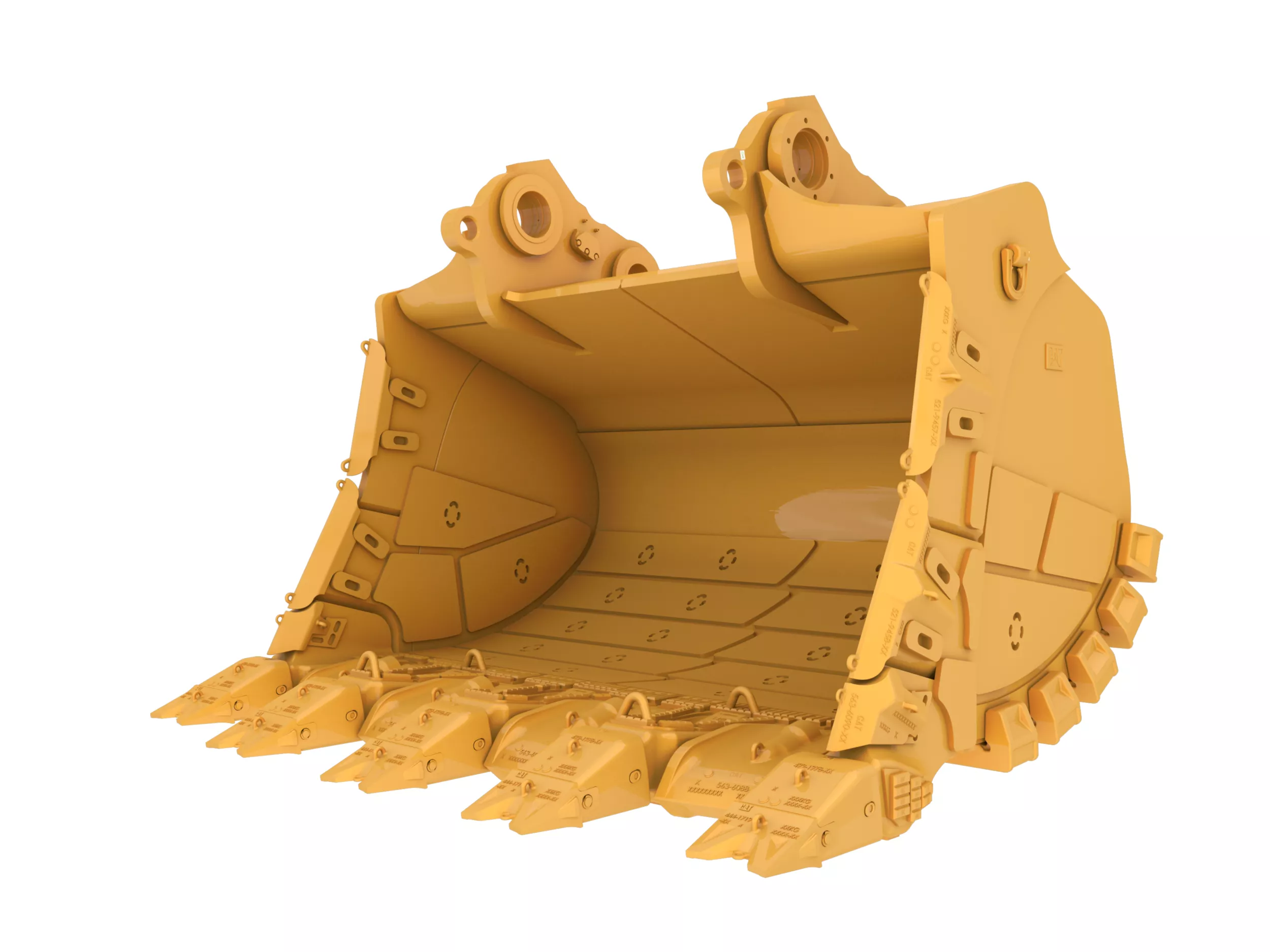

18 m³ (23.5 yd³) Heavy Rock bucket for the 6040 Hydraulic Mining Shovel

Features At A Glance

Displaying 1-6 of 4

Optimum Productivity

A perfect match to the Cat Hydraulic Mining Shovels. Designed to give excellent payload and matched to the power of Cat machines for a long service life.

Efficient

Pass matched to Cat and Unit Rig trucks for an efficient system at your mine site.

Max Payload

Rated with ISO 7451 payload standards with a 1:1 heap ratio

The Support You Need

Cat buckets are fully covered by the Cat dealer network for round the clock support.

A perfect match to the Cat Hydraulic Mining Shovels. Designed to give excellent payload and matched to the power of Cat machines for a long service life.

Pass matched to Cat and Unit Rig trucks for an efficient system at your mine site.

Rated with ISO 7451 payload standards with a 1:1 heap ratio

Cat buckets are fully covered by the Cat dealer network for round the clock support.

Product Specifications for 18 m³ (23.5 yd³) - 601-1886

Material Density	3708 lb/yd³ 2.2 t/m³
Wear Package	Extreme Duty - Impact Extreme Duty - Impact
Ground Engaging Tool (GET) System	Cat W900R Cat W900R
Machine Model	6040 6040
Capacity	23.5 yd³ 18 m³
Weight	53,127 lb 24 098 kg
Outer Width	166.1 in 4220 mm
Inner Width	148 in 3760 mm

Product Specifications for 18 m³ (23.5 yd³) - 601-1886

Download Print

Material Density	3708 lb/yd³ 2.2 t/m³
Wear Package	Extreme Duty - Impact Extreme Duty - Impact
Ground Engaging Tool (GET) System	Cat W900R Cat W900R
Machine Model	6040 6040
Capacity	23.5 yd³ 18 m³
Weight	53,127 lb 24 098 kg
Outer Width	166.1 in 4220 mm
Inner Width	148 in 3760 mm
