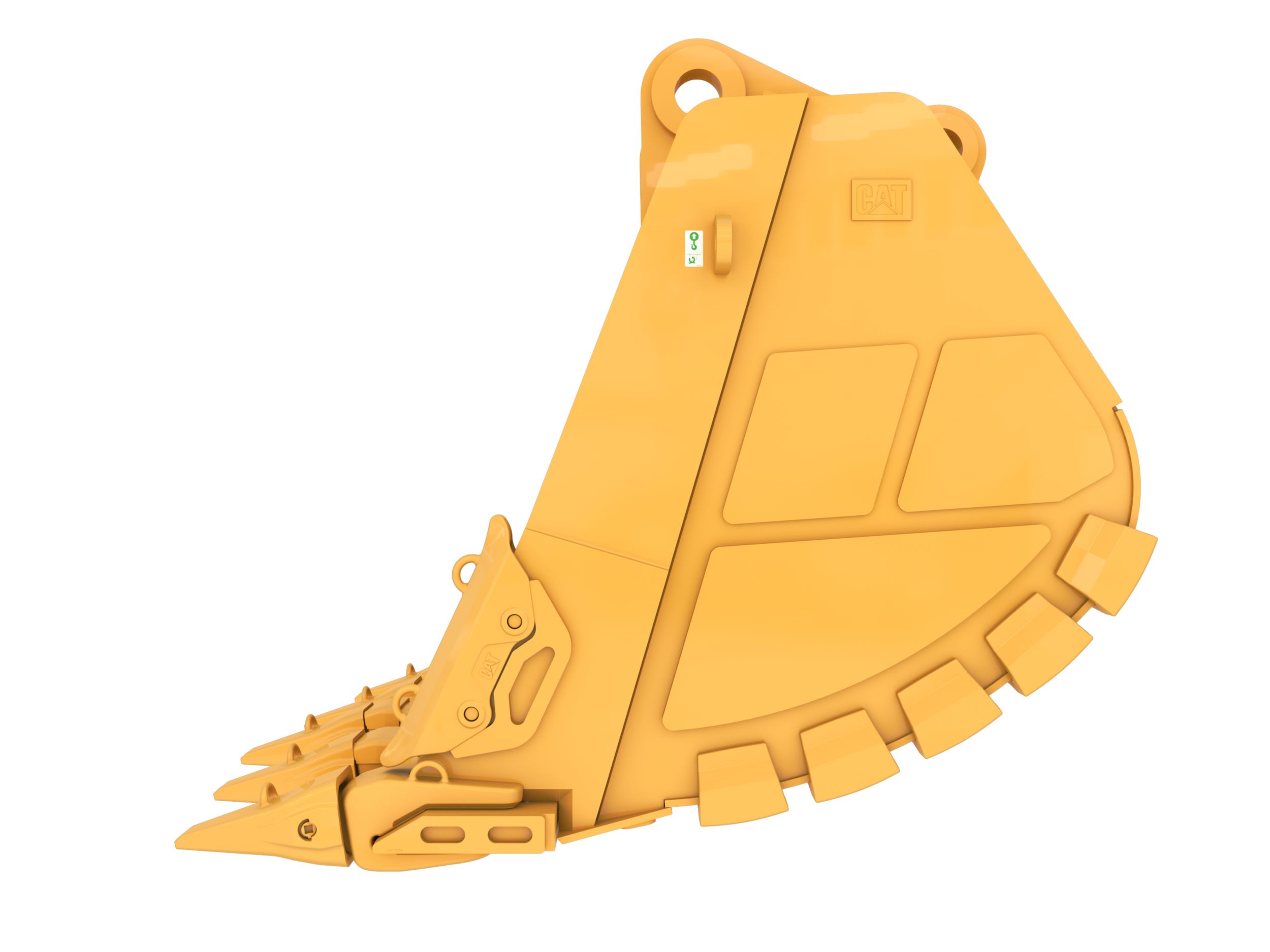

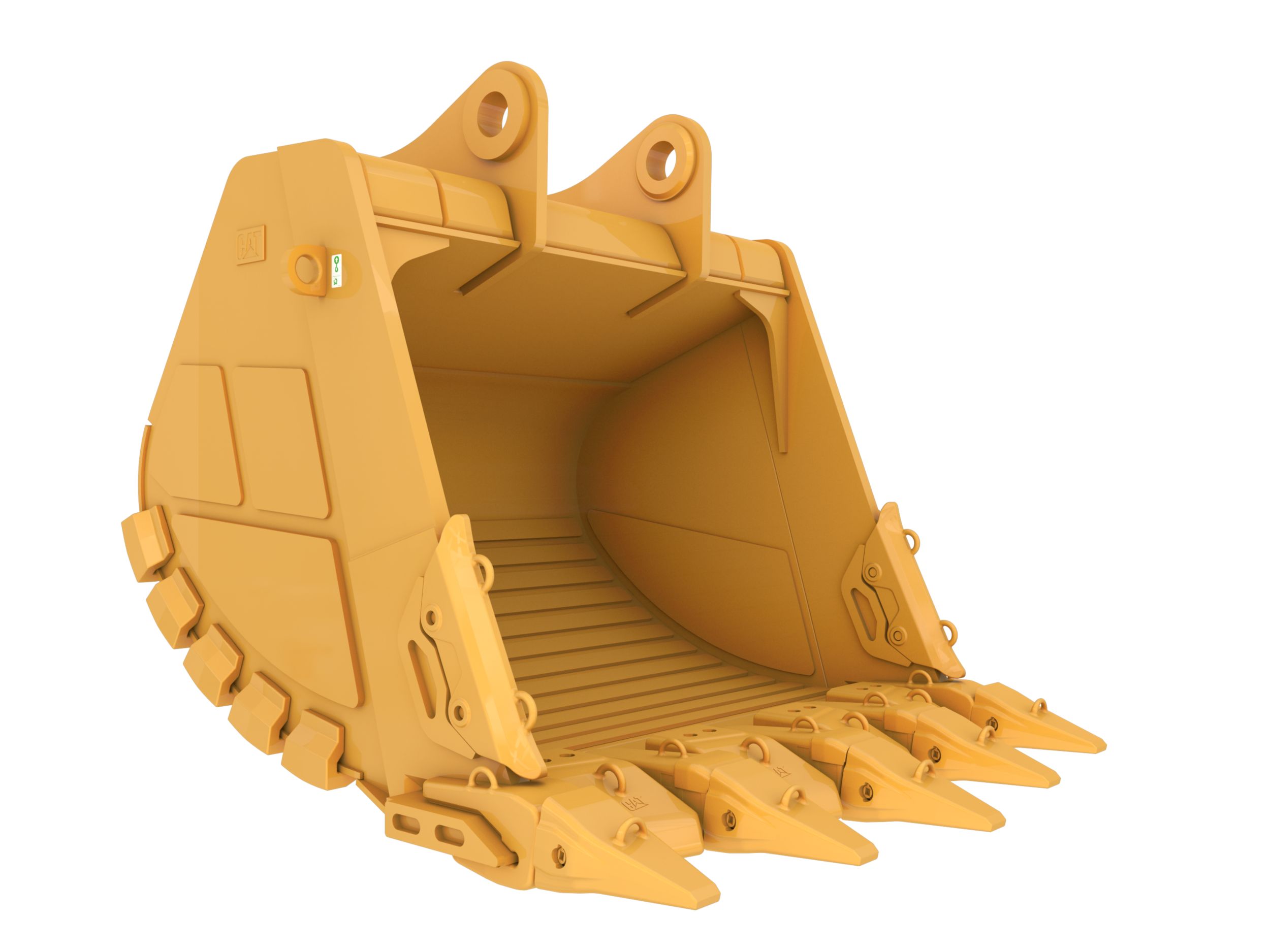

458-3407_7.4 m³ (9.7 yd³) Standard Rock Bucket

Standard Rock Bucket 7.4 m³ (9.7 yd³) - 458-3407

Request A Price Find Dealer

Key Specs

Material Density: 3034 lb/yd³; 1.8 t/m³

Wear Package: Heavy Duty - Impact; Heavy Duty - Impact

Ground Engaging Tool (GET) System: Cat M75; Cat M75

7.4 m³ (9.7 yd³) - 458-3407
Change model

Overview

Cat Standard Rock buckets are production-oriented buckets designed for use in medium-density material, which can stick to the walls of other buckets. Standard Rock buckets come equipped with wear protection for the leading edges and heel. Wear plates are usually Quenched and Tempered for maximum durability in high-impact conditions.

Benefits

Efficient

Sized and designed to work as part of a machine loading system, for high productivity and the lowest cost per ton.

Maximum Payload

A wide variety of sizes and wear packages are available, so you can ideally match your bucket and GET to your application.

Fully Supported

Cat mining buckets are fully supported by the Cat dealer network for round the clock support.

Product Specifications for 7.4 m³ (9.7 yd³) - 458-3407

Material Density	3034 lb/yd³ 1.8 t/m³
Wear Package	Heavy Duty - Impact Heavy Duty - Impact
Ground Engaging Tool (GET) System	Cat M75 Cat M75
Machine Model	6015 6015
Capacity	9.7 yd³ 7.4 m³
Weight	19024 lb 8629 kg
Outer Width	105.6 in 2682 mm
Inner Width	90.3 in 2294 mm

Product Specifications for 7.4 m³ (9.7 yd³) - 458-3407

Download Print

Material Density	3034 lb/yd³ 1.8 t/m³
Wear Package	Heavy Duty - Impact Heavy Duty - Impact
Ground Engaging Tool (GET) System	Cat M75 Cat M75
Machine Model	6015 6015
Capacity	9.7 yd³ 7.4 m³
Weight	19024 lb 8629 kg
Outer Width	105.6 in 2682 mm
Inner Width	90.3 in 2294 mm
