Key Specs
Cat Standard Rock buckets are production-oriented buckets designed for use in medium-density material, which can stick to the walls of other buckets. Standard Rock buckets come equipped with wear protection for the leading edges and heel. Wear plates are usually Quenched and Tempered for maximum durability in high-impact conditions.
Sized and designed to work as part of a machine loading system, for high productivity and the lowest cost per ton.
A wide variety of sizes and wear packages are available, so you can ideally match your bucket and GET to your application.
Cat mining buckets are fully supported by the Cat dealer network for round the clock support.
| Material Density | 3034 lb/yd³ 1.8 t/m³ |
| Wear Package | Standard Duty Standard Duty |
| Ground Engaging Tool (GET) System | Cat W900R Cat W900R |
| Machine Model | 6060 6060 |
| Capacity | 44.5 yd³ 34 m³ |
| Weight | 76412 lb 34660 kg |
| Outer Width | 187.4 in 4761 mm |
| Inner Width | 169.3 in 4300 mm |

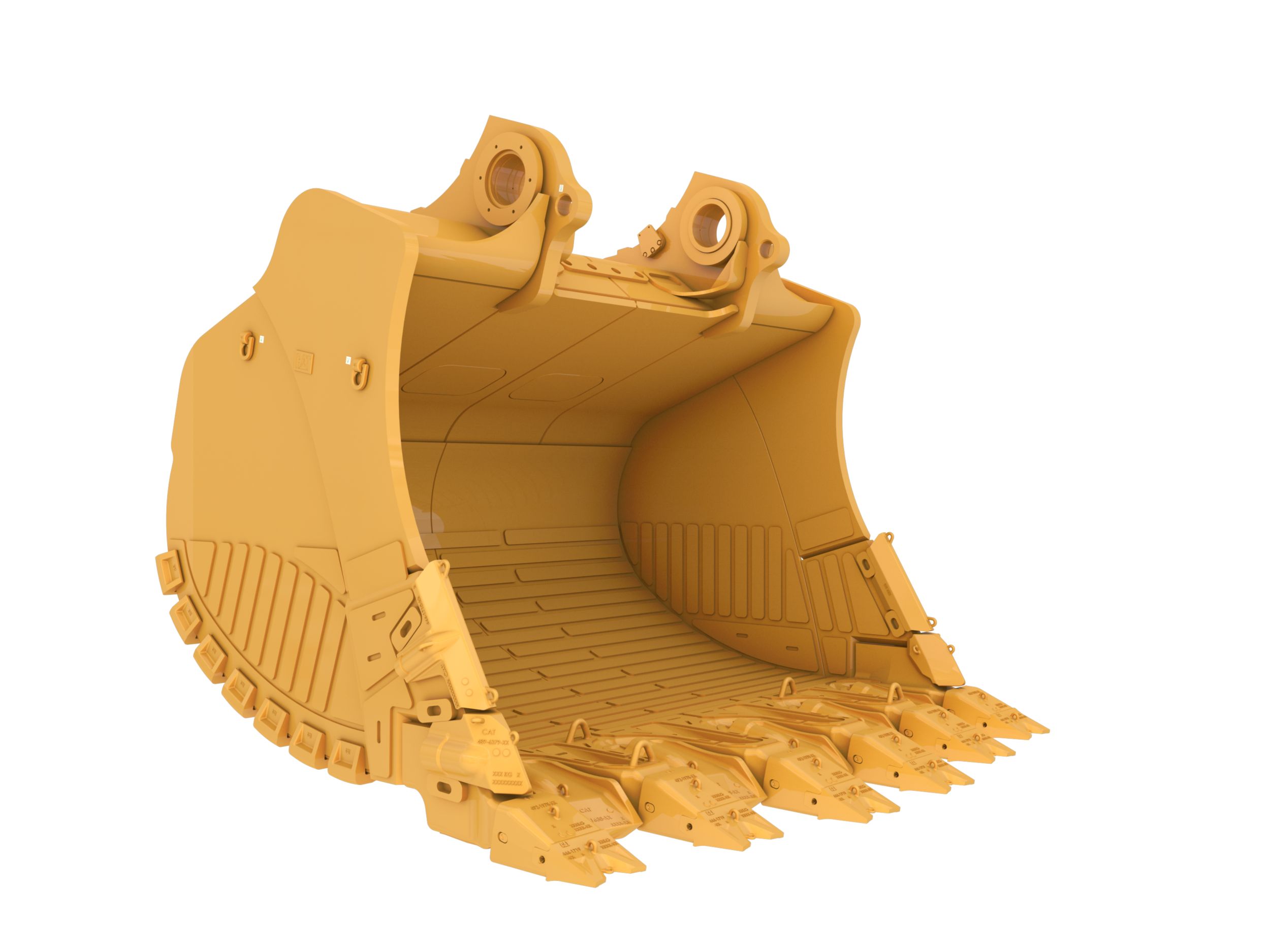

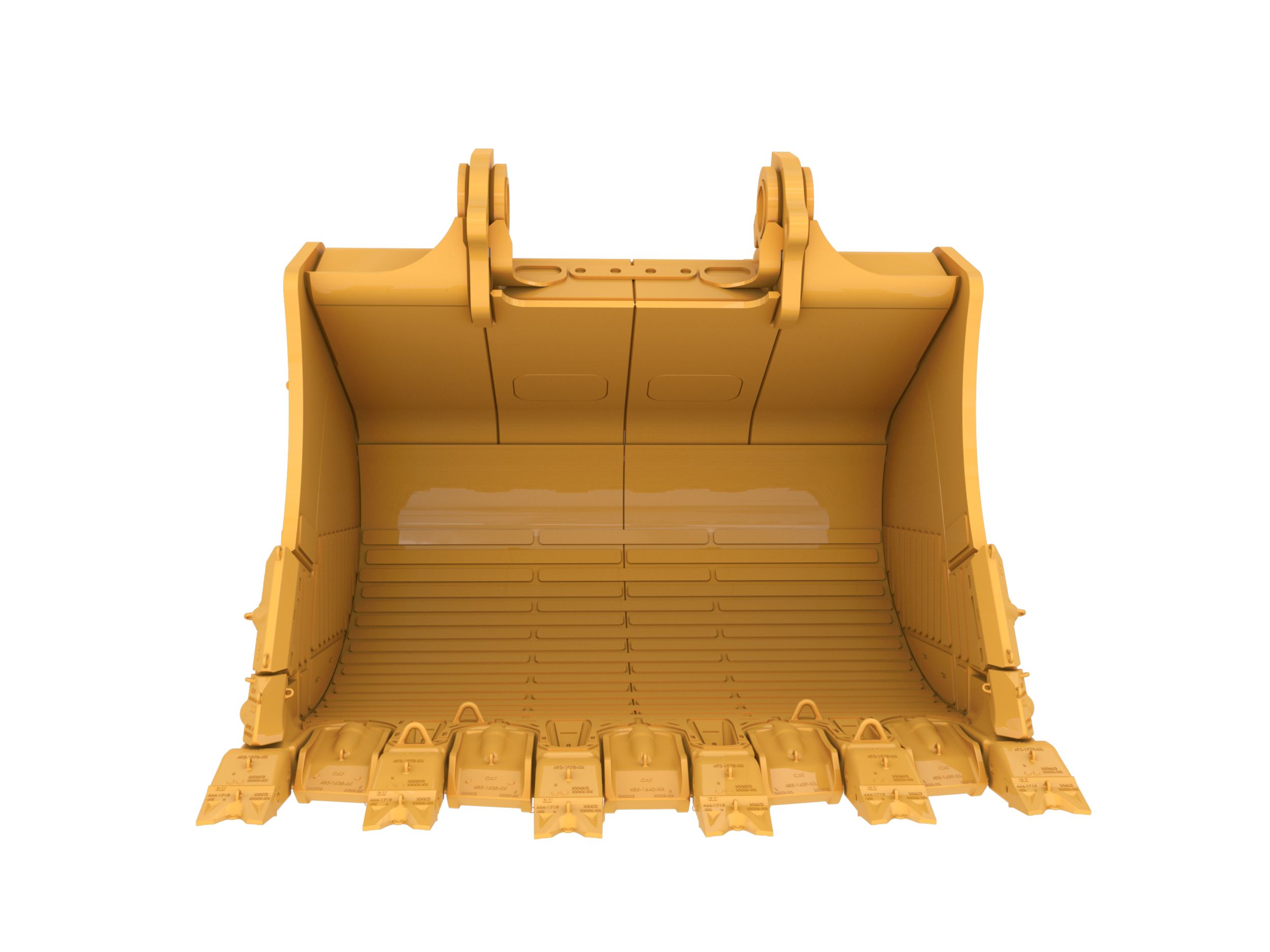

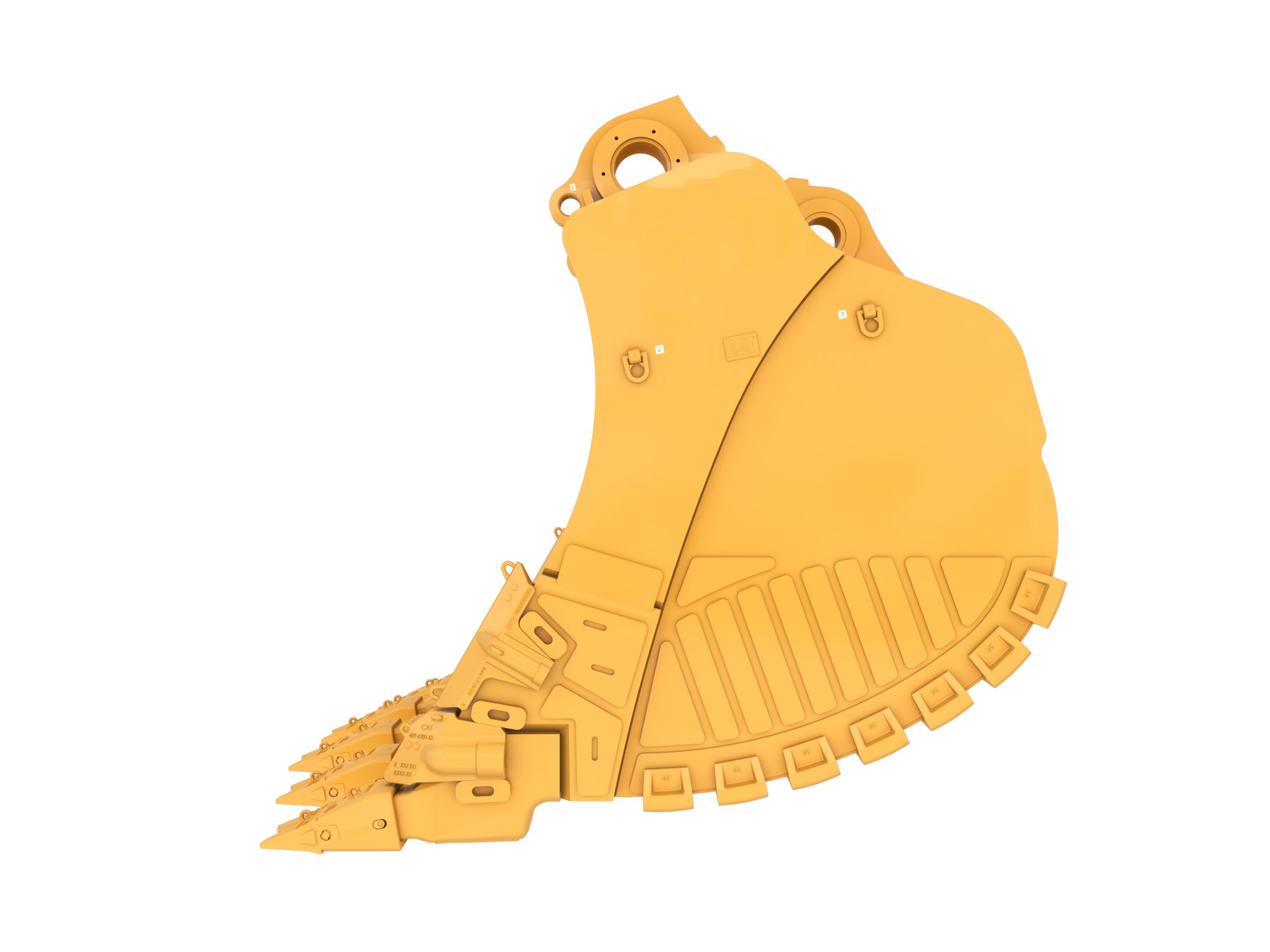

504-9719_34 m³ (44.5 yd³) Standard Rock Bucket
504-9719_34 m³ (44.5 yd³) Standard Rock Bucket
504-9719_34 m³ (44.5 yd³) Standard Rock Bucket
504-9719_34 m³ (44.5 yd³) Standard Rock Bucket
504-9719_34 m³ (44.5 yd³) Standard Rock Bucket
Loading System
