Key Specs

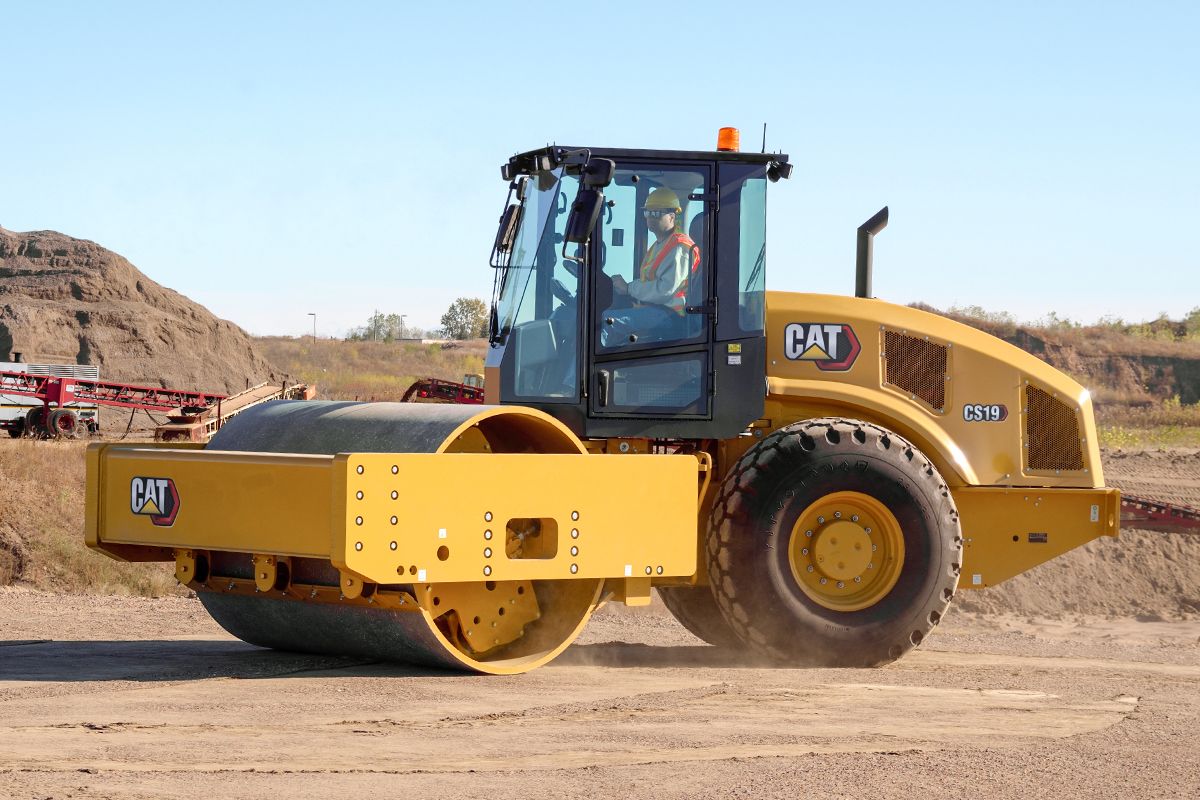

The Cat® CS19 Vibratory Soil Compactor features a smooth drum and is ideally suited for granular soil applications or cohesive soil applications with the use of an optional padfoot shell kit. A reliable propel system improves performance and efficiency and compaction technology solutions help you reach target density faster.
Eco-Mode, no-maintenance hitch with sealed-for-life bearings and extended service intervals help keep your operating and maintenance costs low.
On-board compaction measurement technology indicates when specifications are met helping to eliminate guesswork, reduce unnecessary passes and minimize rework.
A rear vision camera enhances visibility around the machine and a pivoting seat with integrated controls and tiltable steering console provide an ergonomic work environment.
Displaying 1-6 of 6
| Operating Weight - With Cab | 41403 lb 18780 kg |
| Operating Weight - With Sun Canopy | 40278 lb 18270 kg |
| Operating Weight - With ROPS/FOPS Canopy | 40664 lb 18445 kg |
| Weight - Drum with Cab | 29304 lb 13292 kg |
| Weight - Drum with Sun Canopy | 29233 lb 13260 kg |
| Weight - Drum with ROPS/FOPS Canopy | 29355 lb 13315 kg |
| Note (1) | Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. Cab weights include heat and air conditioning. Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. Cab weights include heat and air conditioning. |
| Compaction Width | 84 in 2134 mm |
| Overall Length | 20.1 ft 6.1 m |
| Overall Width | 8.1 ft 2.5 m |
| Maximum Height | 10.2 ft 3.1 m |
| Drum Diameter | 60.4 in 1534 mm |
| Wheel Base | 9.5 ft 2.9 m |
| Gross Power | 174.6 hp 130.2 kW |
| Engine Power - ISO 14396 | 173 hp 129 kW |
| Net Power - ISO 9249 | 145.5 hp 108.5 kW |
| Net Power - SAE J1349:2011 | 143.8 hp 107.2 kW |
| Note (1) | Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, and alternator. Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, and alternator. |
| Engine Model | Cat® C7.1 Cat® C7.1 |
| Emissions | U.S. EPA Tier 3, EU Stage IIIA equivalent U.S. EPA Tier 3, EU Stage IIIA equivalent |
| Stroke | 5.3 in 135 mm |
| Bore | 4.1 in 105 mm |
| Vibratory Frequency - Standard | 1680 VPM 28 Hz |
| Variable Frequency Option Range | 23.3 - 28 Hz (1400-1680 vpm) 23.3 - 28 Hz (1400-1680 vpm) |
| Nominal Amplitude - High | 0.083 in 2.1 mm |
| Nominal Amplitude - Low | 0.039 in 0.98 mm |
| Centrifugal Force - Maximum | 75234 lb 335 kN |
| Centrifugal Force - Minimum | 35163 lb 156 kN |
| Static Linear Load - With Cab | 348.8 lb/in 62.3 kg/cm |
| Static Linear Load - With Sun Canopy | 348 lb/in 62.1 kg/cm |
| Static Linear Load - With ROPS/FOPS Canopy | 349.4 lb/in 62.4 kg/cm |
| Ground Clearance | 16.8 in 427 mm |
| Curb Clearance | 21.1 in 535 mm |
| Turning Radius - Inside Drum Edge | 12.1 ft 3.7 m |
| Travel Speed - Maximum | 7.1 mile/h 11.4 km/h |
| Fuel Tank Capacity | 87.7 gal (US) 332 l |
| Cooling System | 7.5 gal (US) 28.3 l |
| Engine Oil - With Filter | 4.6 gal (US) 17.4 l |
| Eccentric Weight Housings (combined) | 6.9 gal (US) 26 l |
| Axle and Final Drives | 6.3 gal (US) 24 l |
| Hydraulic Tank | 13.2 gal (US) 50 l |
| Recyclability | 96% 96% |
Use the comparison tool to compare detailed specs of Cat and competitor models.
Compare All ModelsCS19 Vibratory Soil Compactor
CS19 Vibratory Soil Compactor
CS19 Vibratory Soil Compactor
CS19 Vibratory Soil Compactor
CS19 Vibratory Soil Compactor
CS19 Vibratory Soil Compactor
CS19 Vibratory Soil Compactor
CS19 Vibratory Soil Compactor
Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.
Compaction Meter Value is an accelerometer-based system that provides an indication of material stiffness. The system is available on smooth drum vibratory soil compactors and tandem vibratory asphalt compactors. It measures only when the vibratory system is active, and provides a unitless value derived from the recorded data that indicates composite stiffness.
Cat Compaction with Machine Drive Power (MDP) is an energy-based measurement system that correlates compaction with rolling resistance to provide an indication of soil stiffness. An optional mapping system helps operators visualize work as it occurs.
Compaction Meter Value is an accelerometer-based system that provides an indication of material stiffness. The system is available on smooth drum vibratory soil compactors and tandem vibratory asphalt compactors. It measures only when the vibratory system is active, and provides a unitless value derived from the recorded data that indicates composite stiffness.
Cat Compaction with Machine Drive Power (MDP) is an energy-based measurement system that correlates compaction with rolling resistance to provide an indication of soil stiffness. An optional mapping system helps operators visualize work as it occurs.
Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.
VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.
Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.
VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.
