Key Specs

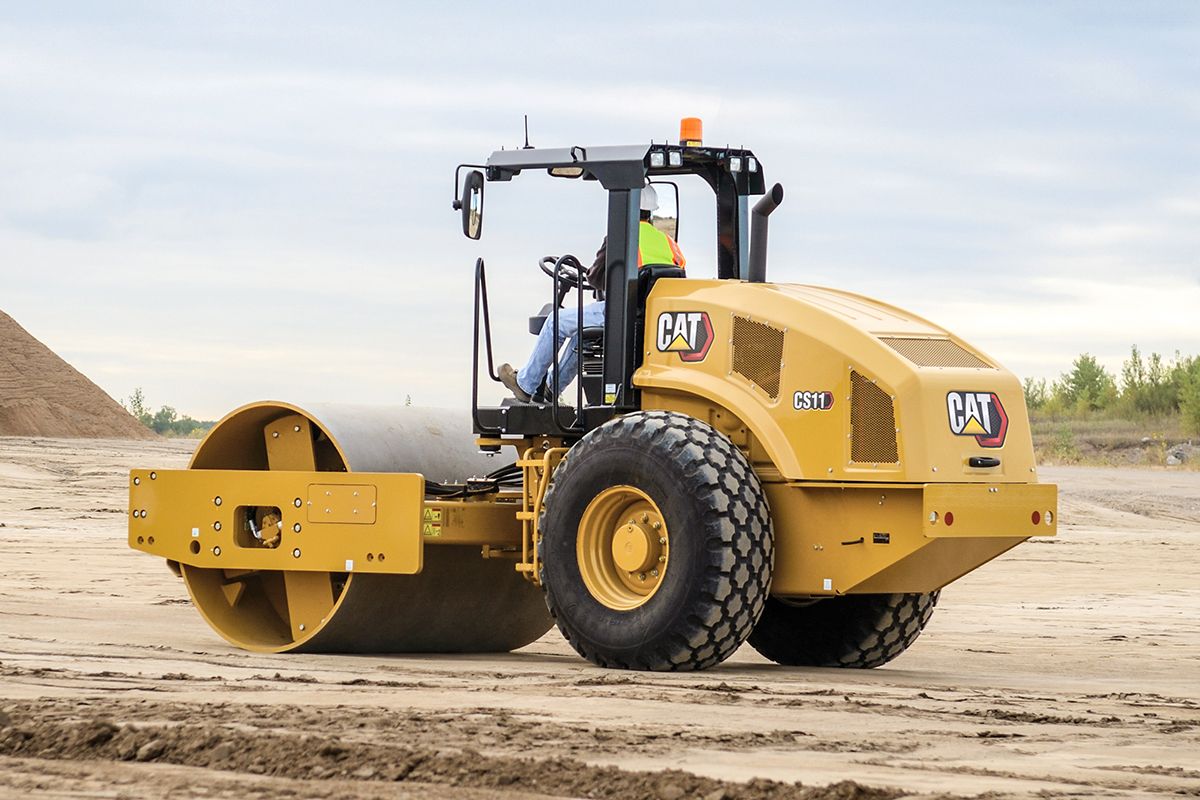

The Cat® CS11 Vibratory Soil Compactor features a smooth drum and is ideally suited for granular soil applications or cohesive soil applications with the use of an optional padfoot shell kit. A reliable propel system improves performance and efficiency and compaction technology solutions help you reach target density faster.
Eco-Mode, no-maintenance hitch with sealed-for-life bearings and extended service intervals help keep your operating and maintenance costs low.
On-board compaction measurement technology indicates when specifications are met helping to eliminate guesswork, reduce unnecessary passes and minimize rework.
A rear vision camera enhances visibility around the machine and a pivoting seat with integrated controls and tiltable steering console provide an ergonomic work environment.
Displaying 1-6 of 6
| Operating Weight - With Cab | 23823 lb 10806 kg |
| Operating Weight - With Sun Canopy | 22223 lb 10080 kg |
| Operating Weight - With ROPS/FOPS Canopy | 23380 lb 10605 kg |
| Weight - Drum with Cab | 12963 lb 5880 kg |
| Weight - Drum with Sun Canopy | 12544 lb 5690 kg |
| Weight - Drum with ROPS/FOPS Canopy | 12758 lb 5787 kg |
| Note (1) | Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. Cab weights include heat and air conditioning. Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. Cab weights include heat and air conditioning. |
| Compaction Width | 84 in 2134 mm |
| Overall Length | 19.2 ft 5.9 m |
| Overall Width | 7.5 ft 2.3 m |
| Maximum Height | 10.2 ft 3.1 m |
| Drum Diameter | 60.4 in 1534 mm |
| Wheel Base | 9.5 ft 2.9 m |
| Gross Power | 130.2 hp 97.1 kW |
| Engine Power - ISO 14396 | 129.4 hp 96.5 kW |
| Net Power - ISO 9249 | 114.4 hp 85.3 kW |
| Net Power - SAE J1349:2011 | 113 hp 84.3 kW |
| Note (1) | Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator. Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator. |
| Engine Model | Cat® C4.4 Cat® C4.4 |
| Emissions | Brazil MAR-1, equivalent to U.S. EPA Tier 3 and EU Stage IIIA Brazil MAR-1, equivalent to U.S. EPA Tier 3 and EU Stage IIIA |
| Stroke | 5 in 127 mm |
| Bore | 4.1 in 105 mm |
| Vibratory Frequency - Standard | 1830 VPM 30.5 Hz |
| Variable Frequency Option Range | 23.3 - 30.5 Hz (1400-1830 vpm) 23.3 - 30.5 Hz (1400-1830 vpm) |
| Nominal Amplitude - High | 0.075 in 1.9 mm |
| Nominal Amplitude - Low | 0.038 in 0.96 mm |
| Centrifugal Force - Maximum | 54765 lb 244 kN |
| Centrifugal Force - Minimum | 27491 lb 122 kN |
| Static Linear Load - With Cab | 154.3 lb/in 27.6 kg/cm |
| Static Linear Load - With Sun Canopy | 149.3 lb/in 26.7 kg/cm |
| Static Linear Load - With ROPS/FOPS Canopy | 151.9 lb/in 27.1 kg/cm |
| Ground Clearance | 17 in 433 mm |
| Curb Clearance | 21.1 in 535 mm |
| Turning Radius - Inside Drum Edge | 12.1 ft 3.7 m |
| Travel Speed - Maximum | 6.8 mile/h 11 km/h |
| Fuel Tank Capacity | 63.9 gal (US) 242 l |
| Cooling System | 7.8 gal (US) 29.4 l |
| Engine Oil - With Filter | 2.5 gal (US) 9.5 l |
| Eccentric Weight Housings (combined) | 6.9 gal (US) 26 l |
| Axle and Final Drives | 4.8 gal (US) 18 l |
| Hydraulic Tank | 13.2 gal (US) 50 l |
| Recyclability | 96% 96% |
Use the comparison tool to compare detailed specs of Cat and competitor models.
Compare All ModelsCS11 Vibratory Soil Compactor
CS11 Vibratory Soil Compactor
CS11 Vibratory Soil Compactor
CS11 Vibratory Soil Compactor
CS11 Vibratory Soil Compactor
CS11 Vibratory Soil Compactor
CS11 Vibratory Soil Compactor
Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.
Compaction Meter Value is an accelerometer-based system that provides an indication of material stiffness. The system is available on smooth drum vibratory soil compactors and tandem vibratory asphalt compactors. It measures only when the vibratory system is active, and provides a unitless value derived from the recorded data that indicates composite stiffness.
Cat Compaction with Machine Drive Power (MDP) is an energy-based measurement system that correlates compaction with rolling resistance to provide an indication of soil stiffness. An optional mapping system helps operators visualize work as it occurs.
Compaction Meter Value is an accelerometer-based system that provides an indication of material stiffness. The system is available on smooth drum vibratory soil compactors and tandem vibratory asphalt compactors. It measures only when the vibratory system is active, and provides a unitless value derived from the recorded data that indicates composite stiffness.
Cat Compaction with Machine Drive Power (MDP) is an energy-based measurement system that correlates compaction with rolling resistance to provide an indication of soil stiffness. An optional mapping system helps operators visualize work as it occurs.
