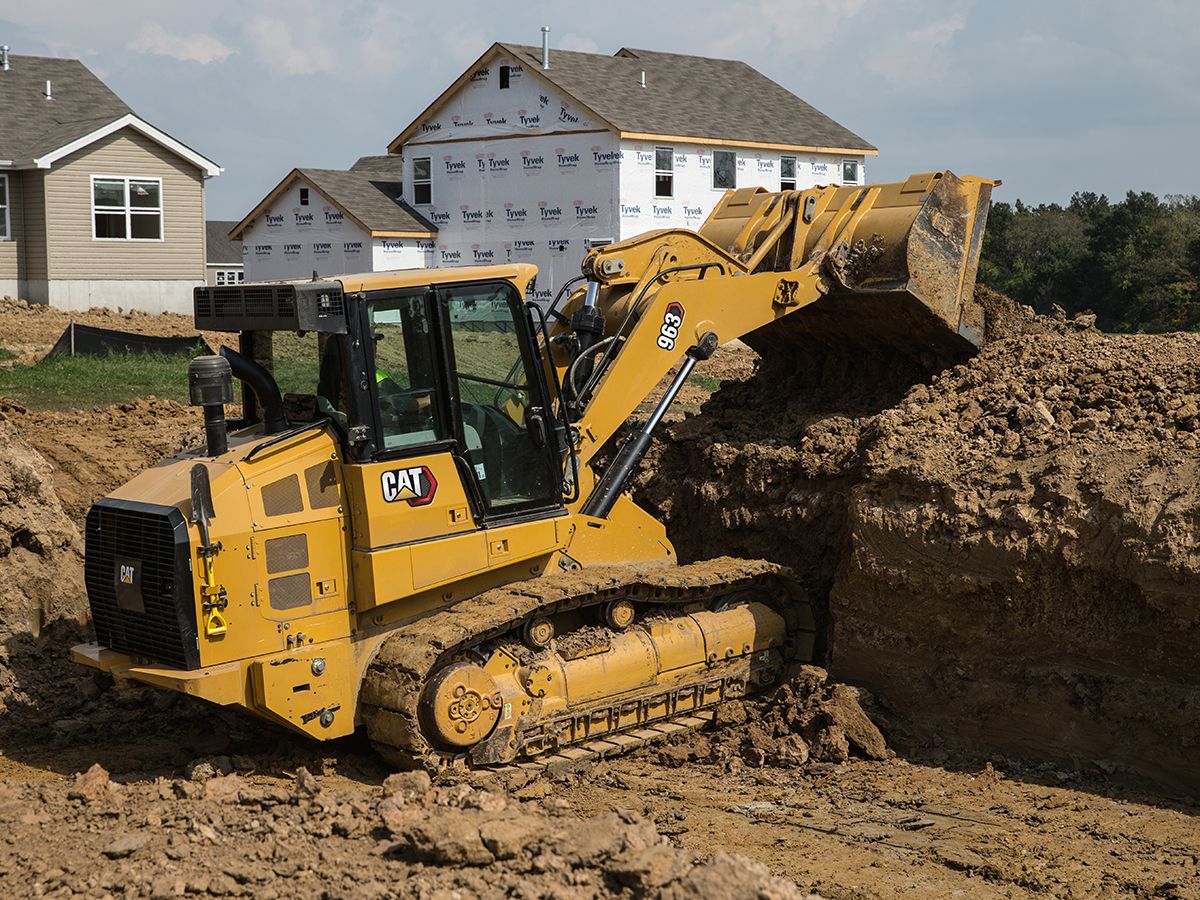

963

Track Loaders 963

Request A Price Find Dealer

Key Specs

Flywheel Power
202 HP
151 kW
Operating Weight
44881 lb
20358 kg
Capacity - General Purpose
3.2 yd³
2.5 m³

Overview

Ultimate Versatility, Powerful Package

Save money and transport time with one rugged machine that does it all – land clearing, digging, grading, truck loading, slope work and more. Crawler loaders give you lower ground pressure and better traction so you can start the job sooner, and work longer, in all kinds of underfoot conditions. Cat® Track Loaders give you all this, plus outstanding performance and fuel efficiency.

Benefits

ONE Machine, Many Jobs

One operator, one machine to dig, load, carry, fill and more. Fusion quick coupler for fast attachment changes. Purpose-built Waste, Low Ground Pressure, Ship Hold and Steel Mill loaders to get the job done.

Up To 10% Fuel Savings

Efficient Cat C7.1 engine. Automatic, Eco and Power modes match performance to the job to save you fuel. Remote Services and machine features help save on service and maintenance.

More Productivity

More power to the ground and Performance Series bucket option boost your power and productivity. Cat Payload technology helps optimize bucket loading for faster cycle times.

Product Specifications for 963

Flywheel Power 202 HP 151 kW
Engine Model Cat C7.1 Cat C7.1
Net Power - ISO 9249/SAE J1349 202 HP 151 kW
Net Power - ISO 9249 (DIN) 204 mhp 204 mhp
Emissions Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Tier 5, China Nonroad Stage IV, Japan 2014 emission standards or India Bharat Stage III, Eurasian Economic Union Stage IIIA, UN ECE R96 Stage IIIA emission standards, equivalent to U.S. EPA Tier 3/ EU Stage IIIA. Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Tier 5, China Nonroad Stage IV, Japan 2014 emission standards or India Bharat Stage III, Eurasian Economic Union Stage IIIA, UN ECE R96 Stage IIIA emission standards, equivalent to U.S. EPA Tier 3/ EU Stage IIIA.
Note (1) All Cat nonroad U.S. EPA Tier 4 Final, EU Stage V, Japan 2014, Korea Tier 5, and China Nonroad Stage IV diesel engines are required to use ULSD (ultra-low sulfur diesel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: ·20% biodiesel FAME (fatty acid methyl ester)*, ·100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 30% biodiesel. All Cat nonroad U.S. EPA Tier 4 Final, EU Stage V, Japan 2014, Korea Tier 5, and China Nonroad Stage IV diesel engines are required to use ULSD (ultra-low sulfur diesel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: ·20% biodiesel FAME (fatty acid methyl ester)*, ·100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 30% biodiesel.
Note (2) Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions Module (when equipped) and alternator. Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions Module (when equipped) and alternator. Advertised power is tested per the specified standard in effect at the time of manufacture.
Operating Weight 44881 lb 20358 kg
Fuel Tank 84.5 gal (US) 320 l
DEF Tank 4.2 gal (US) 16 l
Operating Weight 44881 lb 20358 kg
Width of Standard Shoe 22 in 550 mm
Ground Contact Area 4900 in² 3.2 m²
Ground Pressure 9.1 psi 63 kPa
Operating Weight 50181 lb 22762 kg
Width of Standard Shoe 31 in 800 mm
Ground Contact Area 7136 in² 4.6 mm²
Ground Pressure 7 psi 48.5 kPa
Operating Weight 45549 lb 20661 kg
Width of Standard Shoe 22 in 550 mm
Ground Contact Area 4900 in² 3.2 m²
Ground Pressure 9.2 psi 63.3 kPa
Overall Machine Length* 275.6 in 7001 mm
Machine Height - Top of Cab 130.9 in 3325 mm
Height - Top of Stack 115.7 in 2940 mm
Overall Machine Height - Bucket Fully Raised 212.7 in 5402 mm
Overall Machine Width without Bucket: With Standard Tracks - 550 mm (21.6 in) Shoes 94.5 in 2400 mm
Note *With General Purpose bucket and extra duty teeth. *With General Purpose bucket and extra duty teeth.
Track Gauge 72.8 in 1850 mm
Track on Ground 100 in 2542 mm
Track Rollers/Shoes - Each Side 7 / 38 7 / 38
Capacity - General Purpose 3.2 yd³ 2.5 m³
Capacity - Multi-Purpose 2.6 yd³ 2 m³
Capacity - Performance Series 3.7 yd³ 2.8 m³
Width - General Purpose 101.2 in 2571 mm
Width - Multi-Purpose 101.3 in 2575 mm
Width - Performance Series 105.2 in 2671 mm
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.1 kg of refrigerant which has a CO2 equivalent of 1.573 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.1 kg of refrigerant which has a CO2 equivalent of 1.573 metric tonnes.

963 Standard Equipment

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

Power Train

  • Cat C7.1 Diesel Engine
  • Hydraulic demand fan
  • Hydrostatic transmission
  • Load sensing implement pump
  • Modular cooling system

Operator Environment

  • 12V power outlet and 5V USB port
  • Adjustable armrests
  • Full-color 254 mm (10 in) liquid crystal touchscreen display
  • Grab handle on dash
  • Heat/Air conditioning
  • Integrated rearview HD camera
  • Lights - 4 halogen
  • Pressurized, sound suppressed, ROPS/FOPS Cab with tinted glass and sliding window
  • Radio ready
  • Storage areas throughout cab

Cat Technology

  • Slope Indicate
  • Product Link ready

Undercarriage

  • Caterpillar Heavy Duty undercarriage
  • Oscillating track roller frames

Buckets

  • Pin-on coupler
  • Cat Advansys bucket tips/Ground Engaging Tools

Service and Maintenance

  • 4 x 2 Easy tie-down points on chassis
  • Ecology drains
  • Ground level service center
  • Hinged radiator guard and swing out fan
  • Shovel holder

963 Optional Equipment

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

Power Train

  • Cat C7.1 diesel engine with engine-mounted aftertreatment to meet U.S. EPA Tier 4 Final, EU Stage V, Korea Tier 5, China Nonroad Stage IV, Japan 2014 emission standards
  • Cat C7.1 diesel engine to meet India Bharat Stage III, Eurasian Economic Union Stage IIIA, UN ECE R96 Stage IIIA emission standards, equivalent to Tier 3/Stage IIIA

Operator Environment

  • Communication radio ready - FM
  • Deluxe seat
  • Joystick or two-lever implement controls
  • Joystick or V-lever-and-pedal steering controls
  • LED flashing beacon
  • Lights - 2 LED front/bottom of cab, access light
  • Lights - 8 LED
  • Premium seat
  • Radio AM/FM Bluetooth
  • Radio AM/FM/DAB+ Bluetooth
  • Radio AM/FM/Sirius XM Bluetooth
  • Special application cab with dual pane/polycarbonate window

Cat Technology

  • Remote Flash/Remote Troubleshoot
  • Product Link, Cellular
  • Product Link -- Dual Cellular/Satellite
  • Cat Payload (available early 2023)
  • Grade control mast

Undercarriage

  • Cat Abrasion undercarriage
  • Single, Double or Triple Grouser track shoes
  • Waste or Low Ground Pressure (LGP) undercarriage

Buckets

  • Fusion quick coupler
  • General Purpose bucket
  • Landfill bucket
  • Multi-Purpose bucket
  • Performance bucket

Service and Maintenance

  • Cold weather package
  • Fast fuel fill
  • High Speed oil change
  • Hydraulic reversing fan
  • Hydraulic tilt cab
  • Refueling pump
  • Underhood work light

Attachments

  • Bumper
  • Counterweights
  • Multi-shank ripper
  • Ripper hitch
  • Ripper-ready rear hydraulics
  • Striker bar box

Special Arrangements

  • Low Ground Pressure (LGP) Arrangement
  • Waste Handler
  • Ship Hold Arrangement
  • Steel Mill Arrangement
