Overview

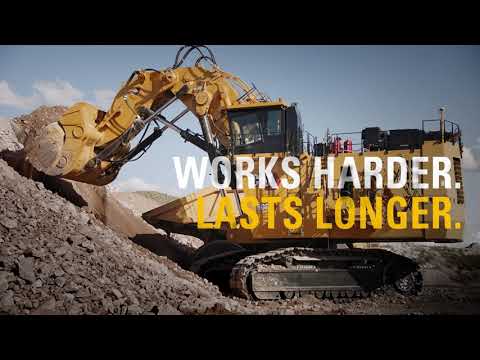

Works Harder. Lasts Longer

The Cat^® 6060 Hydraulic Mining Shovel is the industry’s most popular hydraulic shovel in its size class. And for good reason. With its rated payload of 61 tonnes (67 tons), the Cat 6060 was the first shovel in the mining industry tailor-made for mines using 240-ton (218-tonne) haul trucks, providing an efficient truck-shovel system solution to meet production capacity in these environments. Today's 6060 remains the ideal shovel for these applications, with improvements and enhancements in durability and reliability to deliver the uptime you demand. And its powerful engine and efficient hydraulic system allow higher working speeds for fast cycle times. The result is higher productivity and lower overall owning and operating costs.

Benefits

More than 40% Greater Visibility

With clear views to the digging and loading areas as well as the tracks

Up to 15% Fuel Reduction

In both face shovel and backhoe configurations

Improved Uptime & Durability

With 5% weight increase to critical structures

Features At A Glance

Excellent visibility thanks to cab position that provides clear view to the digging and loading areas, floor window that provides a view to the tracks, LED lighting, and optional camera monitoring system.
Emergency egress ladder with a self-closing door located in direct proximity to the cab.
Safer access with 45-degree powered access stairway that features emergency lowering via a nitrogen accumulator, which ensures it remains operational even when engines shut off.
Safer electrical and/or mechanical maintenance thanks to lockable starter and battery isolation switch cabinet.
Safer service with improved sealing between engines and hydraulic pumps, improved routing and separation of hydraulic lines and electric cables.

Improved operator comfort with Cat Next Gen heated and cooled seat and integrated joysticks.
First-in-class and patented 3-seat design, including elevated full-size trainer’s seat and laptop work desk.
New and improved air conditioning system.
Reduced noise and temperature control thanks to superior insulation.
Productivity-boosting Operator Assist – Enhanced Motion Control, which reduces fatigue and helps inexperienced operators more confidently load material.

Improved structures, including increased weight, strengthened superstructure and increased thickness in several locations.
33% longer service life for new and enlarged slew ring.
New undercarriage with long-life components, frame and electronics.
New crawler frame and Cat undercarriage with HD rollers, HD idlers, HD track, and track tensioning.
New and improved engine design that improves reliability and extends gallons consumed before first overhaul by 10%, which also contributes to longer engine life.

Up to 15% greater efficiency through Hydraulic Optimization, which dynamically assigns individual pumps or groups of pumps to deliver the exact flow and pressure that each hydraulic function requires.
Faster cycle times and improved energy efficiency delivered by closed-loop swing system, which also generates less heat.
Greater operator control thanks to five circuit hydraulics that allow for two cylinder motions, two travel motions, and swing to be controlled simultaneously.
Easier and faster face shovel operation with unique TriPower face shovel design, which generates superior mechanical leverage and control.

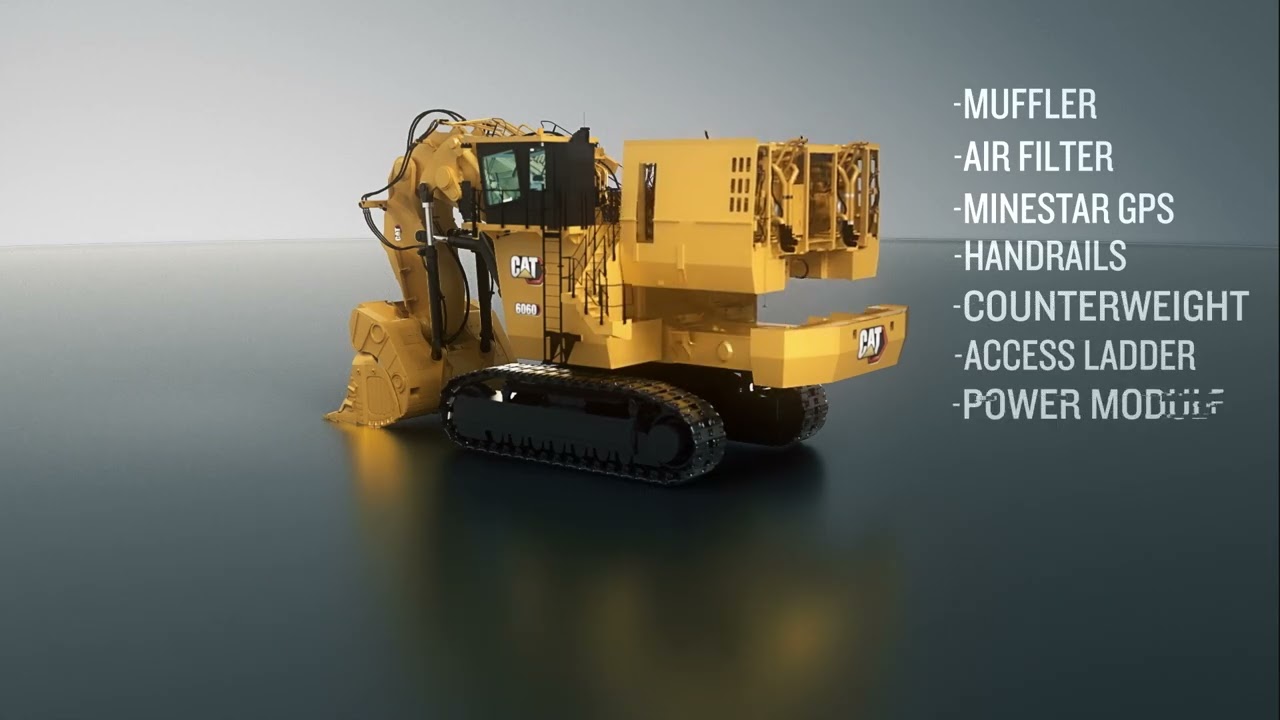

Increased productivity and greater uptime with the twin engine concept, which enables up to 65% of full production with a single engine.

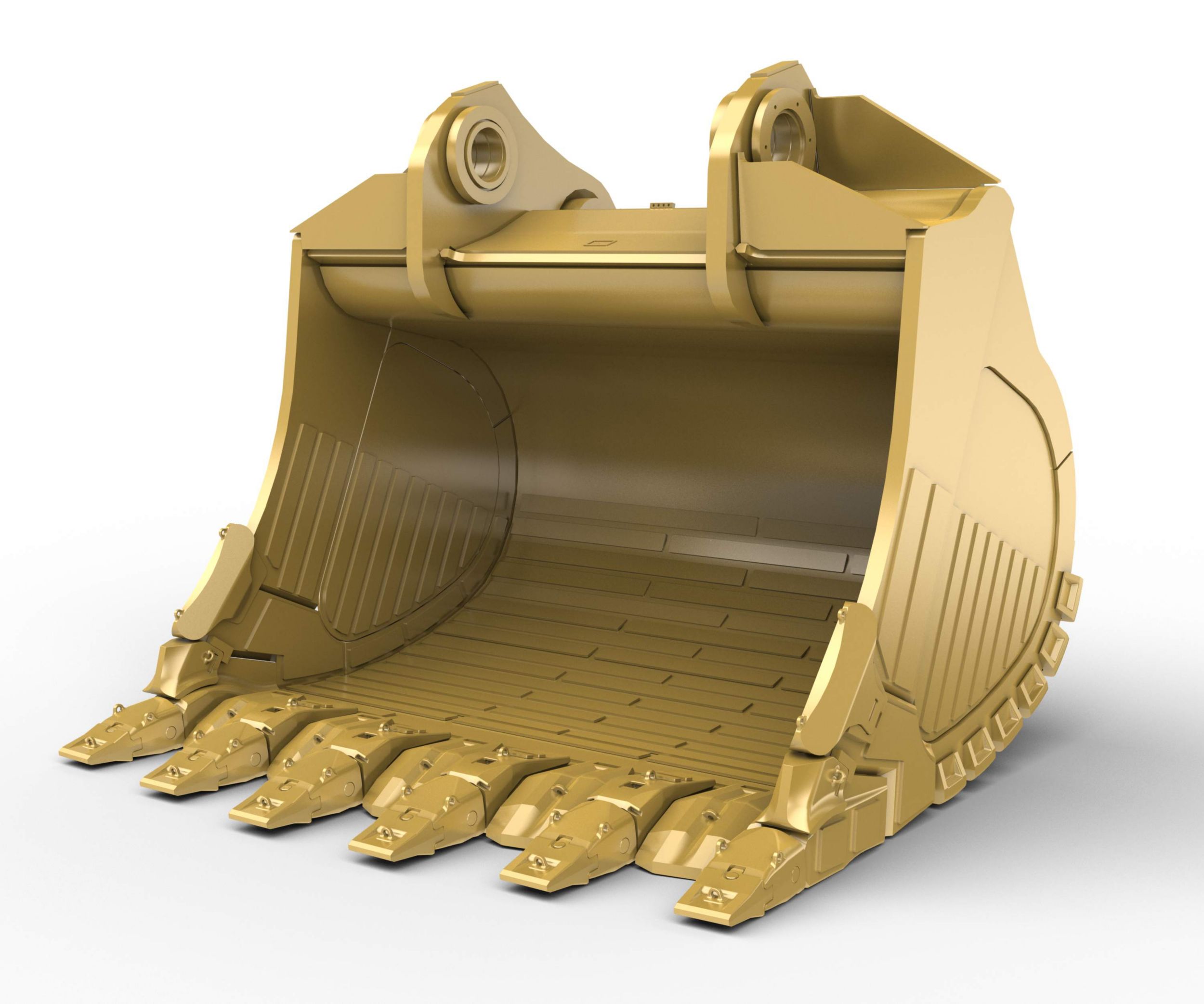

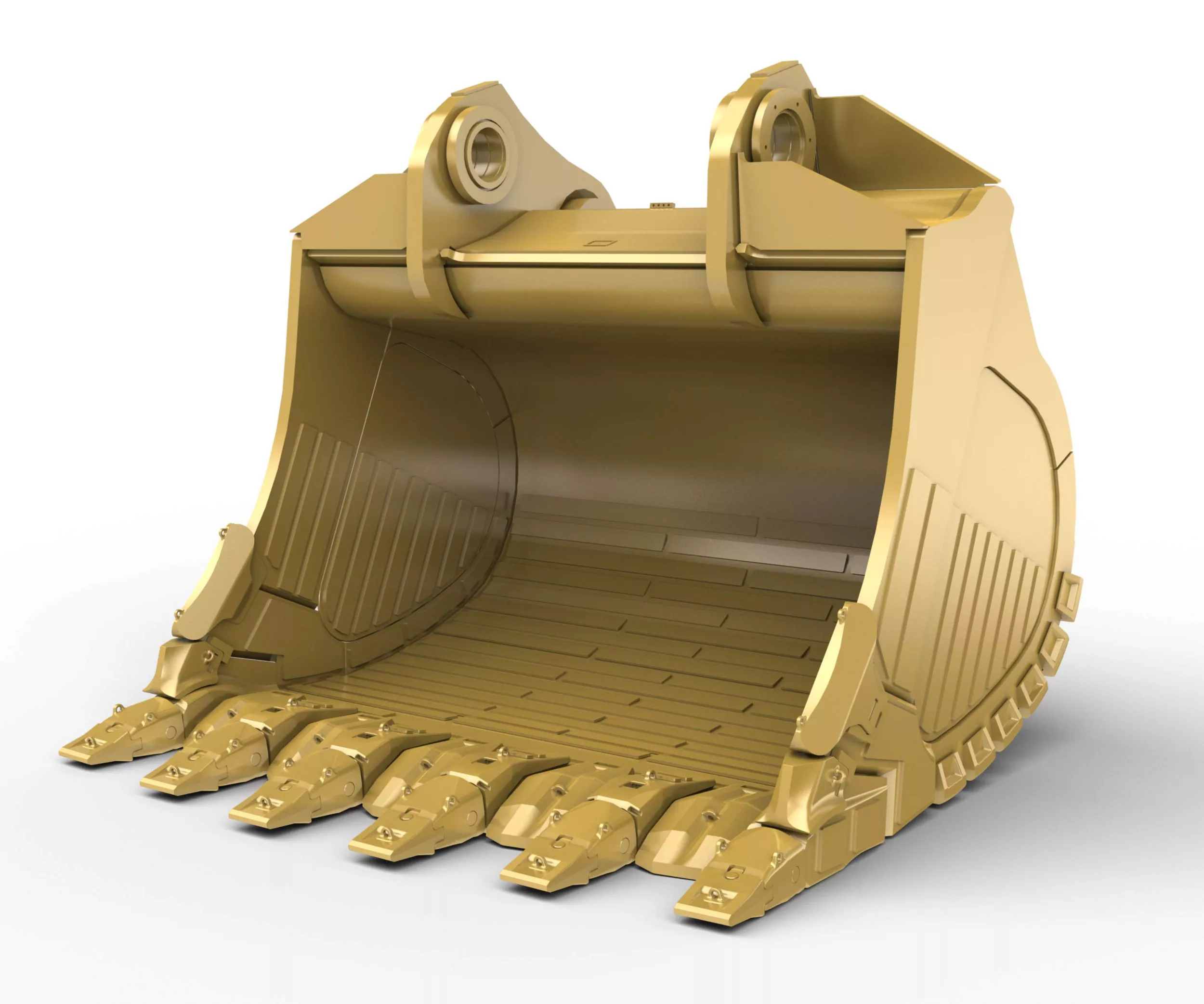

Buckets and ground engaging tools (GET) designed to maximize durability and productivity and ideally matched to your shovel and application.
Integrated to work as part of a machine system — helping you achieve high productivity and the lowest cost per ton.
Variety of sizes and material densities for the ideal match to your shovel and application.
Deliver optimal payload when combined with Cat GET and wear components.
Wear packages that protect your investment, including special liner material and lip shroud, wing shrouds and heel shrouds.

Greater connectivity with improved Product Link™ Elite system, which increases the availability of data provided by the 6060.
Additional performance and reliability advantages through integration of proven and validated Cat electronics.
Intuitive, informative onboard electronics that help operators be more productive.
Enhanced diagnostic capabilities and troubleshooting functions with factory-installed Monitoring and Diagnostic System.
Connectivity features and the integration of Cat MineStar™ Health offerings enable a proactive approach to maintenance.

More room in the service compartment, plus easy access to slew gearboxes, rotary distributor, oil cooler and more.
Clear arrangement of components on the superstructure for easy access and serviceability.
Hose assemblies that can be built locally using all Cat material.
Access to Cat Electronic Technician, which helps dealer service personnel more easily diagnose and prevent issues.
Reduced maintenance downtime thanks to exchange intervals for engine oil and engine filters that have been increased from 500 to 1,000 hours

Reduced fuel burn thanks to 10% improvement in hydraulic efficiency.
Reduced emissions with engines that satisfy Tier 4 standards and eliminate the need for Diesel Exhaust Fluid (DEF) — saving time and cost during maintenance.
Less heat and improved efficiency with the closed-loop swing circuit.
Reduced owning and operating costs thanks to increased commonality of systems and components, plus a reduction in unique part numbers.
Preservation of raw materials, energy conservation and reduced emissions through the Cat Reman program, which returns end-of-life components to like-new condition.

Specifications Standard Equipment Optional Equipment

Product Specifications for 6060

General

Engine Output - SAE J1995	3,015 hp 2248 kW
Bucket Payload	67 ton (US) 61 t
Operating Weight	660 ton (US) 599 t
Note	Specifications shown above apply to Face Shovel configuration. Backhoe and Frontless configurations are also available. Specifications shown above apply to Face Shovel configuration. Backhoe and Frontless configurations are also available.

Engine

Engine Model

2 x Cat 3512E 2 x Cat 3512E

Diesel Engines

Rated Speed	1,800 min-1 (1,800 rpm) 1,800 min-1 (1,800 rpm)
Number of Cylinders - Each Engine	12 12
Bore	6.69 in 170 mm
Stroke	8.46 in 215 mm
Displacement	3574 in³ 58.6 l
Aspiration	Turbocharged and charge air-cooled Turbocharged and charge air-cooled
Components (1)	Non-DEF Aftertreatment system with Diesel Oxidation Catalysts (DOCs) Non-DEF Aftertreatment system with Diesel Oxidation Catalysts (DOCs)
Components (2)	High-capacity water separator High-capacity water separator
Components (3)	Two-stage fuel filter with series filtration Two-stage fuel filter with series filtration
Components (4)	Heavy-duty air filters Heavy-duty air filters
Components (5)	Microprocessed engine management Microprocessed engine management
Components (6)	Hydraulically driven radiator fan with electronically controlled fan speed Hydraulically driven radiator fan with electronically controlled fan speed
Components (7)	Exhaust manifold and turbo heat shields Exhaust manifold and turbo heat shields

Diesel Engine - Lesser Regulated

Gross Power - SAE J1995	3,025 hp 2256 kW
Net Power - ISO 9249	2,990 hp 2229 kW
Net Power - SAE J1349	2,821 hp 2103 kW
Emissions	Optimized for fuel consumption. Optimized for fuel consumption.

Diesel Engine - Highly Regulated

Gross Power - SAE J1995	3,015 hp 2248 kW
Net Power - SAE J1349	2,810 hp 2095 kW
Net Power - ISO 9249	2,979 hp 2221 kW
Emissions	Meets U.S. EPA Tier 4 Final emission requirements. These engines participate in the U.S. EPA averaging, banking, and trading provisions. Meets U.S. EPA Tier 4 Final emission requirements. These engines participate in the U.S. EPA averaging, banking, and trading provisions.

Electrical System

System Voltage	24 V 24 V
Batteries in Series/Parallel Installation	6 x 210 Ah; 12 V each; 630 Ah 24 V in total 6 x 210 Ah; 12 V each; 630 Ah 24 V in total
Components (1)	6 maintenance-free batteries 6 maintenance-free batteries
Components (2)	Lockable battery isolator switch Lockable battery isolator switch
Components (3)	Lockable starter isolator switch Lockable starter isolator switch
Components (4)	13 LED high-brightness working flood lights 13 LED high-brightness working flood lights
Components (5)	17 LED service lights 17 LED service lights
Components (6)	2 electric horns (1 cab module; 1 oil cooler module) 2 electric horns (1 cab module; 1 oil cooler module)

Operating Weights

6060 FS - Standard Track Pads	4.58 ft 1400 mm
6060 FS - Operating Weight	1,320,110 lb 598 800 kg
6060 FS - Ground Pressure	26.6 N/cm2 (38.5 psi) 26.6 N/cm2 (38.5 psi)
Backhoe - Standard Track Pads	4.58 ft 1400 mm
Backhoe - Operating Weight	1,323,860 lb 600 500 kg
Backhoe - Ground Pressure	26.7 N/cm2 (38.7 psi) 26.7 N/cm2 (38.7 psi)
Note	Operating weights include: base machine, front attachment, standard track pads, standard rock bucket, 100% fuel and lubricants. Operating weights include: base machine, front attachment, standard track pads, standard rock bucket, 100% fuel and lubricants.

Service Refill Capacities

Fuel Tank	3,136 gal (US) 11 870 l
Hydraulic Tank	1,876 gal (US) 7100 l
Hydraulic System - Including Tank	2,483 gal (US) 9400 l
Engine Oil	86.6 gal (US) 328 l
Cooling System	211.4 gal (US) 800 l
Swing Drive	42.4 gal (US) 160 l
Grease Tank	188 gal (US) 710 l

Hydraulic System with Pump Managing System

Main Pumps - Diesel Version	8 variable swash plate pumps 8 variable swash plate pumps
Main Pumps - Maximum Oil Flow - Diesel Version	8 x 650 L/min (8 x 172 gal/min) 8 x 650 L/min (8 x 172 gal/min)
Maximum Pressure - Attachment	4,640 psi 320 bar
Maximum Pressure - Travel	5,220 psi 360 bar
Swing Pumps - Diesel Version	4 reversible swash plate pumps 4 reversible swash plate pumps
Swing Pumps - Maximum Oil Flow - Diesel Version	4 x 352 L/min (4 x 93 gal/min) 4 x 352 L/min (4 x 93 gal/min)
Maximum Pressure - Swing Pumps	5,075 psi 350 bar

Hydraulic Oil Cooling

Oil Flow of Cooling Pumps	4 x 488 L/min (4 x 129 gal/min) 4 x 488 L/min (4 x 129 gal/min)
Components	4 cooling fans 4 cooling fans
Diameter - Fan	46 in 1170 mm
Features (1)	Cooling system fully independent of all main circuits, i.e. controlled cooling capacity is available whenever engine is running Cooling system fully independent of all main circuits, i.e. controlled cooling capacity is available whenever engine is running
Features (2)	Fan speed and flow of oil to the coolers are thermostatically controlled Fan speed and flow of oil to the coolers are thermostatically controlled
Features (3)	Extremely high cooling efficiency to ensure optimum oil temperature Extremely high cooling efficiency to ensure optimum oil temperature
Features (4)	Gear-type cooling pumps supplying high-volume, low-pressure oil to fans and aluminum coolers Gear-type cooling pumps supplying high-volume, low-pressure oil to fans and aluminum coolers

Swing System

Swing Drive	4 compact planetary transmissions with axial piston motors 4 compact planetary transmissions with axial piston motors
Parking Brakes	Wet multiple disc brake, spring loaded/hydraulically released Wet multiple disc brake, spring loaded/hydraulically released
Maximum Swing Speed	3.8 r/min 3.8 r/min
Swing Ring	Triple-race roller bearing with sealed internal gearing Triple-race roller bearing with sealed internal gearing
Features (1)	Dirt wipers at swing ring to prevent build-up of debris between swing ring and carbody Dirt wipers at swing ring to prevent build-up of debris between swing ring and carbody
Features (2)	Closed-loop swing circuit with torque control Closed-loop swing circuit with torque control
Features (3)	Hydraulic braking of the swing motion by counteracting control Hydraulic braking of the swing motion by counteracting control
Features (4)	All raceways and the internal gearing of swing ring, supplied by automatic central lubrication system All raceways and the internal gearing of swing ring, supplied by automatic central lubrication system

Undercarriage

Travel Speed - 1st Stage - Maximum	0.68 mile/h 1.1 km/h
Travel Speed - 2nd Stage - Maximum	0.99 mile/h 1.6 km/h
Maximum Tractive Force	661,160 lb 2942 kN
Gradeability - Travel Drives - Maximum	39 % 39 %
Track Pads - Each Side	42 42
Bottom Rollers - Each Side	7 7
Support Rollers - Each Side	2 plus a skid plate in between 2 plus a skid plate in between
Travel Drives - Each Side	1 planetary transmission with 2 two-stage axial piston motors 1 planetary transmission with 2 two-stage axial piston motors
Components (1)	HD tracks with cast double-grouser track pad HD tracks with cast double-grouser track pad
Components (2)	HD fixed axle rollers and idlers HD fixed axle rollers and idlers
Components (3)	Hardened running surfaces of sprockets, idlers, rollers, pad links, and teeth contact areas Hardened running surfaces of sprockets, idlers, rollers, pad links, and teeth contact areas
Components (4)	Acoustic travel alarm (forward and reverse) Acoustic travel alarm (forward and reverse)
Components (5)	Fully hydraulic, self-adjusting track tensioning system with piston accumulator Fully hydraulic, self-adjusting track tensioning system with piston accumulator
Components (6)	Automatic hydraulic retarder valve to prevent over-speed on downhill travel Automatic hydraulic retarder valve to prevent over-speed on downhill travel

Operator's Cab

Operator's Eye Level - Approximately	24.91 ft 7.6 m
Internal Dimensions of Cab - Length	7.33 ft 2230 mm
Internal Dimensions of Cab - Width	5.33 ft 1625 mm
Internal Dimensions of Cab - Height	6.75 ft 2070 mm
Components (1)	Single hydraulically driven HVAC System, with dual system option Single hydraulically driven HVAC System, with dual system option
Components (2)	In-floor window with removable grate In-floor window with removable grate
Components (3)	Pneumatically cushioned and multi-adjustable comfort seat with heating, cooling, and lumbar support Pneumatically cushioned and multi-adjustable comfort seat with heating, cooling, and lumbar support
Components (4)	Independently adjustable seat consoles with integrated joysticks Independently adjustable seat consoles with integrated joysticks
Components (5)	Operator Protective Guard (Top Guard) (ISO 10262:1998) Operator Protective Guard (Top Guard) (ISO 10262:1998)
Components (6)	Elevated full-size trainer seat with safety belt and laptop desk Elevated full-size trainer seat with safety belt and laptop desk
Components (7)	Additional fold-away auxiliary seat with safety belt Additional fold-away auxiliary seat with safety belt
Components (8)	Operator Presence switch Operator Presence switch
Components (9)	Monitoring system with 254 mm (10 in) touch screen Monitoring system with 254 mm (10 in) touch screen
Components (10)	Powered 45 degree access stairway Powered 45 degree access stairway
Components (11)	Emergency egress ladder Emergency egress ladder
Components (12)	FM/AM radio with USB and AUX input FM/AM radio with USB and AUX input
Components (13)	Roller blinds on 3 front windows Roller blinds on 3 front windows
Components (14)	3 cup holders 3 cup holders
Components (15)	Cat Electronic Technician service port Cat Electronic Technician service port

Automatic Lubrication System

Capacity - Grease Container	188 gal (US) 710 l
Type (1)	Dual-circuit system with hydraulically driven heavy-duty pumps and electronic time relay control to adjust the pause/lube times Dual-circuit system with hydraulically driven heavy-duty pumps and electronic time relay control to adjust the pause/lube times
Type (2)	System failures displayed by monitoring system System failures displayed by monitoring system
Type (3)	Grease filters (200 µm) between service station and container as well as directly behind grease pump Grease filters (200 µm) between service station and container as well as directly behind grease pump
Type (4)	Main lube system connections include: pivot points of attachment, bucket and cylinders, raceways of swing roller bearing, and 2 greasing pinions for the internal gearing of swing ring Main lube system connections include: pivot points of attachment, bucket and cylinders, raceways of swing roller bearing, and 2 greasing pinions for the internal gearing of swing ring

Attachments

Shovel attachment with unique TriPower kinematics ensuring the following main features: (1)	Automatic roll-back limiter to prevent material spillage; Kinematic assistance to hydraulic forces Automatic roll-back limiter to prevent material spillage; Kinematic assistance to hydraulic forces
Shovel attachment with unique TriPower kinematics ensuring the following main features: (2)	Horizontal Automatic constant-angle bucket guidance; Vertical Automatic constant-angle bucket guidance Horizontal Automatic constant-angle bucket guidance; Vertical Automatic constant-angle bucket guidance
Shovel attachment with unique TriPower kinematics ensuring the following main features: (3)	Constant boom momentum throughout the entire lift arc; Crowd force assistance Constant boom momentum throughout the entire lift arc; Crowd force assistance
All buckets (FS and BH) are equipped with a wear package consisting of: (1)	Special liner material covering main wear areas inside and outside of bucket and lip shrouds between teeth Special liner material covering main wear areas inside and outside of bucket and lip shrouds between teeth
All buckets (FS and BH) are equipped with a wear package consisting of: (2)	Wing shrouds on side walls and heel shrouds at bottom edges Wing shrouds on side walls and heel shrouds at bottom edges
Type (1)	Catwalks with rails at booms (FS and BH) Catwalks with rails at booms (FS and BH)
Type (2)	Guards for shovel cylinders (FS) Guards for shovel cylinders (FS)
Type (3)	Pressure-free lowering of boom (FS and BH) and stick (FS) by means of a float valve Pressure-free lowering of boom (FS and BH) and stick (FS) by means of a float valve
Type (4)	Service access holes from both sides of boom (FS and BH) and stick (FS) Service access holes from both sides of boom (FS and BH) and stick (FS)
Type (5)	Welding procedures allow for internal counter-welding (double prep weld) wherever possible Welding procedures allow for internal counter-welding (double prep weld) wherever possible
Type (6)	Booms and sticks are stress-relieved after welding Booms and sticks are stress-relieved after welding
Type (7)	Booms and sticks are torsion-resistant, welded box design of high-tensile steel with massive steel castings at pivot areas Booms and sticks are torsion-resistant, welded box design of high-tensile steel with massive steel castings at pivot areas
Type (8)	Special wear packages for highly abrasive materials available upon request Special wear packages for highly abrasive materials available upon request

Digging Forces

Maximum Crowd Force	494,410 lb 2200 kN
Maximum Breakout Force	388,780 lb 1730 kN

Working Ranges

Maximum Digging Height	51.17 ft 15.6 m
Maximum Digging Reach	54.17 ft 16.5 m
Maximum Digging Depth	9.17 ft 2.8 m

Standard Bucket Capacity

Face Shovel (heaped 2:1)	44.5 yd³ 34 m³
Backhoe (heaped 1:1)	44.5 yd³ 34 m³

Backhoe Attachment (BH) - Digging Forces

Stick Digging Force - ISO	295,740 lb 1316 kN
Bucket Digging Force - ISO	274,840 lb 1223 kN

Backhoe Attachment (BH) - Working Range

Maximum Digging Height	52.83 ft 16.1 m
Maximum Digging Reach	62.33 ft 19 m
Maximum Digging Depth	29.17 ft 8.9 m

Retractable Service Station

Installation	Retractable service station installed underneath the engine module and easily accessible from ground. Retractable service station installed underneath the engine module and easily accessible from ground.
Equipped With (1)	Quick couplings for: Diesel fuel, Engine coolant - left/right engine, Pump transmission gear oil - left/right engine, Engine oil - left/right engine, Hydraulic oil tank, and grease container Quick couplings for: Diesel fuel, Engine coolant - left/right engine, Pump transmission gear oil - left/right engine, Engine oil - left/right engine, Hydraulic oil tank, and grease container
Equipped With (2)	Cat jump-start socket Cat jump-start socket
Equipped With (3)	Indicator lights Indicator lights

6060 Standard Equipment

2 x Cat 3512E engines

Cat Powertrain

Aftertreatment System (used in highly regulated countries only): -Diesel Oxidation Catalysts (DOCs) -Non-DEF solution

Air-to-Air After Cooling (ATAAC)

Turbocharger

Hydraulically driven radiator fan

Electronically controlled fan speed

Micro processed engine management

Heavy-duty air filters

Two-stage fuel filter with series filtration

High-capacity water seperator

Starting aid -- automatic ether

Exhaust manifold and turbo heat shields

Dual 24 V electric starters per engine

Automatic engine idle shut down

Automatic fuel priming

Hydraulics

Hydraulic Optimization

Operator Assist: Enhanced Motion Control

Cat Hydraulic Hose assemblies

Pump managing system with: -Electronic load limit control -Flow on demand -Automatic zero flow regulation -Automatic engine rpm reduction -Reduced oil flow at high hydraulic oil or engine temperature

Pressure cut-off for main pumps

Cooling of pump transmission gear oil

Closed loop swing circuit

Pressure testing points

Full-flow high-pressure filters (100 μm), main pumps

High pressure filters (100 μm), closed swing circuit

Full-flow filters (10 μm), return circuit

Pressure filters swing charge circuit (40 μm)

Pressure filters pilot circuit (6 μm)

Transmission oil filters (40 μm)

Boom float valve (FS and BH)

Stick float valve (FS)

Electrical System

6 Maintenance-free batteries

Lockable battery isolator switch

Lockable starter isolator switch

13 LED high-brightness working flood lights

17 LED service lights

2 acoustic travel alarms -forward and reverse (power module, oil cooler module)

2 electric horns (1 cab module, 1 oil cooler module)

Undercarriage

HD tracks with cast double-grouser track pads

1400 mm (4'7") wide track pads

HD fixed axle carrier and load rollers

HD fixed axle idlers

Automatic hydraulic retarder valve

Hinged travel motor covers

Hardened running surfaces of sprockets, idlers, rollers, pad links, teeth contact areas

Fully hydraulic self-adjusting track tensioning system with piston accumulators

Automatic Lubrication System

Rectangular grease container (fill via service station)

Lubricated pinion in swing ring

Grease filters (200 μm)

Operator Environment

Single hydraulically driven HVAC system

In-floor window with removable grate

Pneumatically cushioned and multiadjustable comfort seat with: -Heating and cooling -Lumbar support -2-point safety belt -Head and arm rests -Safety switch for automatic motion shutdown

Independently adjustable seat consoles with integrated joysticks

Electronic-Hydraulic Servo Control

Elevated full-size trainer seat with 2-point safety belt and laptop desk

Additional fold-away auxiliary seat with 2-point safety belt

Three cup holders

FM/AM radio with USB and AUX input

Parallel intermittent wiper/washer

Roller blinds

Monitoring system with 254 mm (10 in) color touchscreen

45° stairway from engine bay to operator cab

Powered 45° access stairway

Heated mirror on LH side

Camera monitoring system (Right and rear cameras, 2 lights, and additional display)

Level indicators for length and crosswise inclination

Document Storage

Front Attachment

Service access holes from both sides in boom and stick (FS and BH)

Boom and stick thermally stress relieved after welding

Catwalks with rails at boom (FS and BH)

Wear Package (as per bucket selection)

Cat Technology

Cat Product Link™ Elite (Cellular)

Cat MineStar™ Solutions Ready

Service and Maintenance

Engine oil exchange interval -- 500 hours

Hydraulic oil change interval -10,000 hours

Scheduled Oil Sampling (S·O·SSM) ports

Retractable ground level service station with quick couplings for: -Diesel fuel -Engine coolant -left/right engines -Pump transmission gear oil -left/right engines -Engine oil -left/right engines -Engine oil extension tanks -Hydraulic oil -Grease -Swing transmission gear oil

Cat battery charging connector

Indicator lights

Cat Electronic Technician service port

Dirt wiper at swivel

Safety and Security

Emergency stop switches: 2 in cab, 5 in engine module, 1 at ground level service station, 1 pull rope accessible from ground level

Operator Protective Guard (Top Guard)

All-round safety glass

Emergency egress ladder

Maintenance

ISO or ANSI decals

6060 Optional Equipment

GENERAL

Custom paint

SUPERSTRUCTURE

Oil change interval extension for engine oil up to 500 hours, with optional extension to 1,000 hours

Rectangular grease container, 710 L (188 gal), filled via service station

Various cold-weather options for temperatures below -10Â°; 400 V, 50 Hz and 208 V, 60 Hz

CAB

Dual hydraulically driven HVAC system for redundancy

Cab heating

Camera monitoring system with two cameras, two lights, and additional display

UNDERCARRIAGE

Track pad width 1400 mm (4 ft 7 in)

Belly plate for undercarriage protection

Additional optional equipment available on request.

Product Specifications for 6060

Download Print

General

Engine Output - SAE J1995	3,015 hp 2248 kW
Bucket Payload	67 ton (US) 61 t
Operating Weight	660 ton (US) 599 t
Note	Specifications shown above apply to Face Shovel configuration. Backhoe and Frontless configurations are also available. Specifications shown above apply to Face Shovel configuration. Backhoe and Frontless configurations are also available.

Engine

Engine Model

2 x Cat 3512E 2 x Cat 3512E

Diesel Engines

Rated Speed	1,800 min-1 (1,800 rpm) 1,800 min-1 (1,800 rpm)
Number of Cylinders - Each Engine	12 12
Bore	6.69 in 170 mm
Stroke	8.46 in 215 mm
Displacement	3574 in³ 58.6 l
Aspiration	Turbocharged and charge air-cooled Turbocharged and charge air-cooled
Components (1)	Non-DEF Aftertreatment system with Diesel Oxidation Catalysts (DOCs) Non-DEF Aftertreatment system with Diesel Oxidation Catalysts (DOCs)
Components (2)	High-capacity water separator High-capacity water separator
Components (3)	Two-stage fuel filter with series filtration Two-stage fuel filter with series filtration
Components (4)	Heavy-duty air filters Heavy-duty air filters
Components (5)	Microprocessed engine management Microprocessed engine management
Components (6)	Hydraulically driven radiator fan with electronically controlled fan speed Hydraulically driven radiator fan with electronically controlled fan speed
Components (7)	Exhaust manifold and turbo heat shields Exhaust manifold and turbo heat shields

Diesel Engine - Lesser Regulated

Gross Power - SAE J1995	3,025 hp 2256 kW
Net Power - ISO 9249	2,990 hp 2229 kW
Net Power - SAE J1349	2,821 hp 2103 kW
Emissions	Optimized for fuel consumption. Optimized for fuel consumption.

Diesel Engine - Highly Regulated

Gross Power - SAE J1995	3,015 hp 2248 kW
Net Power - SAE J1349	2,810 hp 2095 kW
Net Power - ISO 9249	2,979 hp 2221 kW
Emissions	Meets U.S. EPA Tier 4 Final emission requirements. These engines participate in the U.S. EPA averaging, banking, and trading provisions. Meets U.S. EPA Tier 4 Final emission requirements. These engines participate in the U.S. EPA averaging, banking, and trading provisions.

Electrical System

System Voltage	24 V 24 V
Batteries in Series/Parallel Installation	6 x 210 Ah; 12 V each; 630 Ah 24 V in total 6 x 210 Ah; 12 V each; 630 Ah 24 V in total
Components (1)	6 maintenance-free batteries 6 maintenance-free batteries
Components (2)	Lockable battery isolator switch Lockable battery isolator switch
Components (3)	Lockable starter isolator switch Lockable starter isolator switch
Components (4)	13 LED high-brightness working flood lights 13 LED high-brightness working flood lights
Components (5)	17 LED service lights 17 LED service lights
Components (6)	2 electric horns (1 cab module; 1 oil cooler module) 2 electric horns (1 cab module; 1 oil cooler module)

Operating Weights

6060 FS - Standard Track Pads	4.58 ft 1400 mm
6060 FS - Operating Weight	1,320,110 lb 598 800 kg
6060 FS - Ground Pressure	26.6 N/cm2 (38.5 psi) 26.6 N/cm2 (38.5 psi)
Backhoe - Standard Track Pads	4.58 ft 1400 mm
Backhoe - Operating Weight	1,323,860 lb 600 500 kg
Backhoe - Ground Pressure	26.7 N/cm2 (38.7 psi) 26.7 N/cm2 (38.7 psi)
Note	Operating weights include: base machine, front attachment, standard track pads, standard rock bucket, 100% fuel and lubricants. Operating weights include: base machine, front attachment, standard track pads, standard rock bucket, 100% fuel and lubricants.

Service Refill Capacities

Fuel Tank	3,136 gal (US) 11 870 l
Hydraulic Tank	1,876 gal (US) 7100 l
Hydraulic System - Including Tank	2,483 gal (US) 9400 l
Engine Oil	86.6 gal (US) 328 l
Cooling System	211.4 gal (US) 800 l
Swing Drive	42.4 gal (US) 160 l
Grease Tank	188 gal (US) 710 l

Hydraulic System with Pump Managing System

Main Pumps - Diesel Version	8 variable swash plate pumps 8 variable swash plate pumps
Main Pumps - Maximum Oil Flow - Diesel Version	8 x 650 L/min (8 x 172 gal/min) 8 x 650 L/min (8 x 172 gal/min)
Maximum Pressure - Attachment	4,640 psi 320 bar
Maximum Pressure - Travel	5,220 psi 360 bar
Swing Pumps - Diesel Version	4 reversible swash plate pumps 4 reversible swash plate pumps
Swing Pumps - Maximum Oil Flow - Diesel Version	4 x 352 L/min (4 x 93 gal/min) 4 x 352 L/min (4 x 93 gal/min)
Maximum Pressure - Swing Pumps	5,075 psi 350 bar

Hydraulic Oil Cooling

Oil Flow of Cooling Pumps	4 x 488 L/min (4 x 129 gal/min) 4 x 488 L/min (4 x 129 gal/min)
Components	4 cooling fans 4 cooling fans
Diameter - Fan	46 in 1170 mm
Features (1)	Cooling system fully independent of all main circuits, i.e. controlled cooling capacity is available whenever engine is running Cooling system fully independent of all main circuits, i.e. controlled cooling capacity is available whenever engine is running
Features (2)	Fan speed and flow of oil to the coolers are thermostatically controlled Fan speed and flow of oil to the coolers are thermostatically controlled
Features (3)	Extremely high cooling efficiency to ensure optimum oil temperature Extremely high cooling efficiency to ensure optimum oil temperature
Features (4)	Gear-type cooling pumps supplying high-volume, low-pressure oil to fans and aluminum coolers Gear-type cooling pumps supplying high-volume, low-pressure oil to fans and aluminum coolers

Swing System

Swing Drive	4 compact planetary transmissions with axial piston motors 4 compact planetary transmissions with axial piston motors
Parking Brakes	Wet multiple disc brake, spring loaded/hydraulically released Wet multiple disc brake, spring loaded/hydraulically released
Maximum Swing Speed	3.8 r/min 3.8 r/min
Swing Ring	Triple-race roller bearing with sealed internal gearing Triple-race roller bearing with sealed internal gearing
Features (1)	Dirt wipers at swing ring to prevent build-up of debris between swing ring and carbody Dirt wipers at swing ring to prevent build-up of debris between swing ring and carbody
Features (2)	Closed-loop swing circuit with torque control Closed-loop swing circuit with torque control
Features (3)	Hydraulic braking of the swing motion by counteracting control Hydraulic braking of the swing motion by counteracting control
Features (4)	All raceways and the internal gearing of swing ring, supplied by automatic central lubrication system All raceways and the internal gearing of swing ring, supplied by automatic central lubrication system

Undercarriage

Travel Speed - 1st Stage - Maximum	0.68 mile/h 1.1 km/h
Travel Speed - 2nd Stage - Maximum	0.99 mile/h 1.6 km/h
Maximum Tractive Force	661,160 lb 2942 kN
Gradeability - Travel Drives - Maximum	39 % 39 %
Track Pads - Each Side	42 42
Bottom Rollers - Each Side	7 7
Support Rollers - Each Side	2 plus a skid plate in between 2 plus a skid plate in between
Travel Drives - Each Side	1 planetary transmission with 2 two-stage axial piston motors 1 planetary transmission with 2 two-stage axial piston motors
Components (1)	HD tracks with cast double-grouser track pad HD tracks with cast double-grouser track pad
Components (2)	HD fixed axle rollers and idlers HD fixed axle rollers and idlers
Components (3)	Hardened running surfaces of sprockets, idlers, rollers, pad links, and teeth contact areas Hardened running surfaces of sprockets, idlers, rollers, pad links, and teeth contact areas
Components (4)	Acoustic travel alarm (forward and reverse) Acoustic travel alarm (forward and reverse)
Components (5)	Fully hydraulic, self-adjusting track tensioning system with piston accumulator Fully hydraulic, self-adjusting track tensioning system with piston accumulator
Components (6)	Automatic hydraulic retarder valve to prevent over-speed on downhill travel Automatic hydraulic retarder valve to prevent over-speed on downhill travel

Operator's Cab

Operator's Eye Level - Approximately	24.91 ft 7.6 m
Internal Dimensions of Cab - Length	7.33 ft 2230 mm
Internal Dimensions of Cab - Width	5.33 ft 1625 mm
Internal Dimensions of Cab - Height	6.75 ft 2070 mm
Components (1)	Single hydraulically driven HVAC System, with dual system option Single hydraulically driven HVAC System, with dual system option
Components (2)	In-floor window with removable grate In-floor window with removable grate
Components (3)	Pneumatically cushioned and multi-adjustable comfort seat with heating, cooling, and lumbar support Pneumatically cushioned and multi-adjustable comfort seat with heating, cooling, and lumbar support
Components (4)	Independently adjustable seat consoles with integrated joysticks Independently adjustable seat consoles with integrated joysticks
Components (5)	Operator Protective Guard (Top Guard) (ISO 10262:1998) Operator Protective Guard (Top Guard) (ISO 10262:1998)
Components (6)	Elevated full-size trainer seat with safety belt and laptop desk Elevated full-size trainer seat with safety belt and laptop desk
Components (7)	Additional fold-away auxiliary seat with safety belt Additional fold-away auxiliary seat with safety belt
Components (8)	Operator Presence switch Operator Presence switch
Components (9)	Monitoring system with 254 mm (10 in) touch screen Monitoring system with 254 mm (10 in) touch screen
Components (10)	Powered 45 degree access stairway Powered 45 degree access stairway
Components (11)	Emergency egress ladder Emergency egress ladder
Components (12)	FM/AM radio with USB and AUX input FM/AM radio with USB and AUX input
Components (13)	Roller blinds on 3 front windows Roller blinds on 3 front windows
Components (14)	3 cup holders 3 cup holders
Components (15)	Cat Electronic Technician service port Cat Electronic Technician service port

Automatic Lubrication System

Capacity - Grease Container	188 gal (US) 710 l
Type (1)	Dual-circuit system with hydraulically driven heavy-duty pumps and electronic time relay control to adjust the pause/lube times Dual-circuit system with hydraulically driven heavy-duty pumps and electronic time relay control to adjust the pause/lube times
Type (2)	System failures displayed by monitoring system System failures displayed by monitoring system
Type (3)	Grease filters (200 µm) between service station and container as well as directly behind grease pump Grease filters (200 µm) between service station and container as well as directly behind grease pump
Type (4)	Main lube system connections include: pivot points of attachment, bucket and cylinders, raceways of swing roller bearing, and 2 greasing pinions for the internal gearing of swing ring Main lube system connections include: pivot points of attachment, bucket and cylinders, raceways of swing roller bearing, and 2 greasing pinions for the internal gearing of swing ring

Attachments

Shovel attachment with unique TriPower kinematics ensuring the following main features: (1)	Automatic roll-back limiter to prevent material spillage; Kinematic assistance to hydraulic forces Automatic roll-back limiter to prevent material spillage; Kinematic assistance to hydraulic forces
Shovel attachment with unique TriPower kinematics ensuring the following main features: (2)	Horizontal Automatic constant-angle bucket guidance; Vertical Automatic constant-angle bucket guidance Horizontal Automatic constant-angle bucket guidance; Vertical Automatic constant-angle bucket guidance
Shovel attachment with unique TriPower kinematics ensuring the following main features: (3)	Constant boom momentum throughout the entire lift arc; Crowd force assistance Constant boom momentum throughout the entire lift arc; Crowd force assistance
All buckets (FS and BH) are equipped with a wear package consisting of: (1)	Special liner material covering main wear areas inside and outside of bucket and lip shrouds between teeth Special liner material covering main wear areas inside and outside of bucket and lip shrouds between teeth
All buckets (FS and BH) are equipped with a wear package consisting of: (2)	Wing shrouds on side walls and heel shrouds at bottom edges Wing shrouds on side walls and heel shrouds at bottom edges
Type (1)	Catwalks with rails at booms (FS and BH) Catwalks with rails at booms (FS and BH)
Type (2)	Guards for shovel cylinders (FS) Guards for shovel cylinders (FS)
Type (3)	Pressure-free lowering of boom (FS and BH) and stick (FS) by means of a float valve Pressure-free lowering of boom (FS and BH) and stick (FS) by means of a float valve
Type (4)	Service access holes from both sides of boom (FS and BH) and stick (FS) Service access holes from both sides of boom (FS and BH) and stick (FS)
Type (5)	Welding procedures allow for internal counter-welding (double prep weld) wherever possible Welding procedures allow for internal counter-welding (double prep weld) wherever possible
Type (6)	Booms and sticks are stress-relieved after welding Booms and sticks are stress-relieved after welding
Type (7)	Booms and sticks are torsion-resistant, welded box design of high-tensile steel with massive steel castings at pivot areas Booms and sticks are torsion-resistant, welded box design of high-tensile steel with massive steel castings at pivot areas
Type (8)	Special wear packages for highly abrasive materials available upon request Special wear packages for highly abrasive materials available upon request

Digging Forces

Maximum Crowd Force	494,410 lb 2200 kN
Maximum Breakout Force	388,780 lb 1730 kN

Working Ranges

Maximum Digging Height	51.17 ft 15.6 m
Maximum Digging Reach	54.17 ft 16.5 m
Maximum Digging Depth	9.17 ft 2.8 m

Standard Bucket Capacity

Face Shovel (heaped 2:1)	44.5 yd³ 34 m³
Backhoe (heaped 1:1)	44.5 yd³ 34 m³

Backhoe Attachment (BH) - Digging Forces

Stick Digging Force - ISO	295,740 lb 1316 kN
Bucket Digging Force - ISO	274,840 lb 1223 kN

Backhoe Attachment (BH) - Working Range

Maximum Digging Height	52.83 ft 16.1 m
Maximum Digging Reach	62.33 ft 19 m
Maximum Digging Depth	29.17 ft 8.9 m

Retractable Service Station

Installation	Retractable service station installed underneath the engine module and easily accessible from ground. Retractable service station installed underneath the engine module and easily accessible from ground.
Equipped With (1)	Quick couplings for: Diesel fuel, Engine coolant - left/right engine, Pump transmission gear oil - left/right engine, Engine oil - left/right engine, Hydraulic oil tank, and grease container Quick couplings for: Diesel fuel, Engine coolant - left/right engine, Pump transmission gear oil - left/right engine, Engine oil - left/right engine, Hydraulic oil tank, and grease container
Equipped With (2)	Cat jump-start socket Cat jump-start socket
Equipped With (3)	Indicator lights Indicator lights

6060 Standard Equipment

2 x Cat 3512E engines

Cat Powertrain

Aftertreatment System (used in highly regulated countries only): -Diesel Oxidation Catalysts (DOCs) -Non-DEF solution

Air-to-Air After Cooling (ATAAC)

Turbocharger

Hydraulically driven radiator fan

Electronically controlled fan speed

Micro processed engine management

Heavy-duty air filters

Two-stage fuel filter with series filtration

High-capacity water seperator

Starting aid -- automatic ether

Exhaust manifold and turbo heat shields

Dual 24 V electric starters per engine

Automatic engine idle shut down

Automatic fuel priming

Hydraulics

Hydraulic Optimization

Operator Assist: Enhanced Motion Control

Cat Hydraulic Hose assemblies

Pump managing system with: -Electronic load limit control -Flow on demand -Automatic zero flow regulation -Automatic engine rpm reduction -Reduced oil flow at high hydraulic oil or engine temperature

Pressure cut-off for main pumps

Cooling of pump transmission gear oil

Closed loop swing circuit

Pressure testing points

Full-flow high-pressure filters (100 μm), main pumps

High pressure filters (100 μm), closed swing circuit

Full-flow filters (10 μm), return circuit

Pressure filters swing charge circuit (40 μm)

Pressure filters pilot circuit (6 μm)

Transmission oil filters (40 μm)

Boom float valve (FS and BH)

Stick float valve (FS)

Electrical System

6 Maintenance-free batteries

Lockable battery isolator switch

Lockable starter isolator switch

13 LED high-brightness working flood lights

17 LED service lights

2 acoustic travel alarms -forward and reverse (power module, oil cooler module)

2 electric horns (1 cab module, 1 oil cooler module)

Undercarriage

HD tracks with cast double-grouser track pads

1400 mm (4'7") wide track pads

HD fixed axle carrier and load rollers

HD fixed axle idlers

Automatic hydraulic retarder valve

Hinged travel motor covers

Hardened running surfaces of sprockets, idlers, rollers, pad links, teeth contact areas

Fully hydraulic self-adjusting track tensioning system with piston accumulators

Automatic Lubrication System

Rectangular grease container (fill via service station)

Lubricated pinion in swing ring

Grease filters (200 μm)

Operator Environment

Single hydraulically driven HVAC system

In-floor window with removable grate

Pneumatically cushioned and multiadjustable comfort seat with: -Heating and cooling -Lumbar support -2-point safety belt -Head and arm rests -Safety switch for automatic motion shutdown

Independently adjustable seat consoles with integrated joysticks

Electronic-Hydraulic Servo Control

Elevated full-size trainer seat with 2-point safety belt and laptop desk

Additional fold-away auxiliary seat with 2-point safety belt

Three cup holders

FM/AM radio with USB and AUX input

Parallel intermittent wiper/washer

Roller blinds

Monitoring system with 254 mm (10 in) color touchscreen

45° stairway from engine bay to operator cab

Powered 45° access stairway

Heated mirror on LH side

Camera monitoring system (Right and rear cameras, 2 lights, and additional display)

Level indicators for length and crosswise inclination

Document Storage

Front Attachment

Service access holes from both sides in boom and stick (FS and BH)

Boom and stick thermally stress relieved after welding

Catwalks with rails at boom (FS and BH)

Wear Package (as per bucket selection)

Cat Technology

Cat Product Link™ Elite (Cellular)

Cat MineStar™ Solutions Ready

Service and Maintenance

Engine oil exchange interval -- 500 hours

Hydraulic oil change interval -10,000 hours

Scheduled Oil Sampling (S·O·SSM) ports

Retractable ground level service station with quick couplings for: -Diesel fuel -Engine coolant -left/right engines -Pump transmission gear oil -left/right engines -Engine oil -left/right engines -Engine oil extension tanks -Hydraulic oil -Grease -Swing transmission gear oil

Cat battery charging connector

Indicator lights

Cat Electronic Technician service port

Dirt wiper at swivel

Safety and Security

Emergency stop switches: 2 in cab, 5 in engine module, 1 at ground level service station, 1 pull rope accessible from ground level

Operator Protective Guard (Top Guard)

All-round safety glass

Emergency egress ladder

Maintenance

ISO or ANSI decals

6060 Optional Equipment

GENERAL

Custom paint

SUPERSTRUCTURE

Oil change interval extension for engine oil up to 500 hours, with optional extension to 1,000 hours

Rectangular grease container, 710 L (188 gal), filled via service station

Various cold-weather options for temperatures below -10Â°; 400 V, 50 Hz and 208 V, 60 Hz

CAB

Dual hydraulically driven HVAC system for redundancy

Cab heating

Camera monitoring system with two cameras, two lights, and additional display

UNDERCARRIAGE

Track pad width 1400 mm (4 ft 7 in)

Belly plate for undercarriage protection

Additional optional equipment available on request.

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

Fleet

Health

Terrain

Cat Fleet for Surface

Cat® MineStar Fleet is the single best source for fleet management information. An integrated fleet monitoring and management system, it can be used with any machine or system to measure, manage and maximize every facet of an operation, no matter the size or type. Fleet provides real-time visibility to cycle time, payload and other key operational parameters. It monitors machine locations and material movement and provides alerts of misroutes to ensure material is moved to the proper location.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat® MineStar Fleet is the single best source for fleet management information. An integrated fleet monitoring and management system, it can be used with any machine or system to measure, manage and maximize every facet of an operation, no matter the size or type. Fleet provides real-time visibility to cycle time, payload and other key operational parameters. It monitors machine locations and material movement and provides alerts of misroutes to ensure material is moved to the proper location.

Explore Technology

Cat Health

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Through regular monitoring of machine conditions, mines can adopt a more proactive approach to maintenance and repair. Equipment health data is a key contributor to that approach. Data helps mines identify equipment problems long before failure.

Accessing the right data at the right time is critical to improving operational intelligence and machine predictive analysis. Cat® MineStar™ Health helps you meet that need by connecting you to your machines and delivering that important information. The MineStar Health portfolio set consists of Connectivity Enablers that collect, convert and transmit equipment data; and Applications that visualize, analyze and report health equipment data.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Through regular monitoring of machine conditions, mines can adopt a more proactive approach to maintenance and repair. Equipment health data is a key contributor to that approach. Data helps mines identify equipment problems long before failure.

Accessing the right data at the right time is critical to improving operational intelligence and machine predictive analysis. Cat® MineStar™ Health helps you meet that need by connecting you to your machines and delivering that important information. The MineStar Health portfolio set consists of Connectivity Enablers that collect, convert and transmit equipment data; and Applications that visualize, analyze and report health equipment data.

Explore Technology

Cat Terrain for Loading

Mine site output depends on efficient loading and hauling. Cat® MineStar™ Terrain for loading makes those operations more productive while providing accurate feedback to key personnel. Terrain for loading is a machine guidance system that delivers real-time data in the cab — on everything from bucket positioning and bench height to ore bodies and volume of material cut and filled. That enables every operator to maximize machine efficiency, leading to better material management, more accurate grades and less rework and wear.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Mine site output depends on efficient loading and hauling. Cat® MineStar™ Terrain for loading makes those operations more productive while providing accurate feedback to key personnel. Terrain for loading is a machine guidance system that delivers real-time data in the cab — on everything from bucket positioning and bench height to ore bodies and volume of material cut and filled. That enables every operator to maximize machine efficiency, leading to better material management, more accurate grades and less rework and wear.

Explore Technology
