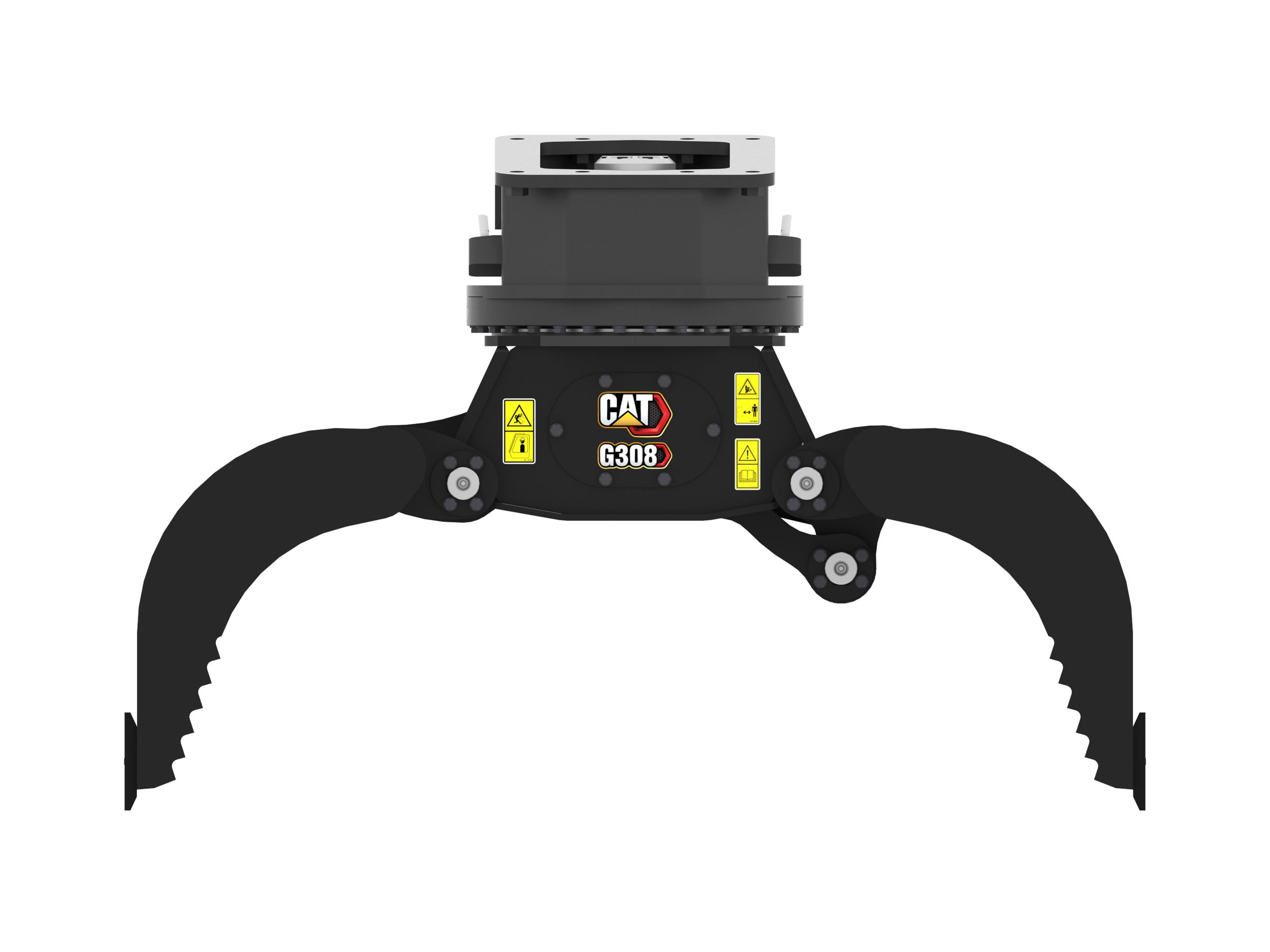

Studio Shot
New

Demolition and Sorting Grapples G308

Request A Price Click for Price

Key Specs

Grapple Area
8.5 ft³
240 l
Weight
1089.1 lb
494 kg
Machine Class
Mini Hydraulic Excavator 7-10 Ton
Mini Hydraulic Excavator 7-10 Ton

Overview

Designed for fast, productive material handling and sorting of various shaped materials.

Product Specifications for G308

Grapple Area 8.5 ft³ 240 l
Weight 1089.1 lb 494 kg
Machine Class Mini Hydraulic Excavator 7-10 Ton Mini Hydraulic Excavator 7-10 Ton
Maximum Jaw Opening 55.3 in 1404 mm
Outer Wrapper Thickness 0.2 in 6 mm
Overall Width (Jaws Open) 61.3 in 1558 mm
Overall Width (Jaws Closed) 34.4 in 875 mm
Overall Height (Jaws Open) 41.3 in 1049 mm
Overall Height (Jaws Closed) 48 in 1219 mm
Overall Depth 27.6 in 700 mm
Interface Type S45, S50, CW-10, Pin On, Pin Lock S45, S50, CW-10, Pin On, Pin Lock
Required Hydraulics 2nd Auxiliary 2nd Auxiliary
Edge Material HB500 Equivalent HB500 Equivalent
Optimal Hydraulic Flow Grab 131 L/min (35 gpm) | Rotation 33 L/min (9 gpm) Grab 131 L/min (35 gpm) | Rotation 33 L/min (9 gpm)
Maximum Closing Force 4.9 Sh Ton 44 kN
