Water Delivery System WDS Retrofit Kit

Request A Price Find Dealer

Key Specs

Cannon Capacity
2,839 liters per min up to 60 meters (750 gallons per min up to 200 ft)
2,839 liters per min up to 60 meters (750 gallons per min up to 200 ft)
Water Coverage
0.8 L/m² at speeds of 4 to 40 kph (0.02 gal/ft² at speeds of 3 to 25 mph)
0.8 L/m² at speeds of 4 to 40 kph (0.02 gal/ft² at speeds of 3 to 25 mph)

Overview

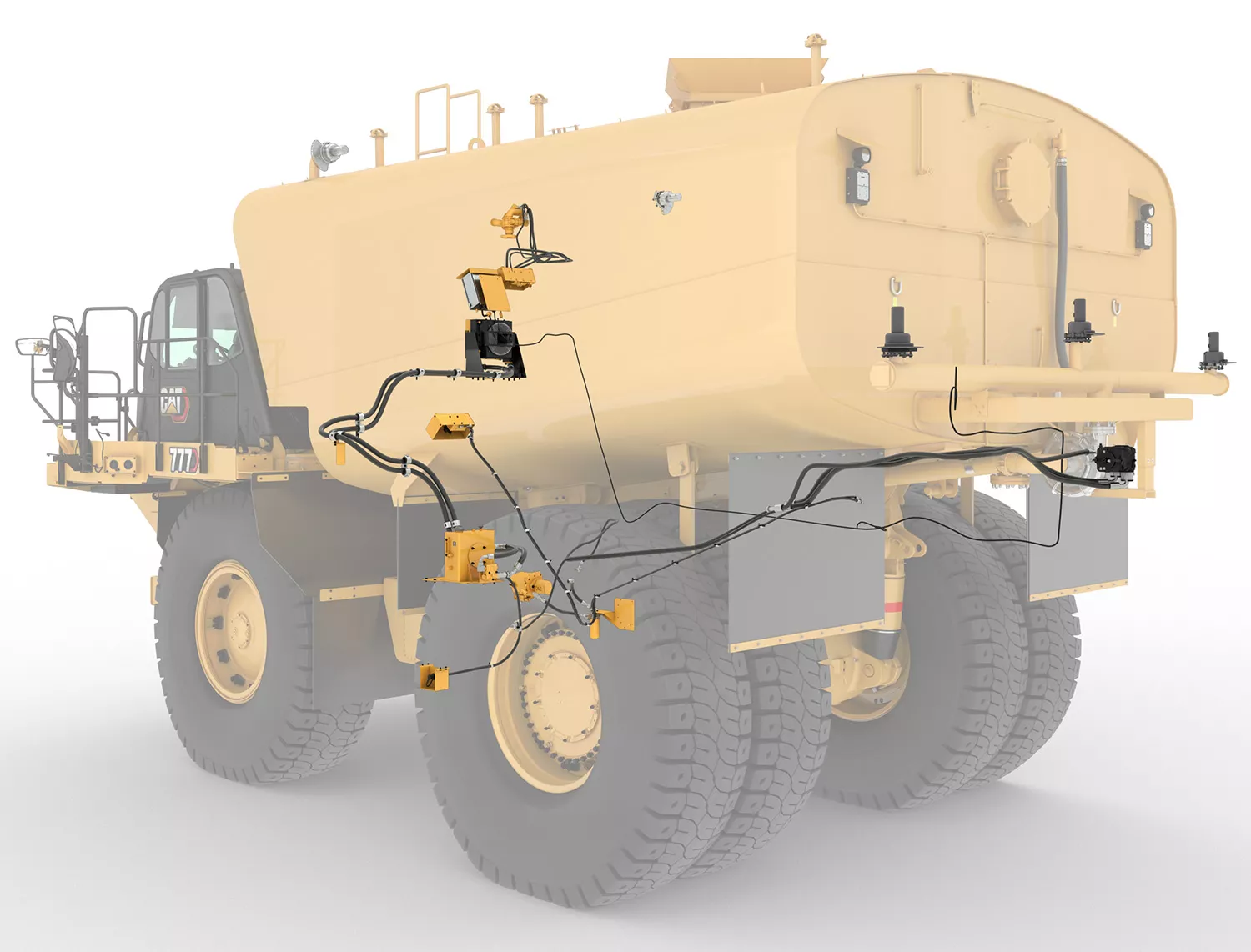

MANAGE HAUL ROAD DUST WITH AN EFFICIENT WATER DELIVERY SYSTEM.

The Cat® Water Delivery System (WDS) is an automated system with a fully-integrated Cat design. It controls the amount of water and spray patterns to prevent the hazards common with overwatering. WDS provides variable water flow based on truck speed and determines appropriate flow to conserve water.

The Cat WDS is available as a retrofit kit for the Cat 777F, 777G and 785D Off-Highway Trucks.

Benefits

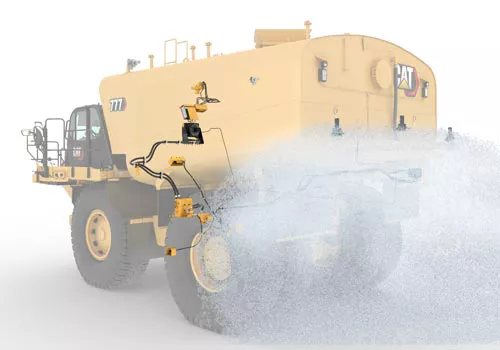

CONSERVES WATER

Uses 25-50% less water compared to conventional systems.

SAVES FUEL

Reduces fuel consumption by an average of 14% with efficient pump control.

Water cannon operates at idle, reducing fuel consumption during cannon operationby up to 50%.

Product Specifications for WDS Retrofit Kit

Cannon Capacity 2,839 liters per min up to 60 meters (750 gallons per min up to 200 ft) 2,839 liters per min up to 60 meters (750 gallons per min up to 200 ft)
Water Coverage 0.8 L/m² at speeds of 4 to 40 kph (0.02 gal/ft² at speeds of 3 to 25 mph) 0.8 L/m² at speeds of 4 to 40 kph (0.02 gal/ft² at speeds of 3 to 25 mph)

WDS Retrofit Kit Standard Equipment

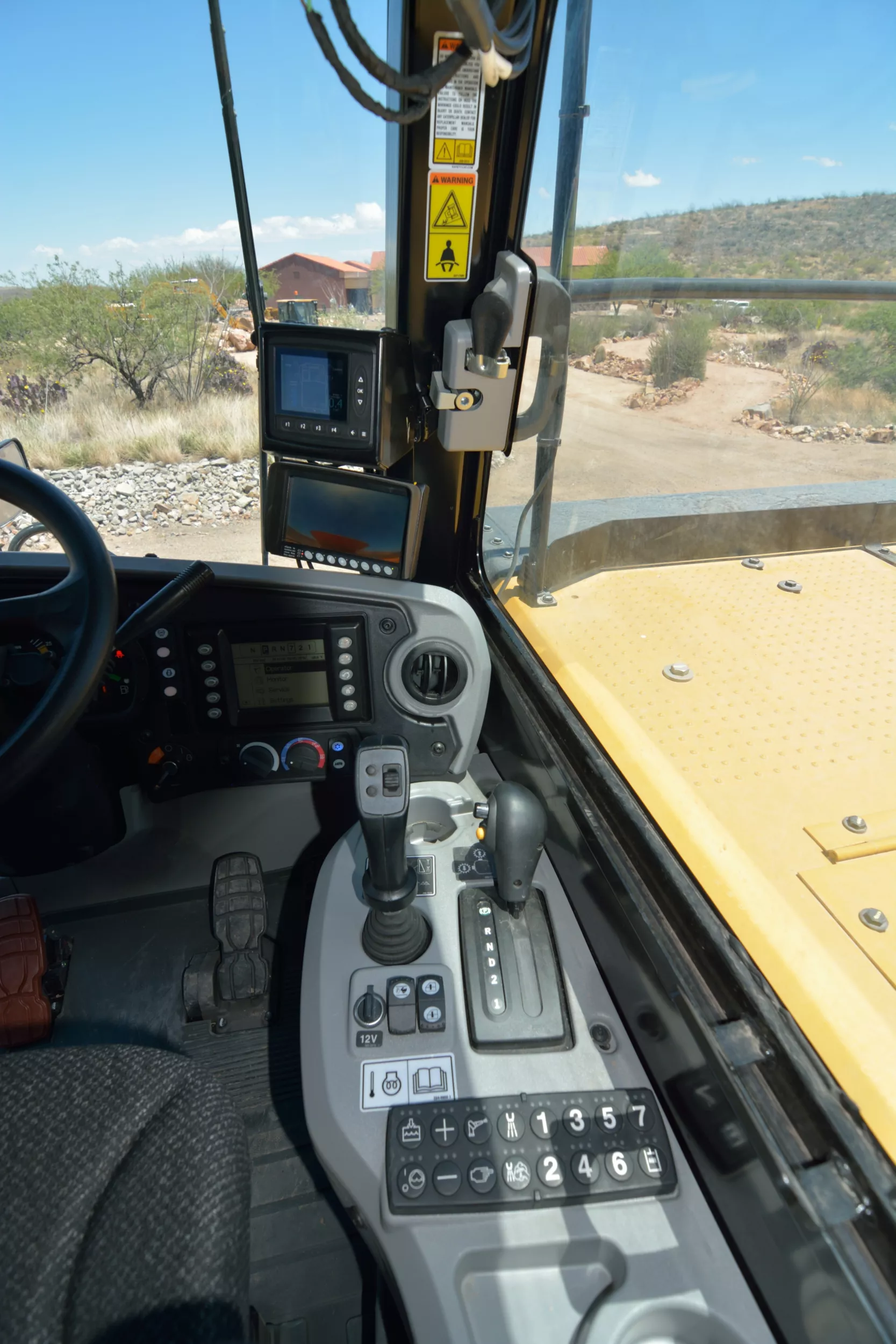

Controls

  • Dealer installed
  • Integrated into cab
  • Ergonomic
  • Durable

Water System Monitor

  • Integrated into cab
  • Programmable spray configurations
  • Automatic diagnostic messages

Variable Hydraulic Pump Drive

  • 1,200 gpm at speeds of 3 to 25 mph
  • Auto shut-off
  • Soft startup

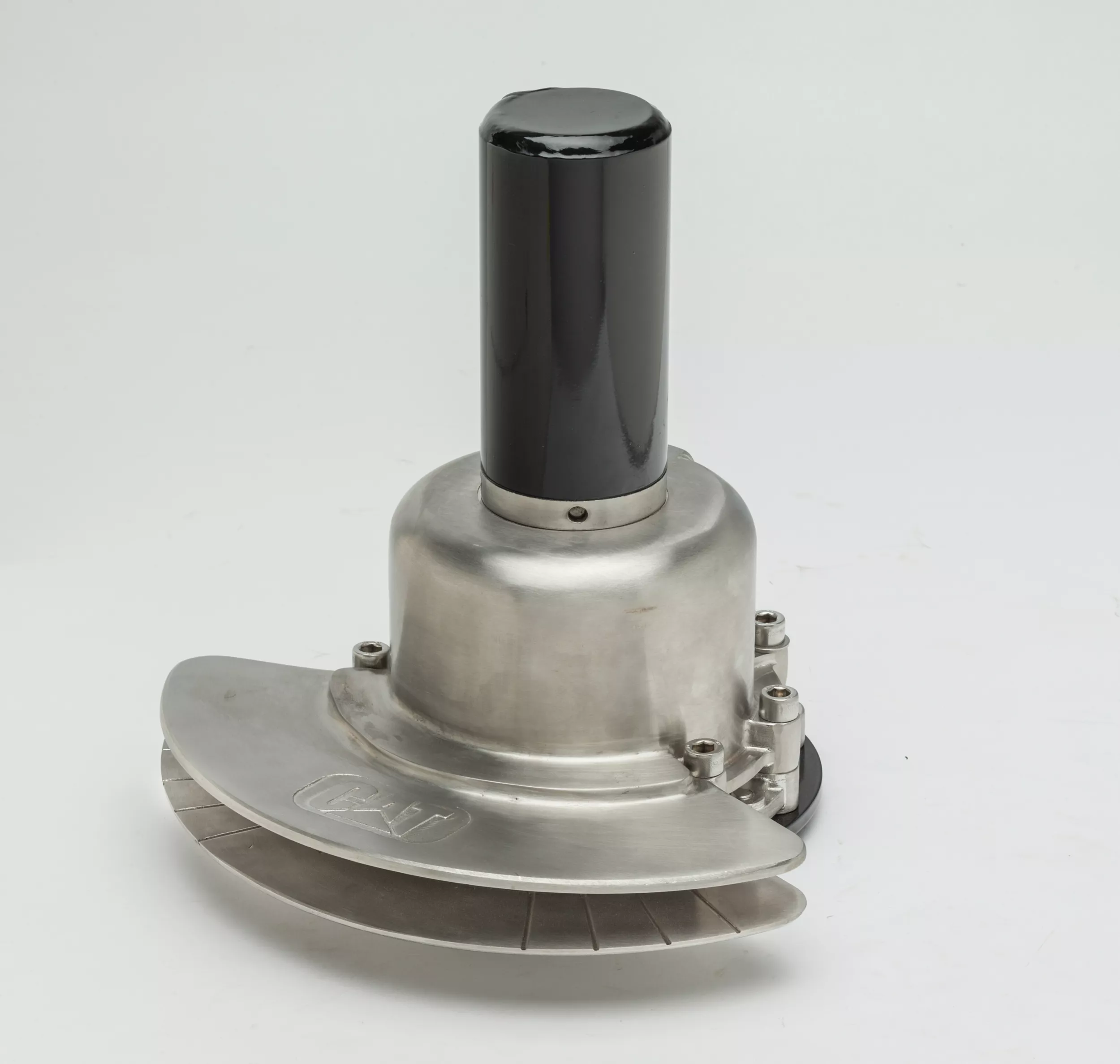

Stainless Steel Spray Heads

  • Resists corrosion
  • Mainentance free
  • Patented design

Independent Hydraulic & Cooling System

  • Minimizes overheating

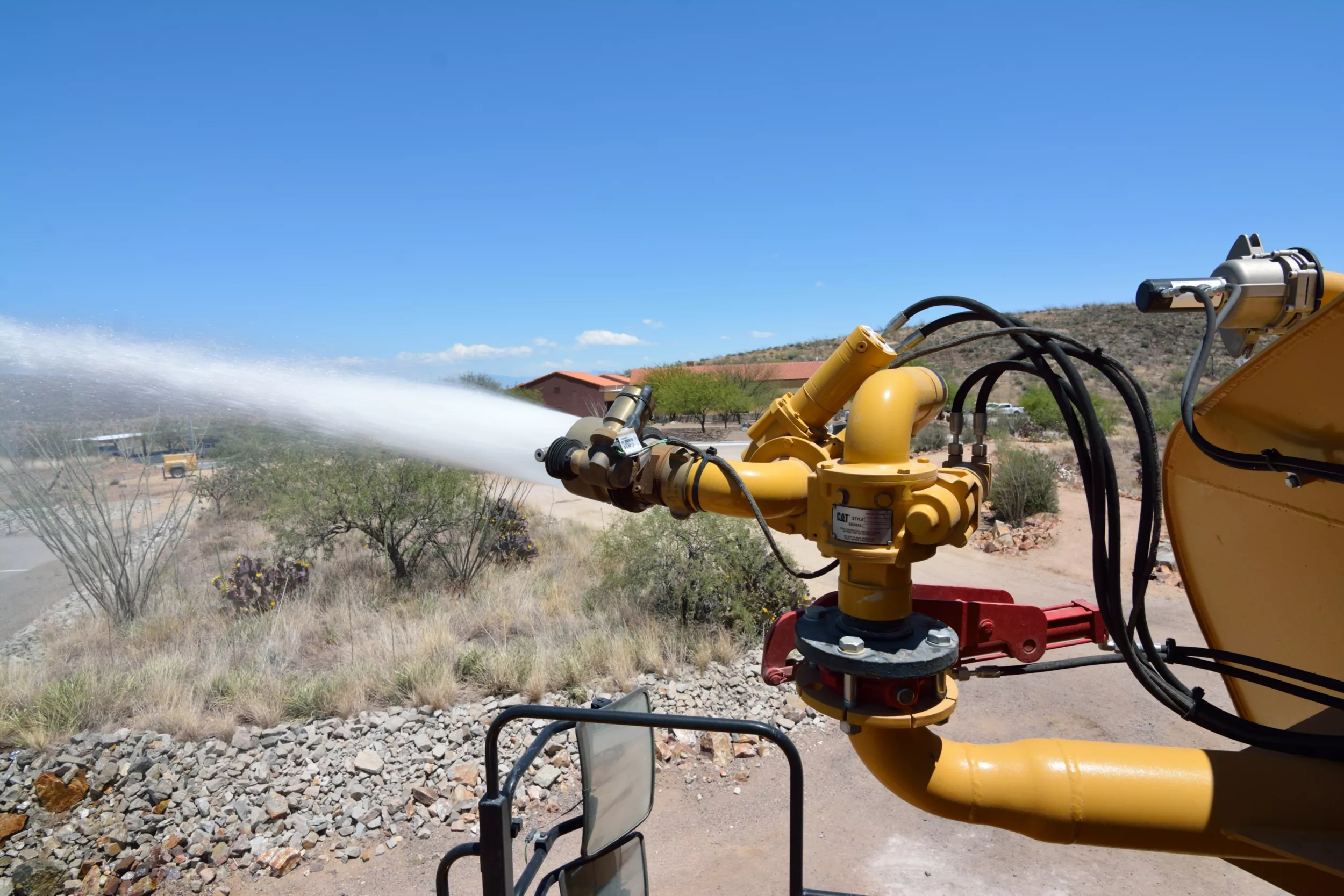

Water Cannon

  • Hydraulically controlled
  • Optional nozzles
  • Integrated joystick with cab controls
  • Operates at idle for added fuel savings

Parts & Service

  • Available through global Cat Dealer Network

Water Tank

  • Contact your local Cat dealer or Caterpillar OEM Solutions at oemsolutions@cat.com for assistance in obtaining water tanks through local suppliers worldwide.
