Enhanced By Technology
Onboard health monitoring and drill assist and factory-ready for Cat® MineStar autonomy
World-Class Maneuverability
Compact working envelope, faster set-up, low center of gravity and excavator-style undercarriage
Exceptional Visibility
Cab enhanced with large windows, interior lights and high-resolution camera monitor

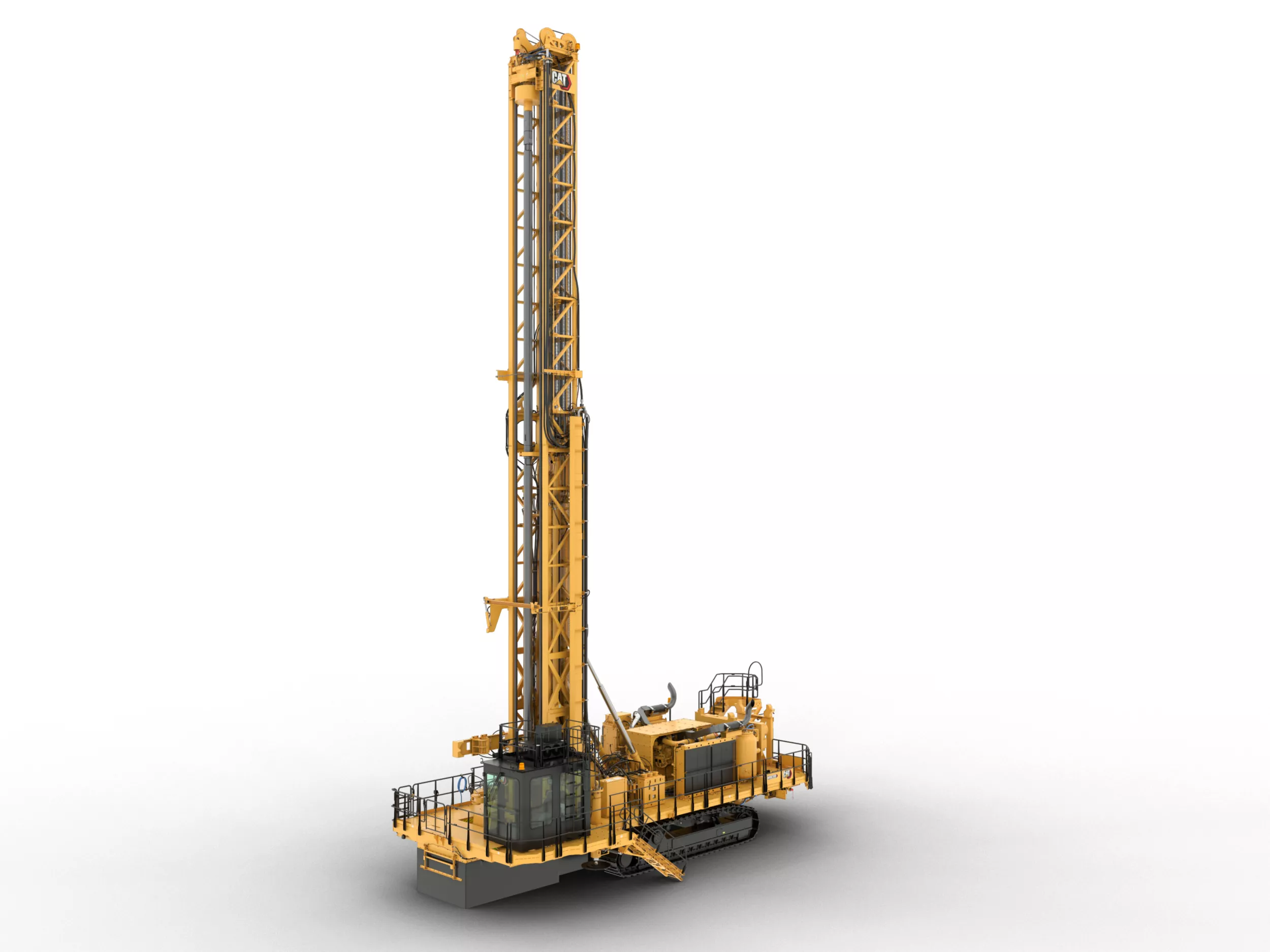

Designed for large bore hole production drilling in very hard rock, the ultra-class Cat® MD6380 provides the optimal mix of on-board air, feed force, rotary torque and machine mobility. It’s a powerful, rugged machine that can stand up to the conditions of any site and deliver reliable performance with high availability. Robust structures and mast with an integral a-frame allow it to stand up to the toughest conditions, so it delivers long life and reliable performance. With a next-generation cab and operator station, the MD6380 is designed to keep operators comfortable and productive all shift long. Designed to drill holes from 251-381 mm (9.875-15 in) in diameter, the MD6380 is is optimized for single-pass or multi-pass drilling in both rotary and down-the-hole drilling modes.
Benefits
Enhanced By Technology
Onboard health monitoring and drill assist and factory-ready for Cat® MineStar autonomy
World-Class Maneuverability
Compact working envelope, faster set-up, low center of gravity and excavator-style undercarriage
Exceptional Visibility
Cab enhanced with large windows, interior lights and high-resolution camera monitor
Features At A Glance
WORLD-CLASS OPERATOR STATION
Ergonomic controls to help operators stay alert and avoid fatigue
Multifunction joystick controls and touchscreen monitors are easy to use and intuitive
Excellent visibility, thanks to multiple cameras and full-length windows
Optional heated and ventilated seat for enhanced operator comfort
100% CAT INTEGRATION
Cat to the core, with common parts and components and consistent design characteristics across all Cat drill models
Shared software for autonomous features
Backed by the world-class support of the Cat dealer network
CAT ELECTRONICS: BACKBONE OF THE MACHINE
Common electronic architecture across all Cat machines to ensure technician familiarity
Cat Electronic Technician (Cat ET) enables fast and easy troubleshooting
Serves as common platform for integrating future autonomy solutions
Variable air volume for reduced fuel consumption and powerful performance
C27 engine matched to largest “standard” compressor in this class for fast cycle times
Powertrain optimized to withstand rigorous drilling applications
High- and low-pressure configurations offer variable volume air control
Optimal feed force, rotary torque and air, helping to reduce fuel consumption
TECHNOLOGY AND AUTOMATION
Integrated Drill Assist functionality, including auto level, auto retract jacks, auto raise and lower mast, and auto drill
Machine health and performance monitoring keep machine running productively
Drill depth meter helps reduce over- and under-drilling
Ready to connect with the Cat MineStar™ suite of technologies, including Terrain for drilling and Command for drilling
SAFETY
Four standard cameras give the operator excellent visibility: left, right and front view when tramming; carousel view when pipe handling; all three view simultaneously
Exterior lighting packages have spot and flood lights positioned to illuminate paths for ingress/egress and major service points
MineStar Command for drilling enables remote or autonomous operation — removing operator from the machine
SUSTAINABILITY
Designed to use less fuel, which reduces engine emissions
Reduced waste and lower owning and operating costs thanks to increased commonality of systems and components, plus a reduction in unique part numbers.
Longer maintenance intervals that decrease the amount of waste contributed to the environment.
Up to 53 845 kg (118,719 lb)Up to 53 845 kg (118,719 lb)
Hole Diameter
251-381 mm (9.875-15 in)251-381 mm (9.875-15 in)
Engine
Cat® 3512C @ 1,800 rpmCat® 3512C @ 1,800 rpm
Engine
Power Rating (ISO 14396)
1273 HP949 kW
Emissions (1)
U.S. EPA Tier 2/EU Stage II equivalentU.S. EPA Tier 2/EU Stage II equivalent
Power Rating (J1995)
1287 HP960 kW
Engine
Cat® 3512C @ 1,800 rpmCat® 3512C @ 1,800 rpm
Compressor/Receiver Tank
Choice
Rotary, single stage, low pressure 101.9 m³/min (3,600 ft³/min) @ 6.9 bar (100 psi); with low pressure receiver tank for ASME/CRN/AU or CERotary, single stage, low pressure 101.9 m³/min (3,600 ft³/min) @ 6.9 bar (100 psi); with low pressure receiver tank for ASME/CRN/AU or CE
Cooling
Features
Functional in ambient temperature of 52° C (125° F)Functional in ambient temperature of 52° C (125° F)
Undercarriage
Cat 374 EEL - Double Grousers for Hard Rock Applications
29.5 in750 mm
Cat 374 EEL - Drawbar Pull
723316 lbf980686 N·m
Cat 374 EEL - Double Grousers for Soft Rock Applications
35.4 in900 mm
Hydraulics
Components (1)
Two (2) primary pumps – 280 cc (piston with proportional electronic controls)Two (2) primary pumps – 280 cc (piston with proportional electronic controls)
Components (2)
One (1) auxiliary circuit pump – 145 cc (piston, load sensing)One (1) auxiliary circuit pump – 145 cc (piston, load sensing)
Components (3)
Two (2) fan pumps – 100 cc (piston with proportional electronic controls)Two (2) fan pumps – 100 cc (piston with proportional electronic controls)
Components (4)
Two (2) charge pumps – 74 cc (fixed displacement)Two (2) charge pumps – 74 cc (fixed displacement)
Vertical or angle drillingVertical or angle drilling
Hole Diameter Range
251-381 mm (9.875-15 in)251-381 mm (9.875-15 in)
Pull Down Capacity Up To
110000 lb49895 kg
Bit Load Up To
118719 lb53845 kg
Rotation Torque Up To
15400 lbf20880 N·m
Single Pass Hole Depth Down To
65 ft19.8 m
Multi-Pass Hole Depth Down To
129 ft39.5 m
Mast Accessories
Accessory (1)
Pipe positioner (stabilizer) engaged/disengaged indicator, and interlockPipe positioner (stabilizer) engaged/disengaged indicator, and interlock
Accessory (2)
One hydraulic pipe catcherOne hydraulic pipe catcher
Accessory (3)
Hydraulic pipe support in the upper section of the mastHydraulic pipe support in the upper section of the mast
Pipe Loader
Feature
LH/RH pipe racks hold 9.906 m (32.5 ft) drill pipeLH/RH pipe racks hold 9.906 m (32.5 ft) drill pipe
324 mm (12.75 in) diameter
– Single pipe rack – Dust collector side only – Single pass only– Single pipe rack – Dust collector side only – Single pass only
340 mm (13.375 in) diameter
– Single pipe rack – Dust collector side only – Single pass only– Single pipe rack – Dust collector side only – Single pass only
219 mm (8.625 in) diameter
– LH and RH, double pipe rack – Capable of single and multi-pass – Primary loader @ 29.68 m (97.4 ft) – Secondary loader @ 39.59 m (129.9 ft)– LH and RH, double pipe rack – Capable of single and multi-pass – Primary loader @ 29.68 m (97.4 ft) – Secondary loader @ 39.59 m (129.9 ft)
273 mm (10.75 in) diameter
– LH and RH, double pipe rack – Capable of single and multi-pass – Primary loader @ 29.68 m (97.4 ft) – Secondary loader @ 39.59 m (129.9 ft)– LH and RH, double pipe rack – Capable of single and multi-pass – Primary loader @ 29.68 m (97.4 ft) – Secondary loader @ 39.59 m (129.9 ft)
235 mm (9.25 in) diameter
– LH and RH, double pipe rack – Capable of single and multi-pass – Primary loader @ 29.68 m (97.4 ft) – Secondary loader @ 39.59 m (129.9 ft)– LH and RH, double pipe rack – Capable of single and multi-pass – Primary loader @ 29.68 m (97.4 ft) – Secondary loader @ 39.59 m (129.9 ft)
Break Out Wrench
Variable Grip
– 219, 235, 273 mm (8.625, 9.25, 10.75 in) – 324, 340 mm (12.75, 13.375 in)– 219, 235, 273 mm (8.625, 9.25, 10.75 in) – 324, 340 mm (12.75, 13.375 in)
Drill Tool Package
One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal
– 219 mm (8.625 in) – 235 mm (9.25 in) – 273 mm (10.75 in) – 324 mm (12.75 in) – 340 mm (13.375 in)– 219 mm (8.625 in) – 235 mm (9.25 in) – 273 mm (10.75 in) – 324 mm (12.75 in) – 340 mm (13.375 in)
Subs
Shock absorber with top sub adapter - available in Standard or Premium
– 219 mm (8.625 in) – 235 mm (9.25 in) – 273 mm (10.75 in) – 324 mm (12.75 in) – 340 mm (13.375 in)– 219 mm (8.625 in) – 235 mm (9.25 in) – 273 mm (10.75 in) – 324 mm (12.75 in) – 340 mm (13.375 in)
Operator Environment
Cab - Premium
– Includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass – Additional storage plus windshield wipers on front and rear windows – Removable driller window guard plus front window guard and trainer seat– Includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass – Additional storage plus windshield wipers on front and rear windows – Removable driller window guard plus front window guard and trainer seat
Cab - Standard
– Includes a fabric seat, single pane window glass, shades, and a windshield wiper for driller window, removable driller window guard and a trainer seat– Includes a fabric seat, single pane window glass, shades, and a windshield wiper for driller window, removable driller window guard and a trainer seat
Fluids
Service Package - Standard
– Fast fill fuel and water only – Automated lubricant system– Fast fill fuel and water only – Automated lubricant system
Service Package - Premium
– Service center for lubricant drain and fill – Fast fill fuel and water – Automated lubricant system– Service center for lubricant drain and fill – Fast fill fuel and water – Automated lubricant system
Dust Suppression
Water Injection System
600 gal (US)2271 l
Water Injection System, High Volume Total Tank Capacity
1400 gal (US)5299 l
Water Injection System, High Volume Total Tank Capacity (Note 1)
2271 L (600 gal) below deck mounted tank2271 L (600 gal) below deck mounted tank
Water Injection System (Note 1)
Tank below deckTank below deck
Water Injection/Dry Dust Collection
600 gal (US)2271 l
Water Injection System, High Volume Total Tank Capacity (Note 2)
3028 L (800 gal) above deck mounted tank3028 L (800 gal) above deck mounted tank
Water Injection System, High Volume Total Tank Capacity (Note 3)
Fast fillFast fill
Batteries
Note (2)
Six (6) each batteries, sealed – Required for semi/full autonomy packagesSix (6) each batteries, sealed – Required for semi/full autonomy packages
Note (1)
Four (4) each batteries, sealedFour (4) each batteries, sealed
Climate Choices
Climate Level 1 Standard Fluids and Lubricants (1)
– Temperature range of –1° C (30° F) to 52° C (125° F)– Temperature range of –1° C (30° F) to 52° C (125° F)
Climate Level 2 Arctic Fluids and Lubricants
– Temperatures down to –18° C (–0.4° F)– Temperatures down to –18° C (–0.4° F)
Automation and Technology
Components (6)
Product Link™Product Link™
Components (5)
Electric controls for drilling, tramming, leveling plus auxiliary functionsElectric controls for drilling, tramming, leveling plus auxiliary functions
Type (1)
Radio-ready for communication and entertainment radioRadio-ready for communication and entertainment radio
Type (2)
Integrated Terrain for Drilling complete with wiring and harnessesIntegrated Terrain for Drilling complete with wiring and harnesses
Components (1)
Single pass auto drill/drill assistSingle pass auto drill/drill assist
Components (2)
Multi pass auto drill/drill assistMulti pass auto drill/drill assist
Components (3)
Drill depth meterDrill depth meter
Components (4)
Auto level, auto retract jacks, auto raise and lower mastAuto level, auto retract jacks, auto raise and lower mast
Dimensions (Approximate)
Height mast up
87.6 ft26.7 m
Height mast down
21.7 ft6.6 m
Length mast down
92.9 ft28.3 m
Note
*Working Length Mast Up with bolt-on platform adds 1.2 m (4 ft) for total of 15.9 m (52.1 ft)*Working Length Mast Up with bolt-on platform adds 1.2 m (4 ft) for total of 15.9 m (52.1 ft)
Working Width (non-drill end)
19.9 ft6.06 m
Working Width (drill end)
22.6 ft6.89 m
Mast Only Shipping Length
82.8 ft25.24 m
Working Length Mast Up*
48.1 ft14.7 m
Weights
Mast Only
88184 lb40000 kg
Without Mast
225533 lb102300 kg
Working Weight Range
142 300 kg (313,717 lb)142 300 kg (313,717 lb)
MD6380 Standard Equipment
POWER TRAIN
Receiver tank for ASME/CRN/AU or CE receiver tank
CAB
Standard cab – Includes a fabric seat, single pane window glass, shades, and a windshield wiper for driller window, removable driller window guard and a trainer seat
Viewing hatch to spot over the hole
LED lighting
CONTROLS
Basic drill depth indicator and interlocks
PRODUCT LINK/TERRAIN
Product Link (Cellular)
MAST
No mast access/handrail only
PIPE LOADER (SELECT ONE)
219 mm (8.625 in) diameter – Two pipe rack – Capable of single and multi-pass
235 mm (9.25 in) diameter – Two pipe rack – Capable of single and multi-pass
273 mm (10.75 in) diameter – Two pipe rack – Capable of single and multi-pass
324 mm (12.75 in) diameter – Single pipe rack – Dust collector side only – Single pass only
340 mm (13.375 in) diameter – Single pipe rack – Dust collector side only – Single pass only
TOP SUB/SHOCK SUB (SELECT ONE)
219 mm (8.625 in) standard
235 mm (9.25 in) standard
273 mm (10.75 in) standard
324 mm (12.75 in) standard
340 mm (13.375 in) standard
TOOL GROUPS (SELECT ONE)
219 mm (8.625 in) – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal
235 mm (9.25 in) – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal
273 mm (10.75 in) – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal
324 mm (12.75 in) – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal
340 mm (13.375 in) – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal
Grip range – 219, 235, 273 mm (8.625, 9.25, 10.75 in)
Grip range – 324, 340 mm (12.75, 13.375 in)
DRILL PIPE – 9.9 M (32.5 FT) LENGTH
No pipe thread greaser
TRICONE BITS GROUP (SELECT ONE)
Hydraulic bit basket
SERVICE PACKAGES/FLUID SYSTEM
Standard fast fill for fuel and water only, automated lubricant system
CLIMATE/REGIONAL CONSIDERATIONS
Air receiver tank low pressure (ASME/CRN/AU) or
Air receiver tank low pressure (CE)
Four (4) batteries
Climate Level 1 – Standard fluids and lubricants – With a temperature range of –1° C (30° F) to 52° C (125° F)
Certifications CE
FRAME/DECK
No tool storage box (cover only)
No jib crane (cover only)
DUST SUPPRESSION
Water injection only (no dust collector) – 2271 L (600 gal) tank below deck
UNDERCARRIAGE (SELECT ONE)
750 mm (29.5 in) double grousers for hard rock applications or
900 mm (35.4 in) double grousers for soft rock applications
MD6380 Optional Equipment
CAB
Premium cab – Includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass – Additional storage plus windshield wipers on front and rear windows, a removable driller window guard plus front window guard and a trainer seat
Cab roof access system (includes ladders, cage and rails)
Lights for tram (front and cab)
CONTROLS
Auto Drill Assist – Single pass auto drill
Auto Drill Assist – Multi pass auto drill
Manometer/pressure gauge
Remote tram
PRODUCT LINK/TERRAIN
Product Link (Satellite)
Product Link (Dual)
Terrain (Guidance)
MAST
Mast Access Arrangement – Includes steps, guardrails, landing platforms, and walkway
Drill pipe thread greaser
Tool Lubrication System – Rotary tricone, 113.5 L (30 gal)
Flashing beacon for mast clearance
Overhead winch assembly – Includes cable and hook plus remote
TOP SUB/SHOCK SUB (SELECT ONE)
219 mm (8.625 in) premium
235 mm (9.25 in) premium
273 mm (10.75 in) premium
324 mm (12.75 in) premium
340 mm (13.375 in) premium
DRILL PIPE – 9.9 M (32.5 FT) LENGTH
219 mm (8.625 in) diameter
235 mm (9.25 in) diameter
273 mm (10.75 in) diameter
324 mm (12.75 in) diameter
340 mm (13.375 in) diameter
Pipe thread greaser
TRICONE BITS GROUP (SELECT ONE)
9.875 in (251 mm) tricone bit
10.625 in (270 mm) tricone bit
12.25 in (311 mm) tricone bit
Bit lock plate 251 mm (9.875 in)
Bit lock plate 270 mm (10.625 in)
Bit lock plate 311 mm (12.25 in)
Bit lock plate 349 mm (13.75 in)
Bit lock plate 381 mm (15 in)
SERVICE TOOLS
Lifting bail 152 mm (6 in) BECO for 194‑235 mm (7.625-9.25 in) pipe
Lifting bail 203 mm (8 in) BECO for 273‑324 mm (10.75-12.75 in) pipe
Lifting bail 254 mm (10 in) BECO for 340 mm (13.375 in) pipe
Lifting bail 168 mm (6.625 in) API regular thread for 251-349 mm (9.875‑13.75 in) tricone bit
Lifting bail 178 mm (7.0 in) API regular thread for 381 mm (15 in) tricone bit
Bushing retainment tool (8.625-10.75 in pipe) (6 in, 7 in and 7.8 in flats)
Bushing retainment tool (12.75-13.378 in pipe) (10.5 in and 11.38 in flats)
SERVICE PACKAGES/FLUID SYSTEM
Premium with Service Center for lubricant drain and fill; automated lubricant system, fast fill fuel and water
CLIMATE/REGIONAL CONSIDERATIONS
Six (6) batteries (required for autonomy packages)
Climate Level 2 – Arctic fluids and lubricants – Temperatures down to –18° C (–0.4° F)
FRAME/DECK
Tool storage box
Jib crane pedestal only
Blowdown lines and nozzle (with quick connect cooler end and drill deck)
DUST SUPPRESSION
Water injection and dust collector – 2271 L (600 gal) tank below deck – 204 m³/min (7,200 ft³/min) dry dust collection
High capacity water injection – 5299 L (1,400 gal)
2271 L (600 gal) below-deck mounted tank and a 3028 L (800 gal) above deck mounted tank
Dust curtain hydraulic lifters – Front and rear dust curtains (recommended with dust collector)
Up to 53 845 kg (118,719 lb)Up to 53 845 kg (118,719 lb)
Hole Diameter
251-381 mm (9.875-15 in)251-381 mm (9.875-15 in)
Engine
Cat® 3512C @ 1,800 rpmCat® 3512C @ 1,800 rpm
Engine
Power Rating (ISO 14396)
1273 HP949 kW
Emissions (1)
U.S. EPA Tier 2/EU Stage II equivalentU.S. EPA Tier 2/EU Stage II equivalent
Power Rating (J1995)
1287 HP960 kW
Engine
Cat® 3512C @ 1,800 rpmCat® 3512C @ 1,800 rpm
Compressor/Receiver Tank
Choice
Rotary, single stage, low pressure 101.9 m³/min (3,600 ft³/min) @ 6.9 bar (100 psi); with low pressure receiver tank for ASME/CRN/AU or CERotary, single stage, low pressure 101.9 m³/min (3,600 ft³/min) @ 6.9 bar (100 psi); with low pressure receiver tank for ASME/CRN/AU or CE
Cooling
Features
Functional in ambient temperature of 52° C (125° F)Functional in ambient temperature of 52° C (125° F)
Undercarriage
Cat 374 EEL - Double Grousers for Hard Rock Applications
29.5 in750 mm
Cat 374 EEL - Drawbar Pull
723316 lbf980686 N·m
Cat 374 EEL - Double Grousers for Soft Rock Applications
35.4 in900 mm
Hydraulics
Components (1)
Two (2) primary pumps – 280 cc (piston with proportional electronic controls)Two (2) primary pumps – 280 cc (piston with proportional electronic controls)
Components (2)
One (1) auxiliary circuit pump – 145 cc (piston, load sensing)One (1) auxiliary circuit pump – 145 cc (piston, load sensing)
Components (3)
Two (2) fan pumps – 100 cc (piston with proportional electronic controls)Two (2) fan pumps – 100 cc (piston with proportional electronic controls)
Components (4)
Two (2) charge pumps – 74 cc (fixed displacement)Two (2) charge pumps – 74 cc (fixed displacement)
Vertical or angle drillingVertical or angle drilling
Hole Diameter Range
251-381 mm (9.875-15 in)251-381 mm (9.875-15 in)
Pull Down Capacity Up To
110000 lb49895 kg
Bit Load Up To
118719 lb53845 kg
Rotation Torque Up To
15400 lbf20880 N·m
Single Pass Hole Depth Down To
65 ft19.8 m
Multi-Pass Hole Depth Down To
129 ft39.5 m
Mast Accessories
Accessory (1)
Pipe positioner (stabilizer) engaged/disengaged indicator, and interlockPipe positioner (stabilizer) engaged/disengaged indicator, and interlock
Accessory (2)
One hydraulic pipe catcherOne hydraulic pipe catcher
Accessory (3)
Hydraulic pipe support in the upper section of the mastHydraulic pipe support in the upper section of the mast
Pipe Loader
Feature
LH/RH pipe racks hold 9.906 m (32.5 ft) drill pipeLH/RH pipe racks hold 9.906 m (32.5 ft) drill pipe
324 mm (12.75 in) diameter
– Single pipe rack – Dust collector side only – Single pass only– Single pipe rack – Dust collector side only – Single pass only
340 mm (13.375 in) diameter
– Single pipe rack – Dust collector side only – Single pass only– Single pipe rack – Dust collector side only – Single pass only
219 mm (8.625 in) diameter
– LH and RH, double pipe rack – Capable of single and multi-pass – Primary loader @ 29.68 m (97.4 ft) – Secondary loader @ 39.59 m (129.9 ft)– LH and RH, double pipe rack – Capable of single and multi-pass – Primary loader @ 29.68 m (97.4 ft) – Secondary loader @ 39.59 m (129.9 ft)
273 mm (10.75 in) diameter
– LH and RH, double pipe rack – Capable of single and multi-pass – Primary loader @ 29.68 m (97.4 ft) – Secondary loader @ 39.59 m (129.9 ft)– LH and RH, double pipe rack – Capable of single and multi-pass – Primary loader @ 29.68 m (97.4 ft) – Secondary loader @ 39.59 m (129.9 ft)
235 mm (9.25 in) diameter
– LH and RH, double pipe rack – Capable of single and multi-pass – Primary loader @ 29.68 m (97.4 ft) – Secondary loader @ 39.59 m (129.9 ft)– LH and RH, double pipe rack – Capable of single and multi-pass – Primary loader @ 29.68 m (97.4 ft) – Secondary loader @ 39.59 m (129.9 ft)
Break Out Wrench
Variable Grip
– 219, 235, 273 mm (8.625, 9.25, 10.75 in) – 324, 340 mm (12.75, 13.375 in)– 219, 235, 273 mm (8.625, 9.25, 10.75 in) – 324, 340 mm (12.75, 13.375 in)
Drill Tool Package
One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal
– 219 mm (8.625 in) – 235 mm (9.25 in) – 273 mm (10.75 in) – 324 mm (12.75 in) – 340 mm (13.375 in)– 219 mm (8.625 in) – 235 mm (9.25 in) – 273 mm (10.75 in) – 324 mm (12.75 in) – 340 mm (13.375 in)
Subs
Shock absorber with top sub adapter - available in Standard or Premium
– 219 mm (8.625 in) – 235 mm (9.25 in) – 273 mm (10.75 in) – 324 mm (12.75 in) – 340 mm (13.375 in)– 219 mm (8.625 in) – 235 mm (9.25 in) – 273 mm (10.75 in) – 324 mm (12.75 in) – 340 mm (13.375 in)
Operator Environment
Cab - Premium
– Includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass – Additional storage plus windshield wipers on front and rear windows – Removable driller window guard plus front window guard and trainer seat– Includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass – Additional storage plus windshield wipers on front and rear windows – Removable driller window guard plus front window guard and trainer seat
Cab - Standard
– Includes a fabric seat, single pane window glass, shades, and a windshield wiper for driller window, removable driller window guard and a trainer seat– Includes a fabric seat, single pane window glass, shades, and a windshield wiper for driller window, removable driller window guard and a trainer seat
Fluids
Service Package - Standard
– Fast fill fuel and water only – Automated lubricant system– Fast fill fuel and water only – Automated lubricant system
Service Package - Premium
– Service center for lubricant drain and fill – Fast fill fuel and water – Automated lubricant system– Service center for lubricant drain and fill – Fast fill fuel and water – Automated lubricant system
Dust Suppression
Water Injection System
600 gal (US)2271 l
Water Injection System, High Volume Total Tank Capacity
1400 gal (US)5299 l
Water Injection System, High Volume Total Tank Capacity (Note 1)
2271 L (600 gal) below deck mounted tank2271 L (600 gal) below deck mounted tank
Water Injection System (Note 1)
Tank below deckTank below deck
Water Injection/Dry Dust Collection
600 gal (US)2271 l
Water Injection System, High Volume Total Tank Capacity (Note 2)
3028 L (800 gal) above deck mounted tank3028 L (800 gal) above deck mounted tank
Water Injection System, High Volume Total Tank Capacity (Note 3)
Fast fillFast fill
Batteries
Note (2)
Six (6) each batteries, sealed – Required for semi/full autonomy packagesSix (6) each batteries, sealed – Required for semi/full autonomy packages
Note (1)
Four (4) each batteries, sealedFour (4) each batteries, sealed
Climate Choices
Climate Level 1 Standard Fluids and Lubricants (1)
– Temperature range of –1° C (30° F) to 52° C (125° F)– Temperature range of –1° C (30° F) to 52° C (125° F)
Climate Level 2 Arctic Fluids and Lubricants
– Temperatures down to –18° C (–0.4° F)– Temperatures down to –18° C (–0.4° F)
Automation and Technology
Components (6)
Product Link™Product Link™
Components (5)
Electric controls for drilling, tramming, leveling plus auxiliary functionsElectric controls for drilling, tramming, leveling plus auxiliary functions
Type (1)
Radio-ready for communication and entertainment radioRadio-ready for communication and entertainment radio
Type (2)
Integrated Terrain for Drilling complete with wiring and harnessesIntegrated Terrain for Drilling complete with wiring and harnesses
Components (1)
Single pass auto drill/drill assistSingle pass auto drill/drill assist
Components (2)
Multi pass auto drill/drill assistMulti pass auto drill/drill assist
Components (3)
Drill depth meterDrill depth meter
Components (4)
Auto level, auto retract jacks, auto raise and lower mastAuto level, auto retract jacks, auto raise and lower mast
Dimensions (Approximate)
Height mast up
87.6 ft26.7 m
Height mast down
21.7 ft6.6 m
Length mast down
92.9 ft28.3 m
Note
*Working Length Mast Up with bolt-on platform adds 1.2 m (4 ft) for total of 15.9 m (52.1 ft)*Working Length Mast Up with bolt-on platform adds 1.2 m (4 ft) for total of 15.9 m (52.1 ft)
Standard cab – Includes a fabric seat, single pane window glass, shades, and a windshield wiper for driller window, removable driller window guard and a trainer seat
Viewing hatch to spot over the hole
LED lighting
CONTROLS
Basic drill depth indicator and interlocks
PRODUCT LINK/TERRAIN
Product Link (Cellular)
MAST
No mast access/handrail only
PIPE LOADER (SELECT ONE)
219 mm (8.625 in) diameter – Two pipe rack – Capable of single and multi-pass
235 mm (9.25 in) diameter – Two pipe rack – Capable of single and multi-pass
273 mm (10.75 in) diameter – Two pipe rack – Capable of single and multi-pass
324 mm (12.75 in) diameter – Single pipe rack – Dust collector side only – Single pass only
340 mm (13.375 in) diameter – Single pipe rack – Dust collector side only – Single pass only
TOP SUB/SHOCK SUB (SELECT ONE)
219 mm (8.625 in) standard
235 mm (9.25 in) standard
273 mm (10.75 in) standard
324 mm (12.75 in) standard
340 mm (13.375 in) standard
TOOL GROUPS (SELECT ONE)
219 mm (8.625 in) – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal
235 mm (9.25 in) – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal
273 mm (10.75 in) – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal
324 mm (12.75 in) – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal
340 mm (13.375 in) – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal
Premium cab – Includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass – Additional storage plus windshield wipers on front and rear windows, a removable driller window guard plus front window guard and a trainer seat
Cab roof access system (includes ladders, cage and rails)
Lights for tram (front and cab)
CONTROLS
Auto Drill Assist – Single pass auto drill
Auto Drill Assist – Multi pass auto drill
Manometer/pressure gauge
Remote tram
PRODUCT LINK/TERRAIN
Product Link (Satellite)
Product Link (Dual)
Terrain (Guidance)
MAST
Mast Access Arrangement – Includes steps, guardrails, landing platforms, and walkway
Drill pipe thread greaser
Tool Lubrication System – Rotary tricone, 113.5 L (30 gal)
Flashing beacon for mast clearance
Overhead winch assembly – Includes cable and hook plus remote
TOP SUB/SHOCK SUB (SELECT ONE)
219 mm (8.625 in) premium
235 mm (9.25 in) premium
273 mm (10.75 in) premium
324 mm (12.75 in) premium
340 mm (13.375 in) premium
DRILL PIPE – 9.9 M (32.5 FT) LENGTH
219 mm (8.625 in) diameter
235 mm (9.25 in) diameter
273 mm (10.75 in) diameter
324 mm (12.75 in) diameter
340 mm (13.375 in) diameter
Pipe thread greaser
TRICONE BITS GROUP (SELECT ONE)
9.875 in (251 mm) tricone bit
10.625 in (270 mm) tricone bit
12.25 in (311 mm) tricone bit
Bit lock plate 251 mm (9.875 in)
Bit lock plate 270 mm (10.625 in)
Bit lock plate 311 mm (12.25 in)
Bit lock plate 349 mm (13.75 in)
Bit lock plate 381 mm (15 in)
SERVICE TOOLS
Lifting bail 152 mm (6 in) BECO for 194‑235 mm (7.625-9.25 in) pipe
Lifting bail 203 mm (8 in) BECO for 273‑324 mm (10.75-12.75 in) pipe
Lifting bail 254 mm (10 in) BECO for 340 mm (13.375 in) pipe
Lifting bail 168 mm (6.625 in) API regular thread for 251-349 mm (9.875‑13.75 in) tricone bit
Lifting bail 178 mm (7.0 in) API regular thread for 381 mm (15 in) tricone bit
Bushing retainment tool (8.625-10.75 in pipe) (6 in, 7 in and 7.8 in flats)
Bushing retainment tool (12.75-13.378 in pipe) (10.5 in and 11.38 in flats)
SERVICE PACKAGES/FLUID SYSTEM
Premium with Service Center for lubricant drain and fill; automated lubricant system, fast fill fuel and water
CLIMATE/REGIONAL CONSIDERATIONS
Six (6) batteries (required for autonomy packages)
Climate Level 2 – Arctic fluids and lubricants – Temperatures down to –18° C (–0.4° F)
FRAME/DECK
Tool storage box
Jib crane pedestal only
Blowdown lines and nozzle (with quick connect cooler end and drill deck)
DUST SUPPRESSION
Water injection and dust collector – 2271 L (600 gal) tank below deck – 204 m³/min (7,200 ft³/min) dry dust collection
High capacity water injection – 5299 L (1,400 gal)
2271 L (600 gal) below-deck mounted tank and a 3028 L (800 gal) above deck mounted tank
Dust curtain hydraulic lifters – Front and rear dust curtains (recommended with dust collector)
Tram-off Spray System
Compatible Technology and Services
Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.
Command
Fleet
Health
Terrain
Cat Command for Drilling
Cat MineStar Command for drilling ensures that every hole is accurately placed, drilled to the proper elevation and angle, and able to stand up until blasting. A range of capabilities lets site managers configure and automate the drilling system to their budgets and needs.
Cat MineStar Command for drilling ensures that every hole is accurately placed, drilled to the proper elevation and angle, and able to stand up until blasting. A range of capabilities lets site managers configure and automate the drilling system to their budgets and needs.
Cat MineStar Fleet is the single best source for fleet management information. An integrated fleet monitoring and management system, it can be used with any machine or system to measure, manage and maximize every facet of an operation, no matter the size or type. Fleet provides real-time visibility to cycle time, payload and other key operational parameters. It monitors machine locations and material movement and provides alerts of misroutes to ensure material is moved to the proper location.
keyboard_arrow_left Previous
Next
keyboard_arrow_right
Cat MineStar Fleet is the single best source for fleet management information. An integrated fleet monitoring and management system, it can be used with any machine or system to measure, manage and maximize every facet of an operation, no matter the size or type. Fleet provides real-time visibility to cycle time, payload and other key operational parameters. It monitors machine locations and material movement and provides alerts of misroutes to ensure material is moved to the proper location.
For both surface and underground applications, Cat® MineStar™ Health is an industry - leading technology offering that helps you maximize equipment availability and reliability. MineStar Health keeps you connected to your machines so you can head off small problems while they’re still small, run machines as efficiently as possible for as long as possible, and keep unplanned downtime to a minimum.
For both surface and underground applications, Cat® MineStar™ Health is an industry - leading technology offering that helps you maximize equipment availability and reliability. MineStar Health keeps you connected to your machines so you can head off small problems while they’re still small, run machines as efficiently as possible for as long as possible, and keep unplanned downtime to a minimum.
Effective mining starts with accurate drilling. That means drilling every hole precisely to plan, at the proper angle and the correct depth. Cat® MineStar™ Terrain for drilling provides precision guidance that helps operators complete patterns accurately and productively. It pays other dividends, as well, by improving safety, reducing costs and recording data about drilled stratification to aid in planning blasts and improving fragmentation. And it works with all brands of drills and communicates seamlessly with MineStar and other mine management systems.
keyboard_arrow_left Previous
Next
keyboard_arrow_right
Effective mining starts with accurate drilling. That means drilling every hole precisely to plan, at the proper angle and the correct depth. Cat® MineStar™ Terrain for drilling provides precision guidance that helps operators complete patterns accurately and productively. It pays other dividends, as well, by improving safety, reducing costs and recording data about drilled stratification to aid in planning blasts and improving fragmentation. And it works with all brands of drills and communicates seamlessly with MineStar and other mine management systems.
Cat dealers provide the on-the-ground service and support that keep your operation running — as well as a single, local point of contact for all your needs. Fill out this form and your Cat dealer will contact you with more information.
Internet Explorer users may experience issues with certain features of our site.
Please try a current version of an alternate browser (i.e. Google Chrome, Microsoft Edge, Mozilla Firefox) for the full Cat.com experience.
