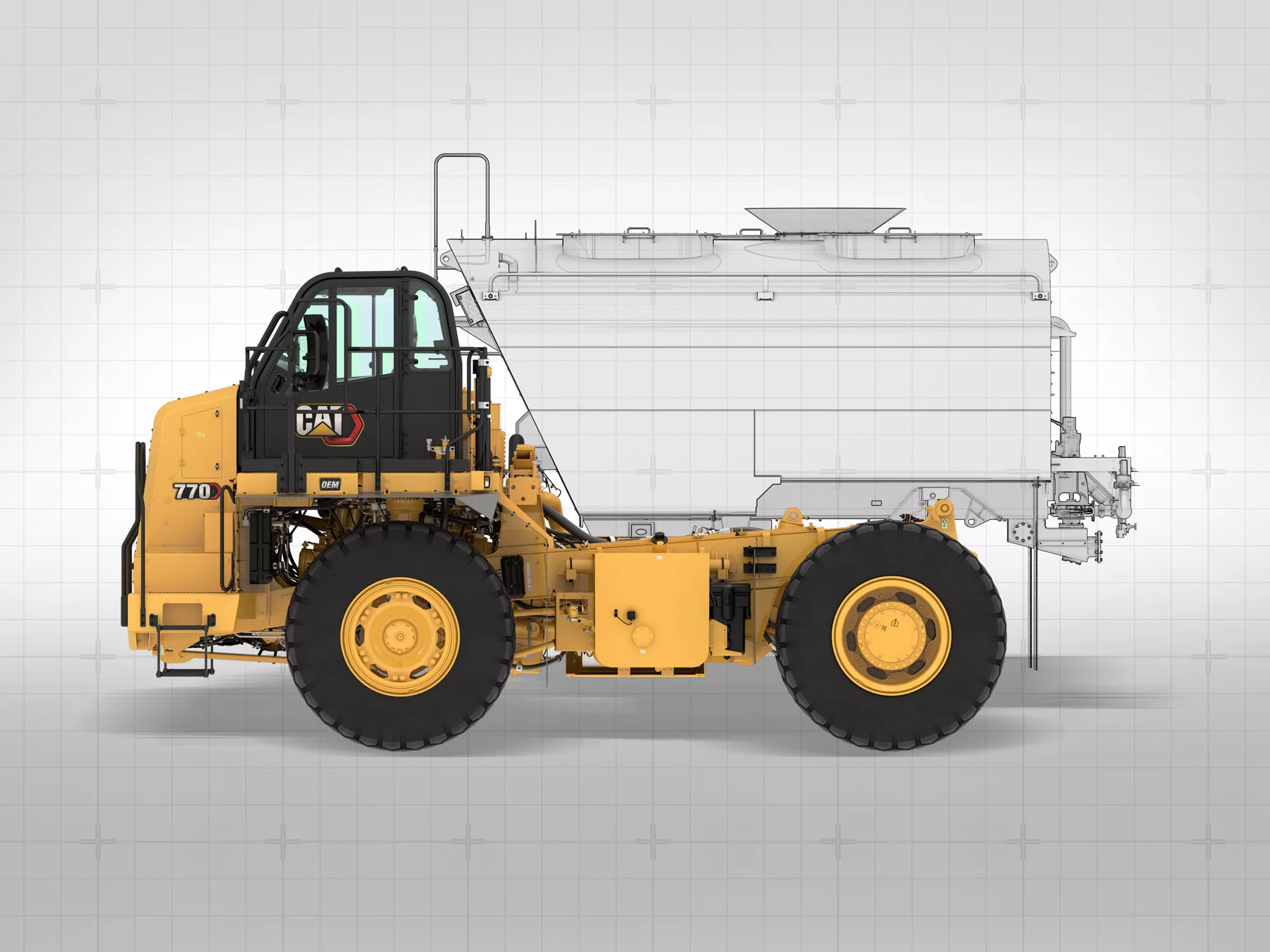

Off-Highway Trucks Bare Chassis 770G Bare Chassis

770G Bare Chassis Standard Equipment

For more information on 770G WTR Bare Chassis options, please contact Caterpillar OEM Solutions at oemsolutions@cat.com.

NOTE

• Standard and optional equipment may vary. Consult your Cat dealer for details.

POWERTRAIN

• Air-To-Air Aftercooler (ATAAC)

• Air cleaner with precleaner (1)

• Automatic cold mode idle control

• Electric start

• Engine idle shutdown

• Ether started aided

• Exhaust muffler

• Global off-highway aluminium radiator

• Braking System: Automatic Retarder Control (ARC), Manual retarder (utilizes rear oil-cooled, multiple disc brakes), Brake release motor (towing), Dry disc brakes (front), Front brake disconnect switch (front), Oil-cooled, multiple disc (rear), Brake wear indicator, Parking, secondary, service brake

• Transmission: 7 speed automatic powershift with electronic clutch pressure control, Advanced productivity electronic control strategy (APECS), Automatic neutral idle, Autostall, Second gear start

ELECTRICAL

• Alarm backup

• Alternator, 120 amp

• Auxiliary jump start receptable

• Batteries, maintenance-free, 12V, 1400 CCA combined

• Electrical system, 25 amp, 24V to 12V converter

• Lighting System: Backup light (halogen), Directional signals/hazard warning (front and rear LED), Engine compartment light, Headlights with dimmer, Side profile lights, Operator access courtesy lights, Stop/tail lights (LED)

• Battery jump start

• Breakers, electrical

• Lockout switch

• Ports, ET and VIMS

• Service lockout switch (power without engine start)

OPERATOR ENVIRONMENT

• Air conditioning/heat

• Ashtray and cigarette lighter

• Automatic tempature control

• Coat hook

• Cup holders (4)

• Diagnostic connection port, 24V

• Entertainment radio ready: 5 amp converter, Speakers, Antenna, Wiring harness

• Gauges and indicators panel: Air cleaner service indicator - electronic, Brake oil temperature gauge, Coolant temperature gauge, Hour meter, Tachometer, Engine overspeed indicator, Fuel level, Speedometer with odometer, Transmission gear indicator

• Hoist lever

• Horn

• Light - dome

• Light - courtesy

• Load counter, automatic

• Mirrors (heated)

• Power port, 24V and 12V

• ROPS cab, insulated/sound suppressed

• Cat Deluxe Seat: full air suspension, heated/ventilated, retractable 4 point seat belt with shoulder harness

• Seat (training) with lap belt

• Steering wheel, padded, tilt and telescopic

• Storage compartment

• Sun visor

• Throttle lock

• Window, sliding, right side (Emergency exit)

• Window, powered, left side

• Windshield wiper (intermittent) and washer

OTHER STANDARD EQUIPMENT

• Guards: Driveline, Engine crankcase, Fan and air conditioner

• Body down indicator

• Center mounted rims

• Ground level battery disconnect

• Ground level engine shutdown

• Ground level grease fittings

• Rims 13 x 33

• Secondary steering (electric)

• Tie down eyes

• Tow hooks, front/tow pin, rear

• Vandalism protection locks

CAT TECHNOLOGY PRODUCTS

• Product Link Ready

• Economy Modes (standard and adaptive)

• Payload System (TPMS)

• Vital Info Management System (VIMS)

• Tire monitoring system (TKPH/TMPH)

FLUIDS & FILTERS

• Extended life coolant, -35° C (-30° F)

• Grouped ground-level filters

770G Bare Chassis Optional Equipment

OPTIONAL EQUIPMENT

• Auto Lube

• Rear vision camera (WAVS)

• Wheel chocks

• Payload readout

• Payload indicator (display)

CAT TECHNOLOGY PRODUCTS

• Product Link

• Traction Control System
