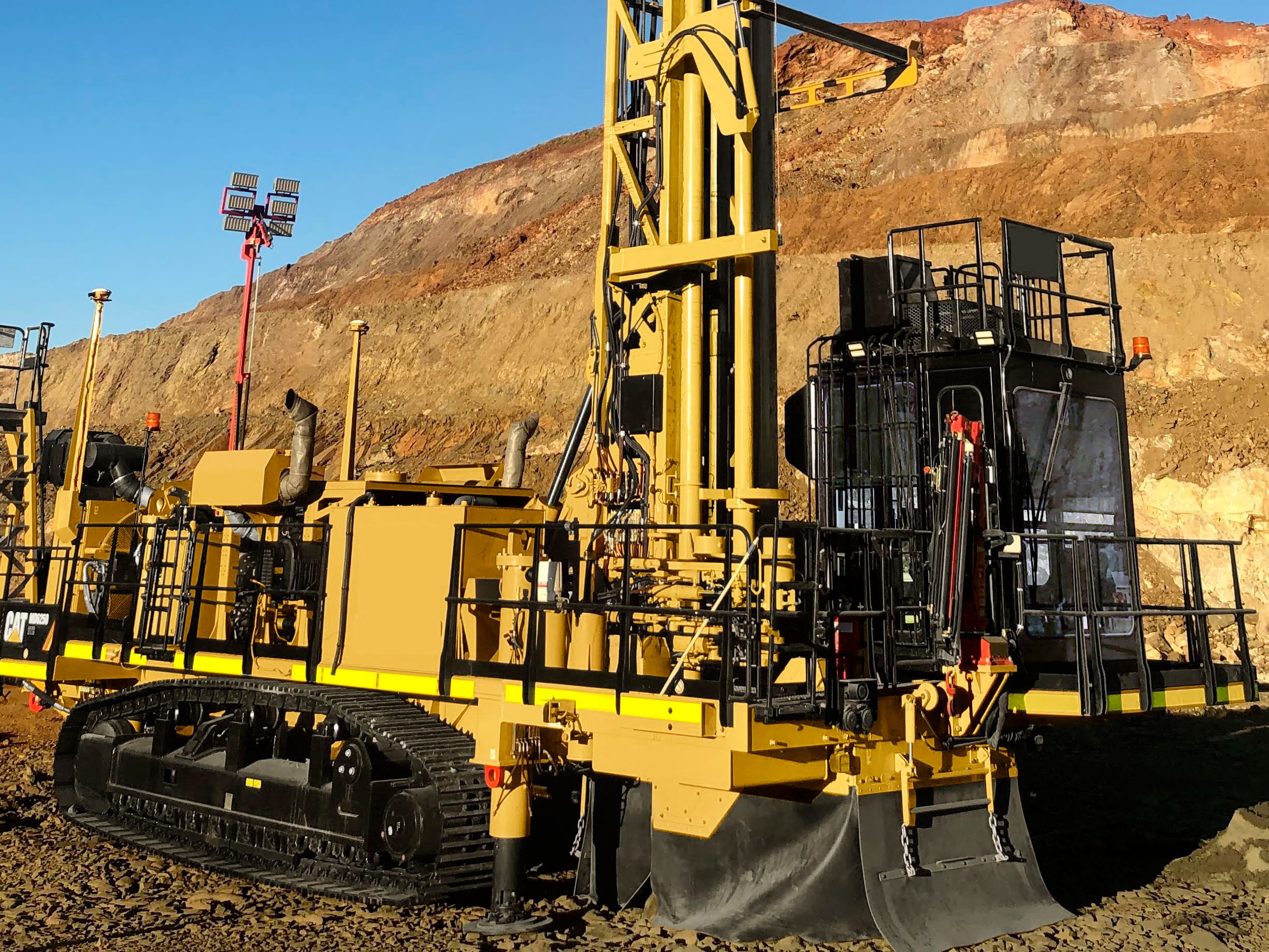

Drills MD6250

Request A Price Find Dealer

Key Specs

Bit Load
Up to 32 655 kg (Up to 71,993 lb)
Up to 32 655 kg (Up to 71,993 lb)
Hole Diameter
152-250 mm (6-9.875 in)
152-250 mm (6-9.875 in)
Engine
C27 @ 1,800 rpm
C27 @ 1,800 rpm

Overview

Cat® from the ground up, productive from the ground down

The Cat® MD6250 rotary drill is built from the ground up with 100 percent Cat parts to help you get the most out of your operation. With built-in autonomous features and the option to integrate Cat MineStar technologies, the MD6250 offers accurate, reliable performance in any hard rock drilling application.

Benefits

The Backbone of the Machine Cat Electronics

The MD6250 is controlled through proven Cat electronics, with an electronic architecture your technicians are familiar with from other Cat machines. Integrated machine protection features and interlocks help keep your operators safe, and the machine up and running by preventing potential failures or misuse.

With Cat Electronic Technician (Cat ET), troubleshooting is quick and easy. The MD6250’s electronics also provide a common platform for the integration of a number of future autonomy solutions.

To Improve Operational Performance Technology & Automation

Technology and automation is foundational in MD6250 to enhance operational performance. MD6250 delivers drill assist functions, semi-autonomous / autonomous features and machine health reporting, all of which improve drilling efficiencies and results.

For System Efficiencies Matched Power Train

The MD6250 matched powertrain delivers performance and fuel consumption benefits thru electronic control strategies. Variable volume air control allows drillers to match compressor output to specific application and drill tooling.

The MD6250 powertrain is optimized with a high powered engine and largest “standard” compressor in class for fast cycle times and its designed to withstand the rigors of drilling applications.

Product Specifications for MD6250

Bit Load Up to 32 655 kg (Up to 71,993 lb) Up to 32 655 kg (Up to 71,993 lb)
Hole Diameter 152-250 mm (6-9.875 in) 152-250 mm (6-9.875 in)
Engine C27 @ 1,800 rpm C27 @ 1,800 rpm
Components (1) Dual starter motors Dual starter motors
Components (2) Ether starting aid (ether bottle supplied locally) Ether starting aid (ether bottle supplied locally)
Features Scheduled Oil Sampling (S·O·SSM) ports Scheduled Oil Sampling (S·O·SSM) ports
Emissions: Equivalent to U.S. EPA Tier 4 Final - ISO 14396 872 HP 650 kW
Emissions: Equivalent to U.S. EPA Tier 4 Final - ISO 14396 (DIN) 884 mhp (PS) 884 mhp (PS)
Emissions: Equivalent to U.S. EPA Tier 2 - ISO 14396 (DIN) 838 mhp (PS) 838 mhp (PS)
Emissions: Equivalent to U.S. EPA Tier 2 - ISO 14396 826 HP 616 kW
Emissions: Equivalent to U.S. EPA Tier 2 - Engine Power C27 @ 1,800 rpm C27 @ 1,800 rpm
Emissions: Equivalent to U.S. EPA Tier 4 Final - Engine Power C27 @ 1,800 rpm C27 @ 1,800 rpm
Components (1) Coolers with easy cleaning access Coolers with easy cleaning access
Components (2) Separate engine cooling module Separate engine cooling module
Components (3) All cooler core sections are replaceable All cooler core sections are replaceable
Components (4) Automatic variable speed fan control Automatic variable speed fan control
Features Functional in ambient temperature of 52° C (125° F) Functional in ambient temperature of 52° C (125° F)
Climate Level 1 Standard Fluids and Lubricants (1) Rated down to –1° C (30° F) Rated down to –1° C (30° F)
Climate Level 1 Standard Fluids and Lubricants (2) Withstands high heat to 52° C (125° F) Withstands high heat to 52° C (125° F)
Climate Level 2 Arctic Fluids and Lubricants Rated down to –18° C (–0.4° F) Rated down to –18° C (–0.4° F)
Climate Level 4 Arctic Fluids and Lubricants (1) Rated down to –40° C (–40° F) Rated down to –40° C (–40° F)
Climate Level 4 Arctic Fluids and Lubricants (2) Diesel fired heating system that heats and circulates engine coolant through engine block, below deck water tank, heating elements for battery trays Diesel fired heating system that heats and circulates engine coolant through engine block, below deck water tank, heating elements for battery trays
Climate Level 4 Arctic Fluids and Lubricants (3) Full Arctic lubricant package to include engine and hydraulic oil Full Arctic lubricant package to include engine and hydraulic oil
Climate Level 4 Arctic Fluids and Lubricants (4) Electric heating package with breaker panel to power: 120V heating blanket for compressor receiver tank, heat trace for hosing from water tank to water pump and water fast-fill assembly, plus primary tank Electric heating package with breaker panel to power: 120V heating blanket for compressor receiver tank, heat trace for hosing from water tank to water pump and water fast-fill assembly, plus primary tank
Climate Level 4 Arctic Fluids and Lubricants (5) Shore power connection box with switchable 240-600V (50 amp) connection (diesel gen set and/or plug supplied locally). Box includes standard 50 hz battery charger, if 60 hz charger required, to be ordered via after market, refer to P-n 540-4271 Shore power connection box with switchable 240-600V (50 amp) connection (diesel gen set and/or plug supplied locally). Box includes standard 50 hz battery charger, if 60 hz charger required, to be ordered via after market, refer to P-n 540-4271
Climate Level 4 Arctic fluids and lubricants (6) Breaker panel includes five (5) additional breakers for locally supplied heating elements if needed Breaker panel includes five (5) additional breakers for locally supplied heating elements if needed
Batteries, Sealed (1) Quantity: Four (4) Quantity: Four (4)
Batteries, Sealed (2) Quantity: Six (6) (required for cold weather Level 2 and 4 and/or semi autonomy packages) Quantity: Six (6) (required for cold weather Level 2 and 4 and/or semi autonomy packages)
Features (1) Leveling Jacks, A-frame/mast pivot and drill deck are welded integrally to mainframe for maximum durability and long life Leveling Jacks, A-frame/mast pivot and drill deck are welded integrally to mainframe for maximum durability and long life
Features (2) Primary fuel tank capacity 1416 L (374 gal) Primary fuel tank capacity 1416 L (374 gal)
Features (3) Fuel capacity expansion for additional 1416 L (374 gal) optional for total capacity of 2832 L (748 gal); (required for autonomy packages) Fuel capacity expansion for additional 1416 L (374 gal) optional for total capacity of 2832 L (748 gal); (required for autonomy packages)
Features (4) Three (3) egress points on deck areas in addition to main access Three (3) egress points on deck areas in addition to main access
Components (1) Stationary drill deck; for vertical and angle drilling Stationary drill deck; for vertical and angle drilling
Components (2) Four leveling jacks provide leveling on a 7° bench (any orientation) Four leveling jacks provide leveling on a 7° bench (any orientation)
Components (3) Heavy duty tow hooks (front end) Heavy duty tow hooks (front end)
Components (4) Four (4) lift lugs, for use with cables or chains Four (4) lift lugs, for use with cables or chains
Components (5) Fixed access stairs to the cab area Fixed access stairs to the cab area
Components (6) Sturdy guardrails with toe guards, self-closing gates Sturdy guardrails with toe guards, self-closing gates
Model Cat® 336E EL Excavator type Cat® 336E EL Excavator type
Carrier Rollers Three (3) Three (3)
Track chain guards and guides Level two Level two
Drawbar Pull 93745 lbf 417000 N
Triple Grousers (1) 600 mm (23.6 in); for hard rock 0.88 bar (12.7 psi) ground bearing pressure 600 mm (23.6 in); for hard rock 0.88 bar (12.7 psi) ground bearing pressure
Triple Grousers (2) 750 mm (29.5 in); for soft rock 1.10 bar (15.9 psi) ground bearing pressure 750 mm (29.5 in); for soft rock 1.10 bar (15.9 psi) ground bearing pressure
Lower rollers Twelve (12) Twelve (12)
Travel Speed 1.5 mile/h 2.45 km/h
Components (1) Two (2) primary pumps – 145 cc (piston, with proportional electronic controls) Two (2) primary pumps – 145 cc (piston, with proportional electronic controls)
Components (2) One (1) auxiliary circuit pump – 110 cc (piston, load sensing) One (1) auxiliary circuit pump – 110 cc (piston, load sensing)
Components (3) Two (2) fan pumps – 74 cc (piston, with proportional electronic controls) Two (2) fan pumps – 74 cc (piston, with proportional electronic controls)
Components (4) Two (2) charge pumps – 43.9 + 56.5 cc (double stack gear, fixed displacement) Two (2) charge pumps – 43.9 + 56.5 cc (double stack gear, fixed displacement)
Components (5) Scheduled Oil Sampling (S·O·S) ports Scheduled Oil Sampling (S·O·S) ports
Width Non-Cab End 15.9 ft 4.845 m
Width Cab End 18.45 ft 5.624 m
Note Width and length dimensions include: cascading stairs and walk-around access for cab. Width and length dimensions include: cascading stairs and walk-around access for cab.
Mast Only Shipping Length 61.4 ft 18.72 m
Height - Mast Up 61.13 ft 19.546 m
Body Length 38.41 ft 11.708 m
Length - Mast Down 66.17 ft 20.18 m
Height - Mast Down 16.84 ft 5.134 m
Variable Grip Hydraulic Break Out Wrench Grip Ranges (1) 114-152 mm (4.5-6 in) 114-152 mm (4.5-6 in)
Variable Grip Hydraulic Break Out Wrench Grip Ranges (2) 152-216 mm (6.0-8.5 in) 152-216 mm (6.0-8.5 in)
Components (7) Pipe wiper seal Pipe wiper seal
Components (8) Drill tool lubricator is included with selection of DTH Compressor Drill tool lubricator is included with selection of DTH Compressor
Components (1) Two-piece roller deck bushing Two-piece roller deck bushing
Components (2) Pipe positioner rollers Pipe positioner rollers
Components (3) Deck wrench Deck wrench
Components (4) Shock sub Shock sub
Components (5) Top Sub Top Sub
Components (6) Hammer Sub Hammer Sub
Feature Approach angle of 15 degrees facilitates loading and unloading on a lowboy Approach angle of 15 degrees facilitates loading and unloading on a lowboy
Components (13) Lifting lugs Lifting lugs
Components (1) Alloy drill deck covers, for servicing when mast is horizontal Alloy drill deck covers, for servicing when mast is horizontal
Components (2) Seven (7) engine shut down buttons, by each drill egress/access point, in cab, in engine area, on drill deck Seven (7) engine shut down buttons, by each drill egress/access point, in cab, in engine area, on drill deck
Components (3) Over forty (40) conditional safety interlocks Over forty (40) conditional safety interlocks
Components (4) Hinged window guard over the full length of the front drill window Hinged window guard over the full length of the front drill window
Components (5) Three (3) egress points on deck areas in addition to main access Three (3) egress points on deck areas in addition to main access
Components (6) Self-closing gates secure egress ladder locations Self-closing gates secure egress ladder locations
Components (7) Electric horn activated by push button in the cab Electric horn activated by push button in the cab
Components (8) Automatic tram alarm, audible Automatic tram alarm, audible
Components (9) Under deck mounted battery box with keyed battery disconnect/starter disconnect/remote jump start terminals Under deck mounted battery box with keyed battery disconnect/starter disconnect/remote jump start terminals
Components (10) Compressor air hoses with safety retention cables Compressor air hoses with safety retention cables
Components (11) Slip resistant surfaces Slip resistant surfaces
Components (12) Tow hooks on non-drill-end Tow hooks on non-drill-end
Cab - Premium – Additional storage
– Leather seat with heat and ventilation
– Heavy duty seat suspension
– Dual pane window glass
– Removable guard for driller window, plus window facing power train
– Wipers for the driller window plus front and rear windows
– Additional storage
– Leather seat with heat and ventilation
– Heavy duty seat suspension
– Dual pane window glass
– Removable guard for driller window, plus window facing power train
– Wipers for the driller window plus front and rear windows
Cab - Standard – Fabric seat
– Single pane window glass
– Removable guard for driller window
– Wiper for the driller window
– Fabric seat
– Single pane window glass
– Removable guard for driller window
– Wiper for the driller window
Cab Design – Spacious FOPS cab is 3 m² (32.3 ft²) with an integrated operator station
– Cab rubber shock-mounts
– Operator station design integrates an ergonomic seat, joystick controls with full instrumentation, and dual 254 mm (10 in) color displays, high definition touchscreen and 12-volt power port
– Additional display screen for cc cameras; color, high-definition 254 mm (10 in)
– Three (3) cc cameras (front and left side) providing 360° vision coverage from operators seat; camera in the mast to view pipe rack carousel/top drive operation
– Power convertor 24V to 12V
– Radio-ready for communication and entertainment stereo
– Two swing-out doors and Cat keyed locks
– Literature holder
– Removable floor mat
– Spacious FOPS cab is 3 m² (32.3 ft²) with an integrated operator station
– Cab rubber shock-mounts
– Operator station design integrates an ergonomic seat, joystick controls with full instrumentation, and dual 254 mm (10 in) color displays, high definition touchscreen and 12-volt power port
– Additional display screen for cc cameras; color, high-definition 254 mm (10 in)
– Three (3) cc cameras (front and left side) providing 360° vision coverage from operators seat; camera in the mast to view pipe rack carousel/top drive operation
– Power convertor 24V to 12V
– Radio-ready for communication and entertainment stereo
– Two swing-out doors and Cat keyed locks
– Literature holder
– Removable floor mat
Seating – Seat swivels, locks and retractable, two-point/76 mm (3 in) wide seat belt, tilts (5° adjustment), lumbar support, fore/aft seat adjustment 80 mm (3.1 in) – Seat swivels, locks and retractable, two-point/76 mm (3 in) wide seat belt, tilts (5° adjustment), lumbar support, fore/aft seat adjustment 80 mm (3.1 in)
Windows – Large windows front, rear and right cab side; full length drill window with guard
– Windshield wipers with a common washer tank
– Large windows front, rear and right cab side; full length drill window with guard
– Windshield wipers with a common washer tank
Lighting – LED interior lights and map light at operators seat, backlit joysticks and keypads
– Flood lights for the drill perimeter
– Spotlights for power group area; drill deck; mast carousel; access ladder and walkways
– Lighting package includes 4,200 lumens flood light on perimeter, mast clearance lights, cab mounted strobe, front mounted tram beacon
– LED interior lights and map light at operators seat, backlit joysticks and keypads
– Flood lights for the drill perimeter
– Spotlights for power group area; drill deck; mast carousel; access ladder and walkways
– Lighting package includes 4,200 lumens flood light on perimeter, mast clearance lights, cab mounted strobe, front mounted tram beacon
HVAC – Floor heating vent
– Roof-mounted air conditioner/heating/pressurizing unit
– Filter access from deck
– Defogging HVAC vents on main window
– Floor heating vent
– Roof-mounted air conditioner/heating/pressurizing unit
– Filter access from deck
– Defogging HVAC vents on main window
Components (22) Prewired for Terrain and autonomous operation Prewired for Terrain and autonomous operation
Components (23) Drill Assist automated functionality:
– Auto level, auto jack retract
– Auto mast raise and lock, auto mast unlock and park
Drill Assist automated functionality:
– Auto level, auto jack retract
– Auto mast raise and lock, auto mast unlock and park
Components (1) All electric controls for drilling, tramming, leveling plus auxiliary functions All electric controls for drilling, tramming, leveling plus auxiliary functions
Components (2) Electronic compressor control Electronic compressor control
Components (3) Rotary torque control Rotary torque control
Components (4) Virtual rotary head travel stops and interlocks Virtual rotary head travel stops and interlocks
Components (5) Pipe positioner engaged/disengaged indicator Pipe positioner engaged/disengaged indicator
Components (6) Drill depth meter Drill depth meter
Components (7) Drill performance and drill health display system Drill performance and drill health display system
Components (8) Data logging of machine health with warnings and fault code records with export capability Data logging of machine health with warnings and fault code records with export capability
Components (9) Delayed engine shut down Delayed engine shut down
Components (10) Rotary head rpm gauge (digital display in screen) Rotary head rpm gauge (digital display in screen)
Components (11) Filter indicators for hydraulic, fuel, compressor and engine Filter indicators for hydraulic, fuel, compressor and engine
Components (12) Jack pressure sensors in display Jack pressure sensors in display
Components (13) Dust suppression control Dust suppression control
Components (14) Mast lock indicator Mast lock indicator
Components (15) ECM proportional fan speed control system ECM proportional fan speed control system
Components (16) Tram interlock, machine stability limits Tram interlock, machine stability limits
Components (17) Tram interlock, pipe in hole Tram interlock, pipe in hole
Components (18) Tram interlock, mast up and locked or down and parked Tram interlock, mast up and locked or down and parked
Components (19) Tram interlock, jack retracted Tram interlock, jack retracted
Components (20) Tram interlock, winch parked Tram interlock, winch parked
Components (21) Cab environment controls (AC, filter, heat, fan speeds) Cab environment controls (AC, filter, heat, fan speeds)
Width Non-Cab End 15.9 ft 4.845 m
Width Cab End 18.45 ft 5.625 m
Note Width and length dimensions include: cascading stairs and walk-around access for cab. Width and length dimensions include: cascading stairs and walk-around access for cab.
Mast Only Shipping Length 53.5 ft 16.32 m
Height - Mast Up 56.3 ft 17.146 m
Body Length 38.41 ft 11.708 m
Length - Mast Down 58.3 ft 17.78 m
Height - Mast Down 16.84 ft 5.134 m
Receiver Tank Choice (1) Low pressure 8.6 bar (125 psi) for ASME/CRN/AU or CE Low pressure 8.6 bar (125 psi) for ASME/CRN/AU or CE
Receiver Tank Choice (2) High pressure 24.1 or 34.4 bar (350 or 500 psi) for ASME/CRN/AU or CE High pressure 24.1 or 34.4 bar (350 or 500 psi) for ASME/CRN/AU or CE
Compressor - Rotary Drilling 56.6 m³/min (2,000 ft³/min) @ 8.6 bar (125 psi) 56.6 m³/min (2,000 ft³/min) @ 8.6 bar (125 psi)
Compressor - DTH Drilling (1) 38.2 m³/min (1,350 ft³/min) @ 34.4 bar (500 psi) 38.2 m³/min (1,350 ft³/min) @ 34.4 bar (500 psi)
Compressor - DTH Drilling (2) 42.4 m³/min (1,500 ft³/min) @ 24.1 bar (350 psi) 42.4 m³/min (1,500 ft³/min) @ 24.1 bar (350 psi)
Features (1) With the compressor’s variable volume control, the operator can limit air output resulting in reduced fuel consumption With the compressor’s variable volume control, the operator can limit air output resulting in reduced fuel consumption
Features (2) Electronic compressor control and regulation Electronic compressor control and regulation
Features (3) DTH selection includes tool oiler DTH selection includes tool oiler
Angle Drilling Included with either mast Included with either mast
Mast Accessories Manual - 11.2 m (36.7 ft) or 13.6 m (44.6 ft) Mast One (1) wire rope pipe catcher, manual bit basket One (1) wire rope pipe catcher, manual bit basket
Mast Accessories Hydraulic - 11.2 m (36.7 ft) Mast One (1) hydraulically actuated pipe catcher, hydraulically operated bit basket One (1) hydraulically actuated pipe catcher, hydraulically operated bit basket
Mast Accessories Hydraulic - 13.6 m (44.6 ft) Mast One (1) hydraulically actuated pipe catcher, plus one (1) wire rope pipe catcher, hydraulically operated bit basket One (1) hydraulically actuated pipe catcher, plus one (1) wire rope pipe catcher, hydraulically operated bit basket
Lifting Bails (Available on Request) – API thread 89 mm (3.5 in) – to lift corresponding drill tools (6.75 in tricone bits or 6-inch class DTH hammers)
– API thread 114 mm (4.5 in) – to lift corresponding drill tooling (7.875 and 9 in tricone bits or 8-inch class DTH hammers)
– API thread 140 mm (5.5 in) – to lift shock sub adapter
– BECO thread 102 mm (4 in) – to lift corresponding drill pipe (5.5 in OD)
– BECO thread 114 mm (4.5 in) – to lift corresponding drill pipe (6.0, 6.5, 6.625 and 7 in OD)
– BECO thread 152 mm (6 in) – to lift corresponding drill pipe (7.625 in OD)
– API thread 89 mm (3.5 in) – to lift corresponding drill tools (6.75 in tricone bits or 6-inch class DTH hammers)
– API thread 114 mm (4.5 in) – to lift corresponding drill tooling (7.875 and 9 in tricone bits or 8-inch class DTH hammers)
– API thread 140 mm (5.5 in) – to lift shock sub adapter
– BECO thread 102 mm (4 in) – to lift corresponding drill pipe (5.5 in OD)
– BECO thread 114 mm (4.5 in) – to lift corresponding drill pipe (6.0, 6.5, 6.625 and 7 in OD)
– BECO thread 152 mm (6 in) – to lift corresponding drill pipe (7.625 in OD)
6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 4 6.5 in 165 mm
6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 1 5 in 127 mm
6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 6 7.625 in 194 mm
10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 1 5 in 127 mm
6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 3 6 in 152 mm
10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 6 7.625 in 194 mm
10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 4 6.5 in 165 mm
10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 3 6 in 152 mm
10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 2 5.5 in 140 mm
10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 5 7 in 178 mm
6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 2 5.5 in 140 mm
6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 5 7 in 178 mm
Pipe rack carousel, standard: – 11.2 m (36.7 ft) Mast: holds quantity of four (4) 10.6 m (35 ft) pipes
– 13.6 m (44.6 ft) Mast: holds quantity of four (4) 6.1 m (20 ft) pipes
– 11.2 m (36.7 ft) Mast: holds quantity of four (4) 10.6 m (35 ft) pipes
– 13.6 m (44.6 ft) Mast: holds quantity of four (4) 6.1 m (20 ft) pipes
Features (7) Sliding deck wrench assembly Sliding deck wrench assembly
13.6 m (44.6 ft) Mast - Hole Diameter Range: 152-250 mm (6-9.875 in) - Single-Pass Depth 44.6 ft 13.6 m
11.2 m (36.7 ft) Mast - Hole Diameter Range: 152-250 mm (6-9.875 in) - Single-Pass Depth 36.7 ft 11.2 m
Features (5) Auto tensioning of pull down and hoist cables Auto tensioning of pull down and hoist cables
11.2 m (36.7 ft) Mast - Hoist Speed 2.65 ft/s 0.81 m/s
Features (3) Drill strings configured for bit changes (above the deck) Drill strings configured for bit changes (above the deck)
Features (1) Mast configurations complete with pipe rack carousel and angle drilling package (vertical, out to 30 degrees in 5-degree increments) Mast configurations complete with pipe rack carousel and angle drilling package (vertical, out to 30 degrees in 5-degree increments)
Features (8) Configured with roller deck bushing for tricone applications, two-piece deck bushing for DTH Configured with roller deck bushing for tricone applications, two-piece deck bushing for DTH
Features (10) Drill pipe positioner Drill pipe positioner
Features (11) Rotation gear box with single motor up to 160 rpm, up to 11 700 N∙m (8,629 lbf-ft) torque Rotation gear box with single motor up to 160 rpm, up to 11 700 N∙m (8,629 lbf-ft) torque
Features (9) Closed circuit camera in mast is used to view pipe rack carousel/top drive operation while racking pipes Closed circuit camera in mast is used to view pipe rack carousel/top drive operation while racking pipes
Features (6) Variable grip hydraulic break out wrench for range of pipe diameters Variable grip hydraulic break out wrench for range of pipe diameters
11.2 m (36.7 ft) Mast - Hole Diameter Range: 152-250 mm (6-9.875 in) - Multi-Pass Depth Down to 53.9 m (Down to 176.7 ft) Down to 53.9 m (Down to 176.7 ft)
Features (4) Single Hydraulic Cylinder and cable system for pulldown/hoist Single Hydraulic Cylinder and cable system for pulldown/hoist
Features (2) Hydraulically actuated, self-indexing pipe rack carousel accepts pipe diameters from 127 mm (5 in) to 194 mm (7.625 in) Hydraulically actuated, self-indexing pipe rack carousel accepts pipe diameters from 127 mm (5 in) to 194 mm (7.625 in)
13.6 m (44.6 ft) Mast - Hole Diameter Range: 152-250 mm (6-9.875 in) - Multi-Pass Depth Down to 37.9 m (Down to 124.6 ft) Down to 37.9 m (Down to 124.6 ft)
13.6 m (44.6 ft) Mast - Hoist Speed 2.16 ft/s 0.66 m/s
11.2 m (36.7 ft) Mast - Bit Load (single pass) Up to 22 321 kg (Up to 49,210 lb) Up to 22 321 kg (Up to 49,210 lb)
11.2 m (36.7 ft) Mast - Pull-Down Capacity Up to 20 411 kg (Up to 45,000 lb) Up to 20 411 kg (Up to 45,000 lb)
13.6 m (44.6 ft) Mast - Bit Load (single pass) Up to 32 655 kg (Up to 71,993 lb) Up to 32 655 kg (Up to 71,993 lb)
13.6 m (44.6 ft) Mast - Pull-Down Capacity Up to 29 483 kg (Up to 65,000 lb) Up to 29 483 kg (Up to 65,000 lb)
13.6 m (44.6 ft) Mast - Hoist Capacity Up to 22 113 kg (Up to 48,750 lb) Up to 22 113 kg (Up to 48,750 lb)
11.2 m (36.7 ft) Mast - Hoist Capacity Up to 20 411 kg (Up to 45,000 lb) Up to 20 411 kg (Up to 45,000 lb)
Components (1) One-piece roller deck bushing One-piece roller deck bushing
Components (2) Pipe positioner rollers Pipe positioner rollers
Components (3) Deck wrench Deck wrench
Components (4) Top sub Top sub
Components (5) Bit sub Bit sub
Components (6) Pipe wiper seal Pipe wiper seal
Torque - Single Motor 8629 lb/ft 11700 N·m
Rotation Speed 0-160 rpm 0-160 rpm
Components (1) Spindle – 140 mm (5.5 in) API regular thread with splined collar Spindle – 140 mm (5.5 in) API regular thread with splined collar
Components (2) Rotary torque control Rotary torque control
Components (3) Virtual rotary head travel interlocks Virtual rotary head travel interlocks
Type (1) Cat Terrain ready Cat Terrain ready
Type (2) Autonomy ready Autonomy ready
Components (1) Drill depth indicator Drill depth indicator
Components (2) Product Link™ Elite (hardware from factory, subscription package via dealer) Product Link™ Elite (hardware from factory, subscription package via dealer)
Choices (1) Water injection – tank mounted below front deck 1271 L (336 gal)
– Water flow meter, volume control, tank fill level indicator
Water injection – tank mounted below front deck 1271 L (336 gal)
– Water flow meter, volume control, tank fill level indicator
Choices (2) Water injection plus dry dust collector 127 m³/min (4,500 ft³/min) dust collector; includes standard water injection
– Self-cleaning filters, dust chute with ejector
Water injection plus dry dust collector 127 m³/min (4,500 ft³/min) dust collector; includes standard water injection
– Self-cleaning filters, dust chute with ejector
Choices (3) High volume water injection (maximum) – tanks total capacity 2786 L (736 gal)
– Tank below deck (isolated for extreme cold weather) capacity 1271 L (336 gal)
– Tank above deck capacity 1514 L (400 gal)
High volume water injection (maximum) – tanks total capacity 2786 L (736 gal)
– Tank below deck (isolated for extreme cold weather) capacity 1271 L (336 gal)
– Tank above deck capacity 1514 L (400 gal)
Choices (4) Static dust curtains, four sided/boxed enclosed Static dust curtains, four sided/boxed enclosed
Package (1) Fast fill for fuel and water, automated lubrication system Fast fill for fuel and water, automated lubrication system
Package (2) Service center for lubricant drain and fill, automated lubrication system, fast fill fuel and water, blow down hose (option) Service center for lubricant drain and fill, automated lubrication system, fast fill fuel and water, blow down hose (option)
Working Weight Range 56 468 kg to 64 154 kg (124,490 lb to 141,436 lb) 56 468 kg to 64 154 kg (124,490 lb to 141,436 lb)

MD6250 Standard Equipment

POWER TRAIN CHOICES

  • Emissions: Equivalent to Tier 2, Engine Power C27 @ 1,800 rpm, ISO 14396 616 kW (826 hp), ISO 14396 (DIN) 838 mhp (PS)
  • Emissions: Equivalent to Tier 4 Final, Engine Power C27 @ 1,800 rpm, ISO 14396 650 kW (872 hp), ISO 14396 (DIN) 884 mhp (PS)
  • Compressor (2,000 ft³/min, 125 psi) – Rotary drilling package, 56.6 m³ (2,000 ft³/min) at 8.6 bar (125 psi); with low pressure receiver tank for ASME/CRN/AU or CE

CAB CHOICES

  • Standard – Includes a fabric seat, single pane window glass, removable driller window guard, and a windshield wiper for driller window

CONTROLS

  • Drill depth indicator and interlocks, auto-level, auto-mast

PRODUCT LINK™/TERRAIN

  • Product Link (Satellite)

FRAME/DECK

  • Machine access via fixed stairs

MAST ACCESSORIES

  • 11.2 m (36.7 ft) or 13.6 m (44.6 ft): Pipe catcher, manual – one wire rope (for 11 m), two wire rope (for 13 m) pipe catcher, bit basket, manual

PIPE CAROUSEL 11.2 M (36.7 FT) MAST/10.6 M (35 FT) PIPE RACK. HOLDS QTY. OF FOUR (SELECT ONE)

  • 127 mm (5.0 in) pipe; four pods
  • 140 mm (5.5 in) pipe; four pods
  • 152 mm (6.0 in) pipe; four pods
  • 165 mm (6.5 in) pipe; four pods
  • 178 mm (7.0 in) pipe; four pods
  • 194 mm (7.625 in) pipe; four pods

PIPE CAROUSEL 13.6 M (44.6 FT) MAST/6.1 M (20 FT) PIPE RACK. HOLDS QTY. OF FOUR (SELECT ONE)

  • 127 mm (5.0 in) pipe; four pods
  • 140 mm (5.5 in) pipe; four pods
  • 152 mm (6.0 in) pipe; four pods
  • 165 mm (6.5 in) pipe; four pods
  • 178 mm (7.0 in) pipe; four pods
  • 194 mm (7.625 in) pipe; four pods

DRILL TOOL PACKAGES/ROTARY DRILLING FOR 11.2 M (36.7 FT) MAST (SELECT ONE)

  • 127 mm (5 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal
  • 152 mm (6 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal
  • 165 mm (6.5 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal
  • 178 mm (7 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal
  • 194 mm (7.625 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal

DRILL TOOL PACKAGES/DTH DRILLING FOR 11.2 M (36.7 FT) MAST (SELECT ONE)

  • 140 mm (5.5 in); two-piece deck bushing, pipe positioner rollers, deck wrench, cross over hammer adapter; pipe wiper seal
  • 165 mm (6.5 in); two-piece deck bushing, pipe positioner rollers, deck wrench, cross over hammer adapter; pipe wiper seal

DRILL TOOL PACKAGES/ROTARY FOR 13.6 M (44.6 FT) MAST (SELECT ONE)

  • 127 mm (5 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal
  • 152 mm (6 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal
  • 165 mm (6.5 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal
  • 178 mm (7 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal
  • 194 mm (7.625 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal

DRILL TOOL PACKAGES/DTH DRILLING FOR 13.6 M (44.6 FT) MAST (SELECT ONE)

  • 127 mm (5.0 in); two-piece deck bushing, pipe positioner roller, deck wrench, cross over hammer adapter; pipe wiper seal
  • 140 mm (5.5 in); two-piece deck bushing, pipe positioner roller, deck wrench, cross over hammer adapter; pipe wiper seal
  • 165 mm (6.5 in); two-piece deck bushing, pipe positioner roller, deck wrench, cross over hammer adapter; pipe wiper seal
  • 178 mm (7 in); two-piece deck bushing, pipe positioner roller, deck wrench, cross over hammer adapter; pipe wiper seal

TOP SUBS (ROTARY DRILLING ONLY) (SELECT ONE)

  • 127 mm (5 in)
  • 152 mm (6 in)
  • 165 mm (6.5 in)
  • 178 mm (7 in)
  • 194 mm (7.625 in)

CLIMATE/REGIONAL CONSIDERATIONS

  • Batteries, sealed quantity four (4)
  • Level 1 – Standard fluids and lubricants. With a temperature range of –1° C (30° F) to 52° C (125° F)
  • Decals, ANSI
  • Decals, ISO
  • Certifications, EAEU
  • Certifications, CE

DUST SUPPRESSION

  • Water injection 1271 L (336 gal)
  • Static dust curtains, four sided/boxed enclosed

UNDERCARRIAGE; CAT 336E EL (SELECT ONE)

  • Triple grousers 600 mm (23.6 in); for hard rock 0.88 bar (12.7 psi) ground pressure
  • Triple grousers 750 mm (29.5 in); for soft rock 1.10 bar (15.9 psi) ground pressure

MD6250 Optional Equipment

POWER TRAIN CHOICES

  • Compressor (1,350 ft³/min, 500 psi) – DTH drilling package, 38.2 m³ (1,350 ft³/min) at 34.4 bar (500 psi), with high pressure receiver tank (500 psi) for ASME/CRN/AU or CE; includes hammer storage and 113.5 L (30 gal) hammer lubrication system
  • Compressor (1,500 ft³/min, 350 psi) – DTH drilling package, 42.4 m³/min (1,500 ft³/min) @ 24.1 bar (350 psi) with high pressure receiver tank for ASME/DRN/AU or CE; includes hammer storage and 113.5 L (30 gal) hammer lubrication system

FRAME

  • Fuel tank expansion of +1609 L (425 gal) for total of 3218 L (850 gal) (Required for autonomy packages)
  • Platform on non-drill-end to mount fire suppression bottles and/or diesel gen set
  • Jib crane ready (Jib crane not included)

CAB CHOICES

  • Premium – Includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass. Removable driller window guard and guard for window facing power train. Additional storage box and windshield wipers on front and rear windows
  • LED Lighting Package:
    Provides 4,200 lumens flood light on perimeter, area spotlights have 1,950 lumens. Mast clearance lights and cab mounted yellow strobe light and a front mounted tram beacon
  • Viewing hatch for hole spotting with spotlight (hydraulically operated)
  • Foldaway trainer’s seat with retractable seat belt
  • Window shades
  • Cabin pressure manometer gauge
  • Cab roof access system (includes ladders, cage and rails)

CONTROLS

  • Drill Assist (single pass auto drill)

DRILL DECK MISC.

  • Tool box in deck
  • Hydraulic viewing hatch with spotlight

PRODUCT LINK™/TERRAIN

  • Product Link (Cellular)
  • Product Link (Dual)
  • Terrain for Drilling (guidance system)/with G610 screen

OPERATOR ENVIRONMENT

  • Fold up trainer’s seat with seat belt
  • Cabin pressure manometer gauge
  • Window shades
  • Cab roof access system with ladder, cage and rails (only available with cascading stairs and cab walkway)

FRAME/DECK

  • Fuel tank expansion adds 1416 L (374 gal) tank for a total capacity of 2832 L (748 gal); required for autonomy packages
  • Machine access via cascading, hydraulic stairs; includes walkway around cab to drill deck
  • Fire suppression ready; platform to mount fire suppression bottles and/or diesel gen set
  • Jib crane ready (mounting kit only)
  • Toolbox

TECHNOLOGY PRODUCTS

  • Product Link Elite; satellite, cellular or dual
  • Terrain guidance system hardware

MAST

  • Overhead winch assembly with cable and hook, plus with remote control; variable speed drive with ≥ 1814 kg (4,000 lb) rating, length to reach 6.1 m (20 ft) past drill deck
  • Tool lubrication system for Rotary Drilling with 113.5 L (30 gal) capacity
  • Pipe thread greaser with reloadable tank for disposable grease bucket
  • 11.2 m (36.7 ft) Mast; angle drilling – vertical to 30° (in 5° increments)
  • 13.6 m (44.6 ft) Mast; angle drilling – vertical to 30° (in 5° increments)
  • Drill pipe thread greaser with reloadable tank or disposable grease bucket
  • Tool lubrication system for rotary tricone bits 113.5 L (30 gal)
  • Tool lubrication system for DTH hammer and bit (included in HP compressor package)
  • Overhead winch assembly with remote, cable and hook

DRILL BITS, ROTARY TRICONE

  • Recommended for Rotary Applications
  • All bits have standard nozzles
  • Obtain S/M/H codes from the Rock Formation to Bit Conversion table https://catpublications.com search for PEXQ1027
  • Ship out plans for each drill configuration allow for one pallet of bits. Additional pallets may require an additional truck.
    – 171 mm (6.75 in), Option 1, (S2)
    – 171 mm (6.75 in), Option 2, (M1)
    – 171 mm (6.75 in), Option 3, (M3)
    – 200 mm (7.875 in), Option 1, (S2)
    – 200 mm (7.875 in), Option 2, (M1)
    – 200 mm (7.875 in), Option 3, (M3)
    – 229 mm (9.0 in), Option 1, (S3)
    – 229 mm (9.0 in), Option 2, (M2)
    – 229 mm (9.0 in), Option 3, (H1)
    – 251 mm (9.875 in), Option 1, (M1)
    – 251 mm (9.875 in), Option 2, (M3)
    – 251 mm (9.875 in), Option 3, (H1)

MAST ACCESSORIES

  • 11.2 m (36.7 ft) Mast: Pipe catcher, hydraulic – one hydraulically actuated pipe catcher, bit basket, hydraulic
  • 13.6 m (44.6 ft) Mast: Pipe catcher, hydraulic – one hydraulically actuated pipe catcher, plus one wire rope pipe catcher, bit basket, hydraulic

DRILL PIPE*

  • Standard carousel pipe: 10.6 m (35 ft) pipes for 11.2 m (36.7 ft) Mast – Accepts quantity of four (4)
    – 127 mm (5.0 in)
    – 140 mm (5.5 in)
    – 152 mm (6.0 in)
    – 165 mm (6.5 in)
    – 178 mm (7.0 in)
    – 194 mm (7.625 in)
  • Standard carousel pipe: 6.1 m (20 ft) pipes for 13.6 m (44.6 ft) Mast – Accepts quantity of four (4)
    – 127 mm (5.0 in)
    – 140 mm (5.5 in)
    – 152 mm (6.0 in)
    – 165 mm (6.5 in)
    – 178 mm (7.0 in)
    – 194 mm (7.625 in)
  • Standard carousel pipe: 10.6 m (35 ft) pipe for 11.2 m (36.7 ft) Mast – Accepts quantity of two (2)
    – Quantity of two (2) 7.62 m (25 ft) pipes with adaptors to connect to DTH hammer or tricone bit (hammer and tricone bit not included)
    – 140 mm (5.5 in)
    – 168 mm (6.625 in)
  • Note: *Contact factory for additional pipe diameters

BREAK OUT WRENCH (SELECT ONE)

  • Variable grip hydraulic break out wrench range 114 mm to 152 mm (4.5 in to 6.0 in)
  • Variable grip hydraulic break out wrench range 152 mm to 216 mm (6.0 in to 8.5 in)

DRILL TOOL PACKAGES/DUAL PURPOSE DRILLING FOR 11.2 M (36.7 FT) MAST

  • 168 mm (6.625 in); two-piece bushing, pipe positioner rollers, deck wrench, dual purpose carousel, two each 7.62 m (25 ft) pipes plus sub adapters

SHOCK ABSORBER WITH CROSSOVER ADAPTER (REQUIRED FOR DTH, OPTIONAL FOR ROTARY DRILLING) (SELECT ONE)

  • 127 mm (5 in)
  • 140 mm (5.5 in)
  • 152 mm (6 in)
  • 165 mm (6.5 in)
  • 178 mm (7 in)
  • 194 mm (7.625 in)

SHOCK SUB FOR DUAL PURPOSE DRILLING/11.2 M (36.7 FT) MAST

  • 168 mm (6.625 in) includes long top sub adapter

DRILL PIPE – 6.1 M (20 FT) PIPE FOR 13.7 M (44.9 FT) MAST; CAROUSEL HOLDS QTY. OF FOUR

  • 127 mm (5 in) pipe
  • 152 mm (6 in) pipe
  • 178 mm (7 in) pipe
  • 194 mm (7.625 in) pipe

DRILL PIPE – 10.6 M (35 FT) PIPE FOR 11.2 M (36.7 FT) MAST; CAROUSEL HOLDS QTY. OF FOUR

  • 127 mm (5 in) pipe
  • 140 mm (5.5 in) pipe
  • 152 mm (6 in) pipe
  • 165 mm (6.5 in) pipe
  • 178 mm (7 in) pipe
  • 194 mm (7.625 in) pipe

DRILL PIPE – 10.6 M (35 FT) PIPE FOR 11.2 M (36.7 FT) MAST; DUAL PURPOSE CAROUSEL HOLDS QTY. OF TWO

  • 168 mm (6.625 in)

TRICONE DRILLING BITS GROUP – QTY. 9 PER PALLET

  • 171 mm (6.75 in) OPT 2, (M1)
  • 171 mm (6.75 in) OPT 3, (M3)
  • 171 mm (6.75 in) OPT 1, (S2)
  • 200 mm (7.875 in) OPT 2, (M1)
  • 200 mm (7.875 in) OPT 3, (M3)
  • 200 mm (7.875 in) OPT 1, (S3)
  • 229 mm (9 in) OPT 2, (M2)
  • 229 mm (9 in) OPT 3, (H1)
  • 229 mm (9 in) OPT 1, (M1)
  • 251 mm (9.875 in) OPT 2, (M3)
  • 251 mm (9.875 in) OPT 3, (H1)

DTH HAMMERS AND BITS

  • DTH Hammer – 152.4 mm (6 in) class with drive sub (all components, less DTH bit assembly)
  • BITS, 2F-FF-S-HD
    171 mm (6.75 in) two flushing holes, flat face with spherical carbides. Heavy duty.
    Kit includes: nine each bits, four each drive subs, three each additional foot valves, (bits configured with QL60 shank)
  • BITS, 2F-FF-S
    171 mm (6.75 in) two flushing holes, flat face with spherical carbides.
    Kit includes: nine each bits, four each drive subs, three each additional foot valves, (bits configured with QL60 shank)
  • BITS, 2F-CC-S
    171 mm (6.75 in) two flushing holes, concave with spherical carbides.
    Kit includes: nine each bits, four each drive subs, three each additional foot valves, (bits configured with QL60 shank)
  • BITS, 2F-CV-S+B
    171 mm (6.75 in) bits, two flushing holes, convex with spherical gauge and ballistic face carbides.
    Kit includes: nine each bits, four each drive subs, three each additional foot valves, (bits configured with QL60 shank)
  • BITS, 3F-CV-S+B
    171 mm (6.75 in) three flushing holes, convex with spherical gauge and ballistic face carbides.
    Kit includes: nine each bits, four each drive subs, three each additional foot valves, (bits configured with QL60 shank)
  • BITS, 3F-FF-S+B
    171 mm (6.75 in) three flushing holes, flat face with spherical gauge and ballistic face carbides.
    Kit includes: nine each bits, four each drive subs, three each additional foot valves, (bits configured with QL60 shank)
  • BITS, 3F-CC-S+B
    171 mm (6.75 in) three flushing holes, concave with spherical gauge and ballistic face carbides.
    Kit includes: nine each bits, four each drive subs, three each additional foot valves, (bits configured with QL60 shank)

SERVICE PACKAGES/FLUIDS SYSTEM FOR 11.2 M (36.7 FT) OR 13.6 M (44.6 FT) MAST IN ANGLE DRILLING

  • Fast fill for fuel and water and automated lubrication system
  • Central drain/fill service center for lubricants, fast fill for fuel and water, a blow-down hose and automated lubrication system

SERVICE TOOLS

  • Bushing retention tool – 102-194 mm (4.0-7.625 in)
  • Work Tools
    – Lifting bails (available on request; required for commissioning)
    • API thread 89 mm (3.5 in)
    • API thread 114 mm (4.5 in)
    • API thread 140 mm (5.5 in)
    • BECO thread 102 mm (4.0 in)
    • BECO thread 114 mm (4.5 in)
    • BECO thread 152 mm (6.0 in)
  • Lifting bails: API thread 89 mm (3.5 in)
  • Lifting bails: API thread 114 mm (4.5 in)
  • Lifting bails: API thread 140 mm (5.5 in)
  • Lifting bails: BECO thread 102 mm (4.0 in)
  • Lifting bails: BECO thread 114 mm (4.5 in)
  • Lifting bails: BECO thread 152 mm (6.0 in)

CLIMATE/REGIONAL CONSIDERATIONS

  • Batteries, sealed quantity six (6) (required for cold weather Level 2 and 4 and/or semi autonomy packages
  • Level 2 – Arctic – Temperature down to –18° C (0° F) Arctic fluids and lubricants
  • Level 4 – Temperature down to –40° C (–40° F) 50 hz heating components, high pressure compressor. Arctic fluids. Diesel fired heater for engine coolant, primary water tank and batteries. Heated blankets for receiver tank and water suction line. Junction box with provisions for adding customer supplied shore power connector 240V/50A. If needing 60 hz capability, must order 60 hz battery charger through aftermarket

DUST SUPPRESSION

  • Dust curtains, four sides boxed in, with hydraulic lifters to raise front and rear dust curtains (recommended with dust collector)
  • Tram off spray system
  • Water injection 1271 L (336 gal) plus dry dust collector 127 m³/min (4,500 ft³/min)
  • Water injection, high volume 2786 L (736 gal)
    – Tank below deck (isolated for extreme cold weather) capacity 1271 L (336 gal)
    – Tank above deck capacity 1514 L (400 gal)
  • Dust curtain hydraulic lifters raise front and rear dust curtains (recommended with dust collector)
  • Tram off spray to wet the ground around the cuttings pile

See how MD6250 compares against frequently compared products.

Tools And Expert Help At Every Turn

Product Brochures and More Are Ready to Download!

Full specifications, product brochures and more. Sign up below for additional information. Or for instant access, you can skip this form.

Marketing Consent

Check out current offers for the MD6250

View More Offers
warning

Internet Explorer users may experience issues with certain features of our site.
Please try a current version of an alternate browser (i.e. Google Chrome, Microsoft Edge, Mozilla Firefox) for the full Cat.com experience.
