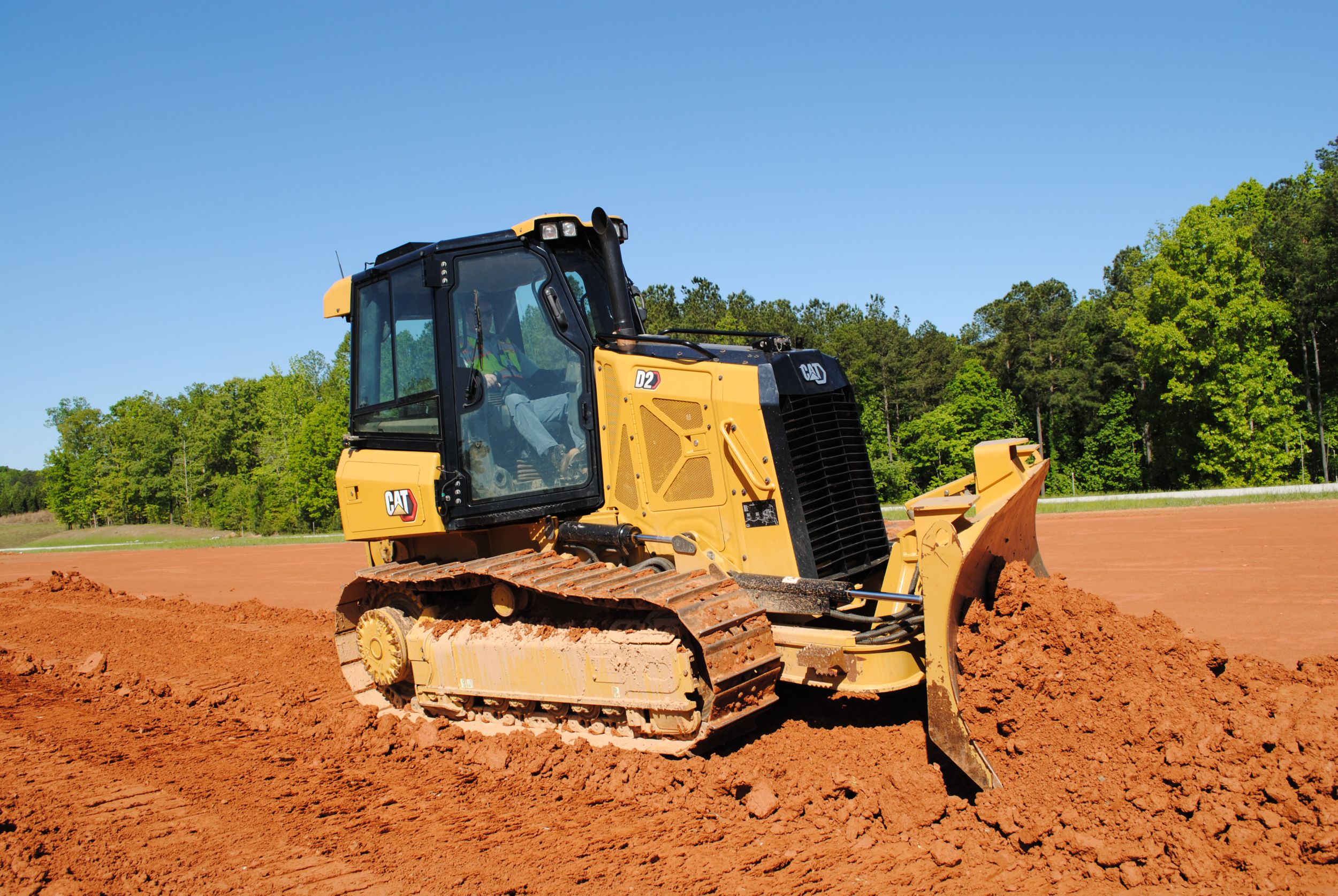

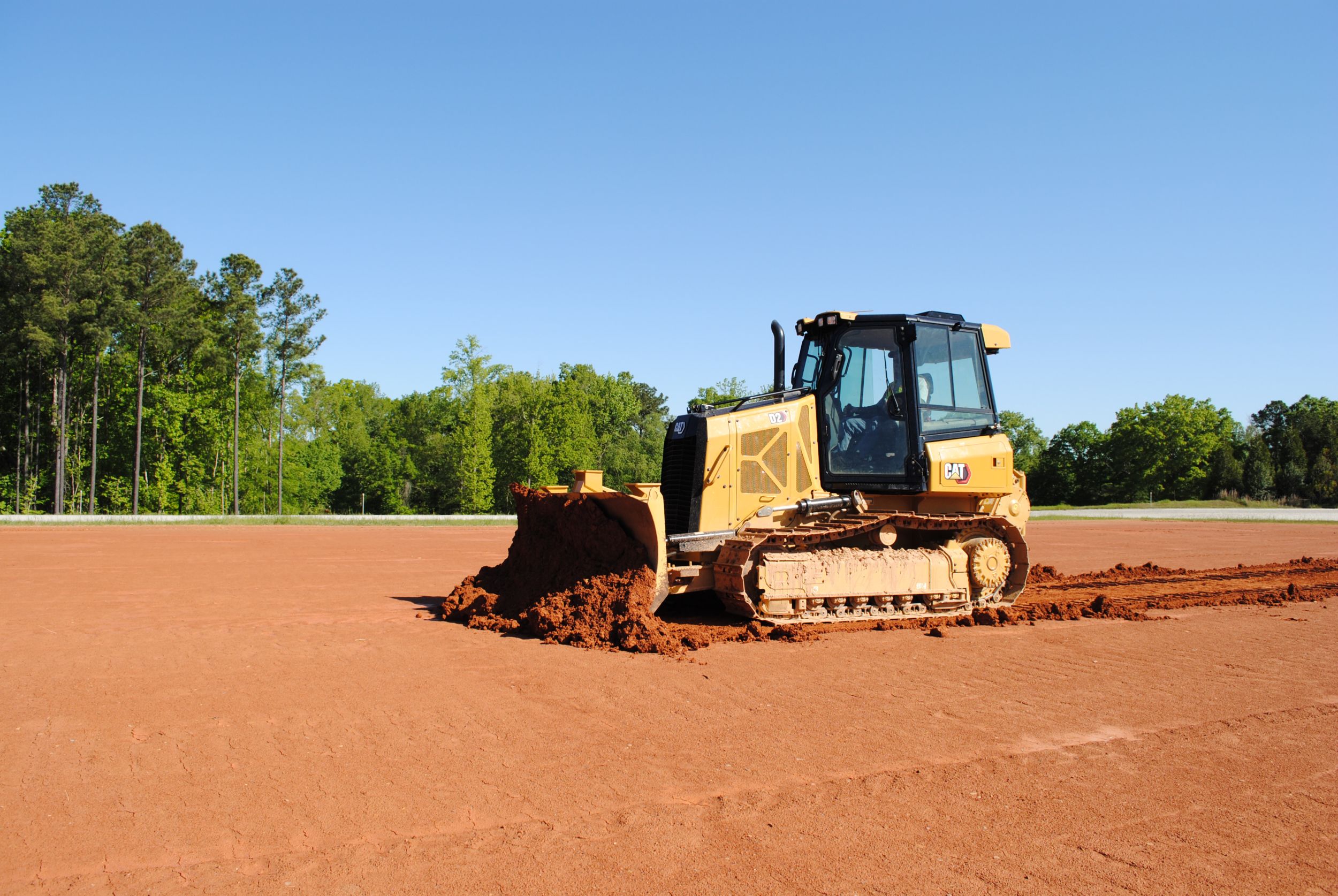

D2 Small Dozers | Cat

Engine

Engine Model	Cat® C3.6 Cat® C3.6
Power - Net	92 HP 68.8 kW
Displacement	220 in³ 3.6 l
Net Power - 2,200 rpm - SAE J1349	92 HP 68.8 kW
Net Power - 2,200 rpm - ISO 9249/EEC 80/1269	92 HP 68.8 kW
Note (1)	Net power is tested per ISO 9249:2007 and SAE J1349:2011 and as advertised is the power available at the ﬂywheel when the engine is equipped with fan, air intake system, exhaust system and alternator. Net power is tested per ISO 9249:2007 and SAE J1349:2011 and as advertised is the power available at the ﬂywheel when the engine is equipped with fan, air intake system, exhaust system and alternator.
Note (2)	All non-road U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final) and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm EPA/10 ppm EU (mg/kg) sulfur or less. All non-road U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final) and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm EPA/10 ppm EU (mg/kg) sulfur or less.

Engine

Power Train

Hydrostatic Hydrostatic

Weights

Operating Weight	18382 lb 8338 kg
Operating Weight - LGP	19066 lb 8648 kg
Note (2)	For machine with ripper, add 554 kg (1,222 lb). For machine with ripper, add 554 kg (1,222 lb).
Note (1)	Specifications shown are for machine equipped with dozer blade, EROPS cab, back-up alarm, operator, coolant, lubricants and full fuel tank. Specifications shown are for machine equipped with dozer blade, EROPS cab, back-up alarm, operator, coolant, lubricants and full fuel tank.

Weights

Operating Weight

18382 lb 8338 kg

Cab

FOPS	ISO 3449:2005 Level II ISO 3449:2005 Level II
ROPS	ISO 3471:2008 ISO 3471:2008

Transmission

Drive Pumps	1 1
Maximum Travel Speed - Forward	5.6 mile/h 9 km/h
Relief Valve Settings	7033 psi 48500 kPa
Maximum Travel Speed - Reverse	6.2 mile/h 10 km/h
Track Motors	2 2

Undercarriage

Length - Track on Ground - LGP	89 in 2248 mm
Track Gauge	61 in 1550 mm
Number of Rollers - Each Side	7 7
Track Gauge - LGP	68 in 1725 mm
Ground Pressure - LGP	4.3 psi 29.7 kPa
Shoe Width - Standard	18 in 460 mm
Shoe Width - LGP	25 in 635 mm
Number of Shoes - Each Side - Sealed and Lubricated Track (SALT) Undercarriage	43 43

Undercarriage

Number of Shoes - Each Side - Abrasion Undercarriage	38 38
Ground Pressure	5.7 psi 39.5 kPa
Length of Track on Ground	89 in 2248 mm

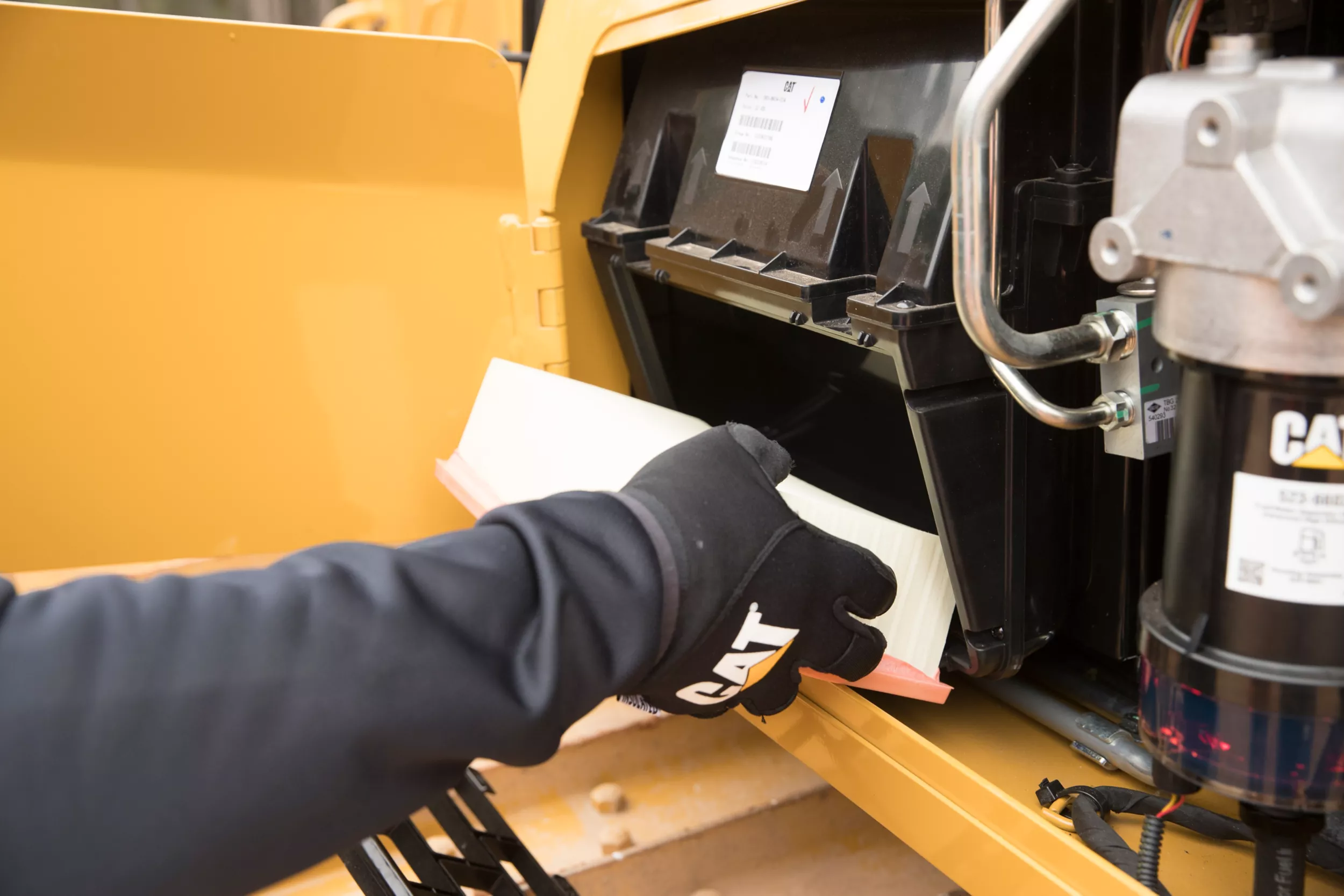

Service Refill Capacities

Fuel Tank	51.5 gal (US) 195 l
Crankcase - With Filter	2.8 gal (US) 10.5 l
Final Drive - Each - LGP	2.6 gal (US) 10 l
Cooling System	5 gal (US) 19 l
Transmission - Hydraulic Tank	23.8 gal (US) 90 l
Diesel Exhaust Fluid (DEF) Tank	4.9 gal (US) 19 l

Service Refill Capacities

Final Drives - Each Side

2.6 gal (US) 10 l

Hydraulic Controls

Pump Output	17.2 gal/min 65 l/min
Relief Valve Settings	2988 psi 20600 kPa

Ripper

Type	Parallelogram Parallelogram
Number of Shanks	3 3
Height	6.5 in 165 mm
Weight	1222 lb 554 kg
Maximum Digging Depth	13.3 in 337.5 mm
Maximum Ground Clearance Under Tip	17.6 in 448 mm
Overall Width	67.3 in 1710 mm
Maximum Reach - Ground Line	30.2 in 766 mm

Winch

Weight	1345 lb 610 kg
Winch Drive	Hydrostatic Hydrostatic
Control	Hydraulic Hydraulic
Speed	Variable Variable
Overall Width	29.2 in 741 mm
Winch Length	27.76 in 705 mm
Maximum Line Pull - Bare Drum	40000 lb 18144 kg
Throat Clearance	6.75 in 171.5 mm
Rope Diameter - Recommended	0.63 in 16 mm
Drum Capacity - Optional Cable	256 ft 78 m
Maximum Line Speed - Bare Drum	131 ft/min 40 m/min
Drum Capacity - Recommended Cable	371 ft 113 m
Rope Diameter - Optional	0.75 in 19 mm
Maximum Line Pull - Full Drum	25000 lb 11340 kg
Drum Diameter	10 in 254 mm
Maximum Line Speed - Full Drum	207 ft/min 63 m/min
Drum Width	10.8 in 274 mm

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the ﬂuorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes. The air conditioning system on this machine contains the ﬂuorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes.

Dimensions

BLADE: Digging Depth - LGP	23.2 in 589 mm
BLADE: Blade Cutting Edge Angle, Adjustable - LGP	52° to 58° 52° to 58°
BLADE: Blade Lift Height - LGP	27.9 in 708 mm
BLADE: Blade Width - LGP	124 in 3149 mm
BLADE: Blade Width at Maximum Angle - LGP	113.1 in 2874 mm
Track Gauge - LGP	67.9 in 1725 mm
Ground Clearance - LGP	13 in 332 mm
BLADE: Blade Height - LGP	35.8 in 910 mm
Overall Length - With Blade - LGP	168.2 in 4272 mm
BLADE: Blade Capacity (SAE) - LGP	2.42 yd³ 1.85 m³
BLADE: Maximum Tilt - LGP	17.2 in 438 mm
BLADE: Maximum Angle (either side) - LGP	25° 25°
Note	Abrasion Undercarriage Abrasion Undercarriage
Length of Basic Dozer (without blade) - LGP	129.5 in 3290 mm
Width of Dozer (standard shoes, no blade) - Standard	79.1 in 2010 mm
Dozer Height - LGP	108.9 in 2765 mm
Dozer Height - Standard	108.9 in 2765 mm
Width of Dozer (standard shoes, no blade) - LGP	92.9 in 2360 mm
Length of Basic Dozer (without blade) - Standard	129.5 in 3290 mm

Dimensions

BLADE: Maximum Angle (either side) - Standard	25° 25°
Ground Clearance - Standard	13 in 332 mm
Overall Length - With Blade - Standard	168.5 in 4281 mm
BLADE: Blade Cutting Edge Angle, Adjustable - Standard	52° to 58° 52° to 58°
BLADE: Maximum Tilt - Standard	15.2 in 387 mm
Track Gauge - Standard	61 in 1550 mm
BLADE: Digging Depth - Standard	23.3 in 593 mm
BLADE: Blade Width - Standard	109.5 in 2782 mm
BLADE: Blade Lift Height - Standard	29.3 in 743 mm
BLADE: Blade Capacity (SAE) - Standard	2.59 yd³ 1.98 m³
BLADE: Blade Width at Maximum Angle - Standard	100.1 in 2542 mm
Note	With Ripper Attachment (add to Length of Basic Dozer) - 1177 mm (46.3 in) With Ripper Attachment (add to Length of Basic Dozer) - 1177 mm (46.3 in)
BLADE: Blade Height - Standard	39.8 in 1010 mm
