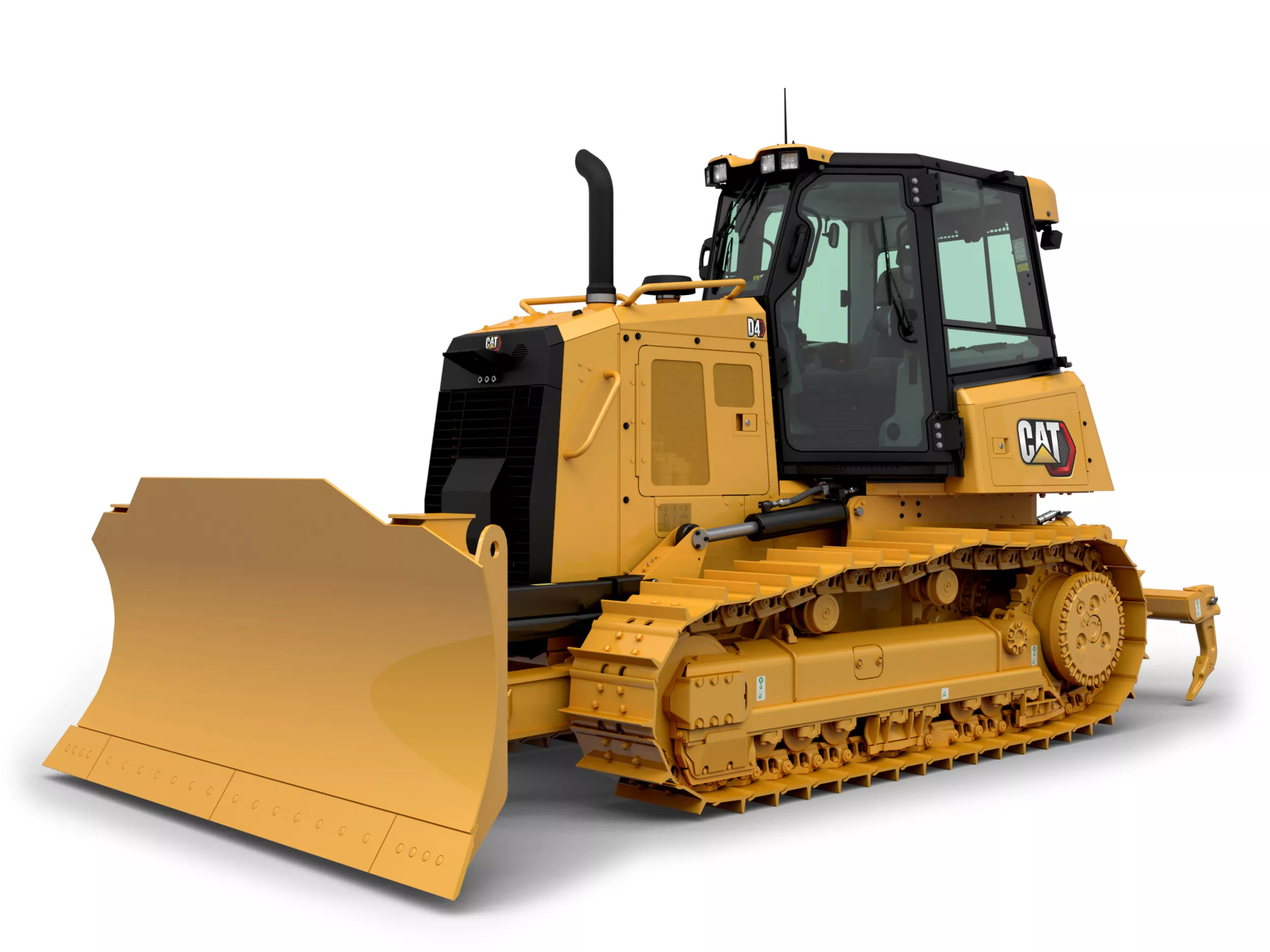

Dozers D4 Top Grading Performance

Product Specifications for D4

Engine

Service Refill Capacities

Weights

VPAT

Blades - VPAT/Foldable VPAT Blade: Capacity*

LGP VPAT

Blades - Width

Transmission - Travel Speed

D4 Standard Equipment

Power Train

  • Cat C7.1 engine, turbocharged - meets Brazil MAR-1 and China Nonroad Stage III emissions standards, equivalent to U.S. EPA Tier 3/EU Stage IIIA
  • Air To Air Aftercooler (ATAAC)
  • Hydraulically driven, variable speed fan
  • Auto engine speed control
  • Aluminum bar plate cooling system (radiator, power train, aftercooler)
  • Glow plug starting aid
  • Programmable/selectable bi-directional shifting
  • Air cleaner with integrated precleaner, dust ejector and under hood air intake
  • Dual path, electronic control, closed loop hydrostatic separator
  • Engine idle shutdown

Operator Environment

  • Standard Cab Package
  • Seat, air suspended, cloth for cab
  • Seat belt, retractable 76 mm (3 in)
  • Color graphic 17.8 cm (7 in) display with gauge for: engine coolant temperature hydraulic oil temperature, fuel level
  • Travel speed limiter, electronic
  • Hour meter, electronic
  • Engine air cleaner service indicator, electronic
  • Water-in-fuel indicator, electronic
  • Throttle switch, rotary
  • Eco Mode
  • Controls, seat mounted, fore/aft adjustment
  • Armrests, adjustable
  • Single pedal combining deceleration and braking functions
  • Independent forward/reverse speed settings
  • Power port, 12V
  • Intermittent wiper
  • 12V radio ready (plug and play)

Technology Products

  • Cat GRADE with Slope Assist
  • Cat Stable Blade
  • Cat Slope Indicate
  • Product Link ready
  • Cat GRADE with Slope Assist
  • Cat Stable Blade
  • Cat Slope Indicate
  • Product Link ready
  • Cat GRADE with 3D (optional)

Undercarriage

  • Heavy duty undercarriage
  • Replaceable sprocket rim segments
  • Carrier rollers (2)
  • Center tread, sprocketed idler with Cat Abrasion, standard idler with heavy duty lifetime lubricated track rollers (8) and idlers
  • Hydraulic track adjusters

Electrical

  • 24V electric starter
  • 12V converter, 10A
  • Back-up alarm
  • Integrated lights (four front, two rear)
  • 100A alternator (24 volt)
  • Horn
  • Diagnostic connector
  • Batteries, heavy duty, maintenance-free, 900 CCA

Hydraulics

  • Load sensing hydraulics
  • Three-valve hydraulics

Other Standard Equipment

  • Implement cylinders with position sensors
  • C-frame, variable pitch link, hydraulic cylinder and lines
  • Engine enclosures
  • Front pull device
  • Rigid drawbar
  • Vandalism protection
  • Heavy duty crankcase guard
  • Vandalism protection
  • Ecology drains (engine, power train and implement oil, engine coolant)
  • Scheduled Oil Sampling (SOS) ports (engine, power train, implement oil)
  • Heavy duty crankcase guard

Maintenance

  • Antifreeze coolant (-37 degrees Celsius/-34.6 degrees Fahrenheit)
  • Extended life coolant
  • Hinged radiator louvered grill
  • Swing-out radiator fan
  • Ecology drains (engine, power train and implement oil, engine coolant)
  • Scheduled Oil Sampling (SOS) ports (engine, power train, implement oil)

D4 Optional Equipment

Power Train

  • Hydraulic Demand Fan, Reversing
  • Turbine Precleaner with Screen

Operator Environment

  • Rear vision camera
  • Heavy Duty Cab Package

Technology Products

  • Cat GRADE with 3D
  • Blade Control: Stable Blade and Traction Control
  • Attachment Ready Option (ARO)
  • Product Link, Satellite PL631
  • Product Link, Cellular PL641
  • Product Link, Dual Mode (Elite)

Undercarriage

  • Cat Abrasion undercarriage
  • Moderate Service or Extreme Service track shoes
  • Center, Front/Rear or Full track guiding guards

Blade

  • VPAT Blade, 3196 mm (10.5 ft) ARO
  • VPAT Blade, 3196 mm (10.5 ft) Foldable ARO
  • VPAT Blade, 3682 mm (12 ft) ARO LGP
  • VPAT Blade, 3682 mm (12 ft) Foldable ARO LGP

Maintenance

  • Shovel holder bracket
  • Rotating beacon

Rear Attachments

  • Ripper
  • Straight or Curved ripper teeth
  • Winch
  • Drawbar
  • Rear counterweight

Other Optional Equipment

  • Cold weather engine
  • Engine coolant heater
