Key Specs

Net Power - ISO 9249/SAE J1349: 334 hp; 249 kW

Operating Weight - Typically Equipped: 70127 lb; 31809 kg

Blade Width: 16 ft; 4.9 m

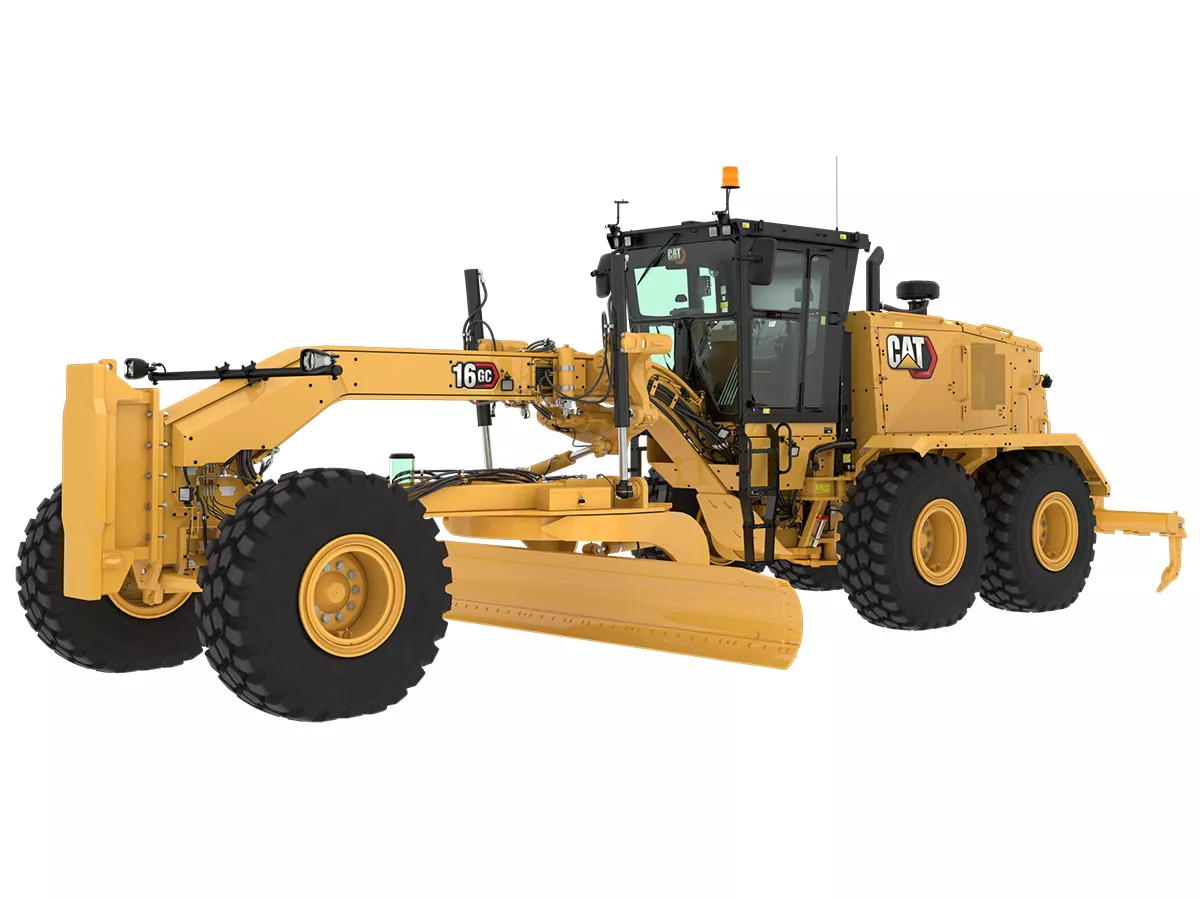

16 GC
Change model

Overview

Cat Reliability in a Simple, Economical Package

The Cat® 16 GC Motor Grader is easy to operate and maintain. Control the blade with consistent precision using the steering wheel and lever controls from the comfort of the cab. An on-demand fan and standard Eco mode reduces fuel consumption while easy access to maintenance points makes service quick and simple.

Benefits

Economical

With low cost of aquisition, the 16 GC is built to last with the power needed at low fuel consumption.

Simple and Effective

Enjoy easy maintenance and simple operation with the 16 GC.

Reliable and Durable

Built with proven components, the 16 GC offers precise, reliable blade movement with the Cat C13 engine.

Features At A Glance

Displaying 1-6 of 6

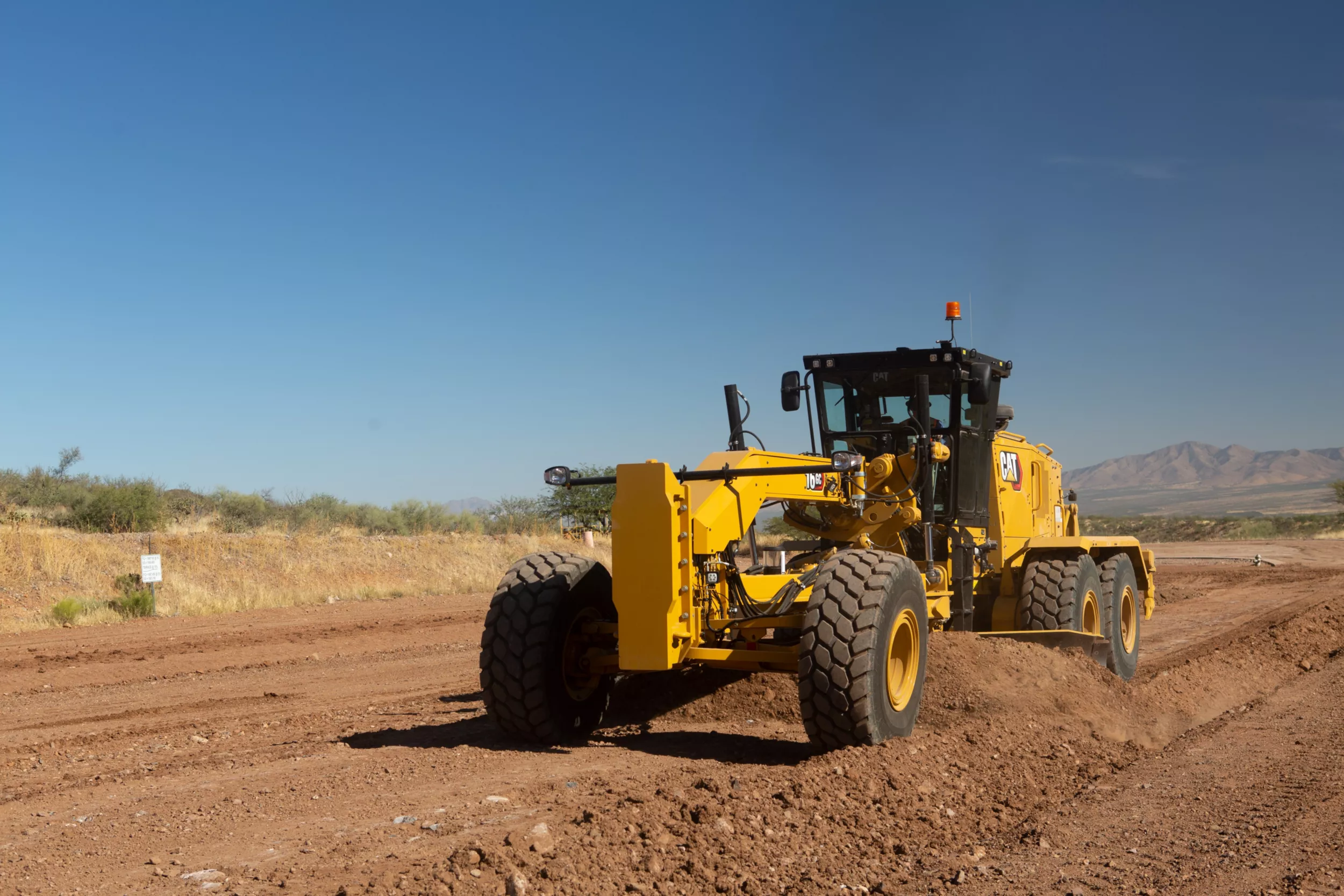

Productive and Economical

Get the reliable power you need to get the job done with the Cat C13 engine.
The machine is well-balanced to help you get full drawbar power to the ground.
Increase your fuel economy up to 5% with the standard ECO mode.
The on-demand fan reduces fuel consumption and under-hood heat for longer component life.
The powershift transmission provides smooth shifting and has the capability to make quick directional changes when utilizing the new ergonomic shifter. With eight forward and six reverse speeds, you can select the right gear for the job.
Improve productivity with the Electronic Throttle Control which matches engine power and torque to application requirements.
The efficient hydraulic system helps you to create a more precise and consistent grade.
The Digital Blade Slope Meter option shows you the grade without relying on manual grade checkers.
Get extra traction with the differential lock when working in loose material.
Keep your machine’s engine speed at your desired level when using throttle lock and throttle hold.
Product Link™ Elite provides location, machine hours, fuel usage, productivity, idle time, diagnostic codes, and other machine data on demand through the VisionLink® online interface, which helps you improve jobsite efficiency with lower operating costs. Minestar™ can also be configured to your machine for added support.

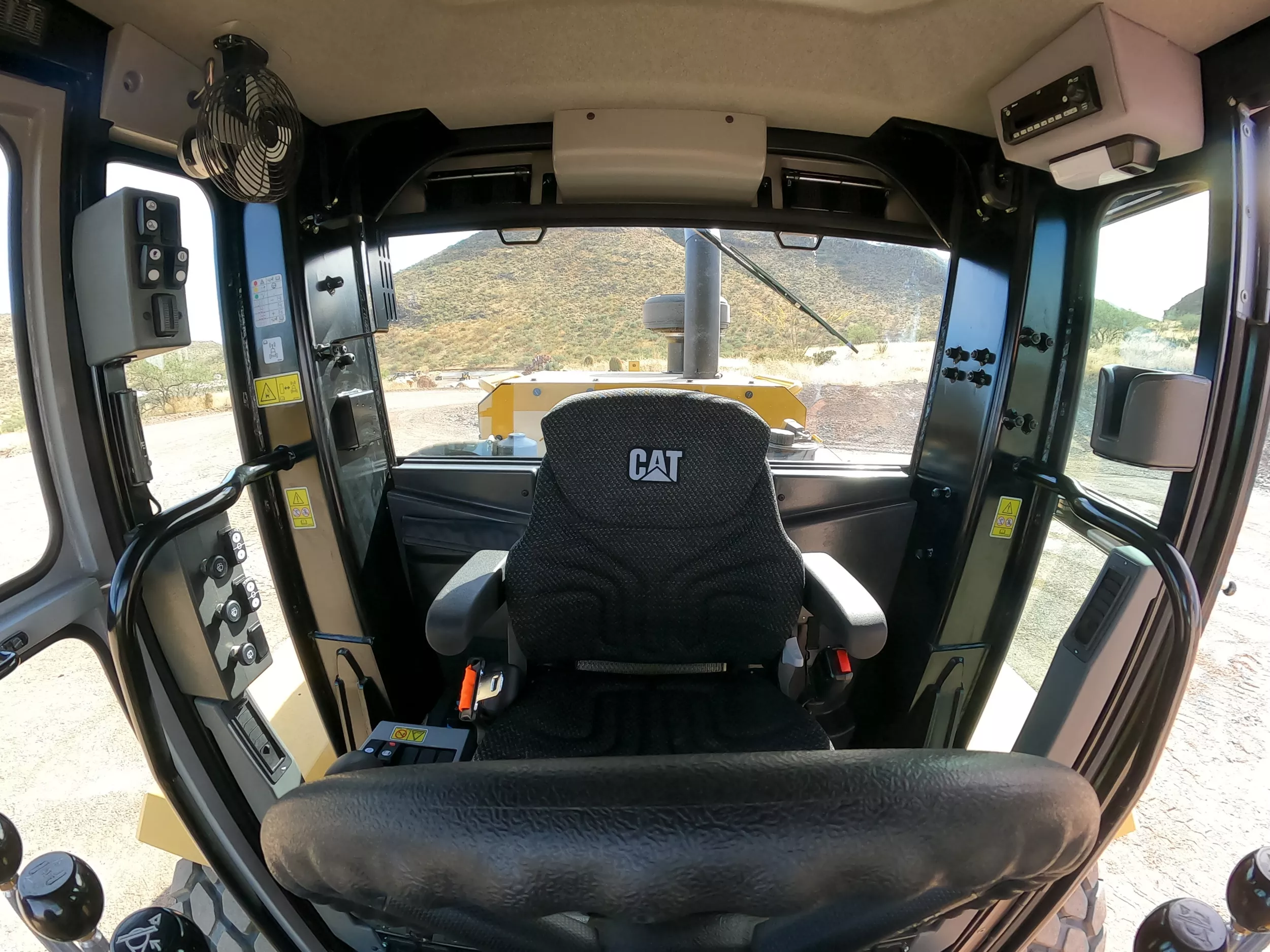

Cab Keeps You Comfortable All Day Long

Choose your comfort level in the cab with the mechanical suspension or air suspension seat.
Easily pull the control console and tilt the steering wheel to your ideal position.
The standard Heating, Ventilation and Air Conditioning (HVAC) system circulates fresh air, prevents dust entry, and keeps windows from fogging.
Standard fresh air vents at the rear of the cab help to keep the windows clear.
Easily add a radio to the cab using the standard mount, speakers and wiring.
Neatly pack away all your gear with in-cab storage space, cup and cell phone holder.

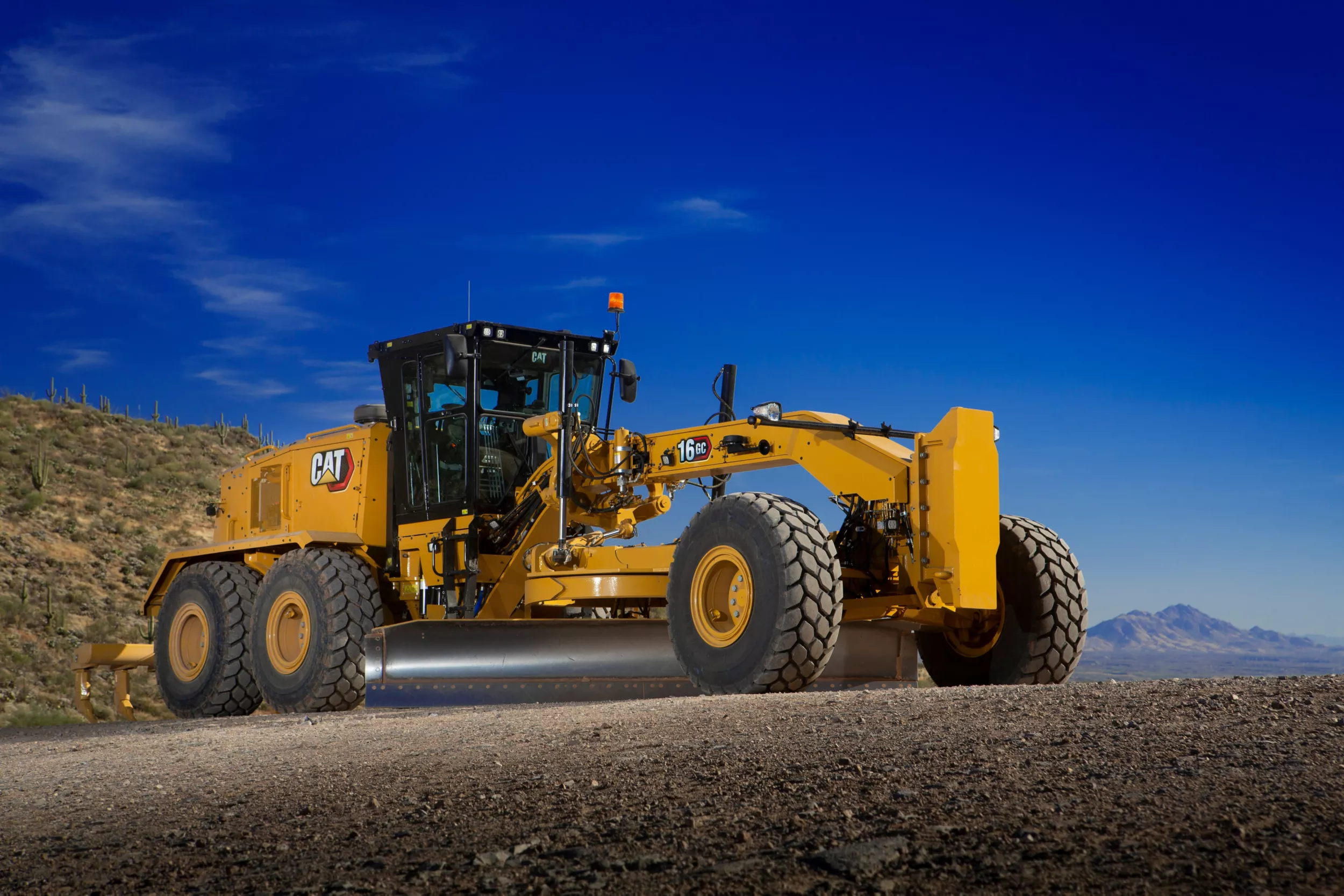

Reliable Performance

The adjustable drawbar circle moldboard helps to stay factory tight with shimmable draftball, circle and blade wearstrips and to provide precision grading pass after pass.
The machine is built for a long life with reinforced structures.
The standard slip clutch protects the circle drive if the moldboard strikes an immovable object.
The front axle maximizes bearing life while also minimizing maintenance with the live spindle design.
The standard compression brakes help to extend the brakes life while also maintaining the machine’s braking power.
Standard blade lift accumulators help to absorb impact loads from the moldboard and help protect the ground engagement tools and front frame from potential damage.

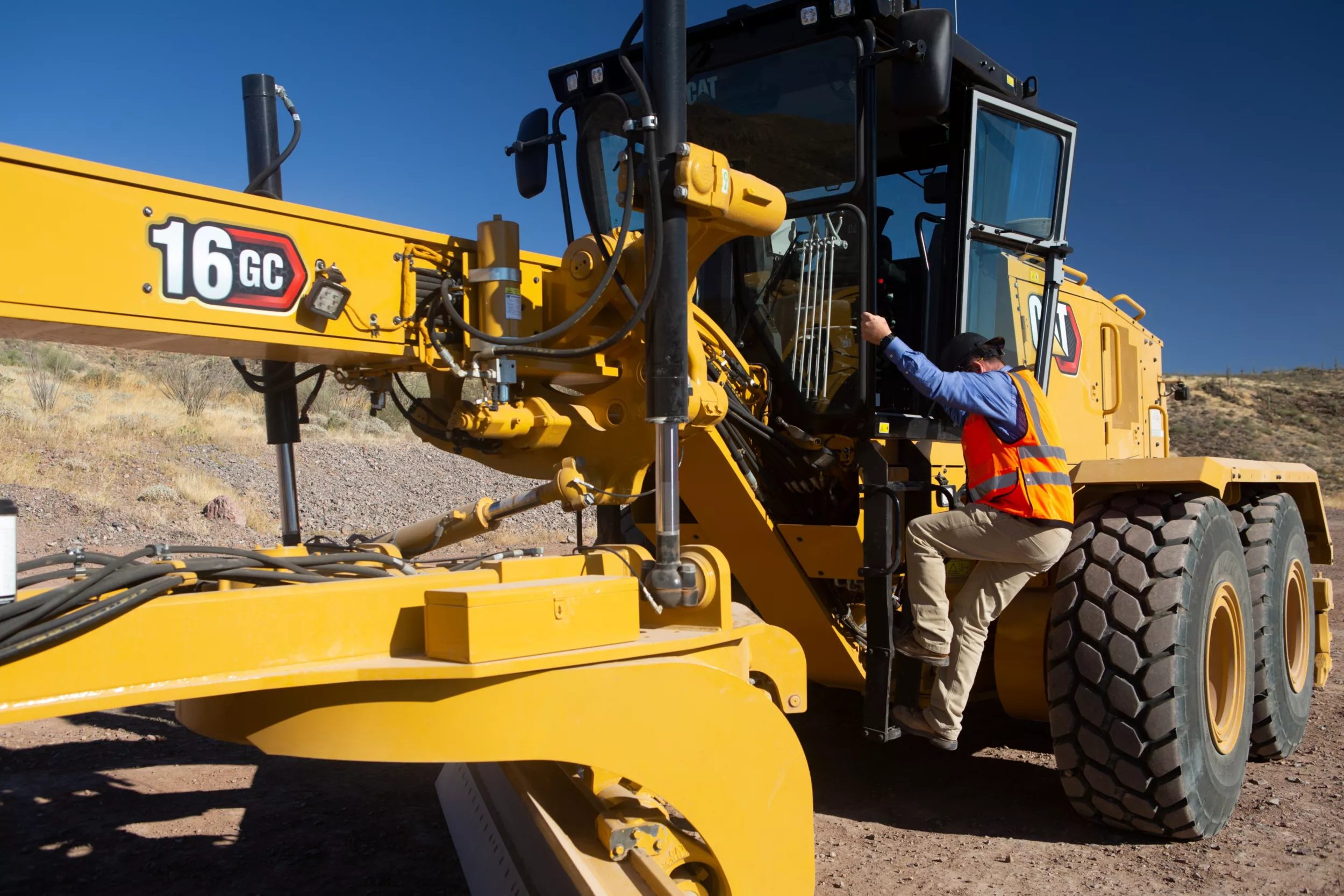

Safely Home Every Day

See what’s behind you with the high-resolution rear camera option. The dedicated display can always be on to ensure a safe work environment.
In the event of a drop in hydraulic pressure, count on the secondary steering system option to help stop the machine safely.
Use three points of contact when entering and exiting the machine with strategically placed walkways and grab rails. An optional rear step is available to help with access to the tandems. The steps use an anti-skid punch plate to prevent slipping.
Ground level engine shut-off switch stops all fuel to the engine when activated and shuts the machine down.
See the rear of your machine with side and rearview mirrors.
Work past sundown using the strategically placed lights for nighttime visibility.

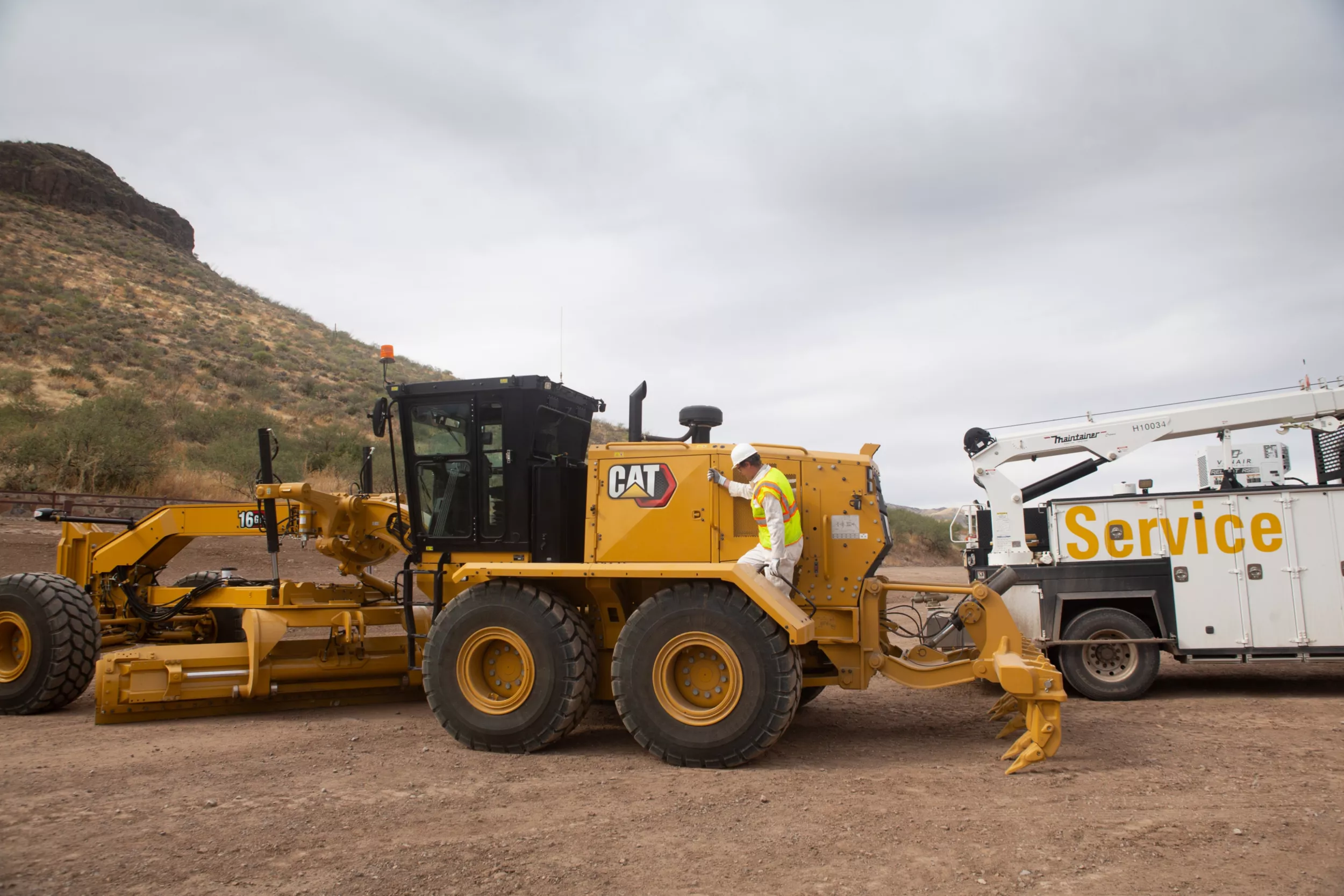

Maintenance Made Easy

Filters are grouped together for easy access and preventative maintenance.
The standard drawbar circle moldboard increases durability using hardened circle teeth and replaceable wear inserts to help sustain factory tightness.
Split shims are added for easier service and adjustments for the ball and socket.
Reduce daily greasing requirements and potential costly repairs to critical joints with the optional autolube system.
Delayed engine shutdown allows for proper cooling of the engine which helps to prolong component life.
Brake adjustments are easily accessible and offer an indicator when service is needed.
Add the optional under hood lighting to illuminate daily maintenance points.
An optional ground level fast fill system is available to speed up fuel stops.

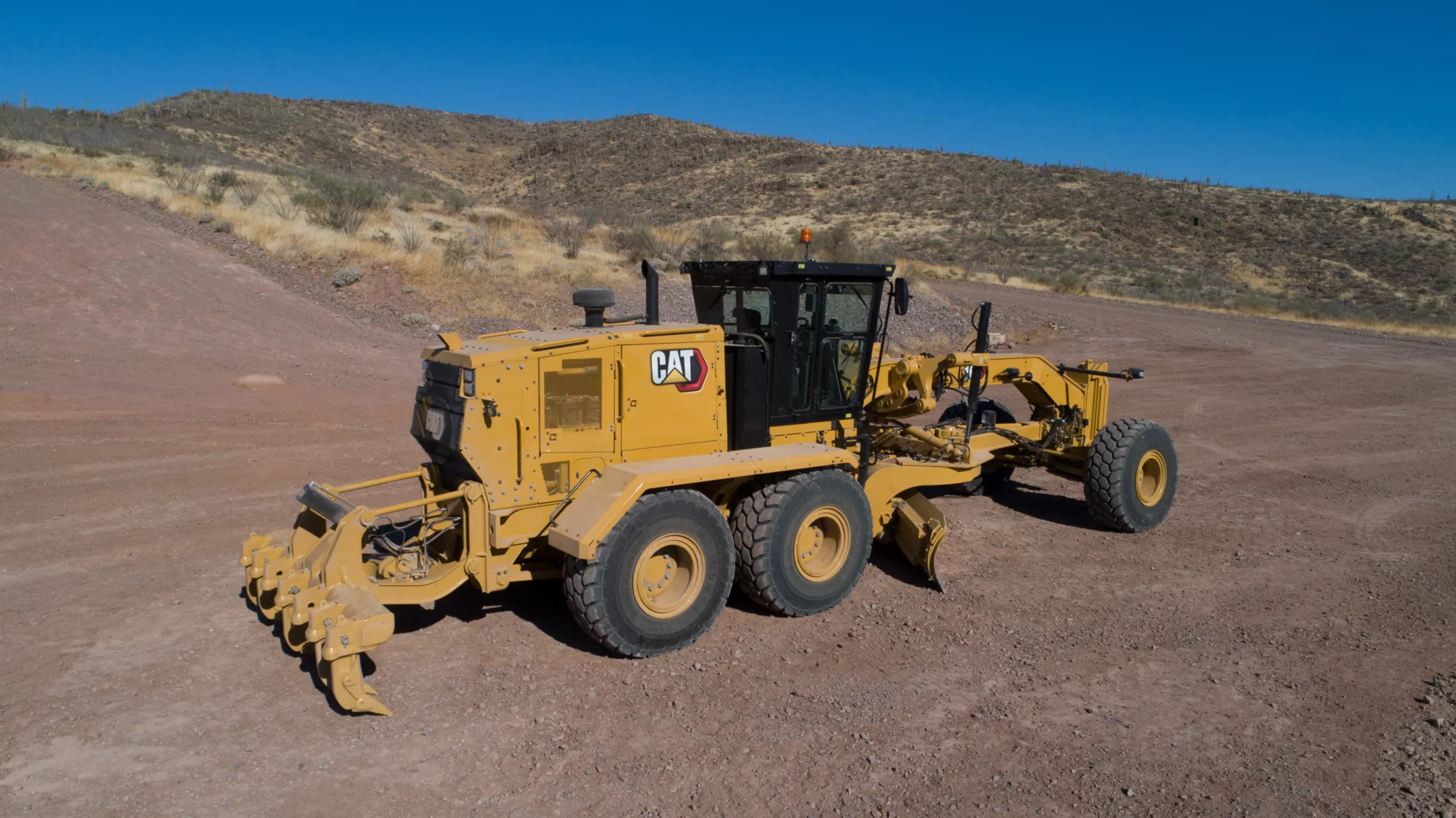

Versatile to Fit Your Needs

Improve the performance and efficiency of your machine with the optional push block.
Optional rippers are available to assist with grading hard ground.
Make your machine fire suppression ready with the optional dealer installed kit.
Optional guarding protects your machine from damage in demanding applications. The optional bottom guard shields the transmission and filter. Optional front axle guards help to protect the front axle and steering cylinders.

Get the reliable power you need to get the job done with the Cat C13 engine.
The machine is well-balanced to help you get full drawbar power to the ground.
Increase your fuel economy up to 5% with the standard ECO mode.
The on-demand fan reduces fuel consumption and under-hood heat for longer component life.
The powershift transmission provides smooth shifting and has the capability to make quick directional changes when utilizing the new ergonomic shifter. With eight forward and six reverse speeds, you can select the right gear for the job.
Improve productivity with the Electronic Throttle Control which matches engine power and torque to application requirements.
The efficient hydraulic system helps you to create a more precise and consistent grade.
The Digital Blade Slope Meter option shows you the grade without relying on manual grade checkers.
Get extra traction with the differential lock when working in loose material.
Keep your machine’s engine speed at your desired level when using throttle lock and throttle hold.
Product Link™ Elite provides location, machine hours, fuel usage, productivity, idle time, diagnostic codes, and other machine data on demand through the VisionLink® online interface, which helps you improve jobsite efficiency with lower operating costs. Minestar™ can also be configured to your machine for added support.

Choose your comfort level in the cab with the mechanical suspension or air suspension seat.
Easily pull the control console and tilt the steering wheel to your ideal position.
The standard Heating, Ventilation and Air Conditioning (HVAC) system circulates fresh air, prevents dust entry, and keeps windows from fogging.
Standard fresh air vents at the rear of the cab help to keep the windows clear.
Easily add a radio to the cab using the standard mount, speakers and wiring.
Neatly pack away all your gear with in-cab storage space, cup and cell phone holder.

The adjustable drawbar circle moldboard helps to stay factory tight with shimmable draftball, circle and blade wearstrips and to provide precision grading pass after pass.
The machine is built for a long life with reinforced structures.
The standard slip clutch protects the circle drive if the moldboard strikes an immovable object.
The front axle maximizes bearing life while also minimizing maintenance with the live spindle design.
The standard compression brakes help to extend the brakes life while also maintaining the machine’s braking power.
Standard blade lift accumulators help to absorb impact loads from the moldboard and help protect the ground engagement tools and front frame from potential damage.

See what’s behind you with the high-resolution rear camera option. The dedicated display can always be on to ensure a safe work environment.
In the event of a drop in hydraulic pressure, count on the secondary steering system option to help stop the machine safely.
Use three points of contact when entering and exiting the machine with strategically placed walkways and grab rails. An optional rear step is available to help with access to the tandems. The steps use an anti-skid punch plate to prevent slipping.
Ground level engine shut-off switch stops all fuel to the engine when activated and shuts the machine down.
See the rear of your machine with side and rearview mirrors.
Work past sundown using the strategically placed lights for nighttime visibility.

Filters are grouped together for easy access and preventative maintenance.
The standard drawbar circle moldboard increases durability using hardened circle teeth and replaceable wear inserts to help sustain factory tightness.
Split shims are added for easier service and adjustments for the ball and socket.
Reduce daily greasing requirements and potential costly repairs to critical joints with the optional autolube system.
Delayed engine shutdown allows for proper cooling of the engine which helps to prolong component life.
Brake adjustments are easily accessible and offer an indicator when service is needed.
Add the optional under hood lighting to illuminate daily maintenance points.
An optional ground level fast fill system is available to speed up fuel stops.

Improve the performance and efficiency of your machine with the optional push block.
Optional rippers are available to assist with grading hard ground.
Make your machine fire suppression ready with the optional dealer installed kit.
Optional guarding protects your machine from damage in demanding applications. The optional bottom guard shields the transmission and filter. Optional front axle guards help to protect the front axle and steering cylinders.

Specifications Standard Equipment Optional Equipment

Product Specifications for 16 GC

Engine

Net Power - ISO 9249/SAE J1349	334 hp 249 kW
Engine Model	Cat® C13 Cat® C13
Emissions	Equivalent to U.S. EPA Tier 3/EU Stage IIIA Equivalent to U.S. EPA Tier 3/EU Stage IIIA
Displacement	763 in³ 12.5 l
Bore	5.1 in 130 mm
Stroke	6.2 in 157 mm
Torque Rise - ISO 9294	46% 46%
Maximum Torque	1,282 lb/ft 1738 N·m
High - Ambient Capability	122 °F 50 °C
Number of Cylinders	6 6
Note (1)	Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 standards in effect at the time of manufacture. Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 standards in effect at the time of manufacture.
Note (2)	Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator. Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.
Note (3)	Power as declared per ISO 14396. Power as declared per ISO 14396.

Weights

Operating Weight - Typically Equipped

70127 lb 31809 kg

Moldboard

Blade Width	16 ft 4.9 m
Blade Height	31 in 787 mm
Arc Radius	16.3 in 413 mm
End Bit - Width	6 in 152 mm
Throat Clearance	5 in 126 mm

Machine Weight

Note

Typically equipped machine weight is calculated with full fluids, 4.9 m (16 ft) blade, push plate, ripper, bottom guard, and operator. Typically equipped machine weight is calculated with full fluids, 4.9 m (16 ft) blade, push plate, ripper, bottom guard, and operator.

Dimensions

Height - Top of Cab	139.3 in 3539 mm
Length of Machine*	463.8 in 11781 mm
Width	130.7 in 3319 mm
Note	Typically equipped with push block and ripper. Typically equipped with push block and ripper.

Blade Range

Circle Center Shift Left	27.2 in 690 in
Circle Center Shift Right	22 in 560 mm
Moldboard Side Shift Left	29.1 in 740 mm
Moldboard Side Shift Right	31.1 in 790 mm
Maximum Depth of Cut	18.5 in 470 mm
Maximum Lift Above Ground	15.7 in 400 mm
Blade Tip Range Forward	40° 40°
Blade Tip Range Backward	5° 5°

Service Refill Capacities

Fuel Tank	114 gal (US) 432 l
Cooling System	18.2 gal (US) 69 l
Engine Crankcase	9.5 gal (US) 36 l
Circle Drive	2.6 gal (US) 10 l
Hydraulic System	14.8 gal (US) 56 l
Transmission and Differential	30.9 gal (US) 117 l

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 2 kg (4.4 lb) of refrigerant which has a CO2 equivalent of 2.860 metric tonnes (3.152 tons). The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 2 kg (4.4 lb) of refrigerant which has a CO2 equivalent of 2.860 metric tonnes (3.152 tons).

16 GC Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

CAB

Mechanical suspension seat

Rollover Protective Structure (ROPS)/ Falling Object Protective Structure (FOPS)

Heating/cooling cab system

Low profile

Fire extinguisher mounting ready

Information display screen

12V power ports

Cell phone holder

Entertainment radio ready

Front wipers

Product Link™ Elite

ENGINE

Cat® C13

Eco mode

On-demand fan

DRAWBAR CIRCLE MOLDBOARD

4.9 m (16 ft) moldboard

Circle drive slip clutch

SAFETY

Parking brake

Signaling/warning horn

Rearview mirror

Hydraulic brakes

Side-view mirrors

Walkways and grab rails

16 GC Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

CAB

Air suspension seat

Halogen lighting

LED lighting

Rear window screen

Bluetooth™ radio

Rear wiper

Digital blade slope meter

SAFETY

Rearview camera

Secondary steering system

High visibility mirror package

Rear tandem step

Warning beacon

Seat belt indication (internal and external)

Turn signals and high/low beam headlights

VERSATILITY

Push block

Ripper

Retrieval hitch

Steering cylinder guards

Transmission guards

Product Specifications for 16 GC

Download Print

Engine

Net Power - ISO 9249/SAE J1349	334 hp 249 kW
Engine Model	Cat® C13 Cat® C13
Emissions	Equivalent to U.S. EPA Tier 3/EU Stage IIIA Equivalent to U.S. EPA Tier 3/EU Stage IIIA
Displacement	763 in³ 12.5 l
Bore	5.1 in 130 mm
Stroke	6.2 in 157 mm
Torque Rise - ISO 9294	46% 46%
Maximum Torque	1,282 lb/ft 1738 N·m
High - Ambient Capability	122 °F 50 °C
Number of Cylinders	6 6
Note (1)	Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 standards in effect at the time of manufacture. Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 standards in effect at the time of manufacture.
Note (2)	Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator. Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.
Note (3)	Power as declared per ISO 14396. Power as declared per ISO 14396.

Weights

Operating Weight - Typically Equipped

70127 lb 31809 kg

Moldboard

Blade Width	16 ft 4.9 m
Blade Height	31 in 787 mm
Arc Radius	16.3 in 413 mm
End Bit - Width	6 in 152 mm
Throat Clearance	5 in 126 mm

Machine Weight

Note

Dimensions

Height - Top of Cab	139.3 in 3539 mm
Length of Machine*	463.8 in 11781 mm
Width	130.7 in 3319 mm
Note	Typically equipped with push block and ripper. Typically equipped with push block and ripper.

Blade Range

Circle Center Shift Left	27.2 in 690 in
Circle Center Shift Right	22 in 560 mm
Moldboard Side Shift Left	29.1 in 740 mm
Moldboard Side Shift Right	31.1 in 790 mm
Maximum Depth of Cut	18.5 in 470 mm
Maximum Lift Above Ground	15.7 in 400 mm
Blade Tip Range Forward	40° 40°
Blade Tip Range Backward	5° 5°

Service Refill Capacities

Fuel Tank	114 gal (US) 432 l
Cooling System	18.2 gal (US) 69 l
Engine Crankcase	9.5 gal (US) 36 l
Circle Drive	2.6 gal (US) 10 l
Hydraulic System	14.8 gal (US) 56 l
Transmission and Differential	30.9 gal (US) 117 l

Air Conditioning System

Air Conditioning

16 GC Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

CAB

Mechanical suspension seat

Rollover Protective Structure (ROPS)/ Falling Object Protective Structure (FOPS)

Heating/cooling cab system

Low profile

Fire extinguisher mounting ready

Information display screen

12V power ports

Cell phone holder

Entertainment radio ready

Front wipers

Product Link™ Elite

ENGINE

Cat® C13

Eco mode

On-demand fan

DRAWBAR CIRCLE MOLDBOARD

4.9 m (16 ft) moldboard

Circle drive slip clutch

SAFETY

Parking brake

Signaling/warning horn

Rearview mirror

Hydraulic brakes

Side-view mirrors

Walkways and grab rails

16 GC Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

CAB

Air suspension seat

Halogen lighting

LED lighting

Rear window screen

Bluetooth™ radio

Rear wiper

Digital blade slope meter

SAFETY

Rearview camera

Secondary steering system

High visibility mirror package

Rear tandem step

Warning beacon

Seat belt indication (internal and external)

Turn signals and high/low beam headlights

VERSATILITY

Push block

Ripper

Retrieval hitch

Steering cylinder guards

Transmission guards

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

Cat® Inspect

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.

Explore Technology
Cat® Remote Flash

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.

Explore Technology
Cat® Remote Troubleshooting

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Remote Troubleshoot allows your Cat dealer to run testing while the machine is operating. Once the problem is identified, a technician can fix it with the correct parts and tools the first time, saving time and money. Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency.

Explore Technology
VisionLink™

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.

Explore Technology

Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.

Explore Technology

Remote Troubleshoot allows your Cat dealer to run testing while the machine is operating. Once the problem is identified, a technician can fix it with the correct parts and tools the first time, saving time and money. Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency.

Explore Technology

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology
