Loader Rakes 2348 mm (92 in), Fusion™ Coupler

Request A Price Shop Now

Key Specs

Width: 92.4 in; 2348 mm

Weight: 4321.1 lb; 1960 kg

Overall Height: 73.4 in; 1865 mm

2348 mm (92 in), Fusion™ Coupler
Change model

Overview

Loader Rakes are designed to remove roots from the ground and to pile up branches, logs or roots during a land cleaning application.

Features At A Glance

Designed to remove material and not dirt, such as roots, branches, and logs during a land cleaning application.

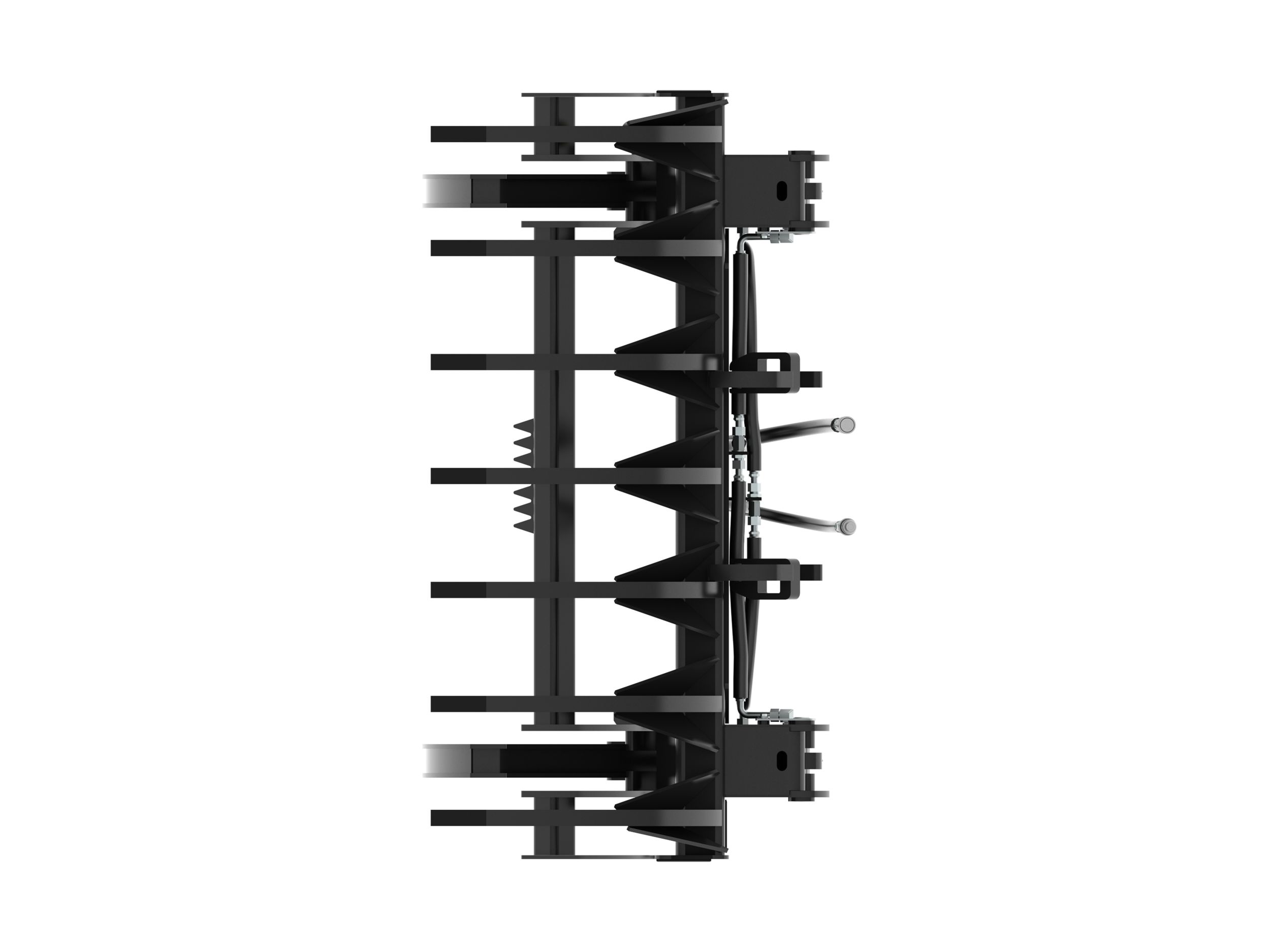

With a total of seven teeth, each 50 mm (2 in) wide and a specially designed attack angle, they are ready to work through any soil condition.

Gussets located in both sides of the teeth are designed to deliver maximum resistance to the tool.

Square torque tubes positioned along the frame of the rake help distribute loads and provide for a longer lasting attachment.

Located at the top center of the rake, this serrated plate functions to make material pushing easier, avoiding damage at the rake structure.

Includes two single hydraulic clamps, one on each side of rake.

Tool Mounted Operation and Maintenance Manual Holder

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.

Product Specifications for 2348 mm (92 in), Fusion™ Coupler

Width	92.4 in 2348 mm
Weight	4321.1 lb 1960 kg
Overall Height	73.4 in 1865 mm
Overall Length	49.2 in 1249 mm
Tine Spacing	11.8 in 300 mm
Tine Thickness	2 in 50 mm
Number of Tines	7 7
Interface Type	Fusion™ Fusion™
Top Clamp Style	Double Top clamp Double Top clamp
Required Hydraulics	3rd Function 3rd Function

Product Specifications for 2348 mm (92 in), Fusion™ Coupler

Download Print

Width	92.4 in 2348 mm
Weight	4321.1 lb 1960 kg
Overall Height	73.4 in 1865 mm
Overall Length	49.2 in 1249 mm
Tine Spacing	11.8 in 300 mm
Tine Thickness	2 in 50 mm
Number of Tines	7 7
Interface Type	Fusion™ Fusion™
Top Clamp Style	Double Top clamp Double Top clamp
Required Hydraulics	3rd Function 3rd Function
