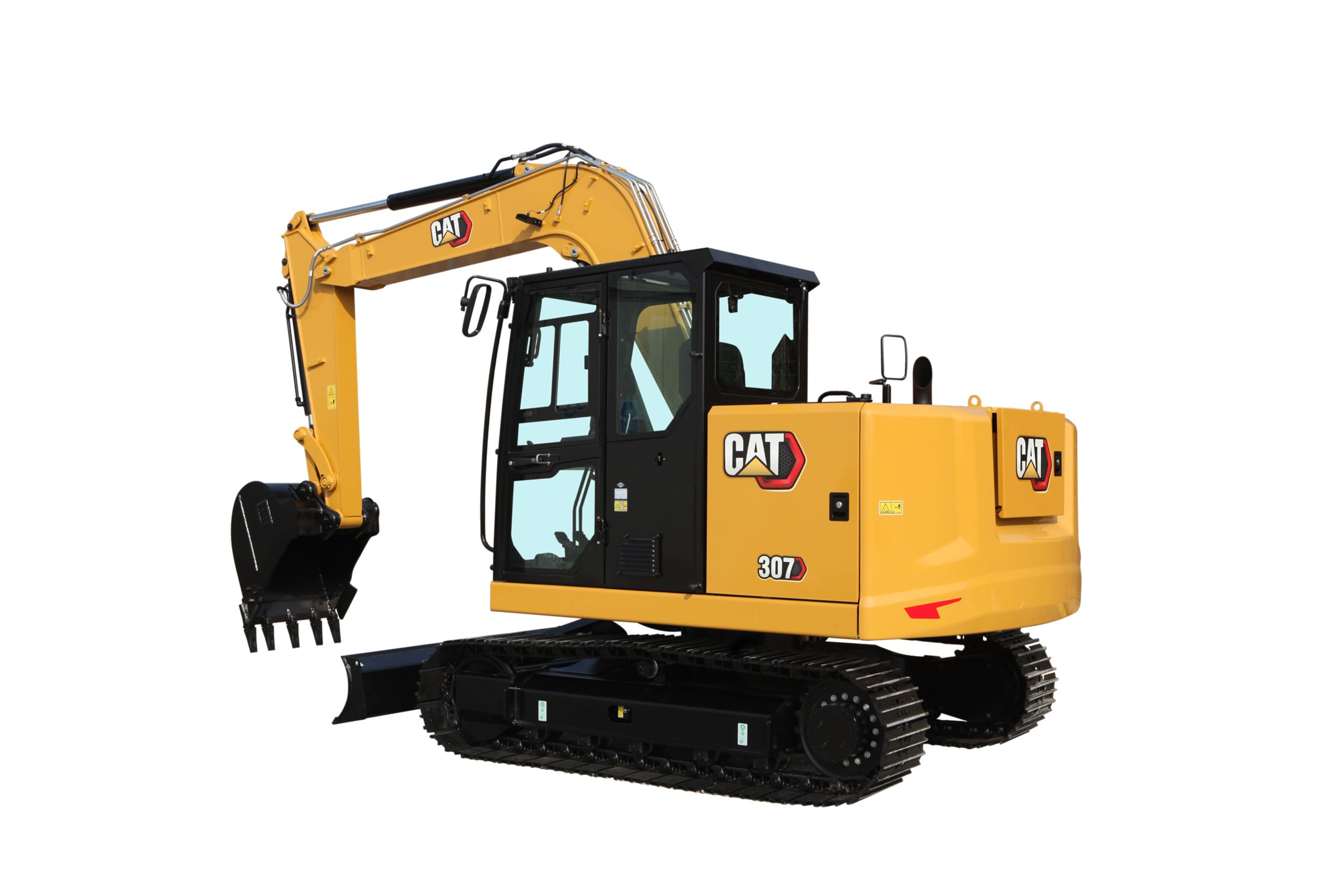

307 Mini Hydraulic Excavator
New

Mini Excavators 307

Request A Price Find Dealer

Key Specs

Engine Model
Cat C2.4T
Cat C2.4T
Net Power
48.9 hp
36 kW
Operating Weight
15432 lb
7500 kg

Overview

The Cat® 307 Mini Hydraulic Excavator with standard tail and fixed boom design delivers high performance with low fuel consumption. The durable and reliable structure helps you work in applications with high productivity but low operating cost.

Product Specifications for 307

Engine Model Cat C2.4T Cat C2.4T
Net Power 48.9 hp 36 kW
Bore 3.4 in 87 mm
Gross Power - SAE J1995:2014 49.6 hp 36.5 kW
Displacement 146.5 in³ 2.4 l
Stroke 4 in 102 mm
Operating Weight 15432 lb 7500 kg
Operating Weight - With Cab 15432 lb 7500 kg
Note Weight includes standard stick, steel tracks, bucket, blade, operator and full fuel tank. Weight includes standard stick, steel tracks, bucket, blade, operator and full fuel tank.
Machine Swing Speed 10.5 r/min 10.5 r/min
Width 90.6 in 2300 mm
Height 14.3 in 364 mm
Cooling System 2.6 gal (US) 10 l
Engine Oil 2.7 gal (US) 10.2 l
Hydraulic Tank 13.5 gal (US) 51 l
Fuel Tank 43.6 gal (US) 165 l
Hydraulic System 26.9 gal (US) 102 l
With Standard Stick - Bucket Capacity 11.7 ft³ 0.33 m³
With Standard Stick - Bucket Width 33.6 in 854 mm
Boom 145.7 in 3700 mm
Standard Stick 65.6 in 1665 mm
Operating Pressure - Swing 3481 psi 24000 kPa
Digging Force - Bucket 11960 lbf 53.2 kN
Digging Force - Stick - Standard 8161 lbf 36.3 kN
Operating Pressure - Travel 4134 psi 28500 kPa
Pump Flow at 2,000 rpm 38.8 gal/min 147 l/min
Type Load Sensing Hydraulics with Variable Displacement Piston Pump Load Sensing Hydraulics with Variable Displacement Piston Pump
Operating Pressure - Equipment 4134 psi 28500 kPa
Travel Speed - Low 2.1 mile/h 3.4 km/h
Travel Speed - High 3 mile/h 4.9 km/h
Gradeability - Maximum 30° 30°
Maximum Blade Depth 1.1 ft 326 mm
Maximum Blade Height 1.4 ft 413 mm
Maximum Reach 20.7 ft 6297 mm
Overall Shipping Width 7.2 ft 2200 mm
Transport Height 8.6 ft 2634 mm
Maximum Dig Height 23.8 ft 7240 mm
Track Shoe Width 1.5 ft 450 mm
Tail Swing Radius 5.7 ft 1750 mm
Maximum Dump Clearance 17.1 ft 5195 mm
Cab Height 8.3 ft 2540 mm
Ground Clearance - Frame 1.2 ft 372 mm
Overall Track Length 9.1 ft 2760 mm
Overall Shipping Length 19.9 ft 6076 mm
Note Working range and dimensions are for standard stick. Working range and dimensions are for standard stick.
Maximum Reach - Ground Level 20.2 ft 6159 mm
Dig Depth 13.3 ft 4067 mm

307 Standard Equipment

STANDARD EQUIPMENT

  • Diesel engine, C2.4T
  • One touch low idle
  • Two speed travel with manual shift
  • Cat one key security system
  • Door locks and cap locks
  • Signaling/warning horn
  • Product Link™ monitors machine hours and location
  • Muffler with cover
  • Radial seal air filter, double element
  • Fuel Water separator
  • Auxiliary hydraulic valve
  • Accumulator
  • Cab:
    – Air conditioning
    – Mechanical suspension seat
    – Openable front windshield with assist device
    – Removable lower windshield
    – Windshield wiper and washer
    – Interior lighting
    – Coat hook
    – Radio
    – Two stereo speakers
    – Antenna
    – Cup holder
    – Storage pocket
    – Mounting for front and top guard (mounting boss)
  • Hour meter
  • Static seat belt (46 mm width)
  • Hydraulic activation control lever (lock out) for all controls
  • Two travel control hand levers
  • Capability to install one additional pedal for auxiliary hydraulic control
  • Seat with suspension
  • 450 mm triple grouser track shoes with holes (for rubber pad)
  • Towing eye on base frame
  • Rearview mirror, mounted on right hand side of upper frame
  • Light Group

307 Optional Equipment

OPTIONAL EQUIPMENT

  • Blade
  • Auxiliary line
  • B8 hammer
