Shears S308

Request A Price Shop Now

Key Specs

Tip Force: 43.3 Sh Ton; 385 kN

Rotation: 360 Degrees; 360 Degrees

Jaw Opening: 9.4 in; 240 mm

S308
Change model

Overview

Ideal for interior demolition tasks.

Features At A Glance

Unique straight lower jaw design effectively enhances the cutting force by facilitating the spreading out of steel along the length of the jaw, maximizing the shear cutting force.

Operator can spin the shear 360 degrees in either direction to quickly position the jaws for a cut.

The five main, side and front knives are fully reversible with four effective cutting edges.

Large access panels on the top and bottom of the shear housing make it easier to service inside components.

Design of the shear housing and cylinder rod guarding provides full protection of the cylinder throughout the complete cutting cycle.

Included with every shear to provide confidence that working in the jaw area is safe.

Provides optimum flow regeneration to improve cycle times and machine productivity.

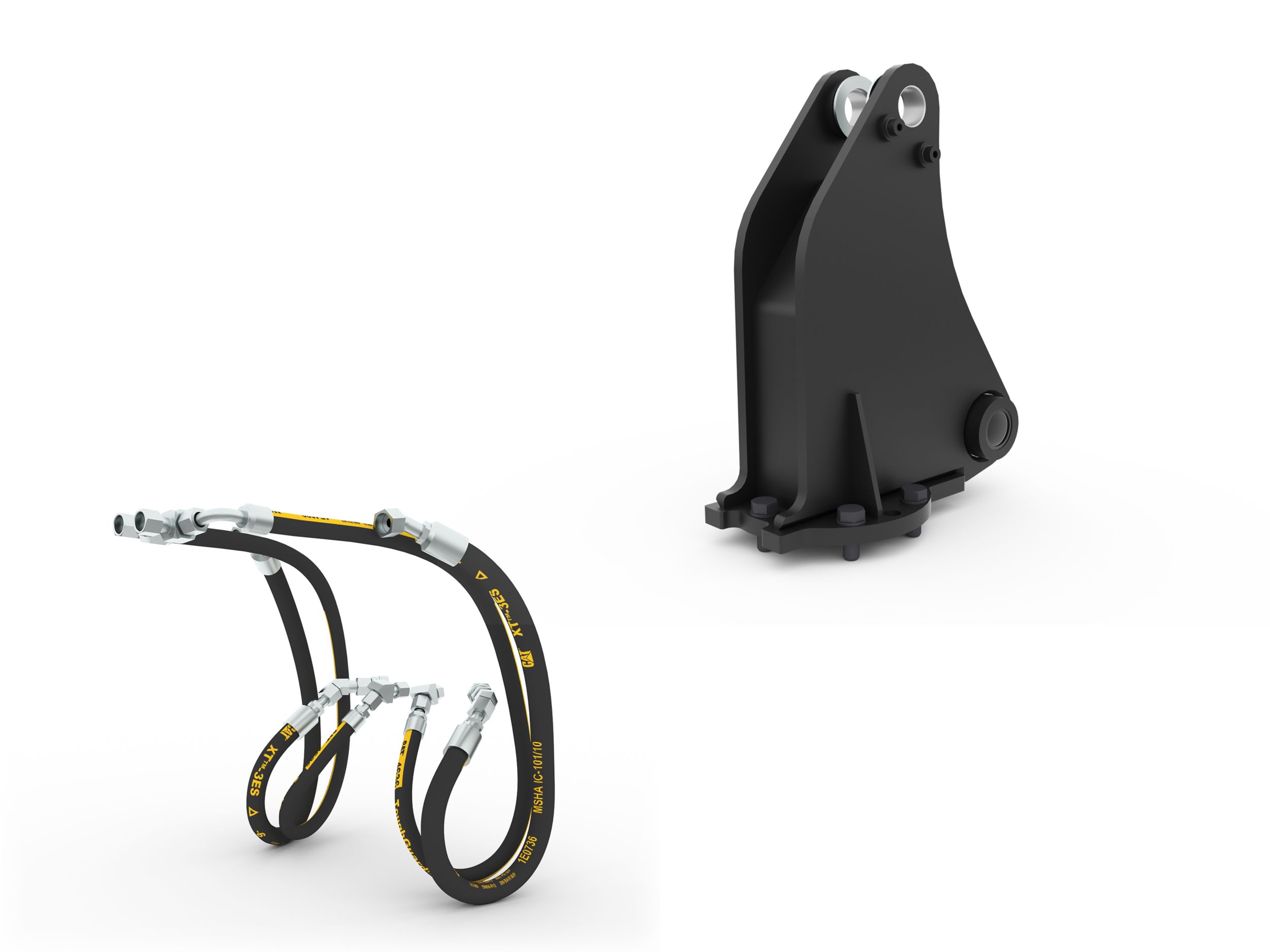

Mounting options for the S308 Shear include a skid steer loader mounting bracket, a 7/8/9 ton stick mount, and a 5/6 ton boom mount bracket.

Each shear comes included with a service kit and tool box.

Product Specifications for S308

Tip Force	43.3 Sh Ton 385 kN
Rotation	360 Degrees 360 Degrees
Jaw Opening	9.4 in 240 mm
Jaw Depth	11.4 in 290 mm
Jaw Width - Moving	2.4 in 60 mm
Jaw Width - Fixed	9.1 in 230 mm
Cycle Time - Close	2.5 Seconds 2.5 Seconds
Cycle Time - Open	3.5 Seconds 3.5 Seconds
Rotation Circuit - Maximum Flow	5.3 gpm 20 L/min
Rotation Circuit - Maximum Relief Pressure	2900.8 psi 20000 kPa
Cutting Circuit - Maximum Flow	15.9 gpm 60 L/min
Cutting Circuit - Maximum Relief Pressure	3626 psi 25000 kPa
Throat Force	203.7 Sh Ton 1812 kN
Apex Force	73.4 Sh Ton 653 kN
Weight	1212.5 lb 550 kg
Height	26.3 in 667 mm
Length	67.3 in 1709 mm
Width	15.4 in 390 mm
