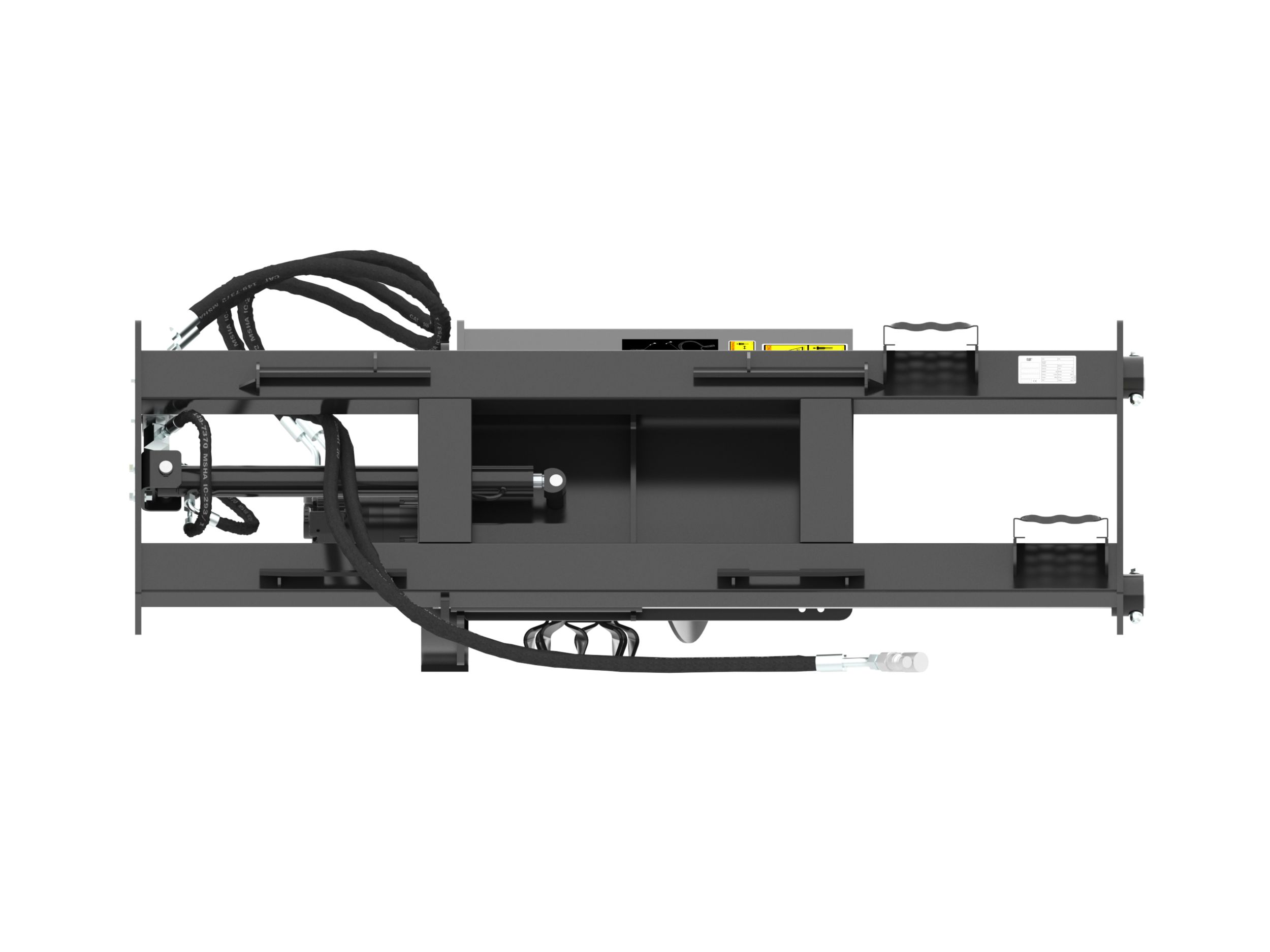

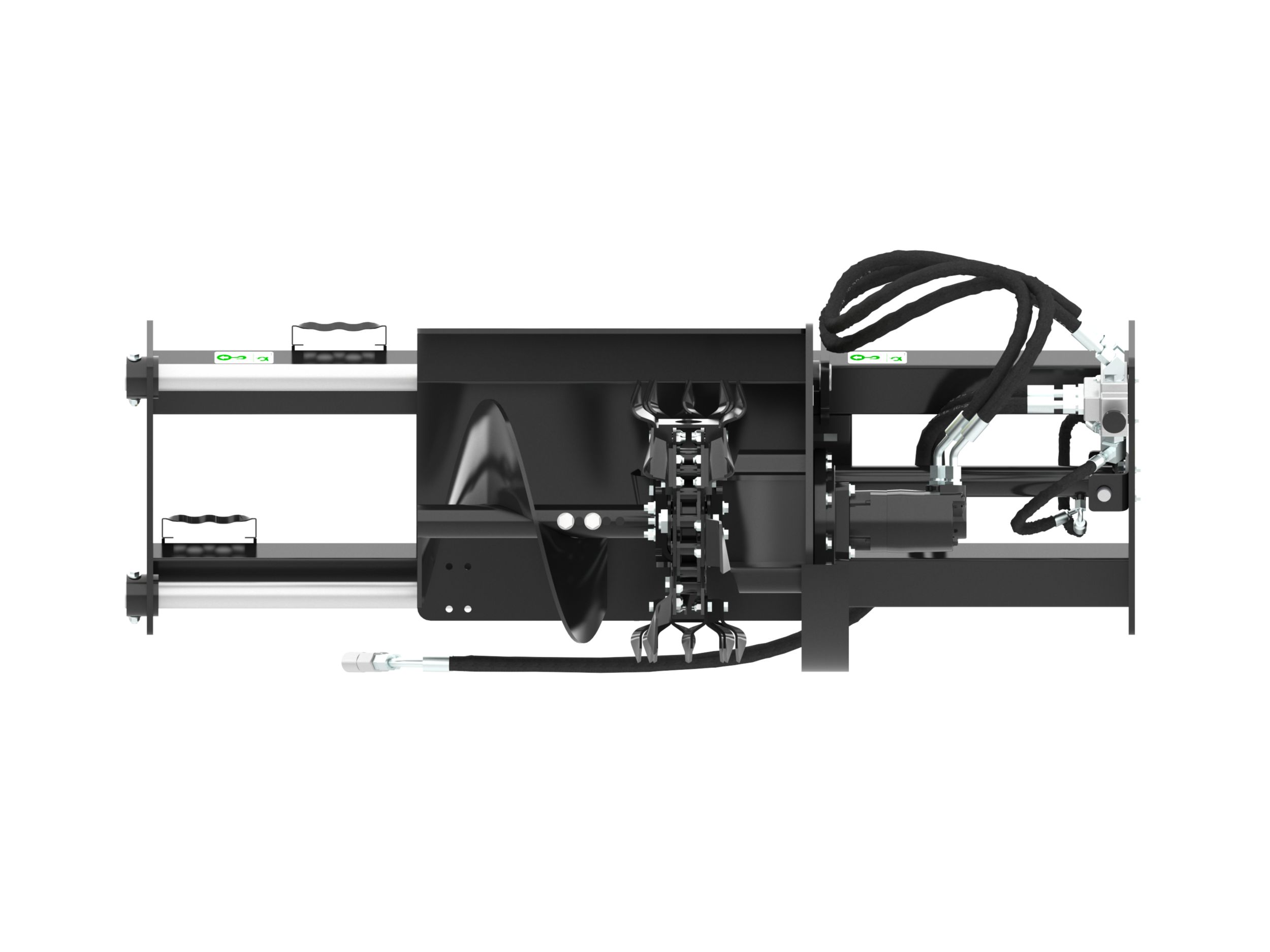

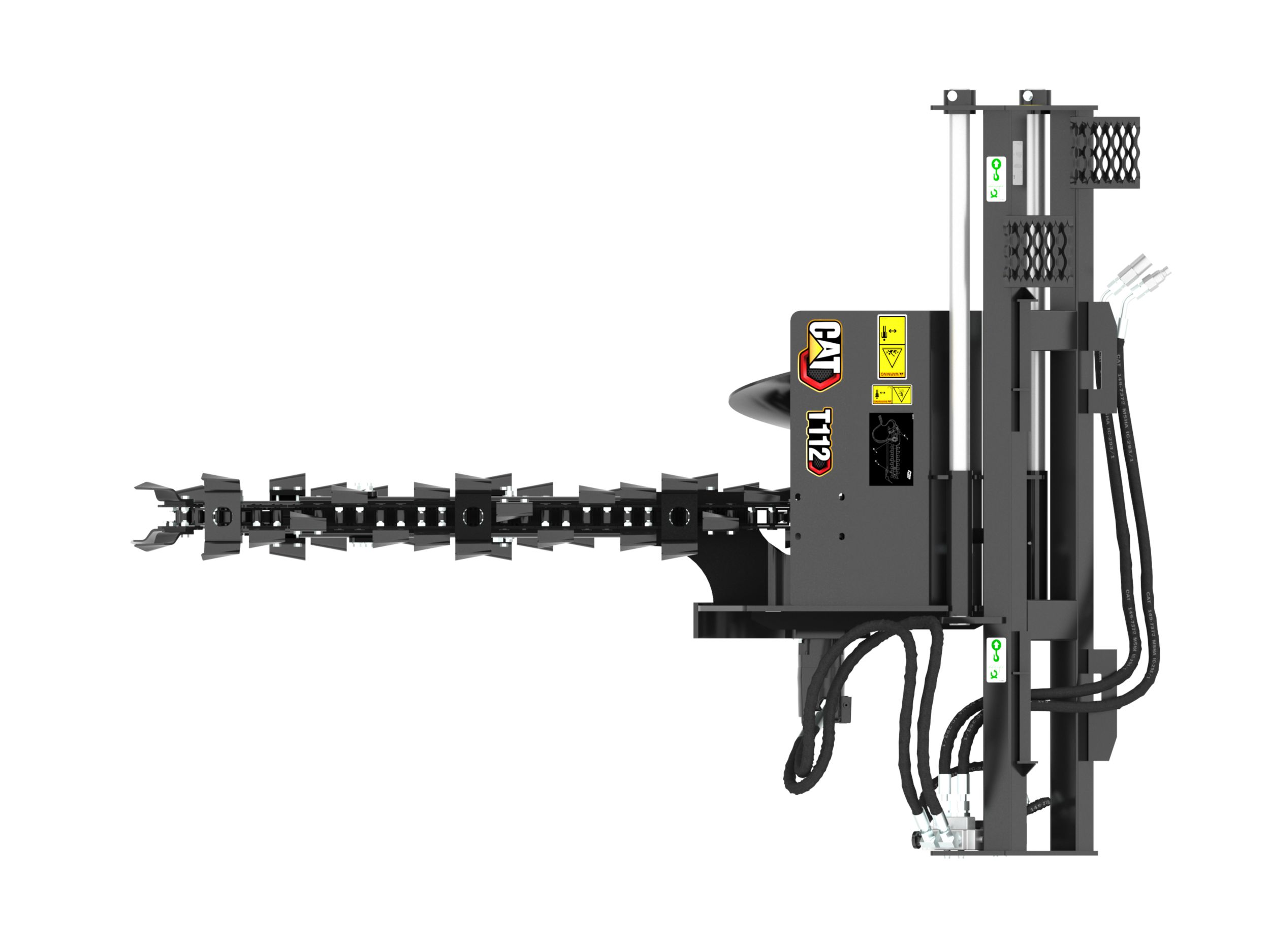

Overview

Designed for cutting narrow straight trenches in soil prior to laying electrical, telephone and cable lines, or water and gas pipe.

Units:
Standard Boom Length 48.0 in 1219.0 mm Less
Cutting Width 8.0 in 203.0 mm Less
Chain Type Standard Standard Less
Chain Pull at Maximum Pressure 2661.0 lb 1207.0 kg Less
Chain Speed at Maximum Flow 508.5 ft/min 155.0 m/min Less
Drive Shaft Speed at Maximum Flow 203 rpm 203 rpm Less
Drive Shaft Torque 1068.0 lb/ft 1447.0 N·m Less
Maximum Auger Clearance 21.0 in 534.0 mm Less
Motor Displacement 24.0 in³ 393.9 cm³ Less
Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi) Less
Optional Cutting Widths 152, 254, 305 mm (6, 10, 12 in) 152, 254, 305 mm (6, 10, 12 in) Less
Overall Height 30.9 in 786.0 mm Less
Overall Length 106.5 in 2705.0 mm Less
Overall Width 74.8 in 1901.0 mm Less
Required Hydraulic Flow 42-86 L/min (11-23 gpm) 42-86 L/min (11-23 gpm) Less
Required Hydraulics Standard Flow Standard Flow Less
Sideshift Travel 22.0 in 559.0 mm Less
Spoil Auger Diameter 18.0 in 457.0 mm Less
Weight 1186.0 lb 538.0 kg Less

Hydraulic or Manual Sideshift

Hydraulic or manual side-shift provides close trenching flexibility near structures or obstructions. Hydraulic sideshift, standard on the T15B (optional on T6B and T9B) is controlled from operator's compartment using the standard flow auxiliary hydraulic circuit selector control.

Large Diameter Bolt-on Spoil Auger

Large diameter bolt-on spoil auger improves loose soil removal from trenching area and allows for quick, easy removal and servicing.

Optional Chain Types and Cutting Widths

Optional chain types and cutting widths are available for specific soil, digging requirements and trench widths. These chain types include Standard, Combo, Terminator, and Rockfrost.

Optional Bolt-on Crumber Bar

Optional bolt-on crumber bar with shoe improves soil removal to provide cleaner trench. Shoes available in size range to accommodate trench width.
