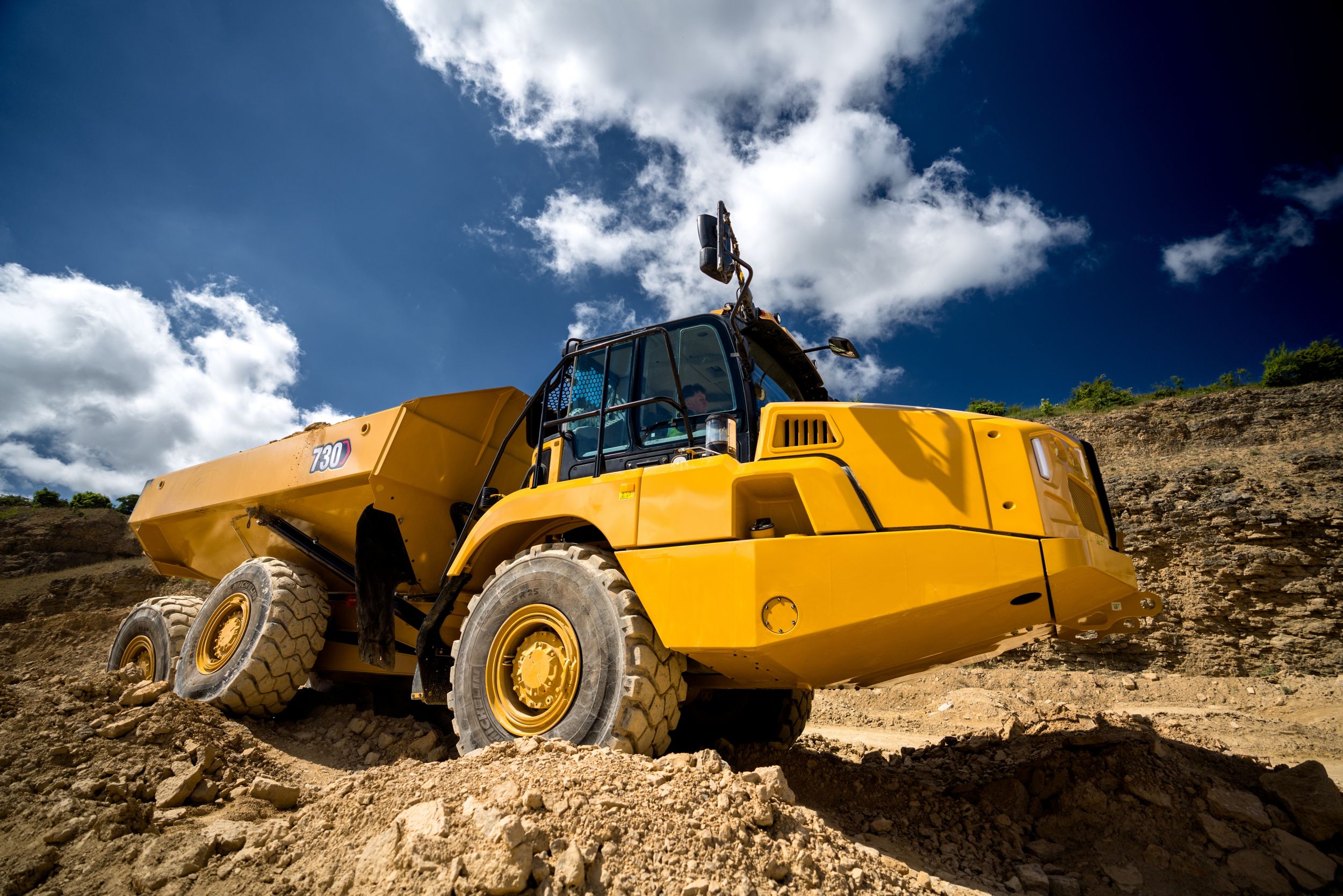

Three Axle Articulated Trucks 730

Request A Price Find Dealer

Key Specs

Engine Model: Cat® C13A; Cat® C13A

Rated Payload: 31 ton (US); 28 t

Heaped (SAE 2:1): 23 yd³; 17.5 m³

730
Change model

Overview

Efficient Productivity

Haul more, dump more with the Cat® 730 articulated truck. With a 31-ton (28-tonne) payload capacity, it’s designed to boost productivity—especially on compact jobsites. Pass-matched with Cat excavators and loaders, you can move more material efficiently and with less effort.

Benefits

RELIABLE PERFORMANCE

The redesigned dump body provides easier loading and maximum payload, while the C13A engine delivers the power you require, combined with relentless reliability.

BUILT-IN SAFETY

Designed for safe and convenient access with ground level service, and Dynamic Rollover Protection applies brakes when needed to help prevent rollovers.

IMPROVED OPERATOR EFFICIENCY

Easily set job parameters with Body Height and Machine Speed Limiting, while improving operating behavior with optional Operator Coaching.

Features At A Glance

Cat C13A engine delivers high machine performance across a variety of applications.
Enhanced reliability through commonality and design simplicity with long life to overhaul.
Minimized impact of emissions systems allows excellent response and ample power.
Engine compression brake retarder improves response and increases retarding power for controlled descent of grades.

All structures and components are proven through extensive testing and customer experience.
Advanced suspension allows for greater speed over rough terrain while softening impact loads.
Front suspension oscillates ±6 degrees for a smooth ride.
Frames are designed to handle torque loads, decrease hitch area stress, and optimize suspension geometry.
Frames are robot-welded for maximum durability.
Redesigned dump body provides reinforced top edge on side rail.

Advanced Automatic Traction Control (AATC) decreases wheel slippage for maximum traction and productivity. Fully automatic with no operator action.
Body Height Limiting allows operators to set upper and lower height parameters, helping to increase cycle efficiency and ensure the machine operates within jobsite constraints.
Automatic Retarder Control (ARC) manages the retarder without any operator interaction. Fully automatic, 100% of the time.
Assisted Hoisting Control allows automatic tipping and lowering of the dump body at the flick of a switch.
Combined hoist/transmission lever, exclusive to Caterpillar, places multiple controls on the transmission lever to provide easy, intuitive control of gears and hoist functions, reducing operator interaction by as much as 50%.
Optional body heat solution reduces carryback in specific applications.

Economy mode reduces fuel use without affecting productivity and can be engaged with a single button.
Next-generation machine design improves fuel economy with minimized maintenance costs and the same great power and response.
Innovative air-management systems optimize airflow and enhance power and fuel efficiency.
Advanced Mechanically-Actuated Electronically Controlled Unit Injection (MEUI)™-C injector platforms deliver increased injection pressures and more precise fuel rates.

Interior space is designed to make all aspects of machine operation as simple as possible for every operator.
A keytouch pad enhances the operator experience, while a jog dial provides intuitive control of the updated touchscreen interface.
An optional system uses four discrete cameras to enhance operator visibility around the machine, while an integrated detection system provides both visual and audible alerts to indicate the presence of nearby objects.
Tilt and telescopic steering column designed for operator comfort and control. This adjustable column allows drivers to fine-tune the steering wheel position for optimal ergonomics, especially during long shifts or rough terrain operations.
Simple, intuitive control and display layouts allow the operator to focus on safe machine operation while maintaining productivity.
Touchscreen display allows for easy monitoring and adjustment of systems.
Make and receive hands-free calls via the optional Bluetooth® equipped stereo.
The HVAC system is now managed through the primary display, with controls accessible via the jog dial or touchscreen for enhanced operator convenience.
The cab features dedicated storage solutions for everyday items, ensuring convenience and organization for the operator.

Integrated systems give you the ability to make timely, fact-based decisions to maximize efficiency, improve productivity, and lower costs.
Product Link™ system connects to the machine wirelessly, allowing you to monitor location, hours, fuel use, productivity, idle time, and diagnostic codes.
Improved payload techology allows operators to view real-time load weights on the integrated display. Updated software and sensors provide accurate data.
External payload indicator lights alert the loader when to stop, reducing the risk of machine overloading.
Stability Assist software reports information via VisionLink®, increasing awareness of machine history if a rollover has occurred.

Unique safety feature Dynamic Roll Protection supports rollover prevention and works in parallel with the already successful Cat Detect with Stability Assist, reducing downtime and safety repairs from machine rollover events.
Enter the machine safely with machine wakeup and new stairway lighting.
Grab rail allows for easier and safer machine access.
Operator-presence detection system applies parking brake if gear is engaged and operator is not seated.
In-cab tertiary brake switch allows the operator to bring the machine to a safe stop in the unlikely event of both main and secondary brake circuits failing.
Electro-hydraulic secondary steering activates automatically if low pressure is sensed in primary system.
Hill Assist reduces potential rollback on grades.
Auto Wait Brake applies the service brakes when neutral is selected and button is pressed, allowing quick and easy control of the machine while dumping, loading, and queuing.
Ground-level fuel fill tank.

Durable design and easier servicing mean maximized uptime and reduced service costs.
Universal joints are lubricated for life, eliminating any maintenance.
Coolant formula improves component life by reducing corrosion.
Entire machine is designed for greater ease of maintenance with side-tilting cab, electrically raised hood, access panels, and Cat Data Link connector.
Extended service intervals for the engine and transmission: 1,000 and 2,000 hours, respectively. Doubled from previous models, resulting in lower total cost of ownership.

Specifications Standard Equipment Optional Equipment

Product Specifications for 730

Engine

Engine Model	Cat® C13A Cat® C13A
Gross Power (SAE J1995)	375 hp 280 kW
Net Power (SAE J1349)	367 hp 274 kW
Engine Power (ISO 14396)	370 hp 276 kW
Bore	5.1 in 130 mm
Stroke	6.2 in 157 mm
Displacement	762.8 in³ 12.5 l
Note (1)	Advertised power is tested at 1,800 rpm. Advertised power is tested at 1,800 rpm.
Note (2)	Advertised power is tested per the specified standard in effect at the time of manufacture. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (3)	The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed. The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed.
Note (4)	Net power when the fan is at maximum speed is 274 kW (367 hp) per the SAE reference conditions. Net power when the fan is at maximum speed is 274 kW (367 hp) per the SAE reference conditions.
Note (5)	Two engine emission options are available:1. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. 2. Noncertified configuration that is equivalent to U.S. EPA Tier 2 and EU Stage II. Two engine emission options are available:1. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. 2. Noncertified configuration that is equivalent to U.S. EPA Tier 2 and EU Stage II.
No Engine De-rating Below	12500 ft 3810 m
Peak Engine Torque Gross (SAE J1995)	1579 lbf·ft 2141 N·m
Peak Engine Torque Net (SAE J1349)	1554 lbf·ft 2107 N·m
Peak Engine Torque Speed	1200 r/min 1200 r/min

Weights

Rated Payload

31 ton (US) 28 t

Body Capacities

Heaped (SAE 2:1)	23 yd³ 17.5 m³
Struck	18.2 yd³ 13.9 m³
Tailgate Heaped SAE 2:1	24.6 yd³ 18.8 m³
Tailgate Struck	19.1 yd³ 14.6 m³

Transmission

Forward - 1	5 mile/h 8 km/h
Forward - 2	9 mile/h 15 km/h
Forward - 3	14 mile/h 22 km/h
Forward - 4	21 mile/h 34 km/h
Forward - 5	29 mile/h 47 km/h
Forward - 6	34 mile/h 55 km/h
Reverse - 1	6 mile/h 9 km/h

Sound Levels

Interior Cab	72 dB(A) 72 dB(A)
Note (1)	The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained. The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.
Note (2)	Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or with doors/windows open for extended periods or in noisy environments. Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or with doors/windows open for extended periods or in noisy environments.

Operating Weights

Front Axle - Empty	30997 lb 14060 kg
Center Axle - Empty	10428 lb 4730 kg
Rear Axle - Empty	9943 lb 4510 kg
Total - Empty	51368 lb 23300 kg
Front Axle - Rated Load	7165 lb 3250 kg
Center Axle - Rated Load	27282 lb 12375 kg
Rear Axle - Rated Load	27282 lb 12375 kg
Total - Rated Load	61729 lb 28000 kg
Front Axle - Loaded	38162 lb 17310 kg
Center Axle - Loaded	37710 lb 17105 kg
Rear Axle - Loaded	37225 lb 16885 kg
Total - Loaded	113097 lb 51300 kg

Body Plate

Type

High strength Brinell HB450 wear resistant steel High strength Brinell HB450 wear resistant steel

Body Plate Thickness

Front Plate	0.28 in 7 mm
Base Plate	0.51 in 13 mm
Side Plates	0.43 in 11 mm

Service Refill Capacities

Fuel Tank	106 gal (US) 400 l
Cooling System	21.9 gal (US) 83 l
Hydraulic System	29.1 gal (US) 123 l
Engine Crankcase	10 gal (US) 38 l
Transmission	12.4 gal (US) 47 l
Final Drives/Differential	33 gal (US) 125 l
Output Transfer Gear Box	6.3 gal (US) 24 l

Body Hoist

Raise Time	12 s 12 s
Lower Time	8 s 8 s

Standards

Brakes	ISO 3450:2011 ISO 3450:2011
Cab - FOPS	ISO 3449:2005 Level II ISO 3449:2005 Level II
Cab - ROPS	ISO 3471 – 2008 ISO 3471 – 2008
Steering	ISO 5010:2019 ISO 5010:2019

Turning Circle

Turning Dimensions - Steer Angle - Left/Right	45° 45°
Turning Dimensions - SAE Turning Radius	294 in 7470 mm
Turning Dimensions - Clearance Radius	318 in 8075 mm
Turning Dimensions - Inside Radius	153 in 3879 mm
Turning Dimensions - Aisle Width	210 in 5332 mm
Note	Dimensions are for machines equipped with 23.5R25 tires. Dimensions are for machines equipped with 23.5R25 tires.

Steering

Lock to Lock

4.75 seconds @ 60 rpm 4.75 seconds @ 60 rpm

Optimal Loader/Truck Pass Matching

Hydraulic Excavators: 350/352 - Passes	4-5 4-5
Hydraulic Excavators: 336 - Passes	5-6 5-6
Wheel Loaders: 972/972 XE - Passes	3-4 3-4
Wheel Loaders: 966/966 XE - Passes	4 4
Wheel Loader: 962 - Passes	4-5 4-5
Wheel Loader: 950 - Passes	5 5
Note	An optimum system match gives you a major productivity advantage. The 730 is an excellent match for the Cat 350/352 and 336 Hydraulic Excavators; and Cat 972, 966, 962 and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. An optimum system match gives you a major productivity advantage. The 730 is an excellent match for the Cat 350/352 and 336 Hydraulic Excavators; and Cat 972, 966, 962 and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.

730 Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Windshield wiper and washer, two speed, intermittent (front)

Tilt and telescopic steering wheel

Storage:
– Cup holder
– Flask receptacle
– Under seat storage
– Door pocket
– Behind operator seat storage
– Coat hook

Mirrors: exterior

Seats:
– Operator: fully adjustable, air suspension
– Trainer: padded with lap belt

Combined gear selection and hoist control lever

Adjustable air vents

Liquid Crystal Display (LCD):
– Alert indicator
– Selected gear and direction
– Speed or auto shift
– Review Operation and Maintenance Manual (OMM)
– Primary steering failure warning
– Seat belt warning
– Secondary steering failure warning
– Secondary steering energy source engaged
– Hour meter
– Retarder active

Windows opening both sides, tinted

Heater and defroster with four-speed fan

Touchscreen display incorporating the rearview camera video feed

Sun visor

Retractable belt: Operator seat and second seat

Air conditioning

Glass windows:
– Front, laminated and tinted
– Sides and rear, toughened and tinted

Secondary steering – electro hydraulic

Machine operation monitoring system includes:
– Action lamp
– Engine oil pressure
– Primary steering system
– Left and right turn signal
– High beam
– Coolant temperature
– Tachometer
– Parking brake
– Fuel level
– Transmission oil temperature
– Brake system
– Transmission hold
– Hoist control
– Hydraulic system
– Charging system
– Retarder
– Transmission fault
– Traction control system
– Check engine lamp

TECHNOLOGY

Cat® Detect with Stability Assist

Product Link Cellular PLE643

ELECTRICAL AND LIGHTING

Remote starting receptacle (cables not included)

Lighting systems:
– Cab interior
– Two head lamps
– Two width marker
– Two reversing
– Work light
– Two stop/tail lights
– Front and rear direction indicators

Horn

Electrical system: 24-volt, 10A 24- to 12-volt converter

Main disconnect switch

Batteries (two) maintenance free

POWERTRAIN

Cat C13A engine

Auto shift six-speed forward and single-speed reverse transmission

Retarder: engine compression brake

Differentials: standard with automatic clutched inter- and cross-axle differential locks

Dual circuit oil immersed, enclosed brakes – all wheels

CX31 transmission

Three axle, six-wheel drive

SAFETY

Rollover protective structure/falling objects protective structure (ROPS/FOPS) cab

Rearview camera

Reverse alarm

GUARDS

Radiator

Crankcase

Front dump body spill guard, integral part of fabricated body

Rear window

OTHER STANDARD EQUIPMENT

Vandalism protection: lockable caps

Mud flaps: wheel arch and body mounted with transportation tiebacks

Tires, six 23.5R25, radial

S·O·S sampling valves

730 Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Infrared glass – high ambient cab

Mirrors, heated motorized

Radio, Bluetooth® stereo system

Seat, heated/cooled

Operator seat belt, four-point

Window blinds

Windshield wiper and washer, two speed (rear)

TECHNOLOGY

Cat Payload monitoring system

Operator Coaching

Product Link Dual PLE683

ELECTRICAL AND LIGHTING

Cold weather start attachment

Engine block heater

Ether start

Flashing LED beacon

Roof mounted LED work lights

OPTIONAL EQUIPMENT

Auto lube installation for automatic greasing of bearings

Bare chassis (no body) standard wheel base

Bare chassis (no body) long wheel base

Body liners

Cold weather coolant –51° C (–60° F)

Exhaust heated body

Fast fuel fill

Fuel additive – anti-waxing

Scissor tailgate

Sound suppression

Tires, six 750/65R25, radial

Wheel chocks

Product Specifications for 730

Download Print

Engine

Engine Model	Cat® C13A Cat® C13A
Gross Power (SAE J1995)	375 hp 280 kW
Net Power (SAE J1349)	367 hp 274 kW
Engine Power (ISO 14396)	370 hp 276 kW
Bore	5.1 in 130 mm
Stroke	6.2 in 157 mm
Displacement	762.8 in³ 12.5 l
Note (1)	Advertised power is tested at 1,800 rpm. Advertised power is tested at 1,800 rpm.
Note (2)	Advertised power is tested per the specified standard in effect at the time of manufacture. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (3)	The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed. The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed.
Note (4)	Net power when the fan is at maximum speed is 274 kW (367 hp) per the SAE reference conditions. Net power when the fan is at maximum speed is 274 kW (367 hp) per the SAE reference conditions.
Note (5)	Two engine emission options are available:1. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. 2. Noncertified configuration that is equivalent to U.S. EPA Tier 2 and EU Stage II. Two engine emission options are available:1. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. 2. Noncertified configuration that is equivalent to U.S. EPA Tier 2 and EU Stage II.
No Engine De-rating Below	12500 ft 3810 m
Peak Engine Torque Gross (SAE J1995)	1579 lbf·ft 2141 N·m
Peak Engine Torque Net (SAE J1349)	1554 lbf·ft 2107 N·m
Peak Engine Torque Speed	1200 r/min 1200 r/min

Weights

Rated Payload

31 ton (US) 28 t

Body Capacities

Heaped (SAE 2:1)	23 yd³ 17.5 m³
Struck	18.2 yd³ 13.9 m³
Tailgate Heaped SAE 2:1	24.6 yd³ 18.8 m³
Tailgate Struck	19.1 yd³ 14.6 m³

Transmission

Forward - 1	5 mile/h 8 km/h
Forward - 2	9 mile/h 15 km/h
Forward - 3	14 mile/h 22 km/h
Forward - 4	21 mile/h 34 km/h
Forward - 5	29 mile/h 47 km/h
Forward - 6	34 mile/h 55 km/h
Reverse - 1	6 mile/h 9 km/h

Sound Levels

Interior Cab	72 dB(A) 72 dB(A)
Note (1)	The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained. The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.
Note (2)	Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or with doors/windows open for extended periods or in noisy environments. Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or with doors/windows open for extended periods or in noisy environments.

Operating Weights

Front Axle - Empty	30997 lb 14060 kg
Center Axle - Empty	10428 lb 4730 kg
Rear Axle - Empty	9943 lb 4510 kg
Total - Empty	51368 lb 23300 kg
Front Axle - Rated Load	7165 lb 3250 kg
Center Axle - Rated Load	27282 lb 12375 kg
Rear Axle - Rated Load	27282 lb 12375 kg
Total - Rated Load	61729 lb 28000 kg
Front Axle - Loaded	38162 lb 17310 kg
Center Axle - Loaded	37710 lb 17105 kg
Rear Axle - Loaded	37225 lb 16885 kg
Total - Loaded	113097 lb 51300 kg

Body Plate

Type

High strength Brinell HB450 wear resistant steel High strength Brinell HB450 wear resistant steel

Body Plate Thickness

Front Plate	0.28 in 7 mm
Base Plate	0.51 in 13 mm
Side Plates	0.43 in 11 mm

Service Refill Capacities

Fuel Tank	106 gal (US) 400 l
Cooling System	21.9 gal (US) 83 l
Hydraulic System	29.1 gal (US) 123 l
Engine Crankcase	10 gal (US) 38 l
Transmission	12.4 gal (US) 47 l
Final Drives/Differential	33 gal (US) 125 l
Output Transfer Gear Box	6.3 gal (US) 24 l

Body Hoist

Raise Time	12 s 12 s
Lower Time	8 s 8 s

Standards

Brakes	ISO 3450:2011 ISO 3450:2011
Cab - FOPS	ISO 3449:2005 Level II ISO 3449:2005 Level II
Cab - ROPS	ISO 3471 – 2008 ISO 3471 – 2008
Steering	ISO 5010:2019 ISO 5010:2019

Turning Circle

Turning Dimensions - Steer Angle - Left/Right	45° 45°
Turning Dimensions - SAE Turning Radius	294 in 7470 mm
Turning Dimensions - Clearance Radius	318 in 8075 mm
Turning Dimensions - Inside Radius	153 in 3879 mm
Turning Dimensions - Aisle Width	210 in 5332 mm
Note	Dimensions are for machines equipped with 23.5R25 tires. Dimensions are for machines equipped with 23.5R25 tires.

Steering

Lock to Lock

4.75 seconds @ 60 rpm 4.75 seconds @ 60 rpm

Optimal Loader/Truck Pass Matching

Hydraulic Excavators: 350/352 - Passes	4-5 4-5
Hydraulic Excavators: 336 - Passes	5-6 5-6
Wheel Loaders: 972/972 XE - Passes	3-4 3-4
Wheel Loaders: 966/966 XE - Passes	4 4
Wheel Loader: 962 - Passes	4-5 4-5
Wheel Loader: 950 - Passes	5 5
Note	An optimum system match gives you a major productivity advantage. The 730 is an excellent match for the Cat 350/352 and 336 Hydraulic Excavators; and Cat 972, 966, 962 and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. An optimum system match gives you a major productivity advantage. The 730 is an excellent match for the Cat 350/352 and 336 Hydraulic Excavators; and Cat 972, 966, 962 and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.

730 Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Windshield wiper and washer, two speed, intermittent (front)

Tilt and telescopic steering wheel

Storage:
– Cup holder
– Flask receptacle
– Under seat storage
– Door pocket
– Behind operator seat storage
– Coat hook

Mirrors: exterior

Seats:
– Operator: fully adjustable, air suspension
– Trainer: padded with lap belt

Combined gear selection and hoist control lever

Adjustable air vents

Liquid Crystal Display (LCD):
– Alert indicator
– Selected gear and direction
– Speed or auto shift
– Review Operation and Maintenance Manual (OMM)
– Primary steering failure warning
– Seat belt warning
– Secondary steering failure warning
– Secondary steering energy source engaged
– Hour meter
– Retarder active

Windows opening both sides, tinted

Heater and defroster with four-speed fan

Touchscreen display incorporating the rearview camera video feed

Sun visor

Retractable belt: Operator seat and second seat

Air conditioning

Glass windows:
– Front, laminated and tinted
– Sides and rear, toughened and tinted

Secondary steering – electro hydraulic

Machine operation monitoring system includes:
– Action lamp
– Engine oil pressure
– Primary steering system
– Left and right turn signal
– High beam
– Coolant temperature
– Tachometer
– Parking brake
– Fuel level
– Transmission oil temperature
– Brake system
– Transmission hold
– Hoist control
– Hydraulic system
– Charging system
– Retarder
– Transmission fault
– Traction control system
– Check engine lamp

TECHNOLOGY

Cat® Detect with Stability Assist

Product Link Cellular PLE643

ELECTRICAL AND LIGHTING

Remote starting receptacle (cables not included)

Lighting systems:
– Cab interior
– Two head lamps
– Two width marker
– Two reversing
– Work light
– Two stop/tail lights
– Front and rear direction indicators

Horn

Electrical system: 24-volt, 10A 24- to 12-volt converter

Main disconnect switch

Batteries (two) maintenance free

POWERTRAIN

Cat C13A engine

Auto shift six-speed forward and single-speed reverse transmission

Retarder: engine compression brake

Differentials: standard with automatic clutched inter- and cross-axle differential locks

Dual circuit oil immersed, enclosed brakes – all wheels

CX31 transmission

Three axle, six-wheel drive

SAFETY

Rollover protective structure/falling objects protective structure (ROPS/FOPS) cab

Rearview camera

Reverse alarm

GUARDS

Radiator

Crankcase

Front dump body spill guard, integral part of fabricated body

Rear window

OTHER STANDARD EQUIPMENT

Vandalism protection: lockable caps

Mud flaps: wheel arch and body mounted with transportation tiebacks

Tires, six 23.5R25, radial

S·O·S sampling valves

730 Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Infrared glass – high ambient cab

Mirrors, heated motorized

Radio, Bluetooth® stereo system

Seat, heated/cooled

Operator seat belt, four-point

Window blinds

Windshield wiper and washer, two speed (rear)

TECHNOLOGY

Cat Payload monitoring system

Operator Coaching

Product Link Dual PLE683

ELECTRICAL AND LIGHTING

Cold weather start attachment

Engine block heater

Ether start

Flashing LED beacon

Roof mounted LED work lights

OPTIONAL EQUIPMENT

Auto lube installation for automatic greasing of bearings

Bare chassis (no body) standard wheel base

Bare chassis (no body) long wheel base

Body liners

Cold weather coolant –51° C (–60° F)

Exhaust heated body

Fast fuel fill

Fuel additive – anti-waxing

Scissor tailgate

Sound suppression

Tires, six 750/65R25, radial

Wheel chocks

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

Assist

Equipment Management

Payload

Productivity

Cat Stability Assist for Articulated Trucks

Cat Stability Assist for Articulated Trucks increases awareness of machine stability during operation by warning operator if machine is approaching an un-safe angle, ultimately resulting in machine safety and uptime.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat Stability Assist for Articulated Trucks increases awareness of machine stability during operation by warning operator if machine is approaching an un-safe angle, ultimately resulting in machine safety and uptime.

Explore Technology

Cat® Inspect

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.

Explore Technology
Cat® Remote Flash

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.

Explore Technology
VisionLink™

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.

Explore Technology

Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.

Explore Technology

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

Cat Payload for Articulated Trucks

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Cat® Production Measurement provides real-time payload weighing to help operators optimize hauling potential and maximize productivity. Automated tracking helps site managers monitor material movement and efficiency metrics to manage production, improve jobsite efficiency, and lower costs.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat® Production Measurement provides real-time payload weighing to help operators optimize hauling potential and maximize productivity. Automated tracking helps site managers monitor material movement and efficiency metrics to manage production, improve jobsite efficiency, and lower costs.

Explore Technology

VisionLink™ Productivity

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

VisionLink™ Productivity is an easy-to-use cloud-based platform that gathers and summarizes machine telematics and jobsite data from all your equipment. Actionable performance data is transmitted to the web platform for users to access anywhere, anytime via a mobile, tablet, or desktop device - on or off the jobsite.

Explore Technology

1 - 8 of 9 Items items

Previous Next

VisionLink™ Productivity is an easy-to-use cloud-based platform that gathers and summarizes machine telematics and jobsite data from all your equipment. Actionable performance data is transmitted to the web platform for users to access anywhere, anytime via a mobile, tablet, or desktop device - on or off the jobsite.

Explore Technology

See how 730 compares against frequently compared products.

Articulated Trucks

Selected

730

Engine Model: Cat® C13A; Cat® C13A
Rated Payload: 31 ton (US); 28 t
Heaped (SAE 2:1): 23 yd³; 17.5 m³

Articulated Trucks

730

Engine Model: Cat® C13; Cat® C13
Rated Payload: 31 ton (US); 28 t
Heaped (SAE 2:1): 23 yd³; 17.5 m³

View Details

Articulated Trucks

730 EJ

Engine Model: Cat® C13; Cat® C13
Rated Payload: 30 ton (US); 27.1 t
Heaped (SAE 2:1): 22.1 yd³; 16.9 m³

View Details

Tools And Expert Help At Every Turn

Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

730 (05A) Product Brochure (Afr-ME, Aus-NZ, Eurasia, Indonesia, Pacific Islands, S Am) Downloadable PDF Opens in a New Tab

Media Gallery

Photos

360 View

730 Articulated Truck

Three Axle Articulated Trucks 730

Overview

Efficient Productivity

Benefits

RELIABLE PERFORMANCE

BUILT-IN SAFETY

IMPROVED OPERATOR EFFICIENCY

Features At A Glance

Product Specifications for 730

Engine

Weights

Body Capacities

Transmission

Sound Levels

Operating Weights

Body Plate

Body Plate Thickness

Service Refill Capacities

Body Hoist

Standards

Turning Circle

Steering

Optimal Loader/Truck Pass Matching

730 Standard Equipment

NOTE

OPERATOR ENVIRONMENT

TECHNOLOGY

ELECTRICAL AND LIGHTING

POWERTRAIN

SAFETY

GUARDS

OTHER STANDARD EQUIPMENT

730 Optional Equipment

NOTE

OPERATOR ENVIRONMENT

TECHNOLOGY

ELECTRICAL AND LIGHTING

OPTIONAL EQUIPMENT

Product Specifications for 730

Engine

Weights

Body Capacities

Transmission

Sound Levels

Operating Weights

Body Plate

Body Plate Thickness

Service Refill Capacities

Body Hoist

Standards

Turning Circle

Steering

Optimal Loader/Truck Pass Matching

730 Standard Equipment

NOTE

OPERATOR ENVIRONMENT

TECHNOLOGY

ELECTRICAL AND LIGHTING

POWERTRAIN

SAFETY

GUARDS

OTHER STANDARD EQUIPMENT

730 Optional Equipment

NOTE

OPERATOR ENVIRONMENT

TECHNOLOGY

ELECTRICAL AND LIGHTING

OPTIONAL EQUIPMENT

Compatible Technology and Services

Cat Stability Assist for Articulated Trucks

Cat® Inspect

Cat® Remote Flash

VisionLink™

Cat Payload for Articulated Trucks

VisionLink™ Productivity

See how 730 compares against frequently compared products.

Tools And Expert Help At Every Turn

Find Dealer

Payment Calculator

Current Offers

Product Brochures and More Are Ready to Download!
