Three Axle Articulated Trucks 730 EJ

Request A Price Find Dealer

Key Specs

Engine Model: Cat® C13A; Cat® C13A

Rated Payload: 30 ton (US); 27.1 t

Heaped (SAE 2:1): 22.1 yd³; 16.9 m³

730 EJ
Change model

Overview

Equipped to handle your unique hauling needs

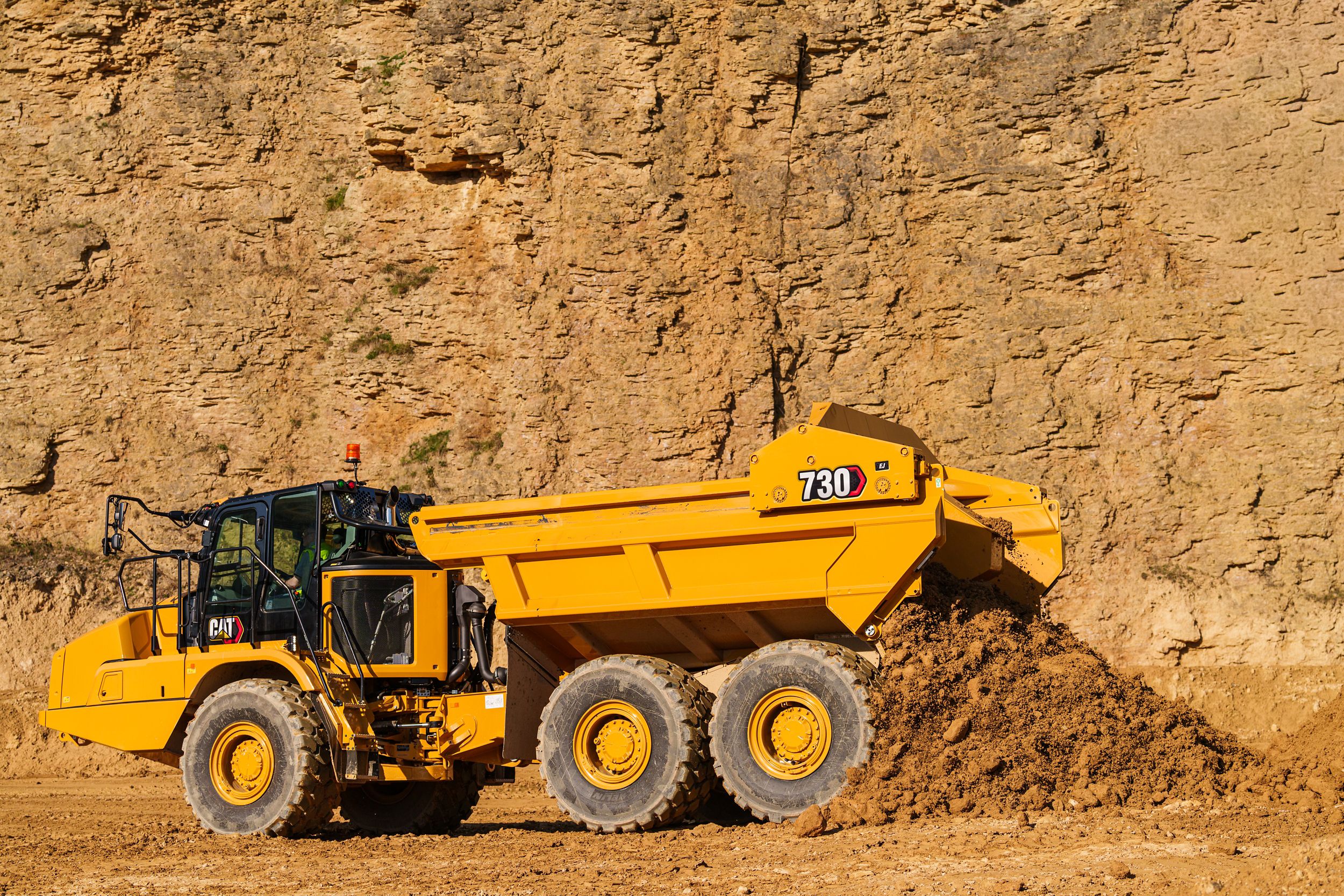

The Cat® 730 EJ articulated truck offers a unique advantage by ejecting material in low-clearance areas—ideal for tunnels, overhead lines, or underground work. On-the-go ejecting cuts the need for extra equipment, speeding up cycles and boosting productivity on compact jobsites.

Benefits

RELIABLE PERFORMANCE

The 730 EJ allows you to eject statically on grades and side slopes with minimal carryback, while the C13A engine delivers the power you require, combined with relentless reliability.

BUILT-IN SAFETY

The 730 EJ is designed for safe and convenient access with ground level service, and the push blade ejects material from the body, helping to prevent an opportunity for rollover.

IMPROVED OPERATOR EFFICIENCY

Easily set job parameters with Body Height and Machine Speed Limiting, while improving operating behavior with optional Operator Coaching.

Features At A Glance

Cat C13A engine delivers proven reliability across a variety of applications.
Terrain-based throttle control smooths throttle input over rough terrain to improve ride quality.
Enhanced reliability through commonality and design simplicity with long life to overhaul.
Minimized impact of emission control system allows excellent response and ample power.
Engine compression brake improves response and increases retarding power for controlled descent of grades.

The truck can eject and spread the material while moving, reducing additional spreading and dozing equipment. “On-the-go” ejecting results in faster cycle times.
Ejecting the load without raising the body maintains machine stability, allowing load dispersal on inclines, side slopes, and in very soft underfoot conditions, especially on landfill sites.
The truck can eject in areas with reduced overhead clearance, such as around overhead lines or in tunneling and underground operations.
The body design virtually eliminates material sticking to the body, which increases productivity, improves fuel efficiency, and lowers cost per ton.
The ejector blade is made from high-strength steel and uses technology similar to that proven in Cat wheel tractor-scrapers.
A three-stage, high-speed, double-acting cylinder is specifically designed for horizontal mounting and smooth load ejection.

All structures and components are proven through extensive testing and customer experience.
Advanced suspension allows for greater speed over rough terrain, while softening impact loads.
Front suspension oscillates ±6 degrees for a smooth ride.
Frames are designed to handle torque loads, decrease hitch area stress, and optimize suspension geometry.
Frames are robot-welded for maximum durability.
Directional shift protection protects the powertrain when quickly moving from reverse to forward or forward to reverse.

Advanced Automatic Traction Control (AATC) decreases wheel slippage, delivering maximum traction and productivity. Fully automatic, no operator action.
Automatic Retarder Control (ARC) manages the retarder without any operator interaction. Fully automatic, 100% of the time.
Assisted Hoisting Control allows automatic ejecting of the load.
Combined eject/transmission lever, exclusive to Caterpillar, places multiple controls on the transmission lever, incorporates park brake, and reduces operator interaction by as much as 50%.

Economy mode reduces fuel use without affecting productivity and can be engaged with a single button.
This machine design improves fuel economy with minimized maintenance costs and the same great power and response.
Advanced Mechanically-Actuated Electronically Controlled Unit Injection (MEUI)™-C injector platforms deliver increased injection pressures and more precise fuel rates.

Tilt and telescopic steering column designed for operator comfort and control. This adjustable column allows drivers to fine-tune the steering wheel position for optimal ergonomics, especially during long shifts or rough terrain operations.
Simple, intuitive control and display layouts allow the operator to focus on safe machine operation, while maintaining productivity.
Spacious cab with seats positioned for optimal operator and trainer visibility.
Touchscreen allows easy monitoring and adjustment of systems.
Make and receive hands-free calls via the optional Bluetooth® equipped stereo.
The HVAC system is now managed through the primary display with controls accessible via the jog dial or touchscreen for enhanced operator convenience.
The cab features dedicated storage solutions for everyday items, ensuring convenience and organization for the operator.

Integrated systems give you the ability to make timely, fact-based decisions to maximize efficiency, improve productivity, and lower costs.
Product Link™ system connects to each machine wirelessly, allowing you to monitor location, hours, fuel use, productivity, idle time, and diagnostic codes.
Improved payload technology allows operators to view real-time load weights on the integrated display. Updated software and sensors provide accurate data.
External payload indicator lights alert the loader when to stop, reducing the risk of machine overloading.
Stability Assist software reports information via online VisionLink™, increasing awareness of machine history if a rollover has occurred.

Unique safety feature Dynamic Roll Protection supports rollover prevention and works in parallel with the already successful Cat Detect with Stability Assist, reducing downtime and safety repairs from machine rollover events.
Operator-presence detection system applies parking brake if gear is engaged and operator is not seated.
In-cab tertiary switch allows operator to bring the machine to a safe stop in the unlikely event of both main and secondary brake circuits failing.
Hill Assist reduces potential rollback on grades.
Auto Wait Brake applies the service brakes when neutral is selected and button is pressed, allowing quick and easy control of the machine while dumping and loading.
Ground-level fuel fill tank.
Integrated payload lights [when Cat Payload Monitoring (CPM) option is fitted] with wide angle beam lights on all cab roof corners provide clear visibility to loading tool operator and site controllers.
Secondary steering activates automatically if low pressure is sensed in primary system.

Durable design and easier servicing mean maximized uptime and reduced service costs.
Universal joints are lubricated for life, eliminating any greasing during the product lifetime.
Coolant formula improves component life by reducing corrosion.
Entire machine is designed for greater ease of maintenance with side-tilting cab, electrically raised hood, access panels, and data connector.
Extended service intervals for the engine and transmission: 1,000 and 2,000 hours, respectively. Doubled from previous models and resulting in lower total cost of ownership.
Durable flexi fender reduces the risk of permanent damages and reduces repair costs.

Specifications Standard Equipment Optional Equipment

Product Specifications for 730 EJ

Engine

Engine Model	Cat® C13A Cat® C13A
Gross Power (SAE J1995)	375 hp 280 kW
Net Power (SAE J1349)	367 hp 274 kW
Engine Power (ISO 14396)	370 hp 276 kW
Bore	5.1 in 130 mm
Stroke	6.2 in 157 mm
Displacement	763 in³ 12.5 l
Note (1)	Advertised power is tested per the specified standard in effect at the time of manufacture. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	Advertised power is tested at 1,800 rpm. Advertised power is tested at 1,800 rpm.
Note (3)	Net power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed. Net power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed.
Note (4)	Net power when the fan is at maximum speed is 274 kW (367 hp) per the SAE reference conditions. Net power when the fan is at maximum speed is 274 kW (367 hp) per the SAE reference conditions.
Note (5)	Two engine emission options are available: 1. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. 2. Noncertified configuration that is equivalent to U.S. EPA Tier 2 and EU Stage II. Two engine emission options are available: 1. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. 2. Noncertified configuration that is equivalent to U.S. EPA Tier 2 and EU Stage II.
No Engine De-rating Required Below	13100 ft 3990 m
Peak Engine Torque Gross (SAE J1995)	1350 lbf·ft 1830 N·m
Peak Engine Torque Net (SAE J1349)	1335 lbf·ft 1810 N·m
Peak Engine Torque Speed	1200 r/min 1200 r/min

Weights

Rated Payload

30 ton (US) 27.1 t

Body Capacities

Heaped (SAE 2:1)	22.1 yd³ 16.9 m³
Struck	17.7 yd³ 13.5 m³

Transmission

Forward - 1	5 mile/h 8 km/h
Forward - 2	9 mile/h 15 km/h
Forward - 3	14 mile/h 22 km/h
Forward - 4	21 mile/h 34 km/h
Forward - 5	29 mile/h 47 km/h
Forward - 6	34 mile/h 55 km/h
Reverse - 1	6 mile/h 9 km/h

Sound Levels

Interior Cab	72 dB(A) 72 dB(A)
Note (1)	The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained. The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.
Note (2)	Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or doors/ windows open for extended periods or in noisy environments. Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or doors/ windows open for extended periods or in noisy environments.

Operating Weights

Front Axle - Empty	32783 lb 14870 kg
Center Axle - Empty	12412 lb 5630 kg
Rear Axle - Empty	11927 lb 5410 kg
Total - Empty	57122 lb 25910 kg
Front Axle - Rated Load	1433 lb 650 kg
Center Axle - Rated Load	29156 lb 13225 kg
Rear Axle - Rated Load	29156 lb 13225 kg
Total - Rated Load	59745 lb 27100 kg
Front Axle - Loaded	34216 lb 15520 kg
Center Axle - Loaded	41568 lb 18855 kg
Rear Axle - Loaded	41083 lb 18635 kg
Total - Loaded	116867 lb 53010 kg

Body Plate

Type

High strength Brinell HB450 wear resistant steel High strength Brinell HB450 wear resistant steel

Eject/Retract Times

Eject Time	12 s 12 s
Retract Time	15 s 15 s

Service Refill Capacities

Fuel Tank	106 gal (US) 400 l
Cooling System	21.9 gal (US) 83 l
Hydraulic System	32.5 gal (US) 123 l
Engine Crankcase	11.4 gal (US) 43 l
Transmission	12.4 gal (US) 47 l
Final Drives/Differential	33 gal (US) 125 l
Output Transfer Gear Box	6.6 gal (US) 25 l

Standards

Brakes	ISO 3450 – 2011 ISO 3450 – 2011
Cab - FOPS	ISO 3449 Level II – 2005 ISO 3449 Level II – 2005
Cab - ROPS	ISO 3471 – 2008 ISO 3471 – 2008
Steering	ISO 5010 – 2019 ISO 5010 – 2019

Turning Circle

Turning Dimensions - Steer Angle - Left/Right	45° 45°
Turning Dimensions - SAE Turning Radius	294 in 7470 mm
Turning Dimensions - Clearance Radius	318 in 8075 mm
Turning Dimensions - Inside Radius	152 in 3849 mm
Turning Dimensions - Aisle Width	214 in 5424 mm
Note	Dimensions are for machines equipped with 750/65 R25 tires. Dimensions are for machines equipped with 750/65 R25 tires.

Steering

Lock to Lock

4.75 seconds @ 60 rpm 4.75 seconds @ 60 rpm

Optimal Loader/Truck Pass Matching

Hydraulic Excavators: 350/352 - Passes	4-5 4-5
Hydraulic Excavators: 336 - Passes	5-6 5-6
Wheel Loaders: 972/972 XE - Passes	3-4 3-4
Wheel Loaders: 966/966 XE - Passes	4 4
Wheel Loader: 962 - Passes	4-5 4-5
Wheel Loader: 950 - Passes	5 5
Note	An optimum system match gives you a major productivity advantage. The 730 EJ is an excellent match for the Cat 350/352 and 336 Hydraulic Excavators; and Cat 972, 966, 962 and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. An optimum system match gives you a major productivity advantage. The 730 EJ is an excellent match for the Cat 350/352 and 336 Hydraulic Excavators; and Cat 972, 966, 962 and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.

730 EJ Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Air conditioning

Adjustable air vents

Combined gear selection and hoist control lever

Glass windows:
– Front, laminated and tinted
– Sides and rear, toughened and tinted

Heater and defroster with four-speed fan

Mirrors: exterior

Machine operation monitoring system includes:
– Action lamp
– Engine oil pressure
– Primary steering system
– Left and right turn signal
– High beam
– Coolant temperature
– Tachometer
– Parking brake
– Fuel level
– Transmission oil temperature
– Brake system
– Transmission hold
– Eject control
– Hydraulic system
– Charging system
– Retarder
– Transmission fault
– Traction control system
– Check engine lamp

Liquid Crystal Display (LCD):
– Alert indicator
– Selected gear and direction
– Speed or auto shift
– Review Operation and Maintenance Manual (OMM)
– Primary steering failure warning
– Seat belt warning
– Secondary steering failure warning
– Secondary steering energy source engaged
– Hour meter
– Retarder active

Seats:
– Operator: fully adjustable, air suspension
– Trainer: padded with lap belt

Secondary steering – electro hydraulic

Storage:
– Cup holder
– Flask receptacle
– Under seat storage
– Door pocket
– Behind operator seat storage
– Coat hook

Sun visor

Tilt and telescopic steering wheel

Touchscreen display incorporating the rearview camera video feed

Retractable belt: Operator seat and second seat

Windows opening both sides, tinted

Windshield wiper and washer, two speed, intermittent (front)

TECHNOLOGY

Product Link Cellular PLE643

Cat® Detect with Stability Assist

ELECTRICAL AND LIGHTING

Batteries (x2) maintenance free

Electrical system: 24-volt, 10A 24- to 12-volt converter

Horn

Lighting systems:
– Cab interior
– Two head lamps
– Two width marker
– Two reversing
– Work light/cab access light
– Two stop/tail lights
– Front and rear direction indicators

Main disconnect switch

Remote starting receptacle (cables not included)

POWERTRAIN

Auto shift six-speed forward and single-speed reverse transmission

Cat C13A engine

CX31 transmission

Differentials: standard with automatic clutched inter- and cross-axle differential locks

Dual circuit oil immersed, enclosed brakes – all wheels

Retarder: engine compression brake

Three axle, six-wheel drive

SAFETY

Reverse alarm

Rearview camera

Rollover protective structure/falling objects protective structure (ROPS/FOPS) cab

GUARDS

Rear window

Radiator

Crankcase

Front dump body spill guard

OTHER STANDARD EQUIPMENT

Mud flaps: wheel arch and body mounted with transportation tiebacks

S·O·S sampling valves

Tires, six 750/65 R25 radial

Vandalism protection: lockable caps

Hydraulic tailgate

730 EJ Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Mirrors, heated motorized

Operator seat belt, four-point

Radio, Bluetooth® stereo system

Seat, heated/cooled

TECHNOLOGY

Cat Payload monitoring system

Product Link Dual PLE683

ELECTRICAL AND LIGHTING

Cold weather start attachment (2 additional batteries)

Engine block heater

Ether start

Flashing LED beacon

Roof mounted LED work lights

OPTIONAL EQUIPMENT

Auto lube installation for automatic greasing of bearings

Cold weather coolant –51° C (–60° F)

Exhaust heated body

Fast fuel fill

Fuel additive – anti-waxing

Wheel chocks

Product Specifications for 730 EJ

Download Print

Engine

Engine Model	Cat® C13A Cat® C13A
Gross Power (SAE J1995)	375 hp 280 kW
Net Power (SAE J1349)	367 hp 274 kW
Engine Power (ISO 14396)	370 hp 276 kW
Bore	5.1 in 130 mm
Stroke	6.2 in 157 mm
Displacement	763 in³ 12.5 l
Note (1)	Advertised power is tested per the specified standard in effect at the time of manufacture. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	Advertised power is tested at 1,800 rpm. Advertised power is tested at 1,800 rpm.
Note (3)	Net power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed. Net power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed.
Note (4)	Net power when the fan is at maximum speed is 274 kW (367 hp) per the SAE reference conditions. Net power when the fan is at maximum speed is 274 kW (367 hp) per the SAE reference conditions.
Note (5)	Two engine emission options are available: 1. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. 2. Noncertified configuration that is equivalent to U.S. EPA Tier 2 and EU Stage II. Two engine emission options are available: 1. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. 2. Noncertified configuration that is equivalent to U.S. EPA Tier 2 and EU Stage II.
No Engine De-rating Required Below	13100 ft 3990 m
Peak Engine Torque Gross (SAE J1995)	1350 lbf·ft 1830 N·m
Peak Engine Torque Net (SAE J1349)	1335 lbf·ft 1810 N·m
Peak Engine Torque Speed	1200 r/min 1200 r/min

Weights

Rated Payload

30 ton (US) 27.1 t

Body Capacities

Heaped (SAE 2:1)	22.1 yd³ 16.9 m³
Struck	17.7 yd³ 13.5 m³

Transmission

Forward - 1	5 mile/h 8 km/h
Forward - 2	9 mile/h 15 km/h
Forward - 3	14 mile/h 22 km/h
Forward - 4	21 mile/h 34 km/h
Forward - 5	29 mile/h 47 km/h
Forward - 6	34 mile/h 55 km/h
Reverse - 1	6 mile/h 9 km/h

Sound Levels

Interior Cab	72 dB(A) 72 dB(A)
Note (1)	The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained. The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.
Note (2)	Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or doors/ windows open for extended periods or in noisy environments. Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or doors/ windows open for extended periods or in noisy environments.

Operating Weights

Front Axle - Empty	32783 lb 14870 kg
Center Axle - Empty	12412 lb 5630 kg
Rear Axle - Empty	11927 lb 5410 kg
Total - Empty	57122 lb 25910 kg
Front Axle - Rated Load	1433 lb 650 kg
Center Axle - Rated Load	29156 lb 13225 kg
Rear Axle - Rated Load	29156 lb 13225 kg
Total - Rated Load	59745 lb 27100 kg
Front Axle - Loaded	34216 lb 15520 kg
Center Axle - Loaded	41568 lb 18855 kg
Rear Axle - Loaded	41083 lb 18635 kg
Total - Loaded	116867 lb 53010 kg

Body Plate

Type

High strength Brinell HB450 wear resistant steel High strength Brinell HB450 wear resistant steel

Eject/Retract Times

Eject Time	12 s 12 s
Retract Time	15 s 15 s

Service Refill Capacities

Fuel Tank	106 gal (US) 400 l
Cooling System	21.9 gal (US) 83 l
Hydraulic System	32.5 gal (US) 123 l
Engine Crankcase	11.4 gal (US) 43 l
Transmission	12.4 gal (US) 47 l
Final Drives/Differential	33 gal (US) 125 l
Output Transfer Gear Box	6.6 gal (US) 25 l

Standards

Brakes	ISO 3450 – 2011 ISO 3450 – 2011
Cab - FOPS	ISO 3449 Level II – 2005 ISO 3449 Level II – 2005
Cab - ROPS	ISO 3471 – 2008 ISO 3471 – 2008
Steering	ISO 5010 – 2019 ISO 5010 – 2019

Turning Circle

Turning Dimensions - Steer Angle - Left/Right	45° 45°
Turning Dimensions - SAE Turning Radius	294 in 7470 mm
Turning Dimensions - Clearance Radius	318 in 8075 mm
Turning Dimensions - Inside Radius	152 in 3849 mm
Turning Dimensions - Aisle Width	214 in 5424 mm
Note	Dimensions are for machines equipped with 750/65 R25 tires. Dimensions are for machines equipped with 750/65 R25 tires.

Steering

Lock to Lock

4.75 seconds @ 60 rpm 4.75 seconds @ 60 rpm

Optimal Loader/Truck Pass Matching

Hydraulic Excavators: 350/352 - Passes	4-5 4-5
Hydraulic Excavators: 336 - Passes	5-6 5-6
Wheel Loaders: 972/972 XE - Passes	3-4 3-4
Wheel Loaders: 966/966 XE - Passes	4 4
Wheel Loader: 962 - Passes	4-5 4-5
Wheel Loader: 950 - Passes	5 5
Note	An optimum system match gives you a major productivity advantage. The 730 EJ is an excellent match for the Cat 350/352 and 336 Hydraulic Excavators; and Cat 972, 966, 962 and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. An optimum system match gives you a major productivity advantage. The 730 EJ is an excellent match for the Cat 350/352 and 336 Hydraulic Excavators; and Cat 972, 966, 962 and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.

730 EJ Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Air conditioning

Adjustable air vents

Combined gear selection and hoist control lever

Glass windows:
– Front, laminated and tinted
– Sides and rear, toughened and tinted

Heater and defroster with four-speed fan

Mirrors: exterior

Machine operation monitoring system includes:
– Action lamp
– Engine oil pressure
– Primary steering system
– Left and right turn signal
– High beam
– Coolant temperature
– Tachometer
– Parking brake
– Fuel level
– Transmission oil temperature
– Brake system
– Transmission hold
– Eject control
– Hydraulic system
– Charging system
– Retarder
– Transmission fault
– Traction control system
– Check engine lamp

Liquid Crystal Display (LCD):
– Alert indicator
– Selected gear and direction
– Speed or auto shift
– Review Operation and Maintenance Manual (OMM)
– Primary steering failure warning
– Seat belt warning
– Secondary steering failure warning
– Secondary steering energy source engaged
– Hour meter
– Retarder active

Seats:
– Operator: fully adjustable, air suspension
– Trainer: padded with lap belt

Secondary steering – electro hydraulic

Storage:
– Cup holder
– Flask receptacle
– Under seat storage
– Door pocket
– Behind operator seat storage
– Coat hook

Sun visor

Tilt and telescopic steering wheel

Touchscreen display incorporating the rearview camera video feed

Retractable belt: Operator seat and second seat

Windows opening both sides, tinted

Windshield wiper and washer, two speed, intermittent (front)

TECHNOLOGY

Product Link Cellular PLE643

Cat® Detect with Stability Assist

ELECTRICAL AND LIGHTING

Batteries (x2) maintenance free

Electrical system: 24-volt, 10A 24- to 12-volt converter

Horn

Lighting systems:
– Cab interior
– Two head lamps
– Two width marker
– Two reversing
– Work light/cab access light
– Two stop/tail lights
– Front and rear direction indicators

Main disconnect switch

Remote starting receptacle (cables not included)

POWERTRAIN

Auto shift six-speed forward and single-speed reverse transmission

Cat C13A engine

CX31 transmission

Differentials: standard with automatic clutched inter- and cross-axle differential locks

Dual circuit oil immersed, enclosed brakes – all wheels

Retarder: engine compression brake

Three axle, six-wheel drive

SAFETY

Reverse alarm

Rearview camera

Rollover protective structure/falling objects protective structure (ROPS/FOPS) cab

GUARDS

Rear window

Radiator

Crankcase

Front dump body spill guard

OTHER STANDARD EQUIPMENT

Mud flaps: wheel arch and body mounted with transportation tiebacks

S·O·S sampling valves

Tires, six 750/65 R25 radial

Vandalism protection: lockable caps

Hydraulic tailgate

730 EJ Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Mirrors, heated motorized

Operator seat belt, four-point

Radio, Bluetooth® stereo system

Seat, heated/cooled

TECHNOLOGY

Cat Payload monitoring system

Product Link Dual PLE683

ELECTRICAL AND LIGHTING

Cold weather start attachment (2 additional batteries)

Engine block heater

Ether start

Flashing LED beacon

Roof mounted LED work lights

OPTIONAL EQUIPMENT

Auto lube installation for automatic greasing of bearings

Cold weather coolant –51° C (–60° F)

Exhaust heated body

Fast fuel fill

Fuel additive – anti-waxing

Wheel chocks

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

Assist

Equipment Management

Payload

Productivity

Cat Stability Assist for Articulated Trucks

Cat Stability Assist for Articulated Trucks increases awareness of machine stability during operation by warning operator if machine is approaching an un-safe angle, ultimately resulting in machine safety and uptime.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat Stability Assist for Articulated Trucks increases awareness of machine stability during operation by warning operator if machine is approaching an un-safe angle, ultimately resulting in machine safety and uptime.

Explore Technology

Cat® Inspect

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.

Explore Technology
Cat® Remote Flash

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.

Explore Technology
VisionLink™

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.

Explore Technology

Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.

Explore Technology

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

Cat Payload for Articulated Trucks

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Cat® Production Measurement provides real-time payload weighing to help operators optimize hauling potential and maximize productivity. Automated tracking helps site managers monitor material movement and efficiency metrics to manage production, improve jobsite efficiency, and lower costs.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat® Production Measurement provides real-time payload weighing to help operators optimize hauling potential and maximize productivity. Automated tracking helps site managers monitor material movement and efficiency metrics to manage production, improve jobsite efficiency, and lower costs.

Explore Technology

VisionLink™ Productivity

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

VisionLink™ Productivity is an easy-to-use cloud-based platform that gathers and summarizes machine telematics and jobsite data from all your equipment. Actionable performance data is transmitted to the web platform for users to access anywhere, anytime via a mobile, tablet, or desktop device - on or off the jobsite.

Explore Technology

1 - 8 of 9 Items items

Previous Next

VisionLink™ Productivity is an easy-to-use cloud-based platform that gathers and summarizes machine telematics and jobsite data from all your equipment. Actionable performance data is transmitted to the web platform for users to access anywhere, anytime via a mobile, tablet, or desktop device - on or off the jobsite.

Explore Technology

See how 730 EJ compares against frequently compared products.

Articulated Trucks

Selected

730 EJ

Engine Model: Cat® C13A; Cat® C13A
Rated Payload: 30 ton (US); 27.1 t
Heaped (SAE 2:1): 22.1 yd³; 16.9 m³

Articulated Trucks

730 EJ

Engine Model: Cat® C13; Cat® C13
Rated Payload: 30 ton (US); 27.1 t
Heaped (SAE 2:1): 22.1 yd³; 16.9 m³

View Details

Articulated Trucks

735

Engine Model: Cat® C13; Cat® C13
Rated Payload: 35.3 ton (US); 32 t
Heaped (SAE 2:1): 26.2 yd³; 20 m³

View Details

Tools And Expert Help At Every Turn

Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

730 EJ (05A) Key Features (Afr-ME, Aus-NZ, CIS, Indonesia, Pacific Islands, S Am) Downloadable PDF Opens in a New Tab

Media Gallery

Photos

360 View

730 EJ Three Axle Articulated Truck

Three Axle Articulated Trucks 730 EJ

Overview

Equipped to handle your unique hauling needs

Benefits

RELIABLE PERFORMANCE

BUILT-IN SAFETY

IMPROVED OPERATOR EFFICIENCY

Features At A Glance

Product Specifications for 730 EJ

Engine

Weights

Body Capacities

Transmission

Sound Levels

Operating Weights

Body Plate

Eject/Retract Times

Service Refill Capacities

Standards

Turning Circle

Steering

Optimal Loader/Truck Pass Matching

730 EJ Standard Equipment

NOTE

OPERATOR ENVIRONMENT

TECHNOLOGY

ELECTRICAL AND LIGHTING

POWERTRAIN

SAFETY

GUARDS

OTHER STANDARD EQUIPMENT

730 EJ Optional Equipment

NOTE

OPERATOR ENVIRONMENT

TECHNOLOGY

ELECTRICAL AND LIGHTING

OPTIONAL EQUIPMENT

Product Specifications for 730 EJ

Engine

Weights

Body Capacities

Transmission

Sound Levels

Operating Weights

Body Plate

Eject/Retract Times

Service Refill Capacities

Standards

Turning Circle

Steering

Optimal Loader/Truck Pass Matching

730 EJ Standard Equipment

NOTE

OPERATOR ENVIRONMENT

TECHNOLOGY

ELECTRICAL AND LIGHTING

POWERTRAIN

SAFETY

GUARDS

OTHER STANDARD EQUIPMENT

730 EJ Optional Equipment

NOTE

OPERATOR ENVIRONMENT

TECHNOLOGY

ELECTRICAL AND LIGHTING

OPTIONAL EQUIPMENT

Compatible Technology and Services

Cat Stability Assist for Articulated Trucks

Cat® Inspect

Cat® Remote Flash

VisionLink™

Cat Payload for Articulated Trucks

VisionLink™ Productivity

See how 730 EJ compares against frequently compared products.

Tools And Expert Help At Every Turn

Find Dealer

Payment Calculator

Current Offers

Rental Options

Used Options

Product Brochures and More Are Ready to Download!
