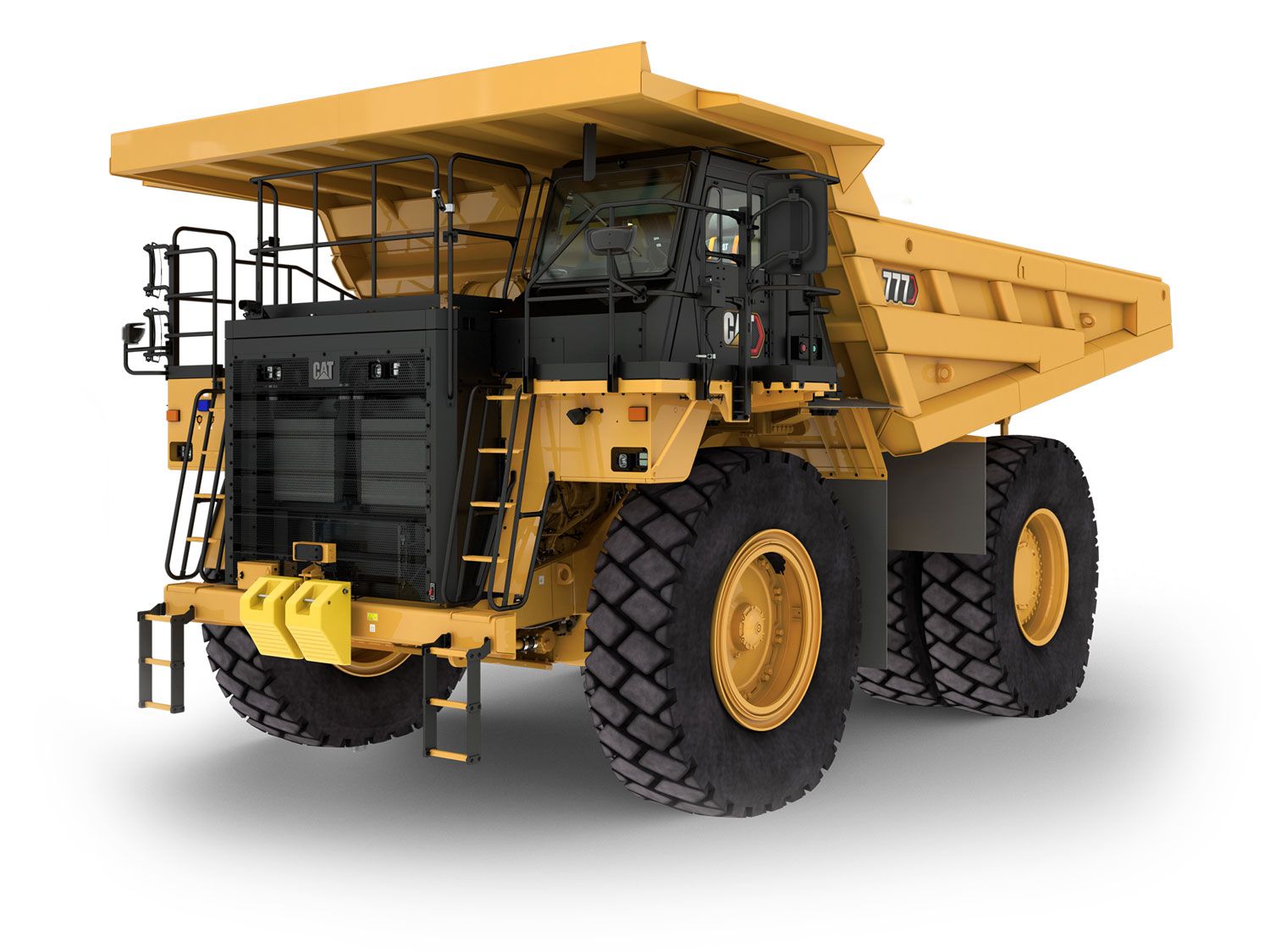

Cat 777 off-highway truck - redefining performance

777 (05) Off-Highway Trucks

Request A Price Find Dealer

Key Specs

Target Payload (100%): 107.2 ton (US); 97.3 t

Engine Model: Cat® C32B; Cat® C32B

Top Speed - Loaded: 41.7 mile/h; 67.1 km/h

777 (05)
Change model

Overview

Redefining Performance.

The Cat® 777 Off-Highway Truck provides best in class productivity with upgraded engine, superior transmission controls, comfortable cabin, increased fuel economy and torque – designed to offer a durable and low-cost per-tonne option for your applications.

Benefits

Enhanced Comfort & Technology

Integrated hoist/shift controls, expanded Cat® Detect rear vision, and simplified touchscreen display to help make operation easier. Additional features include Cat® Detect seat belt reminder, enhanced Cat® Payload, and cycle segmentation.

Increased Fuel Efficiency

Help reduce operating costs with efficient operations. Features include part-throttle shifting, adaptive economy mode, engine idle shutdown, auto neutral idle, and speed limiting.

Improved Performance & Durability

Increased torque, hydraulic actuated brakes, and responsive Advanced Productivity Control System (APECS) transmission controls, traction control, and the C32B engine help support strong performance and durability.

Features At A Glance

Displaying 1-6 of 7

ACHIEVE GREATER PRODUCTIVITY

Productivity improvement up to 5%.
Advanced Productivity Electronic Control Strategy (APECS) transmission controls carry more torque through the shifts, producing faster cycle times, most noticeably on grades.
Machine speed limit feature allows the machine to run at an optimal gear for the selected speed.
Auto stall assists in quickly bringing the transmission to an operating temperature at start-up when the machine is working in a cold climatic region.
Second gear start skips first gear engagement depending upon underfoot conditions, improving the cycle time, minimizing the number of shifts, and running the machine at an optimum speed at initial start.
Various body options along with liners and sideboard combinations offer flexibility to move a wide density of material without compromising on payload.
No engine derating required up to 3048 m (10,000 ft).

BOOST FUEL EFFICIENCY

Improved fuel economy due to optimized fuel mapping of the engine.
Configurable economy mode helps to fix the engine power reduction depending upon the application. Engine derate can bevaried from 0.5% to 15%.
Adaptive economy mode determines the most efficient engine operating point when the truck is operating at steady state condition. The most efficient operating point is determined by customer inputs on fuel saving to max expected production limitation.
Conserve fuel with integrated Engine Idle Shutdown by the engine automatically initiating when the truck is in park and idle for a preset amount of time.
Auto neutral idle saves fuel by reducing torque load when the engine is idling and minimizes the transmission component wear.

DESIGNED FOR SAFETY

Superior brake performance meets the latest brake standards –ISO 3450:2011.
Sturdy four-point mounted cabin meets ROPS/FOPS standards.

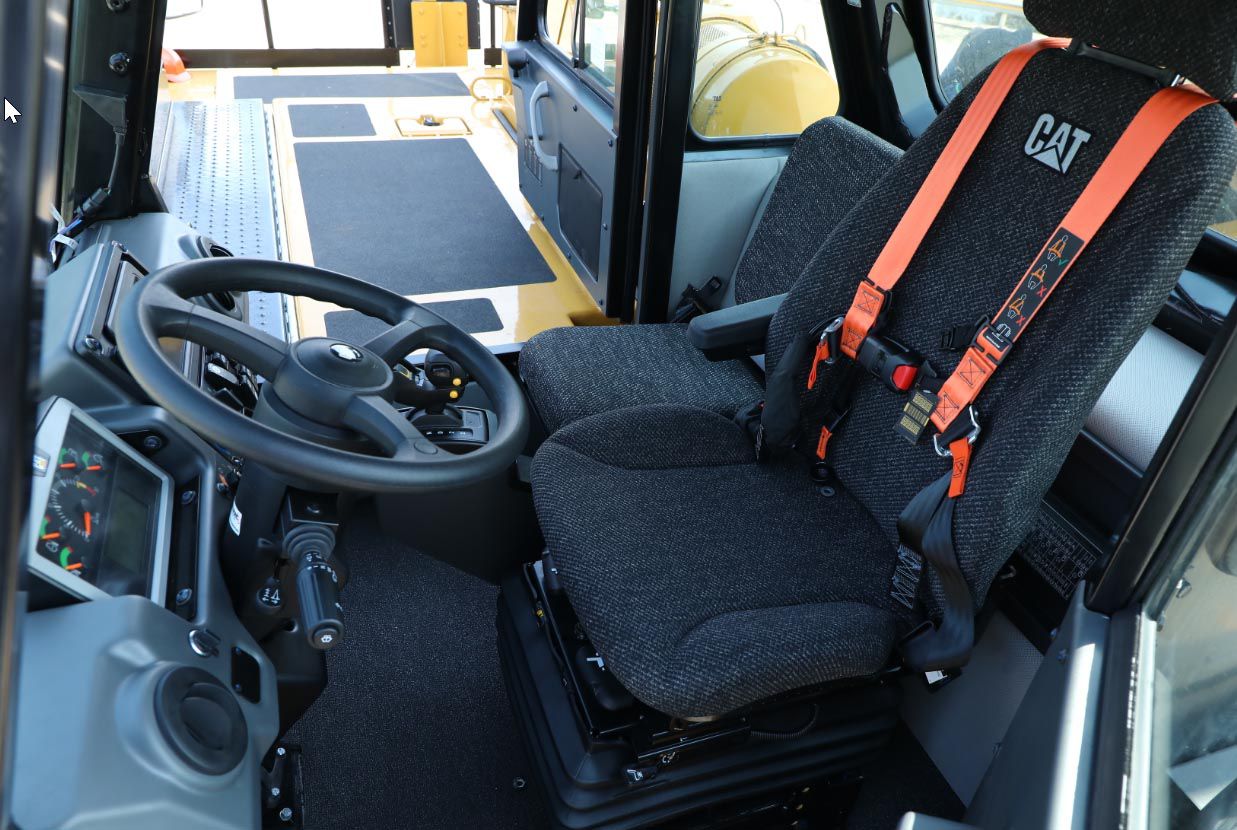

Four-point seat belt for operator and lap belt for trainer seat.
Seat belt indicator implements both visual and audible alerts to the operator when seat belt is not fastened.
Lockout features help the service technician to perform maintenance work on the machine with safe mode.
Secondary steering activates automatically in case of primary system failure.
Overload speed limiter works with truck payload system to reduce machine speed automatically when the truck is overloaded.

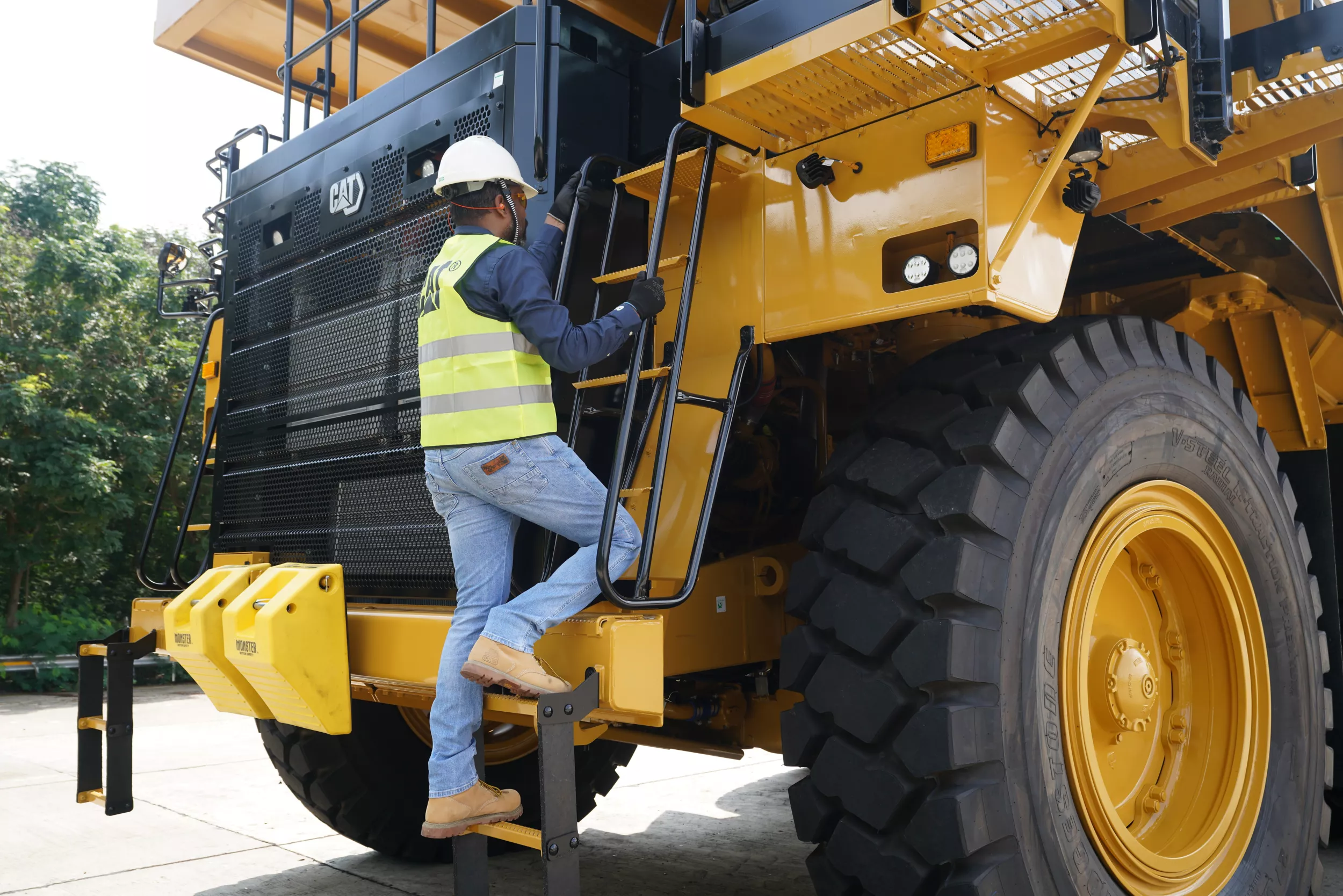

Integrated ladder access, extended catwalk, and aggressive tread plates on all steps ensure safe entry and egress.
Cat Detect system with cameras and radar monitors objects that appear within designated machine blind spots, helps safe machine operation.

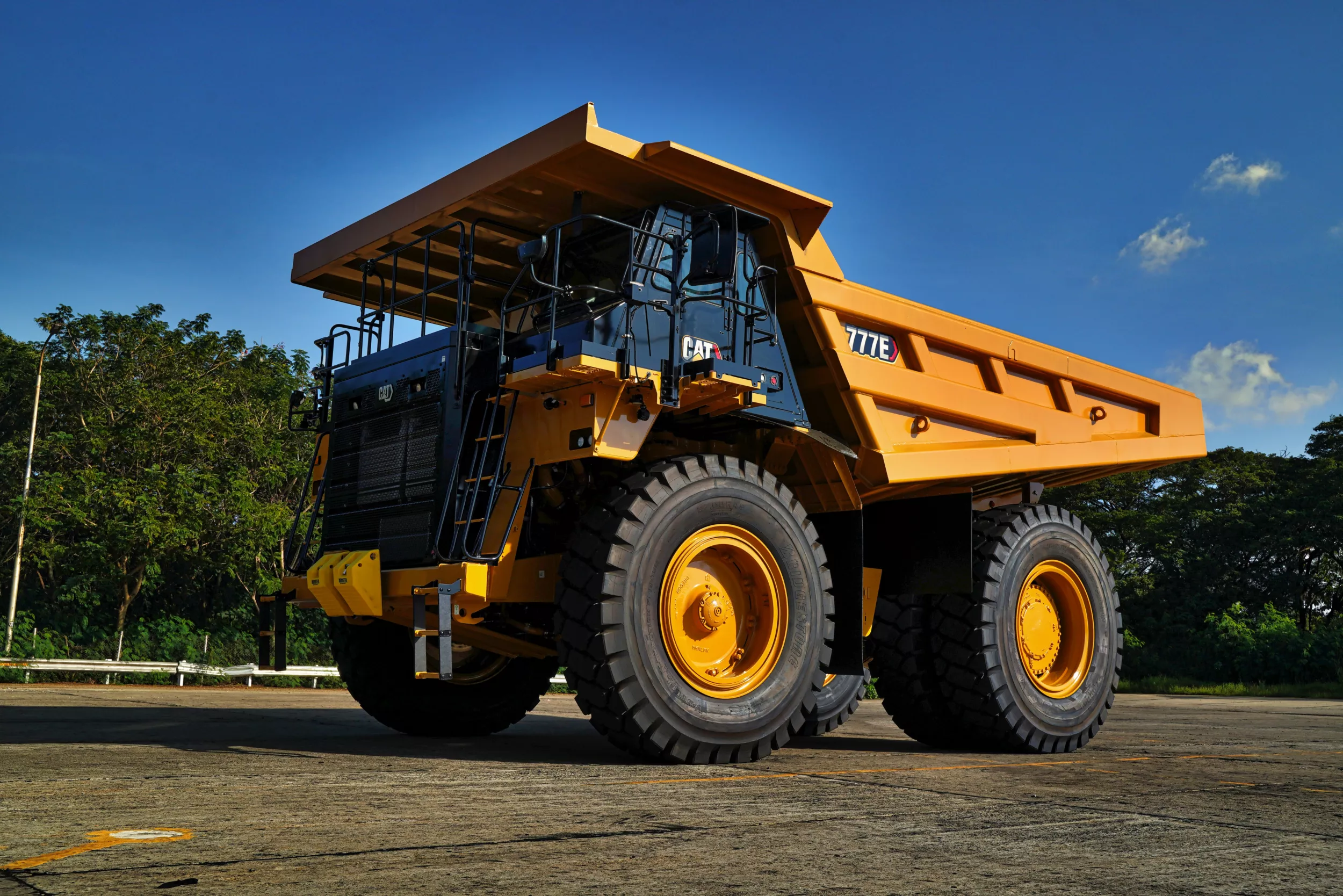

EASY TO OPERATE

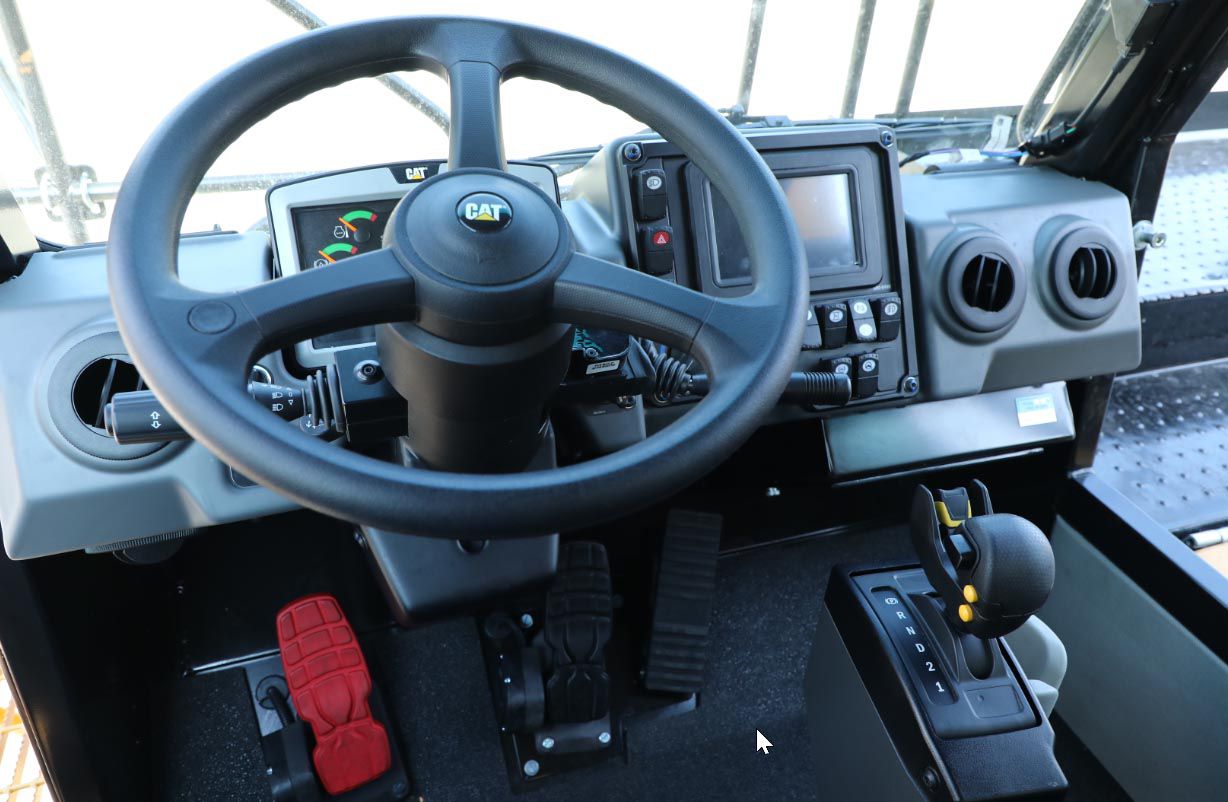

Next gen gear shift lever with integrated hoist and park brake controls for ease of operation.

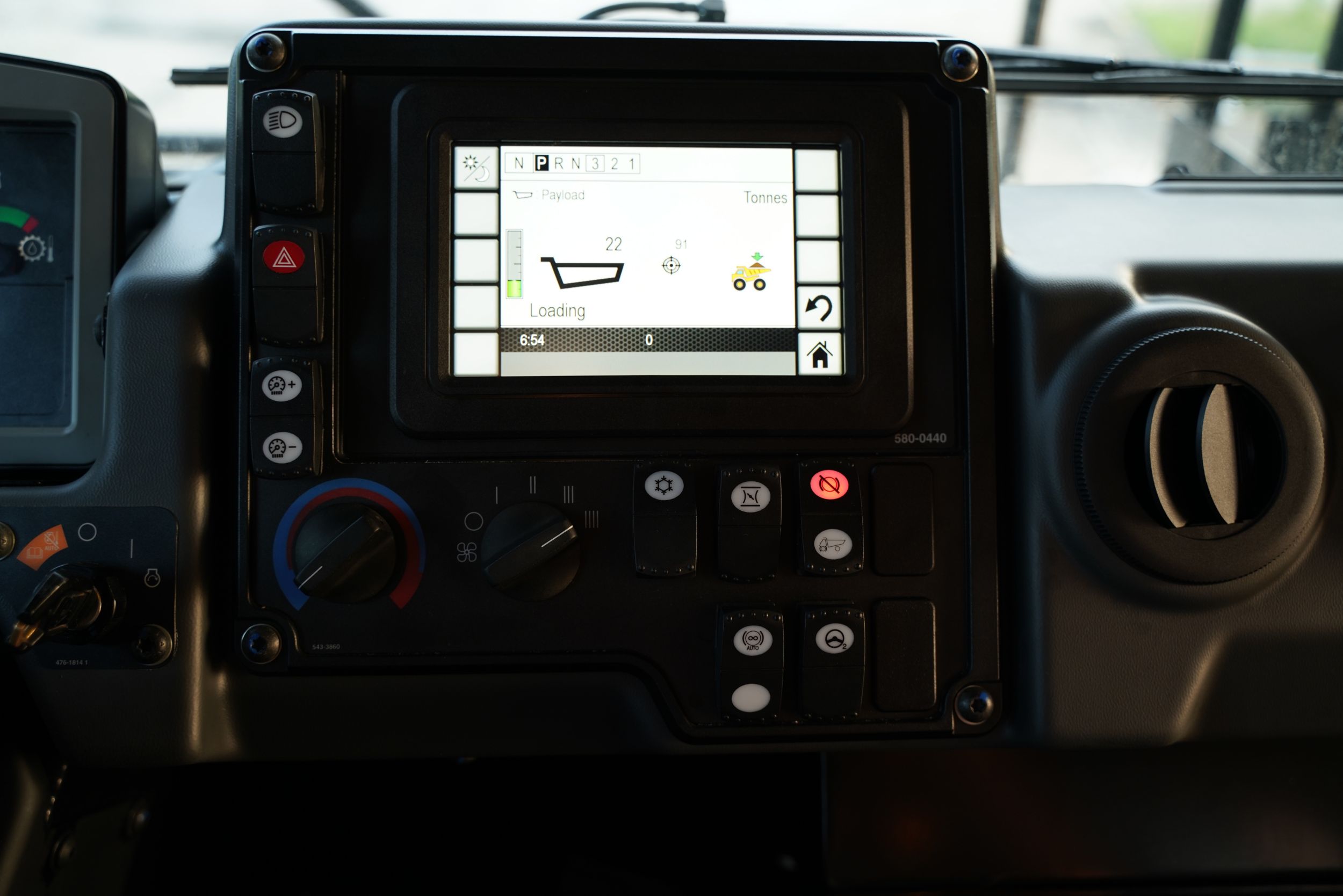

Best-in-class touchscreen display for the operator to navigate through machine control system during interaction and service of the machine.
Improved rear visibility for the operator with new mirror package on both sides of the machine.

INTEGRATED CAT TECHNOLOGIES

Product Link™ system connects to each machine wirelessly, allowing you to monitor location, hours, fuel use, productivity, idle time, and diagnostic codes.
Vital Information Management System (VIMS™ ) – user friendly interface monitor is available in the cabin to monitor key parameters of the machine.
The enhanced Truck Production Management System (TPMS 2) delivers improved payload accuracy and advanced cycle segmentation through a dual A6:N2 architecture. This next- generation platform enables faster data transmission, enhanced connectivity, and supports digital fleet management capabilities.
Cat Detect - Factory fit radar - monitors objects that appear within designated machine blind spots when the machine is in neutral or reverse.

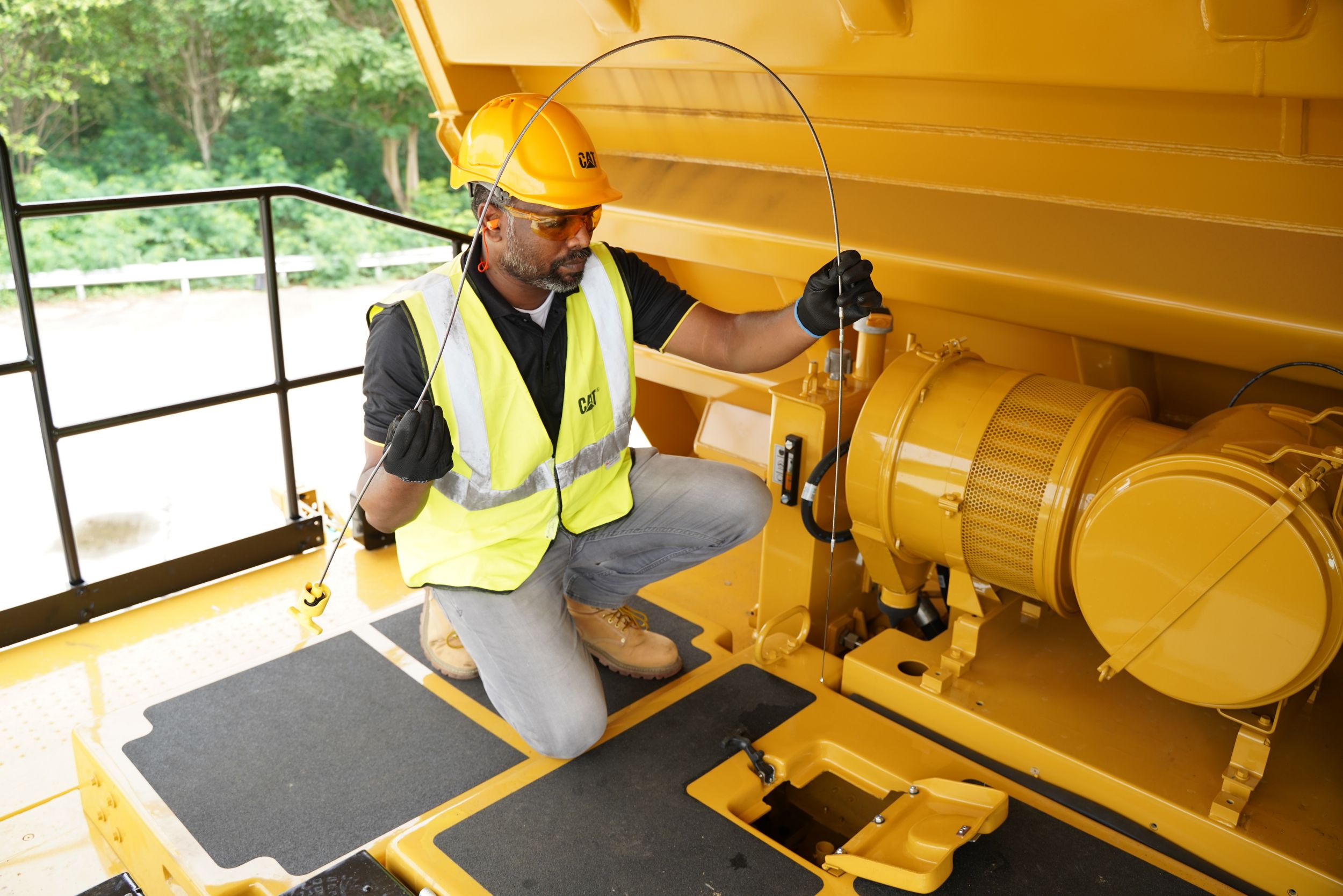

PROVEN RELIABILITY AND SERVICEABILITY

Hydraulically actuated brake system improves brake component life and reduces maintenance costs.
Convenient filters and fluid refill help make servicing of the machine faster.
New auto lubrication system to meet varying customer requirements by providing metered grease for all lube points on the machine without any manual intervention (optional attachment).
Hydraulic power port provides a quick disconnect system to allow dumping with external hydraulic source.
Engine and transmission sump oil level sensor protects the component and enhances the life.
Optional Oil Renewal System (ORS) helps reduce maintenance costs by routing used engine oil into the fuel system while automatically replenishing the engine with fresh oil from a make-up reservoir, extending service intervals and increasing machine availability.

Productivity improvement up to 5%.
Advanced Productivity Electronic Control Strategy (APECS) transmission controls carry more torque through the shifts, producing faster cycle times, most noticeably on grades.
Machine speed limit feature allows the machine to run at an optimal gear for the selected speed.
Auto stall assists in quickly bringing the transmission to an operating temperature at start-up when the machine is working in a cold climatic region.
Second gear start skips first gear engagement depending upon underfoot conditions, improving the cycle time, minimizing the number of shifts, and running the machine at an optimum speed at initial start.
Various body options along with liners and sideboard combinations offer flexibility to move a wide density of material without compromising on payload.
No engine derating required up to 3048 m (10,000 ft).

Improved fuel economy due to optimized fuel mapping of the engine.
Configurable economy mode helps to fix the engine power reduction depending upon the application. Engine derate can bevaried from 0.5% to 15%.
Adaptive economy mode determines the most efficient engine operating point when the truck is operating at steady state condition. The most efficient operating point is determined by customer inputs on fuel saving to max expected production limitation.
Conserve fuel with integrated Engine Idle Shutdown by the engine automatically initiating when the truck is in park and idle for a preset amount of time.
Auto neutral idle saves fuel by reducing torque load when the engine is idling and minimizes the transmission component wear.

Superior brake performance meets the latest brake standards –ISO 3450:2011.
Sturdy four-point mounted cabin meets ROPS/FOPS standards.
Four-point seat belt for operator and lap belt for trainer seat.
Seat belt indicator implements both visual and audible alerts to the operator when seat belt is not fastened.
Lockout features help the service technician to perform maintenance work on the machine with safe mode.
Secondary steering activates automatically in case of primary system failure.
Overload speed limiter works with truck payload system to reduce machine speed automatically when the truck is overloaded.
Integrated ladder access, extended catwalk, and aggressive tread plates on all steps ensure safe entry and egress.
Cat Detect system with cameras and radar monitors objects that appear within designated machine blind spots, helps safe machine operation.

Next gen gear shift lever with integrated hoist and park brake controls for ease of operation.
Best-in-class touchscreen display for the operator to navigate through machine control system during interaction and service of the machine.
Improved rear visibility for the operator with new mirror package on both sides of the machine.

Product Link™ system connects to each machine wirelessly, allowing you to monitor location, hours, fuel use, productivity, idle time, and diagnostic codes.
Vital Information Management System (VIMS™ ) – user friendly interface monitor is available in the cabin to monitor key parameters of the machine.
The enhanced Truck Production Management System (TPMS 2) delivers improved payload accuracy and advanced cycle segmentation through a dual A6:N2 architecture. This next- generation platform enables faster data transmission, enhanced connectivity, and supports digital fleet management capabilities.
Cat Detect - Factory fit radar - monitors objects that appear within designated machine blind spots when the machine is in neutral or reverse.

Hydraulically actuated brake system improves brake component life and reduces maintenance costs.
Convenient filters and fluid refill help make servicing of the machine faster.
New auto lubrication system to meet varying customer requirements by providing metered grease for all lube points on the machine without any manual intervention (optional attachment).
Hydraulic power port provides a quick disconnect system to allow dumping with external hydraulic source.
Engine and transmission sump oil level sensor protects the component and enhances the life.
Optional Oil Renewal System (ORS) helps reduce maintenance costs by routing used engine oil into the fuel system while automatically replenishing the engine with fresh oil from a make-up reservoir, extending service intervals and increasing machine availability.

New C32B engine with Integrated Fuel Lines (IFL) heads and Dual Sensor Coolant Protection (DSCP) for improved durability, temperature distribution, and structural robustness.
Improved transmission life and smooth shifting with APECS.
Independent hydraulic and transmission system tanks to avoid cross contamination and prolong life of oil.
Auto stall enables quick operating temperatures for best performance and life.
Delayed Engine Shutdown prevents hot shutdowns that can reduce component life.
New LED package includes head, work, indicator, and backup lights for superior visibility and durability.

Specifications Standard Equipment Optional Equipment

Product Specifications for 777 (05)

Operating Specifications

Target Payload (100%)	107.2 ton (US) 97.3 t
Top Speed - Loaded	41.7 mile/h 67.1 km/h
Maximum Working Payload (110%)	118 lb 107 t
Not to Exceed Payload (120%)	128.7 tons/min 116.7 t
Note	Empty Operating weights may vary based on the machine configuration. Empty Operating weights may vary based on the machine configuration.
Note (1)	Capacity with Dual slope body without liner Capacity with Dual slope body without liner
Note (2)	Refer to Caterpillar 10/10/20 Payload Policy for maximum gross vehicle weight limitations Refer to Caterpillar 10/10/20 Payload Policy for maximum gross vehicle weight limitations

Engine

Engine Model	Cat® C32B Cat® C32B
Engine Speed	1800 r/min 1800 r/min
Gross Power - SAE J1995:2014	1026 hp 765 kW
Net Power - SAE J1349:2011	953 hp 711 kW
Net Torque	3784 lb/ft 5130 N·m
Net Torque Rise	36% 36%
Cylinders	12 12
Bore	5.7 in 145 mm
Stroke	6.4 in 162 mm
Displacement	1959 in³ 32.1 l
Engine Power - ISO 14396:2002	1008 hp 752 kW
Emissions (1)	Meets U.S. EPA Tier 2 Equivalent emission standards. Meets U.S. EPA Tier 2 Equivalent emission standards.
Emissions (2)	Certified for China Nonroad Stage III emission standards. Certified for China Nonroad Stage III emission standards.
Note (1)	Net power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator with engine speed at 1,800 rpm. Power rating applies at 1,800 rpm when tested under the specified condition for the specified standard. Net power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator with engine speed at 1,800 rpm. Power rating applies at 1,800 rpm when tested under the specified condition for the specified standard.
Note (2)	Ratings based on SAE J1349:2011 standard air conditions of 25°C (77°F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16°C (60°F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30°C (86°F) Ratings based on SAE J1349:2011 standard air conditions of 25°C (77°F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16°C (60°F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30°C (86°F)
Note (3)	No engine derating required up to 3048 m (10,000 ft) altitude. No engine derating required up to 3048 m (10,000 ft) altitude.

Transmission

Forward - 1	6.8 mile/h 10.9 km/h
Forward - 2	9.2 mile/h 14.8 km/h
Forward - 3	12.5 mile/h 20.1 km/h
Forward - 4	16.9 mile/h 27.1 km/h
Forward - 5	22.9 mile/h 36.8 km/h
Forward - 6	30.7 mile/h 49.4 km/h
Reverse - 1	7.5 mile/h 12.1 km/h
Note	Maximum travel speeds with standard 27.00R49 (E4) tires. * 7th Gear speed is limited at 59 km/h (36.7 mph) for Vietnam market. Maximum travel speeds with standard 27.00R49 (E4) tires. * 7th Gear speed is limited at 59 km/h (36.7 mph) for Vietnam market.

Final Drives

Differential Ratio	2.74:1 2.74:1
Planetary Ratio	7.00:1 7.00:1
Total Reduction Ratio	19.16:1 19.16:1

Brakes

Brake Surface Area - Front Caliper	432 in² 2787 cm²
Brake Surface Area - Front OCDB	6235 in² 40225 cm²
Brake Surface Area - Rear	15828 in² 102116 cm²
Brake Standards	ISO 3450:2011 ISO 3450:2011

Body Hoists

Body Raise Time - High Idle	15 s 15 s
Body Lower Time - Float	13 s 13 s
Body Lower Time - High Idle	13 s 13 s

Capacity - Dual Slope - 100% Fill Factor

Struck	54.8 yd³ 41.9 m³
Heaped 2:1 (SAE)	78.6 yd³ 60.1 m³
Note (1)	Contact your local Cat dealer for body recommendation. ISO 6483:1980 Contact your local Cat dealer for body recommendation. ISO 6483:1980

Steering

Steering Standards	ISO 5010:2019 ISO 5010:2019
Steer Angle	30.5° 30.5°
Turning Diameter - Front	83 ft 25.3 m
Turning Circle - Clearance Diameter	93.2 ft 28.4 m

Operating Weights

Body Weight, Dual Slope	35378 lb 16047 kg
Empty Operating Weight, Dual Slope	145688 lb 66083 kg
Target Payload, Dual Slope	214459 lb 97277 kg
Body Weight, Flat Floor	35422 lb 16067 kg
Empty Operating Weight, Flat Floor	145732 lb 66103 kg
Target Payload, Flat Floor	214415 lb 97257 kg

Capacity - Flat Floor - 100% Fill Factor

Struck	56.4 yd³ 43.1 m³
Heaped 2:1 (SAE)	83.8 yd³ 64.1 m³
Note (1)	Contact your local Cat dealer for body recommendation. ISO 6483:1980 Contact your local Cat dealer for body recommendation. ISO 6483:1980

Service Refill Capacities

Fuel Tank	300 gal (US) 1140 l
Cooling System	56 gal (US) 212 l
Crankcase	30 gal (US) 115 l
Differentials	59 gal (US) 222 l
Final Drive - Each	11 gal (US) 42 l
Steering System - Includes Tank	16 gal (US) 60 l
Brake Hoist System	110 gal (US) 420 l
Torque Converter - Transmission System	33 gal (US) 125 l

Weight Distributions - Approximate

Rear Axle - Empty/Loaded	54% / 70% 54% / 70%
Front Axle - Empty/Loaded	46% / 30% 46% / 30%

Weight Distributions – Approximate (Dual Slope)

Rear Axle – Empty/Loaded	46% / 30% 46% / 30%
Front Axle – Empty/Loaded	46% / 30% 46% / 30%

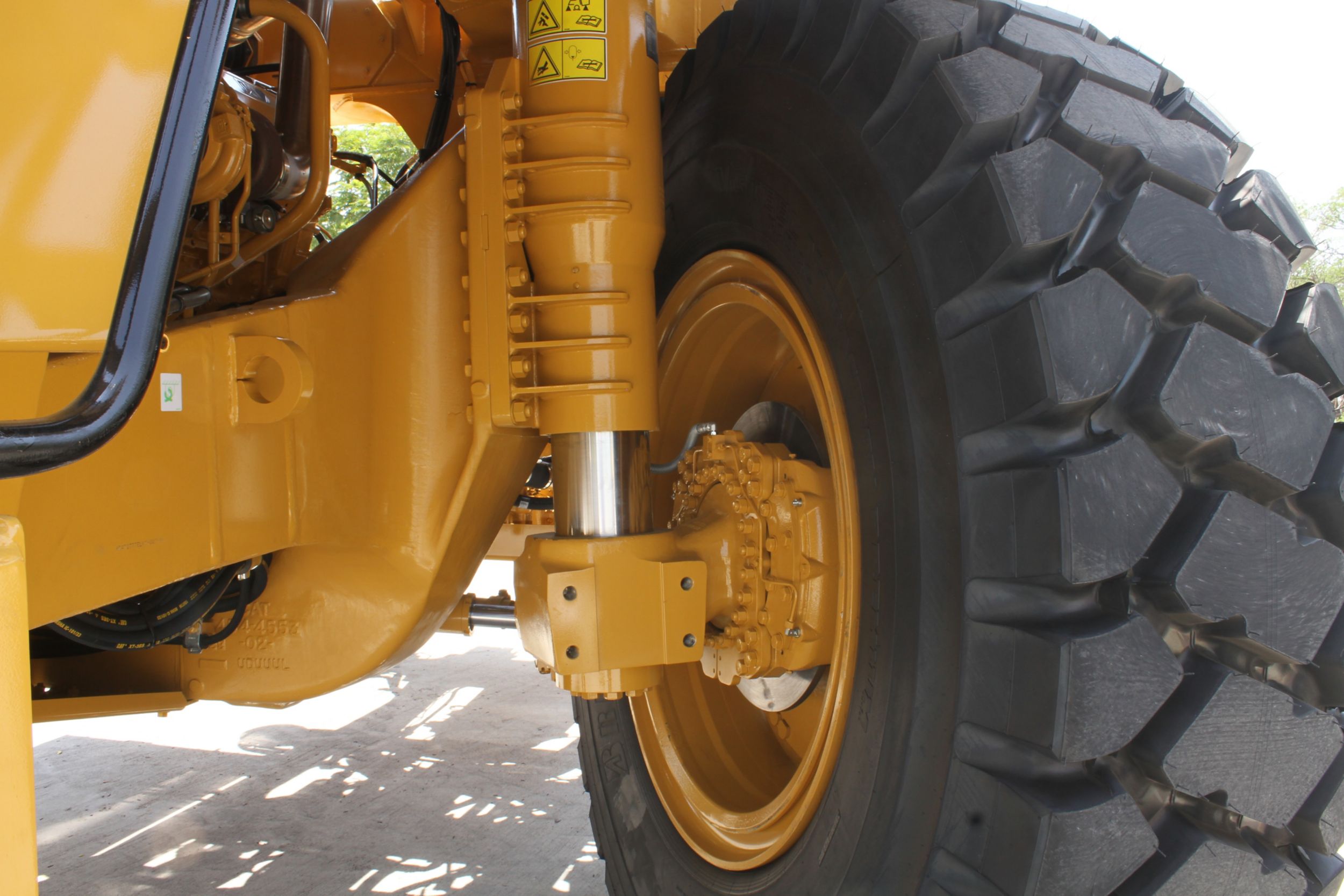

Suspension

Effective Cylinder Stroke - Front	12.5 in 318 mm
Effective Cylinder Stroke - Rear	6.5 in 165 mm
Rear Axle - Oscillation	5.4° 5.4°

Weight Distributions – Approximate (Flat Floor)

Rear Axle – Empty/Loaded	55% / 72% 55% / 72%
Front Axle – Empty/Loaded	45% / 28% 45% / 28%

Tires

Standard Tire	27.00R49 (E4) 27.00R49 (E4)
Note (1)	• Productive capabilities of the 777-05 truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production. • Productive capabilities of the 777-05 truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production.
Note (2)	• Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection. • Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection.

Sound

Note (1)

The dynamic operator sound pressure level is 80 dB(A) as per ISO 6396:2008 for cab offered by Caterpillar. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed. The dynamic operator sound pressure level is 80 dB(A) as per ISO 6396:2008 for cab offered by Caterpillar. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed.

Sound Standards

ISO 6396:2008 ISO 6396:2008

Cab

Note (1)	Rollover Protective Structure (ROPS)/Falling Objects Protective Structure (FOPS) Rollover Protective Structure (ROPS)/Falling Objects Protective Structure (FOPS)
Note (2)	ROPS meets ISO 3471:2008 for operator and ISO 13459:2012 for trainer ROPS criteria. FOPS meets ISO 3449:2005 Level II for operator and ISO 13459:2012 Level II for trainer FOPS criteria. ROPS meets ISO 3471:2008 for operator and ISO 13459:2012 for trainer ROPS criteria. FOPS meets ISO 3449:2005 Level II for operator and ISO 13459:2012 Level II for trainer FOPS criteria.

Dimensions (Approximate) - Dual Slope

Height - Top of ROPS - Loaded	15.52 ft 4730 mm
Overall Body Length	31.35 ft 9555 mm
Inside Body Length	22.70 ft 6920 mm
Overall Length	32.82 ft 10004 mm
Wheel Base	14.99 ft 4570 mm
Rear Axle - Tail	9.99 ft 3045 mm
Ground Clearance	2.94 ft 896 mm
Dump Clearance	2.92 ft 890 mm
Loading Height - Empty	14.37 ft 4380 mm
Inside Body Depth - Maximum	6.22 ft 1895 mm
Overall Height - Body Raised	32.65 ft 9953 mm
Operating Width - Extended Catwalk	21.47 ft 6545 mm
Centerline Front Tire Width	13.66 ft 4163 mm
Overall Front Tire Width	16.28 ft 4961 mm
Engine Guard Clearance	2.83 ft 864 mm
Overall Canopy Width	20.34 ft 6200 mm
Outside Body Width	18.12 ft 5524 mm
Inside Body Width	17.05 ft 5197 mm
Front Canopy Height - Loaded	16.98 ft 5177 mm
Rear Axle - Clearance	2.96 ft 902 mm
Centerline of Rear Dual Tire Width	11.73 ft 3576 mm
Overall Tire Width	17.26 ft 5262 mm

Approximate Weights - Dual Slope

Body	35378 lb 16047 kg
Empty Vehicle	145688 lb 66083 kg

Approximate Weights - Flat Floor

Body

35422 lb 16067 kg

777 (05) Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

POWER TRAIN

Engine idle shutdown

Air-to-air aftercooler (ATAAC)

Air cleaner with precleaner (2)

Automatic cold mode idle control

Electric priming pump

Two starters and four batteries

Fuel filter/water separator

Turbocharger (2)

Braking system
- Oil cooled, multiple disc (rear)
- Parking
- Secondary
- Caliper disc (front)
- Manual retarder (utilizes rear oil cooled, multiple disc brakes)
- Brake release motor (towing)

Body up shift inhibitor

Controlled throttle shifting

Directional shift management

Downshift inhibitor

Neutral start switch

Neutral coast inhibitor

Reverse shift inhibitor

Reverse neutralizer during dumping

Programmable top gear selection

SUSPENSION SYSTEMS

Hydro pneumatic suspension
- Front and rear

ELECTRICAL

Alarm, backup

Alternator, 145 amp

Auxiliary jump start receptacle

Batteries, maintenance-free, 12V (4), 190 amp-hour

Electrical system, 10 amp, 24V to 12V converter

MineStar™ ready

Backup light, halogen

Directional signals/hazard warning
- Front and rear, LED

Headlights, halogen, with dimmer

Operator access courtesy lights

Stop/tail lights, LED

OPERATOR ENVIRONMENT

HVAC

Ashtray and cigarette lighter

Coat hook

Diagnostic connection port

Entertainment radio ready
- Speakers, antenna, wiring harness

Air cleaner service indicator

Transmission oil temperature gauge

Air system pressure gauge

Brake oil temperature gauge

Coolant temperature gauge

Hour meter

Tachometer

Engine overspeed indicator

Fuel level, gauge

Speedometer with odometer

Transmission gear indicator

Hoist lever

Horn

Load counter, automatic

Mirrors, left and right

ROPS cab, insulated/sound suppressed

Seat, Caterpillar comfort, full air suspension and retractable four point seat belt with shoulder harness

Seat, trainer with lap belt

Steering wheel, padded/tilt/telescopic

Storage compartment

Sun visor

Throttle lock

Right side access door

Left side power window

Windshield wiper, intermittent, and washer

Tinted, laminated glass

GUARDS

Engine crankcase

Driveline, operator safety vandalism protection lock

FLUIDS

Extended life coolant to –35° C (–30° F)

OTHER STANDARD EQUIPMENT

Airline dryer

Body mounting group

Body safety pin (secures body in up position)

Body down indicator

CD ROM parts book

Center mounted rims

Ground level battery disconnect

Ground level engine shutdown

Ground level grease fittings

Reservoirs
- Transmission
- Steering
- Brake, converter and hoist

Rims 19.5 × 49

Rock ejectors

Supplemental steering, automatic

Tie down eyes

Tow hooks (front)/tow pin (rear)

777 (05) Optional Equipment

POWER TRAIN

Front oil cooled disc brake

Retarder control - automatic

Traction control system

OPERATOR ENVIRONMENT

Heated mirror

ELECTRICAL SYSTEM

Audio visual backup alarm

Camera system

Cat Detect system

Fog lamp

Truck payload management system (TPMS)

Vital Information Management System (VIMS TM)

OTHER

Ground-level grease fittings

Automatic lubrication system (27kg/40kg)

Body line

Cold weather package

Exhaust Muffler

Fast fluid fill system

Fire extinguisher

High speed engine oil change system

Hydraulic power port

Wheel Chocks

Product Specifications for 777 (05)

Download Print

Operating Specifications

Target Payload (100%)	107.2 ton (US) 97.3 t
Top Speed - Loaded	41.7 mile/h 67.1 km/h
Maximum Working Payload (110%)	118 lb 107 t
Not to Exceed Payload (120%)	128.7 tons/min 116.7 t
Note	Empty Operating weights may vary based on the machine configuration. Empty Operating weights may vary based on the machine configuration.
Note (1)	Capacity with Dual slope body without liner Capacity with Dual slope body without liner
Note (2)	Refer to Caterpillar 10/10/20 Payload Policy for maximum gross vehicle weight limitations Refer to Caterpillar 10/10/20 Payload Policy for maximum gross vehicle weight limitations

Engine

Engine Model	Cat® C32B Cat® C32B
Engine Speed	1800 r/min 1800 r/min
Gross Power - SAE J1995:2014	1026 hp 765 kW
Net Power - SAE J1349:2011	953 hp 711 kW
Net Torque	3784 lb/ft 5130 N·m
Net Torque Rise	36% 36%
Cylinders	12 12
Bore	5.7 in 145 mm
Stroke	6.4 in 162 mm
Displacement	1959 in³ 32.1 l
Engine Power - ISO 14396:2002	1008 hp 752 kW
Emissions (1)	Meets U.S. EPA Tier 2 Equivalent emission standards. Meets U.S. EPA Tier 2 Equivalent emission standards.
Emissions (2)	Certified for China Nonroad Stage III emission standards. Certified for China Nonroad Stage III emission standards.
Note (1)	Net power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator with engine speed at 1,800 rpm. Power rating applies at 1,800 rpm when tested under the specified condition for the specified standard. Net power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator with engine speed at 1,800 rpm. Power rating applies at 1,800 rpm when tested under the specified condition for the specified standard.
Note (2)	Ratings based on SAE J1349:2011 standard air conditions of 25°C (77°F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16°C (60°F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30°C (86°F) Ratings based on SAE J1349:2011 standard air conditions of 25°C (77°F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16°C (60°F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30°C (86°F)
Note (3)	No engine derating required up to 3048 m (10,000 ft) altitude. No engine derating required up to 3048 m (10,000 ft) altitude.

Transmission

Forward - 1	6.8 mile/h 10.9 km/h
Forward - 2	9.2 mile/h 14.8 km/h
Forward - 3	12.5 mile/h 20.1 km/h
Forward - 4	16.9 mile/h 27.1 km/h
Forward - 5	22.9 mile/h 36.8 km/h
Forward - 6	30.7 mile/h 49.4 km/h
Reverse - 1	7.5 mile/h 12.1 km/h
Note	Maximum travel speeds with standard 27.00R49 (E4) tires. * 7th Gear speed is limited at 59 km/h (36.7 mph) for Vietnam market. Maximum travel speeds with standard 27.00R49 (E4) tires. * 7th Gear speed is limited at 59 km/h (36.7 mph) for Vietnam market.

Final Drives

Differential Ratio	2.74:1 2.74:1
Planetary Ratio	7.00:1 7.00:1
Total Reduction Ratio	19.16:1 19.16:1

Brakes

Brake Surface Area - Front Caliper	432 in² 2787 cm²
Brake Surface Area - Front OCDB	6235 in² 40225 cm²
Brake Surface Area - Rear	15828 in² 102116 cm²
Brake Standards	ISO 3450:2011 ISO 3450:2011

Body Hoists

Body Raise Time - High Idle	15 s 15 s
Body Lower Time - Float	13 s 13 s
Body Lower Time - High Idle	13 s 13 s

Capacity - Dual Slope - 100% Fill Factor

Struck	54.8 yd³ 41.9 m³
Heaped 2:1 (SAE)	78.6 yd³ 60.1 m³
Note (1)	Contact your local Cat dealer for body recommendation. ISO 6483:1980 Contact your local Cat dealer for body recommendation. ISO 6483:1980

Steering

Steering Standards	ISO 5010:2019 ISO 5010:2019
Steer Angle	30.5° 30.5°
Turning Diameter - Front	83 ft 25.3 m
Turning Circle - Clearance Diameter	93.2 ft 28.4 m

Operating Weights

Body Weight, Dual Slope	35378 lb 16047 kg
Empty Operating Weight, Dual Slope	145688 lb 66083 kg
Target Payload, Dual Slope	214459 lb 97277 kg
Body Weight, Flat Floor	35422 lb 16067 kg
Empty Operating Weight, Flat Floor	145732 lb 66103 kg
Target Payload, Flat Floor	214415 lb 97257 kg

Capacity - Flat Floor - 100% Fill Factor

Struck	56.4 yd³ 43.1 m³
Heaped 2:1 (SAE)	83.8 yd³ 64.1 m³
Note (1)	Contact your local Cat dealer for body recommendation. ISO 6483:1980 Contact your local Cat dealer for body recommendation. ISO 6483:1980

Service Refill Capacities

Fuel Tank	300 gal (US) 1140 l
Cooling System	56 gal (US) 212 l
Crankcase	30 gal (US) 115 l
Differentials	59 gal (US) 222 l
Final Drive - Each	11 gal (US) 42 l
Steering System - Includes Tank	16 gal (US) 60 l
Brake Hoist System	110 gal (US) 420 l
Torque Converter - Transmission System	33 gal (US) 125 l

Weight Distributions - Approximate

Rear Axle - Empty/Loaded	54% / 70% 54% / 70%
Front Axle - Empty/Loaded	46% / 30% 46% / 30%

Weight Distributions – Approximate (Dual Slope)

Rear Axle – Empty/Loaded	46% / 30% 46% / 30%
Front Axle – Empty/Loaded	46% / 30% 46% / 30%

Suspension

Effective Cylinder Stroke - Front	12.5 in 318 mm
Effective Cylinder Stroke - Rear	6.5 in 165 mm
Rear Axle - Oscillation	5.4° 5.4°

Weight Distributions – Approximate (Flat Floor)

Rear Axle – Empty/Loaded	55% / 72% 55% / 72%
Front Axle – Empty/Loaded	45% / 28% 45% / 28%

Tires

Standard Tire	27.00R49 (E4) 27.00R49 (E4)
Note (1)	• Productive capabilities of the 777-05 truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production. • Productive capabilities of the 777-05 truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production.
Note (2)	• Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection. • Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection.

Sound

Note (1)

Sound Standards

ISO 6396:2008 ISO 6396:2008

Cab

Note (1)	Rollover Protective Structure (ROPS)/Falling Objects Protective Structure (FOPS) Rollover Protective Structure (ROPS)/Falling Objects Protective Structure (FOPS)
Note (2)	ROPS meets ISO 3471:2008 for operator and ISO 13459:2012 for trainer ROPS criteria. FOPS meets ISO 3449:2005 Level II for operator and ISO 13459:2012 Level II for trainer FOPS criteria. ROPS meets ISO 3471:2008 for operator and ISO 13459:2012 for trainer ROPS criteria. FOPS meets ISO 3449:2005 Level II for operator and ISO 13459:2012 Level II for trainer FOPS criteria.

Dimensions (Approximate) - Dual Slope

Height - Top of ROPS - Loaded	15.52 ft 4730 mm
Overall Body Length	31.35 ft 9555 mm
Inside Body Length	22.70 ft 6920 mm
Overall Length	32.82 ft 10004 mm
Wheel Base	14.99 ft 4570 mm
Rear Axle - Tail	9.99 ft 3045 mm
Ground Clearance	2.94 ft 896 mm
Dump Clearance	2.92 ft 890 mm
Loading Height - Empty	14.37 ft 4380 mm
Inside Body Depth - Maximum	6.22 ft 1895 mm
Overall Height - Body Raised	32.65 ft 9953 mm
Operating Width - Extended Catwalk	21.47 ft 6545 mm
Centerline Front Tire Width	13.66 ft 4163 mm
Overall Front Tire Width	16.28 ft 4961 mm
Engine Guard Clearance	2.83 ft 864 mm
Overall Canopy Width	20.34 ft 6200 mm
Outside Body Width	18.12 ft 5524 mm
Inside Body Width	17.05 ft 5197 mm
Front Canopy Height - Loaded	16.98 ft 5177 mm
Rear Axle - Clearance	2.96 ft 902 mm
Centerline of Rear Dual Tire Width	11.73 ft 3576 mm
Overall Tire Width	17.26 ft 5262 mm

Approximate Weights - Dual Slope

Body	35378 lb 16047 kg
Empty Vehicle	145688 lb 66083 kg

Approximate Weights - Flat Floor

Body

35422 lb 16067 kg

777 (05) Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

POWER TRAIN

Engine idle shutdown

Air-to-air aftercooler (ATAAC)

Air cleaner with precleaner (2)

Automatic cold mode idle control

Electric priming pump

Two starters and four batteries

Fuel filter/water separator

Turbocharger (2)

Braking system
- Oil cooled, multiple disc (rear)
- Parking
- Secondary
- Caliper disc (front)
- Manual retarder (utilizes rear oil cooled, multiple disc brakes)
- Brake release motor (towing)

Body up shift inhibitor

Controlled throttle shifting

Directional shift management

Downshift inhibitor

Neutral start switch

Neutral coast inhibitor

Reverse shift inhibitor

Reverse neutralizer during dumping

Programmable top gear selection

SUSPENSION SYSTEMS

Hydro pneumatic suspension
- Front and rear

ELECTRICAL

Alarm, backup

Alternator, 145 amp

Auxiliary jump start receptacle

Batteries, maintenance-free, 12V (4), 190 amp-hour

Electrical system, 10 amp, 24V to 12V converter

MineStar™ ready

Backup light, halogen

Directional signals/hazard warning
- Front and rear, LED

Headlights, halogen, with dimmer

Operator access courtesy lights

Stop/tail lights, LED

OPERATOR ENVIRONMENT

HVAC

Ashtray and cigarette lighter

Coat hook

Diagnostic connection port

Entertainment radio ready
- Speakers, antenna, wiring harness

Air cleaner service indicator

Transmission oil temperature gauge

Air system pressure gauge

Brake oil temperature gauge

Coolant temperature gauge

Hour meter

Tachometer

Engine overspeed indicator

Fuel level, gauge

Speedometer with odometer

Transmission gear indicator

Hoist lever

Horn

Load counter, automatic

Mirrors, left and right

ROPS cab, insulated/sound suppressed

Seat, Caterpillar comfort, full air suspension and retractable four point seat belt with shoulder harness

Seat, trainer with lap belt

Steering wheel, padded/tilt/telescopic

Storage compartment

Sun visor

Throttle lock

Right side access door

Left side power window

Windshield wiper, intermittent, and washer

Tinted, laminated glass

GUARDS

Engine crankcase

Driveline, operator safety vandalism protection lock

FLUIDS

Extended life coolant to –35° C (–30° F)

OTHER STANDARD EQUIPMENT

Airline dryer

Body mounting group

Body safety pin (secures body in up position)

Body down indicator

CD ROM parts book

Center mounted rims

Ground level battery disconnect

Ground level engine shutdown

Ground level grease fittings

Reservoirs
- Transmission
- Steering
- Brake, converter and hoist

Rims 19.5 × 49

Rock ejectors

Supplemental steering, automatic

Tie down eyes

Tow hooks (front)/tow pin (rear)

777 (05) Optional Equipment

POWER TRAIN

Front oil cooled disc brake

Retarder control - automatic

Traction control system

OPERATOR ENVIRONMENT

Heated mirror

ELECTRICAL SYSTEM

Audio visual backup alarm

Camera system

Cat Detect system

Fog lamp

Truck payload management system (TPMS)

Vital Information Management System (VIMS TM)

OTHER

Ground-level grease fittings

Automatic lubrication system (27kg/40kg)

Body line

Cold weather package

Exhaust Muffler

Fast fluid fill system

Fire extinguisher

High speed engine oil change system

Hydraulic power port

Wheel Chocks

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

VisionLink™

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

1 - 8 of 9 Items items

Previous Next

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

See how 777 (05) compares against frequently compared products.

Off-Highway Trucks

Selected

777 (05)

Target Payload (100%): 107.2 ton (US); 97.3 t
Engine Model: Cat® C32B; Cat® C32B
Top Speed - Loaded: 41.7 mile/h; 67.1 km/h

Off-Highway Trucks

775 (08)

Nominal Payload Class (100%): 71.6 ton (US); 65 t
Engine Model: Cat® C27; Cat® C27
Top Speed - Loaded: 41.6 mile/h; 67 km/h

View Details

Off-Highway Trucks

777 (07)

Target Payload (100%): 101.1 ton (US); 91.7 t
Engine Model: Cat® C32B; Cat® C32B
Top Speed - Loaded: 40.9 mile/h; 65.9 km/h

View Details

Use the comparison tool to compare detailed specs of Cat and competitor models.

Compare All Models

Tools And Expert Help At Every Turn

Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

Media Gallery

Photos

360 View

777 (05B) Off-Highway Truck

777 (05B) Internal Cab

777 (05B) Internal Cab Dashboard

777 (05) Off-Highway Trucks

Overview

Redefining Performance.

Benefits

Enhanced Comfort & Technology

Increased Fuel Efficiency

Improved Performance & Durability

Features At A Glance

ACHIEVE GREATER PRODUCTIVITY

BOOST FUEL EFFICIENCY

DESIGNED FOR SAFETY

EASY TO OPERATE

INTEGRATED CAT TECHNOLOGIES

PROVEN RELIABILITY AND SERVICEABILITY

ENHANCED DURABILTIY

Product Specifications for 777 (05)

Operating Specifications

Engine

Transmission

Final Drives

Brakes

Body Hoists

Capacity - Dual Slope - 100% Fill Factor

Steering

Operating Weights

Capacity - Flat Floor - 100% Fill Factor

Service Refill Capacities

Weight Distributions - Approximate

Weight Distributions – Approximate (Dual Slope)

Suspension

Weight Distributions – Approximate (Flat Floor)

Tires

Sound

Cab

Dimensions (Approximate) - Dual Slope

Approximate Weights - Dual Slope

Approximate Weights - Flat Floor

777 (05) Standard Equipment

NOTE

POWER TRAIN

SUSPENSION SYSTEMS

ELECTRICAL

OPERATOR ENVIRONMENT

GUARDS

FLUIDS

OTHER STANDARD EQUIPMENT

777 (05) Optional Equipment

POWER TRAIN

OPERATOR ENVIRONMENT

ELECTRICAL SYSTEM

OTHER

Product Specifications for 777 (05)

Operating Specifications

Engine

Transmission

Final Drives

Brakes

Body Hoists

Capacity - Dual Slope - 100% Fill Factor

Steering

Operating Weights

Capacity - Flat Floor - 100% Fill Factor

Service Refill Capacities

Weight Distributions - Approximate

Weight Distributions – Approximate (Dual Slope)

Suspension

Weight Distributions – Approximate (Flat Floor)

Tires

Sound

Cab

Dimensions (Approximate) - Dual Slope

Approximate Weights - Dual Slope

Approximate Weights - Flat Floor

777 (05) Standard Equipment

NOTE

POWER TRAIN

SUSPENSION SYSTEMS

ELECTRICAL

OPERATOR ENVIRONMENT

GUARDS

Product Brochures and More Are Ready to Download!
