HM5515 Standard Forestry Mulcher Mulchers

Request A Price Find Dealer

Key Specs

Motor: Variable Torque Hydraulic Piston Motor; Variable Torque Hydraulic Piston Motor

Overall Width: 78 in; 1984 mm

Drive Method: Poly Chain Belt; Poly Chain Belt

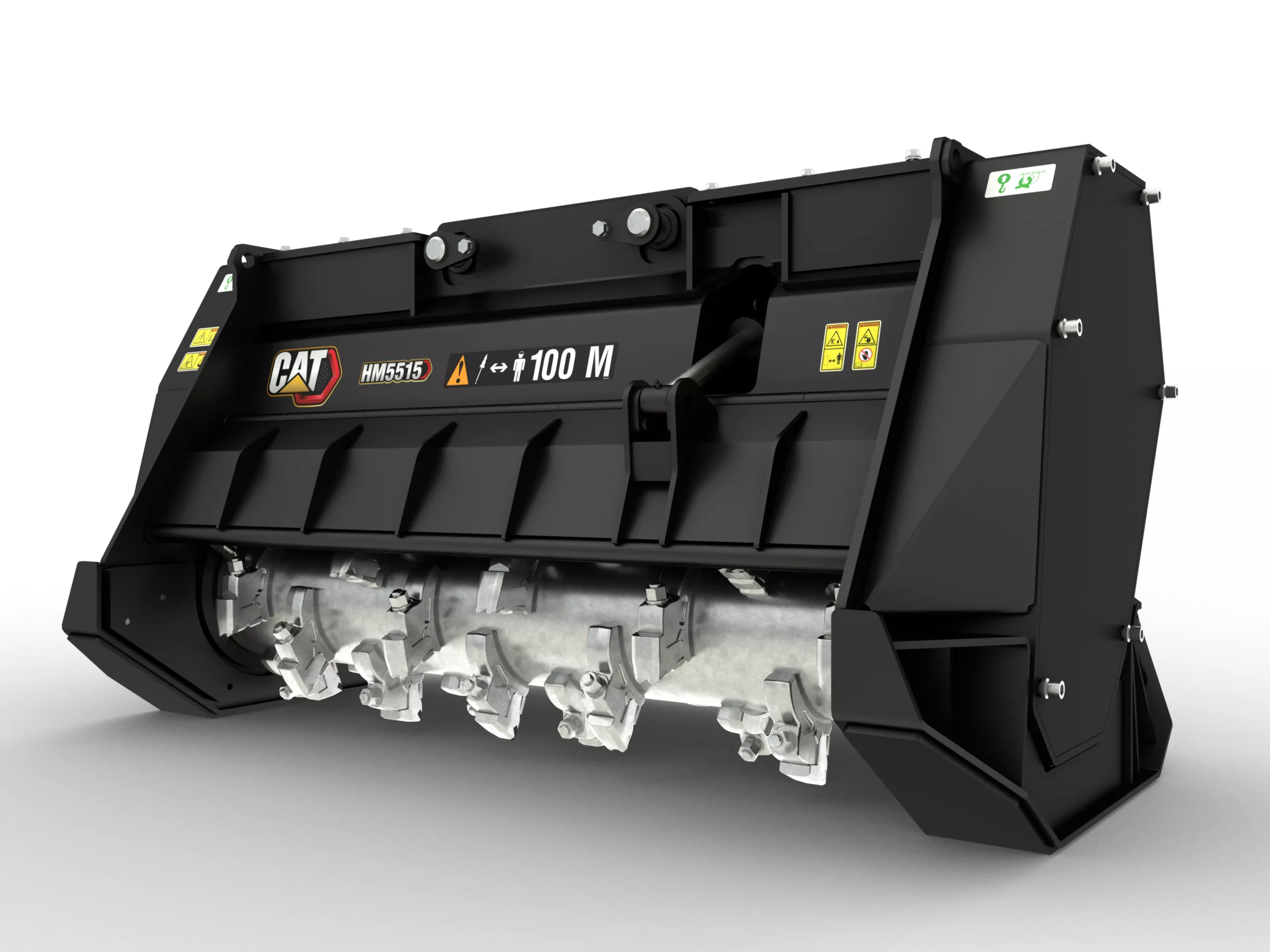

HM5515 Standard Forestry Mulcher
Change model

Overview

Cat® forestry mulchers have industry-leading features to ensure you are getting the best productivity from a mulcher for tracked and wheeled excavators, all while keeping your work environment and equipment safe.

Features At A Glance

Displaying 1-6 of 4

Reliable Performance

Cut trees from 152 mm (6 in) up to 407 mm (16 in) in diameter.
Two rotor types:
- Standard – rotor with teeth only
- Bite limiter – rotor with teeth separated by ribs to help prevent rotor stalling and creates finer shredded materials
Variable torque hydraulic piston motor shifts between high speed, low torque and low speed, high torque to give you speed when you need it and power when it counts.
Brackets allow the mulchers to be mounted to a variety of excavators within each size class.
The staggered tooth design reduces stalling and jamming.
Mulcher teeth options vary by application and preference on final material size:
- Standard: Most commonly used option. Fairly fine final product used where there is minimal rock present and durability is needed.
- Rock Crushing: Larger final product, but can work in applications where rocks are present.
- Bite Limiter: Very fine final product due to aggressive edge of the blade with the limiters and counter knives. Use where rocks are minimal and there are large amounts of standing timber.
Hardened counter blades reduce finished material size and increase the rate of composting.

Easy Maintenance

Access internal components quickly and easily with bolt-on service panels.
Poly chain belt driven transmission eliminates slippage on startup, reducing maintenance costs.
The motor is integrated into the frame to protect it from dust, damage, and impact from falling debris.
Ensure service panel security with access bolts recessed into the panel, protecting them from debris.
Get back to work faster with field-replaceable wear parts.

Prioritized Safety

Hydraulic mulching door keeps the work environment and equipment safe by dispersing materials according to your application and surroundings.
The mulching door operation is controlled by electric diverter valve or medium pressure hydraulic kits from the cab.
- Door closed – right-of-way clearing, near powerlines and pipelines, and roadside maintenance.
- Door open – vegetation management, jobsite clearing, forest wood fuel removal, and firebreaks.
Flow control valve protects the motor from excessive flow.
Ground-level primary grease points keep you safe while performing daily maintenance.
Bolt-on, replaceable skids keep the mulcher from going into the ground or into materials expediting wear or causing damage.

Boost Efficiency and Productivity with Integrated Technologies

Never waste time looking for your attachments again. Cat PL161 Attachment Locator is available on most attachments.
Track your entire fleet of attachments and machines from one source. Attachments with asset tracking can be viewed within VisionLink® alongside Product Link™ subscribed equipment.
Keep your assets secure. Attachments with an asset tracker send an alert if they leave an easy-to-setup site boundary.

Cut trees from 152 mm (6 in) up to 407 mm (16 in) in diameter.
Two rotor types:
- Standard – rotor with teeth only
- Bite limiter – rotor with teeth separated by ribs to help prevent rotor stalling and creates finer shredded materials
Variable torque hydraulic piston motor shifts between high speed, low torque and low speed, high torque to give you speed when you need it and power when it counts.
Brackets allow the mulchers to be mounted to a variety of excavators within each size class.
The staggered tooth design reduces stalling and jamming.
Mulcher teeth options vary by application and preference on final material size:
- Standard: Most commonly used option. Fairly fine final product used where there is minimal rock present and durability is needed.
- Rock Crushing: Larger final product, but can work in applications where rocks are present.
- Bite Limiter: Very fine final product due to aggressive edge of the blade with the limiters and counter knives. Use where rocks are minimal and there are large amounts of standing timber.
Hardened counter blades reduce finished material size and increase the rate of composting.

Access internal components quickly and easily with bolt-on service panels.
Poly chain belt driven transmission eliminates slippage on startup, reducing maintenance costs.
The motor is integrated into the frame to protect it from dust, damage, and impact from falling debris.
Ensure service panel security with access bolts recessed into the panel, protecting them from debris.
Get back to work faster with field-replaceable wear parts.

Hydraulic mulching door keeps the work environment and equipment safe by dispersing materials according to your application and surroundings.
The mulching door operation is controlled by electric diverter valve or medium pressure hydraulic kits from the cab.
- Door closed – right-of-way clearing, near powerlines and pipelines, and roadside maintenance.
- Door open – vegetation management, jobsite clearing, forest wood fuel removal, and firebreaks.
Flow control valve protects the motor from excessive flow.
Ground-level primary grease points keep you safe while performing daily maintenance.
Bolt-on, replaceable skids keep the mulcher from going into the ground or into materials expediting wear or causing damage.

Never waste time looking for your attachments again. Cat PL161 Attachment Locator is available on most attachments.
Track your entire fleet of attachments and machines from one source. Attachments with asset tracking can be viewed within VisionLink® alongside Product Link™ subscribed equipment.
Keep your assets secure. Attachments with an asset tracker send an alert if they leave an easy-to-setup site boundary.

Product Specifications for HM5515 Standard Forestry Mulcher

Motor	Variable Torque Hydraulic Piston Motor Variable Torque Hydraulic Piston Motor
Overall Width	78 in 1984 mm
Drive Method	Poly Chain Belt Poly Chain Belt
Working Width	62 in 1584 mm
Maximum Cutting Diameter	16 in 406 mm
Overall Height	40.5 in 1028 mm
Length	44 in 1108 mm
Fixed Teeth per Drum	34 34
Weight	4718 lb 2140 kg
Optimal Hydraulic Flow	200-300 L/min (53-80 gpm) 200-300 L/min (53-80 gpm)
Optimal Hydraulic Pressure	207-345 bar (3000-5000 psi) 207-345 bar (3000-5000 psi)
Drum Speed	1800-2000 rpm 1800-2000 rpm

Product Specifications for HM5515 Standard Forestry Mulcher

Download Print

Motor	Variable Torque Hydraulic Piston Motor Variable Torque Hydraulic Piston Motor
Overall Width	78 in 1984 mm
Drive Method	Poly Chain Belt Poly Chain Belt
Working Width	62 in 1584 mm
Maximum Cutting Diameter	16 in 406 mm
Overall Height	40.5 in 1028 mm
Length	44 in 1108 mm
Fixed Teeth per Drum	34 34
Weight	4718 lb 2140 kg
Optimal Hydraulic Flow	200-300 L/min (53-80 gpm) 200-300 L/min (53-80 gpm)
Optimal Hydraulic Pressure	207-345 bar (3000-5000 psi) 207-345 bar (3000-5000 psi)
Drum Speed	1800-2000 rpm 1800-2000 rpm
