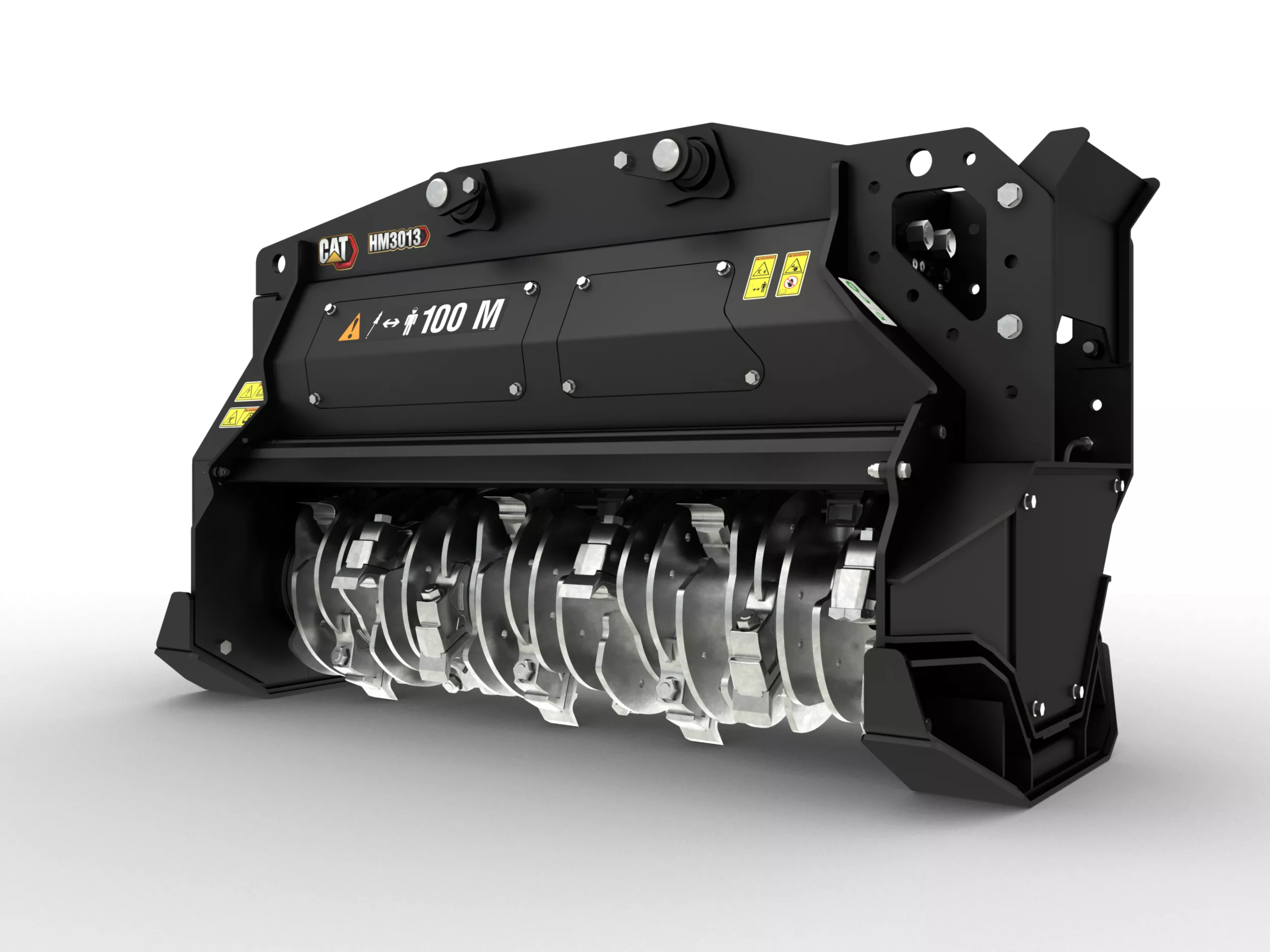

Mulchers HM3013 Dedicated Bite Limiter Forestry Mulcher

Request A Price Find Dealer

Key Specs

Motor
Variable Torque Hydraulic Piston Motor
Variable Torque Hydraulic Piston Motor
Overall Width
65 in
1656 mm
Drive Method
Poly Chain Belt
Poly Chain Belt

Overview

Cat® forestry mulchers have industry-leading features to ensure you are getting the best productivity from a mulcher for tracked and wheeled excavators, all while keeping your work environment and equipment safe.

Product Specifications for HM3013 Dedicated Bite Limiter Forestry Mulcher

Motor Variable Torque Hydraulic Piston Motor Variable Torque Hydraulic Piston Motor
Overall Width 65 in 1656 mm
Drive Method Poly Chain Belt Poly Chain Belt
Working Width 53 in 1342 mm
Maximum Cutting Diameter 6 in 152 mm
Overall Height 39 in 984 mm
Length 33 in 832 mm
Fixed Teeth per Drum 22 22
Weight 2535 lb 1150 kg
Optimal Hydraulic Flow 121-201 L/min (32-53 gpm) 121-201 L/min (32-53 gpm)
Optimal Hydraulic Pressure 207-345 bar (3000-5000 psi) 207-345 bar (3000-5000 psi)
Drum Speed 2500-2700 rpm 2500-2700 rpm

See how HM3013 Dedicated Bite Limiter Forestry Mulcher compares against frequently compared products.

Product Brochures and More Are Ready to Download!

Media Gallery

Photos

Photos

Photos

Photos

Photos

Photos
Photos
Photos
Photos
Photos

Cat<sup>®</sup> Forestry Mulchers | Introduction to Mulchers

Cat<sup>®</sup>  Forestry Mulchers | Introduction to Mulchers

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

  • Cat PL161 Attachment Tracker

    The Cat PL161 Attachment Tracker is the most advanced OEM integrated solution for attachment tracking. The PL161 mounts easily to your attachments or anything else you want to track.
